Old 11-01-2010, 07:38 AM   #1
2010 SS RS


2010 SS RS's Avatar

Drives: 2010 2SS/RS IBM Black Polished
Join Date: Feb 2009
Location: Colorado
Posts: 2,108
First two Stroker 418 built by Laramie GM Auto Center

Well we are officially done and doing the break in on Two 418 Strokers builds.
Teddy P25 and mine went in to Laramie GM Auto Center about 7 weeks ago.
Pretty much the same builds but we went different directions on the Cam size.
We both started with ls3's with about 15K on them. Engines pulled and the build began. First we needed to decide what we wanted for forged parts and pistons.
With the help of Brian and Clint (Clint@Air) we were told to get a true 418 we needed to bore to 4080 up from our stock 4064. So with some searching we found Callies Compstar Crankshafts, HRacing bearings, Callies Compstar Rods, and went with CP Pistons -13.8 dish with steel rings. The blocks were sent off to the machine shop once the pistons arrived. Top end of mine I went with LG Motorsports g6xb cam kit. Ted went with a custom grind executive cam from JRE. Both kits included the HD timing chain and new tensioner. Sitting on top of that is Edelbrock EForce SC currently with 3.25 pulleys. A few small items such as JRE Dual Fuel kit for the Edelbrocks were added along with 89.7 lb injectors. Also Crancase Vent filters and oil catch cans. Ted backed his up with a ZR1 clutch from JRE and I went with the Spec Super Twin. Further down the line we both went with the JRE posi clutch upgrade kits. Well after being built we found that the fuel delivery system was really lacking after the MSD BAP. With research primarily from a ton of experts at HP Tuners we found that the BAP wired in before the factory Fuel Controller get the voltage reduced thus did not perform well or sufficient. So we order the LRE Dual fuel pump and controller. Once it arrived we found that the controller is actually a GM part. It is from a GM Truck. But the bottom line is that at WOT injectors are at 40% and fuel pressure is a real 58 lbs so solution is done. Clint@Air drove up to Laramie and performed a street tune so we could safely drive to do the break in. Great service from an engine tuner to drive 380 miles round trip to do this for us. New SC pulleys have been ordered from Edelbrock and we will be putting the 2.75 pulleys on. This should bring our boost back up to 10 to 12 lbs. I will report as soon as they arrive. Once they get here it will be back to Clint's shop for a dyno tune. I will be going with E85 conversion and Ted is going with Meth injection. Sorry it is too early for the dyno numbers but we estimate we are somewhere in the mid 600's with Hp and 700 lbs of torque. And after the correct pulleys are put on we should be in the mid to high 700 RWHP and nearly 800 lbs torque. Dyno sheets should be up around the second week of November.
__________________
418 Stroker, 621RWHP 648 lbs TORQUE Built by Laramie GM Auto Center Tuned by Nick at Mac Autosport. EForce SC, 2 3/4pulley,LPE dual fuel pump, JRE Twin fuel rail upgrade, posi clutch kit, RX oilcatch can and breather, Callies Compstar crankshaft and rods, Racing bearings, CP -13.8 race pistons, steel rings, Comp Cams X6 blower cam, Springs, HD timing chain and tensioner, Doug Thorley Tri Y LT headers, 89.7lb injectors, RPM rollbar, DSS1400 shafts, Simpson 5 pt harness, BMR Toe rods and trailing arms, led lights, RPM input and output shafts
2010 SS RS is offline   Reply With Quote
Old 11-01-2010, 10:10 AM   #2
NewGen

NewGen's Avatar

Drives: 2013 Camaro ZL1
Join Date: Sep 2010
Location: Hammond, Louisiana
Posts: 412
Send a message via AIM to NewGen Send a message via MSN to NewGen
__________________
Young Man wanting Big Power
NewGen is offline   Reply With Quote
Old 11-01-2010, 11:05 AM   #3
Notneb

Drives: 2006 Dodge Viper
Join Date: Sep 2010
Location: Washington
Posts: 133
I...want...one...
Notneb is offline   Reply With Quote
Old 11-01-2010, 11:12 AM   #4
TeddyP25

TeddyP25's Avatar

Drives: 2SS
Join Date: May 2009
Location: Fort Collins
Posts: 611

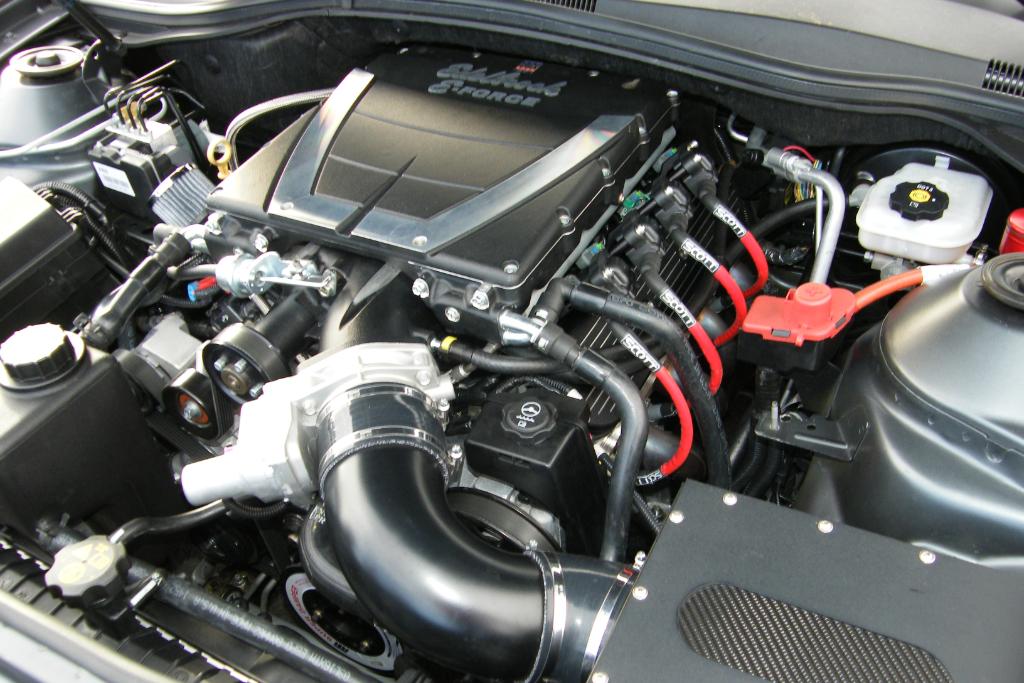

Heres a pic of mine
Attached Images

__________________
2SS/RS CGM/BLK GFX MN6418 Stroker.785rwhp/885lbtq.50 SHOT NO2..Pfadt arms,toe links,coilovers,swaybars,end links,engine mounts,dif/sub bushings.MGWshifter.Tick LVL 3.ARH1 7/8 LT's/ARH exhaust.ADM gauges/race CAI.E-FORCE SC.8 rib IW 10%OD.LPE dual pump/module.85lb inj,custom valve covers.RMCR tune.TOOLEY RACING CAM.JRE posi kit.JRE fuel upgrade.RX MONSTER CatchCan.DSS axels/DS.Hammerhead rear, 3:73's. WYOSPEED builthttp://www.camaro5.com/forums/showthread.php?t=115687
TeddyP25 is offline   Reply With Quote
Old 11-01-2010, 11:20 AM   #5
lexlueger



lexlueger's Avatar

Drives: V10 BMW M5, Supercharged 2SS/RS
Join Date: Jun 2010
Location: Charlotte NC /Brooklyn NY
Posts: 2,304
Lemme hold one! We're all friends here
__________________
MAST 416 STROKER: STAGE 3 TVS 2300
CUSTOM CAM
TPIS 102 TB
IW 8 RIB PULLEY W/ OD COG REARS
NX EXPRESS/NANO KIT

KDI HEAT EXCHANGER/ROTOFAB RESERVOIR
CIRCLE D 2800 TC/FLEX PLATE/ADM TRANS COOLER
DSS DRIVESHAFT/1400 HP AXLES
EATON TRUETRAC -LPE 3.27 GEARS
DYNATECH HEADERS/MAGNAFLOW EXHAUST
SQUASH RETURN STYLE FS ID 850's E85/ FLEXFUEL
BMR/EIBACH SUSPENSION

KILL MODE, ON.


lexlueger is offline   Reply With Quote
Old 11-01-2010, 01:46 PM   #6
DallasMike

DallasMike's Avatar

Drives: 2010 2ss/rs, 2004 pontiac gto
Join Date: May 2009
Location: Mckinney, TX
Posts: 220
Just curious as to why you choice the Larmie GM dealership to perform the work.

Granted it has been years since I lived in Laramie but when I did they didn't do any aftermarket builds whatsoever.
DallasMike is offline   Reply With Quote
Old 11-01-2010, 02:29 PM   #7
TeddyP25

TeddyP25's Avatar

Drives: 2SS
Join Date: May 2009
Location: Fort Collins
Posts: 611
Brian, one of the mechanics, is a great camaro enthusiast as well as a owner and racer. The dealership has been very supportive and open to doing these type of upgrades. Overall just very comfortable with them.
__________________
2SS/RS CGM/BLK GFX MN6418 Stroker.785rwhp/885lbtq.50 SHOT NO2..Pfadt arms,toe links,coilovers,swaybars,end links,engine mounts,dif/sub bushings.MGWshifter.Tick LVL 3.ARH1 7/8 LT's/ARH exhaust.ADM gauges/race CAI.E-FORCE SC.8 rib IW 10%OD.LPE dual pump/module.85lb inj,custom valve covers.RMCR tune.TOOLEY RACING CAM.JRE posi kit.JRE fuel upgrade.RX MONSTER CatchCan.DSS axels/DS.Hammerhead rear, 3:73's. WYOSPEED builthttp://www.camaro5.com/forums/showthread.php?t=115687
TeddyP25 is offline   Reply With Quote
Old 11-01-2010, 02:57 PM   #8
DallasMike

DallasMike's Avatar

Drives: 2010 2ss/rs, 2004 pontiac gto
Join Date: May 2009
Location: Mckinney, TX
Posts: 220
Quote:
Originally Posted by TeddyP25 View Post
Brian, one of the mechanics, is a great camaro enthusiast as well as a owner and racer. The dealership has been very supportive and open to doing these type of upgrades. Overall just very comfortable with them.

Very cool. I miss that part of the country a lot. Different way of life, that's for sure!
DallasMike is offline   Reply With Quote
Old 11-01-2010, 10:04 PM   #9
camaro692

Drives: 2010 Camaro SS, G8 GT, HD FLHRX
Join Date: Sep 2009
Location: Greeley, CO
Posts: 309
Man thats sweet, im in greeley and id love to check that out. Maybe ill bring my KB GT500 for comparision...
__________________
[SIGPIC][/SIGP
camaro692 is offline   Reply With Quote
Old 11-01-2010, 10:09 PM   #10
RobRiot88

RobRiot88's Avatar

Drives: 2010 SS 6m, black on black.
Join Date: Jul 2010
Location: savannah
Posts: 202
DAMN. it sounds like some serious badassedness.
__________________
RobRiot88 is offline   Reply With Quote
Old 11-01-2010, 10:11 PM   #11
2010 SSRS




2010 SSRS's Avatar

Drives: 3 V8 Camaros
Join Date: May 2009
Location: The Ocean State
Posts: 111,215
can I have one for Christmas
__________________
Jannetty Racing JRE Street Package
2010 SSRS is offline   Reply With Quote
Old 11-01-2010, 11:03 PM   #12
TeddyP25

TeddyP25's Avatar

Drives: 2SS
Join Date: May 2009
Location: Fort Collins
Posts: 611
Quote:
Originally Posted by camaro692 View Post
Man thats sweet, im in greeley and id love to check that out. Maybe ill bring my KB GT500 for comparision...
Anytime...in break in mode right now, poss doin 1st dyno run wed or thu.
__________________
2SS/RS CGM/BLK GFX MN6418 Stroker.785rwhp/885lbtq.50 SHOT NO2..Pfadt arms,toe links,coilovers,swaybars,end links,engine mounts,dif/sub bushings.MGWshifter.Tick LVL 3.ARH1 7/8 LT's/ARH exhaust.ADM gauges/race CAI.E-FORCE SC.8 rib IW 10%OD.LPE dual pump/module.85lb inj,custom valve covers.RMCR tune.TOOLEY RACING CAM.JRE posi kit.JRE fuel upgrade.RX MONSTER CatchCan.DSS axels/DS.Hammerhead rear, 3:73's. WYOSPEED builthttp://www.camaro5.com/forums/showthread.php?t=115687
TeddyP25 is offline   Reply With Quote
Old 11-02-2010, 06:40 AM   #13
2010 SS RS


2010 SS RS's Avatar

Drives: 2010 2SS/RS IBM Black Polished
Join Date: Feb 2009
Location: Colorado
Posts: 2,108
Quote:
Originally Posted by camaro692 View Post
Man thats sweet, im in greeley and id love to check that out. Maybe ill bring my KB GT500 for comparision...
Heck yeah that would be great. You should check out our clubs FB page. We are always doing something. Camaro Club of the Rockies on FB. More than likely will be out again this weekend doing some more break in miles. Ted and I are waiting for the right pulleys to arrive. After the stroke and camshafts our boost fell off the planet. So once we get those right we should really start having some fun.

Quote:
Originally Posted by 2010 SSRS View Post
can I have one for Christmas
Bahahahahah I know you already have yours fixed up as nice. cant fool me! How has yours been coming along?
__________________
418 Stroker, 621RWHP 648 lbs TORQUE Built by Laramie GM Auto Center Tuned by Nick at Mac Autosport. EForce SC, 2 3/4pulley,LPE dual fuel pump, JRE Twin fuel rail upgrade, posi clutch kit, RX oilcatch can and breather, Callies Compstar crankshaft and rods, Racing bearings, CP -13.8 race pistons, steel rings, Comp Cams X6 blower cam, Springs, HD timing chain and tensioner, Doug Thorley Tri Y LT headers, 89.7lb injectors, RPM rollbar, DSS1400 shafts, Simpson 5 pt harness, BMR Toe rods and trailing arms, led lights, RPM input and output shafts
2010 SS RS is offline   Reply With Quote
Old 11-02-2010, 02:45 PM   #14
Jchaluja


Jchaluja's Avatar

Drives: Twin Turbo Camaro
Join Date: Feb 2009
Location: Jacksonville, FL
Posts: 1,320
How many miles are putting on for break in before your dyno tune? Awesome ride!
Jchaluja is offline   Reply With Quote
