My Maggie install.........

So tomorrow, after church, I will begin the install.

It's been killing me having this thing here and not getting on it.

Any tid bits of advice, experiences, warnings, or ideas you think might help, just post away.

I followed a regional thread already and got a few pointers and things to look out for, but too many is not enough. lol

I will update the progress as I go. May take a week or so. I'm gonna shoot some video and I can't devote all my time to it. But I don't expect it to take any longer. I will update here as I go with pics and any problems or items.

My first question after looking over the book; Is there a substitute for the "Lubriplate" lubricant?

Because my blower was previously installed on another Camaro I don't have a few things. The previous owner boxed it up and left a few out. I can improvise on most of it but this is one I'm not sure on.

On a side note, Bonnie told me to go have it installed by a pro. I told her they wanted 1400.00 and she said do it because the Emergancy Room visit last time I worked on the car was WAY more than that.

Not expecting any injuries this time.

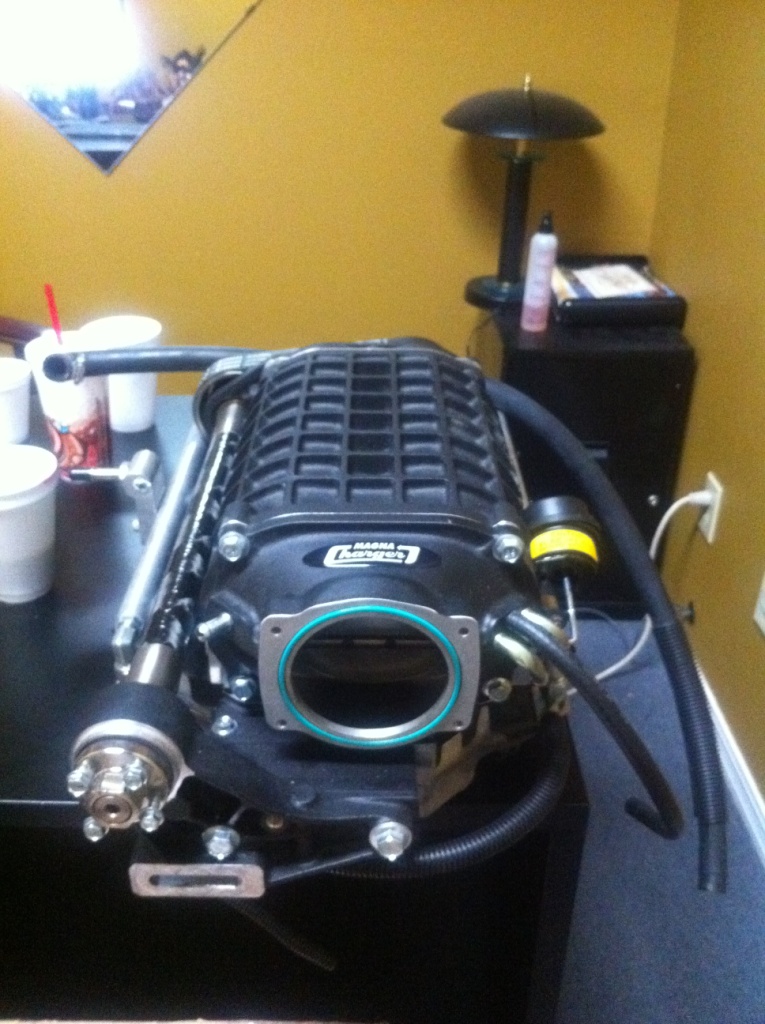

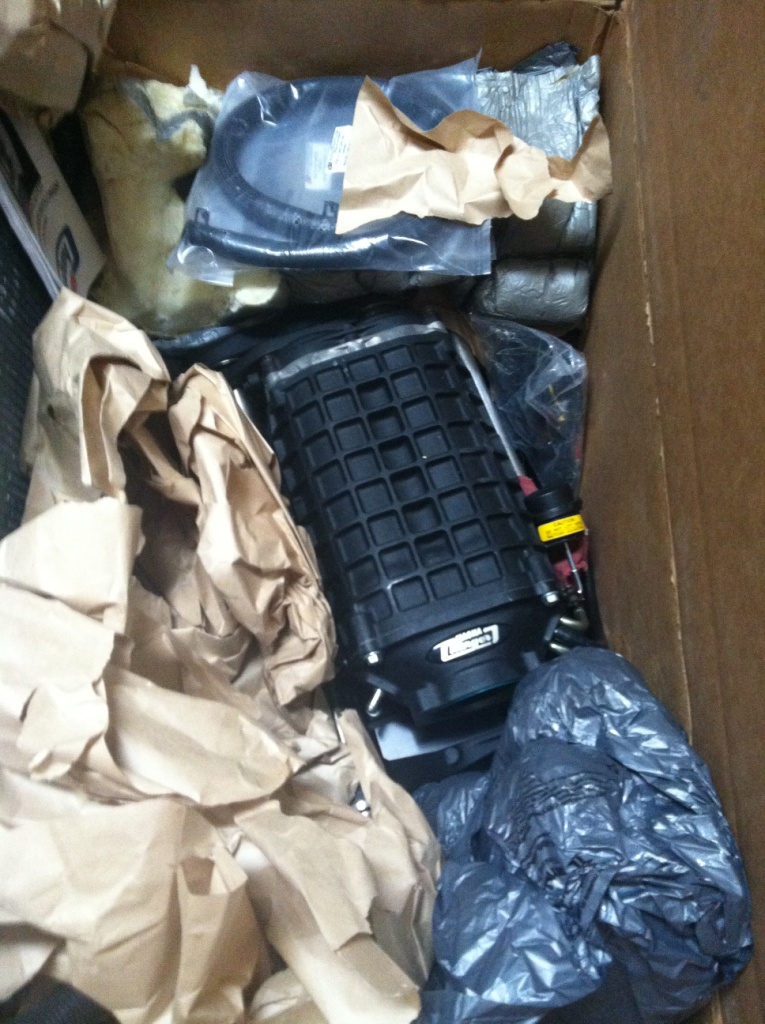

My Maggie.

I don't know the guy personaly, but I know Tim. It was not Tim who sold me the unit but Tim does his engine work and Tim put me in touch with him. Tim didn't pack the unit up or anything. And still to Tims credit has taken good care of me.

Name:  IMG_1086.JPG
Views: 2985
Size:  295.0 KB

Name:  IMG_1093.JPG
Views: 2931
Size:  264.1 KB
__________________

Last edited by PQ; 01-13-2011 at 04:35 PM.
PQ is offline   Reply With Quote
Old 01-02-2011, 02:26 AM   #2
zebra
just can't seem to leave

zebra's Avatar

Drives: your mom wild!!
Join Date: Oct 2008
Location: cold & windy
Posts: 11,591
__________________
zebra is offline   Reply With Quote
Old 01-02-2011, 02:28 AM   #3
zebra
just can't seem to leave

zebra's Avatar

Drives: your mom wild!!
Join Date: Oct 2008
Location: cold & windy
Posts: 11,591
i knew you couldn't let Chris out-do ya!

call me if you need any help
__________________
zebra is offline   Reply With Quote
Old 01-02-2011, 07:50 AM   #4
wkdivr

Drives: 2004 GMC
Join Date: Sep 2010
Location: W.Pa
Posts: 43
Make sure you have an adequate supply of 1/4in drive metric sockets, wobblers, extensions, and universal joints to get at all of the intake bolts. And remember, INCH pounds, not foot pounds. You can get "Lubriplate" at any parts store, but I think any white lithium grease will work.
wkdivr is offline   Reply With Quote
Old 01-02-2011, 07:56 AM   #5
speedster
SST...

speedster's Avatar

Drives: SST Camaro 2010
Join Date: Oct 2008
Location: East Coast of Florida
Posts: 6,057
Quote:
Originally Posted by PQ View Post
My first question after looking over the book; Is there a substitute for the "Lubriplate" lubricant?

In what context? Maggie end housing lube? assembly lube? gasket lube ? Lubriplate is usually a synthetic based lube by Mobil. They also do food grade stuff if you plan on gnawing on your maggie or Bonnie . You may want to ask Brian, Jessika or Simon at MagnaCharger.

Because my blower was previously installed on another Camaro I don't have a few things. I can improvise on most of it but this is one I'm not sure on.
You may also want to be in contact with the person whose car it was previously on...
__________________
speedster is offline   Reply With Quote
Old 01-02-2011, 07:57 AM   #6
Silver2SSRS6spd
Prefer to be blown!

Silver2SSRS6spd's Avatar

Drives: 2010 Silver/Black 2SS/RS 6 Speed
Join Date: Mar 2010
Location: Nor-Cal
Posts: 2,672
Quote:
Originally Posted by PQ View Post
So tomorrow, after church, I will begin the install.

It's been killing me having this thing here and not getting on it.

Any tid bits of advice, experiences, warnings, or ideas you think might help, just post away.

I followed a regional thread already and got a few pointers and things to look out for, but too many is not enough. lol

I will update the progress as I go. May take a week or so. I'm gonna shoot some video and I can't devote all my time to it. But I don't expect it to take any longer. I will update here as I go with pics and any problems or items.

My first question after looking over the book; Is there a substitute for the "Lubriplate" lubricant?

Because my blower was previously installed on another Camaro I don't have a few things. I can improvise on most of it but this is one I'm not sure on.

On a side note, Bonnie told me to go have it installed by a pro. I told her they wanted 1400.00 and she said do it because the Emergancy Room visit last time I worked on the car was WAY more than that.

Not expecting any injuries this time.

My Maggie.

Attachment 195696

Attachment 195697
Subscribed and rooting you on. Looks like the pictures were taken in your bedroom, your not sleeping with that thing, are you? Ask Jessika if she can send you a tube of the lubricant, bet she will or offer an alternative.
__________________
MagnaCharger TVS-2300 513rwhp 490 rwt and a radical suspension under the car.
Silver2SSRS6spd is offline   Reply With Quote
Old 01-02-2011, 07:59 AM   #7
Silver2SSRS6spd
Prefer to be blown!

Silver2SSRS6spd's Avatar

Drives: 2010 Silver/Black 2SS/RS 6 Speed
Join Date: Mar 2010
Location: Nor-Cal
Posts: 2,672
Quote:
Originally Posted by wkdivr View Post
Make sure you have an adequate supply of 1/4in drive metric sockets, wobblers, extensions, and universal joints to get at all of the intake bolts. And remember, INCH pounds, not foot pounds.
__________________
MagnaCharger TVS-2300 513rwhp 490 rwt and a radical suspension under the car.
Silver2SSRS6spd is offline   Reply With Quote
Old 01-02-2011, 08:19 AM   #8
Kwaz1335
The Kwaz

Drives: Black 2010 Camaro 2SS/RS
Join Date: Mar 2009
Location: Long Island NY
Posts: 259
Send a message via AIM to Kwaz1335
Tips from someone who did their own install:
Take your time: you wouldn't want to break something or lose a neccessary part in the bowels between the frame and engine.

Install the water hoses for the intercooler system on the back of the supercharger before putting the supercharger in place. I found this out the hard way and, it took longer than it should have being; it was the hardest thing to do working in the space provided.

Don't forget the small brass intercooler plug. Mine was not in the intercooler when I installed it. Took me a while to figure out where the leak was coming from.

Relax, the more you rush to get this done; the more problems you will have later on.

Install the tune before disconnecting the battery. You will be working with fuel lines and I suggest you do disconnect the battery. All it takes is one spark to have a flare up. Nothing may seem wrong on the outside but the fumes you were inhaling just seared your lungs. Not good!

Another hard thing to do is locking the bolts down between the supercharger driveshaft and the engine. I used an adjustable T bar with a socket end. Having these bolts torqued to spec is not exactly done to a science however, if they are as tight as you can get them without snapping them; you shouldn't have any problems.

If you have the GM ground effects kit; there should be two holes available to route the hoses through. Although hard to find at first; they are there.

If your only going to run the stock 6 lbs: If you have tried everything and still can not get that crank bolt out. You can run the system without pinning the crank until you can get to a shop that has the tools to do so. I wouldn't reccomend running your system permanety this way as without a pinned crank you run the risk of spinning the crank pulley on it's shaft causing a lot more problems and headaches than you need.

Remember, your going to be pushing a lot more power and you will be tempted to get on it a lot more. The amount of time to stop will increase and the from end of your vehicle will feel a tad heavier. Until you get used to the difference I'd suggest taking things easy.

During initial startup: look for leaks and listen for anything unusual. If all is well, take a ride driving normally then look over everything again; as things that are going to happen will present themselves during the initial ride. If you feel comfortable; open her up and enjoy!
__________________
Ordered:3/13/09
1100: 3/13/09
3300: 5/12/09
Picked up and brought home 6/26/2009
2010 Black on Black SS/RS Camaro
Silver stripe package
Ground effects package
6 Speed Manual Transmission with Hurst short throw, Magnuson Supercharger, SLP loudmouth 1 kit.
Kwaz1335 is offline   Reply With Quote
Old 01-02-2011, 08:20 AM   #9
n2oSS

n2oSS's Avatar

Drives: 2010 SS2 Camaro
Join Date: Oct 2009
Location: Houston, TX
Posts: 439
one good tip is put the hoses on the rear of the supercharger before you install it. I would also suggesst getting some stiffer hoses becuase the maggie ones bend and crease easily. Remember to burp the engine and watch temp guage after install to.
__________________
Mods:
Dynatech Headers, High flow cats, MSD 8.5 wires, magnaflow bullits, Halltech intake, SCT tuner,
maggie tvs 2300, Jannetty Tune, BMR driveshaft safety loop, Pfadt drop springs, Pfadt rear trailing arms, Pfadt rear tie rod, ACT Twin Disc Clutch, DSS Aluminum Driveshaft.
Appearance Mods:
AAC Concept Sidemarkers, P13W Plasma LED Bulbs, Iforged Classics 20".
Next Mods:
Cam and Fuel System.
n2oSS is offline   Reply With Quote
Old 01-02-2011, 08:40 AM   #10
Silver2SSRS6spd
Prefer to be blown!

Silver2SSRS6spd's Avatar

Drives: 2010 Silver/Black 2SS/RS 6 Speed
Join Date: Mar 2010
Location: Nor-Cal
Posts: 2,672
Quote:
Originally Posted by n2oSS View Post
Remember to burp the engine and watch temp guage after install to.
__________________
MagnaCharger TVS-2300 513rwhp 490 rwt and a radical suspension under the car.
Silver2SSRS6spd is offline   Reply With Quote
Old 01-02-2011, 08:43 AM   #11
Silver2SSRS6spd
Prefer to be blown!

Silver2SSRS6spd's Avatar

Drives: 2010 Silver/Black 2SS/RS 6 Speed
Join Date: Mar 2010
Location: Nor-Cal
Posts: 2,672
Quote:
Originally Posted by Kwaz1335 View Post

Don't forget the small brass intercooler plug. Mine was not in the intercooler when I installed it. Took me a while to figure out where the leak was coming from.

Relax, the more you rush to get this done; the more problems you will have later on.

Great tips!
__________________
MagnaCharger TVS-2300 513rwhp 490 rwt and a radical suspension under the car.
Silver2SSRS6spd is offline   Reply With Quote
Old 01-02-2011, 09:02 AM   #12
klatterblast


klatterblast's Avatar

Drives: 2010 camaro 2ssrs blk.
Join Date: Oct 2009
Location: walker la.
Posts: 1,700
congrats and good luck with the install.
__________________
T-BONES BLACK 2SSRS TEAM L99

CAI w/ADM scoop,Magnacharged 3.8 pulley,L92 ported heads,ss valves,patriot springs,yella terra rockers,Comp cam,L99 to LS3 conv.ATI super damper,Taylor plug wires,NGK plugs,ARH 1 7/8 lt headers w/Borla stingers,Elite oil catch can,trans cooler,Jannetty built Richmond 4.11 rear end,Spohn trailing arms,front Racing Brake rotors,Hawk hps pads,BMR end links,AACstyle lighting. Thanks to Shane & crew for engine work at Thunder Racing & tuner Jeoff at EPS. 501rwhp-463rwtq ++
klatterblast is offline   Reply With Quote
Old 01-02-2011, 09:03 AM   #13
Darth_Emma
Psssssssssshhhhhhhhhhhhh!

Darth_Emma's Avatar

Drives: under contruction
Join Date: Nov 2009
Location: Marysville, Ohio
Posts: 13,151
Subscribed. This is so exciting! I know Randy has been looking forward to this for quite some time.
__________________
Darth_Emma is offline   Reply With Quote
Old 01-02-2011, 09:32 AM   #14
thesnoopster



thesnoopster's Avatar

Drives: '10 SIM SS/A6 - '12 SIM Equinox LT
Join Date: Jul 2009
Location: Northern Virginia
Posts: 3,626
Way to go PQ!!! You are getting BLOWN!!!! LOL .... Get er done!!!
__________________
2010 SIM Camaro 1SS/A6

Mods: "93 Octane and a baby seat..." TunedByFrost/EFI Performance,LLC @ PAS "You gotta love me ... or leave me alone"
thesnoopster is offline   Reply With Quote
Old 01-02-2011, 11:47 AM   #15
GJG


GJG's Avatar

Drives: 2SS
Join Date: Apr 2009
Location: Beaumont, Tx
Posts: 896
my tip.....decide now what type engine covers you are going with......that decision may help you decide whether to move the reservoir to the driver side.......wish i had moved mine during the install.....now i'll have to drain the inter-cooler to move it.....would have taken 30 minutes during install to mount the bracket near the break reservoir.....
__________________
Sleep well America.....my MARINE has your back......
GJG is offline   Reply With Quote
Old 01-02-2011, 12:24 PM   #16
Darth_Emma
Psssssssssshhhhhhhhhhhhh!

Darth_Emma's Avatar

Drives: under contruction
Join Date: Nov 2009
Location: Marysville, Ohio
Posts: 13,151
Quote:
Originally Posted by GJG View Post
my tip.....decide now what type engine covers you are going with......that decision may help you decide whether to move the reservoir to the driver side.......wish i had moved mine during the install.....now i'll have to drain the inter-cooler to move it.....would have taken 30 minutes during install to mount the bracket near the break reservoir.....
That's exactly what happened to me. I had Roto-fab engine covers and had to move the reservoir. Fortunately, I had the shop do the install and they moved the reservoir to the driver's side. But, if we'd known this ahead of time, it would have saved some hassles.
__________________
Darth_Emma is offline   Reply With Quote
Old 01-02-2011, 12:41 PM   #17
Silver2SSRS6spd
Prefer to be blown!

Silver2SSRS6spd's Avatar

Drives: 2010 Silver/Black 2SS/RS 6 Speed
Join Date: Mar 2010
Location: Nor-Cal
Posts: 2,672
You mentioned above that you purchased your Maggie used, did you also get all of the addendums to the installation instructions? There were a few pages of them, I can scan and email them to you if you didn't get them.
__________________
MagnaCharger TVS-2300 513rwhp 490 rwt and a radical suspension under the car.
Silver2SSRS6spd is offline   Reply With Quote
Old 01-02-2011, 12:42 PM   #18
Silver2SSRS6spd
Prefer to be blown!

Silver2SSRS6spd's Avatar

Drives: 2010 Silver/Black 2SS/RS 6 Speed
Join Date: Mar 2010
Location: Nor-Cal
Posts: 2,672
Quote:
Originally Posted by GJG View Post
my tip.....decide now what type engine covers you are going with......that decision may help you decide whether to move the reservoir to the driver side.......wish i had moved mine during the install.....now i'll have to drain the inter-cooler to move it.....would have taken 30 minutes during install to mount the bracket near the break reservoir.....
Excellent tip! I'm thinking of cutting up my stock cover, I know they sell a bracket kit for it so it should work.
__________________
MagnaCharger TVS-2300 513rwhp 490 rwt and a radical suspension under the car.
Silver2SSRS6spd is offline   Reply With Quote
Old 01-02-2011, 12:45 PM   #19
BlownSS


BlownSS's Avatar

Drives: 2010 Camaro SS/RS
Join Date: Oct 2009
Location: Lincoln Nebraska
Posts: 1,761
Quote:
Originally Posted by Silver2SSRS6spd View Post
Excellent tip! I'm thinking of cutting up my stock cover, I know they sell a bracket kit for it so it should work.
I second the idea of having the reservoir on the drivers side to start with.....i wish mine was there!
__________________
2010 IOM SS/RS LS3, Hennessey HPE550 Polished Magnuson TVS2300 Supercharger. 3.4 Pulley. Kooks long tube headers / high flow cats. GHL Full exhaust. ZL1 Fuel Pump/ADM FPCM. MSW Bap. JRE ZL1 Race cam with new springs/pushrods/Trunion Upgrade. FIC 850cc injectors. ZR1 Map sensor. CAI Induction. JRE Tune.
BlownSS is offline   Reply With Quote
Old 01-02-2011, 12:47 PM   #20
SSOOCH
Camaro SL,UTs

SSOOCH's Avatar

Drives: 2010 Camaro SS/RS #16429
Join Date: Sep 2006
Location: South Jordan, UT
Posts: 7,436
Good luck PQ! You Da Man!!
__________________
SSOOCH is offline   Reply With Quote
Old 01-02-2011, 12:49 PM   #21
PQ
1st State Chevy supporter

PQ's Avatar

Drives: Hybrid SS Camaro
Join Date: Apr 2008
Location: Mobile, AL
Posts: 36,912
Send a message via Yahoo to PQ
Quote:
Originally Posted by GJG View Post
my tip.....decide now what type engine covers you are going with......that decision may help you decide whether to move the reservoir to the driver side.......wish i had moved mine during the install.....now i'll have to drain the inter-cooler to move it.....would have taken 30 minutes during install to mount the bracket near the break reservoir.....
Uh. I wasn't even thinking about that. I'm not a real cosmetic engine bay guy. Would you suggest it? And if so, link me to some pics?

Quote:
Originally Posted by Silver2SSRS6spd View Post
You mentioned above that you purchased your Maggie used, did you also get all of the addendums to the installation instructions? There were a few pages of them, I can scan and email them to you if you didn't get them.
Yup. Tim sent it all to me.

Good thing is that, coming off of a car already, that it is semi assembled in ways. Like the hoses on the blower it's self.

Good tips and ideas here. I have read and taken in the tips thus far. Church went a little long this morning but I'm headed out now.

Oh, and that's my office at work. But I may have started sleeping with it had it been much longer. lol

Bruce, you really think I should contact the previous car owner? And why? Should I be concerned?
__________________
PQ is offline   Reply With Quote
Old 01-02-2011, 01:13 PM   #22
PQ
1st State Chevy supporter

PQ's Avatar

Drives: Hybrid SS Camaro
Join Date: Apr 2008
Location: Mobile, AL
Posts: 36,912
Send a message via Yahoo to PQ
Quote:
Originally Posted by Silver2SSRS6spd View Post
You mentioned above that you purchased your Maggie used, did you also get all of the addendums to the installation instructions? There were a few pages of them, I can scan and email them to you if you didn't get them.
Actually no. I don't see any instruction ammendments but just an itemized parts list.

I gotta head to Lowes real quick. I'll take you up on that offer.

pq@althri.com
__________________
PQ is offline   Reply With Quote
Old 01-02-2011, 01:19 PM   #23
GJG


GJG's Avatar

Drives: 2SS
Join Date: Apr 2009
Location: Beaumont, Tx
Posts: 896
example of Driver side with roto fab style:



Passenger side with modified stock covers:

__________________
Sleep well America.....my MARINE has your back......
GJG is offline   Reply With Quote
Old 01-02-2011, 01:40 PM   #24
Silver2SSRS6spd
Prefer to be blown!

Silver2SSRS6spd's Avatar

Drives: 2010 Silver/Black 2SS/RS 6 Speed
Join Date: Mar 2010
Location: Nor-Cal
Posts: 2,672
Quote:
Originally Posted by Kwaz1335 View Post

Don't forget the small brass intercooler plug. Mine was not in the intercooler when I installed it. Took me a while to figure out where the leak was coming from.
I have a small leak in my intercooler that I was going to track down today, I think you may have saved me some time since I didn't install the brass plug. Now the big question, which side of the intercooler does this go on and is it easy to get to with the system installed. Another question, did you mean heat exchanger or the actual intercooler under the supercharger?
Attached Images

__________________
MagnaCharger TVS-2300 513rwhp 490 rwt and a radical suspension under the car.
Silver2SSRS6spd is offline   Reply With Quote
Old 01-02-2011, 01:41 PM   #25
Silver2SSRS6spd
Prefer to be blown!

Silver2SSRS6spd's Avatar

Drives: 2010 Silver/Black 2SS/RS 6 Speed
Join Date: Mar 2010
Location: Nor-Cal
Posts: 2,672
Quote:
Originally Posted by PQ View Post
Actually no. I don't see any instruction ammendments but just an itemized parts list.

I gotta head to Lowes real quick. I'll take you up on that offer.

pq@althri.com
Trying to scan all of the documents into a manageable size, the first attempt was over 45mb. Give me a few minutes.
__________________
MagnaCharger TVS-2300 513rwhp 490 rwt and a radical suspension under the car.
Silver2SSRS6spd is offline   Reply With Quote

Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Where to get engine cover modified after a Maggie install? 1meanss Cosmetics and Lighting Modification Discussions 5 03-05-2011 09:00 PM
Another Maggie install .... Luvpilot Forced Induction - V8 9 06-20-2010 09:00 PM
maggie install, hose routing suggestions please n2oSS Forced Induction - V8 6 05-31-2010 03:59 PM
DIY : Install catback on 2010 Camaro SS Nine Ball Camaro DIY & HOW-TO instructions & discussions 3 08-09-2009 04:36 PM


All times are GMT -5. The time now is 08:39 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
