My review of ADM scoop and Roto-Fab WW kit

I just installed the ADM scoop and Roto-Fab WW relocation kit! Took about 1 1/2 hours start to finish for both! Very straight forward and piece of cake for both mods!

ADM scoop: I had no instructions that came with the scoop but the FYI that ADM posted up helped and some other posts with pictures! Pretty straight forward install with the exception of the horn bolt, PITA! Got it after about 15 minutes of struggling. I used a hack saw blade to cut the plastic opening.

Roto-Fab WW relocation kit: The kit was very well packed for shipping and all parts were there. The instructions from Roto-Fab were excellent as was the quality of the product! The hardest part was getting the reservoir bottle to snap into the grommet. Also being black in color it was hard to see the fluid as I filled it and it overflowed My fault though not enough light to work with! I like the pump mount and hose routing and general fit and finish of the kit!

Overall I give both products 2 thumbs up! Now I can't wait to get the car out of hibernation once the snow thaws to try it out!
Attached Images

ssmike is offline   Reply With Quote
Old 01-29-2011, 06:39 PM   #2
IndeedSS1



IndeedSS1's Avatar

Drives: 2010 Camaro SS LS3
Join Date: Sep 2010
Location: Eastern MO
Posts: 3,804
Nice.
__________________


She is only memory now.
IndeedSS1 is offline   Reply With Quote
Old 01-29-2011, 07:29 PM   #3
jsharp
NOW CAMMED & SUPERCHARGED

jsharp's Avatar

Drives: 2010 Camaro 2SS/RS Black w/ IOM
Join Date: Oct 2008
Location: Ar
Posts: 2,335
Notice a diff in power?
__________________
Livernois Motorsports: Maggie 2300 7psi, Livernois 2C cam/L99 to LS3 Conversion, Ported TB, Rotofab w/adm race scoop, adm trans cooler,Kooks headers no cats, Kooks 3" exhaust. METCO breather. Precision 2400 Vigilante TC. Eibach Lowering Springs & Swaybars. BMR Trailing arms, BMR Rear Cradle Bushings, BMR Toe Rods, BMR Differential bushings. Vossen CV3 20's w/ 305 Nitto 555R@25psi. Zl1 front bumper. OE Zl1 Hood and matte black insert. 556RWHP/500RWTQ L99
jsharp is offline   Reply With Quote
Old 01-29-2011, 10:06 PM   #4
caverman



caverman's Avatar

Drives: '69 SS Convertible
Join Date: May 2009
Location: DFW, TX
Posts: 7,063
Very Nice.

That's definately the most factory looking setup out there.
__________________
-2010 Camaro 2SS | M6 | VR w/White Stripes | 1 3/4" KOOKS - 3" Magnaflow | LPE 3.91 gears | ADM tuned | Halltech w/ADM Scoop | Spohn/BMR Trailing Arm/Toe Rod | BC Coilovers| Pedders FE4 ZL1 swaybars | Cradle/Diff/Radius Rod bushings | VMax TB | Morimoto Projectors | MGW shifter | Red Calipers
Build Journal
caverman is offline   Reply With Quote
Old 01-30-2011, 02:19 AM   #5
Brianskeet
Brianskeet

Brianskeet's Avatar

Drives: RJTC 1SS RS L99
Join Date: Sep 2010
Location: Crestview FL
Posts: 817
Outstanding photos! You have a cool set up!
__________________
ARH 1 7/8 coated LT, High flows, Corsa L99 exhaust, Vmax CNC throttle body, Elite Engineering catch can and tunnel brace, C.A.I. Apex Washer relocation and scoop, Janetty Tune, MSD wires, DEI heat shields, RB rotors and pads, Mike the powder coater calipers, pedders lines, Forgestar F14's, Gorilla nutz, MTI spoiler finished by Gary, Gary's Customz Bow Ties, Side Markers and Tails tinted, Bezels matte black, Badges deleted, Windows Tinted, AAC DRL P13W lights, AAC tinted LED reverse lights, AAC LED interior lights, RPI match painted DRL Bezels, Lis plate frame, Lloyds mats
Brianskeet is offline   Reply With Quote
Old 01-30-2011, 04:08 AM   #6
sspaul


sspaul's Avatar

Drives: 2010 ss camaro, imperial blue
Join Date: Sep 2009
Location: new orleans
Posts: 950
Send a message via AIM to sspaul Send a message via Yahoo to sspaul
glad to see the install was easy, i'm waiting on my roto-fab ww to come in.
__________________
my youtube
my facebook
www.myspace.com/1djchampagne
www.twitter.com/1djchampagne
mods: borla long tube headers, borla atak catback, lingenfelter gt-9 cam, ported heads, ecs base kit running 11 psi on top end, 1" bmr drop spring, aam 3.70 gears, ported throttle body, 160* thermorstat, lethal racing tune

750/641 rwhp/rwtq
sspaul is offline   Reply With Quote
Old 01-30-2011, 06:24 AM   #7
first one


first one's Avatar

Drives: SSRS - black, GFX, SSX wheels
Join Date: Aug 2009
Location: IN
Posts: 935
Quote:
Originally Posted by jsharp View Post
Notice a diff in power?

He hasn't gotten it out of hibernation yet! Let us know when you do.
__________________
first one is offline   Reply With Quote
Old 01-30-2011, 11:38 AM   #8
Roto-fab 1



Drives: 2012 zl1
Join Date: May 2009
Location: Arizona
Posts: 1,446
Cool! Looks like you didn't waste much time in getting your install complete. I agree, aligning the stud with the grommet is the toughest part since it is done in an area where you can't see. For Roto-fab guys it is easy to see with the air box out.
FYI, our air box will go straight in and out with the reservoir in place.
__________________
Thanks,
Jeremiah

Roto-fab 1 is offline   Reply With Quote
Old 01-30-2011, 12:43 PM   #9
ssmike
Missing Big Red

ssmike's Avatar

Drives: 2013 Equinox CRT
Join Date: Jul 2009
Location: Buffalo, NY
Posts: 6,241
Thanks for all your comments! I can't wait to get the car out on the road soon as the weather breaks! I've added the VMax CNC TB and Rx Catch can as well so I'm eager to see how it all works together! Nice Job Mike on another quality product from Roto-Fab!
ssmike is offline   Reply With Quote
Old 01-30-2011, 02:33 PM   #10
navyblueSS

Drives: 2002 Camaro SS
Join Date: Jul 2009
Location: Quitman, LA
Posts: 613
Nice, looks good!
__________________
2010 M6 SS/RS SW w/IOM Stripes - Futral Motorsports Custom Cam & Tune 483rwhp - 449rwtq
navyblueSS is offline   Reply With Quote
Old 01-30-2011, 04:07 PM   #11
BowlingSS
Camaro Owner Since 1987

BowlingSS's Avatar

Drives: 2011 2SS/RS L99 RJT
Join Date: Jun 2006
Location: Lawrenceville, GA
Posts: 2,012
Quote:
Originally Posted by ssmike View Post
Thanks for all your comments! I can't wait to get the car out on the road soon as the weather breaks! I've added the VMax CNC TB and Rx Catch can as well so I'm eager to see how it all works together! Nice Job Mike on another quality product from Roto-Fab!
I have an ADM Scoop waiting to be installed. Mine did come with a nice write up. I also have a Rx Can but I installed it where the roto W/W goes. SO now I have to get some more hose to put it in another location.

Look great.

Bill
__________________
2011 Camaro 2SS/RS L99 RJT
CAI, Inc. Cold Air Induction;ADM Scoop
Rx Catch Can;Rx Breather;Roto-Fab Washer Container
VMax Ported RJT Throttle Body
XSPower Headers and XSPower 3" Exhaust System
Elite Engineering Tunnel Brace,
Gorilla Wheel Lock System;
Tinted Windows 35%;EFILive Tune
BowlingSS is offline   Reply With Quote
Old 01-30-2011, 07:36 PM   #12
ITGuy11
Burning up tires

ITGuy11's Avatar

Drives: 2010 Camaro 1SS/RS
Join Date: Jul 2010
Location: Macomb Twp, MI
Posts: 718
Just ordered my Roto-Fab relocation kit and ADM scoop as well. Can't wait until spring to try them out!
__________________
Blower, cam, supporting mods 644RWHP 615RWTQ
My Build Thread COTW 11/19/12
Detroit 5th Gen Camaro Club
ITGuy11 is offline   Reply With Quote
Old 01-31-2011, 01:30 AM   #13
adub4185

Drives: 2010 Black 2SS RS, 1995 BMW M3
Join Date: Oct 2009
Location: Dallas, TX
Posts: 623
Send a message via AIM to adub4185
Here's my thoughts and some pictures on my install from this weekend:

The fit and finish on both the washer bottle and the scoop are excellent. The washer bottle went in easy and the pump is secured in a great spot. Roto-Fab's attention to detail makes this install pretty much idiot proof. I did end up using a few more zip-ties to secure everything, but I am anal.

The scoop was relatively easy to install and as many have said previously, the hardest part was cutting off the plastic shield. My scoop was supplied with a longer 6mm horn bolt and an extra nut, which made it easy to get the tab secured. Many of the install pictures I have seen have shown the scoop tab on the other side of the horn bolt nut, which would be very difficult to secure. Make sure that you get a bolt and nut with your kit or buy one prior to the installation.

I have driven the car a bit since the install and I will say that it is hard for me to tell what kind of peak horsepower this mod picked up. 5-6 HP on a 450 HP car is almost negligeable and would probably only show up on a dyno. What I can tell is that the powerband on the lower end is much smoother. Before this mod and with my cam, the car would tend to really wake up at around 2.5k to 3k and give you a swift kick in the pants. Now the power transition from the lower RPM ranges to that magical RPM range is much smoother. For me, this mod seemed to help the low end a lot and that was just what I was looking for. I'll be heading back to ADM sometime soon, and when I do, I'll re-dyno and post more additional thoughts.

On to the pictures (please excuse the poor iPhone pictures):

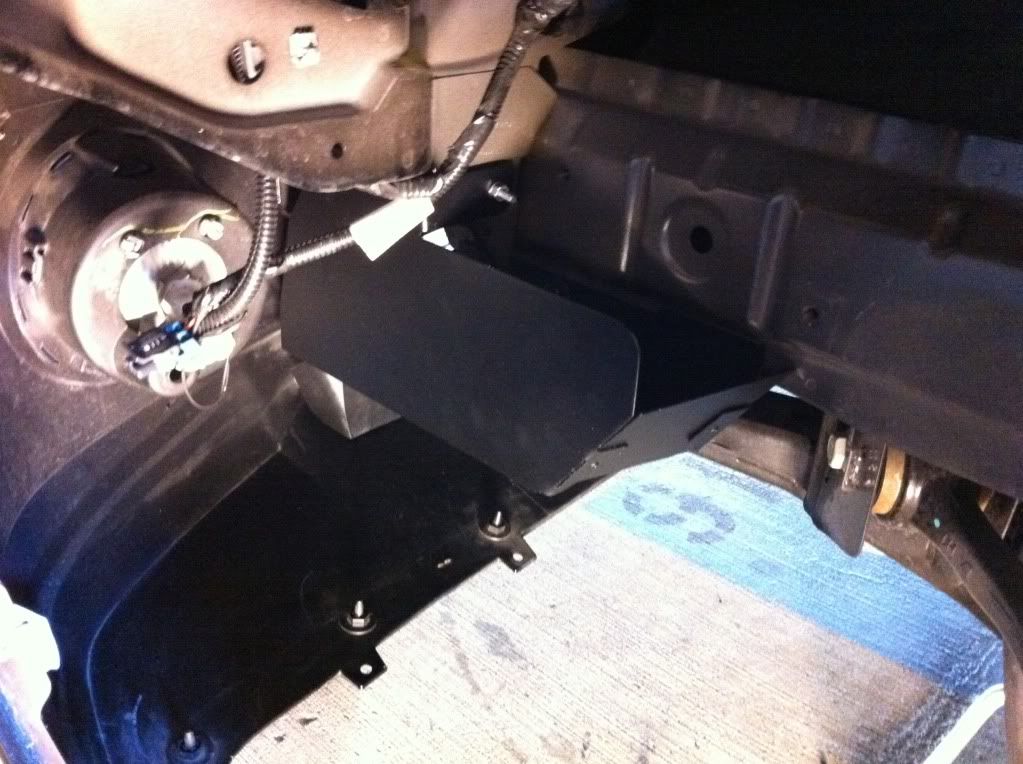

This is a picture with just the scoop installed. You can see how I was able to secure the tab using the supplied bolt and nut.

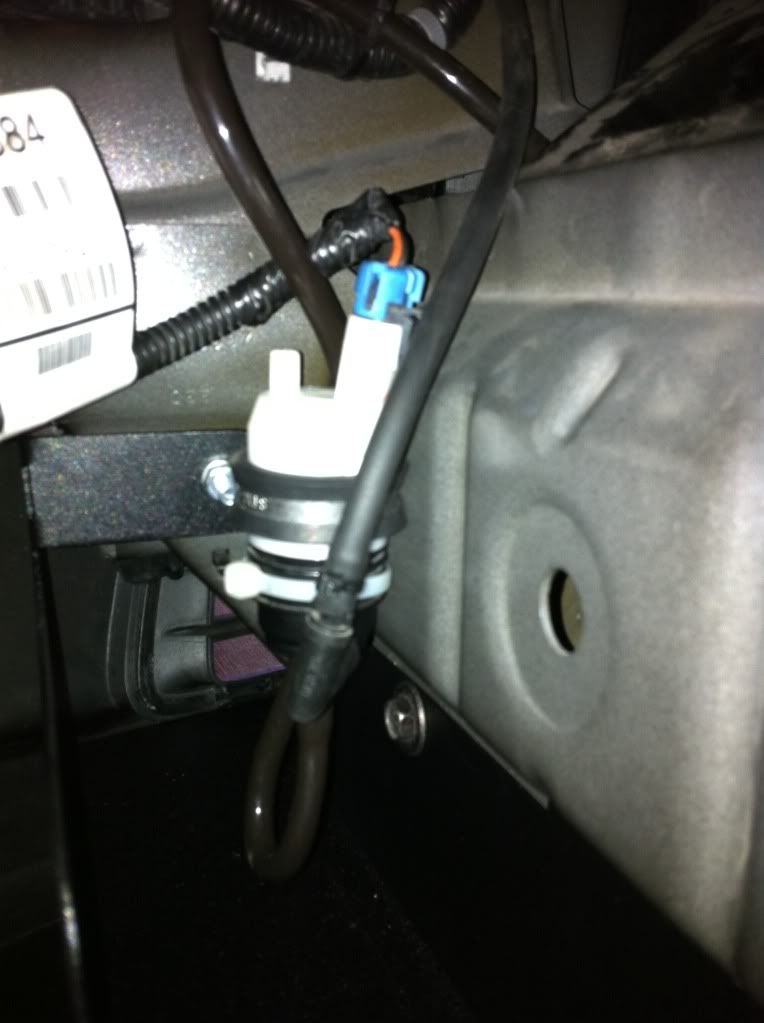

A couple pictures of the pump installed with the scoop:

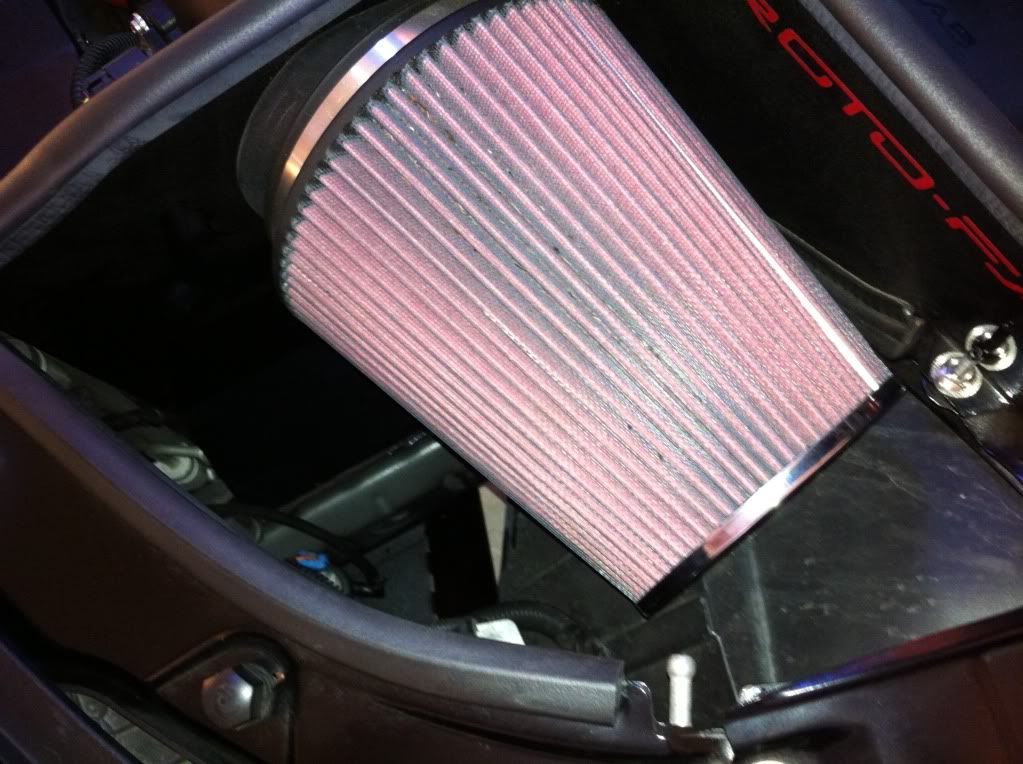

A view of the filter area sans washer reservoir:



A view looking down into the filter area. You can see the pump, the scoop, and how much more room there is for air to get to the intake.



A few pictures of the final overall product. It looks OEM and I am extremely happy! Thanks ADM and Roto-Fab!



adub4185 is offline   Reply With Quote
Old 01-31-2011, 01:37 AM   #14
KybheSS

KybheSS's Avatar

Drives: Black '10 2SS/RS
Join Date: Apr 2010
Location: Kentucky
Posts: 332
That scoop looks awfully close to the wheel?! Think a lowerd car would have any issues with the location of the scoop?
KybheSS is offline   Reply With Quote
Old 01-31-2011, 01:47 AM   #15
adub4185

Drives: 2010 Black 2SS RS, 1995 BMW M3
Join Date: Oct 2009
Location: Dallas, TX
Posts: 623
Send a message via AIM to adub4185
Quote:
Originally Posted by KybheSS View Post
That scoop looks awfully close to the wheel?! Think a lowerd car would have any issues with the location of the scoop?
My car is lowered and I think what you are seeing is where the scoop gets close to the fender well liner. It in no way will come into contact with the wheel.
adub4185 is offline   Reply With Quote
Old 01-31-2011, 02:07 AM   #16
KybheSS

KybheSS's Avatar

Drives: Black '10 2SS/RS
Join Date: Apr 2010
Location: Kentucky
Posts: 332
Sweet! Thanks!
KybheSS is offline   Reply With Quote
Old 01-31-2011, 08:44 PM   #17
Roto-fab 1



Drives: 2012 zl1
Join Date: May 2009
Location: Arizona
Posts: 1,446
Quote:
Originally Posted by adub4185 View Post
Here's my thoughts and some pictures on my install from this weekend:

The fit and finish on both the washer bottle and the scoop are excellent. The washer bottle went in easy and the pump is secured in a great spot. Roto-Fab's attention to detail makes this install pretty much idiot proof. I did end up using a few more zip-ties to secure everything, but I am anal.

The scoop was relatively easy to install and as many have said previously, the hardest part was cutting off the plastic shield. My scoop was supplied with a longer 6mm horn bolt and an extra nut, which made it easy to get the tab secured. Many of the install pictures I have seen have shown the scoop tab on the other side of the horn bolt nut, which would be very difficult to secure. Make sure that you get a bolt and nut with your kit or buy one prior to the installation.

I have driven the car a bit since the install and I will say that it is hard for me to tell what kind of peak horsepower this mod picked up. 5-6 HP on a 450 HP car is almost negligeable and would probably only show up on a dyno. What I can tell is that the powerband on the lower end is much smoother. Before this mod and with my cam, the car would tend to really wake up at around 2.5k to 3k and give you a swift kick in the pants. Now the power transition from the lower RPM ranges to that magical RPM range is much smoother. For me, this mod seemed to help the low end a lot and that was just what I was looking for. I'll be heading back to ADM sometime soon, and when I do, I'll re-dyno and post more additional thoughts.

On to the pictures (please excuse the poor iPhone pictures):

This is a picture with just the scoop installed. You can see how I was able to secure the tab using the supplied bolt and nut.



A couple pictures of the pump installed with the scoop:





A view of the filter area sans washer reservoir:



A view looking down into the filter area. You can see the pump, the scoop, and how much more room there is for air to get to the intake.



A few pictures of the final overall product. It looks OEM and I am extremely happy! Thanks ADM and Roto-Fab!



Wow! Sweet looking engine compartment! Thanks for making our products part of it.
__________________
Thanks,
Jeremiah

Roto-fab 1 is offline   Reply With Quote
Old 01-31-2011, 09:06 PM   #18
adub4185

Drives: 2010 Black 2SS RS, 1995 BMW M3
Join Date: Oct 2009
Location: Dallas, TX
Posts: 623
Send a message via AIM to adub4185
Quote:
Originally Posted by Roto-fab 1 View Post
Wow! Sweet looking engine compartment! Thanks for making our products part of it.
Thanks for the kind words. It is a work in progress, but it is getting there. Hopefully one of these days I'll be coming to you guys for a maggie CAI tube to finish it off...
adub4185 is offline   Reply With Quote
Old 02-01-2011, 03:02 PM   #19
Roto-fab 1



Drives: 2012 zl1
Join Date: May 2009
Location: Arizona
Posts: 1,446
Quote:
Originally Posted by adub4185 View Post
Thanks for the kind words. It is a work in progress, but it is getting there. Hopefully one of these days I'll be coming to you guys for a maggie CAI tube to finish it off...
Sounds awesome! We will set one aside for you.
__________________
Thanks,
Jeremiah

Roto-fab 1 is offline   Reply With Quote
Old 02-01-2011, 09:41 PM   #20
jsharp
NOW CAMMED & SUPERCHARGED

jsharp's Avatar

Drives: 2010 Camaro 2SS/RS Black w/ IOM
Join Date: Oct 2008
Location: Ar
Posts: 2,335
I ordered one from website but its like it never happend I have not go an email or charge on the card I used. It said confirmed but maybe the website was messed up????
__________________
Livernois Motorsports: Maggie 2300 7psi, Livernois 2C cam/L99 to LS3 Conversion, Ported TB, Rotofab w/adm race scoop, adm trans cooler,Kooks headers no cats, Kooks 3" exhaust. METCO breather. Precision 2400 Vigilante TC. Eibach Lowering Springs & Swaybars. BMR Trailing arms, BMR Rear Cradle Bushings, BMR Toe Rods, BMR Differential bushings. Vossen CV3 20's w/ 305 Nitto 555R@25psi. Zl1 front bumper. OE Zl1 Hood and matte black insert. 556RWHP/500RWTQ L99
jsharp is offline   Reply With Quote
Old 02-02-2011, 12:08 AM   #21
Doc
Dances With Mustangs

Doc's Avatar

Drives: 2010 1SS/RS MT
Join Date: May 2009
Location: California
Posts: 3,586
Quote:
Originally Posted by adub4185 View Post
Here's my thoughts and some pictures on my install from this weekend:

The fit and finish on both the washer bottle and the scoop are excellent. The washer bottle went in easy and the pump is secured in a great spot. Roto-Fab's attention to detail makes this install pretty much idiot proof. I did end up using a few more zip-ties to secure everything, but I am anal.

The scoop was relatively easy to install and as many have said previously, the hardest part was cutting off the plastic shield. My scoop was supplied with a longer 6mm horn bolt and an extra nut, which made it easy to get the tab secured. Many of the install pictures I have seen have shown the scoop tab on the other side of the horn bolt nut, which would be very difficult to secure. Make sure that you get a bolt and nut with your kit or buy one prior to the installation.

I have driven the car a bit since the install and I will say that it is hard for me to tell what kind of peak horsepower this mod picked up. 5-6 HP on a 450 HP car is almost negligeable and would probably only show up on a dyno. What I can tell is that the powerband on the lower end is much smoother. Before this mod and with my cam, the car would tend to really wake up at around 2.5k to 3k and give you a swift kick in the pants. Now the power transition from the lower RPM ranges to that magical RPM range is much smoother. For me, this mod seemed to help the low end a lot and that was just what I was looking for. I'll be heading back to ADM sometime soon, and when I do, I'll re-dyno and post more additional thoughts.

On to the pictures (please excuse the poor iPhone pictures):

This is a picture with just the scoop installed. You can see how I was able to secure the tab using the supplied bolt and nut.



A couple pictures of the pump installed with the scoop:





A view of the filter area sans washer reservoir:



A view looking down into the filter area. You can see the pump, the scoop, and how much more room there is for air to get to the intake.



A few pictures of the final overall product. It looks OEM and I am extremely happy! Thanks ADM and Roto-Fab!



That is a VERY nice looking engine compartment. What do you have going there for plug wires, coils and valve covers?
__________________

Blue Angel is here!!
1SS/RS LS3 M6 IBM
Doc is offline   Reply With Quote
Old 02-02-2011, 07:46 AM   #22
Roto-fab 1



Drives: 2012 zl1
Join Date: May 2009
Location: Arizona
Posts: 1,446
Quote:
Originally Posted by jsharp View Post
I ordered one from website but its like it never happend I have not go an email or charge on the card I used. It said confirmed but maybe the website was messed up????
Please give us a call at (260) 375-4480. We can get your order processed and shipped right away. We don't have this product available on our site right now. Alternatively, you can email us at sales@roto-fab.com or send a PM.
__________________
Thanks,
Jeremiah

Roto-fab 1 is offline   Reply With Quote
Old 02-02-2011, 03:02 PM   #23
adub4185

Drives: 2010 Black 2SS RS, 1995 BMW M3
Join Date: Oct 2009
Location: Dallas, TX
Posts: 623
Send a message via AIM to adub4185
Quote:
Originally Posted by Doc View Post
That is a VERY nice looking engine compartment. What do you have going there for plug wires, coils and valve covers?
Thanks Doc. The valve covers are by Katech and so is the coil relcation kit. I custom designed the valve cover inserts (the part that says "camaro ss") and the plug wires came with the kit. Hope this helps.
adub4185 is offline   Reply With Quote
Old 01-30-2012, 06:26 PM   #24
YO-EL

Drives: none
Join Date: Oct 2011
Location: sofa
Posts: 107
Anyone else NOT happy with the location of the pump, being directly in the path of incoming air flow?

YO-EL is offline   Reply With Quote
Old 01-30-2012, 06:48 PM   #25
Black1SS

Black1SS's Avatar

Drives: 2010 Camaro 1SS/RS 6 Speed
Join Date: Jan 2012
Location: SC
Posts: 428
Both of those engine compartments look awesome, A great setup
Black1SS is offline   Reply With Quote

Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -5. The time now is 12:33 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
