Talking DIY Paint Your Own Bowties, Front and Rear (2 Tone, black and red)

Sorry I couldnt really upload the pictures in the right order, or put the text with the pics, but hopefully this helps some people who may want to attempt this themselves.

I chose to do the rear bowtie on the car, you can take it off using adhesive remover, a blowdryer, and fishing line or dental floss.

1. Remove front bowtie
2. Scuff or sand lightly
3. Prime the entire bowtie
4. Mask off the inside applying painters tape over the entire bowtie, and run a fingernail along the edge to get an outline of where the razor blade needs to go, then cut along the edge with a razor or xacto knife. Then peel off the excess
5. Paint the outer part of the bowtie
6. Following directions on cans for drying times and coats, let the outer coat dry.

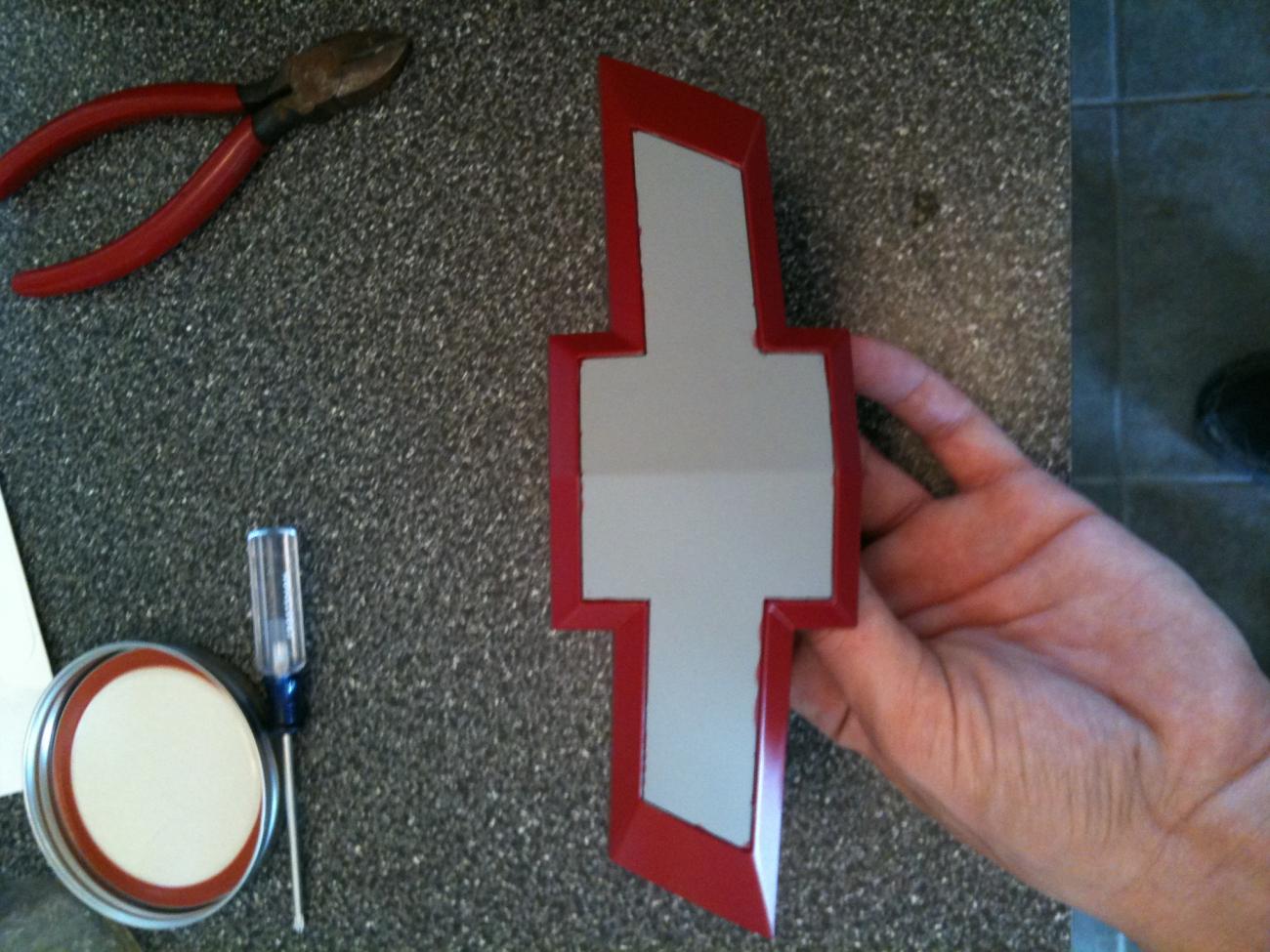

7. Mask off the outside using the same instructions as number 4, except removing the inner tape.
8. Paint the inside with a few light coats.
9. Following the directions on the can, spray a few coats of clear to protect the base coat and make it more durable.
10. Allow to dry for a while before trying to push it back on or you may leave finger print impressions, in the clear.


Some masking tips for doing it on the car
- I used trashbags to cover the area
- Cover any horizontal surface, since this is where overspray will settle for the most part
- When doing the immediate area of the bowtie, I used a flathead eyeglass screwdriver to help push the blue painters tape behind the bowtie.

Removing the front bowtie is tough, reach behind and pull the big horizontal tabs down a little, and pull one side at a time, working it back and forth, you will have to pull harder than you think.

Helpful tip I can give you is to go slow and follow the directions, the more careful you are, the less chances you have of runs, or messing up the finish with the razor blade. Excuse the dirty car and bugs, Im cleaning it tomorrow
Attached Images

__________________

Last edited by vroomapunk; 05-16-2012 at 03:07 PM.
vroomapunk is offline   Reply With Quote
Old 04-20-2012, 10:21 PM   #2
GaBoy25



GaBoy25's Avatar

Drives: 2010 SS/RS M6/2500HD Lmm LTZ
Join Date: Apr 2012
Location: South Georgia
Posts: 2,551
Nice!!!!!
__________________
FASTER than my SS....for now

2500HD (with a couple parts)



Quote:
Originally Posted by Coyotekiller View Post
I wonder if this could be why my car idles like its retarded...
GaBoy25 is offline   Reply With Quote
Old 04-21-2012, 04:32 AM   #3
Wuiquen



Wuiquen's Avatar

Drives: 2011 Summit White 2LT/RS
Join Date: Nov 2010
Location: NorCal
Posts: 2,928
what type of primer did you use??? I am going to do this.. I was thinking adhesion promoter. This can be done to the tail light bezels right?? I want flat black so just flat black with no clear coat tight??
__________________
Wuiquen is offline   Reply With Quote
Old 04-21-2012, 06:49 AM   #4
nealdiwes

Drives: 2011 camaro ls
Join Date: Jul 2010
Location: lafayette, la
Posts: 219
Looks mean.
nealdiwes is offline   Reply With Quote
Old 04-21-2012, 10:09 AM   #5
vroomapunk
[COTW 5/12/14]

vroomapunk's Avatar

Drives: 2012 CRT NF Cammed 2SS/RS
Join Date: Oct 2011
Location: New Orleans, Louisiana
Posts: 5,492
Quote:
Originally Posted by Wuiquen View Post
what type of primer did you use??? I am going to do this.. I was thinking adhesion promoter. This can be done to the tail light bezels right?? I want flat black so just flat black with no clear coat tight??
I actually used the rust-o-leum gray automotive primer that is carried at wal mart, lowes, etc. Scuffing it up more would have made it stick better as well. I do recommend adhesion promoter as well, I have a kind that goes on, then you can spray primer, then the color coat.

If you want flat black, you will still want to do a clear, just a matte or satin clear. I think its Gloss, Semi-Gloss, then Satin. The point of the clear is to protect it, if you just put flat black enamel, after it dried, you could still just pick it off with your fingernail, no matter how well you prepped it.

A few coats of clear will protect it like the rest of your car, where you can wash it, wipe it, pick bugs off it, etc without worrying.

Alot of people use Plasti-Dip, to get a flat black look, although it is single stage, plasti dip is more resilient than normal spray paint, but not as tough as a black coat with a couple clear coats over it.

But satin clear is what you need, I think it looks almost the same as flat, if not just a tad bit shiny, but you could buy it, and spray a piece of wood or a bucket or something to test and make sure it gets the finish you want.

And yes, the bezels are even easier because you can take them all off the car, and they are one color, so you really dont need to mask anything off if you dont want. Just be sure to follow the can directions, dont douse it with paint and clear, keep the can moving and do light coats.

Quote:
Originally Posted by nealdiwes View Post
Looks mean.
Thats what I thought! Makes the car look a little more serious than the gold/chrome ones.
__________________
vroomapunk is offline   Reply With Quote
Old 04-22-2012, 12:26 AM   #6
vroomapunk
[COTW 5/12/14]

vroomapunk's Avatar

Drives: 2012 CRT NF Cammed 2SS/RS
Join Date: Oct 2011
Location: New Orleans, Louisiana
Posts: 5,492
Couple more pics
Attached Images

__________________
vroomapunk is offline   Reply With Quote
Old 04-22-2012, 02:54 AM   #7
Wuiquen



Wuiquen's Avatar

Drives: 2011 Summit White 2LT/RS
Join Date: Nov 2010
Location: NorCal
Posts: 2,928
cool.. I will look into the primer.. so you recommend to use adhesion promoter then gray primer then paint and then clear, right??

what did you scuff and sand with?? will the primer fill up any scratches???
Sorry if all this questions are stupid but i dont know much about painting
__________________
Wuiquen is offline   Reply With Quote
Old 04-22-2012, 03:40 AM   #8
CAMAROssRS

CAMAROssRS's Avatar

Drives: 2010 Camaro 2SS/RS L99 Black
Join Date: May 2009
Location: West Bloomfield, Mi
Posts: 121
__________________
2010 Camaro SS/RS Black on Black
American Thunder Flowmaster 817481
K&N CAI
CAMAROssRS is offline   Reply With Quote
Old 04-22-2012, 05:30 AM   #9
1954 Belair-man


1954 Belair-man's Avatar

Drives: 2010 Camaro IOM 1SS M6
Join Date: Aug 2010
Location: Michigan
Posts: 893
Great job! Nothing like doing it yourself and thanks for the instructions on this i may do this myself
1954 Belair-man is offline   Reply With Quote
Old 04-26-2012, 11:49 AM   #10
vroomapunk
[COTW 5/12/14]

vroomapunk's Avatar

Drives: 2012 CRT NF Cammed 2SS/RS
Join Date: Oct 2011
Location: New Orleans, Louisiana
Posts: 5,492
Quote:
Originally Posted by Wuiquen View Post
cool.. I will look into the primer.. so you recommend to use adhesion promoter then gray primer then paint and then clear, right??

what did you scuff and sand with?? will the primer fill up any scratches???
Sorry if all this questions are stupid but i dont know much about painting
I use a fine grit sandpaper, or a scotchbrite pad, scuff pad, etc. If the sandpaper you have is too rough then just rub it against itself until its not so harsh.

I say yes to the adhesion promoter, then gray primer, paint, then clear. But be sure to clean the surface with alcohol, and try testing that combination on a piece of plastic, because sometimes using different brands can make the different stages react differently.
__________________
vroomapunk is offline   Reply With Quote
Old 04-26-2012, 01:05 PM   #11
NoSyT
It's a Three Six, Vee Six

NoSyT's Avatar

Drives: '12 AGM 2LT/RS & '14 Silverado LTZ
Join Date: Feb 2011
Location: Fort Leonard Wood, MO
Posts: 991
Nice DIY. This has been one of the projects I have had in my mind for a while now.
__________________
NoSyT is offline   Reply With Quote
Old 04-28-2012, 07:56 PM   #12
Roll_the_Dice


Roll_the_Dice's Avatar

Drives: 2012 Summit White Camaro 2LT
Join Date: Apr 2012
Location: Savannah, GA
Posts: 1,179
Very nice! How did you know I am about to do this? Thanks for the tips, I have been wondering about painting the chrome. I bought some self etching primer...do you think that would be fine? i am testing right now on some electrical conduit to see how it all works. I like doing things myself...I get to learn, it's fun and less expensive! Great job.
__________________
Cars Owned:
2010 BMW 328xi LeMans Blue
2012 Camaro 2LT Convertible Summit White M6
2003 Audi A4 Convertible Silver Auto (sold)
1999 Ford F150 (sold)
2008 Porsche 911 Convertible Atlas Gray M6 (sold)
2007 Corvette Lemans Blue M6 (sold)
2004 BMW 645 ci Convertible Black Metallic (sold)
2000 Dodge Dakota sport Navy (sold)
1999 Porsche Boxster Black Metallic M5 (sold)
1999 Ferrari 360 Modena Titanium F1 (sold)
1992 BMW 325i 2 door Alpine white (sold)
1990 Nissan 240SX Burgundy M6 (sold)
1979 Celica Blue M5 (sold)
1974 Mustang II Ghia Green (sold)
Roll_the_Dice is offline   Reply With Quote
Old 04-28-2012, 08:26 PM   #13
Sterling



Sterling's Avatar

Drives: 2010 Camaro 1LT/RS M6
Join Date: Nov 2007
Location: Fairhaven, MA
Posts: 5,903
Just an FYI... the center of the bowtie is removable. Be careful that you dont break it when you remove it, but if you do, you don't even have to tape it off, just spray it and put it back together with some more 3M tape.
Sterling is offline   Reply With Quote
Old 05-01-2012, 03:48 PM   #14
vroomapunk
[COTW 5/12/14]

vroomapunk's Avatar

Drives: 2012 CRT NF Cammed 2SS/RS
Join Date: Oct 2011
Location: New Orleans, Louisiana
Posts: 5,492
Quote:
Originally Posted by Roll_the_Dice View Post
Very nice! How did you know I am about to do this? Thanks for the tips, I have been wondering about painting the chrome. I bought some self etching primer...do you think that would be fine? i am testing right now on some electrical conduit to see how it all works. I like doing things myself...I get to learn, it's fun and less expensive! Great job.
Yes, a primer specifically made for that purpose will work, id still scuff it up. Prep is very important, but the clear will make it all solid, and resilient, just be careful and follow the directions on the cans.


Quote:
Originally Posted by Sterling View Post
Just an FYI... the center of the bowtie is removable. Be careful that you dont break it when you remove it, but if you do, you don't even have to tape it off, just spray it and put it back together with some more 3M tape.
Yes, this is an avenue people can choose, but I chose to mask with tape and razor blade, just to be sure I didnt break the inside, as Ive heard its easy to do. I also did not remove the rear one, so I couldnt have safely removed the inside for that one.

Good tip for people removing both bowties!
__________________
vroomapunk is offline   Reply With Quote
Old 05-03-2012, 08:38 AM   #15
ActNup NY



ActNup NY's Avatar

Drives: 2011 1LT Black Camaro
Join Date: Feb 2012
Location: Queens, NYC
Posts: 2,279
Nice-e-e-e-e-e !!! I just did mines also with my boy Rafa can't wait to post pics of it.
__________________
I'M SO FAR AHEAD OF MY TIME, I'M ABOUT TO PASS YOU TWICE..
ActNup NY is offline   Reply With Quote
Old 05-03-2012, 10:12 AM   #16
vroomapunk
[COTW 5/12/14]

vroomapunk's Avatar

Drives: 2012 CRT NF Cammed 2SS/RS
Join Date: Oct 2011
Location: New Orleans, Louisiana
Posts: 5,492
Quote:
Originally Posted by ZIPNBY View Post
Nice-e-e-e-e-e !!! I just did mines also with my boy Rafa can't wait to post pics of it.
Post them in here too so people can see more examples!
__________________
vroomapunk is offline   Reply With Quote
Old 05-04-2012, 09:18 AM   #17
nyrfan
Let's go Rangers!

nyrfan's Avatar

Drives: 13' AGM 2SS/RS L99
Join Date: Jun 2011
Location: Orlando, FL
Posts: 9,873
Looks great! I would love to do this but cannot get the damn front BT off. Any tricks for this?
__________________
Soprano 4/1/00-6/14/11, Gone but NEVER forgotten!
FSP tuned: 377/389
nyrfan is offline   Reply With Quote
Old 05-04-2012, 10:09 AM   #18
vroomapunk
[COTW 5/12/14]

vroomapunk's Avatar

Drives: 2012 CRT NF Cammed 2SS/RS
Join Date: Oct 2011
Location: New Orleans, Louisiana
Posts: 5,492
Feel around the back, and sort of do one side at a time, the middle vertical tabs will slide out without you unhooking them, but the horizontal ones need to be pulled down a bit, work it back and forth.

Trust me, you have to pull much harder than you think you would, just if you hear cracking, stop, but its really in there
__________________
vroomapunk is offline   Reply With Quote
Old 05-07-2012, 02:36 PM   #19
GEEKFREEKSCOTTY
Autoboticus Roboticus

GEEKFREEKSCOTTY's Avatar

Drives: 2011 Camaro 2SS/RS
Join Date: Apr 2012
Location: Kent, WA
Posts: 1,293
I did my front bowtie this weekend using your directions..

here's how it came out:
Attached Images

GEEKFREEKSCOTTY is offline   Reply With Quote
Old 05-15-2012, 09:51 AM   #20
vroomapunk
[COTW 5/12/14]

vroomapunk's Avatar

Drives: 2012 CRT NF Cammed 2SS/RS
Join Date: Oct 2011
Location: New Orleans, Louisiana
Posts: 5,492
Quote:
Originally Posted by JEEPFREEKSCOTTY View Post
I did my front bowtie this weekend using your directions..

here's how it came out:
Looks awesome man! Love the yellow/black. Glad I could help
__________________
vroomapunk is offline   Reply With Quote
Old 05-18-2012, 06:29 PM   #21
Li0nel1234
What should I name my car

Li0nel1234's Avatar

Drives: 2010 Camaro 2SS RS IOM
Join Date: Jul 2009
Location: San Antonio, TX
Posts: 770
Send a message via AIM to Li0nel1234
I did mine too

I removed my rear though... I was too afraid to do the whole tape up your car in plastic thing...

here are the pics. I left it a little unglossy to keep a matte finish to match the stripes and ad some pop to it. I also did the same to my SS emblems and they were a PAIN... I ended up liking the look without them and left them off though... so all that for nothing with the emblems...
Attached Images

__________________
Performance: ARH 2"/"3 headers + ARH 3" HF catback system, SS brake lines, hawk HP+ pads, motul RBF 600 fluid, K&N CAI (w/custom insulation), plug wires, air scoop, Hurst STS, Pedders Track II suspension, 18x10 wheels, 295/45/18 Nitto NT05s
Looks: powder coated iom calipers, LED foglights w/ always on harness, custom painted bowties, window tint, smoke tinted tail lights etc, oem gfx w/ custom outlets, painted taillight bezels, all weather trunk mat
Li0nel1234 is offline   Reply With Quote
Old 05-21-2012, 07:20 PM   #22
vroomapunk
[COTW 5/12/14]

vroomapunk's Avatar

Drives: 2012 CRT NF Cammed 2SS/RS
Join Date: Oct 2011
Location: New Orleans, Louisiana
Posts: 5,492
Great Job! They look great, I actually thought I picked up a can of matte clear, and when I got home, it was gloss , so I just used it. I still used flat base coat, so its not as glossy as it could be.

Ur car is awesome!
__________________
vroomapunk is offline   Reply With Quote
Old 05-29-2012, 07:47 PM   #23
jnikkila

jnikkila's Avatar

Drives: LS/LLT
Join Date: May 2012
Location: Chicago
Posts: 93
This looks great! i plan on doing black center/red outside for my all black car. Where did you get the paint? Is this just OEM touch up?
jnikkila is offline   Reply With Quote
Old 05-29-2012, 07:53 PM   #24
vroomapunk
[COTW 5/12/14]

vroomapunk's Avatar

Drives: 2012 CRT NF Cammed 2SS/RS
Join Date: Oct 2011
Location: New Orleans, Louisiana
Posts: 5,492
Quote:
Originally Posted by jnikkila View Post
This looks great! i plan on doing black center/red outside for my all black car. Where did you get the paint? Is this just OEM touch up?
Lowes, OEM touchup is expensive. You can get any black, it will match. Also, since you arent matching another red, any straight red will be almost identical to VR, and any maroon will be really close to RJT or CRT if you went that route.

You do not need to get expensive touch up paint. Just get primer, base, and clear of the same brand and base (i.e get all acrylic rust o leum).

You can also get paint from autozone.
__________________
vroomapunk is offline   Reply With Quote
Old 05-29-2012, 07:59 PM   #25
jnikkila

jnikkila's Avatar

Drives: LS/LLT
Join Date: May 2012
Location: Chicago
Posts: 93
I had a feeling I'd end up doing that...this seems a bit excessive if I want to save money over buying the parts pre-painted...

http://www.automotivetouchup.com/spray_paint.asp

I also plan on painting my door/dash panels and some others VR so maybe a good RED would be just fine vs. paying $20 per can of VR LOL
jnikkila is offline   Reply With Quote

Reply

Tags
black, bowtie, front, paint, red

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -5. The time now is 01:10 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
