Old 05-29-2012, 06:50 PM   #1
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
DIY V6 Mace ported IM/25mm spacer/porting heads install

i received my ported IM from Mace today, so i started the tear down. Here is a partial step by step, i will update as i go, i am going to paint the ported IM and also port the intake ports on the heads so it will take a bit between updates, but let's get this party started.

i took a lot of before pics, i won't bore you with those, we have all seen our engine bays!!

i started by removing the engine cover and then my SLP intake tube.





then unplug the harness from the TB, and remove the 4 bolts with a 10mm wrench of your choosing. i used 1/4 drive ratchet and socket.

set TB aside, then i popped off the little clips that hold the rear part of the cover on, then fished it out of the engine bay, a little tricky!!

then disconnect all the hoses (3) and clip (1) holding stuff to the IM.






there is a bracket at the front of the engine that needs to be removed, (2) bolts, 10mm wrench. there is also a bolt holding a harness bracket on the pass side of the IM, also a 10mm wrench required.

next i removed the 8 bolts holding the plenum cover on, 10mm wrench.

then the 4 bolts that go through the cover to the heads, 13mm wrench.

then you can remove the cover after removing the bolts, the rear bolt wouldn't come all the way out, so leave it in while you wiggle the cover out. this gives you a bit better access to the rear bolts that are horizontally installed. this is where a 13mm ratcheting box wrench with a swivel head works well, but mine hasn't arrived yet!!! i used an open end wrench to break them loose, then a crows foot by hand to take them the rest of the way out, worked ok, but the swivel wrench will be much appreciated!!



remove the 2 remaining bolts that have a 13mm head, at this point the IM should come right off, just make sure you have all the hoses and stuff disconnected.





there was a bit of oil in the intake, i guess i'll be adding a catch can soon as well.

here is a pic of the gasket sitting on the head ports, i will be fixing this myself, stay tuned for that.



quick shot of the ports of the Mace IM versus stock.

stock;


Mace;
Sleez is offline   Reply With Quote
Old 05-29-2012, 07:44 PM   #2
Indy Bumble Bee

Indy Bumble Bee's Avatar

Drives: Beest
Join Date: Aug 2011
Location: Indy
Posts: 665
great idea! Thanks for this write up as many of us v6 owners will be doing these mods
Indy Bumble Bee is offline   Reply With Quote
Old 05-30-2012, 01:28 PM   #3
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
received the spacers today, picked up some hardware for the brackets, will post details later, got to go give the IM a bath to prep for paint!!
Sleez is offline   Reply With Quote
Old 05-30-2012, 02:53 PM   #4
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
ok, after a thorough cleaning with simple green, the IM is drying.

note; good idea to mark the spacers so you know which one goes where after you start porting them. if you are skipping this step, then it doesn't really matter. i marked mine with an arrow pointing up at the rear face, they can't be switched accidentally now. i'll also mark the gaskets so they cant be switched around. (probably overkill, but oh well!)

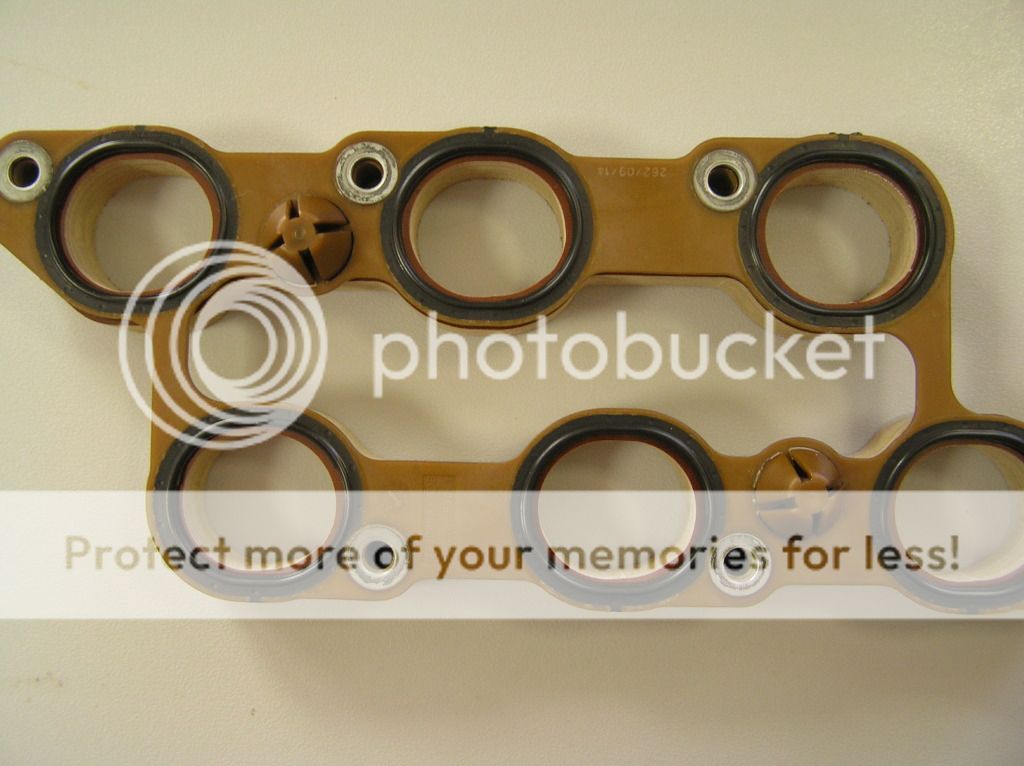

i am using 2 oem IM gaskets, one below the spacer, and one above. you have to trim off the little cone shaped alignment bosses on the gasket going below the spacers. i used a side-cutter to snip the little legs off and an exacto blade to trim the flash away so the cones would separate. i used an exacto miter saw to trim the alignment nipples off the gasket that goes above the spacers.



then i dry fit everything to see how much porting will be needed on the spacers...wow, quite a bit!!






next i have to scribe the spacers so i know how far to grind them open!!
Sleez is offline   Reply With Quote
Old 05-30-2012, 03:32 PM   #5
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
spacers marked;





up to .1" in spots.

time to go throw a first coat on the IM
Sleez is offline   Reply With Quote
Old 05-30-2012, 04:00 PM   #6
Ventmaster


Ventmaster's Avatar

Drives: 2010 Camaro RS 1LT M6
Join Date: Jan 2011
Location: Utah
Posts: 1,553
Nice work- I'll enjoy and learn from your progress!

Thanks for taking the time and effort!
__________________
Airaid CAI, Rx ported TB, Mace ported IM, JBA shorty headers, Richmond 3.73, Borla touring axleback, Hurst short throw, NH-SS fix, IDEALG clutch m/c, SS struts/springs, Spohn trailing arms, Pfadt Racing sways, Pedders radius arm & rear subframe bushing inserts, 2LT gauge pkg.TSW Nurburgs. IPF S/C
Ventmaster is offline   Reply With Quote
Old 05-30-2012, 05:35 PM   #7
MACE_ENG

MACE_ENG's Avatar

Drives: LLT Machine
Join Date: Nov 2011
Location: VIC/AUS
Posts: 558
Wow....thank you for the write up. Now maybe this can save me some time?

Nice job lee!

Jay@TEAM MACE USA/TEAM LLT!
Direct email: Velocityport410@gmail.com
MACE_ENG is offline   Reply With Quote
Old 05-30-2012, 08:07 PM   #8
camaro2rs
Account Suspended

camaro2rs's Avatar

Drives: camaro
Join Date: Aug 2011
Location: east coast
Posts: 571
did you have to use any rtv at all or did you just place it on the 25mm?
camaro2rs is offline   Reply With Quote
Old 05-30-2012, 08:23 PM   #9
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
Quote:
Originally Posted by camaro2rs View Post
did you have to use any rtv at all or did you just place it on the 25mm?
haven't installed it yet, Steve recommends using RTV even though i am using 2 oem gaskets. i haven't made up my mind yet.
Sleez is offline   Reply With Quote
Old 05-31-2012, 01:39 PM   #10
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
i had some left over paint from my calipers, so i sprayed it on the IM yesterday. let it sit overnight and baked it for an hour today.

i went a little crazy!!! i wasn't planning on going nuts polishing the plenum cover....really!!! i was just going to hit it with some 600 grit and polish it to get some shine...but the Marine in me took over....went back to 220 grit and started sanding, after about 2 hours this is what i have;



i am still going to continue the polishing process, to 320, 400, and 600 grit before hitting it with the polishing wheel!!
Sleez is offline   Reply With Quote
Old 05-31-2012, 05:05 PM   #11
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
a bit more polish; not show quality by any means, i'll probably hit it a bit more tomorrow.

Sleez is offline   Reply With Quote
Old 05-31-2012, 06:31 PM   #12
hunterv6
Always bet on Black

hunterv6's Avatar

Drives: 2011 turbo LS, 2012 f 150,
Join Date: Nov 2010
Location: Concord Nc
Posts: 1,910
The jarhead in me is screaming second best not good enough. With that said you know marines dont half-step. That looks awesome.


Sent from my iPad using Tapatalk HD
__________________
<font color=#0066cc>http://www.camaro5.com/forums/showthread.php?t=283263</font>
hunterv6 is offline   Reply With Quote
Old 05-31-2012, 07:11 PM   #13
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
thank you!
Sleez is offline   Reply With Quote
Old 06-01-2012, 03:18 PM   #14
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
didn't do much today, frikkin' hot!!

polished the plenum cover a bit more.

went to look at removing the plastic wiper trim at the back of the firewall, pretty easy, except it is adhered to the firewall, and if you pull it off, it won't save you more than about 1/16", plus you'll have to deal with the edge of the sheetmetal instead of the fairly forgiving plastic. i'll leave it on.

i still have to gasket match the spacers and the head ports, then i can begin the re-assembly. hopefully by the end of the weekend????

and i have to make the bracket spacers for the rear horiz bolts in the back, and the one in the front, i have what i think will work, just have to test them before posting the details.
Sleez is offline   Reply With Quote
Old 06-01-2012, 03:23 PM   #15
SC2150
Account Suspended

Drives: 2012 Camaro RS, RX supercharged
Join Date: Dec 2009
Location: Bradenton, FL
Posts: 6,081
Very nice work!! Looksgreat.
SC2150 is offline   Reply With Quote
Old 06-01-2012, 03:24 PM   #16
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
thank you.
Sleez is offline   Reply With Quote
Old 06-01-2012, 08:59 PM   #17
Mach


Mach's Avatar

Drives: White M6 1LT RS
Join Date: Mar 2010
Location: Canton, MI
Posts: 1,677
Nice work.. Love that painted/polished combo!!!
__________________
Pfadt Sway Bars - FE3 Suspension - Barton Shifter - IdealG's Clutch Master Cylinder - Trifecta - Vmax TB - Vararam Intake - MACE 25mm Insulator - Plenum Insulator - Ported/Gasket Matched Intake Manifold - Rx Catchcan - AAC DRL's - 4 Pack Aux Gauges - Steering Controls - AAC Afterburners - DIY Led Sidemarkers - ZL1 Front End

Next mod: Done!
Mach is offline   Reply With Quote
Old 06-02-2012, 02:44 PM   #18
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
thanks Mach,

today i match ported the spacers. takes about 30 min/port, took me 3 hrs incl pictures and a couple quick breaks.

first of all, safety gear!!! i went a little overboard, i am sure a dust mask would be fine, but i had the respirator handy!



and the tool, dremel with 60 grit sanding drums. i used 1 drum per port.



went pretty well, i started on one end, and got the opening close to the line, then slowly worked it to about 1/2 the line, then i flipped the spacer over and did the other end of the port just the same way. i then started leveling between the ends, being careful not to hit the ends anymore. go slowly and check often. the pattern and dust will help you judge when it is close to flat.

first port;



i then checked in a few places with a straight edge, and evened a few spots out, until i was happy with the surface.



after 3 hours or so, all done;



compare the before;


to the after;


hopefully it will have been worth the effort!!!

tomorrow i'll start on the heads!!! wish me luck!!!
Sleez is offline   Reply With Quote
Old 06-02-2012, 05:16 PM   #19
Daily Driver


Daily Driver's Avatar

Drives: Silver Bullet
Join Date: Sep 2010
Location: DFW
Posts: 822
Nice work Sleez , cant wait to see the end result.
Daily Driver is offline   Reply With Quote
Old 06-02-2012, 05:51 PM   #20
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
thank you.
Sleez is offline   Reply With Quote
Old 06-02-2012, 06:10 PM   #21
camaro2rs
Account Suspended

camaro2rs's Avatar

Drives: camaro
Join Date: Aug 2011
Location: east coast
Posts: 571
soo you just used a dremel? and files?
camaro2rs is offline   Reply With Quote
Old 06-02-2012, 06:41 PM   #22
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
the file was just a gauge to make sure the sides were straight, only used the Dremel with drum sanding wheels.
Sleez is offline   Reply With Quote
Old 06-03-2012, 05:03 PM   #23
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
just went out and marked the head ports, there is not a lot of material to worry about.

some of the ports are 50% dead on, and the largest ledge is .065".

don't think the risk to reward is quite worth it. i am not too worried about getting the last HP out of it. maybe if i was planning a FI install.

so, i think i am going to install my IM and spacer as is, no head porting.













the spacers were in more need of porting than the heads.
Sleez is offline   Reply With Quote
Old 06-03-2012, 08:57 PM   #24
camaro2lt

camaro2lt's Avatar

Drives: 2010 Camaro 2lt VR/RS CGM Rally's
Join Date: May 2009
Location: palmyra pa
Posts: 5,250
soo when u ported the 25mm did u put the gasket on first with rtv?
__________________
camaro2lt is offline   Reply With Quote
Old 06-03-2012, 10:29 PM   #25
Sleez


Sleez's Avatar

Drives: 2010, 2LT, RS, 6M, ABM (#1893) SOLD
Join Date: Mar 2011
Location: Willits, CA
Posts: 1,455
Quote:
Originally Posted by camaro2lt View Post
soo when u ported the 25mm did u put the gasket on first with rtv?

no, i just used the bolts to align the gasket so i could mark it, then ported it.

i don't think i am going to use RTV when installing the spacers and IM, since i am using oem gaskets top and bottom. the IM is dry, and not FI so it should be fine.
Sleez is offline   Reply With Quote
