Old 09-27-2009, 03:40 PM   #1
PieNsky


PieNsky's Avatar

Drives: Victory Red 1LS
Join Date: Nov 2008
Location: Louisville,KY
Posts: 1,895
Your Dyno numbers

Don't think that many have dynoed their Camaros. For what it is worth, could you post your dyno number, what type of dyno, any mods and what type of break in you performed.
I am waiting to do new dyno #s on another Mustang dyno here in Louisville. I'm on the list for the Vararam. Will not be able to compare my stock pulls with my next dyno as they will be on different dynos, same make. Since this dyno, I have the LT headers and exhaust.

Last edited by PieNsky; 09-27-2009 at 09:54 PM.
PieNsky is offline   Reply With Quote
Old 09-27-2009, 03:41 PM   #2
PieNsky


PieNsky's Avatar

Drives: Victory Red 1LS
Join Date: Nov 2008
Location: Louisville,KY
Posts: 1,895
Automatic
248 HP 216 TQ
253 HP 216 TQ
Mustang dyno
Stock pulls
Mostly by the book break in

Last edited by PieNsky; 09-27-2009 at 06:06 PM.
PieNsky is offline   Reply With Quote
Old 09-27-2009, 05:24 PM   #3
John VS

John VS's Avatar

Drives: 2010 Camaro 2LT CGM, IOM Int.
Join Date: Mar 2009
Location: Orange County, CA
Posts: 381
PieNsky,

Is that auto or manual?

[Thanks for the clarification]

Last edited by John VS; 09-28-2009 at 10:59 AM.
John VS is offline   Reply With Quote
Old 09-27-2009, 05:38 PM   #4
freemaSSon
Pat @ ADM PERFORMANCE

freemaSSon's Avatar

Drives: CGM SS/RS M6
Join Date: Aug 2009
Location: Prosper, TX
Posts: 507
DISREGARD.... MY BAD I'LL WATCH WHAT AREA I POST IN LATER!
__________________
"old age and treachery will always overcome youth and ambition"
author unknown


"There are two types of racers: cheaters...and losers."
Smokey Yunick


freemaSSon is offline   Reply With Quote
Old 09-27-2009, 05:57 PM   #5
pinkcamaro10
2G1FC1EV1A9110079

pinkcamaro10's Avatar

Drives: 2010 2LT/RS, 2013 2SS/RS 1LE
Join Date: Jun 2008
Location: Arizona
Posts: 4,815
Send a message via MSN to pinkcamaro10
__________________
pinkcamaro10 is offline   Reply With Quote
Old 09-27-2009, 06:29 PM   #6
scrming
Red Brick of Vengeance!

scrming's Avatar

Drives: 12 Second Brick
Join Date: Jun 2009
Location: at my pulpit
Posts: 7,742
Quote:
Originally Posted by pinkcamaro10 View Post
Holy Moly! Where those pulls really in 4th gear? What kind of MPH were you hitting? I think 4th gets you awfully close to the speed limiter doesn't it?

Been doing all my pulls in 3rd... hmmm...
scrming is offline   Reply With Quote
Old 09-27-2009, 06:35 PM   #7
pinkcamaro10
2G1FC1EV1A9110079

pinkcamaro10's Avatar

Drives: 2010 2LT/RS, 2013 2SS/RS 1LE
Join Date: Jun 2008
Location: Arizona
Posts: 4,815
Send a message via MSN to pinkcamaro10


yeah 4th gear... i've never been to a dyno before, i just did what i was told to do.
__________________
pinkcamaro10 is offline   Reply With Quote
Old 09-27-2009, 06:46 PM   #8
scrming
Red Brick of Vengeance!

scrming's Avatar

Drives: 12 Second Brick
Join Date: Jun 2009
Location: at my pulpit
Posts: 7,742
Quote:
Originally Posted by pinkcamaro10 View Post


yeah 4th gear... i've never been to a dyno before, i just did what i was told to do.
well... i'll be darned! been doing mine in 3rd... hmmm... next time I'll try 4th!
scrming is offline   Reply With Quote
Old 09-27-2009, 06:55 PM   #9
scrming
Red Brick of Vengeance!

scrming's Avatar

Drives: 12 Second Brick
Join Date: Jun 2009
Location: at my pulpit
Posts: 7,742
One thing... really want to make sure you get the SAE results.. not STD... SAE will apply some correction factors which take weather conditions into account which while not perfect by any measure, makes comparing dyno runs a bit more accurate..

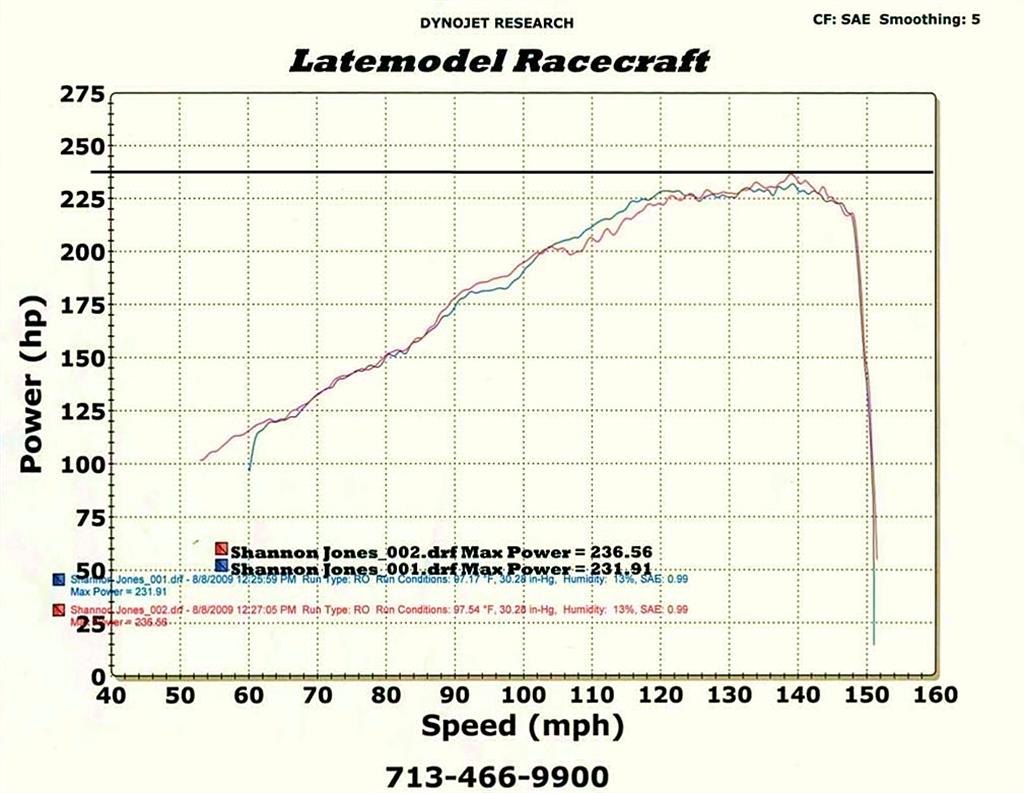

Here's an older sheet showing the weather info and the correction factor:

scrming is offline   Reply With Quote
Old 09-27-2009, 07:51 PM   #10
CamaroBAMF28

Drives: Black 2LT RS
Join Date: Jun 2009
Location: Edison
Posts: 233
lol

Quote:
Originally Posted by pinkcamaro10 View Post


yeah 4th gear... i've never been to a dyno before, i just did what i was told to do.
lol i like how your almost on an empty tank
CamaroBAMF28 is offline   Reply With Quote
Old 09-27-2009, 08:16 PM   #11
pinkcamaro10
2G1FC1EV1A9110079

pinkcamaro10's Avatar

Drives: 2010 2LT/RS, 2013 2SS/RS 1LE
Join Date: Jun 2008
Location: Arizona
Posts: 4,815
Send a message via MSN to pinkcamaro10
I know!! I was scared, i asked him if i was gonna run out of gas.
__________________
pinkcamaro10 is offline   Reply With Quote
Old 09-27-2009, 08:54 PM   #12
trudawg660


Drives: 2006 Dodge Charger / 2SS IOM
Join Date: Dec 2008
Location: United Kingdom
Posts: 1,642
you can get up to 155
trudawg660 is offline   Reply With Quote
Old 09-27-2009, 09:45 PM   #13
rolnslo
Rolling along...

rolnslo's Avatar

Drives: 2011 2SS/RS SGM
Join Date: Mar 2008
Location: Houston, TX
Posts: 4,320
All stock @ 1550 miles, except for switch to Mobil1 at 1500 miles. Followed break-in procedure in the owner's manual. M6 with run done in 4th gear. 2nd image is breakdown created in Excel using data extrapolated from the original dyno sheet.



__________________

#1: 2010 1LT/RS Victory Red M6 - July 2009-Oct 2011 (SOLD). #2: 2011 2SS/RS Synergy Green A6 - Oct 2011.....
rolnslo is offline   Reply With Quote
Old 09-27-2009, 11:19 PM   #14
TJ91
:chevy:

TJ91's Avatar

Drives: 2LT/RS
Join Date: Jun 2008
Location: Toronto
Posts: 12,508
Im almost certain mine is going to dyno low, just waiting for my knee to get better so i can find a dyno here.
Pink, your car hit 155 and the speed limiter didnt even go off....i thought it comes exactly at 155 but i guess it takes a second or two.
Good stuff, i saw a dyno pull on youtube and a stock v6 ran 263
TJ91 is offline   Reply With Quote
Old 09-27-2009, 11:29 PM   #15
kga10734
Don't Feed the Troll

kga10734's Avatar

Drives: 2010 Camaro 2LT/RS & 1999 Corvette
Join Date: Jun 2009
Location: Montgomery, TX
Posts: 782
Stock engine on a Dynojet @ Hennessey

right at 1500 miles broke in the semi hard way.

9/26/2009
3:24 in the afternoon
95.90 degrees
29.81 in-Hg
Humidity 23%
SAE: 1.01

Max Power = 233.10
I don't know what the torque was, it wasn't given.

They had mine up to 155 and I never heard it hit the limiter.
__________________
kga10734 is offline   Reply With Quote
Old 09-27-2009, 11:34 PM   #16
TJ91
:chevy:

TJ91's Avatar

Drives: 2LT/RS
Join Date: Jun 2008
Location: Toronto
Posts: 12,508
Wow...233?.......oh god....i dont even want to dyno mine anymore :(
TJ91 is offline   Reply With Quote
Old 09-28-2009, 02:01 AM   #17
tcamp

Drives: 2010 1LT RS
Join Date: Jun 2009
Location: Ontario, CA
Posts: 98
K&N dyno'd mine when I brought it in for intake testing and the best run was 255 hp. First run, first thing in the morning when it was still cold. The car was stock at this point. My car is an automatic. Subsequent runs later in the day when it heated up were lower.
tcamp is offline   Reply With Quote
Old 09-28-2009, 11:33 AM   #18
rolnslo
Rolling along...

rolnslo's Avatar

Drives: 2011 2SS/RS SGM
Join Date: Mar 2008
Location: Houston, TX
Posts: 4,320
Quote:
Originally Posted by kga10734 View Post
Stock engine on a Dynojet @ Hennessey

right at 1500 miles broke in the semi hard way.

9/26/2009
3:24 in the afternoon
95.90 degrees
29.81 in-Hg
Humidity 23%
SAE: 1.01

Max Power = 233.10
I don't know what the torque was, it wasn't given.

They had mine up to 155 and I never heard it hit the limiter.
Oh, thank god...mine isn't the lowest anymore.

I really wanted to make it out to Hennessey's but couldn't. There was no way I was putting mine back on the dyno anyhow. I'll wait until we have a real cold front come through town (some time in January or February) and then try it again. The 95+ degree temps really seem to kill the V6 dyno numbers.
__________________

#1: 2010 1LT/RS Victory Red M6 - July 2009-Oct 2011 (SOLD). #2: 2011 2SS/RS Synergy Green A6 - Oct 2011.....
rolnslo is offline   Reply With Quote
Old 11-07-2009, 10:19 PM   #19
RyanDenos89
RyanDenos89

Drives: 2010 Red LT1 RS
Join Date: Jun 2009
Location: rancho santa margarita ca
Posts: 160
here is mine after the exhaust
Attached Images

RyanDenos89 is offline   Reply With Quote
Old 11-07-2009, 10:43 PM   #20
kga10734
Don't Feed the Troll

kga10734's Avatar

Drives: 2010 Camaro 2LT/RS & 1999 Corvette
Join Date: Jun 2009
Location: Montgomery, TX
Posts: 782
What exhaust system did you put on to gain 20hp?
__________________
kga10734 is offline   Reply With Quote
Old 11-07-2009, 10:57 PM   #21
bond2

bond2's Avatar

Drives: '10 Camaro V6, 96 WS6, 07 SRX
Join Date: May 2009
Location: Cleveland, OH
Posts: 102
Dyno results before and after my Corsa exhaust install @ 1,200 miles:

Stock: 255hp/232tq
w/ Corsa 260hp/238tq

__________________
'10 CGM 2LT/RS M6 Camaro - w/ Corsa Cat-Back Exhaust & HUD Upgrade
'96 Black WS6 TA - M6 Conv, Pro 5.0, Baer Track kit
'07 Cadillac SRX - Black/Ebony, Sport PKG, AWD V8
bond2 is offline   Reply With Quote
Old 11-08-2009, 05:31 AM   #22
devildoc


devildoc's Avatar

Drives: '12 Toyota Tacoma Dbl
Join Date: Sep 2009
Location: Beaufort, SC
Posts: 1,278
Ryan what exhaust you using?
__________________
STANDING 1/4MI: 13.948@99.87
6600RPM HP/TQ Gains - 30.54HP/24.3TQ (NOT PEAK)
devildoc is offline   Reply With Quote
Old 11-08-2009, 06:07 AM   #23
scrming
Red Brick of Vengeance!

scrming's Avatar

Drives: 12 Second Brick
Join Date: Jun 2009
Location: at my pulpit
Posts: 7,742
Quote:
Originally Posted by kga10734 View Post
What exhaust system did you put on to gain 20hp?
While the dyno shows a 20 HP gain, it still only gets it in the ball park of everyone else that has done exhaust..

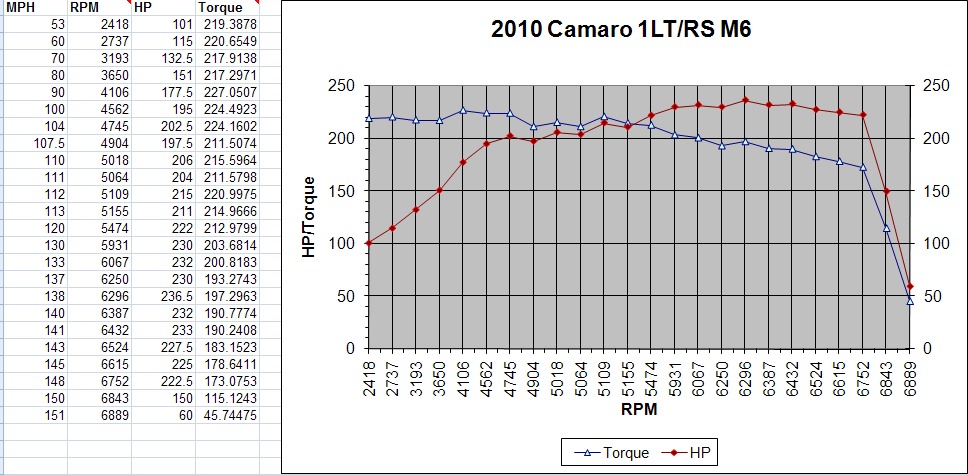

Here is my latest dyno from yesterday.. this is with an axle back and my separate IAT compared to 100% bone stock:



Ryan most certainly seen some gains from adding an exhaust, but I think his starting baseline was unusually low...
scrming is offline   Reply With Quote
Old 11-09-2009, 06:25 PM   #24
RyanDenos89
RyanDenos89

Drives: 2010 Red LT1 RS
Join Date: Jun 2009
Location: rancho santa margarita ca
Posts: 160
Quote:
Originally Posted by kga10734 View Post
What exhaust system did you put on to gain 20hp?
its a gibson prototype
RyanDenos89 is offline   Reply With Quote
Old 11-09-2009, 06:28 PM   #25
RyanDenos89
RyanDenos89

Drives: 2010 Red LT1 RS
Join Date: Jun 2009
Location: rancho santa margarita ca
Posts: 160
Quote:
Originally Posted by scrming View Post
While the dyno shows a 20 HP gain, it still only gets it in the ball park of everyone else that has done exhaust..

Here is my latest dyno from yesterday.. this is with an axle back and my separate IAT compared to 100% bone stock:



Ryan most certainly seen some gains from adding an exhaust, but I think his starting baseline was unusually low...
gibson did all the testing the dyno sheet is from them they said that there dyno runs low and that it should be more than that
RyanDenos89 is offline   Reply With Quote
