Old 10-05-2009, 07:38 PM   #1
klove

klove's Avatar

Drives: black 2SS RS
Join Date: Jun 2009
Location: Enterprise, AL
Posts: 151
M45 Blinder X-treme laser jammer install

I dont have step by step install pics but hopefully this helps. The transmitters for the laser jammer have to be level to the road. This is the most difficult and tedious part of the install. The kit comes with a level that sticks in the back of each transmitter to ensure it is level but i used a small level to sit on top so i could get a better view of the level. I removed my bumper and had to cut out part of the original grille so that the transmitters would fit, the width of the transmitters are wider than the spaces in between the vertical bars on the grille. This worked well for me because i have the phantom grille. The phantom grille also made it slightly harder because they had to be level and shoot through horizontal bars of the grille. It has already protected me once on the highway, i was going 85 in a 70 and did not get pulled over after being lasered.

Step 1 Take off bumper

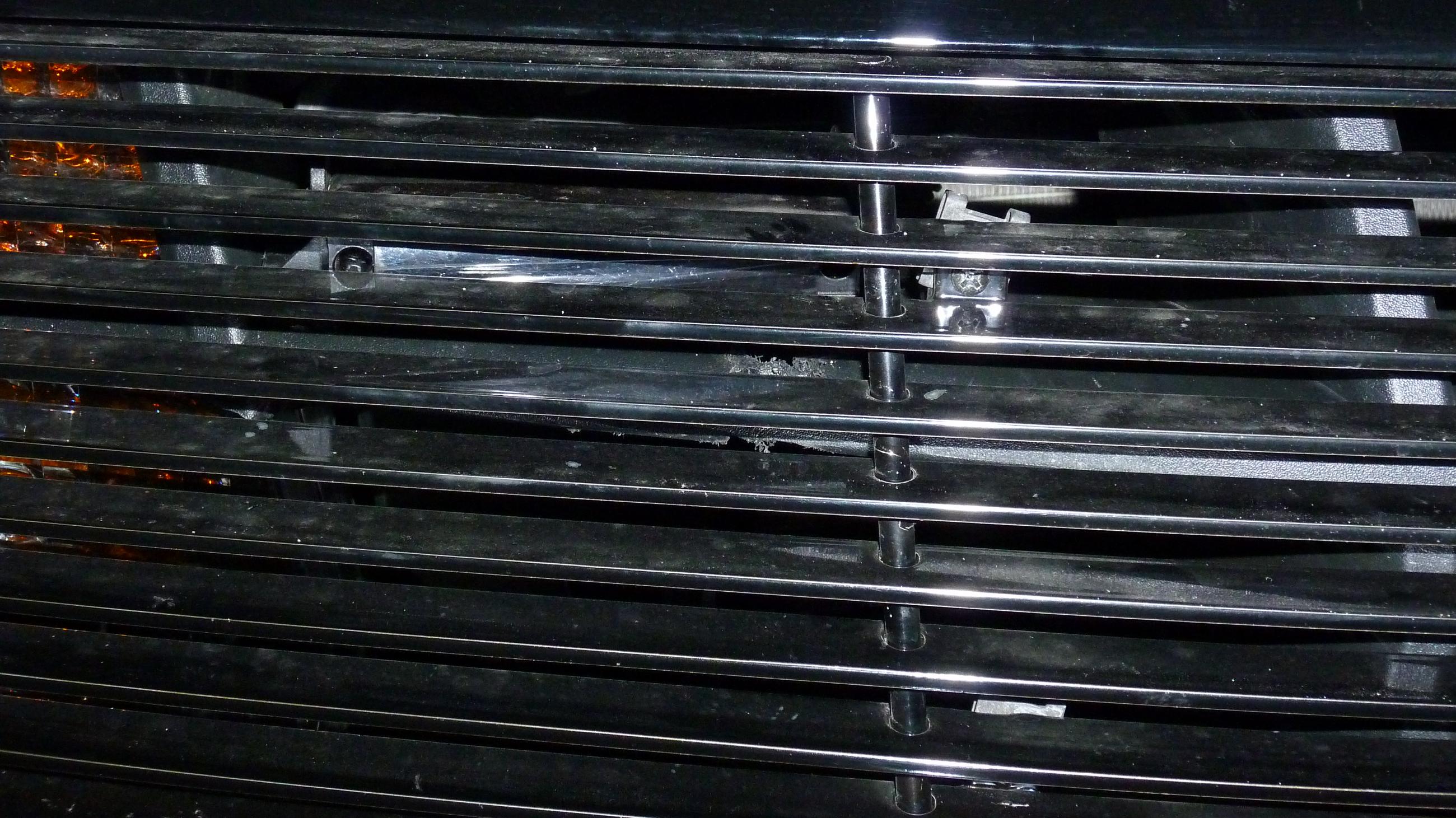

Step 2 trim grille to fit transmitters

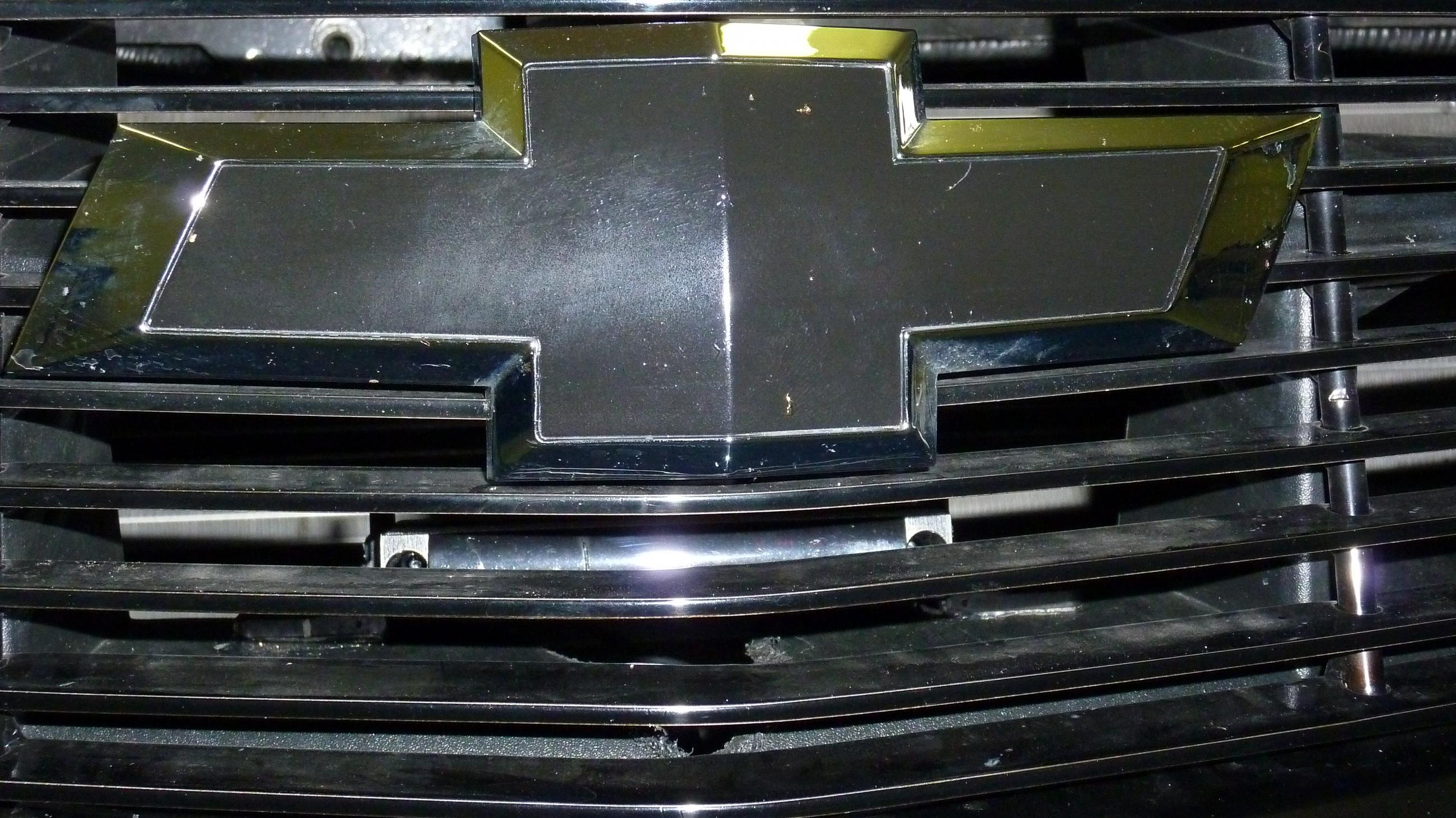

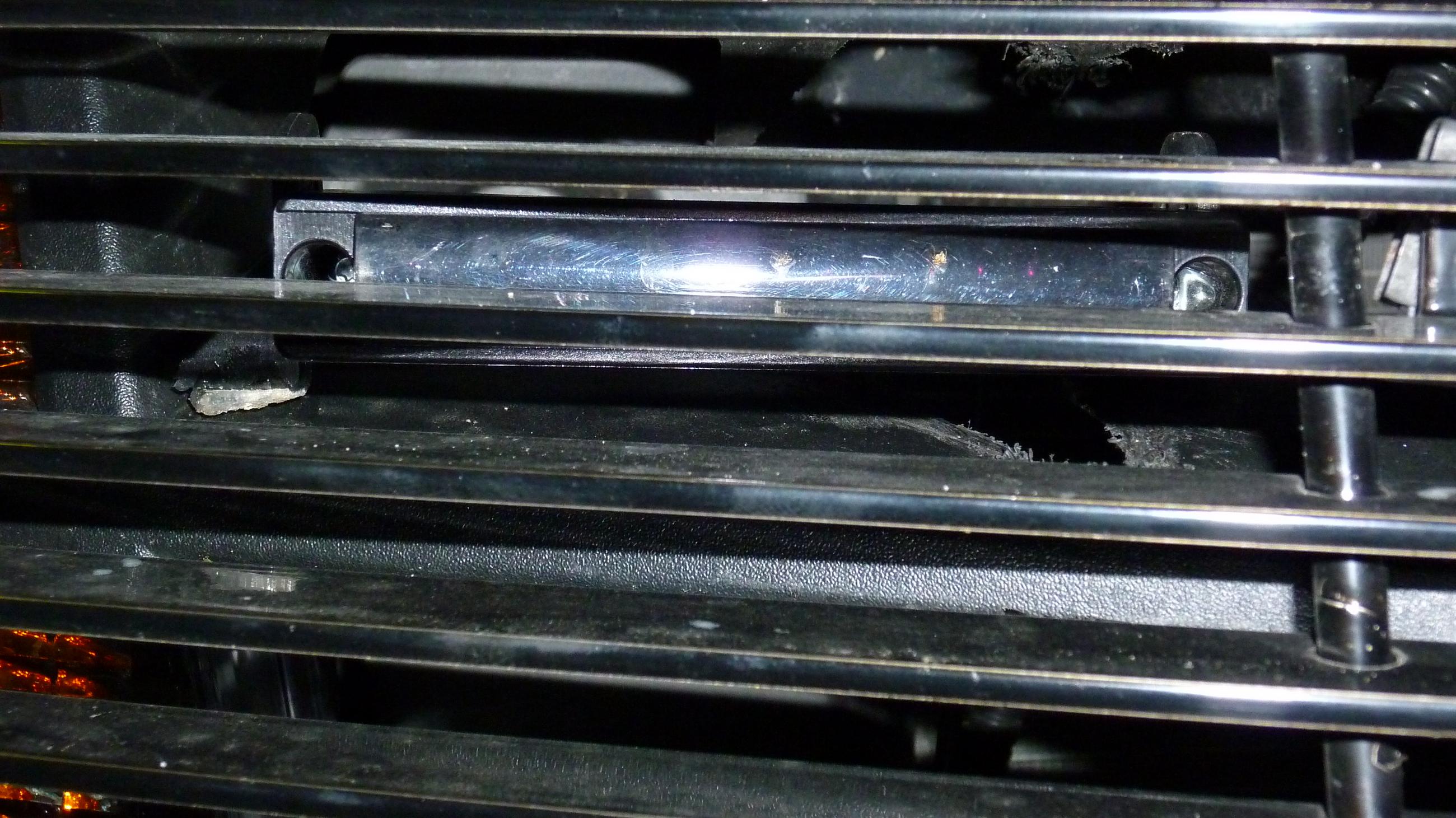

Step 3 mount transmitters level to the road. You should do this with the bumper on the car. I didnt bolt it back on but let it rest there as i worked on the transmitter mounting.

Step 4 run the wires from the transmitters through the firewall into the cabin of the car, or through the trunk and up the side if you mount one on the rear bumper as i did.

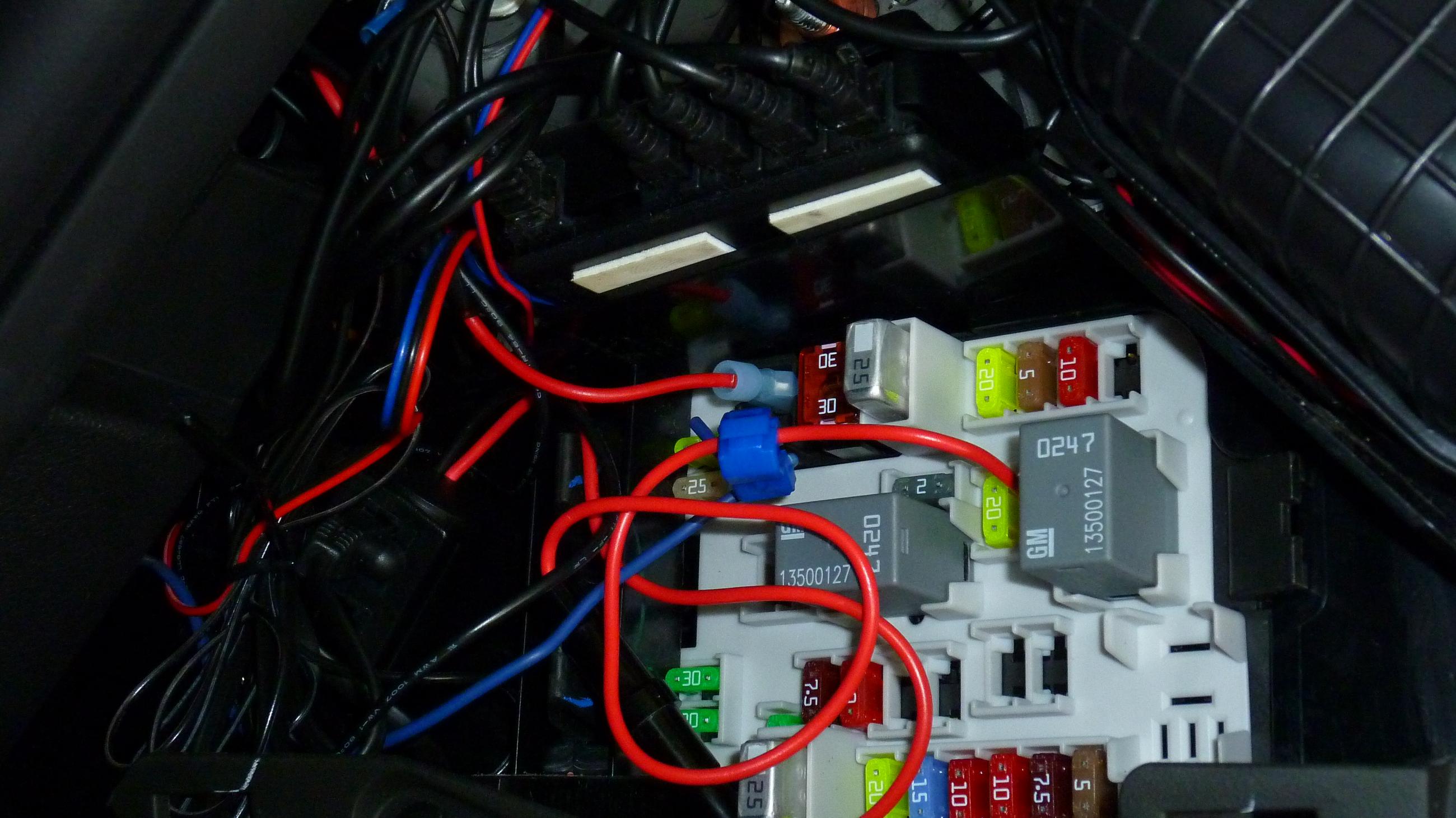

Step 5 find a suitable place to mount and install the receiver module where the transmitter wires will run to. I chose inside the panel on the drivers side where the fuse box is. I wired the receiver module to the lighter so it comes on with the ignition and my Valentine 1

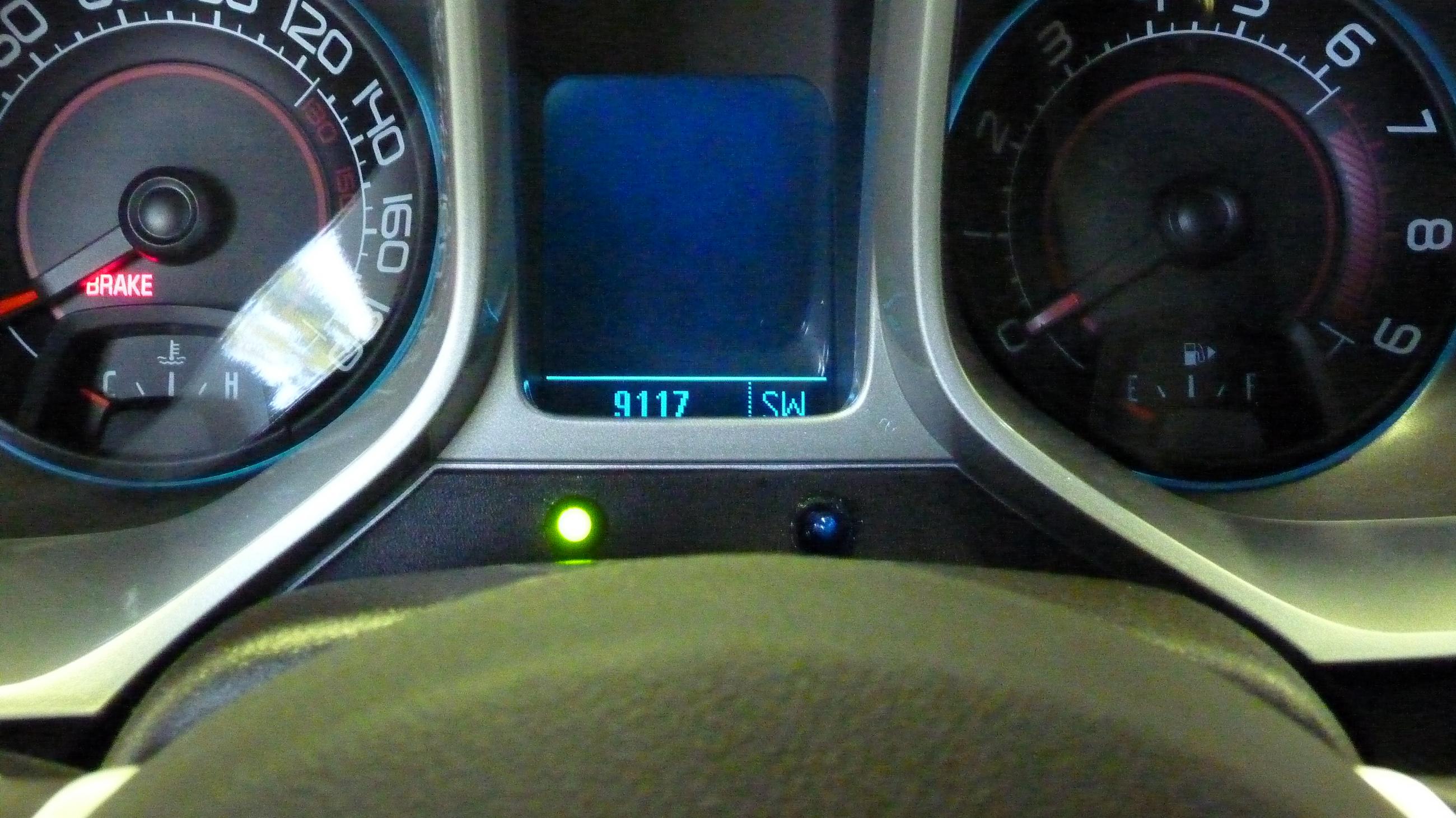

Step 6 Install the status light for the system. I chose to put it under the information center in the gauge cluster.

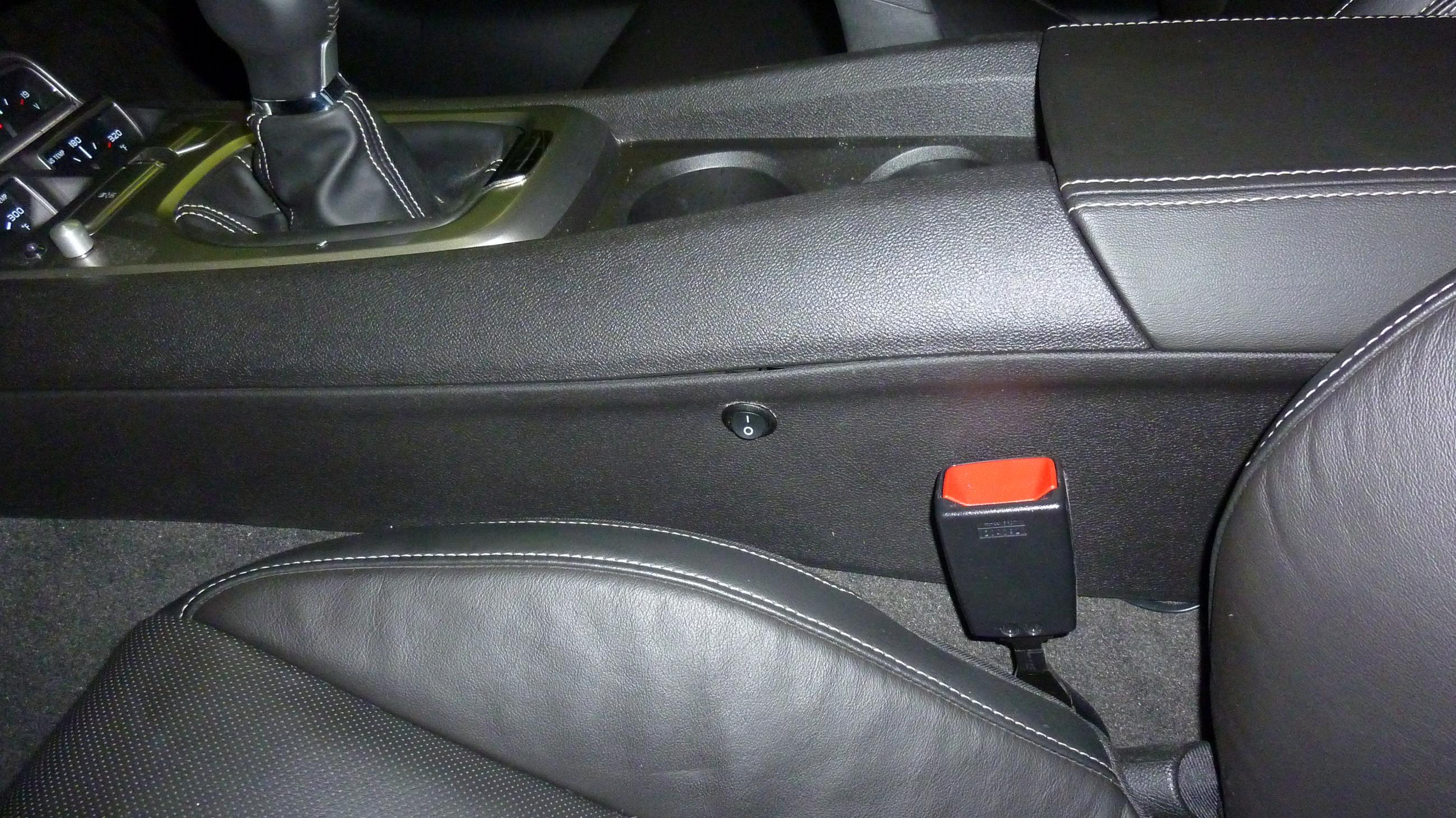

Step 7 Install the kill switch. It is a regular switch that i keep in the on position all the time until getting lasered when you slow down and then turn the system off. That is what the instructions suggest you do to avoid complications with the police.

Step 8 test the system, you can take any TV remote and the system will recognize the IR signal and go off. The first 30 seconds then system is on it is in test mode and will recognize the remote control signal and after the 30 seconds it goes into protection mode.
Attached Images

klove is offline   Reply With Quote
Old 10-10-2009, 02:43 PM   #2
Infern0
Bring It

Infern0's Avatar

Drives: '10 Camaro 2SS/RS LS3
Join Date: Sep 2009
Location: North Virginia
Posts: 1,659
That is bad @$$. No way I could do all that myself though. :(
Infern0 is offline   Reply With Quote
Old 10-14-2009, 01:24 AM   #3
nwotank

Drives: 2010 Camaro SS Rally Yellow
Join Date: Aug 2009
Location: New Braunfels, Texas
Posts: 124
yeah hopefully they will come out with an easy install option for everybody else, looks like great install
nwotank is offline   Reply With Quote
Old 10-14-2009, 01:44 AM   #4
JewelZ
Just Lovin' My Camaro!

JewelZ's Avatar

Drives: CGM 2LT/RS/AUTO
Join Date: Apr 2009
Location: san antonio, tx
Posts: 1,325
The pictures are too big, please re-size. Great information, this is what I have been waiting for. Although, I will probably get a professional install done, you did an amazing job. How much was the kit? Do they promise to pay for the ticket if you get ticketed.
__________________
CGM( GRAY 2 tone interior ) 2LT/RS/AUTO

NJHKKM $29,965.00 1EH37 1100 03/28/2009 AFF, B34, DCP, FE9, GBV, LLT, MX0, SGC, UQA, WRS, 2LT

50 YEARS FROM NOW, DON'T YOU WANNA BE ABLE TO LOOK BACK AND SAY YOU HAD THE GUTS TO GET INTO THE CAR!?!?

ORDER STATUS : 6000 as of 08.18.2009. VIN# 33,985!!! His name is 'GOLIATH'!!!

GOT MY CAR!!!! AND I LOVE IT!!!!
JewelZ is offline   Reply With Quote
Old 11-15-2009, 06:28 PM   #5
first one


first one's Avatar

Drives: SSRS - black, GFX, SSX wheels
Join Date: Aug 2009
Location: IN
Posts: 935
Do these things really work? I have heard bad things about Rocky Mountain Radar jammers. Is the M-45 Blinder X-treme different?
first one is offline   Reply With Quote
Old 12-10-2009, 02:45 PM   #6
Gforce8
WFO all the way

Gforce8's Avatar

Drives: Yellow 1SS/RS
Join Date: Aug 2009
Location: Chicago, IL
Posts: 164
I used RMR radar detector jammer and it's awesome. I used to get a ticket at least once a year. It's been six years and I haven't had a single one!
And I've had many encounters where I thought "damn, they nailed me" for doing 20-30 mph over.
But they never followed.
So I figure the damn thing works!
__________________

Mods:
Knighlight, Eibach sways and 1"dropsprings, usb PDIM and steering buttons from 2SS,
footwelllights, fogs AAC PW13 with jumper, Trak+ widetrack spacers,
1-4 eliminator, Pedders bushings, subthumb+10" sub with amp, flowmaster axleback and CAI, Barton short shifter, BMR trailing arms, stainless steel brake lines.
Also:
blue metallic painted stripes and yellow interior.
Gforce8 is offline   Reply With Quote
Old 12-10-2009, 03:30 PM   #7
CamaroSkooter
Retarded One-Legged Owl

CamaroSkooter's Avatar

Drives: 2010 Black Camaro 2SS
Join Date: Oct 2008
Location: San Antonio, TX
Posts: 9,689
No offense, but it looks like whoever did the install seriously thrashed your OEM grille. Even the hole drilled in your center console looks pretty hastily done.

Any updates as to how effective this system has been for you?
CamaroSkooter is offline   Reply With Quote
Old 12-10-2009, 03:39 PM   #8
2010 SSRS




2010 SSRS's Avatar

Drives: 3 V8 Camaros
Join Date: May 2009
Location: The Ocean State
Posts: 123,977
radar jammer
