Old 12-14-2009, 12:40 PM   #1
RMGee
Clap Clap

RMGee's Avatar

Drives: 2SS/RS LS3
Join Date: Sep 2009
Location: NC
Posts: 326
Lightbulb Achieving the Camaro concept's afterburner tail light effect

UPDATE
If you're just tuning into this thread, you can skip to page six. Specifically, this post by TonyNo.

Quote:
Originally Posted by TonyNo View Post
Here's a bad-phone-pic teaser shot of the prototype.
http://www.camaro5.com/forums/showpo...&postcount=132

This is a kind of collective effort thread to see if anyone out there has idea's for how to get the afterburner look.

I'd say its clear there is a demand for this
http://www.camaro5.com/forums/showthread.php?t=35170

Here it is with the no brakes, and then brakes.



Here is a video of a close up that I found:



AAC has gotten really close.


You can buy those here
http://www.automotivelightstore.com/...letcamaro.aspx

So has kga10734

http://www.camaro5.com/forums/showpo...0&postcount=53


So if anyone has their 2 cents about this post it here.
I think its a matter of getting the light to diffuse evenly and outward only, but I have no idea how that would happen since I'm not so light-mod savvy. Either way, there probably needs to be an entirely new housing to achieve this.

Radz thinks its about trunkspace
http://www.camaro5.com/forums/showpo...18&postcount=2

Last edited by RMGee; 02-06-2010 at 08:56 AM.
RMGee is offline   Reply With Quote
Old 12-14-2009, 03:01 PM   #2
Ringo
Politically incorrect

Ringo's Avatar

Drives: 2SS/RS
Join Date: Jun 2009
Location: Soggy Seattle
Posts: 792
Neither of those is even remotely close. If you want yellow half circles for tail lights, those are great. Afterburners they are not. Too many people out there buying these things and are willing to settle for third best. The demand is out there, we just need somebody to do it correctly with diffused light, and make it happen.
__________________
2SS/RS M6 IO interior. Built 8/14/09. Delivered 9/9/09.

Ringo is offline   Reply With Quote
Old 12-14-2009, 03:08 PM   #3
nUcLeArEnVoY
Oldbie that nobody knows

nUcLeArEnVoY's Avatar

Drives: people crazy.
Join Date: Jun 2008
Location: Homestead, FL
Posts: 3,305
Send a message via AIM to nUcLeArEnVoY
The best way to do it would be to put a half-pie shaped piece inside that has a special tint on it that blocks the normal tail-light intensity but not the brake light.
__________________
nUcLeArEnVoY is offline   Reply With Quote
Old 12-14-2009, 03:39 PM   #4
scythezo6
Virologist in the making

scythezo6's Avatar

Drives: 2010 VR SS/RS LS3
Join Date: Aug 2009
Location: El Paso TX
Posts: 2,867
If anyone has seen the gauges inside a Pontiac G6 (ahem my current car =P, google pics of this light up at night) They have the afterburner effect on those. I have buddy that studied electrical engineering at my university (not claiming him as an expert by any means but he brings up valid points) and after showing him the concept pics he says:

"Here is the key to that look:

The inner circle of the lighting fixture needs to be blacked out or tinted so little (but enough to be legal) light passes through. This will give the darkened center appearance.

The light needs to come from behind this blacked out center in a way that it shines around the perimeter of the light fixture. But some light needs to pass through the darmened center as well but much less than what comes out the sides. This can be done by using a smaller halo light with a softer (no brakes applied) glow. The smaller halo should be fixed behind the darkened center so you cant "see" the halo directly but only the glow it emits.

The sides of the lighting fixture needs to be highly reflective so the light can gleam off it forming streak patterns that mimic a soft glowing flame.

Also the darkened center should have notches cut out along the egdes where light shines through. This allows the light passing through them to have a broken up edge/definition to enhance the soft glowing flame look."

Basically what I got from this and the drawings, you lighting experts can debate this, is the middle of the lamp needs to be tinted or blacked out enough so barely any light comes out when the brake are not applied. The afterburner effect comes from having the light source be behind this tinted middle so the light shines from behind it onto the sides.

Heres some drawing he did that I photo'd on the iPhone:

__________________
Victory Red 1SS/RS Ordered - 8/4/09 & Joined Camaro5.com family
6000, Delivered to the customer - 12/21/09
scythezo6 is offline   Reply With Quote
Old 12-14-2009, 06:30 PM   #5
RMGee
Clap Clap

RMGee's Avatar

Drives: 2SS/RS LS3
Join Date: Sep 2009
Location: NC
Posts: 326
Quote:
Originally Posted by scythezo6 View Post
If anyone has seen the gauges inside a Pontiac G6 (ahem my current car =P, google pics of this light up at night) They have the afterburner effect on those. I have buddy that studied electrical engineering at my university (not claiming him as an expert by any means but he brings up valid points) and after showing him the concept pics he says:

"Here is the key to that look:

The inner circle of the lighting fixture needs to be blacked out or tinted so little (but enough to be legal) light passes through. This will give the darkened center appearance.

The light needs to come from behind this blacked out center in a way that it shines around the perimeter of the light fixture. But some light needs to pass through the darmened center as well but much less than what comes out the sides. This can be done by using a smaller halo light with a softer (no brakes applied) glow. The smaller halo should be fixed behind the darkened center so you cant "see" the halo directly but only the glow it emits.

The sides of the lighting fixture needs to be highly reflective so the light can gleam off it forming streak patterns that mimic a soft glowing flame.

Also the darkened center should have notches cut out along the egdes where light shines through. This allows the light passing through them to have a broken up edge/definition to enhance the soft glowing flame look."

Basically what I got from this and the drawings, you lighting experts can debate this, is the middle of the lamp needs to be tinted or blacked out enough so barely any light comes out when the brake are not applied. The afterburner effect comes from having the light source be behind this tinted middle so the light shines from behind it onto the sides.

Heres some drawing he did that I photo'd on the iPhone:


Great stuff. Def sounds promising
RMGee is offline   Reply With Quote
Old 12-14-2009, 06:32 PM   #6
2010 SSRS




2010 SSRS's Avatar

Drives: 3 V8 Camaros
Join Date: May 2009
Location: The Ocean State
Posts: 123,973
those look killer
2010 SSRS is offline   Reply With Quote
Old 12-14-2009, 06:42 PM   #7
SS Mike


SS Mike's Avatar

Drives: 2010 Camaro SS/RS CGM M6
Join Date: Jun 2009
Location: Orange County, California
Posts: 798
I had an idea based on a thread I saw the other day.

A company on here is making an LED tail light that has the sequential feature, as well as a show feature. Well the piece is shaped like the inside of the tail light housing. I was thinking, what if you were to put that piece inside the housing, maybe an inch or so from the red lens on the outside, and behind it you put a bulb in that doesn't have the two filliments so it doesn't get brighter when you hit the brakes. So whenever you have your parking lights turned on, the bulbs will be on low light, but the LED piece will be blocking most of the light, allowing it to only show at the bottom and around the sides Then when you hit the brakes, the LEDs on that piece come on. Presto, you have an afterburner kit.

Any thoughts? It's kind of hard to explain without being able to show you guys what I mean so hopefully I explained it correctly.
__________________

Vortech V-3 Kit, ARH LT's, Custom Exhaust, Aeromotive A1000 Fuel System, Custom Tune - 582 rwhp 533 rwtq
22" Modulare H2 Wheels, CF Hood, Trunk, Spoiler & Roof by Carbon by Design, Custom Steering Wheel from P-Factor
Brembo GT BBK, Alpine INA-900, Alpine Type-R Speakers, Hurst Shifter, APR Splitter, Custom Quad Tip Diffuser
CKS C1 Coilovers, Falken 452 Tires, 265/35/22 & 285/35/22, Custom Grille, AAC Halos, and much more to come!!
SS Mike is offline   Reply With Quote
Old 12-14-2009, 07:33 PM   #8
KMPrenger



KMPrenger's Avatar

Drives: '10 ABM LT/RS, 06 Chevy Colorado
Join Date: May 2009
Location: Jefferson City, Missouri
Posts: 9,461
Quote:
Originally Posted by scythezo6 View Post
If anyone has seen the gauges inside a Pontiac G6 (ahem my current car =P, google pics of this light up at night) They have the afterburner effect on those. I have buddy that studied electrical engineering at my university (not claiming him as an expert by any means but he brings up valid points) and after showing him the concept pics he says:

"Here is the key to that look:

The inner circle of the lighting fixture needs to be blacked out or tinted so little (but enough to be legal) light passes through. This will give the darkened center appearance.

The light needs to come from behind this blacked out center in a way that it shines around the perimeter of the light fixture. But some light needs to pass through the darmened center as well but much less than what comes out the sides. This can be done by using a smaller halo light with a softer (no brakes applied) glow. The smaller halo should be fixed behind the darkened center so you cant "see" the halo directly but only the glow it emits.

The sides of the lighting fixture needs to be highly reflective so the light can gleam off it forming streak patterns that mimic a soft glowing flame.

Also the darkened center should have notches cut out along the egdes where light shines through. This allows the light passing through them to have a broken up edge/definition to enhance the soft glowing flame look."

Basically what I got from this and the drawings, you lighting experts can debate this, is the middle of the lamp needs to be tinted or blacked out enough so barely any light comes out when the brake are not applied. The afterburner effect comes from having the light source be behind this tinted middle so the light shines from behind it onto the sides.

Heres some drawing he did that I photo'd on the iPhone:


Lets not forget that the center needs to be able to light up just as bright as the surrounding "glow" when the breaks are hit. In the above diagram..the outside would just get brighter as the inside would become just bright enough to be noticable. My guess is that its this seperation that makes this project tough using the existing lens. Really, what we need is a whole new setup, including lens, and housing with different bulb locations and all to really get what we're seeking.

Thats just my thoughts, and in no way at all am i remotely saying I could do it lol. If some company does it...awsome..but I wouldn't expect it to be cheap at all. (obviously) I don't even know if something like that would be plug and play possible with the existing wiring would it?
__________________
IPF Tune, Custom Magnaflow Exhaust, Vararam intake, MACE Ported Manifold, RX Ported TB, "Black Ice" manifold insulator, Elite Catch Can, ZL1 repro wheels, ZL1 Springs, DRL Harness, Front GM GFX, Heritage grill, Street Scene lower grill, NLP Spoiler, ZL1 rockers and much more!
KMPrenger is offline   Reply With Quote
Old 12-14-2009, 08:20 PM   #9
jjopks

jjopks's Avatar

Drives: Black 2LT RS -grey interior
Join Date: Oct 2009
Location: Lenexa, KS
Posts: 65
http://jalopnik.com/photogallery/2010camrear/1002900652

"The car is pretty wide and the taillights are out at the corners, but they're not as deep as they were on the concept car, a decision driven primarily by sheetmetal and trunk space. On the concept you can make those cans two-feet deep but someone who owns the car doesn't want that."
Attached Images

__________________
Autobots! Transform and rollout.

8/26 Put on wait list - Order placed
official order# NNWRRS
3300 11/2 production scheduled
3400 11/2 order broadcast
3800 11/3 order produced
4200 11/4 shipped by rail (in transit)
11/10 shipped by truck
11/12 delivered to dealer
11/13 (Friday) I picked up from dealer!!
jjopks is offline   Reply With Quote
Old 12-14-2009, 08:24 PM   #10
BOOTZILLA
Banned

Drives: Black 2010 SS/RS
Join Date: Dec 2009
Location: The 'Wood
Posts: 202
I likes dat.

But really.

How do I get 6" flames to shoot outta my rear end??
BOOTZILLA is offline   Reply With Quote
Old 12-14-2009, 08:32 PM   #11
scythezo6
Virologist in the making

scythezo6's Avatar

Drives: 2010 VR SS/RS LS3
Join Date: Aug 2009
Location: El Paso TX
Posts: 2,867
Quote:
Originally Posted by scythezo6 View Post
If anyone has seen the gauges inside a Pontiac G6 (ahem my current car =P, google pics of this light up at night) They have the afterburner effect on those. I have buddy that studied electrical engineering at my university (not claiming him as an expert by any means but he brings up valid points) and after showing him the concept pics he says:

"Here is the key to that look:

The inner circle of the lighting fixture needs to be blacked out or tinted so little (but enough to be legal) light passes through. This will give the darkened center appearance.

The light needs to come from behind this blacked out center in a way that it shines around the perimeter of the light fixture. But some light needs to pass through the darmened center as well but much less than what comes out the sides. This can be done by using a smaller halo light with a softer (no brakes applied) glow. The smaller halo should be fixed behind the darkened center so you cant "see" the halo directly but only the glow it emits.

The sides of the lighting fixture needs to be highly reflective so the light can gleam off it forming streak patterns that mimic a soft glowing flame.

Also the darkened center should have notches cut out along the egdes where light shines through. This allows the light passing through them to have a broken up edge/definition to enhance the soft glowing flame look."

Basically what I got from this and the drawings, you lighting experts can debate this, is the middle of the lamp needs to be tinted or blacked out enough so barely any light comes out when the brake are not applied. The afterburner effect comes from having the light source be behind this tinted middle so the light shines from behind it onto the sides.

Heres some drawing he did that I photo'd on the iPhone:

The light source here will not be a cheapo light bulb, that was just drawn in for simplicity. Its should probably be a halo and the middle should be tinted enough to block out a lot of light (not all!) when the brakes are not applied (lots of light will still pass around the edges).
__________________
Victory Red 1SS/RS Ordered - 8/4/09 & Joined Camaro5.com family
6000, Delivered to the customer - 12/21/09
scythezo6 is offline   Reply With Quote
Old 12-14-2009, 08:36 PM   #12
navmaxlp

navmaxlp's Avatar

Drives: Not a Camaro :(
Join Date: May 2009
Location: Frederick, maryland
Posts: 337
Ok stay with me here as I'm not sure I can explain this well.

So on the concept, it looks almost like the afterburner light is coming from behind the actual brake light bulb. That's what creates that look. What I'm thinking could be done is using the AACStyle CCFL lights and placing some sort of plastic shielding around the light that obscures it so the light can only be reflected out and forward causing the effect. Think of a Bic pen where the inner ink portion is the CCFL. Cut about a quarter of the outer plastic off, bend the whole thing into a semi circle and place it in the light housing. This way, you can't see the actual CCFL but you can see the light coming out around the plastic housing. I think this would create the exact afterburner effect we are all looking for.

I can try and explain better if needed. I''l try and draw up a picture to post as well to clarify.
navmaxlp is offline   Reply With Quote
Old 12-14-2009, 09:14 PM   #13
VenomZ302
Live to Win, Dare to Fail

VenomZ302's Avatar

Drives: 2010 Aqua Blue RS/SS M6
Join Date: Nov 2008
Location: Charleston, SC
Posts: 1,788
I think what's probably the ideal way to handle this is to have a semi-circular section of LEDs (or a darker plastic panel that will conduct light) that appears very dark when unlit. When driving in regular conditions, a parking light of sorts set behind the LEDs would be lit, creating the afterburner effect. Then, when you hit the brakes, the LEDs light up and that's that.

Despite the idea seeming relatively simple, I have NO idea how difficult it would be to implement. Just thought I'd share my thought.
__________________

3/13/09 - Ordered Aqua Blue Metallic 2SS/RS M6!
7/13/09 - Built!
8/11/09 - Delivered!


2G1FT1EW2A9124579
VenomZ302 is offline   Reply With Quote
Old 12-14-2009, 09:51 PM   #14
2SSRS@Gen5diy
Salt & Pepper 2014 Z/28


2SSRS@Gen5diy's Avatar

Drives: 2010 2SS IOM ,2014 Z/28, 66 Nova
Join Date: Oct 2008
Location: By the lake in AZ
Posts: 11,714
I think that i know how to do it, But its a lot of work on the first link is the thread i started, I made one but in parts is like is $50 per light and almost 5 man Hr so i think that is a lot of work for most.

First thing is to open the tail light and remove the outer and inner lens, The inner lens is clear and needs to be cut to the shape of a 3/8 moon and then get a tint that is 20% to cover the moon shape, Next you need to get a new red LED bulb like this one.





Now the bulb is one that i found at the Truck stops i tried the one you can get at auto supply stores but all of them are to long for what you want.

I had to do some work on the ones you see as it had 4 contacts and we need the bulb to only work on the two, The high beams or power and the second two are the ones that give the side light that go's to the part that i made to hold all the rest of the lights, As of right now i have over 20 lights in this and i will post some new pics soon.

This was the first time i did it and not to bad but i used the longer bulb and a round mount for the rest of the lights.

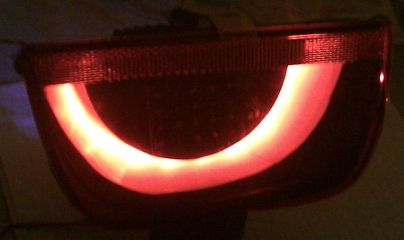

Running lights.


Stop light.



But after this pic came out i redid the hosing to look closer the the concept, See the pics.


So this was next after a new hosing, This is the running lights

And this is the brake lights.



So what do you think so far?, Look i did all this by my self and a lot of more things but i need parts as and i can only do so much at one time.

Dos any one have some tail light lens that is what i need to finish it up as it takes all 4 lens.

One mor thing is you also need the LED Load Equalizers
__________________
2SSRS@Gen5diy is offline   Reply With Quote
Old 12-15-2009, 07:50 PM   #15
navmaxlp

navmaxlp's Avatar

Drives: Not a Camaro :(
Join Date: May 2009
Location: Frederick, maryland
Posts: 337
Quote:
Originally Posted by 2SSRS View Post
So what do you think so far?, Look i did all this by my self and a lot of more things but i need parts as and i can only do so much at one time.

Dos any one have some tail light lens that is what i need to finish it up as it takes all 4 lens.

One more thing is you also need the LED Load Equalizers
I think that's pretty frickin awesome. A couple of things to look at though would be the size and shape. The Brake light center needs to be considerably larger and less trapezoidal. I'm sure you know that already but figured I'd throw that in there as my one critique. Other than that, I think you're dead on with it. It looks like there's a little too much light coming from behind the brake light but, I think once you fix the size thing, that should be taken care of. Keep up the good work I think you're going in the right direction. You get the right shape on the LED cluster and you've got it nailed.
navmaxlp is offline   Reply With Quote
Old 12-15-2009, 08:23 PM   #16
2SSRS@Gen5diy
Salt & Pepper 2014 Z/28


2SSRS@Gen5diy's Avatar

Drives: 2010 2SS IOM ,2014 Z/28, 66 Nova
Join Date: Oct 2008
Location: By the lake in AZ
Posts: 11,714
Thank you for the nice words, Look at this pic and you can see that the concept has a trapezoidal shape, The thing i did that you are saying is to small is as big as i can go, There is no more room in the tail light hosing.
Attached Images

__________________
2SSRS@Gen5diy is offline   Reply With Quote
Old 12-17-2009, 09:24 AM   #17
Rockin the BlueSS
The New Guy

Rockin the BlueSS's Avatar

Drives: 2010 2SS/RS IBM M6
Join Date: Sep 2009
Location: Cali
Posts: 1,245
i am looking for pictures of the tail light housing outside and inside, does anyone have them? i have a couple ideas i am going to play around with but i want to get an idea of what the complete housing looks like. any one got a picture maybe with a ruler in it for scaling purposes?
Rockin the BlueSS is offline   Reply With Quote
Old 12-17-2009, 11:28 AM   #18
scythezo6
Virologist in the making

scythezo6's Avatar

Drives: 2010 VR SS/RS LS3
Join Date: Aug 2009
Location: El Paso TX
Posts: 2,867
Love the avatar of Dwight with the CPR doll's face on... lmao
Office FTW
__________________
Victory Red 1SS/RS Ordered - 8/4/09 & Joined Camaro5.com family
6000, Delivered to the customer - 12/21/09
scythezo6 is offline   Reply With Quote
Old 12-17-2009, 11:41 AM   #19
Legend17
Army Bound

Legend17's Avatar

Drives: 97 Camaro RS
Join Date: Sep 2009
Location: South Carolina
Posts: 123
AAC is probably as close as ur gonna get cuz the inside of the housing isnt like the concept's
Legend17 is offline   Reply With Quote
Old 12-17-2009, 12:38 PM   #20
Mindz
E.B.A.H.

Mindz's Avatar

Drives: you wild...
Join Date: Mar 2007
Location: In the happy padded room wearing a jacket that makes me hug myself...
Posts: 18,227
2SSRS and Rockin the BlueSS, I'm glad someone is trying to get a real afterburner tailight going. I will follow your progress and consider me one of your first customers if you decide to sell it.
__________________
Blue Rush, 2010 SS [Car of the Week 3/22/2010] Traded in on...ZLZBUBB, 2013 ZL1
Mindz is offline   Reply With Quote
Old 12-17-2009, 12:42 PM   #21
2SSRS@Gen5diy
Salt & Pepper 2014 Z/28


2SSRS@Gen5diy's Avatar

Drives: 2010 2SS IOM ,2014 Z/28, 66 Nova
Join Date: Oct 2008
Location: By the lake in AZ
Posts: 11,714
Quote:
Originally Posted by Mindz View Post
2SSRS and Rockin the BlueSS, I'm glad someone is trying to get a real afterburner tailight going. I will follow your progress and consider me one of your first customers if you decide to sell it.
I will do a DYI on it as it is not how i make $ for a living.
__________________
2SSRS@Gen5diy is offline   Reply With Quote
Old 12-21-2009, 06:47 PM   #22
DkknightX
Account Suspended

Drives: 2006 Chevrolet Cobalt SS/SC Stage 2
Join Date: Dec 2008
Location: Emerson, NJ
Posts: 1,394
In hindsight, GM really did leave out many of the popular effects on the production model compared to the concept. If people were spending $40K on their car and wanted all of these effects, GM should have offered just about all of the more popular options like "afterburner tail lamps," for a few hundred more. I'd even pay a few thousand more just to make sure I wasn't buying a Camaro that lost some excitement in the transition from concept to production vehicle. GM dropped the ball with this. The gas tank placement I could care less about, but why not finish the damn car with the best tail lamps? Maybe if they focused more on this, they would have taken more care in better protecting the lamps. So many people complaining of water filling the housing. I want a Camaro, not a Honda CRX hatchback. Every time I've seen one of these cars their tail lamps and trunk plastic molding are like half filled with water. LOL!
DkknightX is offline   Reply With Quote
Old 12-21-2009, 08:15 PM   #23
2SSJIM


2SSJIM's Avatar

Drives: CRT ZL1 #1400
Join Date: Apr 2009
Location: AZ.
Posts: 905
Quote:
Originally Posted by DkknightX View Post
In hindsight, GM really did leave out many of the popular effects on the production model compared to the concept. If people were spending $40K on their car and wanted all of these effects, GM should have offered just about all of the more popular options like "afterburner tail lamps," for a few hundred more. I'd even pay a few thousand more just to make sure I wasn't buying a Camaro that lost some excitement in the transition from concept to production vehicle. GM dropped the ball with this. The gas tank placement I could care less about, but why not finish the damn car with the best tail lamps? Maybe if they focused more on this, they would have taken more care in better protecting the lamps. So many people complaining of water filling the housing. I want a Camaro, not a Honda CRX hatchback. Every time I've seen one of these cars their tail lamps and trunk plastic molding are like half filled with water. LOL!
Although those afterburner tailights look awesome, I believe the answer as to why they're not part of the production model would be cost! After all, price the replacement cost of just one front Halo light! Also having a company gear up to make enough of them for 100k plus cars a year (I believe GM had run into this issue with the Halo's earlier this year) and add the fact what another member said... the concept lights are pretty deep and would take up trunck space. Maybe this could end up being part of the Z28 package.... who knows but I would like to see GM put out a version of them for add on's!
2SSJIM is offline   Reply With Quote
Old 12-21-2009, 08:19 PM   #24
Tran
Administrator

Tran's Avatar

Drives: 2010 Camaro of course....
Join Date: Apr 2006
Location: NE baby
Posts: 5,018
Everyone, please keep this topic on-topic --> discussing how the afterburner tail lights can be achieved (not why the production lights don't come like this).

Thank you.
__________________
>>> Visit our CAMARO BLOG <<<<
>>> Visit our CORVETTE BLOG <<<<
Tran is offline   Reply With Quote
Old 12-21-2009, 09:01 PM   #25
Lava
LSU Tigers!!

Lava's Avatar

Drives: 2010 Camaro SS
Join Date: Dec 2009
Location: Louisiana
Posts: 290
Love the ideas, i am definately a future customer when this is correctly achieved. Good minds working here so it shouldn't be long.
Lava is offline   Reply With Quote

Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
New Camaro Exterior and Interior Stainless Steel Trim Parts from RPI Designs! RPI Designs Exterior Parts & Accessories 31 10-10-2014 09:33 AM
New Camaro Exterior and Interior Stainless Steel Trim Parts from RPI Designs! RPI Designs Cosmetics and Lighting Modification Discussions 32 10-08-2014 09:58 AM
Drag Racing Suspension Kits Info@PeddersUSA.com Suspension / Chassis / Brakes 25 02-21-2010 08:48 PM
Official Camaro Convertible CONCEPT Press Release Tran Camaro Convertible Forum 12 11-18-2009 07:05 PM
The DEFINITIVE EXPLANATION OF CAMARO SUSPENSION, ISSUES, AND UPGRADES Info@PeddersUSA.com Suspension / Brakes / Chassis 106 10-19-2009 06:08 PM


All times are GMT -5. The time now is 06:54 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
