Exclamation Top Tuner Camaro Single Turbo 454

As featured on HOMEPAGE.

hey guys I'm new to the site ...figured you guys might enjoy my shop build ..
the car was a 2010 6 speed auto V8 ...we did some minor changes lol...

SORRY FOR THE POOR QUALITY OF THE PICS...

we did a complete back half tub with a fxxd 9" (Mooser) rear end
suspension is custom with most parts from QA1

motor is a fully built 454 LSX small block ..turbo is a custom Hybrid 91mm
from Turbonetics

this is the stock camaro motor for test fitment and fab work



this is all custom piping tig welded in house



latest pics of the back half 405 25 24 on stock body ...






custom intercoolers with Turbonetics core "6 thick



the tubs almost ready for paint



latest pics of the custom intake





sneak pic of the interior ...everything going red LOL...





ill be updating pics as the car get closer to be finished
thanks for looking

Serge

wheels are 24x15 they are custom wheels from Strut
tire are pirelli


here a picture of the wheel unmounted




here the tire what it looks like unmounted LOL..


here some pics that i should of posted up ...not the best quality
we still have alot of work


better picture of the ladder bar setup



custom fuel cell

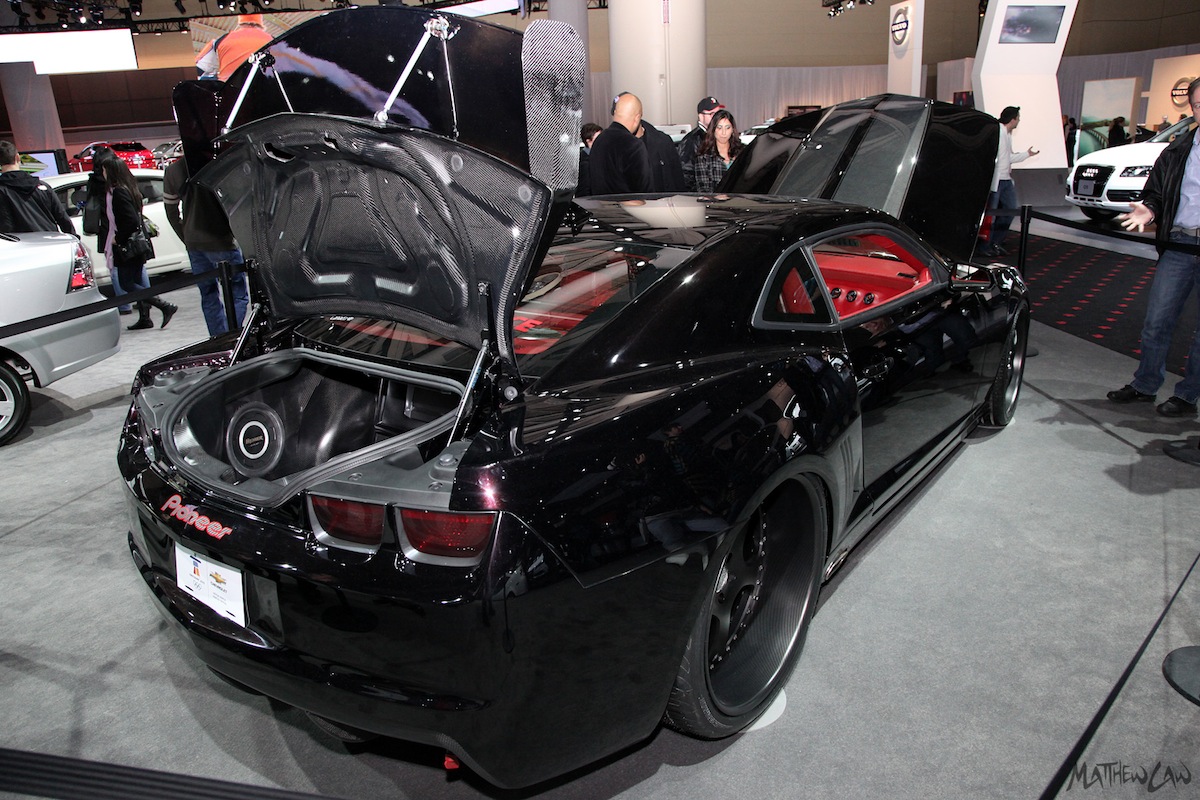

here a teaser pic of speaker setup



guage setup and deck



sneak pic of the side exhaust

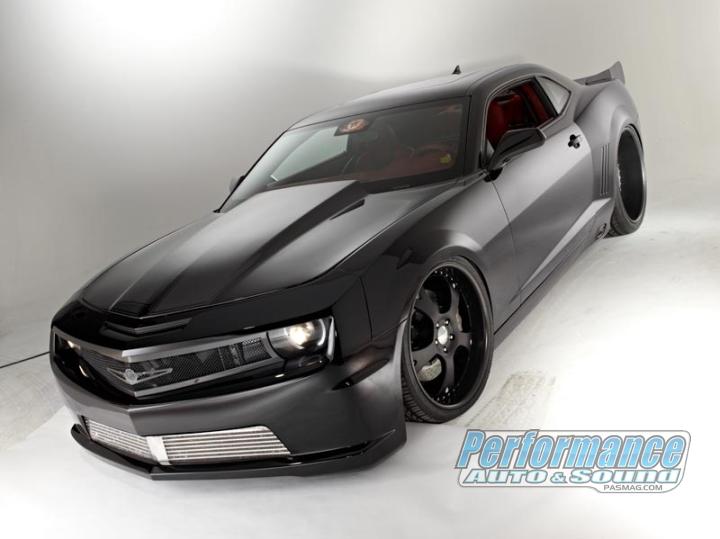

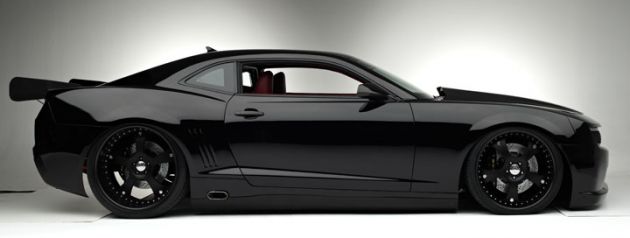

EDIT WITH FINAL SPECS/PICS:



THE ESSENTIALS
Owner: Serge Leger
Location: Shediac, NB
Vehicle: 2010 Chevrolet Camaro SS
Power: 1400whp with 900lb-ft (est.)

ENGINE
GM 6.0L LSX V8

ENGINE MODIFICATIONS
Turbonetics hybrid 91mm
Twin Turbonetics Duo 35 Blow-off Valves
Twin Turbonetics RG 45 Wastegates
Twin Spearco cores with custom end tanks
Vibrant Piping used was all 304 stainless
Custom 5-inch downpipe
Custom 3-inch dual exhaust
Custom aluminum sheet metal intake manifold
Custom exhaust manifolds
Custom charge piping
Flex-A-Lite radiator and fan combo
Custom stainless coolant piping
Custom transmission and oil cooling radiators and lines
Injectors 2150cc Fuel injector clinic
Aeromotive A1000 (x2)
Aeromotive pro series EFI FPR
Aeromotive fuel controller
Earl’s SS lines
custom fab fuel rail
custom built aluminum fuel cell with scavenger built in

DRIVELINE
TCI custom built 4l80e Transmission and stall torque converter
custom back half Carbon Fiber tub
custom made 4 link trailing arms
factory unibody rails extended and strengthened
Moser 9-inch rear end fabricated to accommodate rear suspension parts
Moser axles
custom driveshaft
shaved holes and smoothed undercarriage ...all painted
QA1 coilovers

WHEELS, TIRES, BRAKES
STRUT 22x10-inch front with 3-inch
STRUT 24x15-inch rear with 7-inch
Pirelli P Zero 265/35R22 front
Pirelli P Zero 405/25R24 rear
Baer 6-piston 355mm all around

INTERIOR
Custom fabricated and reupholstered front seats
Custom fabricated rear seats
Reshaped door panels for speakers
Custom headliner
Custom rear inner quarter panels
Redesigned dash and center console (relocated factory heater and controls)
Auto Meter gauges: fuel, boost, wideband, oil pressure
Imported Italian leather with custom hand stitched (baseball stitch) interior
Custom integrated roll cage with seat belt inserts
Sparco 5-point front harnesses
Sparco 4-point rear seat belt
Carbon by design hood
Carbon by design trunk
Carbon by design radiator cover
Custom carbon panels in trunk, floor, rear tubs etc.
Custom carbon wing (pro stock style)
Custom carbon rear bumper diffuser
Custom Carbon Rear Tub

EXTERIOR
Custom side skirts dropped 1 1/2 front 3 1/2 rear (to accommodate difference in tire height)
Channelled rocker and floor to accommodate side exhaust
Redesigned custom front bumper
Redesigned custom rear bumper
STRUT Carbon fiber Camaro Front Grille
Shaved side markers front and back
Custom PPG Nexa water based black cherry paint

AUDIO & MULTIMEDIA
Pioneer AVIC-Z110BT - Flagship In-Dash Navigation AV Receiver with DVD Playback and Built-In Bluetooth
Pioneer Premier:
TS-C720PRS 6.75-inch Component Speaker Package
PRS-A900 4-Channel Bridgeable Amplifier
PRS-D2000SPL Competition-Level SPL Class D Mono Amplifier
TS-SW1201S2|S4 12-inch Shallow-Mount Subwoofer (x4)
ND-BC20PA Rear View Camera with Visual DSP
Apple Mac Mini with 3G and WiFi







































Last edited by 2xtreme; 08-03-2010 at 12:06 PM.
2xtreme is offline   Reply With Quote
Old 12-22-2009, 01:43 PM   #2
2010 2-Tone



2010 2-Tone's Avatar

Drives: 2010 RY 2SS with Custom Stripes
Join Date: Mar 2009
Location: Jennings, La.
Posts: 2,287
WOW!!!! That's how you do a build!!! Looks great and I bet it will run like a scalded dog!!! Nice work.
2010 2-Tone is offline   Reply With Quote
Old 12-22-2009, 01:45 PM   #3
Z_Rocks


Drives: a Jet :-)
Join Date: May 2009
Location: SW Florida
Posts: 1,858
Love the intercooler. This would make a great kit, by having the exhaust coming to the turbo with the least distance and also having the cold side with the shortest distance as well. Is his going to be a one-off custom or will it turn to a commercial kit?
Z_Rocks is offline   Reply With Quote
Old 12-22-2009, 07:07 PM   #4
Rallyman6
Member

Rallyman6's Avatar

Drives: '10 2SS/RS IOM, Wht Stripes, Roof
Join Date: Oct 2008
Location: Wellesley Hills, MA
Posts: 848
Sick!
__________________

2SS/RS IOM, Wht Stripes, 6MT, IO Interior, Roof, Eibach Sways, BC Coilovers, BMR Swing arms,Barton Short Shift, BBK LT's, GMPP exhaust, Hi-Flow Cats, MAST Stage 2 Cam, CAI = 497RWHP
Rallyman6 is offline   Reply With Quote
Old 12-22-2009, 07:10 PM   #5
Indpowr
Account Suspended

Drives: Corvette C6
Join Date: May 2008
Location: Florida
Posts: 7,028
Holy cow you have some money in that car!!!
Indpowr is offline   Reply With Quote
Old 12-22-2009, 07:12 PM   #6
BLACK10


BLACK10's Avatar

Drives: 2010 CAMARO. 10.04@133mph, 1.4 60'
Join Date: Jul 2009
Location: Lafayette, Louisiana
Posts: 5,026


i was wondering when someone would do it
BLACK10 is offline   Reply With Quote
Old 12-22-2009, 07:13 PM   #7
1320junkie
Account Suspended

Drives: The Imperial Army
Join Date: Feb 2009
Location: The Darkside
Posts: 15,898
WHOA!!!!!!!! My Fav Car on the site and it's not even finished yet....
1320junkie is offline   Reply With Quote
Old 12-22-2009, 07:13 PM   #8
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
Got to say thats the most radical build I have seen yet. Love it. Great job guys cant wait to see it run the 1/4.
__________________
Nationwide Turf
"artificial turf factory"
lawdogg149 is offline   Reply With Quote
Old 12-22-2009, 07:41 PM   #9
orange10s.c.


orange10s.c.'s Avatar

Drives: IOM 2SS RS M6 sunroof
Join Date: Jul 2009
Location: panama city fl
Posts: 4,797
Now that is awsome. Holy s..t those are some rear wheels. Can't wait to see it finished.
orange10s.c. is offline   Reply With Quote
Old 12-22-2009, 08:27 PM   #10
IROCanSS
Account Suspended

Drives: 89 IROC 350
Join Date: Mar 2009
Location: Back roads, southern Ohio
Posts: 12,518
Quote:
Originally Posted by 2xtreme View Post
hey guys I'm new to the site ...figured you guys might enjoy my shop build ..
the car was a 2010 6 speed auto V8 ...we did some minor changes lol...

SORRY FOR THE POOR QUALITY OF THE PICS...

we did a complete back half tub with a fxxd 9" (Mooser) rear end
suspension is custom with most parts from QA1

motor is a fully built 454 LSX small block ..turbo is a custom Hybrid 91mm
from Turbonetics

this is the stock camaro motor for test fitment and fab work



this is all custom piping tig welded in house



latest pics of the back half 405 25 24 on stock body ...






custom intercoolers with Turbonetics core "6 thick



the tubs almost ready for paint



latest pics of the custom intake





sneak pic of the interior ...everything going red LOL...





ill be updating pics as the car get closer to be finished
thanks for looking

Serge
HOLY SHIT. Pardom my language but nothing else seems more fitting without risking it being removed!

THIS CAR NEEDS TO BE AT THE CAMARO5FEST!

Can you guys have it done and in Georgia by April???
IROCanSS is offline   Reply With Quote
Old 12-22-2009, 08:28 PM   #11
bad2000z

bad2000z's Avatar

Drives: 2005 C6
Join Date: Apr 2009
Location: Apalachin, NY
Posts: 142
Holy shit! Wow! I don't know what else to say. Damn.
__________________
2005 Victory Red C6
bad2000z is offline   Reply With Quote
Old 12-22-2009, 08:31 PM   #12
IROCanSS
Account Suspended

Drives: 89 IROC 350
Join Date: Mar 2009
Location: Back roads, southern Ohio
Posts: 12,518
Quote:
Originally Posted by bad2000z View Post
Holy shit! Wow! I don't know what else to say. Damn.
amazing isnt it!? cant wait to see it done. I am subscribing to this thread for sure.
IROCanSS is offline   Reply With Quote
Old 12-22-2009, 08:41 PM   #13
Gentry78
HOOK'EM

Gentry78's Avatar

Drives: 97 c1500/92 olds
Join Date: Oct 2008
Location: Texas
Posts: 5,283



F****** Sick man
Gentry78 is offline   Reply With Quote
Old 12-22-2009, 10:32 PM   #14
Camaro_Corvette
36.833283,-76.021958

Camaro_Corvette's Avatar

Drives: Team 1LE
Join Date: Mar 2008
Location: Earth
Posts: 23,101
__________________
I hate parking threads...
Camaro_Corvette is offline   Reply With Quote
Old 12-22-2009, 11:02 PM   #15
the rich dude


Drives: Getting 2010 Camaro
Join Date: Jul 2008
Location: Vancouver
Posts: 1,140
GREAT JOB GUYS!!!!
the rich dude is offline   Reply With Quote
Old 12-22-2009, 11:25 PM   #16
Chevy2tehBone

Chevy2tehBone's Avatar

Drives: 1979 Berlinetta
Join Date: Oct 2009
Location: Garland Tx
Posts: 135
Oh my.... yes please!!!!

And here I was thinking of putting a 78mm turbo on... I'll be going with that now... thank you! hahah!

Chevy2tehBone is offline   Reply With Quote
Old 12-23-2009, 02:48 AM   #17
sav1

sav1's Avatar

Drives: 2009 Corvette Z06
Join Date: Jun 2009
Location: San Diego
Posts: 561
thats a big hair dryer
__________________

"What Do I Feel When I Kill A Terrorist? A Little Recoil"
sav1 is offline   Reply With Quote
Old 12-23-2009, 06:44 AM   #18
2xtreme

2xtreme's Avatar

Drives: 2010 camaro
Join Date: Nov 2009
Location: shediac new brunswick
Posts: 51
thanks for the compliments guys idd love to take the car to your show ..only problem i have a local show in April that ive been going to for over 10years ...

also im Canada on the east coast. it would be a long drive LOL...

ill have some more updates soon

Serge
2xtreme is offline   Reply With Quote
Old 12-23-2009, 07:05 AM   #19
2010 SSRS




2010 SSRS's Avatar

Drives: 3 V8 Camaros
Join Date: May 2009
Location: The Ocean State
Posts: 123,973
Now that is Awesome, wow.
2010 SSRS is offline   Reply With Quote
Old 12-23-2009, 07:04 PM   #20
fixxxer525
Account Suspended

Drives: 01S10,01CBR600,05Ducati, 10 2SS/RS
Join Date: Aug 2006
Location: San Diego
Posts: 377
Send a message via ICQ to fixxxer525
Geezuz, the axel looks beyond bullet proof.
fixxxer525 is offline   Reply With Quote
Old 12-23-2009, 07:39 PM   #21
SSRS2010
SS/RSVIN04274

SSRS2010's Avatar

Drives: 2010 CAMARO.
Join Date: Apr 2009
Location: Las Cruces NM
Posts: 1,364
SSRS2010 is offline   Reply With Quote
Old 12-23-2009, 07:55 PM   #22
DntWrryBeHappy21
Patiently Waiting...

DntWrryBeHappy21's Avatar

Drives: whatevers in the driveway atm
Join Date: Aug 2008
Location: New Jersey
Posts: 404
Send a message via AIM to DntWrryBeHappy21
wow looks amazing so farr!
__________________


One day....
DntWrryBeHappy21 is offline   Reply With Quote
Old 12-23-2009, 08:00 PM   #23
The_Blur
Jayhawk USN

The_Blur's Avatar

Drives: 6.2L of AWESOME! 2011 L99 2SS
Join Date: Nov 2007
Location: NAS Whiting Field
Posts: 14,239
Send a message via AIM to The_Blur
Can I get a ride in it?
The_Blur is offline   Reply With Quote
Old 12-23-2009, 08:07 PM   #24
LSX-80MM
Ghostly Unknown

LSX-80MM's Avatar

Drives: Silver Ice 2010 SS/RS A6
Join Date: Oct 2008
Location: Glen St Mary,Fla.
Posts: 469
Thats what I call a Heavy Hitter....And I do like a lot
__________________
TS416,GMPPLSX-LS3 6 Bolt Heads,Custom 80mmComp Turbo,ID850 Injectors, Lonnies Twin Pump Setup,Level 3 4L80E,DSS,3in Magnaflow Exhaust,CoolingMist Meth,RX Dual Catch Can,InnovateWB,Aeroforce Interceptor,AEM Truboost Controller,matte black CF5 Forgestars.1006rwhp/1087rwtrq
LSX-80MM is offline   Reply With Quote
Old 12-23-2009, 08:12 PM   #25
600hp-lpe



600hp-lpe's Avatar

Drives: 2010 2SS RS RJT MN6
Join Date: Jul 2009
Location: NH
Posts: 4,700
I'm loving it...!!!! Awesome build..

Is it going to be Street Legal?
__________________
2010 2SS/RS RJT 6SP
600 HP Lingenfelter package 526 RWHP 491 RWTRQ
Pedders Justice package with Z-bar and supercar coilovers
LPE ZR-1 twin disc Clutch, LPE rear w/3.73 gears
NHRA cert. 8.50 CM 10 point roll cage, Cobra racing Seats
Gforce 5 PT. Harnesses, MOMO steering wheel and pedals
285/35/19 Bridgestone RE-11 Tires, CCW 19X10 SP16A Wheels
315/30/18 Front, 335/30/18 Rear Hoosier tires, CCW C2K Wheels
Racing Brake Rotors, stainless lines, MT800 Brake pads
HD Rear Axles, Toe Links, Trailing Arms, Lower Control Arms
Beware of the LPE Brotherhood
600hp-lpe is offline   Reply With Quote

Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
CAMARO WIKI Tran Wiki 49 09-09-2014 05:46 AM
5th Gen Suspension -- The Book JusticePete Suspension / Brakes / Chassis 148 09-04-2013 02:28 PM
Does the v6 have enough power? cstproductions Camaro V6 LLT Engine, Exhaust, and Bolt-Ons 305 08-29-2012 09:27 PM
GM unveils Jay Leno Camaro, Camaro Synergy, Camaro Chroma, Camaro Dusk at SEMA irocnroll 5th Gen Camaro SS LS LT General Discussions 101 02-27-2012 12:25 PM
Official Camaro Convertible CONCEPT Press Release Tran Camaro Convertible Forum 12 11-18-2009 07:05 PM


All times are GMT -5. The time now is 10:50 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
