How To Wire Dual Halos On Single Switch

Name:  Todd's Camaro 004.jpg
Views: 12449
Size:  92.9 KB

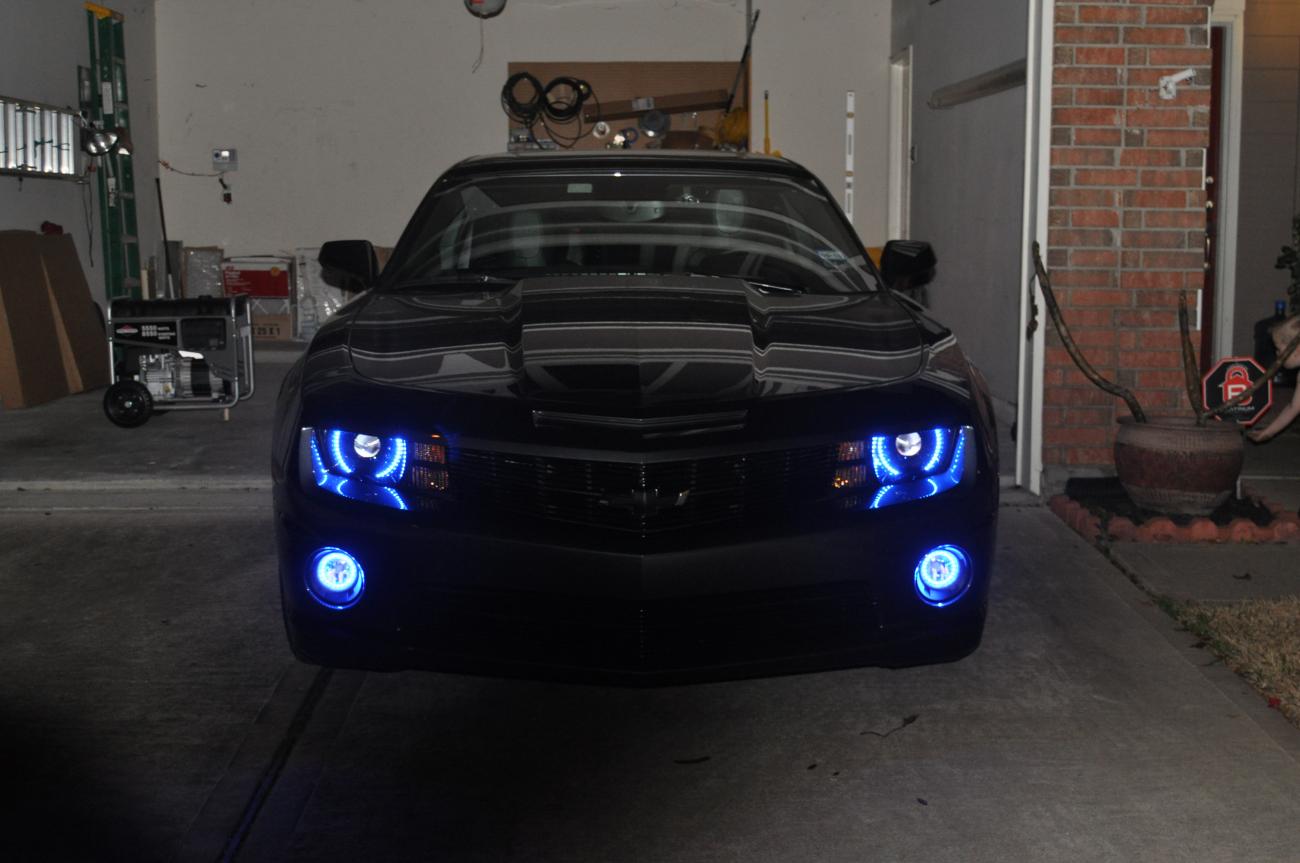

Well I figured out how to wire my dual color halos with a single switch so i dont have to put 2 switches in the dash or use an ugly toggle switch that doesnt lite up when in use. I used the single throw switch that comes with the halo kit. They dont give you a double throw switch they say because they give you that one free but I think it sucks for the money you spend for the lights, How freakin hard is it to get an On-Off-On thats not an ugly toggle

Name:  Todd's Camaro 006.jpg
Views: 13964
Size:  107.8 KB

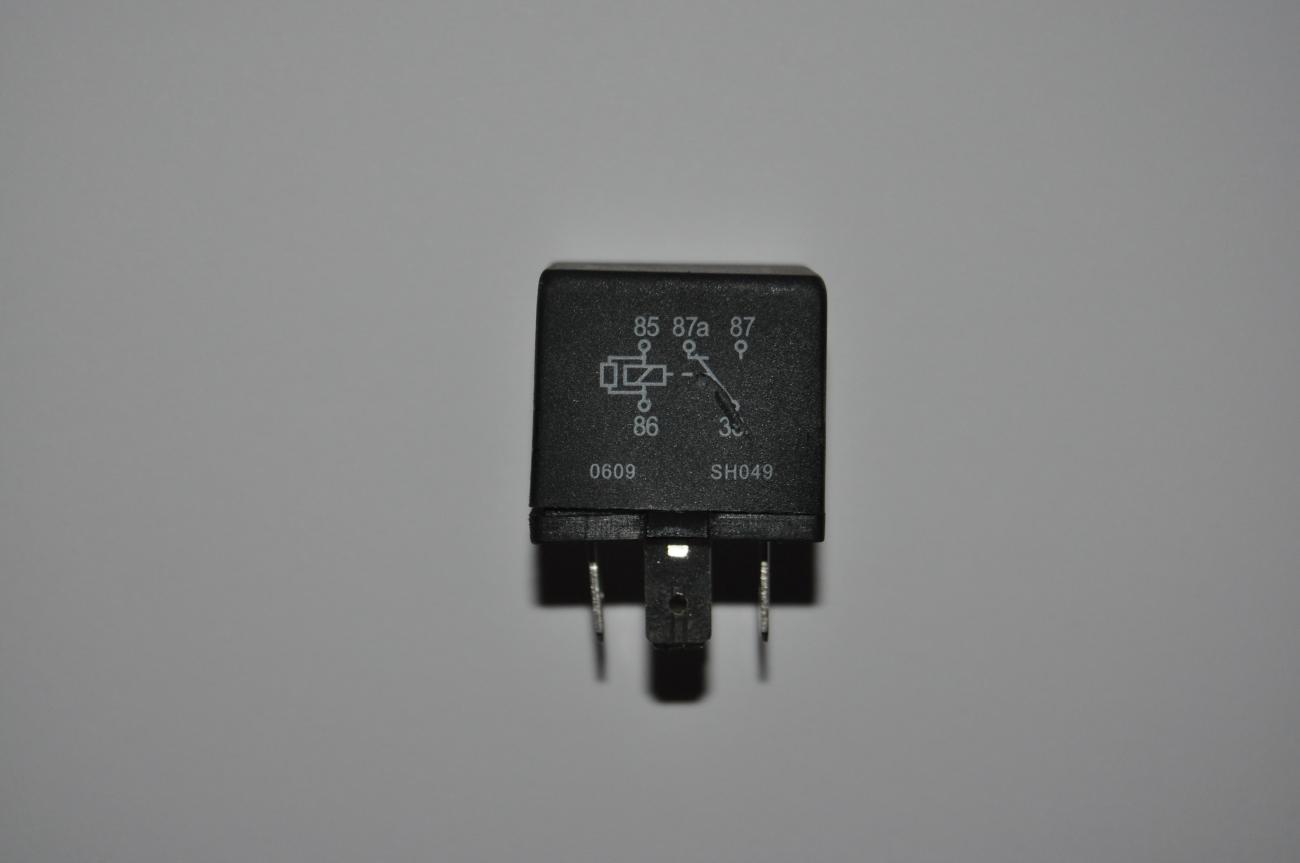

Go to Oreilly, Napa, and pick up a 5 pole 12vdc relay and wiring harness. These are very common and easy to get. It needs to have 2 terminals for the coil, 1 terminal for the common and 1 Normally closed contact, 1 Normally open contact. Terminal 85 & 86 are the coil either can be ground or 12vdc-
#30 is Common or Ground to the body-#87a is Normally closed (white)
#87 is Normally Open (Blue) The only circuit not fused is the coil for the relay everything else is fused through the Halo Circuit

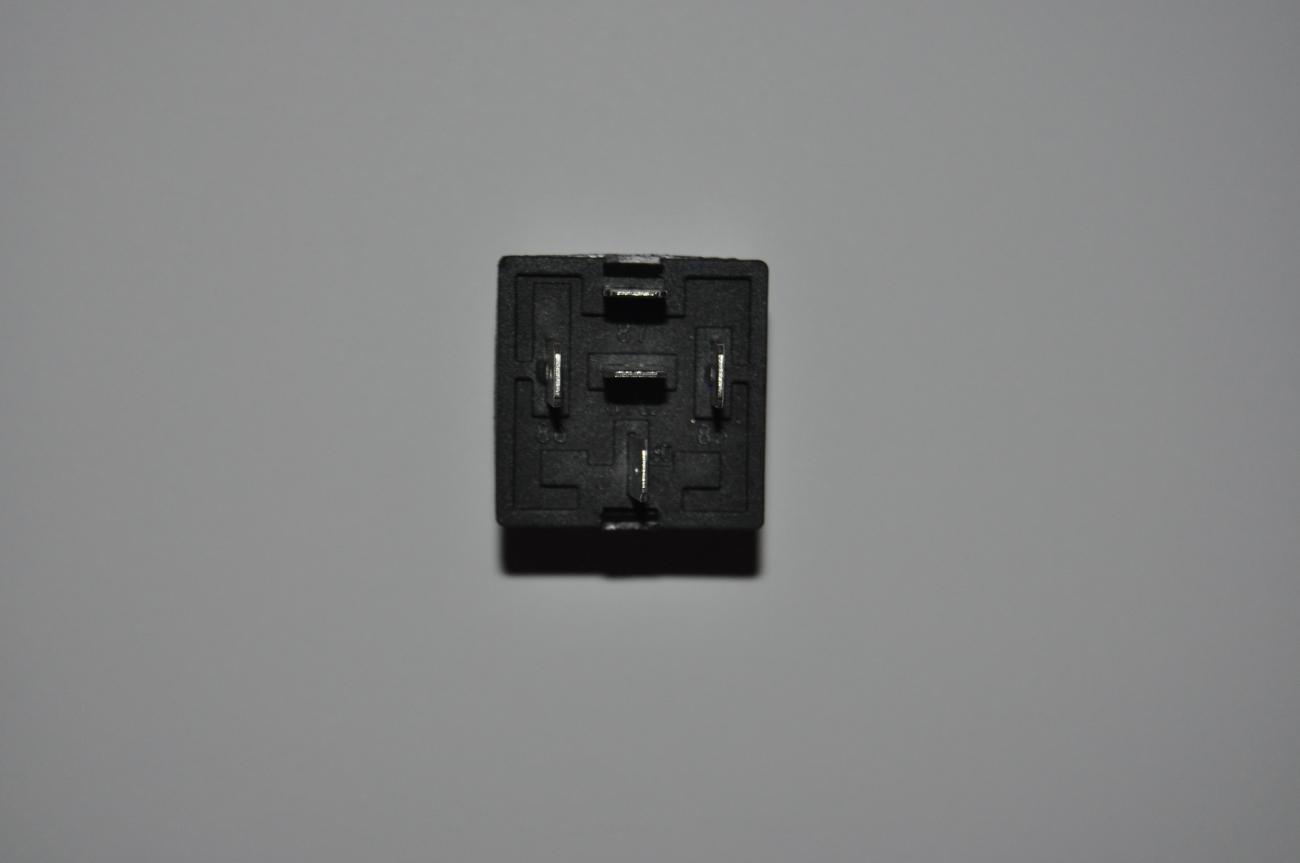

Name:  Todd's Camaro 002.jpg
Views: 11370
Size:  29.9 KB

Name:  Todd's Camaro 001.jpg
Views: 11393
Size:  36.7 KB

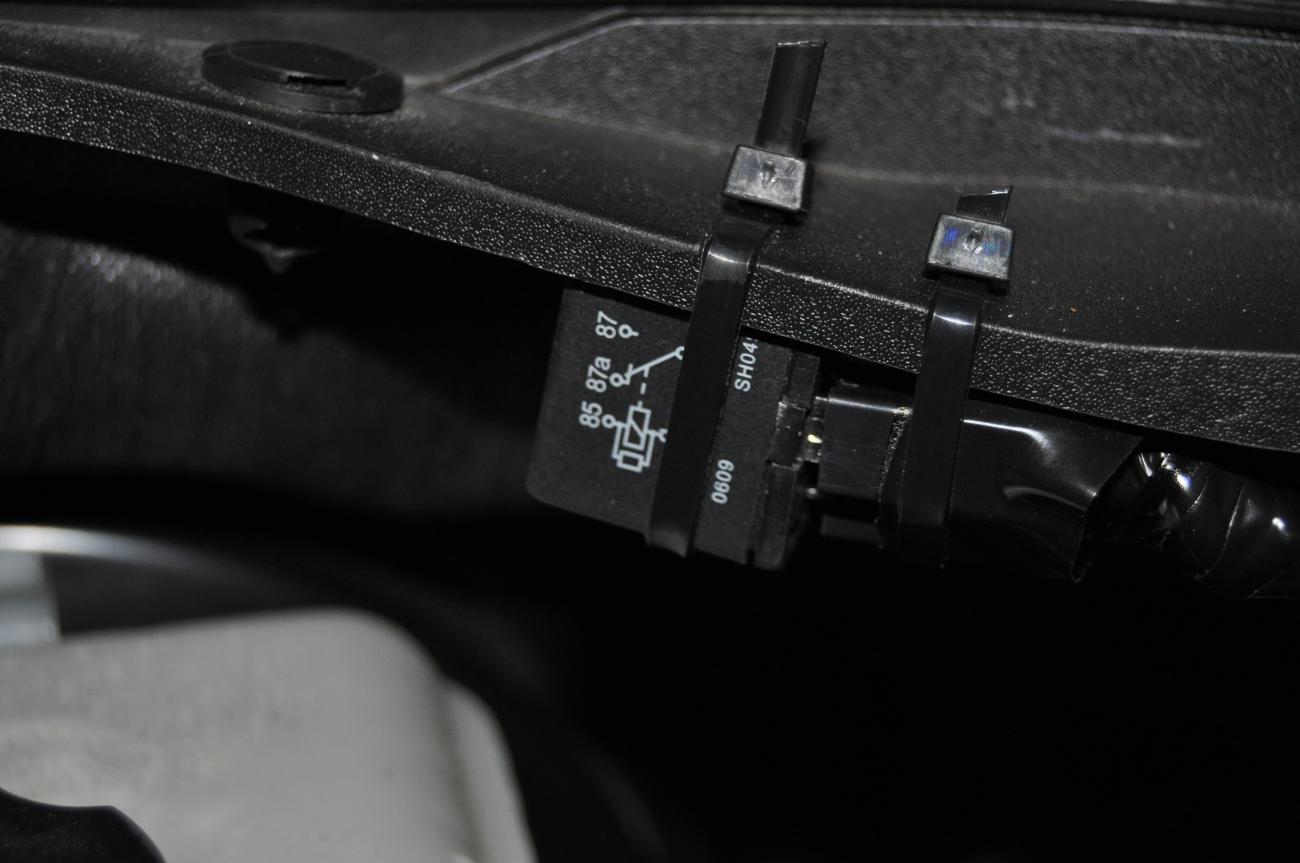

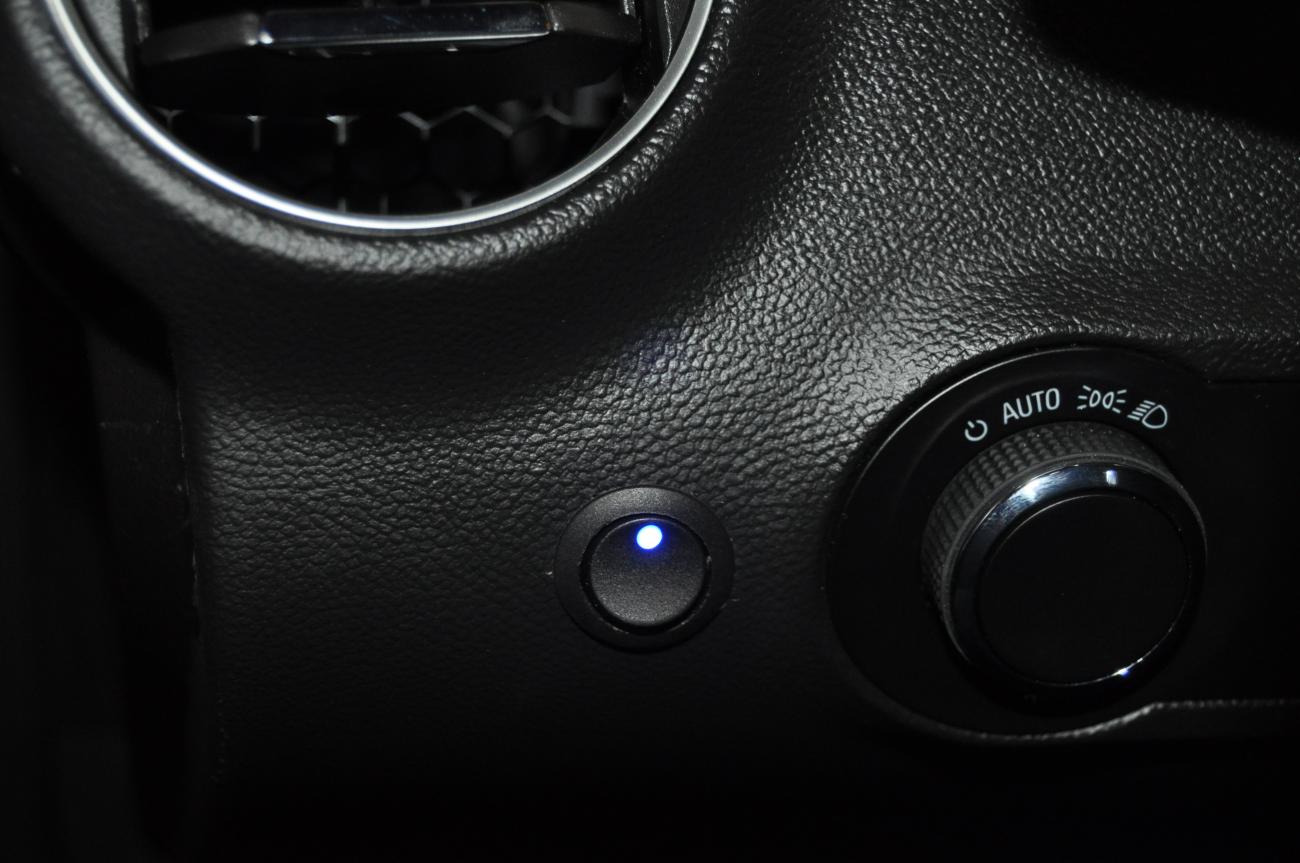

I mounted the switch undr neathe the cowl for convenience with a few wire ties
Name:  Todd's Camaro 012.jpg
Views: 11628
Size:  84.3 KB

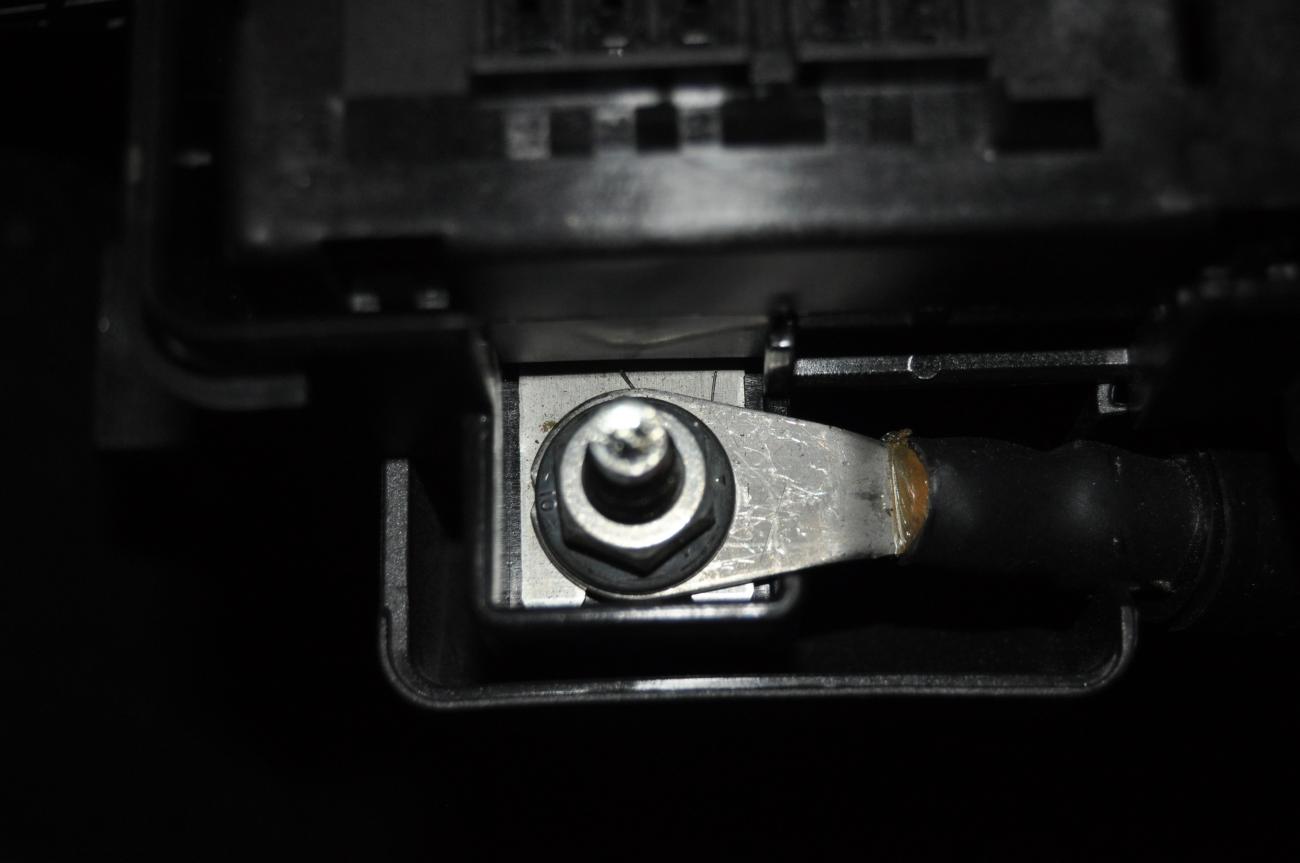

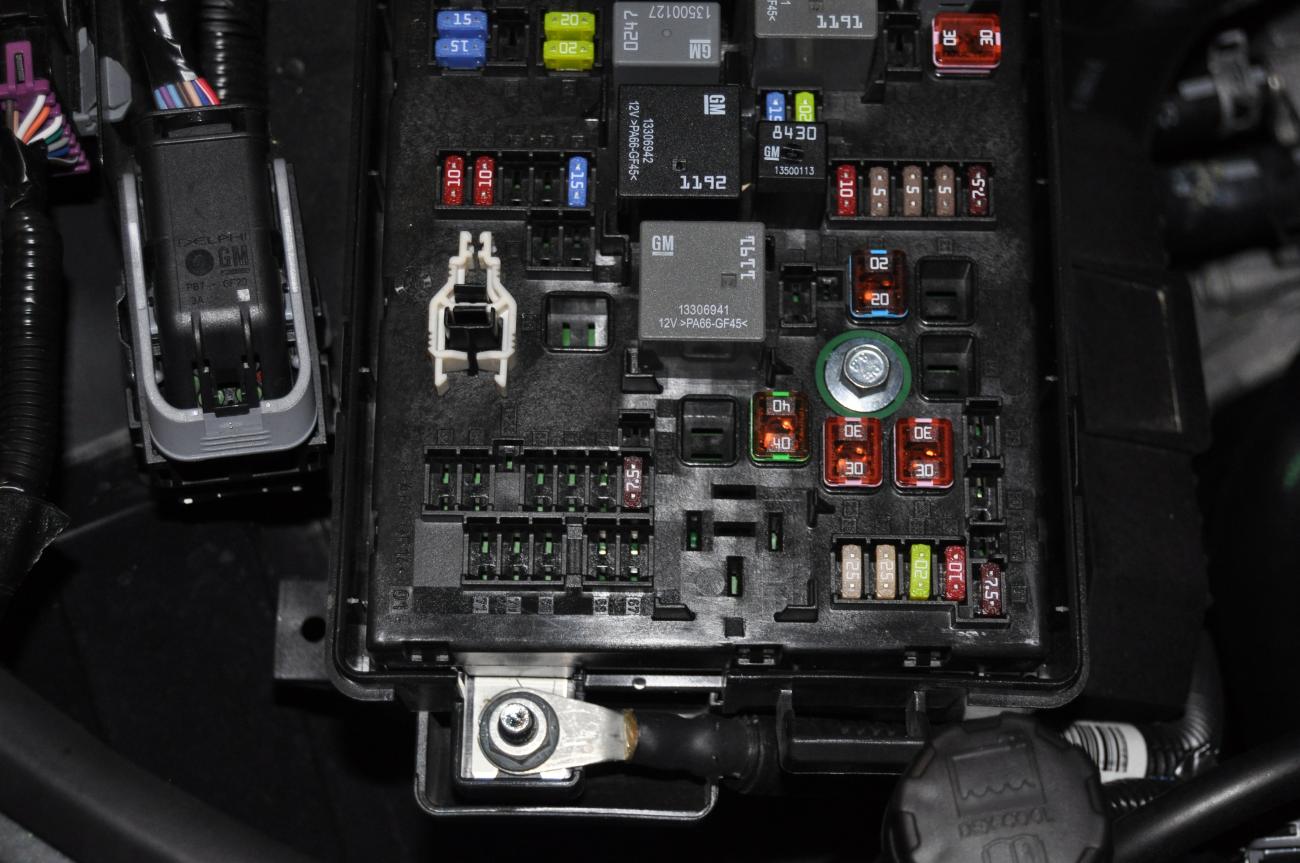

First wire the Red positive wire for all the Halos to the existing Halo 12vdc wire. If you dont know take a volt meter and check each wire to a ground bolt if you get 12vdc with the parking lights on then Bingo thats the one. (This is not part of the relay) Install your on/off switch with a 5/8" paddle bit or hole bit in the dash, run your wires through the hole and solder to the switch. I ran the ground from the switch to a bolt in the cabin above the fuse box. (This energizes the light on the switch so you know when its on)

Name:  Todd's Camaro 006.jpg
Views: 13964
Size:  107.8 KB

Drill small hole through the firewall and run (2) 22 guage wires into the engine compartment. I hid the wires under the engine compartment seal foam along the radiater cover and this is a great place to hide wires it's not glued and comes off real easy. The Middle terminal of the switch I ran over to the the engine fuse box Positive Terminal outside the fuse box (Hot all the Time) This only gives energizes the coil not the lights (control circuit). This also allows you to change the color anytime even without the key in the ignition.

Name:  Todd's Camaro 015.jpg
Views: 12112
Size:  132.0 KB

Name:  Todd's Camaro 014.jpg
Views: 11610
Size:  56.3 KB

The Other wire goes From the Top terminal of the switch to either side of the Coil of the relay and solder. Then Take all four White Halo Ground Wires and Solder them to the normally Closed side of the Relay. (This is so the White halos are the default and operate as normal with the headlights and parking lights.
Then take all four of the Blue Halo Ground Wires and wire them to the normally open side of the Relay (Blue will only work when you flip the switch)

You then will have 2 Terminals left on the relay, I wired both of these together to wire terminals and mounted them to a body mounting bolt inside the engine compartment (This is Ground) This supplies ground for the color of the Halos Its really quite easy to do and is a simple concept and works like a Charm.

This is just a Gratuitis Shot of My Footwell lighting connected to the dome light but I had to put it on here because it looks so freakin sweet
Name:  Todd's Camaro 005.jpg
Views: 11400
Size:  94.5 KB
Attached Images


Last edited by kismyss; 01-30-2010 at 01:47 AM. Reason: duplicate pix
kismyss is offline   Reply With Quote

Old 01-30-2010, 02:52 AM   #2
TJ91
:chevy:

TJ91's Avatar

Drives: 2LT/RS
Join Date: Jun 2008
Location: Toronto
Posts: 12,542
Great write up! Thanks alot, going to show this thread to my installer when i do the fogs (Going to disable the auto headlights and wire the fogs to the switch)
Thabks again, this DIY thread will be very helpful to others
__________________
CAMARO
Consult your doctor before taking Camaro
Side effects include Sudden increase in Heart Rate, Insomnia and occasional hallucinations
If you experience Permagrin exceeding 4 hours after taking Camaro, seek immediate Camaro5 Help
CAMARO Bringing excitment back into the Garage
TJ91 is offline   Reply With Quote
Old 02-07-2010, 02:58 PM   #3
FwyFlyer

FwyFlyer's Avatar

Drives: 2010 SS/RS
Join Date: Jun 2009
Location: Colorado
Posts: 284
Harness part#?

Quote:
Originally Posted by kismyss View Post
Go to Oreilly, Napa, and pick up a 5 pole 12vdc relay and wiring harness. These are very common and easy to get. It needs to have 2 terminals for the coil, 1 terminal for the common and 1 Normally closed contact, 1 Normally open contact. Terminal 85 & 86 are the coil either can be ground or 12vdc-
#30 is Common or Ground to the body-#87a is Normally closed (white)
#87 is Normally Open (Blue) The only circuit not fused is the coil for the relay everything else is fused through the Halo Circuit
Did you get the harness (pigtail?) at Napa too? Do you have a part number for it? Thanks.
FwyFlyer is offline   Reply With Quote
Old 03-02-2010, 03:01 PM   #4
calinkaos
Army EOD Vet

calinkaos's Avatar

Drives: 2010 2SS/RS blk/blk/blk
Join Date: Jul 2009
Location: Centreville, MD
Posts: 521
damn wish I saw this thread this morning. I just changed from my rocker switch to a toggle. DAMN DAMN DAMN!
__________________
2010 2SS/RS Blk/Blk Camaro F1A Procharger
calinkaos is offline   Reply With Quote
Old 03-02-2010, 07:26 PM   #5
Kilo-9
Dog Is My Copilot

Kilo-9's Avatar

Drives: 2011 2SS/RS LS3
Join Date: Jun 2009
Location: Pittsburgh, PA
Posts: 1,387
Maybe it's the picture playing tricks on my eyes, but do you have dual color halos in the fogs, too?
__________________
Kilo-9 is offline   Reply With Quote
Old 03-02-2010, 11:53 PM   #6
cowboy1948


cowboy1948's Avatar

Drives: 10 LT2/RS-08 SILVERADO-05 COBALT
Join Date: Jun 2009
Location: OHIO
Posts: 929
Cool

Quote:
Originally Posted by kismyss View Post
Attachment 89625
Well I figured out how to wire my dual color halos with a single switch so i dont have to put 2 switches in the dash or use an ugly toggle switch that doesnt lite up when in use. I used the single throw switch that comes with the halo kit. They dont give you a double throw switch they say because they give you that one free but I think it sucks for the money you spend for the lights, How freakin hard is it to get an On-Off-On thats not an ugly toggle

Attachment 89624

Go to Oreilly, Napa, and pick up a 5 pole 12vdc relay and wiring harness. These are very common and easy to get. It needs to have 2 terminals for the coil, 1 terminal for the common and 1 Normally closed contact, 1 Normally open contact. Terminal 85 & 86 are the coil either can be ground or 12vdc-
#30 is Common or Ground to the body-#87a is Normally closed (white)
#87 is Normally Open (Blue) The only circuit not fused is the coil for the relay everything else is fused through the Halo Circuit
Attachment 89653

Attachment 89652

I mounted the switch undr neathe the cowl for convenience with a few wire ties
Attachment 89641

First wire the Red positive wire for all the Halos to the existing Halo 12vdc wire. If you dont know take a volt meter and check each wire to a ground bolt if you get 12vdc with the parking lights on then Bingo thats the one. (This is not part of the relay) Install your on/off switch with a 5/8" paddle bit or hole bit in the dash, run your wires through the hole and solder to the switch. I ran the ground from the switch to a bolt in the cabin above the fuse box. (This energizes the light on the switch so you know when its on)

Attachment 89624

Drill small hole through the firewall and run (2) 22 guage wires into the engine compartment. I hid the wires under the engine compartment seal foam along the radiater cover and this is a great place to hide wires it's not glued and comes off real easy. The Middle terminal of the switch I ran over to the the engine fuse box Positive Terminal outside the fuse box (Hot all the Time) This only gives energizes the coil not the lights (control circuit). This also allows you to change the color anytime even without the key in the ignition.

Attachment 89640

Attachment 89642

The Other wire goes From the Top terminal of the switch to either side of the Coil of the relay and solder. Then Take all four White Halo Ground Wires and Solder them to the normally Closed side of the Relay. (This is so the White halos are the default and operate as normal with the headlights and parking lights.
Then take all four of the Blue Halo Ground Wires and wire them to the normally open side of the Relay (Blue will only work when you flip the switch)

You then will have 2 Terminals left on the relay, I wired both of these together to wire terminals and mounted them to a body mounting bolt inside the engine compartment (This is Ground) This supplies ground for the color of the Halos Its really quite easy to do and is a simple concept and works like a Charm.

This is just a Gratuitis Shot of My Footwell lighting connected to the dome light but I had to put it on here because it looks so freakin sweet
Attachment 89628
That is cool. Great work. What grille is that you have on there?
__________________

Retired
cowboy1948 is offline   Reply With Quote
Old 03-05-2010, 09:57 PM   #7
daphatgrant
June '10

daphatgrant's Avatar

Drives: '10 2SS/RS RJT
Join Date: Jul 2009
Location: Upstate NY (FingerLakes)
Posts: 2,397
daphatgrant is offline   Reply With Quote
Old 03-13-2010, 05:23 PM   #8
iBK3000

Drives: '04 Range Rover, Camaro 2SS 6MT
Join Date: Oct 2009
Location: Portland, OR
Posts: 213
That is a sexy front end, kudos!
__________________
CGM 2SS/RS 6SM . No muff.
iBK3000 is offline   Reply With Quote
Old 03-13-2010, 05:57 PM   #9
SuperSport17
2010 2SS/RS LS3

SuperSport17's Avatar

Drives: '10 2SS/RS LS3
Join Date: Mar 2010
Location: Richmond Hill, Ontario
Posts: 52
Sweet setup! red would look killer too but i like the blue. gewd job!
__________________
SuperSport17 is offline   Reply With Quote
Old 03-13-2010, 07:50 PM   #10
Wvallediego

Wvallediego's Avatar

Drives: Inferno Orange 2010 RS SS
Join Date: Nov 2009
Location: uas
Posts: 415
Wvallediego is offline   Reply With Quote
Old 03-13-2010, 08:28 PM   #11
CynAgain



CynAgain's Avatar

Drives: Chevy
Join Date: Dec 2008
Location: USA
Posts: 7,070
Nice Job on the write up. I love the dual color.
CynAgain is offline   Reply With Quote
Old 03-14-2010, 01:01 AM   #12
fighterace34
Account Suspended

Drives: 2001 civic (piece of junk)
Join Date: Jul 2009
Location: orange county, ca
Posts: 29
Send a message via Skype™ to fighterace34
does the camaro come with the halos or hid?
fighterace34 is offline   Reply With Quote
Old 03-14-2010, 01:28 AM   #13
Kilo-9
Dog Is My Copilot

Kilo-9's Avatar

Drives: 2011 2SS/RS LS3
Join Date: Jun 2009
Location: Pittsburgh, PA
Posts: 1,387
Quote:
Originally Posted by fighterace34 View Post
does the camaro come with the halos or hid?
If the Camaro is equipped with the RS package, it comes with both.
__________________
Kilo-9 is offline   Reply With Quote
Old 03-14-2010, 04:13 AM   #14
Muscle Master
SS Lightning

Muscle Master's Avatar

Drives: An SRT8
Join Date: Feb 2008
Location: Cinnaminson, NJ
Posts: 2,306
This is gonna piss cops off !!! Lmao

There gonna Pull you over for blue halos

Drivers reaction ... "What Blue Halo's", .. Officer you look tired, there's a Dunkin-Donuts down the road, lol
__________________

Quote:
The first rule of modding something that's not American is to not try to compete with modded V8 cars that are American. Really, they can run insane power with little investment. It's not even a fair fight.
Camaro 2SS RS, IBM, White Rally Stripes, custom fuel door: Status: going to the dealer: soon
Muscle Master is offline   Reply With Quote
Old 03-14-2010, 05:21 AM   #15
H3LLJumper

H3LLJumper's Avatar

Drives: 2010 Camaro 2SS VIN#11184
Join Date: May 2009
Location: Irvine, California
Posts: 580
Quote:
Originally Posted by Muscle Master View Post
This is gonna piss cops off !!! Lmao

There gonna Pull you over for blue halos

Drivers reaction ... "What Blue Halo's", .. Officer you look tired, there's a Dunkin-Donuts down the road, lol
That's the whole point of the thread........

__________________
Lingenfelter 550 HP TVS2300 Supercharger Package, Hennessey CAI, Pedders Extreme XA Drag Package and Sway Bars (waiting to take delivery) Painted gills, stripe, and bow ties, tinted windows to 30%, smoked lights, Orange headlight/fog light halos, NOWEEDS, and GMPP Exhaust
H3LLJumper is offline   Reply With Quote
Old 03-14-2010, 08:15 AM   #16
Camaro68



Camaro68's Avatar

Drives: 68 Camaro 327ci 2SS/RS 376ci LS3
Join Date: Mar 2008
Location: Prince William, VA
Posts: 3,080
Thumbs up

Nice write up and job on those, awesome look.
__________________

6000 Vehicle Delivered to Customer 6-23-10
Camaro68 is offline   Reply With Quote
Old 03-14-2010, 11:01 AM   #17
fireresq157


fireresq157's Avatar

Drives: 1997 SS & 2010 2SS/RS
Join Date: Aug 2006
Location: South Florida
Posts: 1,027
were do you get the other equipment to change the color of the halos.
fireresq157 is offline   Reply With Quote
Old 03-14-2010, 11:32 AM   #18
heinzd01


heinzd01's Avatar

Drives: 2010 SS RS, 1976 Type LT
Join Date: Sep 2008
Location: Jamestown, OH (East of Dayton)
Posts: 1,273
Quote:
Originally Posted by fireresq157 View Post
were do you get the other equipment to change the color of the halos.
Single Color Halos http://www.camaro5.com/forums/showthread.php?t=35663

Dual Color Halos http://www.camaro5.com/forums/showthread.php?t=42600
heinzd01 is offline   Reply With Quote
Old 03-14-2010, 12:42 PM   #19
Lanaue

Drives: 99 SS
Join Date: Oct 2009
Location: Parkville Md.
Posts: 11
Sweet deal
Lanaue is offline   Reply With Quote
Old 03-15-2010, 07:32 AM   #20
2010 SSRS




2010 SSRS's Avatar

Drives: 3 V8 Camaros
Join Date: May 2009
Location: The Ocean State
Posts: 123,973
That looks so cool.
2010 SSRS is offline   Reply With Quote
Old 03-17-2010, 02:37 AM   #21
cddavis1971

cddavis1971's Avatar

Drives: 2LT Rally Yellow Camaro
Join Date: Jan 2010
Location: Fletcher, NC
Posts: 6
Sweet!! I do want the Halo lights.
cddavis1971 is offline   Reply With Quote
Old 05-04-2010, 11:15 AM   #22
CaliEMT
Decepticons. . . MOBILIZE

CaliEMT's Avatar

Drives: 2010 2SS/RS Black
Join Date: Jan 2010
Location: Santa Maria, Ca
Posts: 314
I agree!
AAC provided A JOKE of instrucions. !
And for 200 bucks you get that switch!!!!! WHAT A JOKE!
After all my hard work and extra money spent on stuff it looks great. But com'n AAC!
CaliEMT is offline   Reply With Quote
Old 06-15-2010, 10:32 PM   #23
Bone
2SS RJT OWNER/OPERATOR

Bone's Avatar

Drives: 2010 2SS LS3 RJT
Join Date: Jan 2010
Location: Currently on the 3rd Rock. Temporarily
Posts: 555
FYI -Wiring my non RS model (see sketch)

After reading and interpreting Kismyss's instructions. I sketched what I will be doing for my dual red/white halos that I ordered (when they arrive). In fact I've already built a mock up and they works great. Using a 5 post relay w/switch I am able to control weather the white halo's or the red halo's will be on or off.

The relay is actually just a coil, when energized, closed contacts flips from post 87a to post 87

(1) post 87A in normally closed, feed by power from post 30. so the white halo's will come on when I start the car. (I could control this by inserting a switch between the fuse and post 30. This would stop all halo's from coming on until that switch is turned on)
Or running the power to post 30 from the fog lights (so when the fogs are on, power to post 30 energizes and the white halo's are on thru post 87A)

(2) either way, when the toggle switch in turned on. It energizes the coil in the relay and flips the contacts from 87A to post 87 turning on the red halo's and turning off the white. its that simple. When I turn the switch off, the white halo's come back on and the rd are turned off.
Note: I used a switch that has a red lamp when turned on, so I know that the red halo's are on. (Just for show...not good while driving) again the white halo's are on at default when the car is running.

I am not an electronics engineer. So, if anybody see a potential problem with this setup. Please advise... Any and all input is appreciated.




.
__________________
Fly low and Avoid the radar!
Bone is offline   Reply With Quote
Old 06-16-2010, 06:43 PM   #24
Bone
2SS RJT OWNER/OPERATOR

Bone's Avatar

Drives: 2010 2SS LS3 RJT
Join Date: Jan 2010
Location: Currently on the 3rd Rock. Temporarily
Posts: 555
Here is revised diagram thanks to CIGAM21. I origianally drew the diagram based on the switch thru the positive wires. But, the halo's come with (1) + power lead and (2) (-) negative leads. So, the switching needs to be directed to the negitive leads...It make more since. I re-wired my mockup an it works exactly the same. Just with the neg's are being switched. Perfect. Thats works great. Thanks for your help CIGAM21. Any body adding dual color halo's should take a good look at using this wiring set-up. It allows you to control both halo's with just one toggle switch...



Now, all I need is for ACC to deliver my red/white halo's... lol
Attached Images

__________________
Fly low and Avoid the radar!
Bone is offline   Reply With Quote
Old 01-25-2011, 11:53 AM   #25
DyerCamaro
Tom, Jen and Atlas

DyerCamaro's Avatar

Drives: 2011 IOM 1SS/RS
Join Date: Apr 2010
Location: mandeville,la
Posts: 218
Ok i wired my dual halos as shown in the 6-16-10 schematic from Bone. One problem though, they never go off even when the car is off. Now, one thing i did different from the diagram is that i skipped inserting a fuse in the 12v line, which i dont think wil change whether they go on or off its just a precaution. My queston is how do i make it so i can turn the halos off. I kinda like being able to have them on even when the car is off but need a way to make that optional. If i add another switch just for on and off how would i wire it?
__________________
Beauty is Power; A Smile Is Its Sword - John Ray
DyerCamaro is offline   Reply With Quote
