Old 06-27-2010, 01:46 PM   #1
topgun1


topgun1's Avatar

Drives: 10 SIM 2SS/RS LS3
Join Date: May 2008
Location: Winston-Salem, NC
Posts: 1,944
Dynojet results for intake, headers, exhaust with SOLO hiflow cats!

Hey guys,

First off, I apologize for the crappy audio in the videos later on. My camera is not meant to be a video camera and you can certainly tell in the video as it is very choppy. (a new video camera is on my list!) Anyway, I headed back down to Total Performance in Monroe, NC saturday morning, the 26th for some HP dyno tuning with my new bolt-ons, namely the SOLO hiflow cats. It wasn't the best day by far for dyno tuning, but we made the best of it as I don't have alot of free time available! So with temps in the shop starting in the low 90s and ending up at over 100 degrees by the last run, we got some runs without tunes in and some runs with HP tuning done. So I'll definitely be back at the shop on a cooler and drier morning, and should easily make more power just by the temperature and humidity drop.

However, despite the hot temps, we were pretty pleased with the results. Below is the dyno graph. Each run is detailed below the graph. I started off with using my 'baseline' numbers from 5/7/10 with just a K&N intake and 3" Magnaflow catback, and adjusted them to SAE, so they decreased a little.

'Baseline' 5/7/10 run with K&N intake and 3" Magnaflow competition catback:

376.84 RWHP
367.38 RWTQ
Temp 89.32F Humidity 17%

Then we ran the car on the dyno saturday morning (no tune) which includes the K&N intake, 3" Magnaflow catback, and the addition of the Doug Thorley shortie headers, and what everyone is waiting for--the SOLO hiflow cats. With the combination of the addition of the DT headers and the SOLO cats, and in our best run we picked up a solid 12.47 RWHP and a stout 24.36 RWTQ with no tune There was a slight hiccup in the graph you can see due to an issue with the torque management (don't ask me what) but was eliminated later during tuning. Temps were already up to 94F and humidity increasing.

With addition of Doug Thorley shorty headers and SOLO hiflow cats (6/26/10):

389.31 RWHP
391.74 RWTQ
Temp: 94.74F Humidity 25%

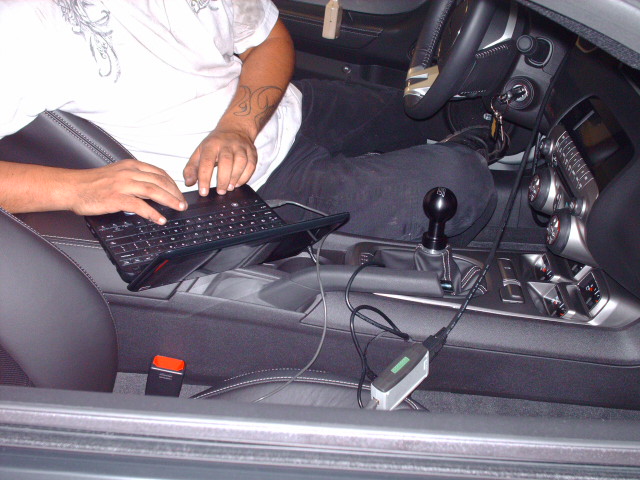

Then we started tuning with the HP tuner. The stock tune was removed and the HP tune dialed in. First thing we did was take off torque management. When putting in the HP tune, the car wanted to make more power, but the ECU didn't. Once we removed the torque management, the acceleration and graph curves were smooth and allowed us to continue tuning with no issues.

Next we played with A/F ratio to tune in the intake, headers, cats, and exhaust. Stock A/F numbers were running a little high in the low 13's to low 14's. We decreased the A/F ratio to right around 12 and the car seemed to like it, so we kept it there. Couldn't print out the A/F graph, but I videoed it so you can see it during the runs. And yes, the A/F was measured at the tailpipe ( I won't get involved in that discussion!)

Third thing we did was lower the fan temp. The fan comes on in percentages according to how hot the coolant temp is. We adjusted it to come on at 50% power at 175 degrees and then increase in output as the temp rises. I believe the stock doesn't even kick in until 210-215 or so? I may be wrong at that.

Lastly we removed the all-important speed limiter not like I'll ever need to reach speeds of that nature, but it's nice to know you're not limited to a certain extent.

We didn't change any timing, it seemed good as is.

So with some tuning (and mind you intake temps were upwards of 120F), we managed to make some more power with a gain of an additional 14.72 RWHP and 1.73 RWTQ over the run with no tuning from that morning and a total increase of 27.19 RWHP and 26.09 RWTQ since the addition of the DT shorty headers, the SOLO hiflow cats and some HP tuning.

Here was the best tune run below. It just got too darn hot after that. We'll try again on a cooler day and should make another 10-15 hp and tq.

404.03 RWHP
393.47 RWTQ
Temp: 100.52F Humidity 18%


So SOLO's claims of 22 RWHP gain from the hiflow cats I think are pretty realistic. I'll definitely make more power when it's cooler.

I'm fairly pleased with the results and the sound of everything with the hiflow cats is awesome!

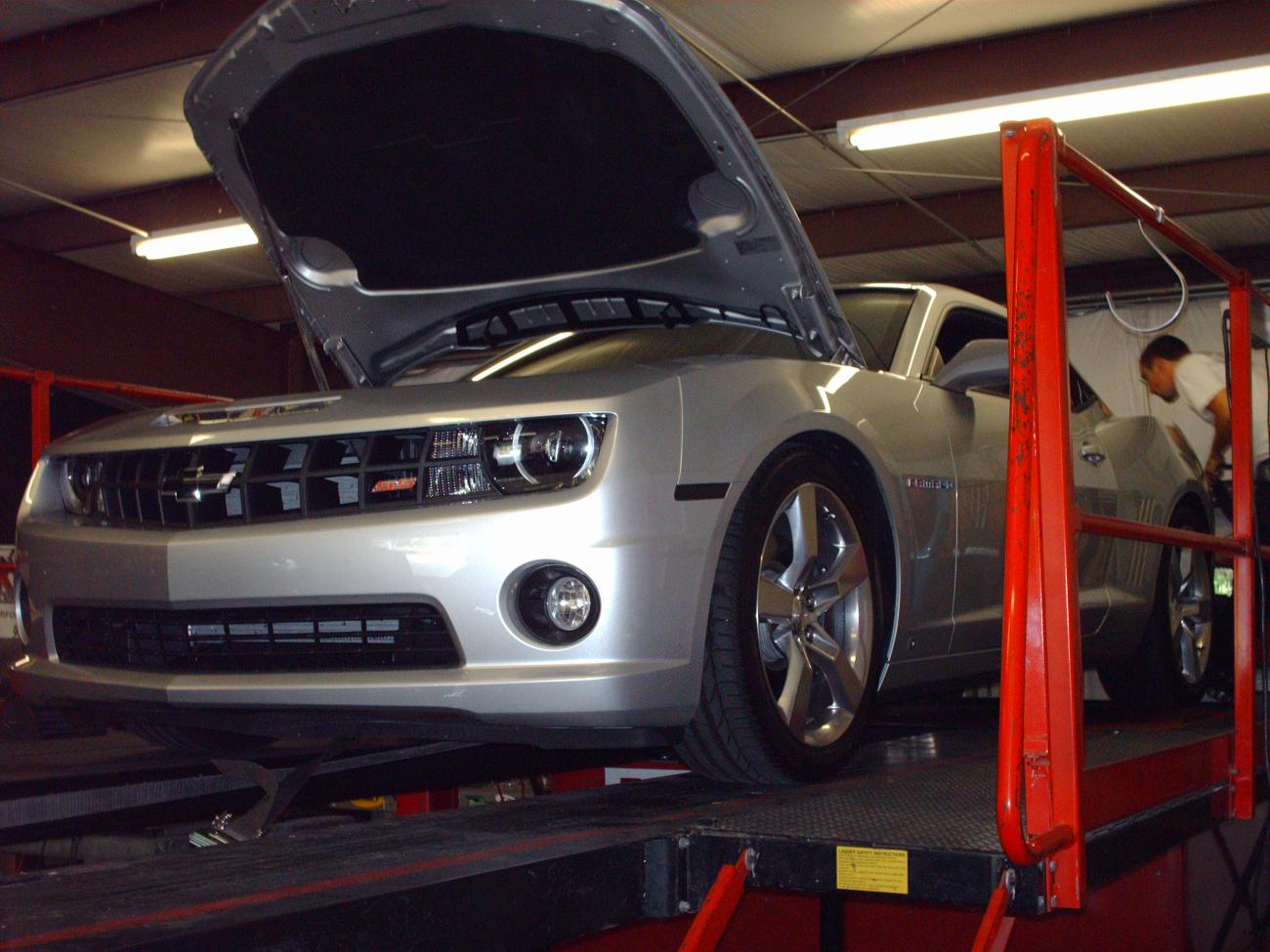

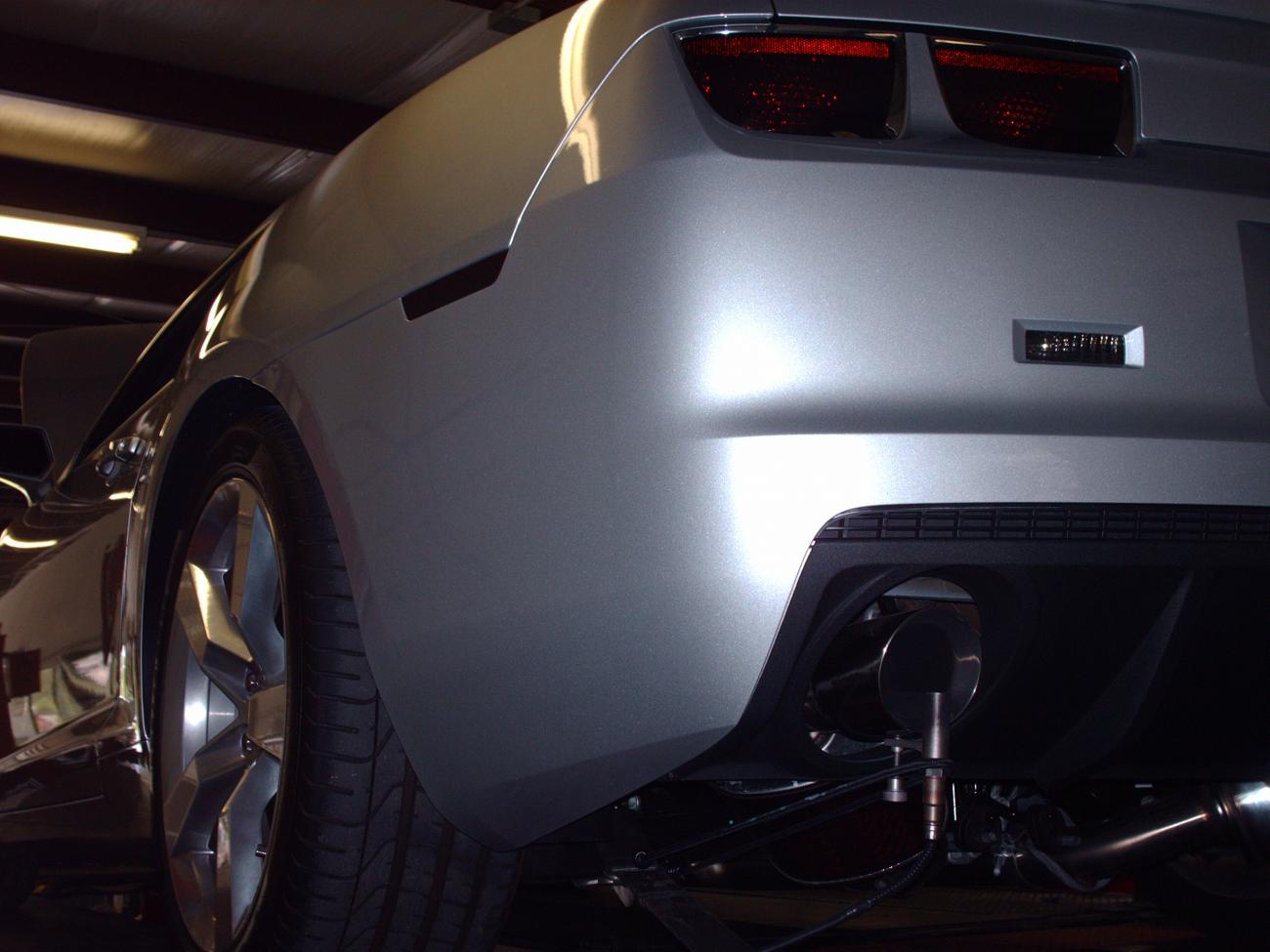

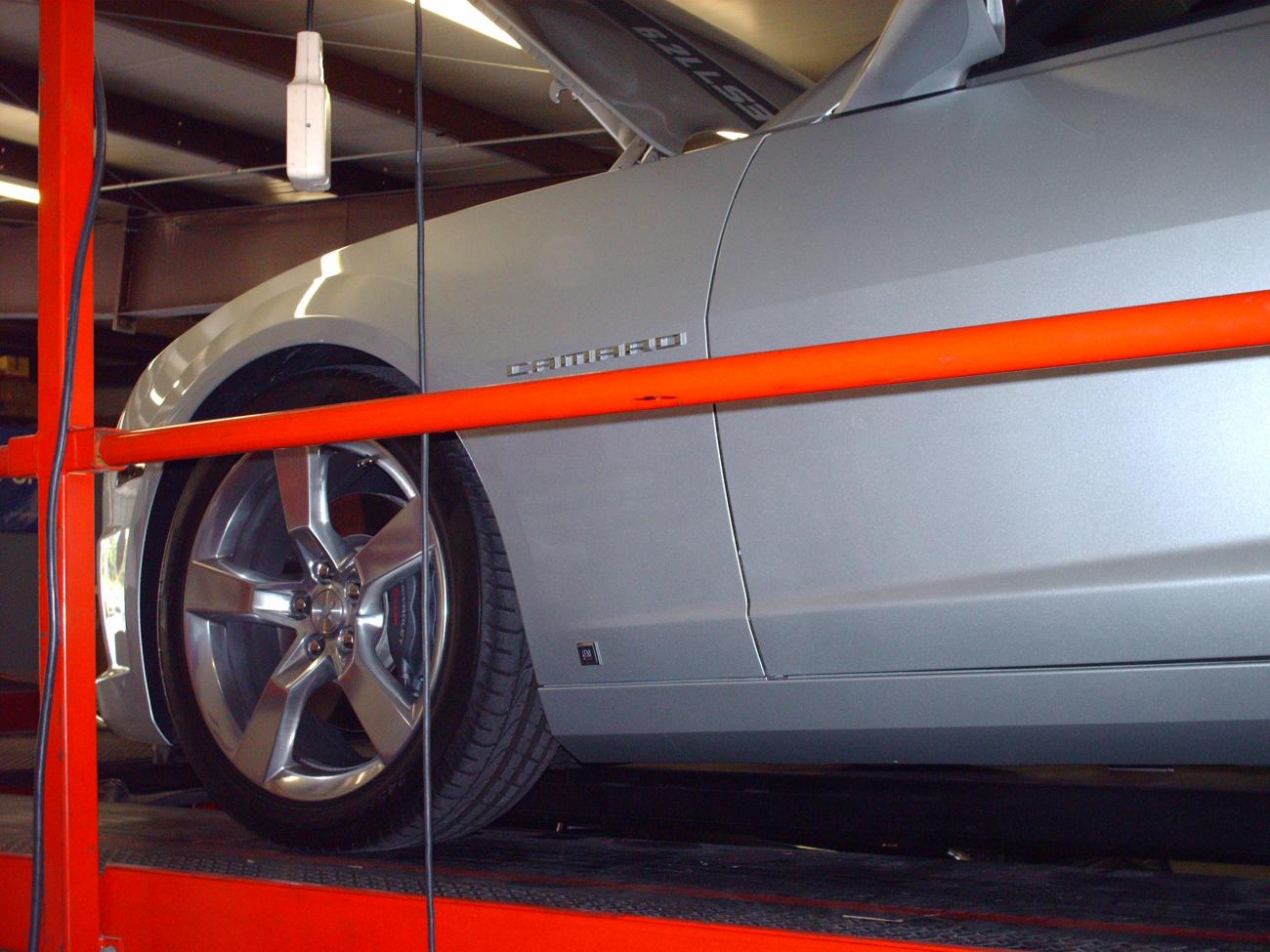

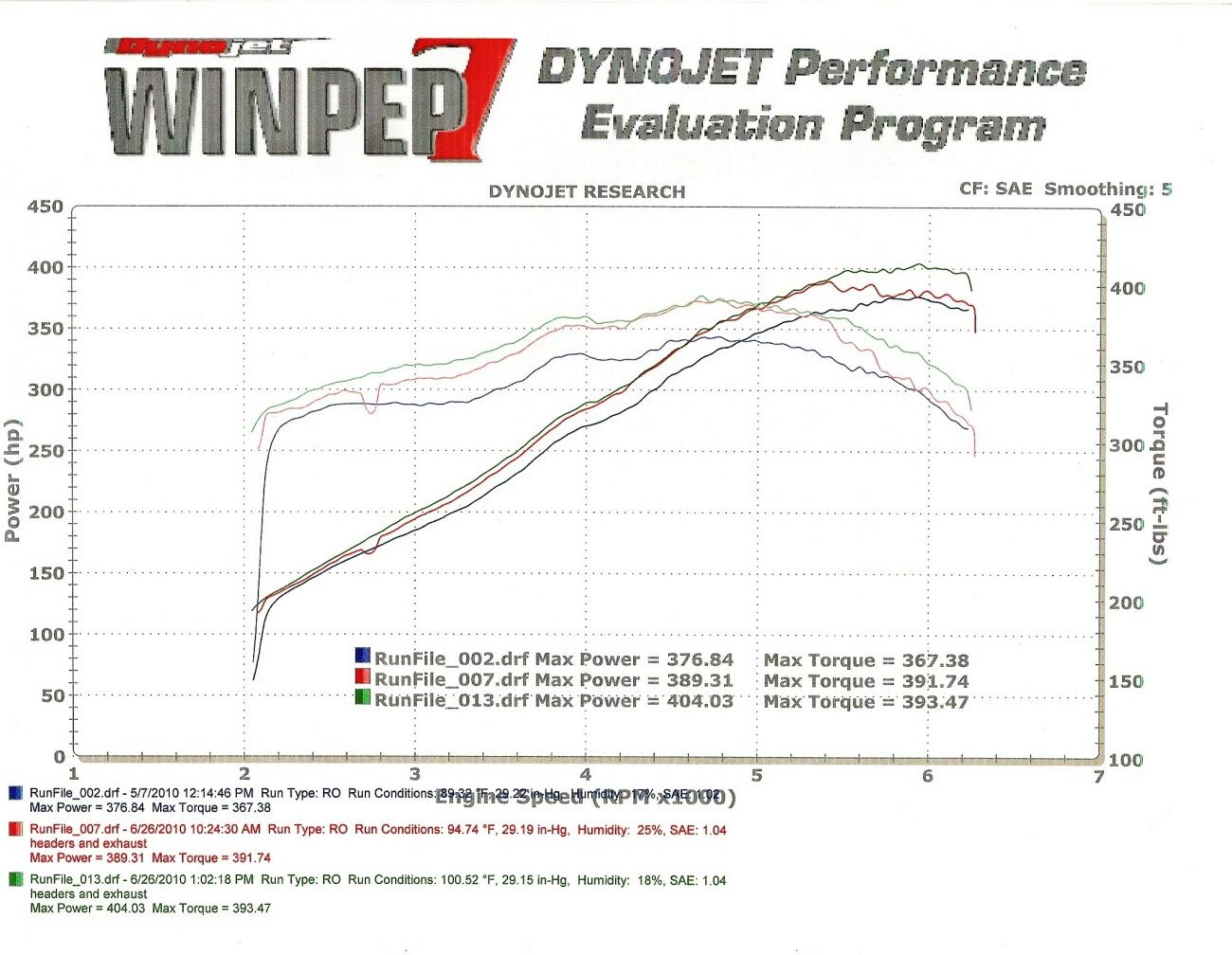

Below is the dyno chart and pics (again apologize about the audio, mainly just to show the A/F ratio).

best of first runs 6/26/10:



tuning run 6/26/10:



final tuning run 6/26/10:

Attached Images

__________________
5th Gen Camaros of the Carolinas SIM, 2SS/RS LS3 5/7/11 453.9 RWHP 427.5 RWTQ
VMS Stage 2.5 Comp Cams kit, Cold Air Inductions intake, ADM race scoop, DT 1 3/4" headers, Solo cats, 3" Magnaflow catback, Pypes cutouts, HP tune, H&R SuperSport springs, Eibach sways/spacers, TexasSpeed UD pulley, LSR tensioner pulley, Barton shifter, skip shift eliminator, powder-coated calipers, R1 concept rotors, StopTech pads, Granatelli wires, Lloyds mats, tint, AAC afterburner taillamps, AAC scanner/sidemarkers, SRP pedals, custom engine cover, black bowties, Ridergraphix hood spears....

Last edited by topgun1; 06-29-2010 at 10:59 AM.
topgun1 is offline   Reply With Quote
Old 06-27-2010, 05:00 PM   #2
ackeight


ackeight's Avatar

Drives: 10' 2SS/RS
Join Date: Jan 2010
Location: DFW
Posts: 1,335
I wonder how much of the HP/TQ gain was due to the cats and how much was the shorties. All around nice gains. I'm looking at a similar setup to break 400rwhp
ackeight is offline   Reply With Quote
Old 06-27-2010, 05:26 PM   #3
gearhead440

gearhead440's Avatar

Drives: Yellow 2SS, 6 speed manual
Join Date: Jan 2010
Location: Concord, NC
Posts: 216
Happy for you, man - great numbers especially with the "warm spell" we have been having! More smiles per mile! We plan to do some dyno runs when cools off some in the fall - just too damn hot here now.
gearhead440 is offline   Reply With Quote
Old 06-27-2010, 06:56 PM   #4
ssmike
Missing Big Red

ssmike's Avatar

Drives: 2013 Equinox CRT
Join Date: Jul 2009
Location: Buffalo, NY
Posts: 6,270
Congrats! Over 400rwhp, very cool! Does the a/f curve before the tune at 13-14 mean it's running lean or rich? Also, is the HP tune revertable to stock or is it a permanent tune? Thanks for your great post, good info!
ssmike is offline   Reply With Quote
Old 06-27-2010, 07:18 PM   #5
topgun1


topgun1's Avatar

Drives: 10 SIM 2SS/RS LS3
Join Date: May 2008
Location: Winston-Salem, NC
Posts: 1,944
Quote:
Originally Posted by ackeight View Post
I wonder how much of the HP/TQ gain was due to the cats and how much was the shorties. All around nice gains. I'm looking at a similar setup to break 400rwhp
I wondered that too. wish I was able to have gotten the car in on the dyno after the headers to find out, but together not a bad gain.

Quote:
Originally Posted by gearhead440 View Post
Happy for you, man - great numbers especially with the "warm spell" we have been having! More smiles per mile! We plan to do some dyno runs when cools off some in the fall - just too damn hot here now.
thanks! yep, planning to do some more tuning when it's cooler and see some better numbers


Quote:
Originally Posted by ssmike View Post
Congrats! Over 400rwhp, very cool! Does the a/f curve before the tune at 13-14 mean it's running lean or rich? Also, is the HP tune revertable to stock or is it a permanent tune? Thanks for your great post, good info!

the stock a/f ratio is a little lean. we enriched it a little more. Also, anything less than a 14.7 to 1 ratio is considered rich and greater than a 14.7 to ratio is considered lean so the less the ratio becomes, the richer the mixture becomes. We ended up pretty consistently at around 12-12.5 to 1.

thanks, hope you guys found some things helpful
__________________
5th Gen Camaros of the Carolinas SIM, 2SS/RS LS3 5/7/11 453.9 RWHP 427.5 RWTQ
VMS Stage 2.5 Comp Cams kit, Cold Air Inductions intake, ADM race scoop, DT 1 3/4" headers, Solo cats, 3" Magnaflow catback, Pypes cutouts, HP tune, H&R SuperSport springs, Eibach sways/spacers, TexasSpeed UD pulley, LSR tensioner pulley, Barton shifter, skip shift eliminator, powder-coated calipers, R1 concept rotors, StopTech pads, Granatelli wires, Lloyds mats, tint, AAC afterburner taillamps, AAC scanner/sidemarkers, SRP pedals, custom engine cover, black bowties, Ridergraphix hood spears....
topgun1 is offline   Reply With Quote
Old 06-27-2010, 07:30 PM   #6
DarricSS


DarricSS's Avatar

Drives: '10 Camaro SS
Join Date: Apr 2009
Location: Gilbert, Arizona
Posts: 1,047
Off Topic: (Sorry)

Where did you get that shifter ball? Does it fit the stock shaft?
__________________
2010, SIM, 2SS/RS, LS3, CGM Stripes
DarricSS is offline   Reply With Quote
Old 06-27-2010, 07:37 PM   #7
NinoSS


Drives: 2SS/RS CGM LS3
Join Date: Aug 2009
Location: NJ
Posts: 1,423
Quote:
Originally Posted by ackeight View Post
I wonder how much of the HP/TQ gain was due to the cats and how much was the shorties. All around nice gains. I'm looking at a similar setup to break 400rwhp
I feel that much of the gains are from the removal of the OEM cats. I got 30 whp from ADM dps (no cats) and ADM race intake (same day, dyno, and car).

I bet your set up is only down about 8-10 hp from LT headers.
__________________
Vengeance stage I cam (442rwhp/412rwtq) / CAI intake w/ADM race scoop / Dynatech LT's / ATI udp / JRE tuned / Eaton Posi LPE-JRE 3.91's / L99 Corsa / Whiteline Sways & Bushings / UMI Trailing Arms & Toe Rods / ZL1 wheels / NT05 275/315
NinoSS is offline   Reply With Quote
Old 06-27-2010, 10:30 PM   #8
Jeanius



Jeanius's Avatar

Drives: Blk/Blk LS3 SS
Join Date: Dec 2006
Location: Golden State
Posts: 2,471
WOW! NICE NUMBERS!

I baselined at 359hp/360tq and got 403hp/403tq with

Vararam
Dynatech LT's
Magnaflow 2.5" Street
Tune

Very impressive
__________________
2SS LS3 M6 - MGW - Dynatech LT's HF Cats - Magnaflow Street CB - ADM Race CAI - Pedders Xa Coilovers - Pfadt Sways
Jeanius is offline   Reply With Quote
Old 06-27-2010, 10:41 PM   #9
2010SLVRBULIT



2010SLVRBULIT's Avatar

Drives: G5 & C6
Join Date: Apr 2009
Location: MARS
Posts: 7,058
what did you run bone stock?
2010SLVRBULIT is offline   Reply With Quote
Old 06-28-2010, 01:24 AM   #10
VADER SS L99



VADER SS L99's Avatar

Drives: 2010 Camaro SS L99
Join Date: Nov 2009
Location: Edmond, OK
Posts: 2,550
I think you would have showed better gains if you would have gotten a base line dyno before bolting the headers and cats on because the dyno for sat. before mods would show a little less than May due to the heat. I'm kinda wondering though since you tuned, why wouldnt you just go and put LT headers on with high flow cats. I think it would have been the same cost with nothing to lose over what you did.
__________________
BLK/BLK 1SS/RS Ordered 11-01-2009 Took delivery 12-22-2009.
VADER SS L99 is offline   Reply With Quote
Old 06-28-2010, 07:53 AM   #11
GOINGSOLO2



GOINGSOLO2's Avatar

Drives: All Models
Join Date: Aug 2009
Location: NY
Posts: 1,450
Hi Topgun. Great numbers and thanks for the information you shared!! We're so glad that you like your set up.
__________________
Steve Mariano
Solo Performance Sales and Customer Service
516-655-9002 (7 days a week, until midnight EST)
goingsolo2@hotmail.com
http://www.solo-performance.com
GOINGSOLO2 is offline   Reply With Quote
Old 06-28-2010, 01:10 PM   #12
topgun1


topgun1's Avatar

Drives: 10 SIM 2SS/RS LS3
Join Date: May 2008
Location: Winston-Salem, NC
Posts: 1,944
Quote:
Originally Posted by DarricSS View Post
Off Topic: (Sorry)

Where did you get that shifter ball? Does it fit the stock shaft?
got that from Barton Industries, it comes with an adapter. It's black anodized steel.
__________________
5th Gen Camaros of the Carolinas SIM, 2SS/RS LS3 5/7/11 453.9 RWHP 427.5 RWTQ
VMS Stage 2.5 Comp Cams kit, Cold Air Inductions intake, ADM race scoop, DT 1 3/4" headers, Solo cats, 3" Magnaflow catback, Pypes cutouts, HP tune, H&R SuperSport springs, Eibach sways/spacers, TexasSpeed UD pulley, LSR tensioner pulley, Barton shifter, skip shift eliminator, powder-coated calipers, R1 concept rotors, StopTech pads, Granatelli wires, Lloyds mats, tint, AAC afterburner taillamps, AAC scanner/sidemarkers, SRP pedals, custom engine cover, black bowties, Ridergraphix hood spears....
topgun1 is offline   Reply With Quote
Old 06-28-2010, 01:11 PM   #13
topgun1


topgun1's Avatar

Drives: 10 SIM 2SS/RS LS3
Join Date: May 2008
Location: Winston-Salem, NC
Posts: 1,944
Quote:
Originally Posted by NinoSS View Post
I feel that much of the gains are from the removal of the OEM cats. I got 30 whp from ADM dps (no cats) and ADM race intake (same day, dyno, and car).

I bet your set up is only down about 8-10 hp from LT headers.

that's what I'm thinking, the flow really opened up after the replacement of the stock cats.

and yes, shouldn't be too much different b/w hp from the DT shorties and long tubes, they even show that on their dyno graphs on their website, only a couple of hp difference b/w the two.
__________________
5th Gen Camaros of the Carolinas SIM, 2SS/RS LS3 5/7/11 453.9 RWHP 427.5 RWTQ
VMS Stage 2.5 Comp Cams kit, Cold Air Inductions intake, ADM race scoop, DT 1 3/4" headers, Solo cats, 3" Magnaflow catback, Pypes cutouts, HP tune, H&R SuperSport springs, Eibach sways/spacers, TexasSpeed UD pulley, LSR tensioner pulley, Barton shifter, skip shift eliminator, powder-coated calipers, R1 concept rotors, StopTech pads, Granatelli wires, Lloyds mats, tint, AAC afterburner taillamps, AAC scanner/sidemarkers, SRP pedals, custom engine cover, black bowties, Ridergraphix hood spears....
topgun1 is offline   Reply With Quote
Old 06-28-2010, 01:16 PM   #14
topgun1


topgun1's Avatar

Drives: 10 SIM 2SS/RS LS3
Join Date: May 2008
Location: Winston-Salem, NC
Posts: 1,944
Quote:
Originally Posted by 2010SLVRBULIT View Post
what did you run bone stock?
Never got the chance to dyno it bone stock, which would have been nice to see. It's first dyno was with the K&N intake and the Magnaflow exhaust.

Quote:
Originally Posted by VADER SS L99 View Post
I think you would have showed better gains if you would have gotten a base line dyno before bolting the headers and cats on because the dyno for sat. before mods would show a little less than May due to the heat. I'm kinda wondering though since you tuned, why wouldnt you just go and put LT headers on with high flow cats. I think it would have been the same cost with nothing to lose over what you did.
Yep, probably would have, but didn't get the opportunity to. LT's were a little more expensive and I'm not looking to supercharge it, there is minimal power difference, I like the low end torque the shorties give, and there is also a clearance issue with some forum members have run into with lowered cars and the LT's bottoming out. I'm happy with the shorties


Quote:
Originally Posted by GOINGSOLO2 View Post
Hi Topgun. Great numbers and thanks for the information you shared!! We're so glad that you like your set up.
thanks, much praise to you guys!
__________________
5th Gen Camaros of the Carolinas SIM, 2SS/RS LS3 5/7/11 453.9 RWHP 427.5 RWTQ
VMS Stage 2.5 Comp Cams kit, Cold Air Inductions intake, ADM race scoop, DT 1 3/4" headers, Solo cats, 3" Magnaflow catback, Pypes cutouts, HP tune, H&R SuperSport springs, Eibach sways/spacers, TexasSpeed UD pulley, LSR tensioner pulley, Barton shifter, skip shift eliminator, powder-coated calipers, R1 concept rotors, StopTech pads, Granatelli wires, Lloyds mats, tint, AAC afterburner taillamps, AAC scanner/sidemarkers, SRP pedals, custom engine cover, black bowties, Ridergraphix hood spears....
topgun1 is offline   Reply With Quote
Old 06-28-2010, 01:48 PM   #15
ssmike
Missing Big Red

ssmike's Avatar

Drives: 2013 Equinox CRT
Join Date: Jul 2009
Location: Buffalo, NY
Posts: 6,270
topgun1, thanks for the great report and info! When I went with DT shorties last fall it was for the same reasons, price, clearence, no tune required. It worked well with the Solo Mach-x and I thought I was done till Solo came out with these cats! I jumped on the oportunity to get these at the pre-discount and glad I did! The only thing that I'm concerned with is it really does look like a tune will be necessary to bring the a/f down to 12. My purpose in my decision was to eliminate having to tune my car due to warranty issues. If these cats cause the a/f to run 13-14, lean, will this damage my engine? Does anyone know what the safe numbers are? If I need to tune I may have to go back to stock cats, ugh, don't want to do that either! Any suggestions? Maybe Steve from Solo can chime in here. Thanks!
ssmike is offline   Reply With Quote
Old 06-28-2010, 03:29 PM   #16
DarricSS


DarricSS's Avatar

Drives: '10 Camaro SS
Join Date: Apr 2009
Location: Gilbert, Arizona
Posts: 1,047
Quote:
Originally Posted by topgun1 View Post
got that from Barton Industries, it comes with an adapter. It's black anodized steel.
Awesome..thanks!
__________________
2010, SIM, 2SS/RS, LS3, CGM Stripes
DarricSS is offline   Reply With Quote
Old 06-28-2010, 10:09 PM   #17
topgun1


topgun1's Avatar

Drives: 10 SIM 2SS/RS LS3
Join Date: May 2008
Location: Winston-Salem, NC
Posts: 1,944
Quote:
Originally Posted by ssmike View Post
topgun1, thanks for the great report and info! When I went with DT shorties last fall it was for the same reasons, price, clearence, no tune required. It worked well with the Solo Mach-x and I thought I was done till Solo came out with these cats! I jumped on the oportunity to get these at the pre-discount and glad I did! The only thing that I'm concerned with is it really does look like a tune will be necessary to bring the a/f down to 12. My purpose in my decision was to eliminate having to tune my car due to warranty issues. If these cats cause the a/f to run 13-14, lean, will this damage my engine? Does anyone know what the safe numbers are? If I need to tune I may have to go back to stock cats, ugh, don't want to do that either! Any suggestions? Maybe Steve from Solo can chime in here. Thanks!
running 13-14 is pretty normal and won't damage your engine, you just won't combust the fuel as well and you won't maximize the a/f ratio the entire intake and exhaust system needs to maximize the power potential. A 14.7 to 1 ratio completely combusts fuel. I'm not an expert by any means but I believe numbers in the 11-14 range are fine, but may want to ask an expert! yes, perhaps Steve can give some advice.

Untuned, there were still gains with the cats on my car and will be with yours too. you don't need a tune with the cats, it just helps maximize your power. I wouldn't want to go back to stock cats either! you're still making more power even untuned and the sound is awesome.

good luck Mike!
__________________
5th Gen Camaros of the Carolinas SIM, 2SS/RS LS3 5/7/11 453.9 RWHP 427.5 RWTQ
VMS Stage 2.5 Comp Cams kit, Cold Air Inductions intake, ADM race scoop, DT 1 3/4" headers, Solo cats, 3" Magnaflow catback, Pypes cutouts, HP tune, H&R SuperSport springs, Eibach sways/spacers, TexasSpeed UD pulley, LSR tensioner pulley, Barton shifter, skip shift eliminator, powder-coated calipers, R1 concept rotors, StopTech pads, Granatelli wires, Lloyds mats, tint, AAC afterburner taillamps, AAC scanner/sidemarkers, SRP pedals, custom engine cover, black bowties, Ridergraphix hood spears....

Last edited by topgun1; 06-29-2010 at 11:05 AM.
topgun1 is offline   Reply With Quote
Old 07-02-2010, 07:52 AM   #18
topgun1


topgun1's Avatar

Drives: 10 SIM 2SS/RS LS3
Join Date: May 2008
Location: Winston-Salem, NC
Posts: 1,944
man, would be an awesome morning today or tomorrow to be back on the dyno tuning--lows in the upper 50's here this morning, low humidity! would definitely see power gains. sure beats 100 degrees! but i'm working and the weekend i'm spending with my other half, so it is what it is.
__________________
5th Gen Camaros of the Carolinas SIM, 2SS/RS LS3 5/7/11 453.9 RWHP 427.5 RWTQ
VMS Stage 2.5 Comp Cams kit, Cold Air Inductions intake, ADM race scoop, DT 1 3/4" headers, Solo cats, 3" Magnaflow catback, Pypes cutouts, HP tune, H&R SuperSport springs, Eibach sways/spacers, TexasSpeed UD pulley, LSR tensioner pulley, Barton shifter, skip shift eliminator, powder-coated calipers, R1 concept rotors, StopTech pads, Granatelli wires, Lloyds mats, tint, AAC afterburner taillamps, AAC scanner/sidemarkers, SRP pedals, custom engine cover, black bowties, Ridergraphix hood spears....
topgun1 is offline   Reply With Quote
