Well, it took a while, but I finally got the bigger trans cooler in place.

I basically had to put the bigger trans cooler out front, then the oil cooler behind it. While doing all of that, I had to re-tighten all the cooler and coolant clamps/fittings again -- its a yearly thing now.

I didn't do the an fittings -- anfittings.com had an issue with their site so I stuck with the fittings in the kit and, some 1/2 NPT to 3/8 barb so I would be able to use the existing ADM hoses - worked just fine.

Here are the series of pics:

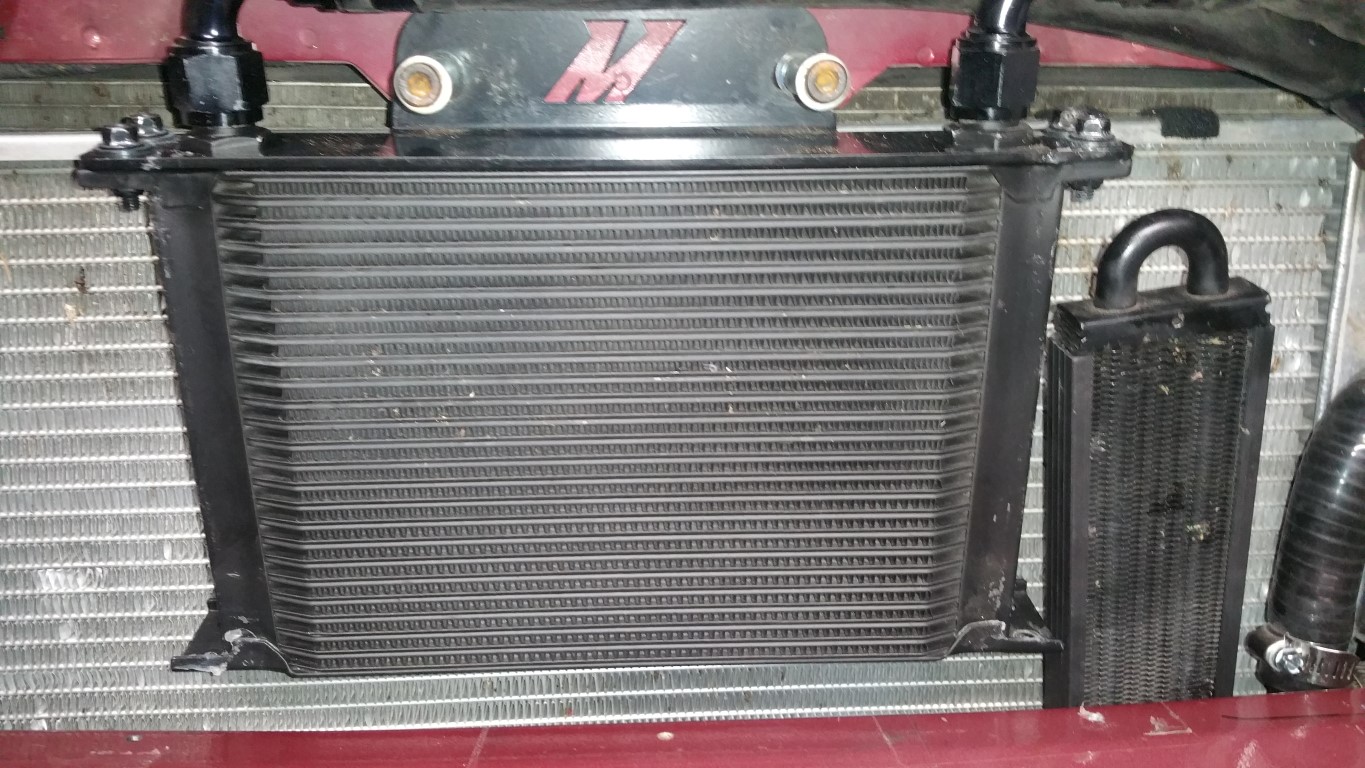

Test Fitting:

Custom bracket for the trans cooler:

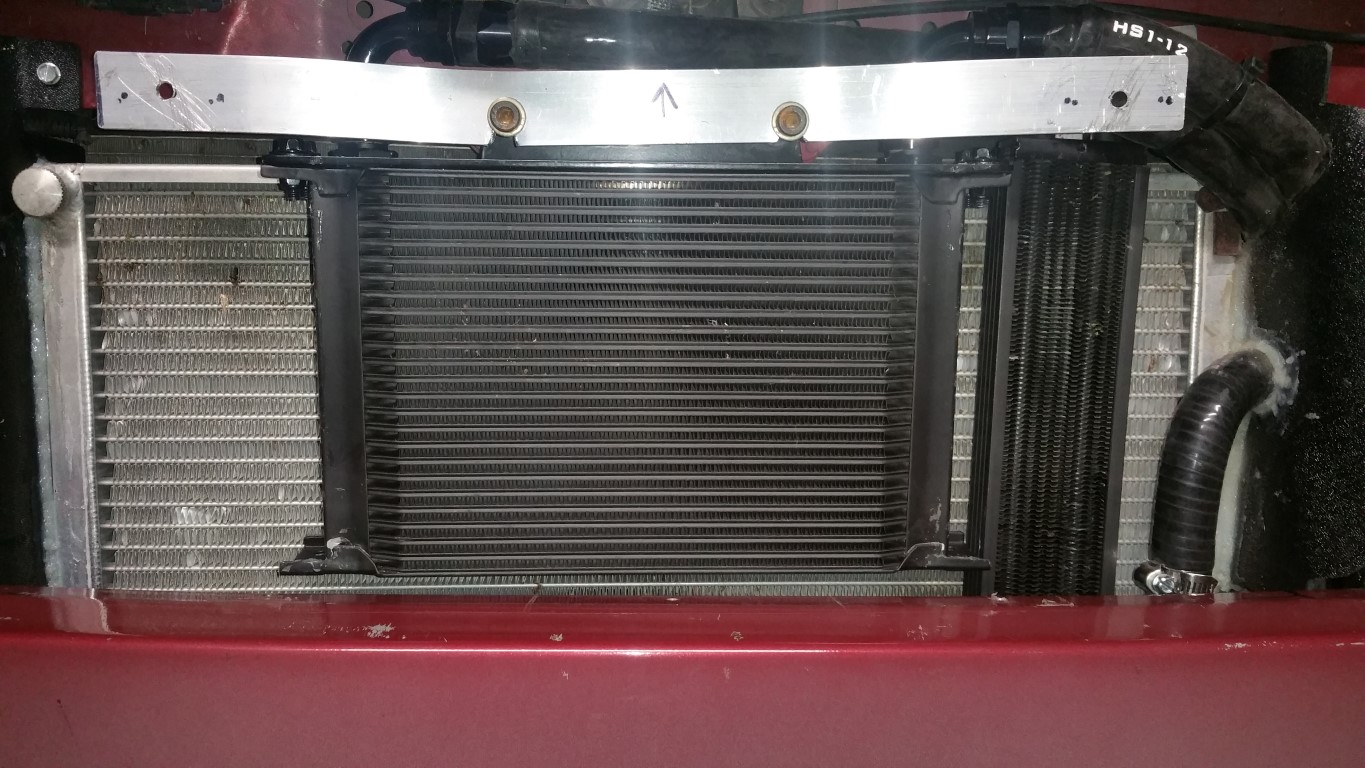

Hose routing and clearance.
NOTE the trim 'edge' to prevent 'chaffing':

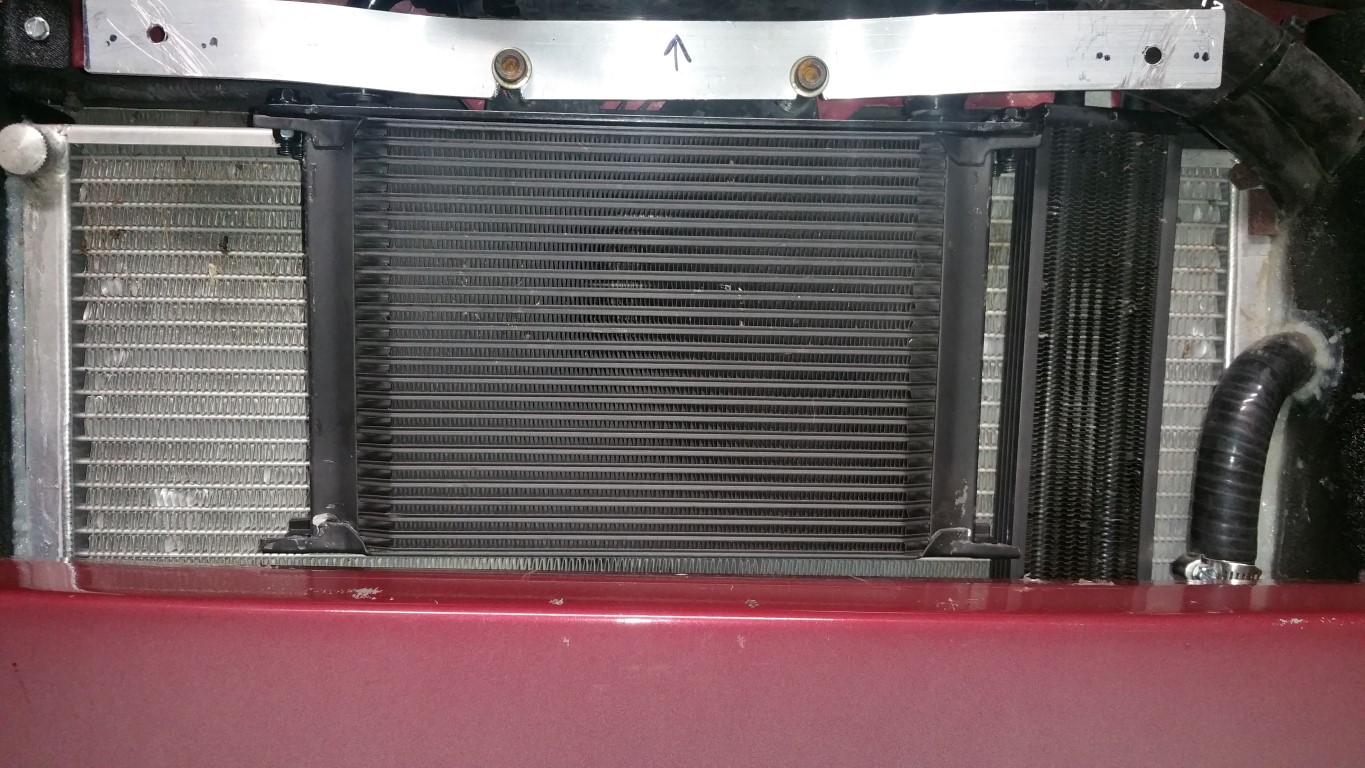

All in place:

I wanted to paint the cooler black, but no-one had the radiator paint and I was not going to wait -- I'll buy it and have it on hand the next time I remove the bumper -- then I'll make it 'stealth' ;o)

I did have to trim up the upper grill so it would fit and not bind with the trans cooler -- worked fine -- that took longer than the trans cooler install ;o)

I'll get some pics of that later...

After all of that, here are my temps:

63° Ambient @ 77 MPH (in a 75 MPH zone) @ 3 AM (little traffic at that time ;o)

IAT2: 87°
Coolant: 174°
Oil: 219°

Trans: 114° -- yep, I call that a success! Highest the trans temps got was 132° after shutdown, restart, then idle (after filling up with E85) -- once I got moving 'city driving' now, got down to 124°

So this BIG trans cooler works -- now, I know 114° is low, but I don't normally drive it when its cold. What I really liked was virtually NO temp increase on IAT2s, Coolant, or Oil -- again, that is @ 63°, the real test will be when it gets in the 100's...

BTW, the trans cooler IS mounted @ the bottom of the bumper -- it is NOT flexing around ;o). I used the brackets included with the trans kit -- nice I didn't have to 'make' some...

Overall, this will help when road racing for sure!

I'll eventually use an fittings/hoses, but for now, it will suffice!

-Don
