early 2010 mark of excellence badge locatin

[liverpooly]

i want to install 2010 mark of excellence badge on my 2010 camaro but
i don't know the exact location .i want the factory spot location please.
can someone provide me the exact measures like the original that from the factory please.with photos is better,

[RollaMo]

I have no measurements, but doing a quick Google search turned this up.

[myold88]

The emblems front edge is 3 and a1/4 inches back from the wheel opening,
and the lower emblem edge is 3/4's of an inch from the lower fender seam.

[montreal2010yellow]

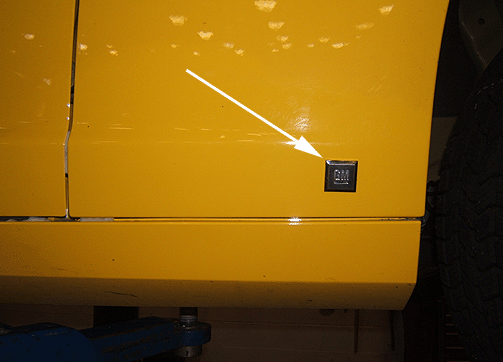

[R6P]

A little known fact, the early built 2010's had the chicklet placed too far forward on the fender for proper splash guard installation. A change was made on the assembly line beginning with vin#A9107218.

It looks like montreal2010yellow's Camaro was one of those early built units looking at how close the badge is to the splash guard.

#09-08-111-003: Accessory Molded Splash Guard - Revised Installation Instructions - (May 12, 2009)

Subject:

Accessory Molded Splash Guard – Revised Installation Instructions


Models:

2010 Chevrolet Camaro

Built Prior to VIN Breakpoint A9107218

--------------------------------------------------------------------------------

Inspection




When installing accessory molded splash guards, the“GM” emblem mounted on the lower front fender may interfere with the splash guard. This interference may prevent the splash guard from fitting flush with the painted surface of the fender.

The factory placement of the GM “Mark Of Excellence” emblem may prevent a flush contact between the molded splash guard and the painted surface of the fender. There should be a 10 mm (0.40 in) gap between a properly installed molded splash guard and the GM “Mark Of Excellence” emblem.



Before attempting to install the molded splash guard kit, measure the distance between the front edge of the GM emblem and the wheel opening (1). Ensure that the distance is at least 82 mm (3.2 in). If this dimension is correct, proceed with the installation instructions provided with the molded splash guard kit.

Revised Installation Instruction


If the measurement is less than 82 mm (3.2 in), proceed with the following steps to relocate new emblems in the correct location.

1.

Clean the area using a general purpose adhesive cleaner.



2.

Install a piece of masking tape along the lower edge of the existing emblem. Ensure that the tape is parallel with the lower edge of the fender as shown above.

Caution Use a plastic, flat-bladed tool to prevent paint damage when removing an emblem/name plate.

3.

Remove the existing emblem. Clean any adhesive residue with general purpose adhesive cleaner.


4.

Measure back 82 mm (3.2 in) from the wheel opening (1). Mark this location on the tape.

5.

Install the new emblem with the front edge of the emblem even with the marked location.

6.

Repeat Steps 1-5 on the opposite side of the vehicle.

7.

Proceed with the installation instructions provided with the molded splash guard kit.

[montreal2010yellow]

Originally Posted by R6P

A little known fact, the early built 2010's had the chicklet placed too far forward on the fender for proper splash guard installation. A change was made on the assembly line beginning with vin#A9107218.

It looks like montreal2010yellow's Camaro was one of those early built units looking at how close the badge is to the splash guard.

#09-08-111-003: Accessory Molded Splash Guard - Revised Installation Instructions - (May 12, 2009)

Subject:

Accessory Molded Splash Guard – Revised Installation Instructions


Models:

2010 Chevrolet Camaro

Built Prior to VIN Breakpoint A9107218

--------------------------------------------------------------------------------

Inspection

Attachment 450267


When installing accessory molded splash guards, the“GM” emblem mounted on the lower front fender may interfere with the splash guard. This interference may prevent the splash guard from fitting flush with the painted surface of the fender.

The factory placement of the GM “Mark Of Excellence” emblem may prevent a flush contact between the molded splash guard and the painted surface of the fender. There should be a 10 mm (0.40 in) gap between a properly installed molded splash guard and the GM “Mark Of Excellence” emblem.

Attachment 450268

Before attempting to install the molded splash guard kit, measure the distance between the front edge of the GM emblem and the wheel opening (1). Ensure that the distance is at least 82 mm (3.2 in). If this dimension is correct, proceed with the installation instructions provided with the molded splash guard kit.

Revised Installation Instruction


If the measurement is less than 82 mm (3.2 in), proceed with the following steps to relocate new emblems in the correct location.

1.

Clean the area using a general purpose adhesive cleaner.

Attachment 450269

2.

Install a piece of masking tape along the lower edge of the existing emblem. Ensure that the tape is parallel with the lower edge of the fender as shown above.

Caution Use a plastic, flat-bladed tool to prevent paint damage when removing an emblem/name plate.

3.

Remove the existing emblem. Clean any adhesive residue with general purpose adhesive cleaner.
Attachment 450270

4.

Measure back 82 mm (3.2 in) from the wheel opening (1). Mark this location on the tape.

5.

Install the new emblem with the front edge of the emblem even with the marked location.

6.

Repeat Steps 1-5 on the opposite side of the vehicle.

7.

Proceed with the installation instructions provided with the molded splash guard kit.

Yep nice instructions but I wanted the Chilets to stay where they where. My car is Vin 603. very early production and I wanted to keep them that way.
