18x9.5 40mm offset on the front

[Pro Stock John]

I bought a set of matching fronts for my car, 18x9.5 ZR1 replicas, 40mm offset.

Rears, just tied e brake cable back, 305/45R 18 Nitto NT05Rs:




I have Nitto 265/50/18's on the rims for the front



Did some work to fit them:

[Pro Stock John]

Ground this down info from a sux2bu thread:



But the tire rubs strut





I think 5mm spacer might be enough just ordered it





So there you have it. I've seen one other guy run the ZR1/Z06 fronts, JacFab, I don't know what tires he had up front. But for this combo, can get the wheel to work, but the tires I have rub the strut assembly. I will try 5mm spacer, and if that's still tight I'll go 8mm and pay $70 from that place that custom makes them. I ordered some for $33 with free shipping (5mm).

[Pro Stock John]

I'm going to put some painters tape on the strut after I try the spacer. As I'll have 2 5mm spacers, I'll try one and if it's still scuffing I'll look at doing 10mm but I think 5mm might be enough I didn't hear them rubbing.

[SUX2BU]

It would have been a lot easier to pull the pads out, put them in a vice and cut the weights off there. That way you wouldn't have nicked the calipers.

Did you get a weight on the wheels or tires?

[Pro Stock John]

Yeah I'd like to powdercoat the calipers anyway, maybe this will push me.

I can go outside and weigh a wheel + tire, brb.

[Pro Stock John]

I'm getting 57.8 Juan.

[Jason@JacFab]

Posted in the Free Wheel Offsets thread. Those are going to look slick once you get them on there.

[Pro Stock John]

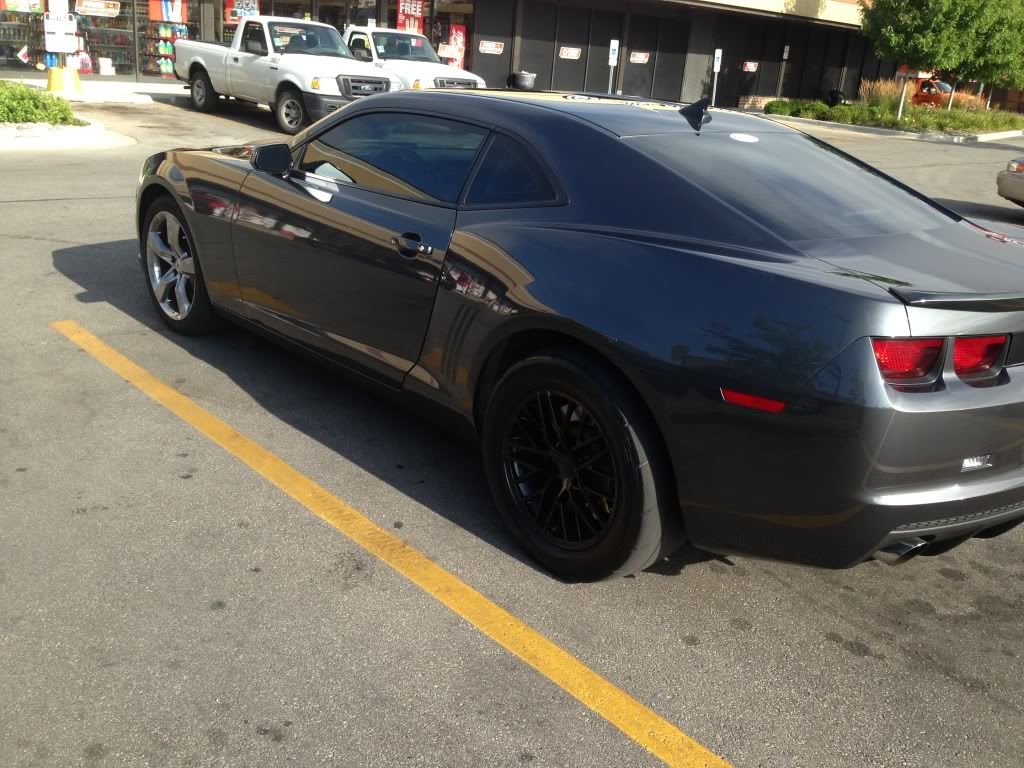

Thanks, they are tasty:



Jason, the spacers: http://www.ebay.com/itm/231018011293...84.m1439.l2649

I don't understand the toe out adjustment you said, never done that before. To answer your question, the tire and rim are not perfectly flush I can measure if you like. But the tire is not mega wider.

[Nine Ball]

Ughhh John. You know your business partner happens to be very good at Camaro offsets and information, right?

Friends don't let friends hack their cars up or run spacers. I have failed you.

Tony

[Pro Stock John]

I like how the ZR1 wheels look but running a little spacer was not my plan. We'll see how this goes.

[blake2010ss]

So no spacers needed for the rear then? I smell my possible rear drag setup...where did you get them?(sorry if I missed it)

[Pro Stock John]

No spacer in back, but you have to tie back the e-brake cable or it might rub on the edge of the wheel.

[blake2010ss]

I got mine tied back already from a little rub.

[Nine Ball]

27-30 range would have been a better front offset. You'll likely need a 10mm spacer to make them not look silly and tucked too far into the car.
