Painting SS emblem - Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums

scythezo6 · 01-25-2010, 11:39 AM

Hey guys. I bought a trailblazer SS emblem and want to paint it red and use it to replace the rear bowtie. My question is how do you paint these things? They have a pearl white-colored SS strip that is glued onto the emblem, should I peel that off and paint the metalic emblem or rough up and paint the colored SS inlay? I have some paint that matches the red SS badges thats spray and also some thats in a bucket with brush, which would be better?

Fesler · 01-25-2010, 11:54 AM

We just prep and sand them very well. you can spray right over as long as its very clean and sanded. Sand it very well in all the little edges so the paint will stick. You may need to put down an etch primer to help.

Hope that helps and good luck

markmass · 01-25-2010, 02:23 PM

Quote:

Originally Posted by scythezo6

Hey guys. I bought a trailblazer SS emblem and want to paint it red and use it to replace the rear bowtie. My question is how do you paint these things? They have a pearl white-colored SS strip that is glued onto the emblem, should I peel that off and paint the metalic emblem or rough up and paint the colored SS inlay? I have some paint that matches the red SS badges thats spray and also some thats in a bucket with brush, which would be better?

I did mine with touch up paint and a very small - tiny brush. I sanded it with 200 grit, brushed in Adhesion Promoter, then painted over with the brush. When dry, i used clean paint brush, sprayed clear coat into a small lid, and simply painted that on. Any excess on the chrome around it - wait til dry and 'chip' off with your finger nail....

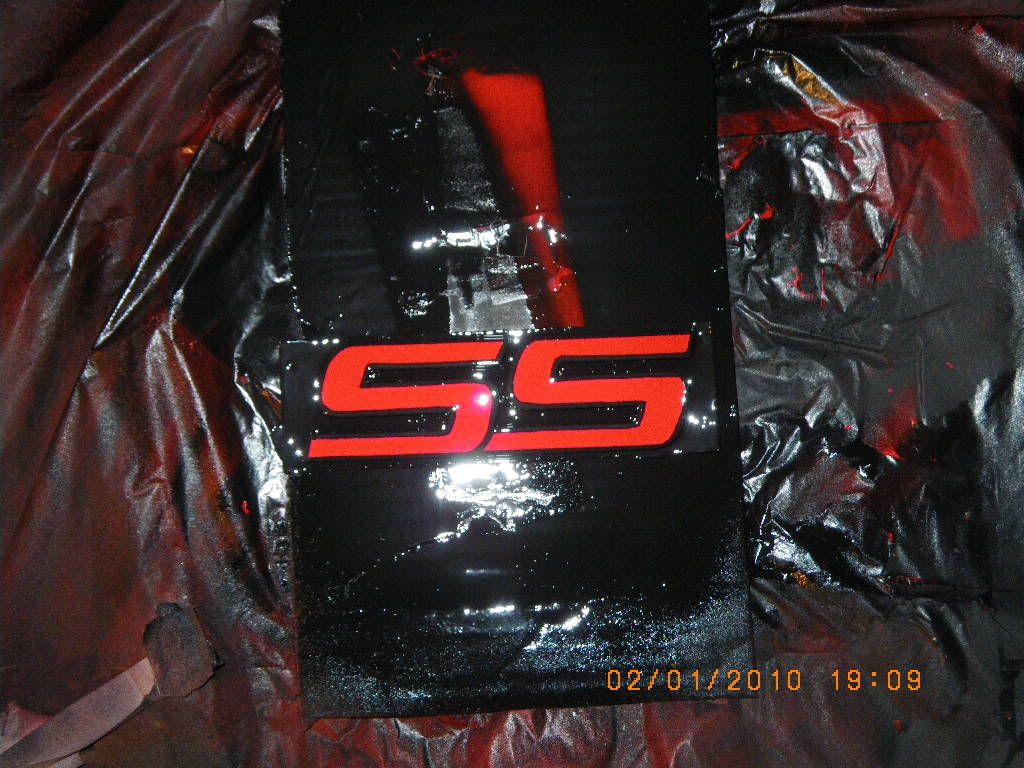

Name: Painted SS Emblem.jpg
Views: 1965
Size: 161.6 KB

Name: Painted SS Emblem.jpg
Views: 1965
Size: 161.6 KB

Also sprayed in the front Bowtie - again, sanded, adhesion promoter, spray, and top coat
Name: Front Bow Tie and SS Yelloe.jpg
Views: 1776
Size: 165.1 KB

masterofpuppets · 01-25-2010, 02:57 PM

You could also do vinyl - I just ordered these for the RS emblem the other day:

http://www.amazon.com/Grille-Badge-O...4449422&sr=1-4

scythezo6 · 01-26-2010, 12:37 PM

Nice, thanks guys.

I tried painting last night with some duplicolor flash red. I taped off the chrome edges and laid down some paint. I let it dry all night and some of this morning and tried to peel off the masking tape. When I peeled the masking tape back it pulled back the paint also. I'll try the brush on method today ans see how that goes.

playr101 · 02-09-2010, 07:16 PM

how did the second attempt go?

-playr101

scythezo6 · 02-09-2010, 09:32 PM

It went pretty well. I'm just waiting to get the time to go to the grapics shop to get my trunk panel blackout then I'll put it on.

I also did my front bowtie with flat black and clear.

01-25-2010, 11:39 AM	#1
scythezo6 Virologist in the making Drives: 2010 VR SS/RS LS3 Join Date: Aug 2009 Location: El Paso TX Posts: 2,865	Painting SS emblem Hey guys. I bought a trailblazer SS emblem and want to paint it red and use it to replace the rear bowtie. My question is how do you paint these things? They have a pearl white-colored SS strip that is glued onto the emblem, should I peel that off and paint the metalic emblem or rough up and paint the colored SS inlay? I have some paint that matches the red SS badges thats spray and also some thats in a bucket with brush, which would be better? __________________ Victory Red 1SS/RS Ordered - 8/4/09 & Joined Camaro5.com family 6000, Delivered to the customer - 12/21/09

01-25-2010, 11:54 AM	#2
Fesler Drives: 1969 Camaro and 2010 Camaro's Join Date: Apr 2009 Location: Scottsdale, AZ Posts: 463	We just prep and sand them very well. you can spray right over as long as its very clean and sanded. Sand it very well in all the little edges so the paint will stick. You may need to put down an etch primer to help. Hope that helps and good luck __________________ Chris Fesler Fesler Built

01-25-2010, 02:57 PM	#4
masterofpuppets Pulling your strings Drives: My girlfriend crazy with car talk Join Date: Jan 2010 Location: Austin, Texas Posts: 1,246	You could also do vinyl - I just ordered these for the RS emblem the other day: http://www.amazon.com/Grille-Badge-O...4449422&sr=1-4 __________________

01-26-2010, 12:37 PM	#5
scythezo6 Virologist in the making Drives: 2010 VR SS/RS LS3 Join Date: Aug 2009 Location: El Paso TX Posts: 2,865	Nice, thanks guys. I tried painting last night with some duplicolor flash red. I taped off the chrome edges and laid down some paint. I let it dry all night and some of this morning and tried to peel off the masking tape. When I peeled the masking tape back it pulled back the paint also. I'll try the brush on method today ans see how that goes. __________________ Victory Red 1SS/RS Ordered - 8/4/09 & Joined Camaro5.com family 6000, Delivered to the customer - 12/21/09

02-09-2010, 09:32 PM	#7
scythezo6 Virologist in the making Drives: 2010 VR SS/RS LS3 Join Date: Aug 2009 Location: El Paso TX Posts: 2,865	It went pretty well. I'm just waiting to get the time to go to the grapics shop to get my trunk panel blackout then I'll put it on. I also did my front bowtie with flat black and clear. __________________ Victory Red 1SS/RS Ordered - 8/4/09 & Joined Camaro5.com family 6000, Delivered to the customer - 12/21/09

02-09-2010, 07:16 PM	#6
playr101 Drives: None Join Date: Dec 2009 Location: Missing Posts: 66	how did the second attempt go? -playr101
