I purchased one from AM and it looks great. However... there are no dimples or any other indications on where I should drill for the mounting holes. Also no instructions or hardware. Not a big deal on the hardware, I have a list from the SLP install PDF... Does anyone have a pic of one of these with the holes drilled so I can at least get an idea on where to drill?

TIA

Bee · 06-29-2024, 08:34 AM

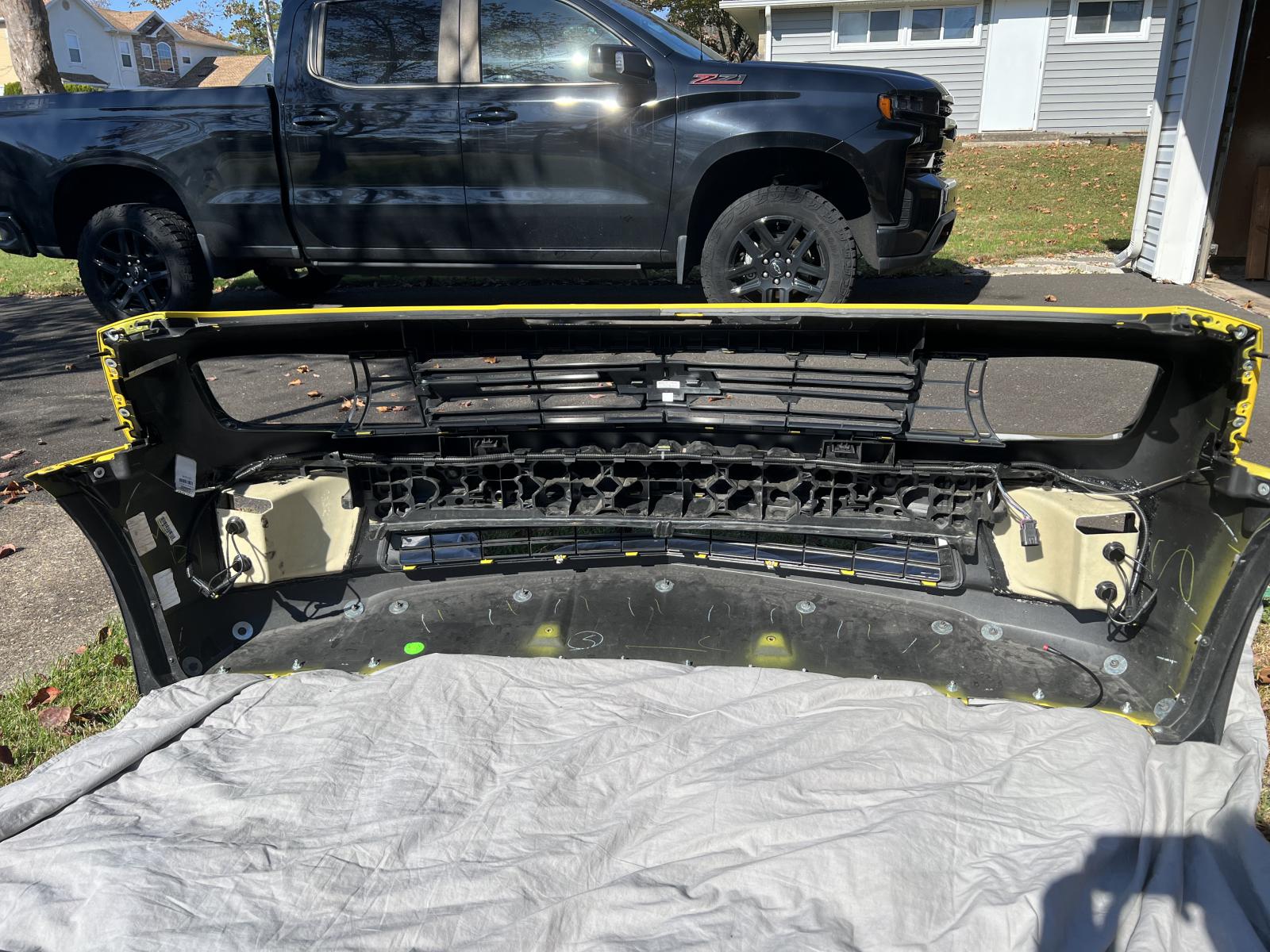

Not sure if this will help as I have an ACS T4 splitter on mine. The splitter had predrilled holes so I just had to make sure everything was lined up before drilling through the front bumper.

For the install, I found it easier to put the front bumper/splitter on a folding table and clamped it in place. I think I started with the front center bolt first, then the outside edges. From there, I would just slide the bumper to hang the next section off the edge of the table to drill the next hole.

Name: 2023-10-28 13.19.00.jpg
Views: 193
Size: 334.5 KB

Name: 2023-10-28 13.19.00.jpg
Views: 193
Size: 334.5 KB

Aqua Blue RS/SS · 06-29-2024, 09:11 AM

If you look close you can see the holes that came already drilled in my RPI ZL1 style splitter… I added one more in each corner near the front wheels to help close the gaps up a bit.

11/SS/RS · 06-29-2024, 11:02 PM

Thank you for the input guys. I honestly had no dimples or pre drilled areas on this thing.... I basically started with the two near the wheel wells and just worked toward the center. It came out pretty good in the end I think.

Aqua Blue RS/SS · 06-30-2024, 01:07 AM

Nice work, looks really good!

Bee · 06-30-2024, 07:57 AM

Nice job...it turned out great!

11/SS/RS · 06-30-2024, 08:54 AM

Thank you gentlemen!
