First 2010 Camaro on the Dyno With Vortech YSI Supercharger - Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums

JANNETTYRACING · 02-22-2010, 02:05 PM

First YSI on a 2010 Camaro.

I am happy to report that with 1 lb LESS boost we made 10 More HP and same torque.

Now it is time to turn up the wick a bit.

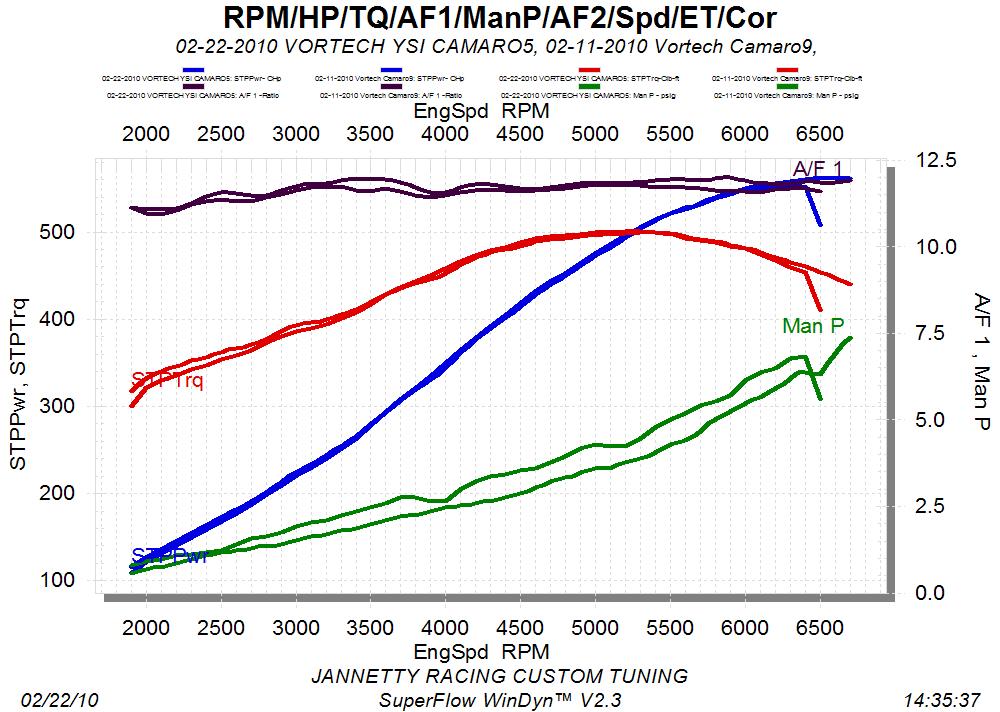

The Lower Green Line is the Boost for the YSI

And the Fuel Pressure is a wee bit Better.

562 RWHP at 6550 RPM and 500 RWTQ at 5350 RPM,

JANNETTYRACING · 02-22-2010, 02:54 PM

Now I am going to steal the 3.33 pulley off my 1970 Chevelle Wagon and see what we can do.

Ted.

94guy · 02-22-2010, 03:08 PM

is this a stock car auto or 6sp?

JANNETTYRACING · 02-22-2010, 03:24 PM

Quote:

Originally Posted by 94guy

is this a stock car auto or 6sp?

Bone Stock LS3 with ARH headers and cats.

JANNETTYRACING · 02-22-2010, 03:29 PM

OMG, 610 RWHP 545 RWTQ 9 PSI Boost 15 degrees timing 12.0 A/F Fuel System Is Tapped Out fuel pressure drops to 48 psi.

mr_desmo · 02-22-2010, 03:38 PM

This is incredible results for such low boost isnt it? At 5200 rpm its barely pushing 3.5 pounds of boost and its pumping 500whp???LOW engine stress hi whp!

Slim2SS · 02-22-2010, 03:40 PM

Ted, Any pics of the installed unit??

JANNETTYRACING · 02-22-2010, 04:21 PM

Quote:

Originally Posted by Slim2SS

Ted, Any pics of the installed unit??

94guy · 02-22-2010, 04:31 PM

wonder what horsepower this would make on a L99

TresLS'S · 02-22-2010, 05:15 PM

WOW! That is crazy!

JANNETTYRACING · 02-22-2010, 08:33 PM

Quote:

Originally Posted by TresLS'S

WOW! That is crazy!

Your telling Me!

Wow that is impressive for 9 psi boost.

JANNETTYRACING · 02-22-2010, 08:34 PM

Quote:

Originally Posted by 94guy

wonder what horsepower this would make on a L99

Come on up, we will find out

2010 SSRS · 02-22-2010, 08:35 PM

Awesome HP, is the Vortech as loud as the procharger.?

bad2000z · 02-22-2010, 10:31 PM

Wow! You guys are awesome.

02-22-2010, 02:05 PM	#1
JANNETTYRACING Drives: BLUE CAMARO ZL1 1LE M6 Join Date: Jun 2009 Location: ON THE DYNO WATERBURY CT. Posts: 15,410	First 2010 Camaro on the Dyno With Vortech YSI Supercharger First YSI on a 2010 Camaro. I am happy to report that with 1 lb LESS boost we made 10 More HP and same torque. Now it is time to turn up the wick a bit. The Lower Green Line is the Boost for the YSI And the Fuel Pressure is a wee bit Better. 562 RWHP at 6550 RPM and 500 RWTQ at 5350 RPM, Attached Images __________________ www.jannettyracing.com Celebrating 39 years Performance parts, Installation, Fabrication, Dyno tuning, Remote custom tuning, and alignments. 203-753-7223 Waterbury CT. 06705 email tedj@jannettyracing.com Last edited by JANNETTYRACING; 02-22-2010 at 02:59 PM.

02-22-2010, 02:54 PM	#2
JANNETTYRACING Drives: BLUE CAMARO ZL1 1LE M6 Join Date: Jun 2009 Location: ON THE DYNO WATERBURY CT. Posts: 15,410	Now I am going to steal the 3.33 pulley off my 1970 Chevelle Wagon and see what we can do. Ted. __________________ www.jannettyracing.com Celebrating 39 years Performance parts, Installation, Fabrication, Dyno tuning, Remote custom tuning, and alignments. 203-753-7223 Waterbury CT. 06705 email tedj@jannettyracing.com

02-22-2010, 03:29 PM	#5
JANNETTYRACING Drives: BLUE CAMARO ZL1 1LE M6 Join Date: Jun 2009 Location: ON THE DYNO WATERBURY CT. Posts: 15,410	Vortech YSI with 3.33 Pulley OMG, 610 RWHP 545 RWTQ 9 PSI Boost 15 degrees timing 12.0 A/F Fuel System Is Tapped Out fuel pressure drops to 48 psi. Attached Images __________________ www.jannettyracing.com Celebrating 39 years Performance parts, Installation, Fabrication, Dyno tuning, Remote custom tuning, and alignments. 203-753-7223 Waterbury CT. 06705 email tedj@jannettyracing.com Last edited by JANNETTYRACING; 02-22-2010 at 08:03 PM.

02-22-2010, 10:31 PM	#14
bad2000z Drives: 2015 Audi S6 Join Date: Apr 2009 Location: Upstate, NY Posts: 142	Wow! You guys are awesome. __________________ 2015 Audi S6
