midnightwarrior · 12-21-2012, 02:21 PM

Does anyone have any clues as to why the cluster won't work? I don't have much time to take apart the console to make sure the connection is good but it looks like that is the route I'm gonna have to go.

christianmotox · 12-21-2012, 03:28 PM

Did you just installed the cluster? or was it factory installed?.

sorry if you already explained you're situation, but i didn't found any info on you're issue on this thread.

midnightwarrior · 12-21-2012, 07:20 PM

Sorry I should have given more details. As far as I know it was factory installed . Previous owner was a lady with a little girl (found Barbie shoes under the seats on my first detail). Cluster never worked from day one.

christianmotox · 12-24-2012, 02:54 PM

Quote:

Originally Posted by midnightwarrior

Sorry I should have given more details. As far as I know it was factory installed . Previous owner was a lady with a little girl (found Barbie shoes under the seats on my first detail). Cluster never worked from day one.

You might want to check the connections, it literally takes like 45 seconds to pop the gauges out, maybe something got disconnected, or it wasn't factory installed and they never installed the adaptor harness.

tjk_art · 12-25-2012, 04:37 PM

Thanks for the write up! Just used it to install one of my christmas gifts

The cigarette lighter help was much appreciated.

midnightwarrior · 12-25-2012, 11:27 PM

I'll look into it once I get off of nights. Stupid job ruins all my plans with working on the car.

Angrybird 12 · 12-26-2012, 10:24 AM

Quote:

Originally Posted by mello yellow

Bought mine from Casper but I know member cfodor had some and also had guages for 180.

I bought mine from cfodor, the gauges were $179 and wiring harness was $49. So it's $228 for everything. I think according to the pictures it comes with the Power port and TC button so you don't need to transfer them. Mine is on the Fed-Ex truck now to be delivered. I have already taken the old console out. Oh the FedEx truck just pulled into my driveway. Be back shortly.

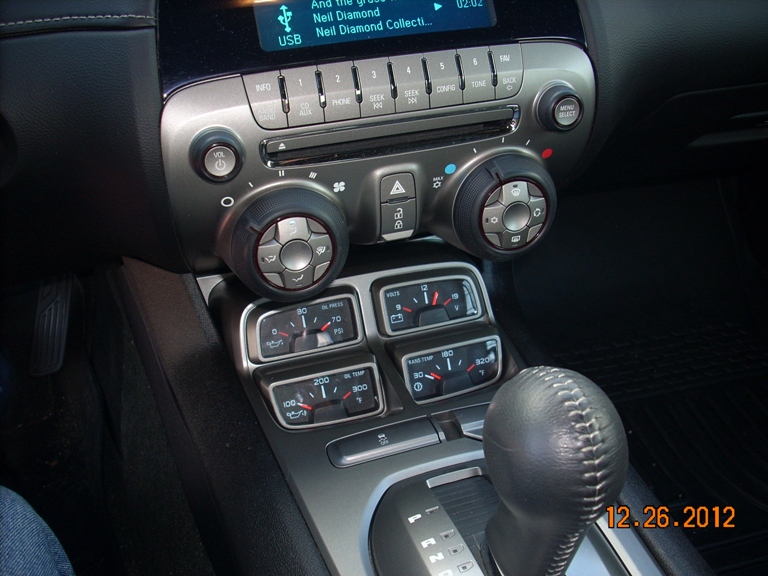

Update, Well It popped right in and worked great. I am soooo Happy...
And yes it came with the Traction contro and Power Port already in it so that saved some time.
Total time for install 15 minutes.

C-redfly · 12-26-2012, 02:46 PM

Quote:

Originally Posted by Angrybird 12

I bought mine from cfodor, the gauges were $179 and wiring harness was $49. So it's $228 for everything. I think according to the pictures it comes with the Power port and TC button so you don't need to transfer them. Mine is on the Fed-Ex truck now to be delivered. I have already taken the old console out. Oh the FedEx truck just pulled into my driveway. Be back shortly.

Update, Well It popped right in and worked great. I am soooo Happy...
And yes it came with the Traction contro and Power Port already in it so that saved some time.
Total time for install 15 minutes.

Sweet!!!! I gotta do this mod.

Cb34suns · 01-20-2013, 03:48 AM

Great install!! Looks simple enough for me to do aswell!!!

Fireguy · 02-13-2013, 07:32 PM

Just finished my install 20 minutes total time. Thanks for the great DIY.

FifthGenJohn2010 · 02-23-2013, 10:34 PM

Quote:

Originally Posted by Gene Culley

Thank you for your business and providing the write-up. Our kit is the only kit that has the hardware, just like the factory!

Just installed this kit today. Was very easy and works and fits like new. For 15 minutes of time it is well worth it.

zcorvette04 · 03-02-2013, 05:13 AM

Awesome write up 5 min install thank you

hollywood21639 · 04-05-2013, 07:53 AM

My kit is out for delivery today. Hope to get it put on later tonight.

hollywood21639 · 04-09-2013, 07:03 AM

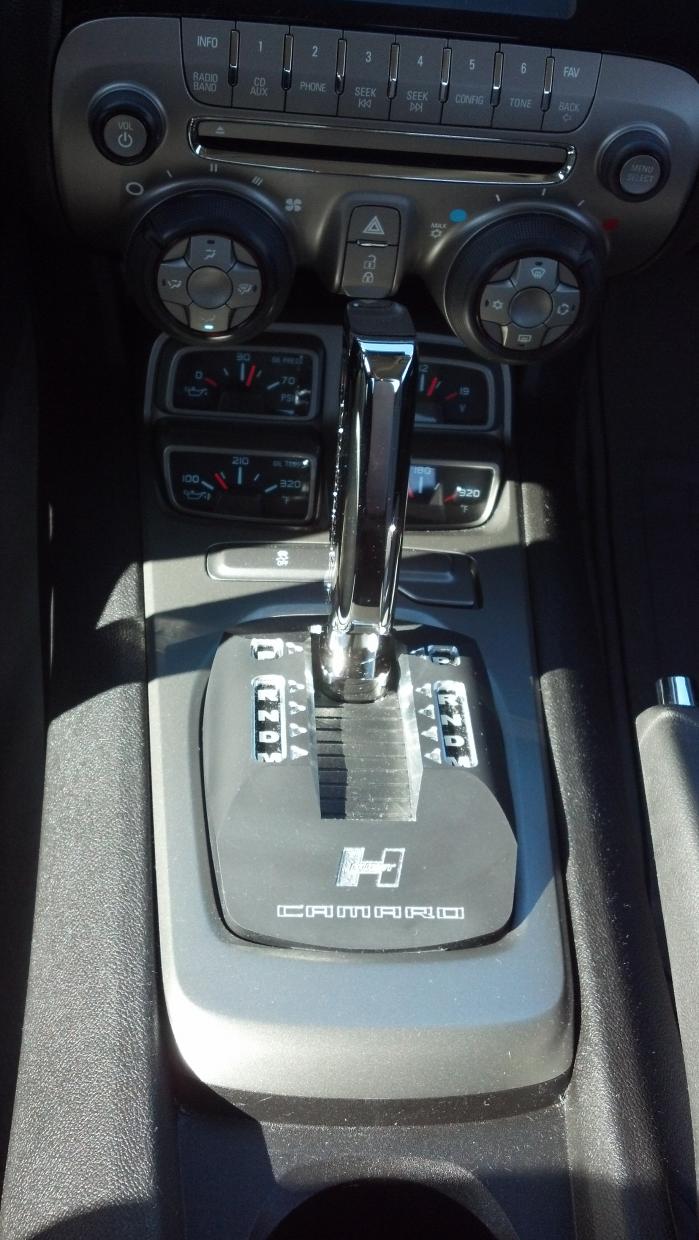

Done took 20 minutes. The shifter plate took a little longer but while it was already apart I decided to do both.

12-21-2012, 03:28 PM	#72
christianmotox Drives: ( . )( . ) Join Date: Feb 2010 Location: San Diego, CA Posts: 2,827	Did you just installed the cluster? or was it factory installed?. sorry if you already explained you're situation, but i didn't found any info on you're issue on this thread. __________________

02-13-2013, 07:32 PM	#80
Fireguy Drives: 2011 CAMARO SS Join Date: Sep 2012 Location: Chicagoland Posts: 22 View My Garage	Just finished my install 20 minutes total time. Thanks for the great DIY. __________________

04-09-2013, 07:03 AM	#84
hollywood21639 Drives: 2011 Camaro 1SS/RS Join Date: May 2011 Location: Earth Posts: 138	Done took 20 minutes. The shifter plate took a little longer but while it was already apart I decided to do both. Attached Images
