mbellis · 03-15-2012, 09:19 AM

Quote:

Originally Posted by Bryan2230

Finished installation today. Here are some pictures. They probably aren't great step by step pictures (i'm sorry).

Holes Marked:

Sub Grounded:

Holes Pilot Drilled:

Anchors set:

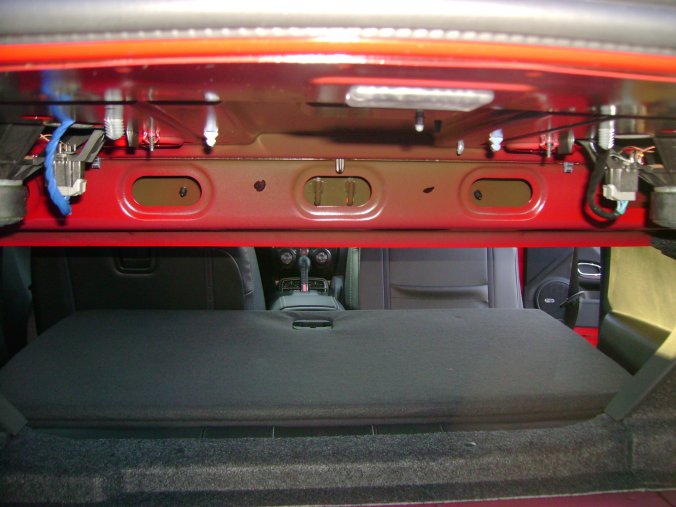

Speaker Wires enter cross member:

Sub Connected to battery:

Side wall carpeting re-installed:

Spare Tire cover back on:

Carpet re-installed:

Speakers plugged in:

Sub Installed, all wiring done:

Modified Mat, could be finished a bit better (but i'm done with it):

Did yours come with a fuse pre-installed, in either case mine didn't and I'm trying to figure out what size to go with, thanks in advance for the reply!

EATIT · 03-15-2012, 01:12 PM

I think you will be ok with a 50 amp fuse, I think thats what comes with it

TXSS · 04-05-2012, 10:57 PM

Quote:

Originally Posted by Gene Culley

It works on either sound system. For the BA it is plug and play. For the non BA you will have to take out some pins on the connectors and move them around and then plug in. All of the instructions to do so are included.

Any idea if just the harness can be purchased?

Kevinshawnm · 04-06-2012, 09:58 PM

Is that a 10 guage power wire???????

Lio Martinez · 12-26-2012, 02:52 AM

Quote:

Originally Posted by Bryan2230

Finished installation today. Here are some pictures. They probably aren't great step by step pictures (i'm sorry).

Holes Marked:

Sub Grounded:

Holes Pilot Drilled:

Anchors set:

Speaker Wires enter cross member:

Sub Connected to battery:

Side wall carpeting re-installed:

Spare Tire cover back on:

Carpet re-installed:

Speakers plugged in:

Sub Installed, all wiring done:

Modified Mat, could be finished a bit better (but i'm done with it):

Bro I also have the all weather mat and im gonna install the MTX subwoofer... Alot of people say both of these ain't for together what dis u do to it ?

lscamaro · 12-26-2012, 03:20 AM

He cut it.

Lio Martinez · 12-26-2012, 12:35 PM

Quote:

Originally Posted by lscamaro

He cut it.

Yeah but how ? And from where ? Just tge corners ?

lscamaro · 12-26-2012, 12:48 PM

No, just look under the sub box. You can see it's cut to conform to the square box

mlmvl · 02-16-2013, 10:59 AM

Did you ever figure out if the harness can be purchased? I just bought one of the MTX enclosures from a guy who traded in his coupe for a convertible. He pulled the box but left the harness in.

mcsoul · 02-24-2013, 08:42 PM

What does this sub weigh?

Ruffrider51 · 03-05-2013, 08:01 AM

About 35 pounds

mcsoul · 03-11-2013, 09:26 AM

Thank you!

vonrebel · 04-11-2013, 11:29 PM

Where can i buy the parts to reinstall this same sub in my new 2013 Camaro? I took this sub out of my 2011 2SS before i sold it a year ago, but forgot to take the wiring and plate with it. errrrrrrr...... Hopefully this sub will work in the 2013 Camaros? Many Thks

Firefighter · 04-12-2013, 09:15 AM

I would start at the dealer. I have a feeling you might be SOL though.
