IT LIVES! My Z/LE ZL1 + 1LE + 2SS = Z/LE ;o) LSA SC [COTW 2/09/15] - Page 160 - Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums

hammdo · 08-29-2018, 08:40 PM

Rodney wrote back and gave me some suggestions -- one I didn't think about was the plug gap -- I'm currently @ .031 but Rodney suggested .026-.028 with my spraying...

I'll run this a bit but, I'll be buying another set of plugs to keep handy just for that...

-Don

hammdo · 08-29-2018, 08:41 PM

Quote:

Originally Posted by ABADZL1

So, your making it quiet inside for the wife?

Ah, she's deaf already -- every time I talk to her, I have to repeat myself several times ;o)...

Anyway, this is for me ;o)

-Don

QUICRNU · 08-29-2018, 10:20 PM

Delrin's be singin!

hammdo · 08-29-2018, 10:57 PM

Yep.. gotta try it ;o)

-Don

hammdo · 08-30-2018, 01:08 AM

The 3M really quieted down the noise! Really surprised how much. Wife enjoyed it too.

I have quite a bit left so, I'm going to do the trunk area a bit.

Car is running fantastic and now, need to work on WOT for the street with Meth...

Having tuning software really keeps this thing interesting...

-Don

hammdo · 08-31-2018, 01:09 PM

Logged again last night -- did an adjustment -- Mark and I are tag teaming to work out a good street tune.

I've notice that the AEM remote LED goes on/off vs staying on steady (showing the pumps running). I can see in the log its spraying -- .65 Lambda says so -- need to work that with AEM.

Love this kit though. I'm spinning the blower pretty good and its managing the temps well.

Normally, I'd shift @ 5800 RPMs but did a few in higher RPMs just to see where temps are. Lots of testing still to do.

I'll be swapping out the plugs as Rodney recommends .026-.028 so that is the task this weekend while tweaking the street tune and meth controller settings...

-Don

hammdo · 08-31-2018, 05:08 PM

Ordered autometer dual gauge pod, AEM meth flow gauge. I want to be sure of the meth flow AND be able to log it.

Just what needs to be done at this point....

-Don

hammdo · 08-31-2018, 11:27 PM

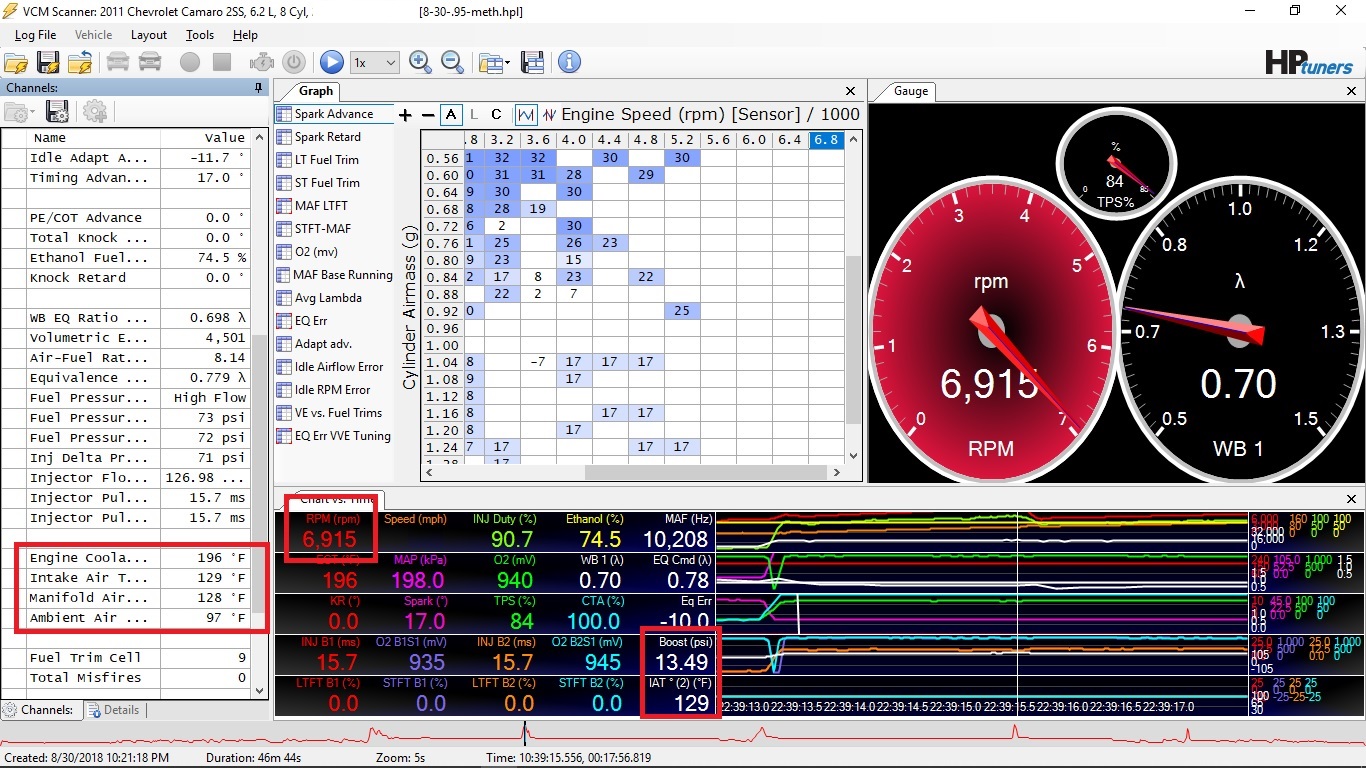

Wanted to show the IAT2 temps using 50/50 Meth (Boost Juice):

Yes, almost 7K RPM -- I actually shifted @ 6500 and this time it was a bit slow to shift so I'll need to remember to shift much sooner...

Still, this really shows even spinning the blower that much, IAT2 temps are cool...

-Don

hammdo · 08-31-2018, 11:43 PM

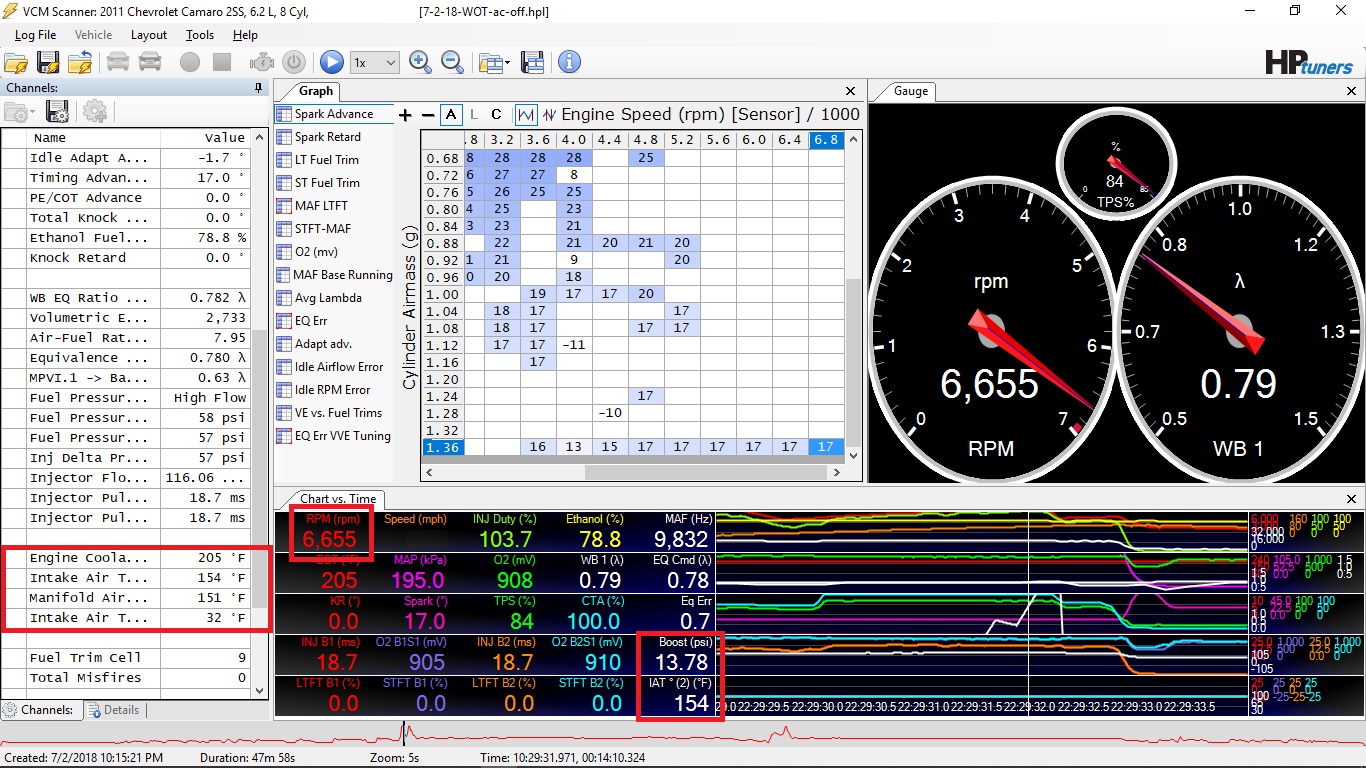

Here is a before pic:

That is about 25° more and ~300 RPM less -- boost is about the same.

All of this is before we adjust the Lambda for meth...

-Don

hammdo · 09-01-2018, 07:59 PM

So, new plugs gapped to .028 and updated tune installed. Next test is to see if Lambda is closer to .78 and continue to tweak...

Got the Autometer dual pod a pillar... gonna see how that works out next once the gauge gets here...

Then see about adding timing ;o)

-Don

hammdo · 09-03-2018, 11:36 AM

Mark and I touched up the MAF Curve up to 11,550 Hz (removed 2% -- From the logging, I don't get much above 10k Hz so this is a good stopping point).

I'll do another run when weather is not 'wet' and this should get me very close to done.

I think I'll leave timing alone for now and test this for a while before anything else.

I want the flow gauge in before pushing things -- just to be certain the 'on/off/on' of the LED is just a glitch...

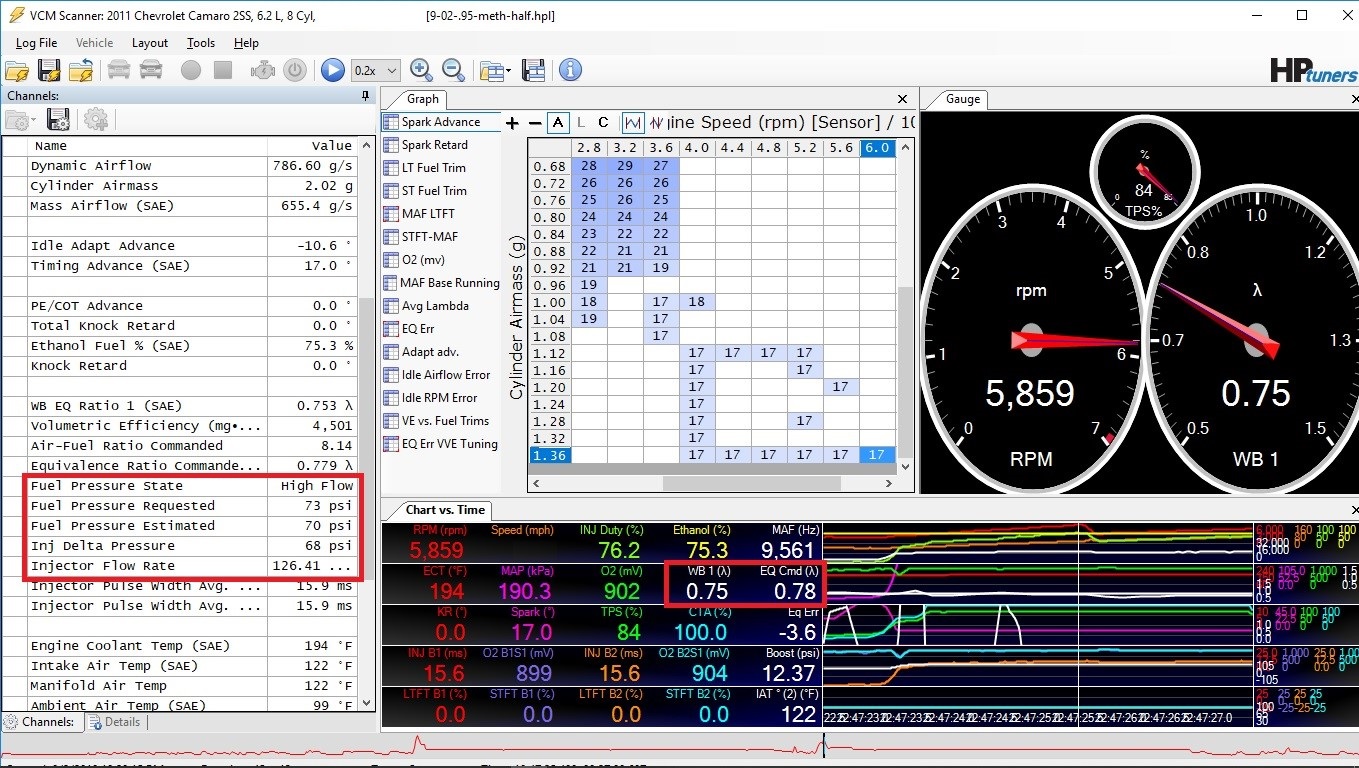

Here is the log I had 'before' the new tune adjustments -- very close:

-Don

hammdo · 09-03-2018, 03:37 PM

So, Mark took a bit of time to teach me how the 'timing' is setup.

Since I use E85 (or close), These tables determine overall timing:

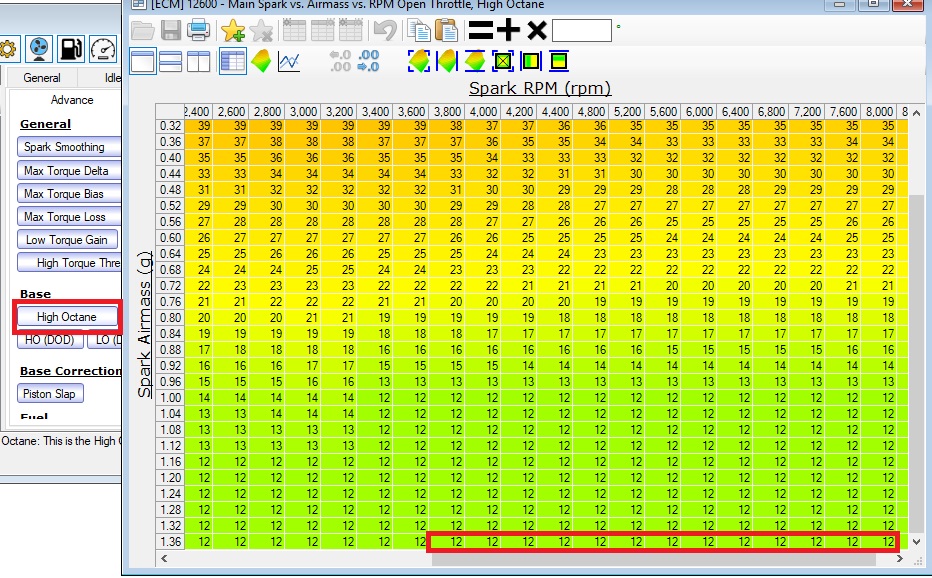

High Octane (HO) Table -- sets the 'floor' of the timing (base if not running E-85 -- say just 93 only):

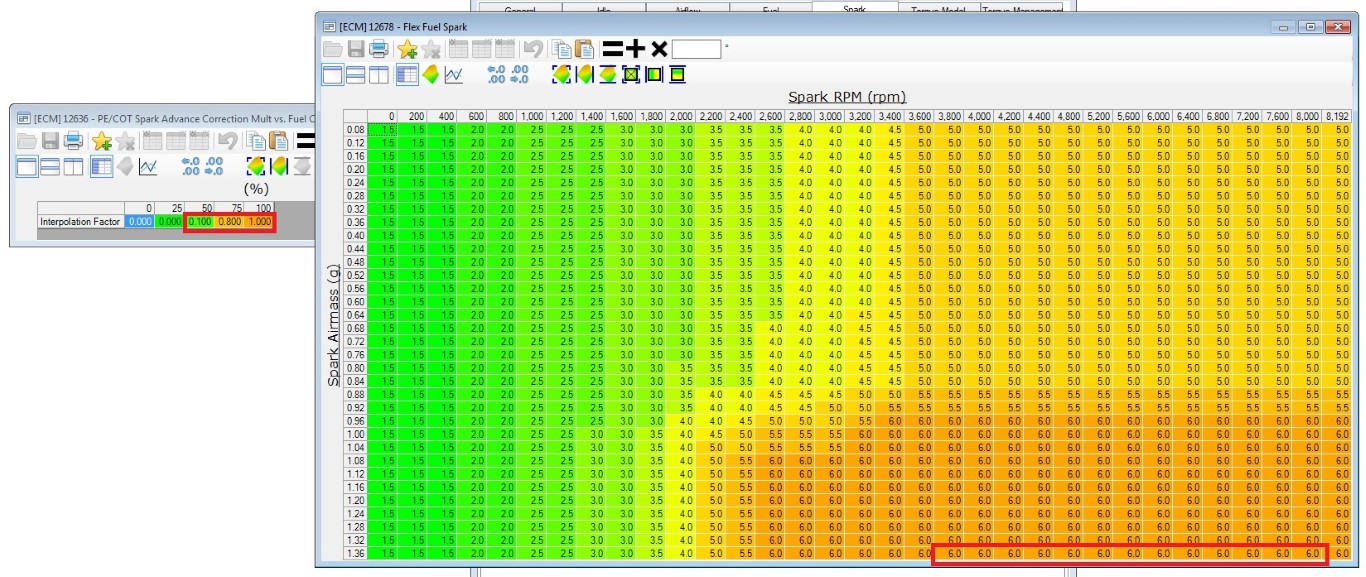

Next, since I'm running corn, these 2 tables come into play:

So, taking the HO spark (12°), then using the Flex Fuel Multiplier and the Flex Fuel Spark Table -- figuring on a 75% blend of E, we add this to the HO Spark:

Assuming a 5000 RPM, we will be using 12° @ 1.36 Spark Air Mass from the HO table, then .80 @ 6° from the Flex Fuel Spark table (same 1.36, 5000 RPM) and then multiply 6° *.80 = 4.8° (rounded up to 5°) so this is where the 17° of timing comes from:

So, when I decide to test the timing, I'll update the HO table in the 1.36 range only and do my testing there - in the 3400-6800 RPM range - per Mark’s suggestion.

Thanks again Mark (ABADZL1) for the lesson!

-Don

h018871 · 09-04-2018, 02:08 PM

Good info
Thx Don!

hammdo · 09-05-2018, 10:32 AM

Anytime!

Took it out last night, I added 3° of timing in the 1.36 (3400-6800 RPM) row and boy could feel the difference! Still tweaking MAF. Mark gave me some areas to ck and I tweaked them - adding 2% in 8.7k to 9.1k range, and removing 2% from 9.3k up to 11.55k...

Very close!

Meth flow gauge will be here tomorrow so, another weekend project....

-Don
