General Head Lamp Questions

[Drake Heminger]

damn with 6 lights on at the same time you would think its a UFO!

[zfuzz]

Originally Posted by mlee

The light switch is turned one click right... and the DRLs are on in that pic... you have to turn the knob one click right to get the Halos to come on in the day, but the DRLs are still on with them (I want Halos only in auto). With the Harness I got you just leave it in Auto and the Halos are on all the time with no DRLs in the day and everything on at night.

The DRL's do not appear to be on in the pic above, just the Halo's. I guess I am a little confused. Here is a pick with just what I would assume would be the DRL's, fog's or whatever. So it looks like you can have just the Halo's on.



Here is another pic with everything off. So you can compare it with the first pic that they are off.



So I guess what you are saying is with the harness that you have, you do not have to do anything to run just the Halo's. Those of us without the harness will have to manually click the switch every time to turn the DRL's off and the Halo's on. Is that the correct assumption ?

[mlee]

Originally Posted by dragonslayer

ok.. lets say the DRLS and the Halos are on. Can you turn the fogs on at the same time in this position, IE, Halos, DRL's AND fogs at the same time?
Or by turning on the fogs does something odd occur such as the halos go off
and the headlights turn on?

The Fog lights operate as an on/off push button so they can be turned on/off independently from everything else so yes they can be on with all the other lights.

Originally Posted by zfuzz

The DRL's do not appear to be on in the pic above, just the Halo's. I guess I am a little confused. Here is a pick with just what I would assume would be the DRL's, fog's or whatever. So it looks like you can have just the Halo's on. This is Auto Mode in the daylight



Here is another pic with everything off. So you can compare it with the first pic that they are off. This is ingnition off / car not running



So I guess what you are saying is with the harness that you have, you do not have to do anything to run just the Halo's. Those of us without the harness will have to manually click the switch every time to turn the DRL's off and the Halo's on. Is that the correct assumption ?

Correct without the Harness you would have to click the switch one notch right to get halos on during the day but the DRLs will still be on and when you stop you would have to switch it back off again. Some people like the DRLs on along with the halos and there is a harness for that too. I just prefer halos only.

Another key thing is when you use the switch to turn on halos in the day the parking lights and tail lights come on too. With the harness these lights stay off so you're not running around with parking/tail lights on all the time.

This is one click to the right... parking lights on

[Deke736]

Originally Posted by mlee

Yes they are... I have already purchased the Plasmas...

I salvaged my Plasma's off my SS and I plan to reuse them on my ZL1.

I'd still like to see a picture with the fog lights on....if there's one out there.

[mlee]

Originally Posted by Deke736

I salvaged my Plasma's off my SS and I plan to reuse them on my ZL1.

I'd still like to see a picture with the fog lights on....if there's one out there.

Yeah... I blew that one... LOL.

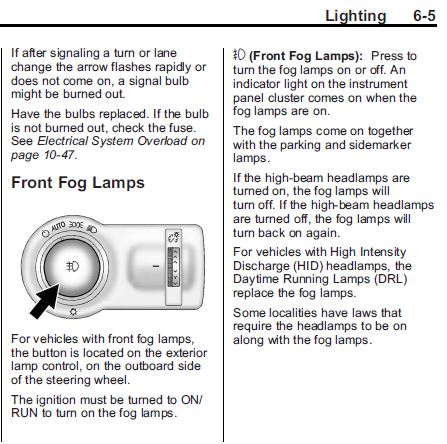

Here's the fog light instructions.



And Fogs on at night... w/ light switch in Auto

[tfghung]

It says above that if you have HIDs the fog lamps are replaced by DRLs, but that doesn't apply to the ZL1, does it?

[NVMYSS]

Originally Posted by zfuzz

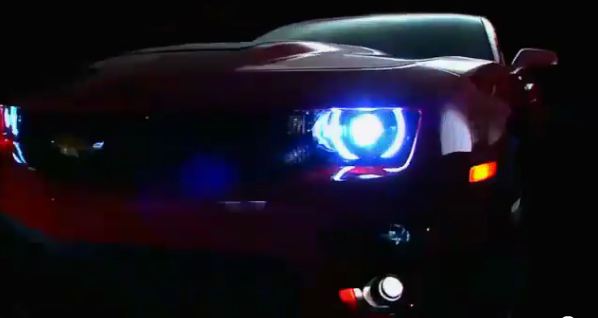

I think the Halo's can be turned on by themselves here is a pic from one of the reviewing Mag's. Can't find the actual review at the moment.

Running lights are on as well

[Deke736]

Originally Posted by mlee

Yeah... I blew that one... LOL.

Here's the fog light instructions.

Attachment 347740

And Fogs on at night... w/ light switch in Auto
Attachment 347743

Thanks for posting. The fogs in that picture seem to be a similar hue (white) as the HID's. Am I seeing that correctly? So when I swap my DRL's to my Plasma LED's, all the lights should be close in color?

[SlingShot]

Originally Posted by 1MtnGoat

Usually low beam and fogs can be on together. Switching to high beam turns off the fogs.

I don't know what the switch is like on the ZL1, but for my Sky I can turn on high beams and fogs. On the Sky the fogs are on a separate switch from the headlights.

So my finale answer would be, it depends on how the switches are setup.

[mlee]

Originally Posted by SlingShot

I don't know what the switch is like on the ZL1, but for my Sky I can turn on high beams and fogs. On the Sky the fogs are on a separate switch from the headlights.

So my finale answer would be, it depends on how the switches are setup.

I posted a pic of the switch from the manual... It's exactly the same as an SS/RS with the ZL1 exception being the center part is a big on/off button for the fogs..
