2SSRS@Gen5diy · 10-21-2009, 08:05 PM

Looks good hope you like it.

GMRULZ · 10-25-2009, 08:19 PM

Yep, good stuff, especially w/ the race scoop I just installed. Gets lots of nice cool air. The most important thing is it will work w/ a Screw/roots style blower.

GMRULZ · 10-25-2009, 08:28 PM

Here are some pics of the ADM Race scoop installed, I finally got around to putting it on. This will definetly bring in some cool air into the box. The street version is good, but the washer bottle definetly restricts the amount of air into the box imo. I will be getting dyno tuned this coming wed and will post the results and should be able to get IAT`s on the dyno if possible. I haven`t spoken to the tuner yet about it.

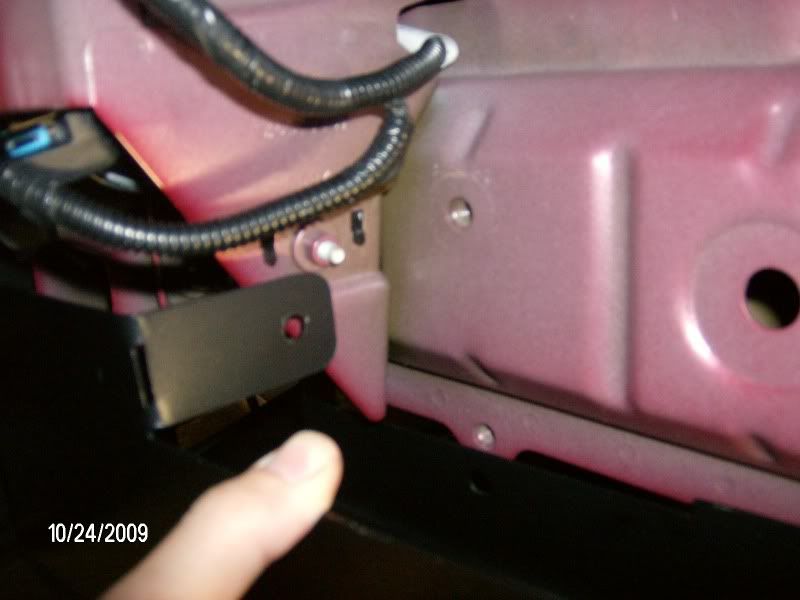

here`s the pic where this installs, the ear bracket goes over the horn bolt and the lower bolt in the frame rail uses one of the washer bottle bolts to hold it on. It runs along beside the frame rail.

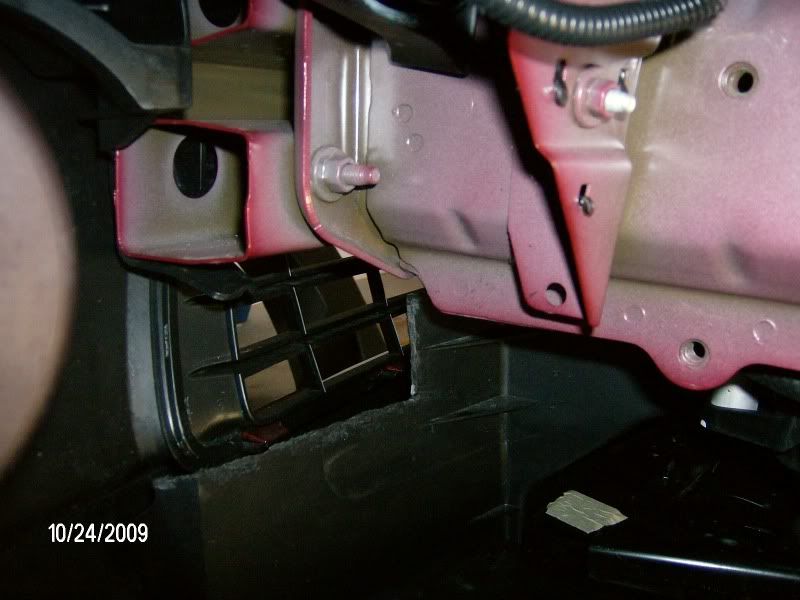

Look at the lower grille and you can see the part cut out to allow the scoop to pic up air from the front of the car.

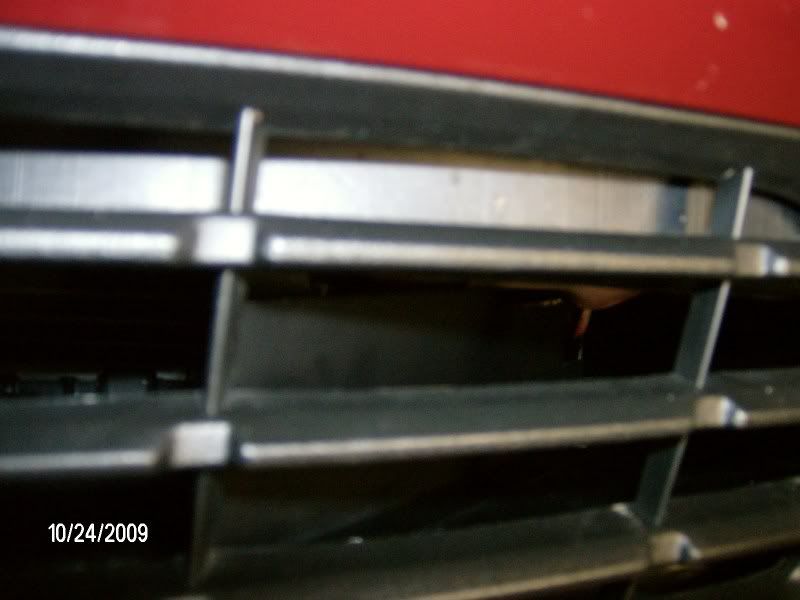

Here`s a pic of the scoop if you look hard you can see it behind the lower grille.

freemaSSon · 10-25-2009, 08:52 PM

Lookin good

!

Kodiak Ak · 10-25-2009, 10:47 PM

I thought the washer fluid reservoir cap came through the lid of the air box?? or does it do that on the street system only?

Where/Who did you order your kit from?

The paint job on your CAI looks good!!
Thanks

GMRULZ · 10-26-2009, 09:58 AM

Quote:

Originally Posted by Kodiak Ak

I thought the washer fluid reservoir cap came through the lid of the air box?? or does it do that on the street system only?

Where/Who did you order your kit from?

The paint job on your CAI looks good!!
Thanks

The street verion of the intake has the hole for the washer resivior cap and retains the oe location resivior. I have the Race intake which deletes the bottle completely or you will have to relocate a universal fit one from autozone, pep boys ect..

There is a huge diff in the amount of outside air that the race intake has over the street intake. The washer bottle really hogs space in the box, get rid of that and you have a huge space that opens up to the bottom of the car, not to mention w/ the race scoop pulling air straight from the lower grille opening up into the box and the MAF/IAT combo being in the box, you should have no problem w/ high IAT`s pulling timing. The Street intake while better than stock still may heat up some.

I bought straight from Andy at ADM.

Thanks for the compliments on the paint. I think Andy`s race intake painted will look better than painting any other out there due to its design. Full lid ect..

linkwpc · 10-26-2009, 10:10 AM

Me like

blackZbandit · 10-26-2009, 05:54 PM

very, very nice. I'm sure the gains with that scoop really picks up at high speeds
