Ashen 6.2 2014 Z/SS

[hammdo]

Originally Posted by Ashen 6.2

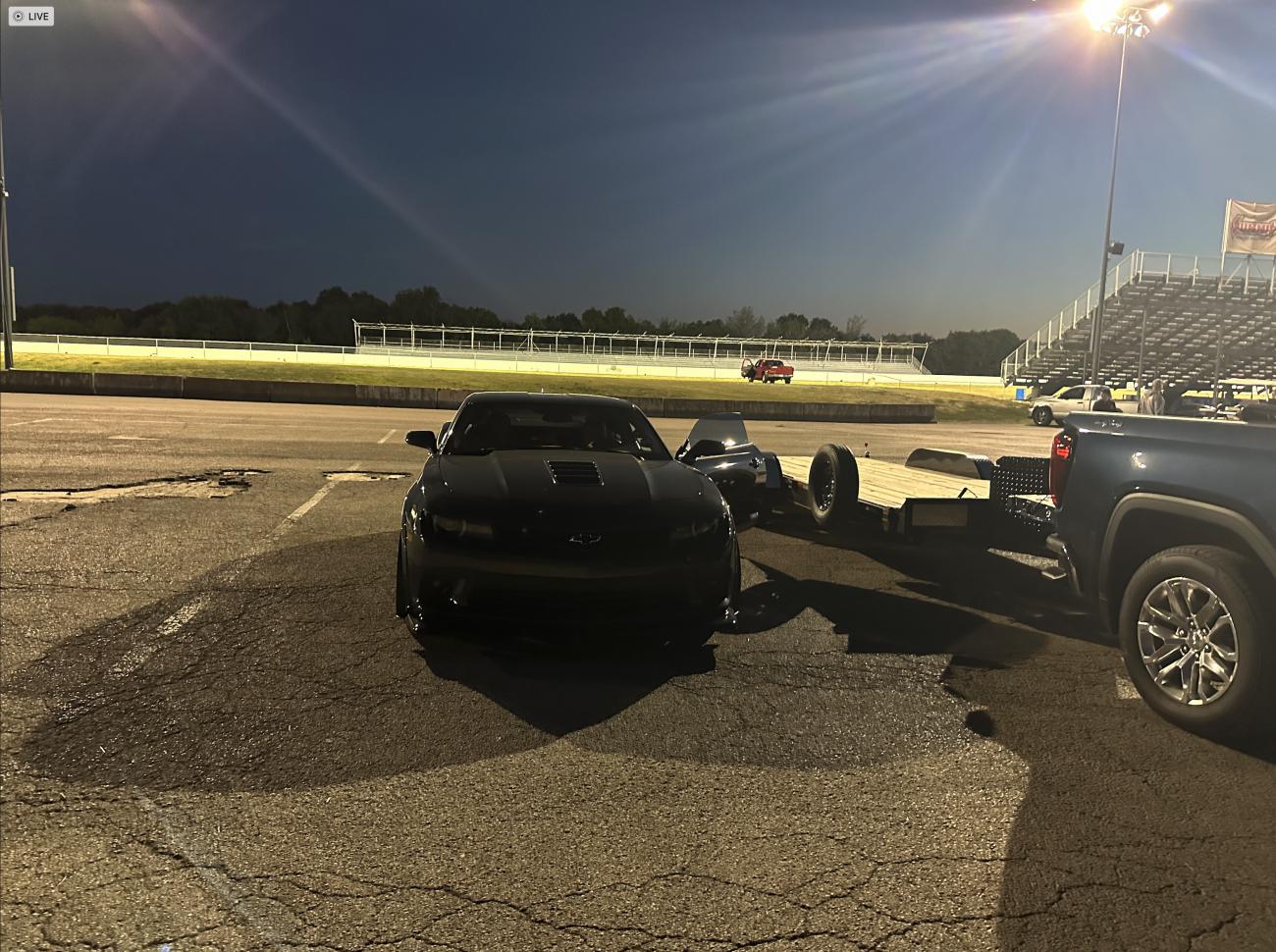

Had a chance to head over to Tulsa last night for test-n-tune.

Mods since last time at the track:
BMR/Carlyle 15" conversion LCA's & trailing arms
Weld Ventura 5 15x10 wheels with 275/60/15 Mickey Thompson ET Street Radial Pro's
Alignment
Gulf Coast Driveshaft

The first 4 passes just spun even with dropping the air pressure. Still had best ET's with spinning so a little improvement anyways. lol

After the 4th pass we made changes to the rear shocks to allow more compression and slow the rebound down.

On the 5th pass I goofed and left in second gear and then the accessory belts decided they were done just past the finish line. The A/C belt was completely gone, the drive belt was still there just hanging out and didn't look damaged much at all. Thinking the A/C belt had enough and it took the drive belt off. I've been carrying a spare belt so got it put on just in time to make 2 quick passes before they closed.

6th pass I dropped the tire pressure even more and it hooked! 10.327 @ 135.39.

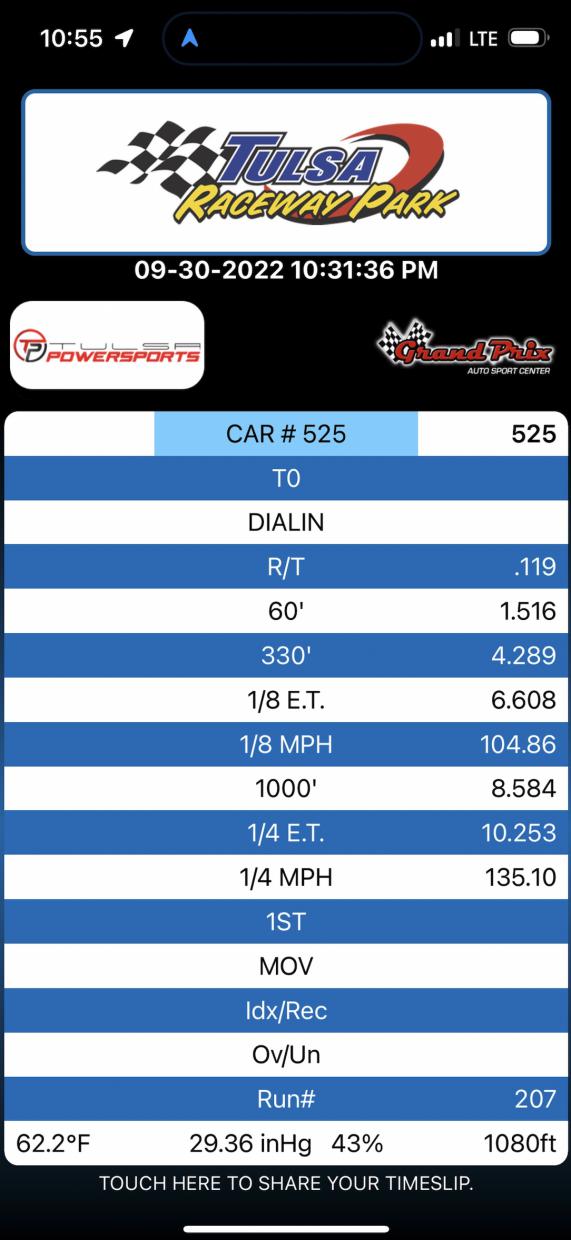

Went straight back to the lanes and the 7th pass was 10.253 @ 135.10 with same tire pressure. Here is a video - https://youtu.be/dIPSdjxuD5o

Very happy to finally get it to hook and looking forward to getting some more passes in while the weather is cooling off!

Attachment 1110230

Attachment 1110231

Nice run! She's looking great!

-Don

[Ashen 6.2]

Originally Posted by hammdo

Nice run! She's looking great!

-Don

Thank you Don! Hope you are well and are enjoying your car! Ive been to DFW several times the last few months and always keeping a lookout for you zooming by! lol.

Roy

[morepowerjoe]

That's totally awesome buddy! 10 second cars aren't easy to build but you have done it sir, I'm jealous. I hope to be close to you one day.

[Ashen 6.2]

Originally Posted by morepowerjoe

That's totally awesome buddy! 10 second cars aren't easy to build but you have done it sir, I'm jealous. I hope to be close to you one day.

Thank you sir! Keep after it and you will get there!

[Ashen 6.2]

Had the car up in the air looking at things and noticed the driveshaft and the gas tank heat shield were starting to not play nice with each other. Very small amount of rubbing on both, more scratches than anything.

I thought about just removing the heat shield, but it also serves to hold the emergency brake cables into the plastic retainers on the side of the gas tank. Since I'm running 15"s and have the cables tied back to clear the wheels, the cables tend to pop out of the retainers and the heat shield helps keep them in place. So I modified the heat shield just a little bit.

The oblong hole towards the front allows some extra room for the yoke arms which is where a light scratch was on both the shield and the arm. I left a small section of the middle in for rigidity and then removed the remainder of the upper portion of the shield.


After first cuts and fitting






Made some more cuts towards the rear - looks better






After final cuts/fitting and in place






Plenty of clearance now. I will check it again after the next time I go to the track in the next week or two.

.

[Joe.G]

Is this a problem because of ZL1 Diff? I haven't added my offset bushings yet. I also posted in the other thread. Thanks

[Ashen 6.2]

Originally Posted by Joe.G

Is this a problem because of ZL1 Diff? I haven't added my offset bushings yet. I also posted in the other thread. Thanks

I think its more to do with the offset diff bushings and the larger diameter of the aluminum DS combined with hard launches at the strip. I looked at everything before going to the strip a few weeks back and didn't notice anything at all. So fairly certain it's a result of that.

[Ashen 6.2]

A forum member asked where to get the blue protective film that I use when working on the car - It is Plasticover - PCF240200 Floor Protection Film, Temporary Adhesive Plastic, Blue, 24" Wide by 200' Long. Works very well and is cheap protection.

https://www.amazon.com/Plasticover-P...60&sr=8-1&th=1

[Ashen 6.2]

Its been a while again.. lol.. Anyways, during the summer I was collecting parts for a forged 416 build and in November all the parts finished arriving. So early December after recovering from Covid and finally starting to feel a little better, I started taking the car apart. Before getting too far though I wanted to test fit the LSA 3 belt with Maggie Heartbeat to see if I was gonna have any issues.

I did find 2 things had to be done for it to work right -

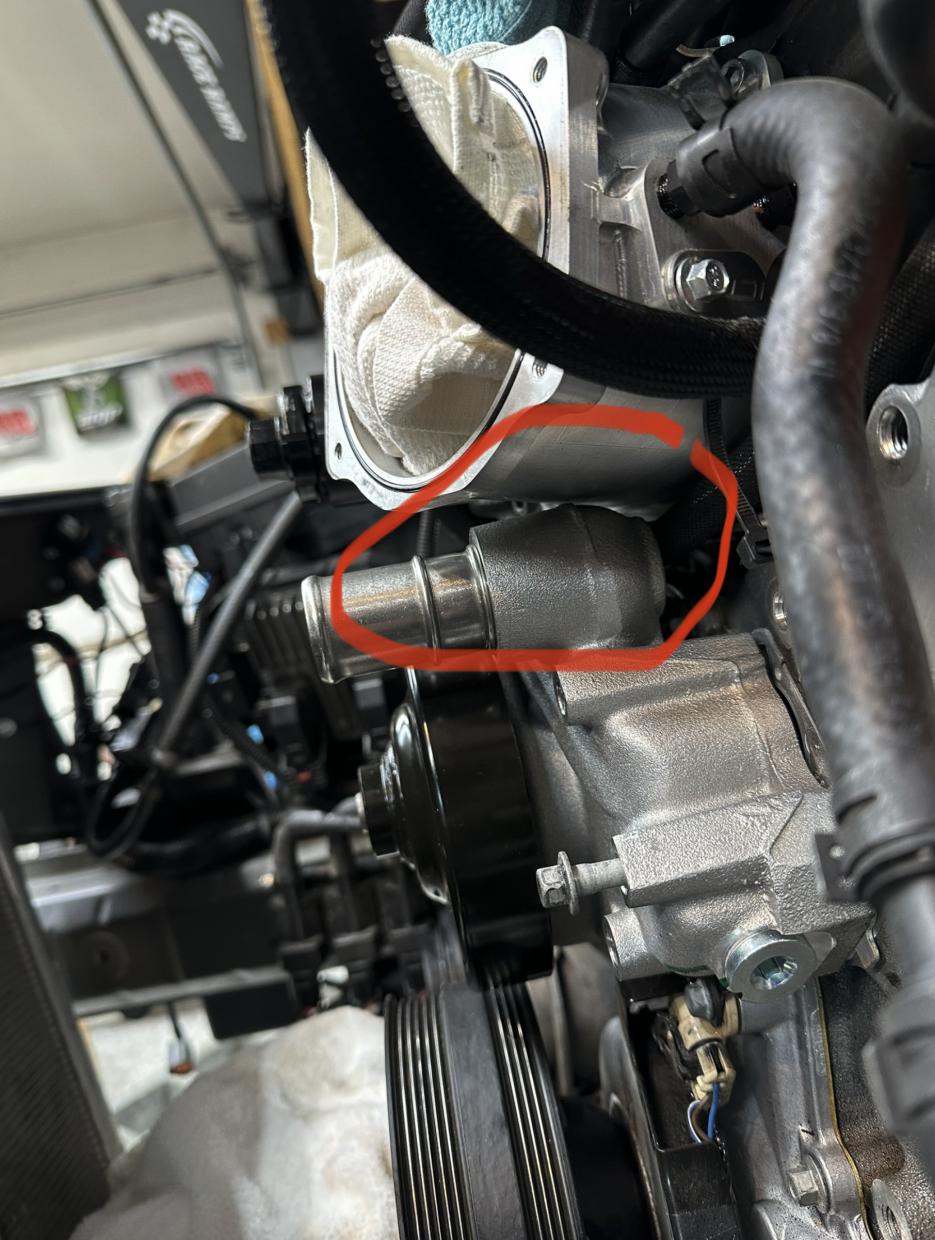

#1 the LSA water pump water inlet was hitting the throttle body inlet

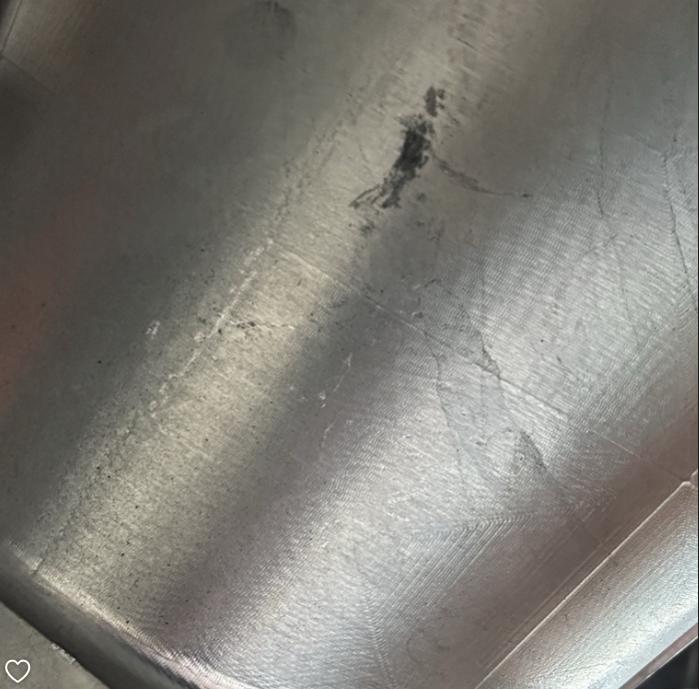

Marks on the bottom of the inlet -





After grinding the flashing off of that it looks to be good to go -





Everything mounted up - Griptec 3.20 10rib upper pulley, DSX Triple S/C Idler Pulleys, a GM LSA tensioner with 10 rib pulley and a ICT 6 rib Idler pulley w/Bracket.

[Ashen 6.2]

#2 the idler pulley that goes on the drivers side head for the accessory drive is very very close to the throttle body.









Flip the TB over and it's even closer to the S/C pulley.





So I ordered a smaller diameter pulley wheel from Advance Auto Parts - Dayco 89095.

Plenty of room now.

[Ashen 6.2]

Next was to get the engine & trans out -

[Ashen 6.2]

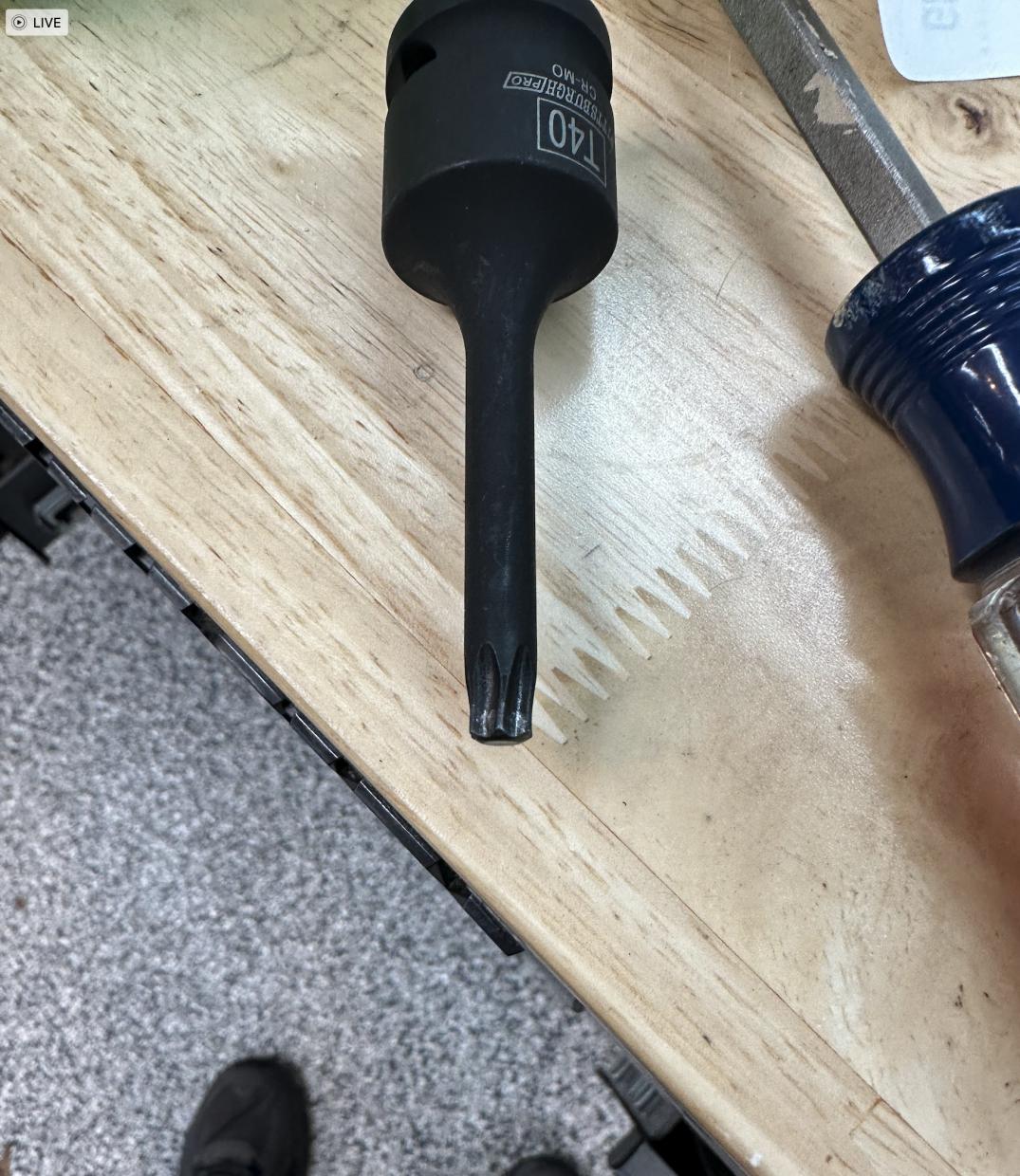

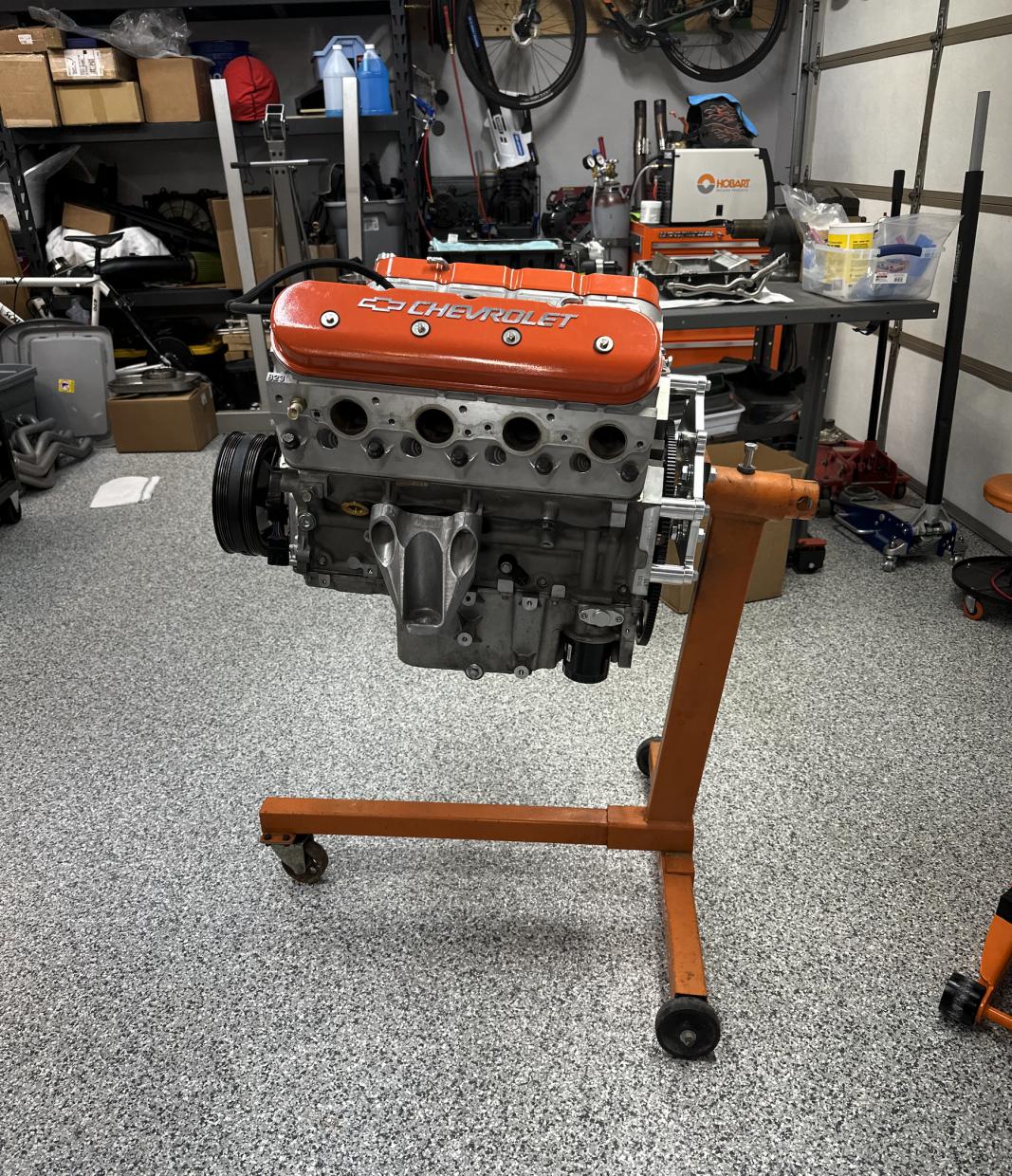

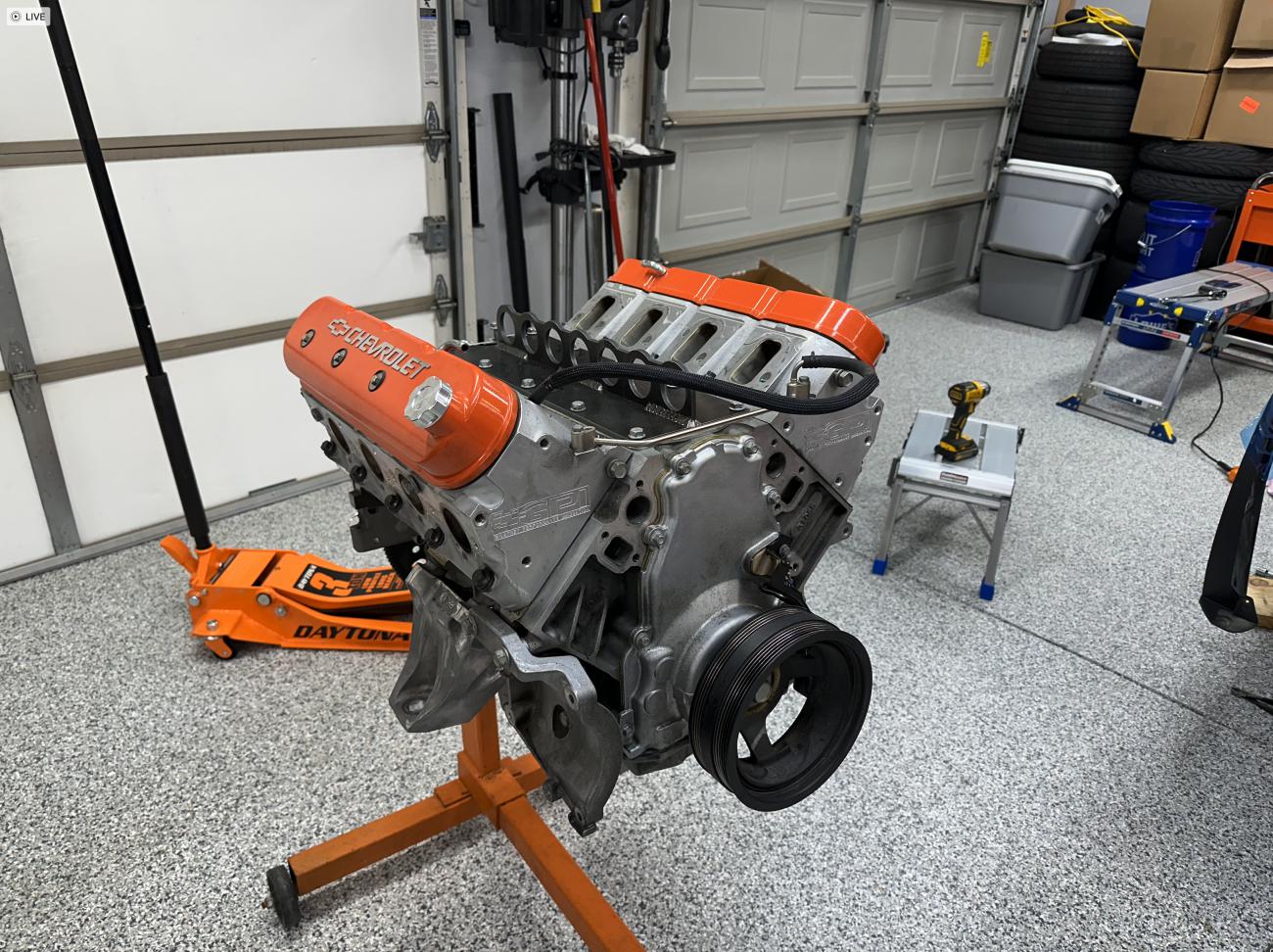

While tearing the engine down everything was going smoothly until I went to pull the cam out. There was one bolt in the cam retaining plate that just wouldn't give. Ended up twisting every torx bit I had trying to get it out.





Ended up welding a nut to the bolt head and got it out finally.

[Ashen 6.2]

Got everything loaded up and headed to GPI to drop it all off.




While at GPI I picked up the lightweight K-Member and brought it home.

[Ashen 6.2]

Next up was pulling the factory k-member out -





Then working on relocating the positive battery jump connector/contraption/thingy... lol

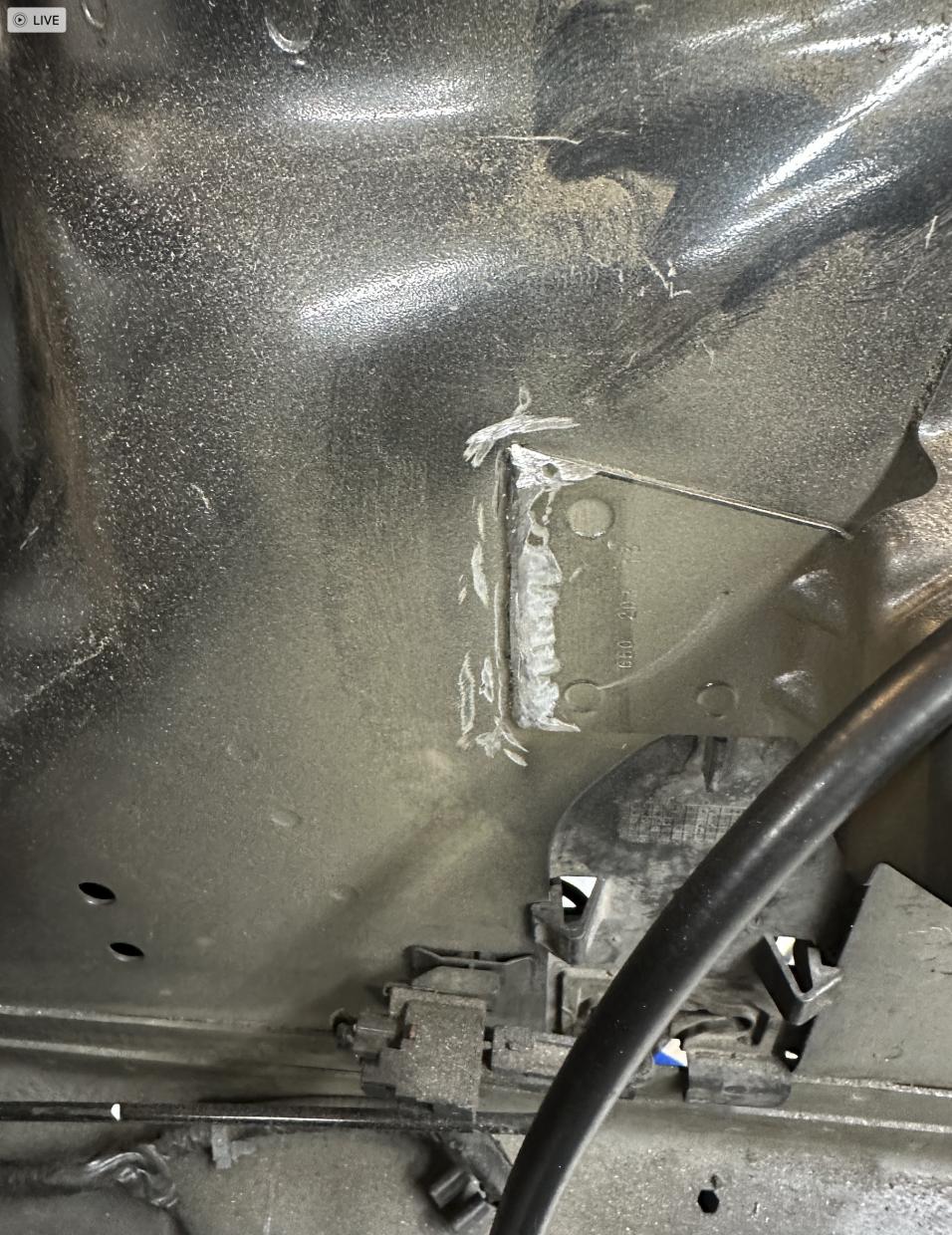

After cutting it off.. I left the tab with the stud on it as I use that to mount the Mighty Mouse Catch Can.

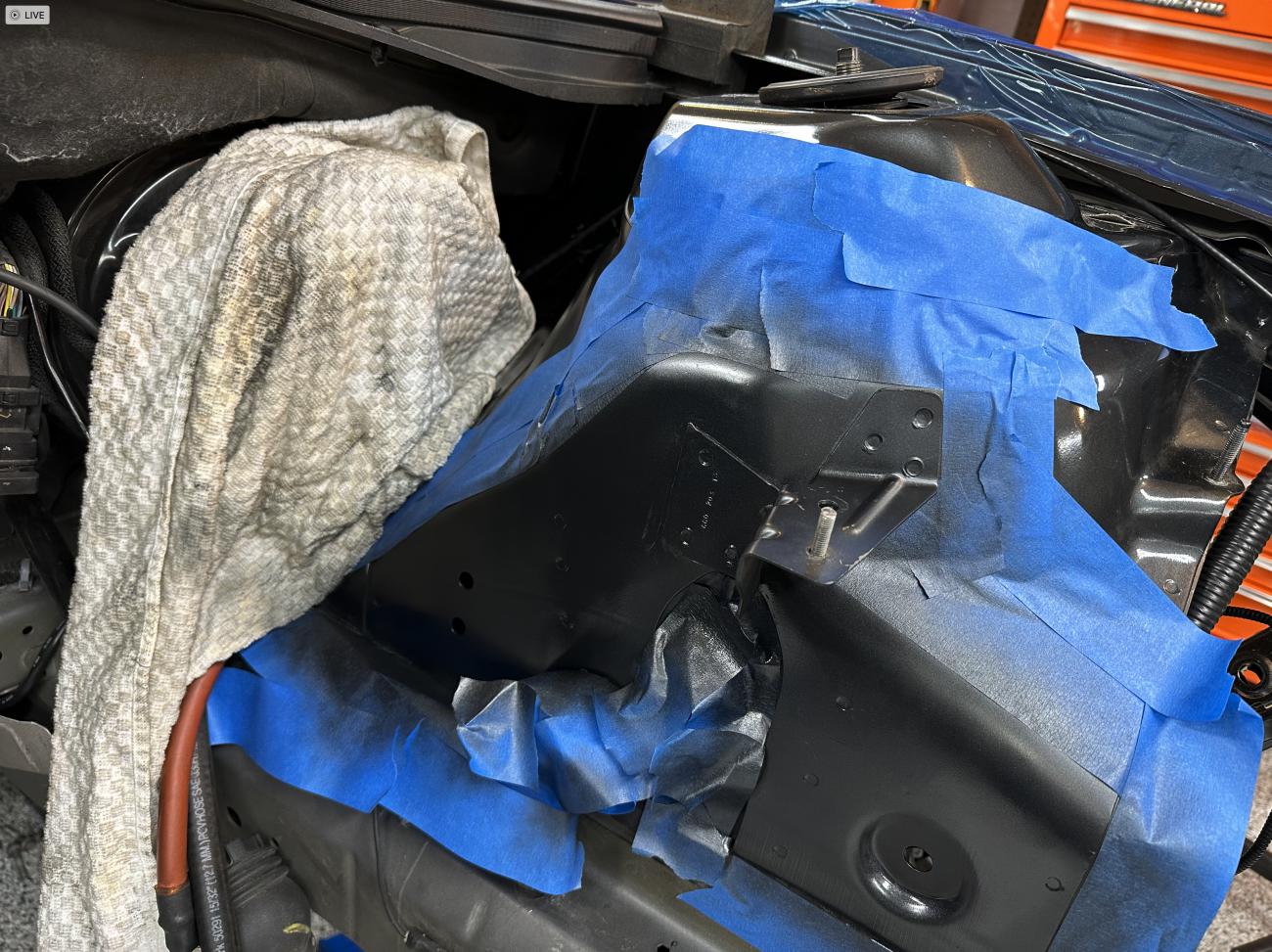

Masked and primered





Painted

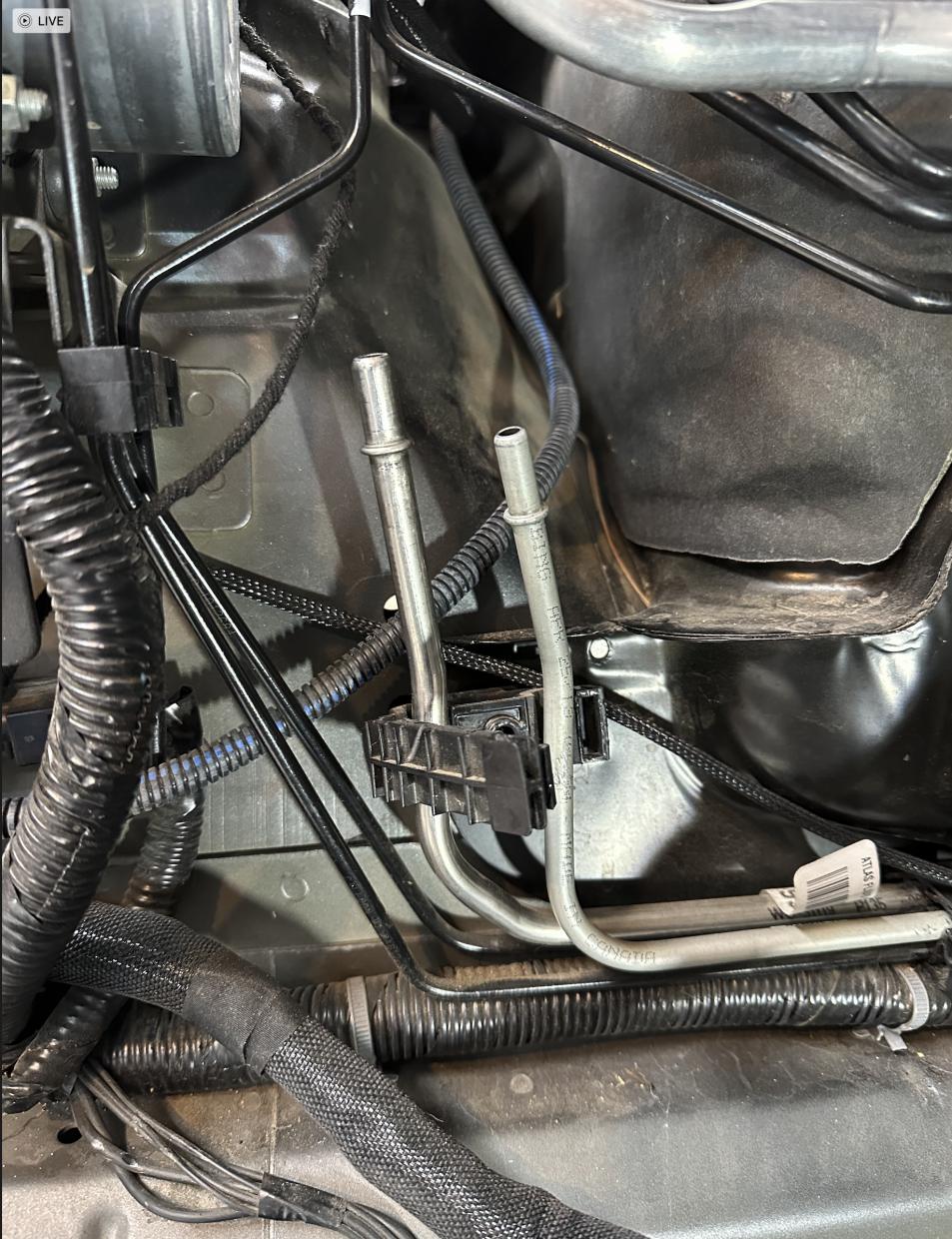

Next up is make a slight bend to the fuel supply line so it will be in the little cubby hole between the shock tower and firewall.





Line bent towards the passenger side -

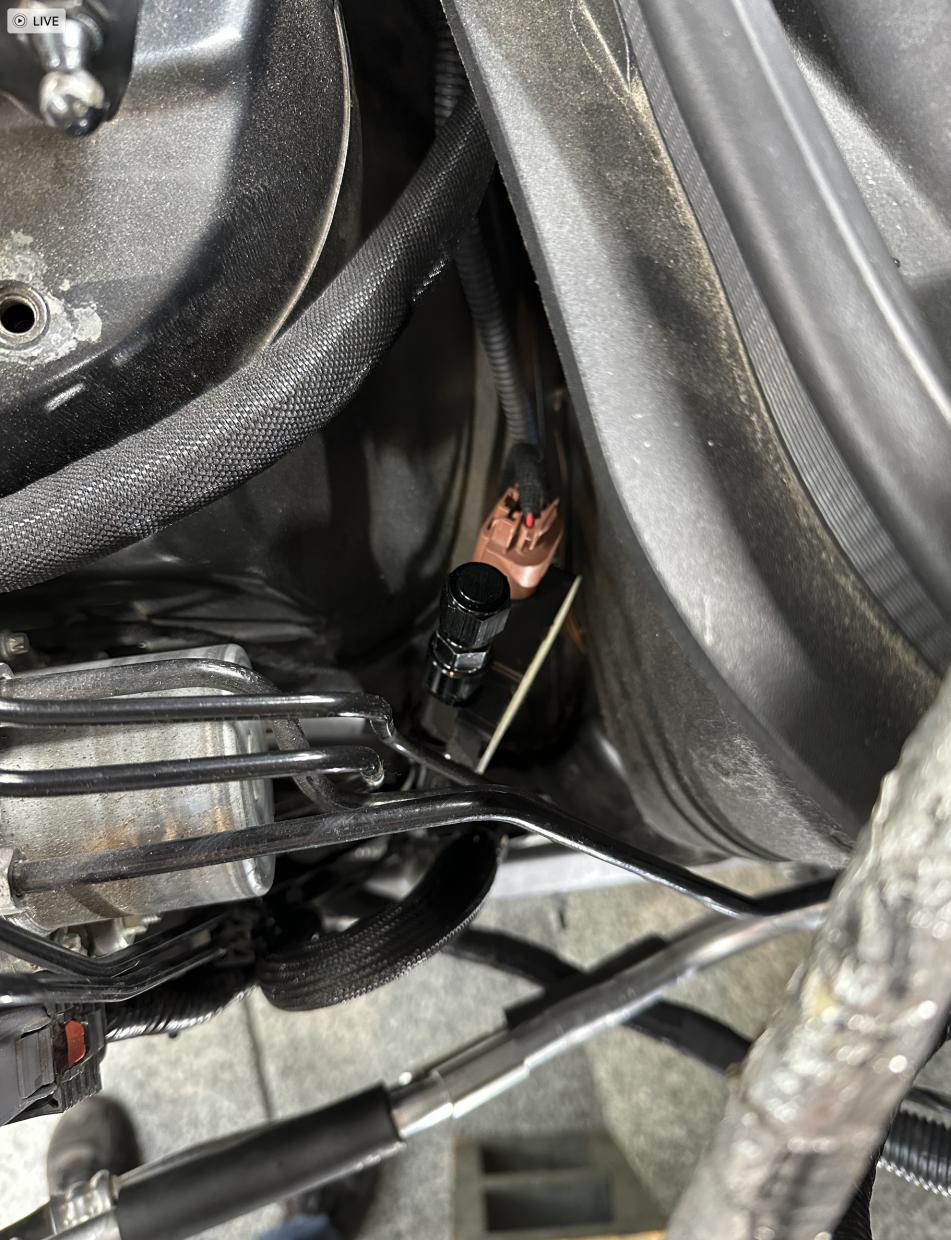

E85 sensor back in place








Looks much better and just as accessible.
