IT LIVES! My Z/LE ZL1 + 1LE + 2SS = Z/LE ;o) LSA SC [COTW 2/09/15] - Page 25 - Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums

hammdo · 02-12-2015, 07:04 PM

Thanks! Its really fun to do this type of work. Any ideas I have I'm sure I learned from others. That's why I share them!

-Don

*mlee* · 02-13-2015, 03:21 PM

Congrats on COTW!!!

There was never a doubt..

hammdo · 02-13-2015, 05:14 PM

Ha, ha, thanks!

I appreciate that...

-Don

hammdo · 02-13-2015, 05:18 PM

Well, UPS -- just sucks -- no other way to put it

I got the differential today from them, and they must have dropped the crate -- even with ALL the warnings on it

They lost the gear oil and drive shaft bolts, crate was broken, the differential was not strapped down right -- I have the pictures.

They sent me a note saying 'left at facility' and delayed the delivery -- no way I was going to accept that so call CS and after 2 hours, still no confirmation. I did get from them 'where' it was and I just rented a truck and got it myself...

Looks like they were doing a CYA move -- really sucks.

So, I have it, does not look like its in bad shape (a few scratches) so I'm going to put it in and get the bolts and oil tomorrow (thanks to Aaron @ GPI for getting the for me so fast).

I'll post pics of way I got it from UPS...

ugh, I'd rather drive myself than deal with them sometimes...

More to come...

-Don

hammdo · 02-13-2015, 05:47 PM

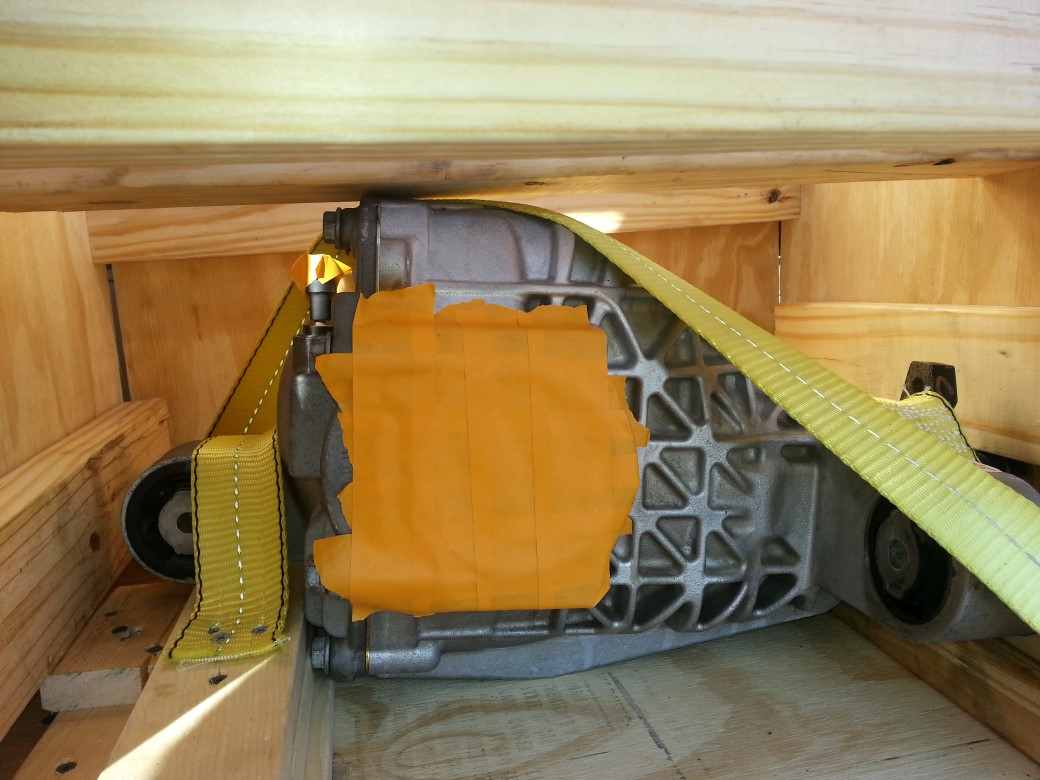

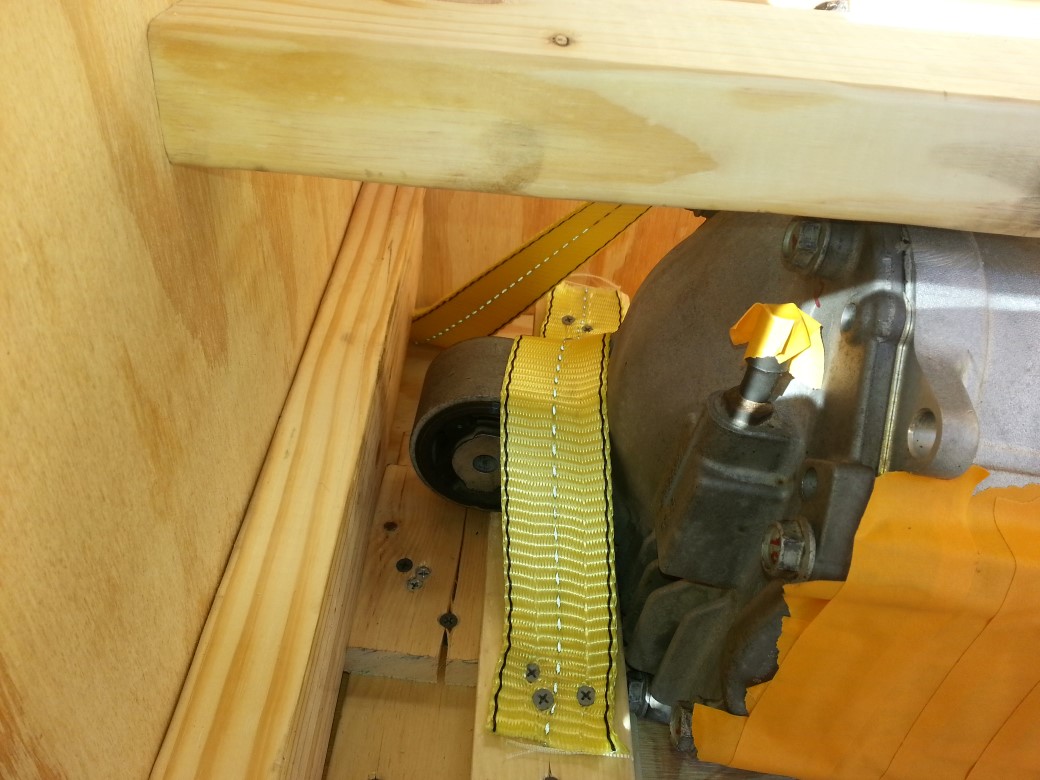

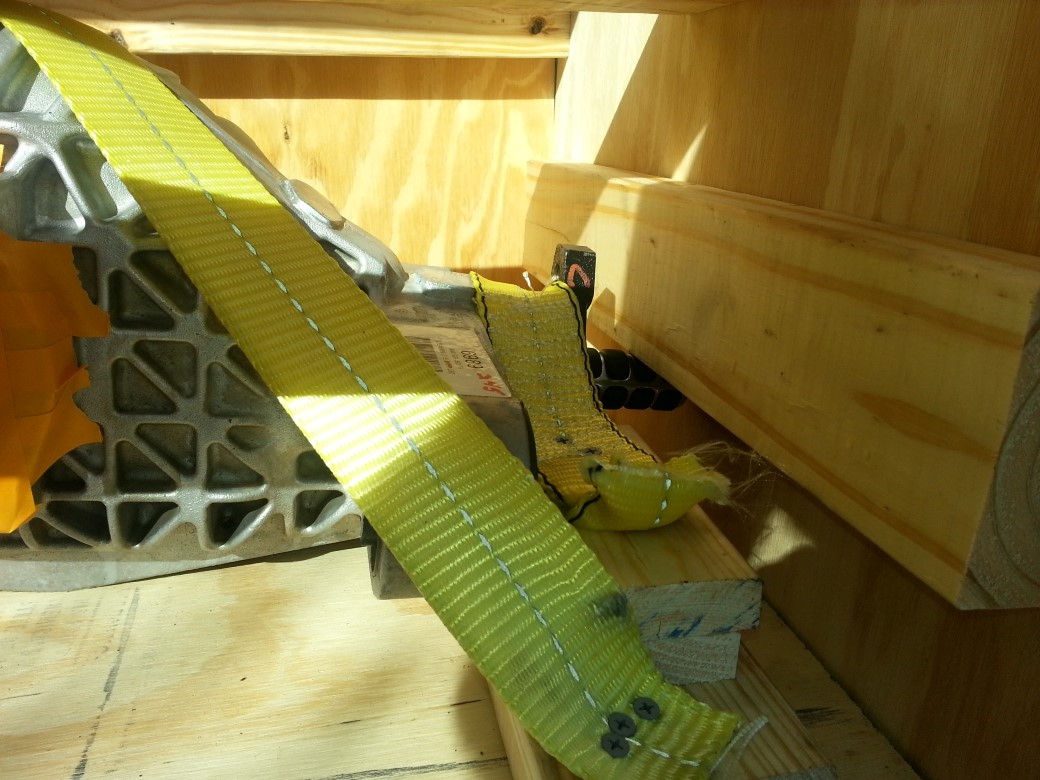

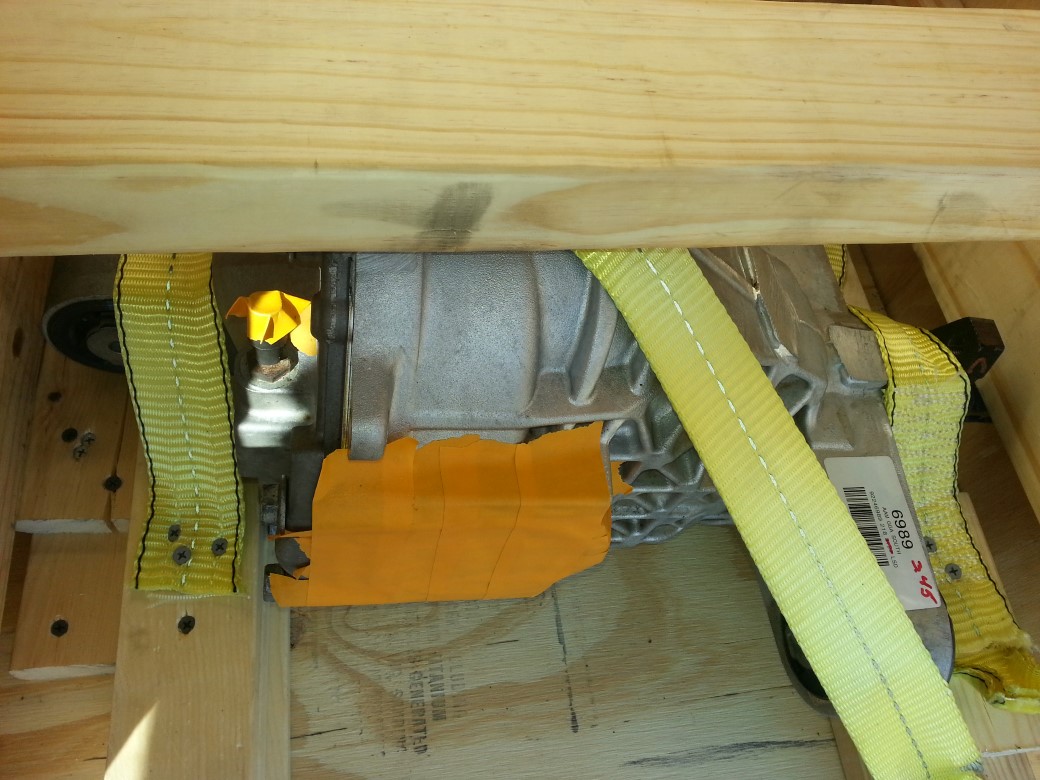

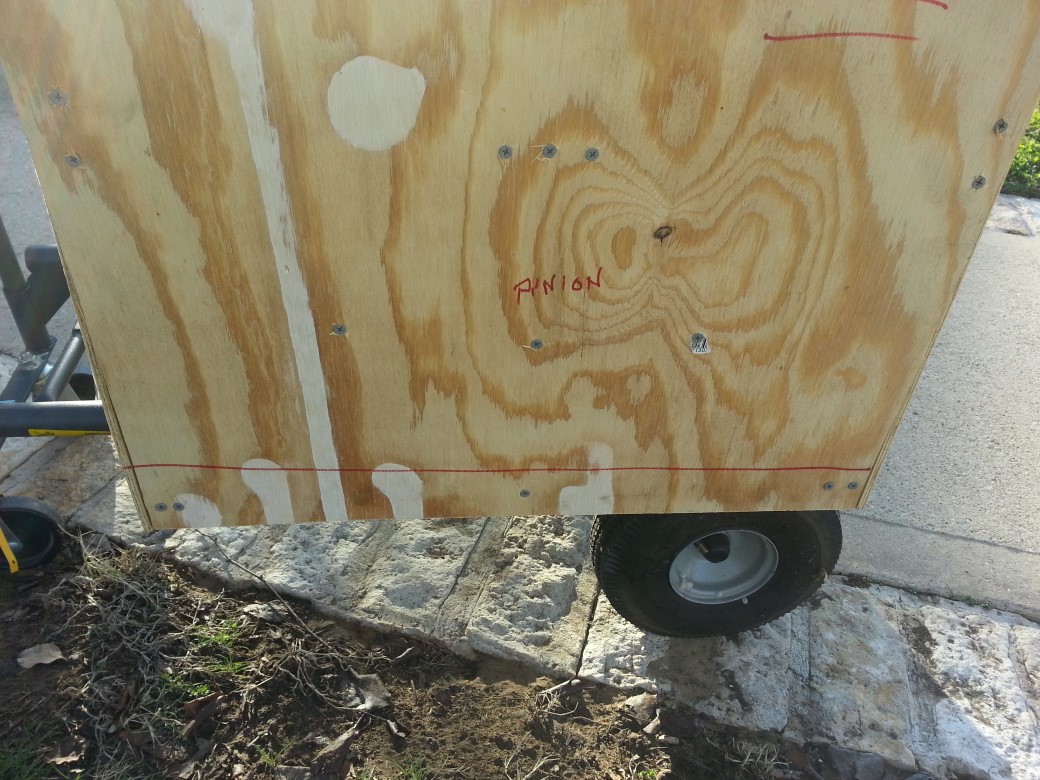

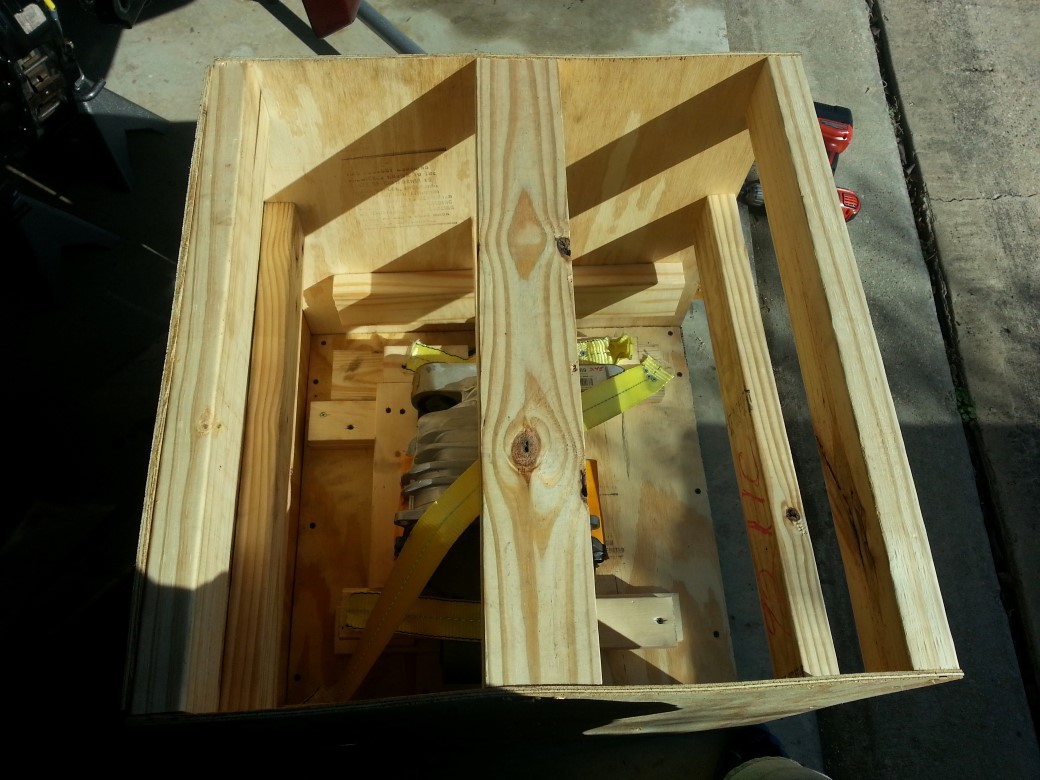

How I crated it:

Got to GPI great with no issues and GPI packed it the same way

I even put handles on it -- those were still on the box too...

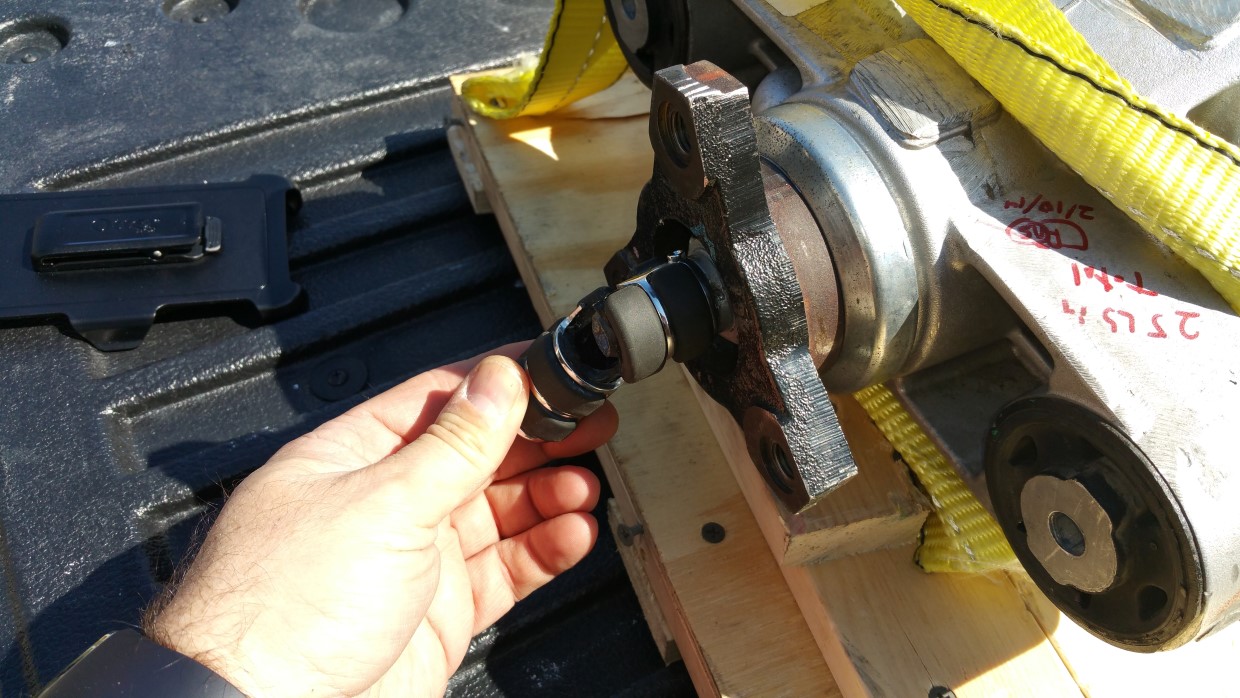

But UPS then gave it back to me like this:

Humm....

-Don

*SSE 4 2SS* · 02-14-2015, 12:05 AM

Congrats on COTW, very well deserved...

hammdo · 02-14-2015, 12:47 AM

Thanks! I'm very appreciative of that considering all the great builds out there...

Even with some of the obstacles, it been a blast....

-Don

hammdo · 02-14-2015, 04:06 PM

Differential is back in! Went in much faster than taking out.

I used 2 jacks (one for the differential, one for the drive shaft) and slowly jacked them up together. I was able to put the passenger's axle in first (I tilted the differential down and to the drivers side). Once that was in slowly jacked both jacks up until I could get the drivers axle started -- then jacked both jacks again -- keeping the pinion yoke aligned with the drive shaft and put the differential bolts in (torqued to 59 ft lbs).

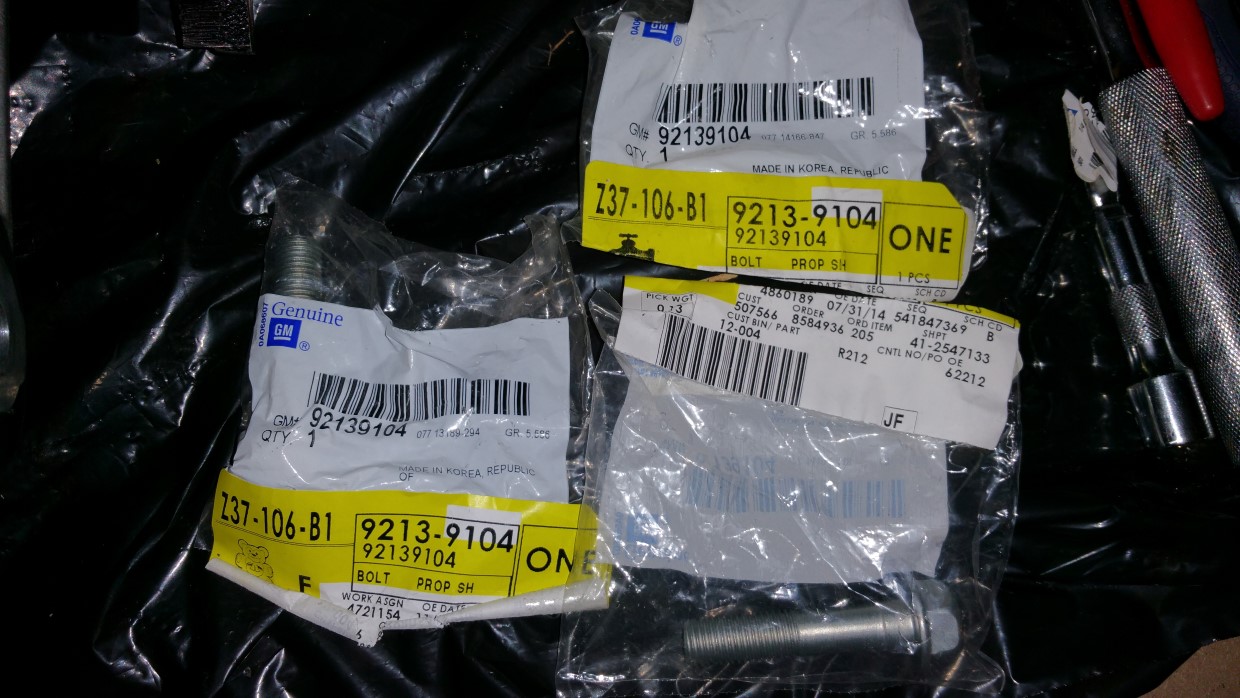

Here are the drive shaft bolts (MUST replace each time -- no questions about it) These get torqued to 85 ft lbs:

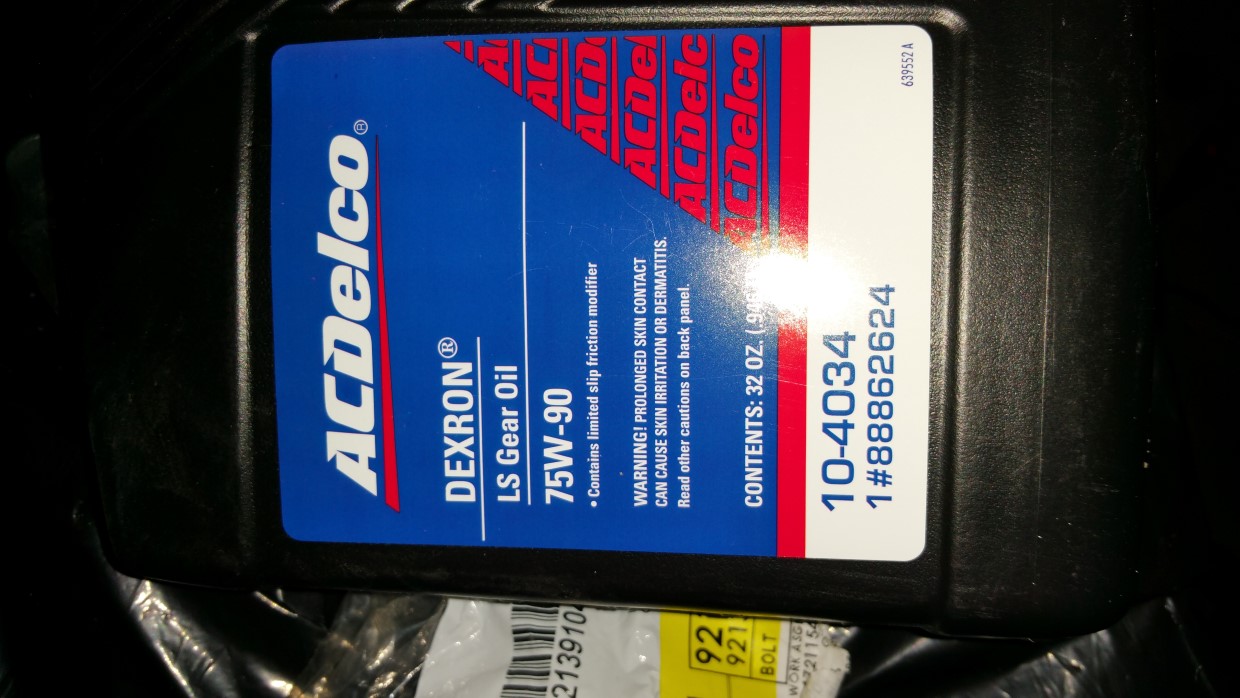

Gear Oil:

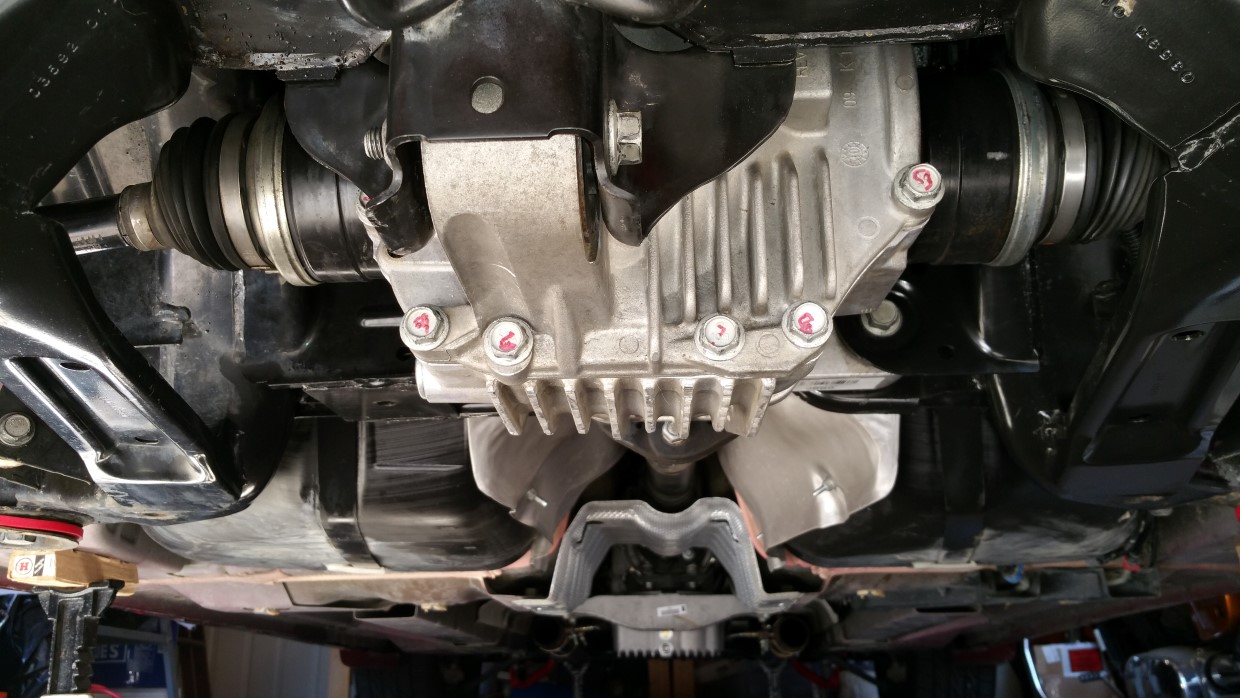

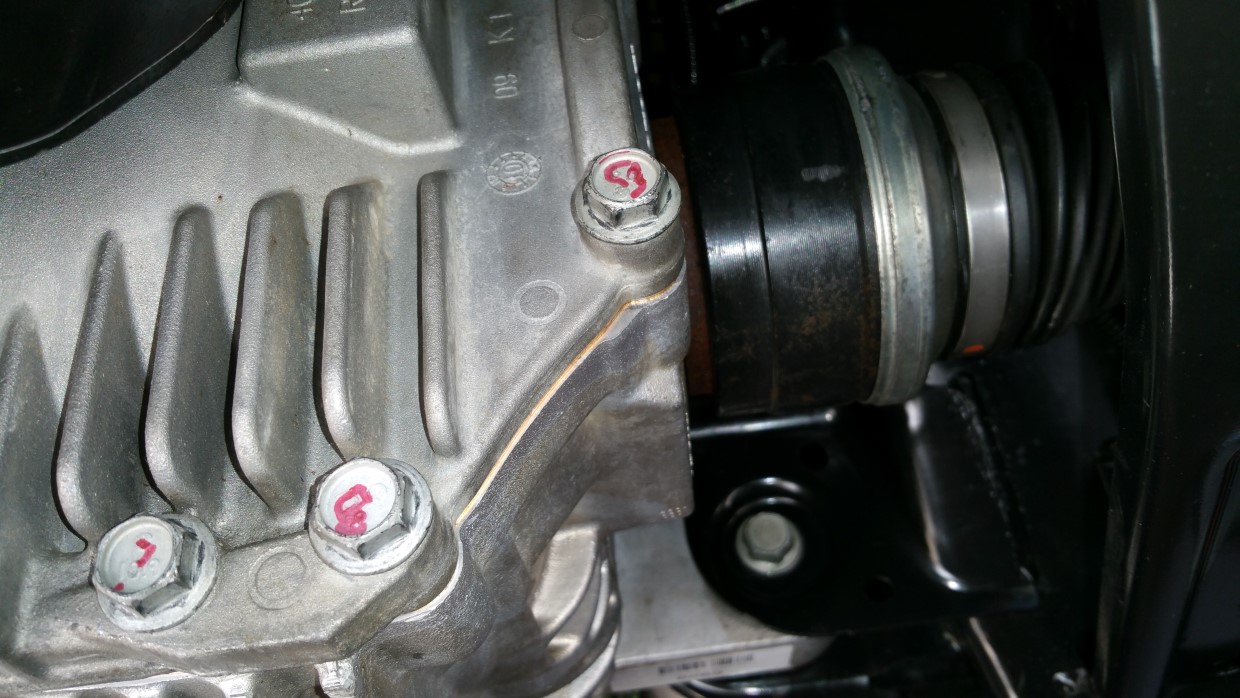

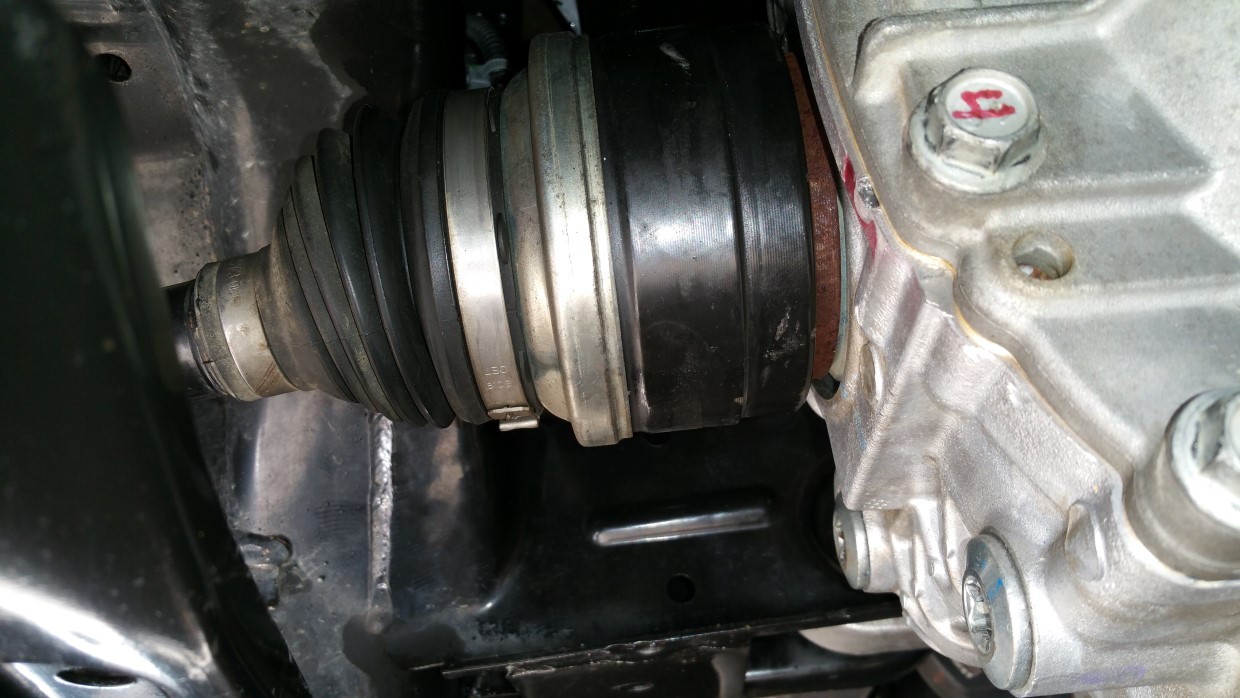

Everything lined up perfect!:

BTW, don't forget the differential Vent tube ;o) !

Suspension is all back together. So I have to put in the gear oil, then, the NEW exhaust...

-Don

hammdo · 02-14-2015, 05:25 PM

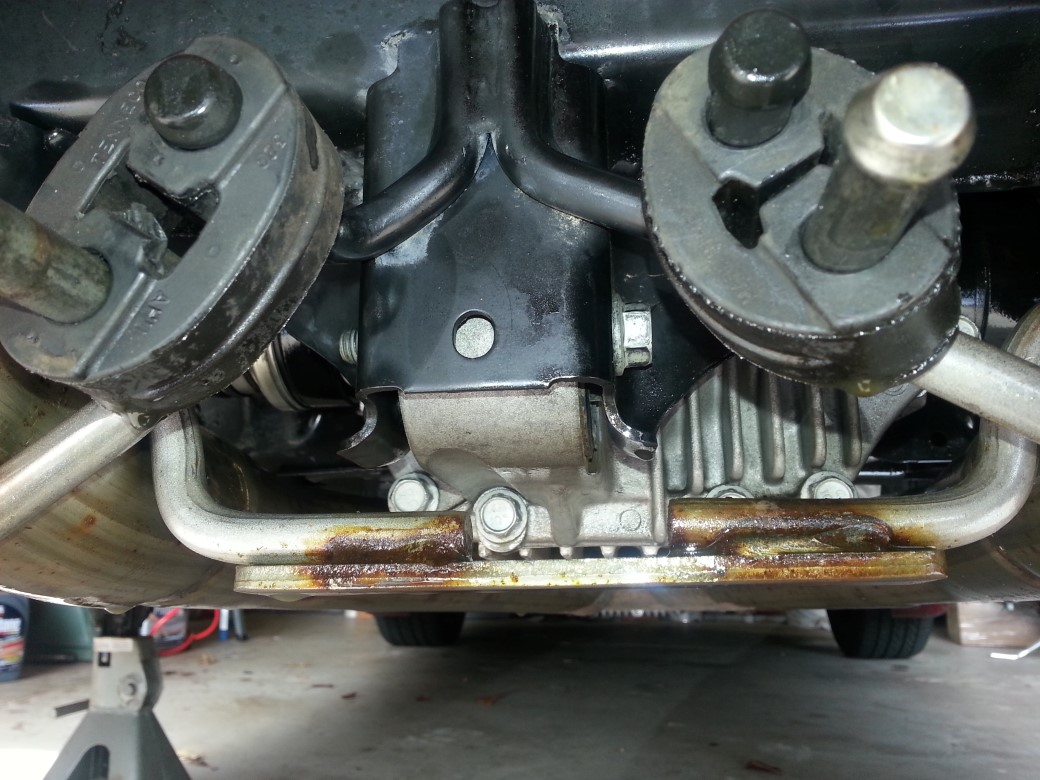

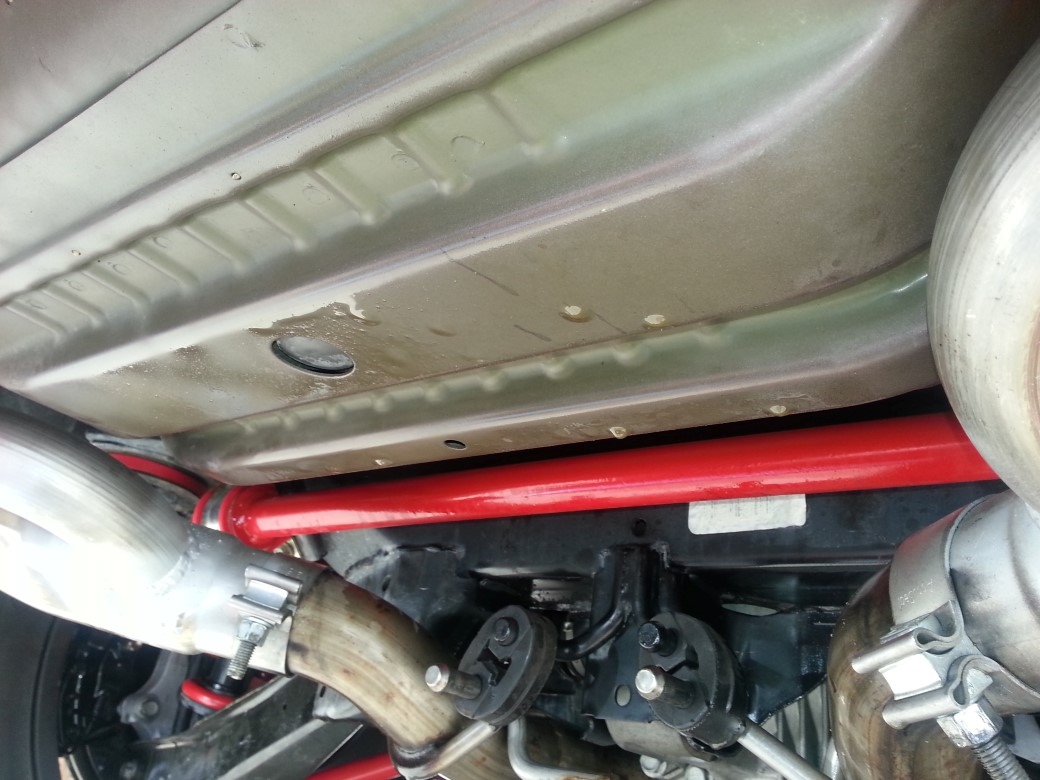

BTW this is the gear oil all over the Camaros 'Kardashian' booty from the pinion seal leak:

Turned out the 'spring' that surrounds the pinion seal popped out and that cause the loss of fluid -- now all new seals, bearings, clutches, Posi-Mod -- just great job by Aaron @ GPI. Can't wait to try it out...

HOPEFULLY, UPS did not screw it up in anyway - I didn't see anything when I inspected it...

-Don

Sack Rat 2SS · 02-14-2015, 07:12 PM

That gear oil over the rear end area is much cheaper then undercoating. Remember the tar coatings used in the past?

hammdo · 02-15-2015, 12:51 AM

Oh yes, and I used to do undercoating! What a job getting the over-spray off too...

And the gear oil has friction reducer too so that ought to make it go FASTER ;o)...

But, its back in the game!

Differential is quiet as a mouse -- did about 40 figure 8's in Lowes empty parking lot to break it in. Did some low speed drives and took it out on the highway -- not a peep!

The new exhaust is awesome! Tyler (JDP) hooked me up! I heard the wine of the Supercharger for the first time doing WOT! That is an AWESOME sound ;o)

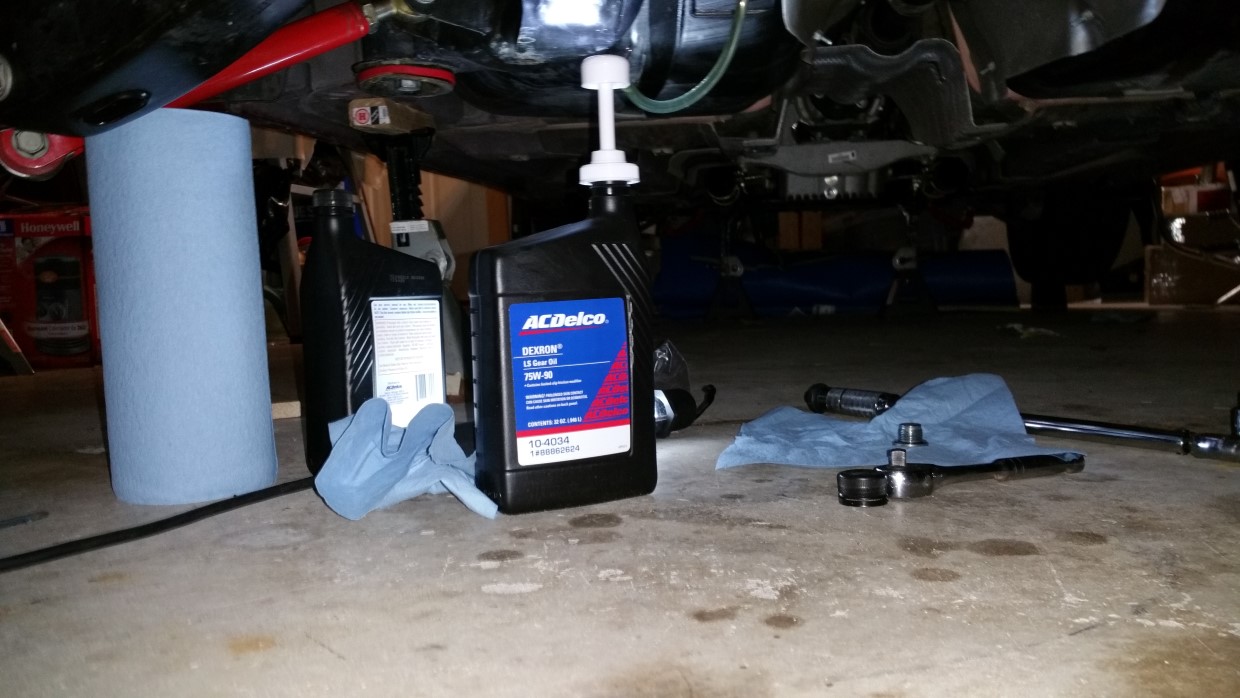

Here is some of the pics of the what I used for filling the gear lube:

Torque the filler plugs to 24 ft lbs (both of them)...

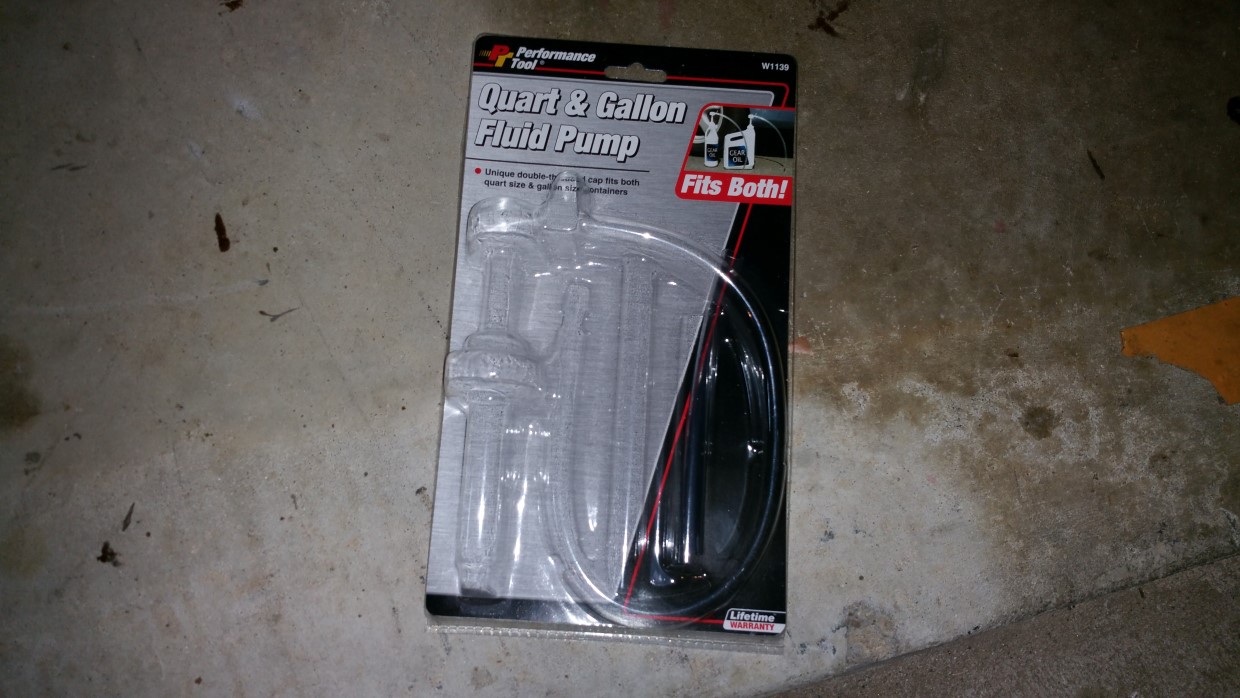

The pump made it a no brainer (doing it with the exhaust off does make it easier)...

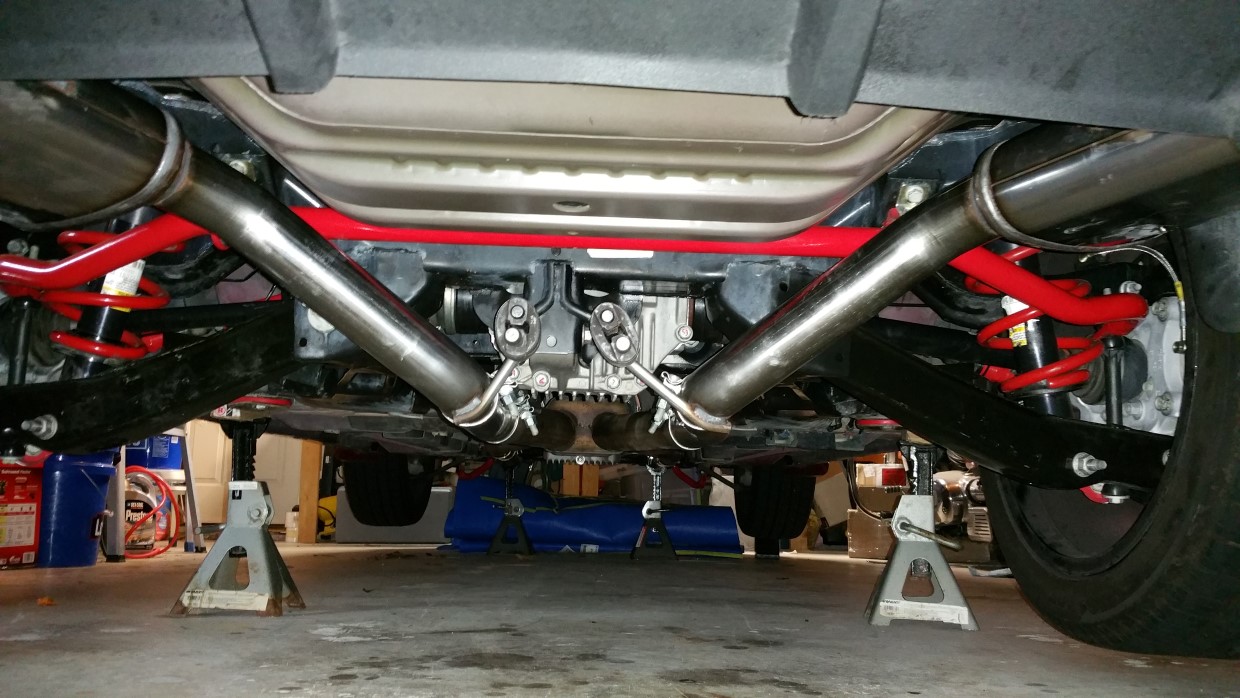

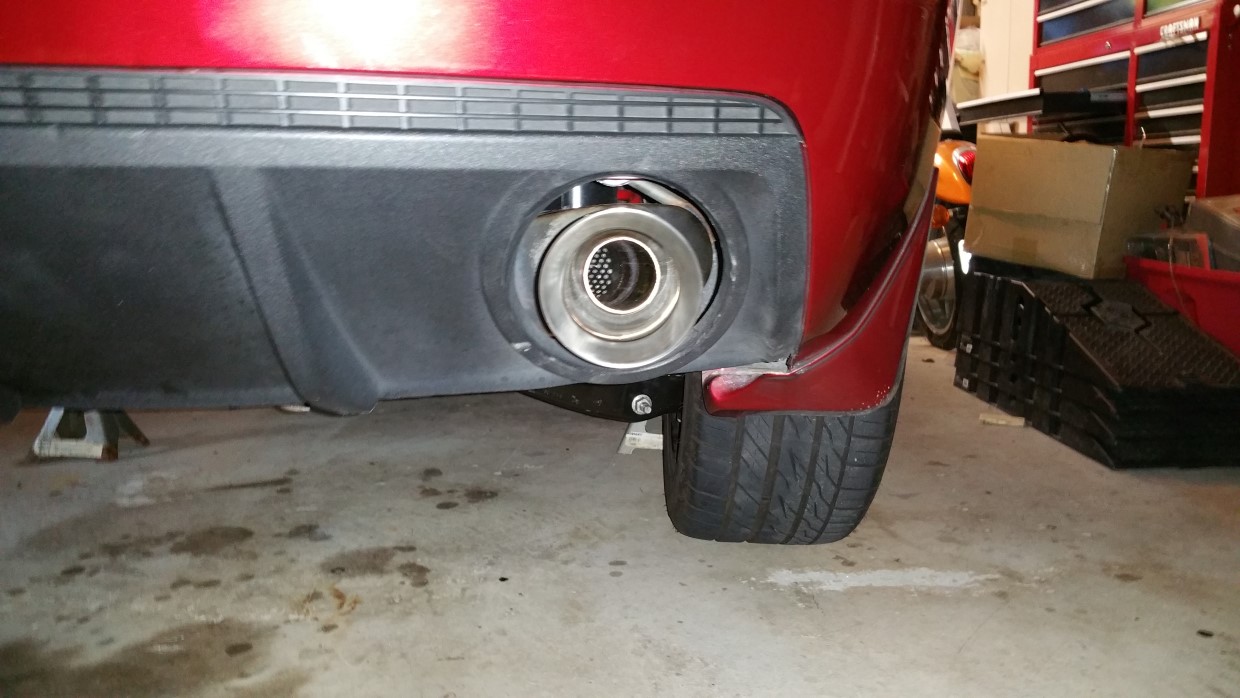

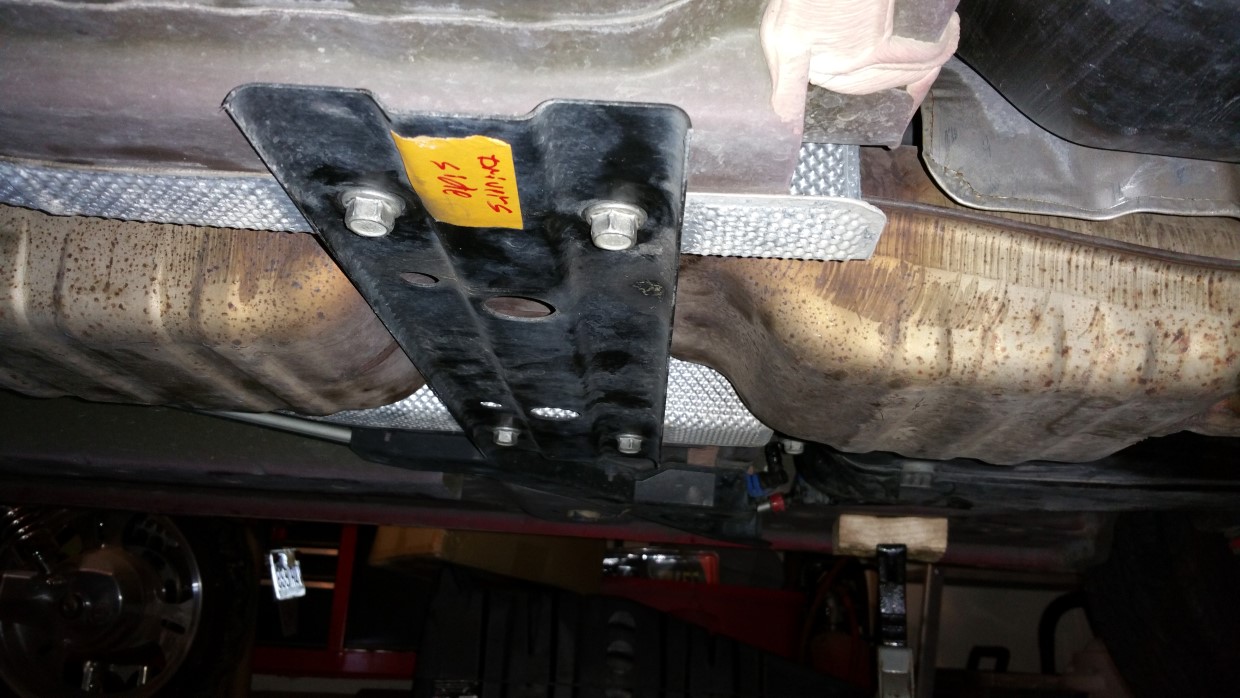

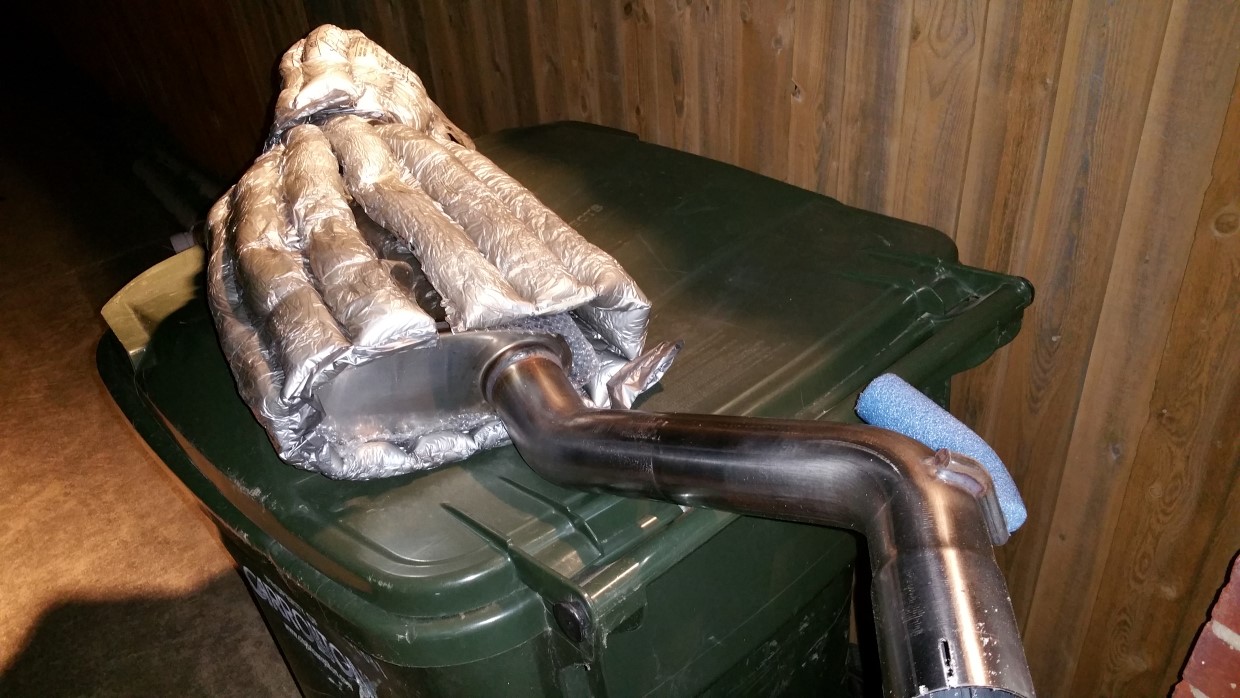

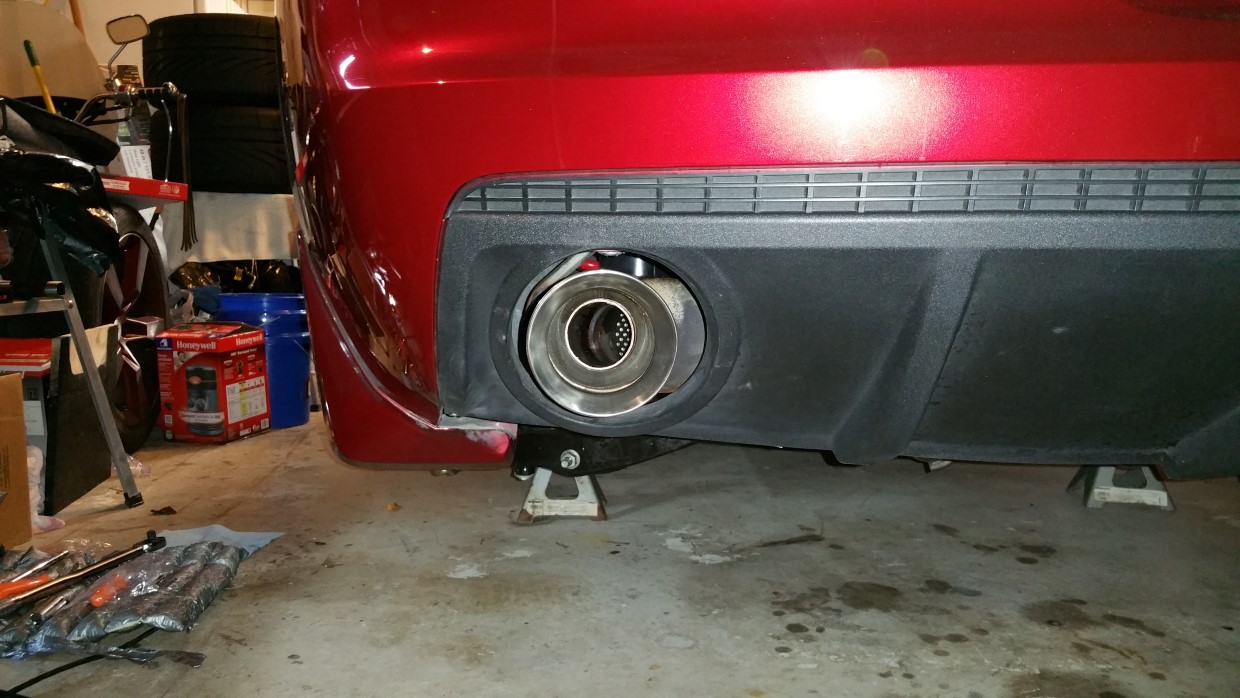

And now the exhaust and installation:

I had to re-adjust this after install as it had a slight NVH. So moved it back and raised it up a bit and all gone!

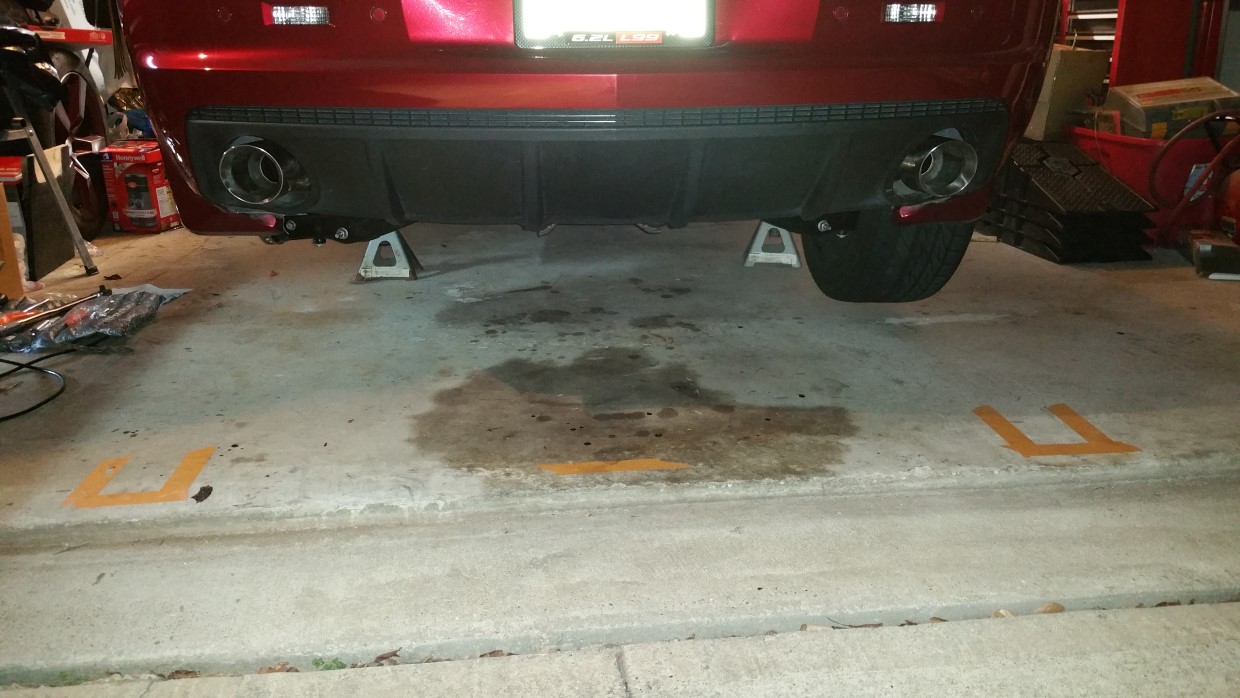

The mess on the floor is the gear lube that dripped from the car after I got back (stained, gonna need some concrete bleach now ;o):

Aaron did a superb job on the differential -- I could tell the difference when it came back -- just fantastic!

It was nice to drive it again!

-Don

hammdo · 02-15-2015, 12:05 PM

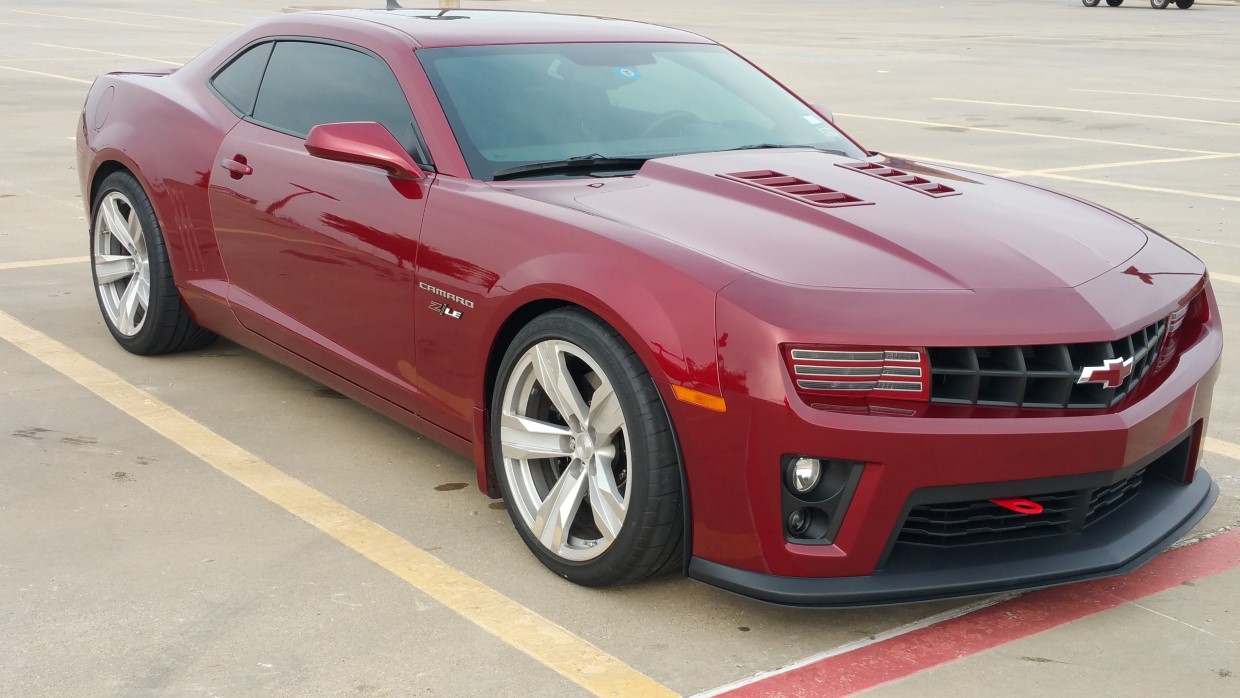

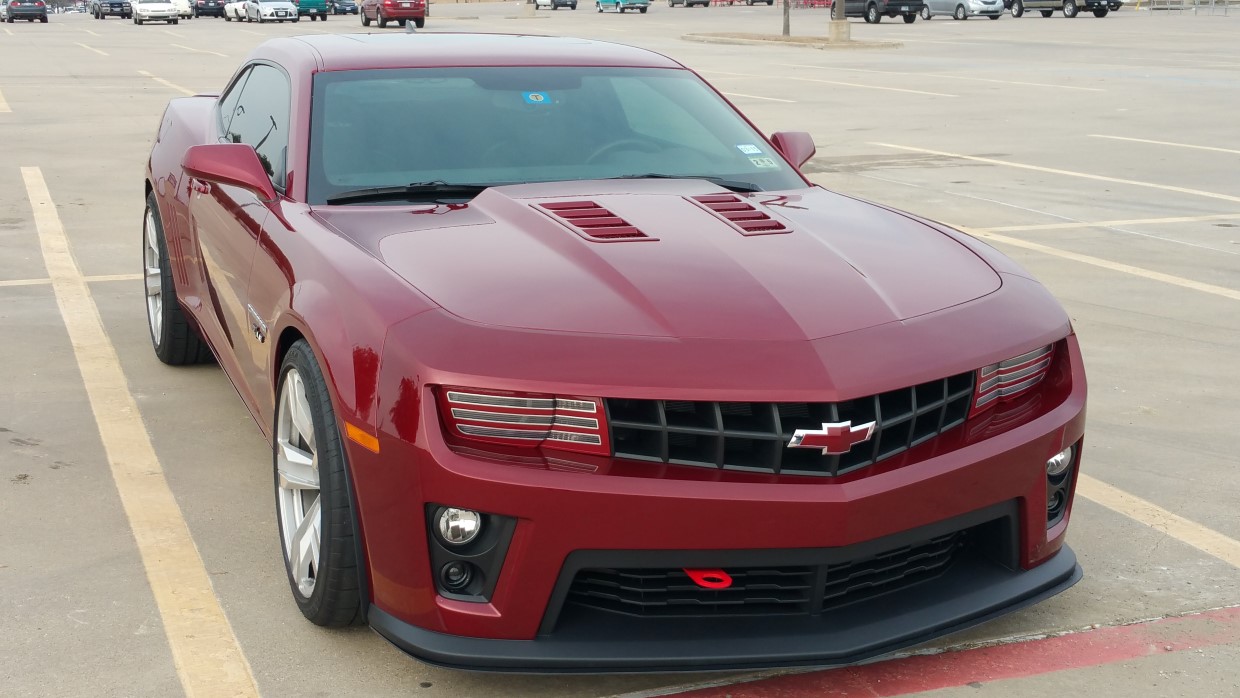

Gave it a bath and drove it some more. Still need to break in the posi-mod but its really doing great -- I'm really liking the Magnaflows -- still has a rumble but the neighbors won't complain when I start it up @ 6:00 AM. Now, its all cleaned up and ready for the new MightMouse Catch Can!:

More coming!

-Don

hammdo · 02-15-2015, 03:18 PM

Ok ZL1 trunk lid painted RJT is being ordered from Gary's customs.. Then I'll put on the new Spoiler and brake light...

hammdo · 02-15-2015, 05:22 PM

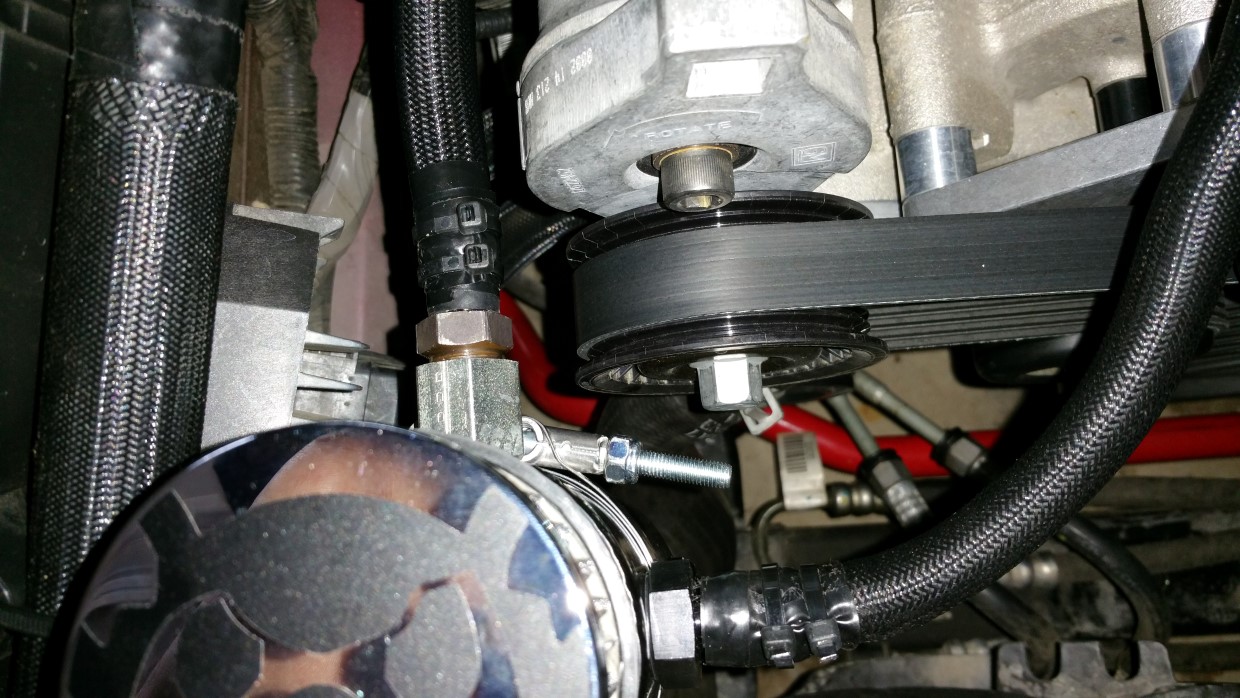

OK, MightMouse Catch Can is on (before it started raining hard here ;o)

Pretty straight forward install -- got the Gen5 bracket to install it:

Hoses have plenty of clearance and not near any pulleys -- test drove -- no vacuum leaks and NO HISSING as I used 3/8" fuel injector line to fix that part...

More to come...

-Don
