09-27-2015, 03:52 PM
|
#505 |
|
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,709
|
In the front, it fits against the bracing near the radiator. It's curved to fit against that area. The lower section is set against the frame. Once I bolted the two sections together and confirm they are both setup, I then tighten everything and bolt it down. I did reuse the stock rubber washer to ensure it was tight.
Do you have the ADM CAI? -Don
__________________
747 RWHP 794 RWTQ
"Horsepower sells cars, torque wins races." - Enzo Ferrari See My Build: http://www.camaro5.com/forums/showthread.php?t=385577 |
|
|
|
09-27-2015, 03:54 PM
|
#506 |

Drives: ZL1 Join Date: Sep 2011
Location: Phoenix
Posts: 1,524
|
I'm gonna trouble shoot next time I get a chance. I have huge gap between fender and bumper and nothing is bolted. Am I drilling a holes or does connect to a section
Sent from my iPhone using Tapatalk |
|
|
|
|
09-27-2015, 03:57 PM
|
#507 |
|
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,709
|
Send some pics and I'll see if I can help you...
You should not need to,drill anything -Don
__________________
747 RWHP 794 RWTQ
"Horsepower sells cars, torque wins races." - Enzo Ferrari See My Build: http://www.camaro5.com/forums/showthread.php?t=385577 |
|
|
|
|
09-27-2015, 04:00 PM
|
#508 |
|
Drives: ZL1 Join Date: Sep 2011
Location: Phoenix
Posts: 1,524
|
Gimme a sec
Sent from my iPhone using Tapatalk |
|
|
|
|
09-27-2015, 04:01 PM
|
#509 |
|
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,709
|
__________________
747 RWHP 794 RWTQ
"Horsepower sells cars, torque wins races." - Enzo Ferrari See My Build: http://www.camaro5.com/forums/showthread.php?t=385577 |
|
|
|
|
09-27-2015, 04:08 PM
|
#510 |
|
Drives: ZL1 Join Date: Sep 2011
Location: Phoenix
Posts: 1,524
|
I've been reading through it and hasn't helped
Sent from my iPhone using Tapatalk |
|
|
|
|
09-27-2015, 04:10 PM
|
#511 |
|
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,709
|
No,problem. If possible, get a pic showing where it's resting on the frame and the front by the radiator. Also, a pic of the frame that it's resting on with the CAI off..
Thanks! -Don
__________________
747 RWHP 794 RWTQ
"Horsepower sells cars, torque wins races." - Enzo Ferrari See My Build: http://www.camaro5.com/forums/showthread.php?t=385577 |
|
|
|
|
09-27-2015, 04:25 PM
|
#512 |
|
Drives: ZL1 Join Date: Sep 2011
Location: Phoenix
Posts: 1,524
|
 Sent from my iPhone using Tapatalk |
|
|
|
|
09-27-2015, 04:26 PM
|
#513 |
|
Drives: ZL1 Join Date: Sep 2011
Location: Phoenix
Posts: 1,524
|
 Sent from my iPhone using Tapatalk |
|
|
|
|
09-27-2015, 04:27 PM
|
#514 |
|
Drives: ZL1 Join Date: Sep 2011
Location: Phoenix
Posts: 1,524
|
 Sent from my iPhone using Tapatalk |
|
|
|
|
09-27-2015, 04:28 PM
|
#515 |
|
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,709
|
Here are some pics.

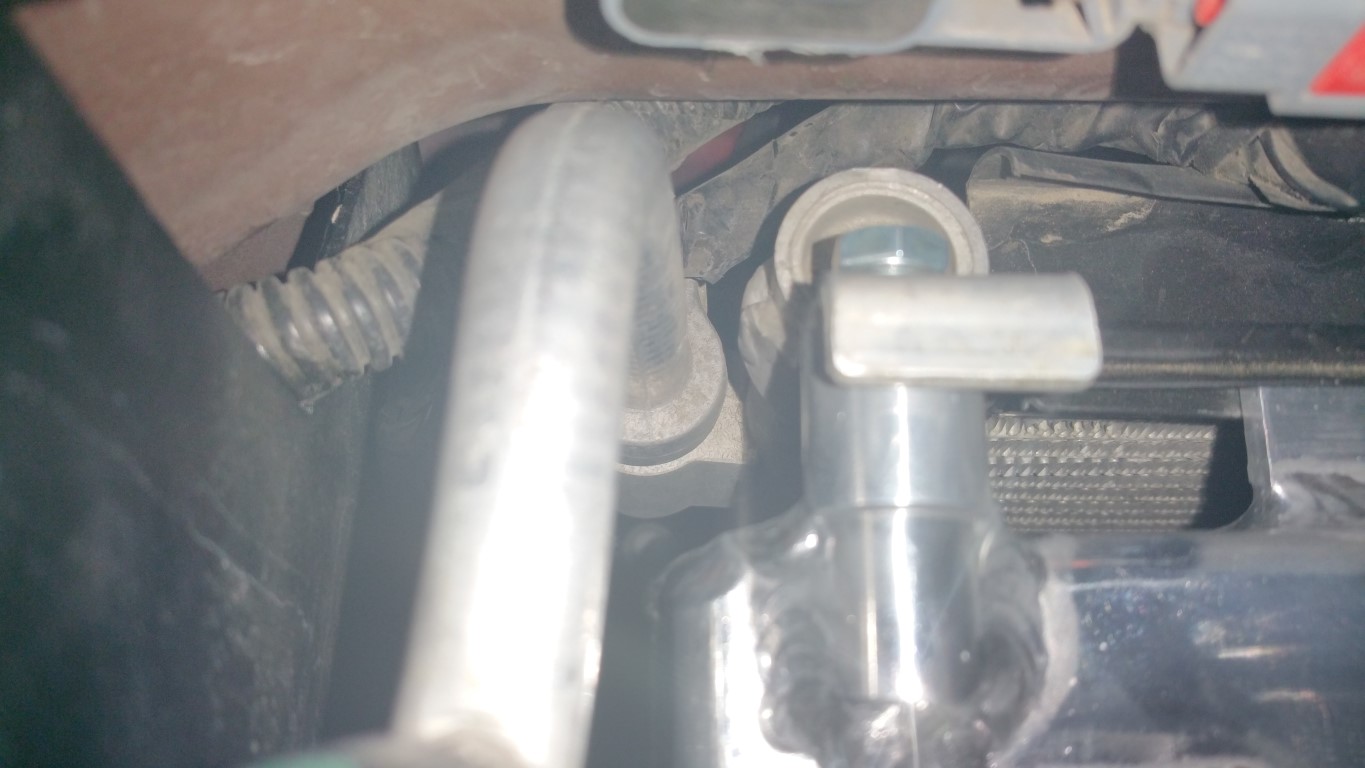

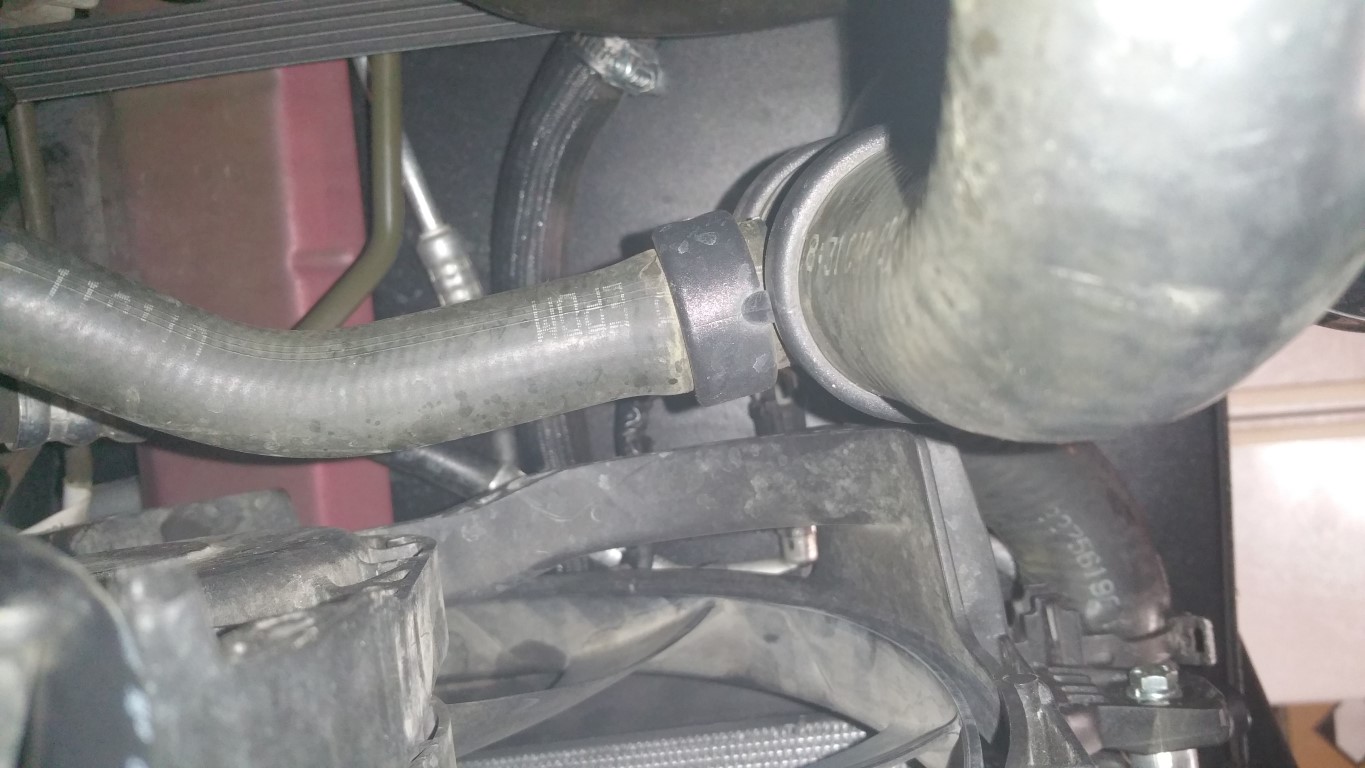

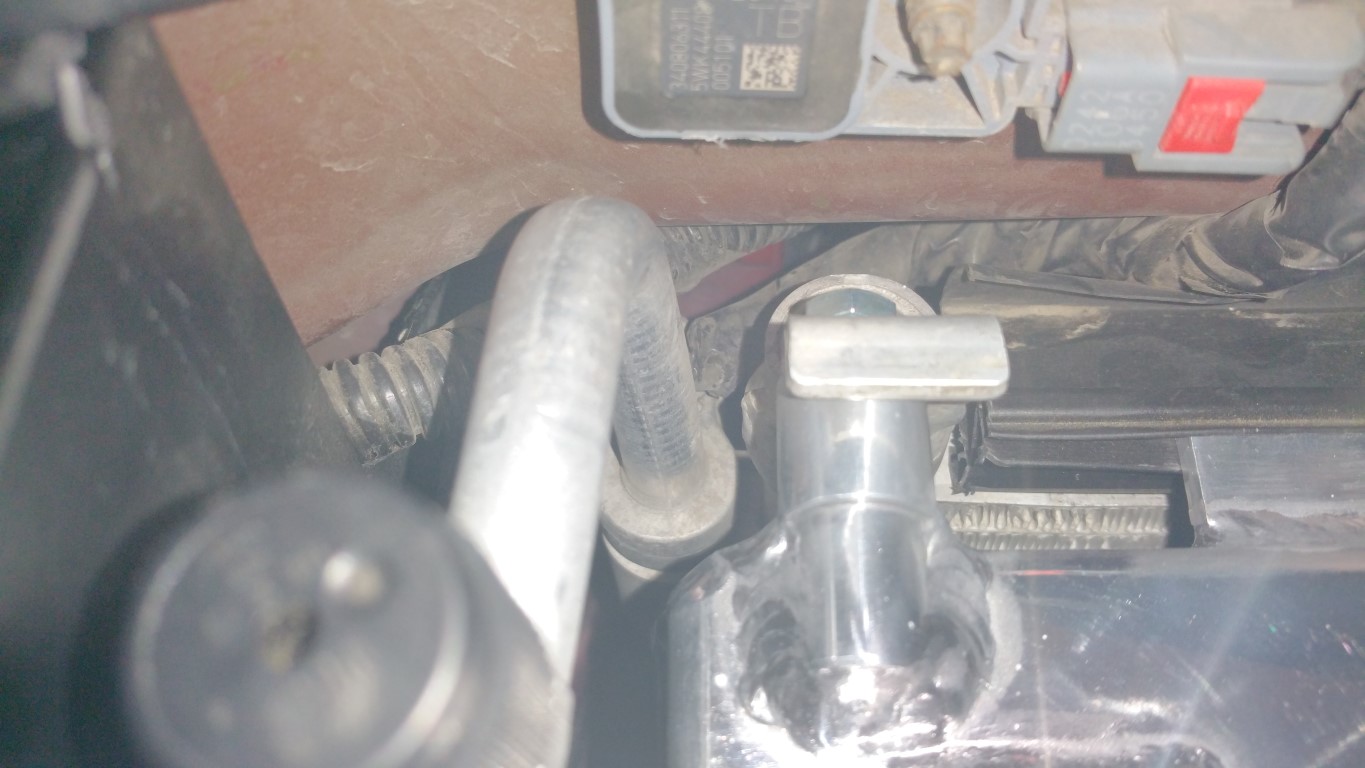

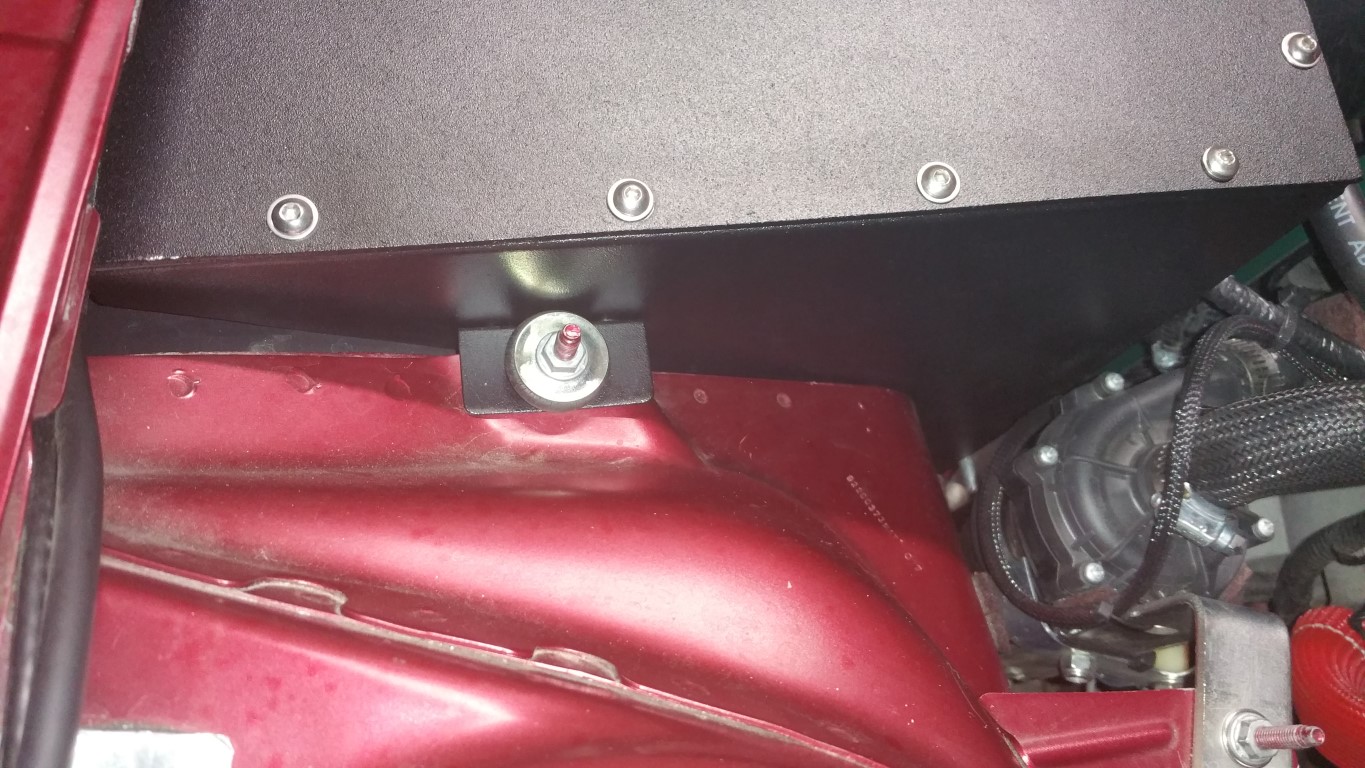

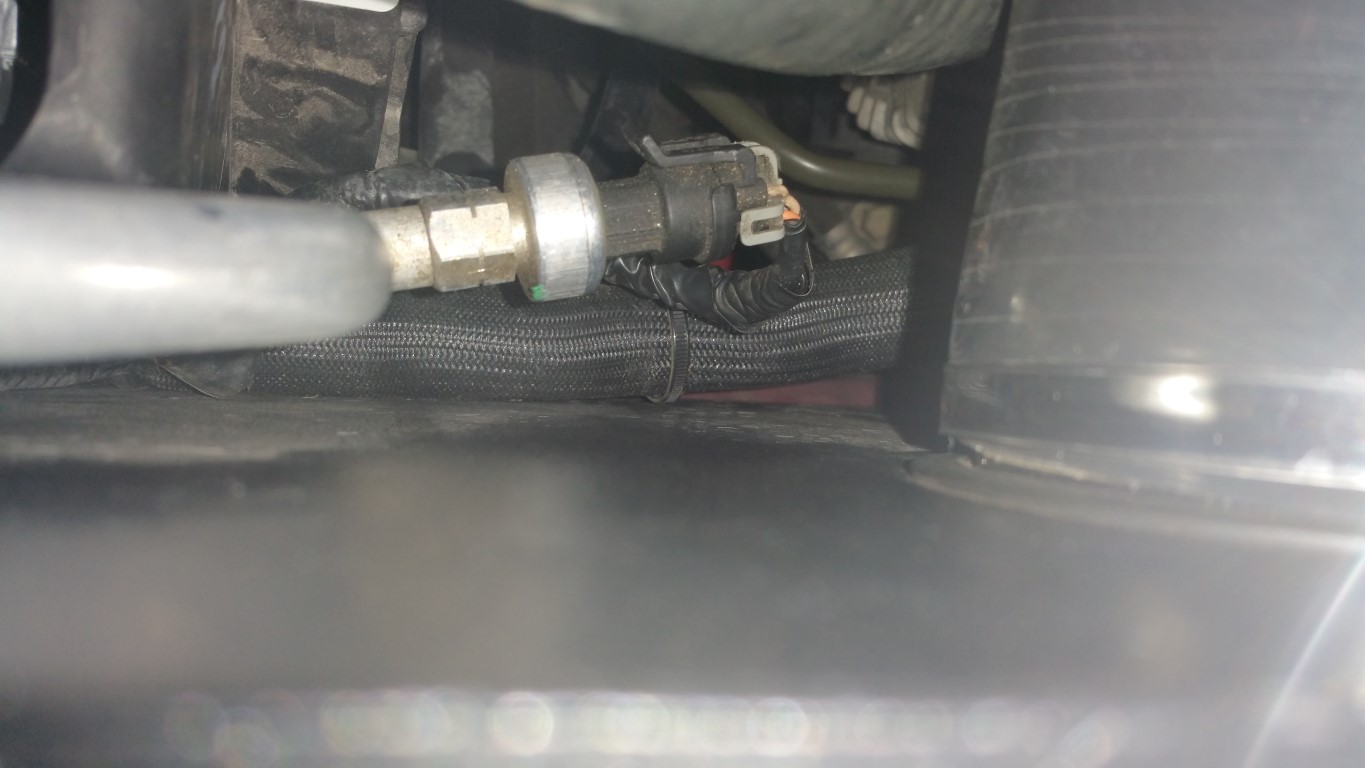

Do note how the hold down is oriented -- you don't see the bolts that you assembled: .jpg) Note how it rests on the front: .jpg) .jpg) .jpg) .jpg) Along the rail: .jpg) Make sure to remove the rubber grommet that is on the rail along with re-positioning the ac line as needed (the plastic hold-down on the rail may need to be moved also) -Don
__________________
747 RWHP 794 RWTQ
"Horsepower sells cars, torque wins races." - Enzo Ferrari See My Build: http://www.camaro5.com/forums/showthread.php?t=385577 |
|
|
|
|
09-27-2015, 04:34 PM
|
#516 |
|
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,709
|
I don't see the 'seal' on the top. Also the CAI looks like its not all the way forward like mine. The CAI does not 'rest' on the metal frame -- it rests on the plastic splash shield...
I think that is part of the issue along with not resting on the front like mine... -Don
__________________
747 RWHP 794 RWTQ
"Horsepower sells cars, torque wins races." - Enzo Ferrari See My Build: http://www.camaro5.com/forums/showthread.php?t=385577 |
|
|
|
|
09-27-2015, 04:36 PM
|
#517 |
|
Drives: ZL1 Join Date: Sep 2011
Location: Phoenix
Posts: 1,524
|
Looks so I'm running to the store then gonna take it apart
Sent from my iPhone using Tapatalk |
|
|
|
|
09-27-2015, 04:37 PM
|
#518 |
|
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,709
|
Also, I would not assemble the lid until the two pieces fit correctly along the rail and front...
PM me and I'll send you my cell # and see if I can help... -Don
