MTI Racing's 2010 Camaro project is underway - Page 4 - Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums

Camar0wn3d · 06-07-2009, 09:14 PM

Quote:

Originally Posted by MTI Racing

...With the addition of complimentary components such as cold air induction, a low temp thermostat, headers, and a cat-back exhaust, we expect much more.

HEHE....exactly why I am subscribed to this post

....You also said in the video that you took it to the track this weekend...How did everything go?

MTI Racing · 06-08-2009, 11:35 AM

We went to Barber Motorsports Park to gather data from the added power, test out the stock suspension, and see what improvements we need to make for new Camaro owners.

We are currently manufacturing a handling package that will improve the responsiveness and grip. Keep watching our website for more details.

http://www.mtiracing.com/index.php?o...157&Itemid=124

MTI Racing · 06-08-2009, 03:25 PM

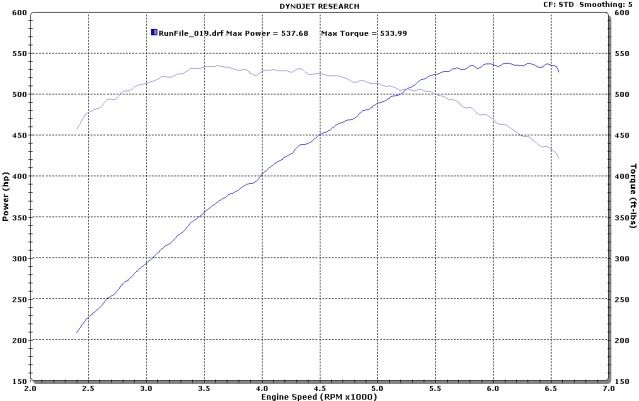

To determine the power gain produced by simply adding additional boost to the TVS on our 2010 Camaro project car, this morning we decided to put a smaller pulley on the jackshaft of the TVS and raised the boost from 7lbs to 9.5. While still retaining all factory components (headers, mufflers, thermostat, etc.), horsepower jumped up 45 at the rear wheels which raised bhp from 576 to 632.

Now that we have seen the gain produced by the added boost we will lower it back to 7lbs to insure the longevity of our short block.

This afternoon we are installing a set of American Racing Headers to determine the power produced by those combined with our TVS system. We'll have dyno #'s as early as tomorrow morning.

lawdogg149 · 06-08-2009, 03:47 PM

watching very closely!!!!!!!!!!!!!

REAPER SS · 06-09-2009, 12:45 PM

20 Camaro 10 · 06-09-2009, 12:55 PM

pharmd · 06-09-2009, 01:11 PM

Pretty Psyched about this Jason, post em' up asap

Thanks for doing it like this so we can see the value of each addition.

MTI Racing · 06-09-2009, 04:30 PM

Sorry to keep everyone waiting. The dyno run was completed this morning but this is the first chance I've had to post the results.

The addition of the American Racing Headers to our TVS system exceeded our expectations! With a makeshift air filter set-up and AR headers at 7.5lbs of boost we witnessed a 77hp jump at the rear wheels resulting in 569rwhp. This translates to a bhp jump from 576 to 667 and brings torque to 641ft/lbs! For future reference, we then decided to make a power pull with 10lbs of boost. As you can see from the dynograph below, horsepower jumped to 591 at the rear wheels (695 at the crank)!

MTI Racing TVS system with American Racing 1 7/8" headers @ 7.5lbs of boost.

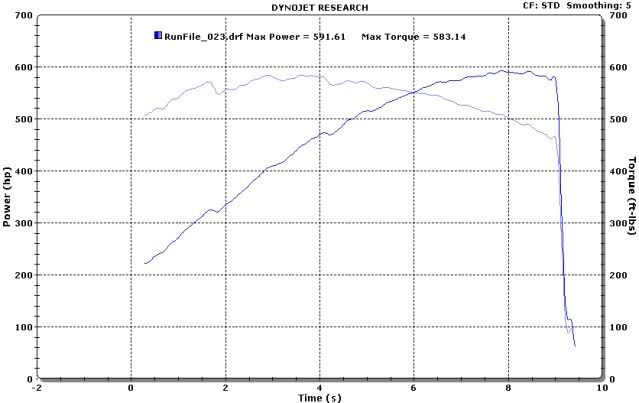

MTI Racing TVS system with American Racing 1 7/8" headers @ 10lbs of boost.

We can't wait to see the power gains of additional complimentary components such as a Cold Air Intake, cat-back system, camshaft, themostat, etc.

20 Camaro 10 · 06-09-2009, 04:37 PM

TeddyP25 · 06-09-2009, 04:37 PM

OMG..........

pharmd · 06-09-2009, 05:40 PM

Sick power man!! Can't wait to see more mods added...How are the sway bars coming along?

kdoske · 06-09-2009, 10:07 PM

Quote:

Originally Posted by MTI Racing

In order to determine the amount of power produced solely by the TVS supercharger we installed the system on our Camaro without any other upgrades. Stock air box, stock thermostat, stock exhaust, etc. Our 2010 Camaro SS arrived with 425bhp and 420ft/lbs of torque. With the addition of the MTI Racing TVS system alone, power jumped to 576hp and 547ft/lbs of torque. As with all TVS powered cars, low rpm torque is incredible with over 528 ft/lbs of torque at 3000 rpms. This power is achieved with only 7lbs of boost and on 93 octane pump gas.

With the addition of complimentary components such as cold air induction, a low temp thermostat, headers, and a cat-back exhaust, we expect much more.

Great numbers, I love in the end of the posted video he pretends to walk over to the car to get back in and as the camera moves in to focus on your decal above camaro you see his shadow go the other direction and he never gets in the car!!! Sorry, I just had to say something. Guys a salesman though, I'll give him that.

blackedout010 · 06-09-2009, 10:21 PM

awesome!!!!

Z_Rocks · 06-09-2009, 11:00 PM

Quote:

Originally Posted by kdoske

Guys a salesman though, I'll give him that.

A Salesman??? He is Reese Cox, the owner, a professional Race Driver, head of engineering. Far from being a Salesman. No disrespect to any salesman, but that's not what he is...!

06-08-2009, 03:25 PM	#45
MTI Racing Drives: 2010 Camaro SS Join Date: May 2009 Location: Marietta, GA Posts: 442	Update To determine the power gain produced by simply adding additional boost to the TVS on our 2010 Camaro project car, this morning we decided to put a smaller pulley on the jackshaft of the TVS and raised the boost from 7lbs to 9.5. While still retaining all factory components (headers, mufflers, thermostat, etc.), horsepower jumped up 45 at the rear wheels which raised bhp from 576 to 632. Now that we have seen the gain produced by the added boost we will lower it back to 7lbs to insure the longevity of our short block. This afternoon we are installing a set of American Racing Headers to determine the power produced by those combined with our TVS system. We'll have dyno #'s as early as tomorrow morning. Last edited by MTI Racing; 06-08-2009 at 03:36 PM.

06-09-2009, 12:55 PM	#48
20 Camaro 10 Junior Member Drives: 2SS/RS Camaro Join Date: Jan 2009 Location: Missouri Posts: 159 View My Garage	__________________ In Garage - 2G1FT1EW5A9107727 - 2SS/RS, BLK on BLK, 6M, CGM RALLYS

06-09-2009, 01:11 PM	#49
pharmd Master of Medicine Drives: 4th Gen Join Date: Oct 2008 Location: Kentucky Posts: 784	Pretty Psyched about this Jason, post em' up asap Thanks for doing it like this so we can see the value of each addition. __________________ 2002 Camaro SS. 408 LS2. 500+RWHP/480RWTQ. Full UMI RR suspension. Koni/Strano. 295F/315R. 3500#(55/45)

06-09-2009, 04:30 PM	#50
MTI Racing Drives: 2010 Camaro SS Join Date: May 2009 Location: Marietta, GA Posts: 442	Update! Sorry to keep everyone waiting. The dyno run was completed this morning but this is the first chance I've had to post the results. The addition of the American Racing Headers to our TVS system exceeded our expectations! With a makeshift air filter set-up and AR headers at 7.5lbs of boost we witnessed a 77hp jump at the rear wheels resulting in 569rwhp. This translates to a bhp jump from 576 to 667 and brings torque to 641ft/lbs! For future reference, we then decided to make a power pull with 10lbs of boost. As you can see from the dynograph below, horsepower jumped to 591 at the rear wheels (695 at the crank)! MTI Racing TVS system with American Racing 1 7/8" headers @ 7.5lbs of boost. MTI Racing TVS system with American Racing 1 7/8" headers @ 10lbs of boost. We can't wait to see the power gains of additional complimentary components such as a Cold Air Intake, cat-back system, camshaft, themostat, etc.

06-09-2009, 04:37 PM	#51
20 Camaro 10 Junior Member Drives: 2SS/RS Camaro Join Date: Jan 2009 Location: Missouri Posts: 159 View My Garage	__________________ In Garage - 2G1FT1EW5A9107727 - 2SS/RS, BLK on BLK, 6M, CGM RALLYS

06-08-2009, 11:35 AM	#44
MTI Racing Drives: 2010 Camaro SS Join Date: May 2009 Location: Marietta, GA Posts: 442	We went to Barber Motorsports Park to gather data from the added power, test out the stock suspension, and see what improvements we need to make for new Camaro owners. We are currently manufacturing a handling package that will improve the responsiveness and grip. Keep watching our website for more details. http://www.mtiracing.com/index.php?o...157&Itemid=124

06-08-2009, 03:47 PM	#46
lawdogg149 Drives: Corvette ZO6 CSR edition #47 Join Date: Apr 2009 Location: Calhoun, GA Posts: 766 View My Garage	watching very closely!!!!!!!!!!!!!

06-09-2009, 12:45 PM	#47
REAPER SS Drives: 2010 CAMARO BLK 2SS/L99 Join Date: May 2009 Location: Birmingham,Al Posts: 453

06-09-2009, 04:37 PM	#52
TeddyP25 Drives: 2SS Join Date: May 2009 Location: Fort Collins Posts: 611	OMG.......... __________________ 2SS/RS CGM/BLK GFX MN6418 Stroker.785rwhp/885lbtq.50 SHOT NO2..Pfadt arms,toe links,coilovers,swaybars,end links,engine mounts,dif/sub bushings.MGWshifter.Tick LVL 3.ARH1 7/8 LT's/ARH exhaust.ADM gauges/race CAI.E-FORCE SC.8 rib IW 10%OD.LPE dual pump/module.85lb inj,custom valve covers.RMCR tune.TOOLEY RACING CAM.JRE posi kit.JRE fuel upgrade.RX MONSTER CatchCan.DSS axels/DS.Hammerhead rear, 3:73's. WYOSPEED builthttp://www.camaro5.com/forums/showthread.php?t=115687

06-09-2009, 05:40 PM	#53
pharmd Master of Medicine Drives: 4th Gen Join Date: Oct 2008 Location: Kentucky Posts: 784	Sick power man!! Can't wait to see more mods added...How are the sway bars coming along? __________________ 2002 Camaro SS. 408 LS2. 500+RWHP/480RWTQ. Full UMI RR suspension. Koni/Strano. 295F/315R. 3500#(55/45)

06-09-2009, 10:21 PM	#55
blackedout010 Drives: on order black 2010 2ss Join Date: Mar 2009 Location: north carolina Posts: 913	awesome!!!!
