DIY: Door light projector "CAMARO"

[Chewy]

**UPDATED WITH MORE PICTURES**

sorry it took so long. also still trying to find some brighter LEDs online....

[tightchevelle69]

hey chewy, what about using some led festoon bulbs and festoon sockets in the box? something like the second and third items down on this page...http://www.superbrightleds.com/cgi-b...=/festoon.html
they shouldnt be too hard to setup in there!

[Chewy]

Originally Posted by tightchevelle69

hey chewy, what about using some led festoon bulbs and festoon sockets in the box? something like the second and third items down on this page...http://www.superbrightleds.com/cgi-b...=/festoon.html
they shouldnt be too hard to setup in there!

I believe I mentioned this to someone else... But the problem with those bulbs is that they use multiple LEDs. Multiple light sources = blurred projection because they go throuh the stencil at different angles.

I just need ONE good LED or bulb.

[tightchevelle69]

ok, yeah, that was me, i forgot! lol well, how about this one?....they only come in three different colors though...http://www.superbrightleds.com/cgi-b...rake-turn.html third one down, the single 3watt luxeon!

[daphatgrant]

Disregard

[jagan323]

Very cool mod OP. Very innovative! I would love to try this, but I'm having problems cutting up my car right now lol. Perhaps in a year or two =D

But good job and good results!

[Duflar]

Chewy,

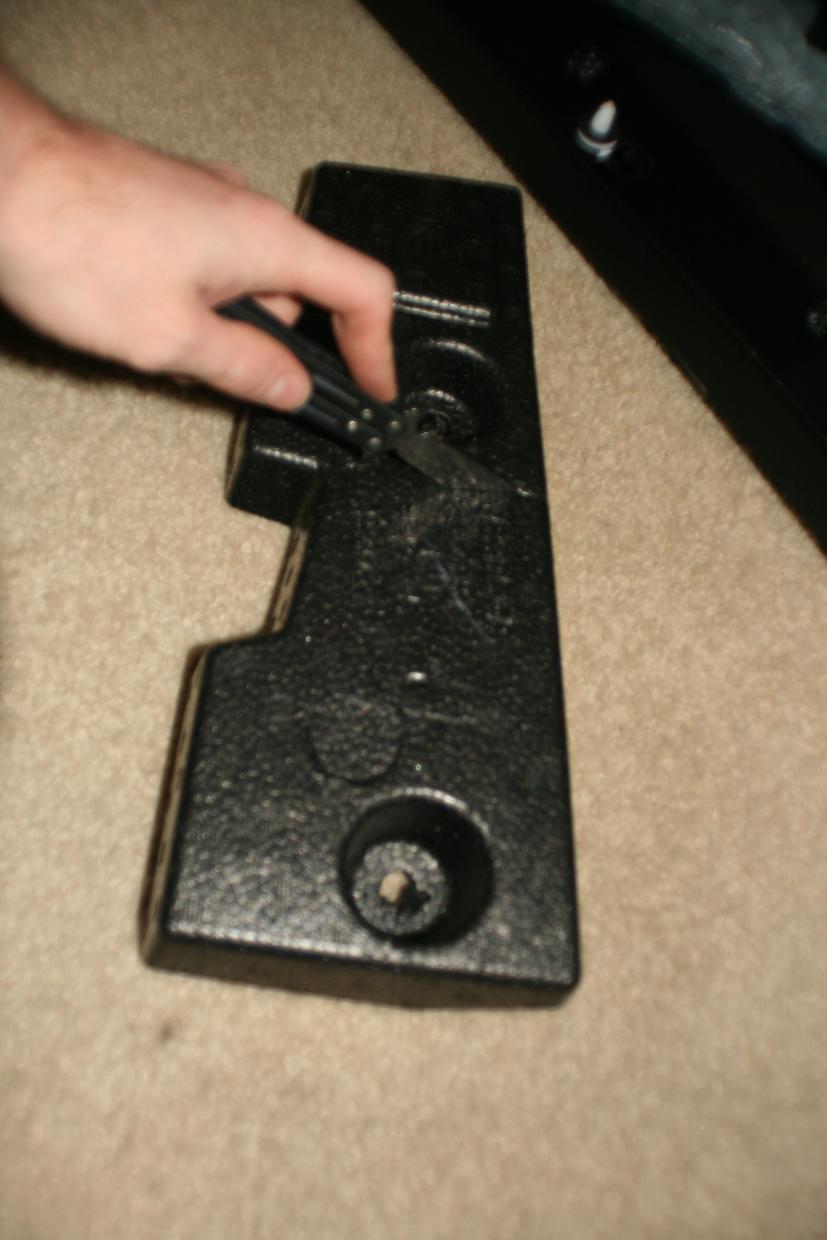

Is that a Benchmade Morpho your useing in this photo? Very Nice!
http://www.camaro5.com/forums/attach...1&d=1268146846

[Chewy]

Originally Posted by jagan323

Very cool mod OP. Very innovative! I would love to try this, but I'm having problems cutting up my car right now lol. Perhaps in a year or two =D

But good job and good results!

Thanks, all the cutting is hidden so even if you DO mess something up you can't see it

Originally Posted by Duflar

Chewy,
Is that a Benchmade Morpho your useing in this photo? Very Nice!
http://www.camaro5.com/forums/attach...1&d=1268146846

nice eye! its a great knife. I really miss my benchmade Pardue tho


***UPDATE TO THE MOD***

i wanted a brighter LED so i searched all over the place and found a great deal from a company in China

120 lumens per LED! (a maglight with 3D cell batteries oputs out 77 lumens...)

they are 3watt LEDs pre-wired with a heatsink for 12V. i just disassembled the bulb casing and took the LED and heatsink out.

[Dippkpmann]

Originally Posted by Chewy

Thanks, all the cutting is hidden so even if you DO mess something up you can't see it


nice eye! its a great knife. I really miss my benchmade Pardue tho


***UPDATE TO THE MOD***

i wanted a brighter LED so i searched all over the place and found a great deal from a company in China

120 lumens per LED! (a maglight with 3D cell batteries oputs out 77 lumens...)

they are 3watt LEDs pre-wired with a heatsink for 12V. i just disassembled the bulb casing and took the LED and heatsink out.

So this can be used to replace the led? Do they have these in other colors?

Also this mod can be applied to any 2010/2011 camaro right?

[Chewy]

best place i've found for LEDs

1, 3, and 5 watt in several colors!

http://www.sparkfun.com/categories/174

[overhaulengines]

very kool, thx, gonna do this, thanks for the writeup

lupe

[Kendell347]

3 watt seems to work the best with no chance for overheating

[montej23]

Kendell where did you get your led for your door light mod?

[Kendell347]

i think it was ebay..I've already made a quite a few for other people (with different sayings)...i try to buy the LEDs and power drivers in bulk if possible. PM me if you have any questions.
