Finally finished! Cam is a beast!
After 2 and a half months I'm finally finished with my GPI SS1 VVT cam swap, and man she's a beast! Would have had her up and running alot sooner but I accidentally ordered the wrong size intake. I had alot of fun and learned a TON. Huge thanks to everyone who commented on my many questions and helped me along the way, wouldn't have been able to do it without y'all.

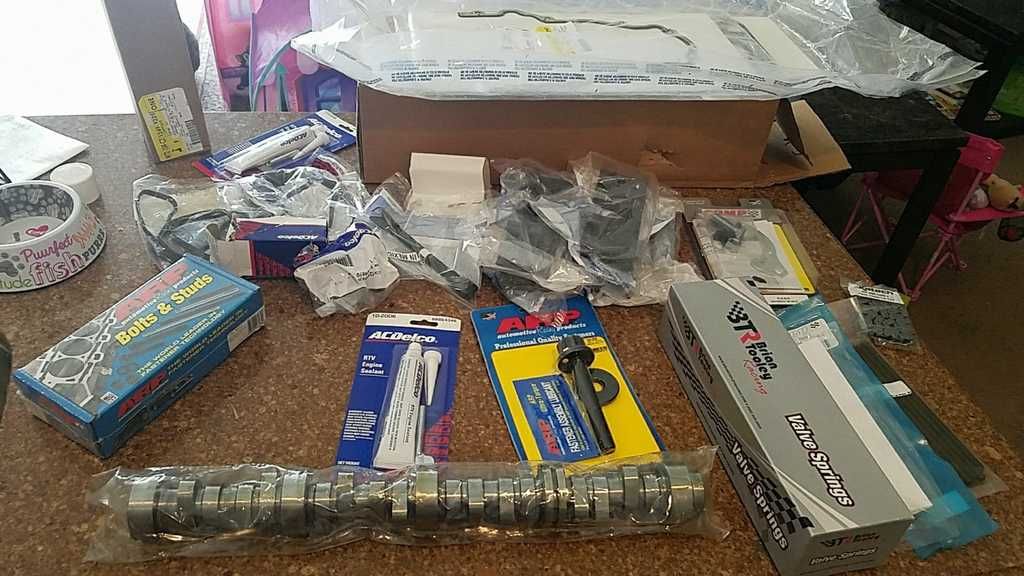

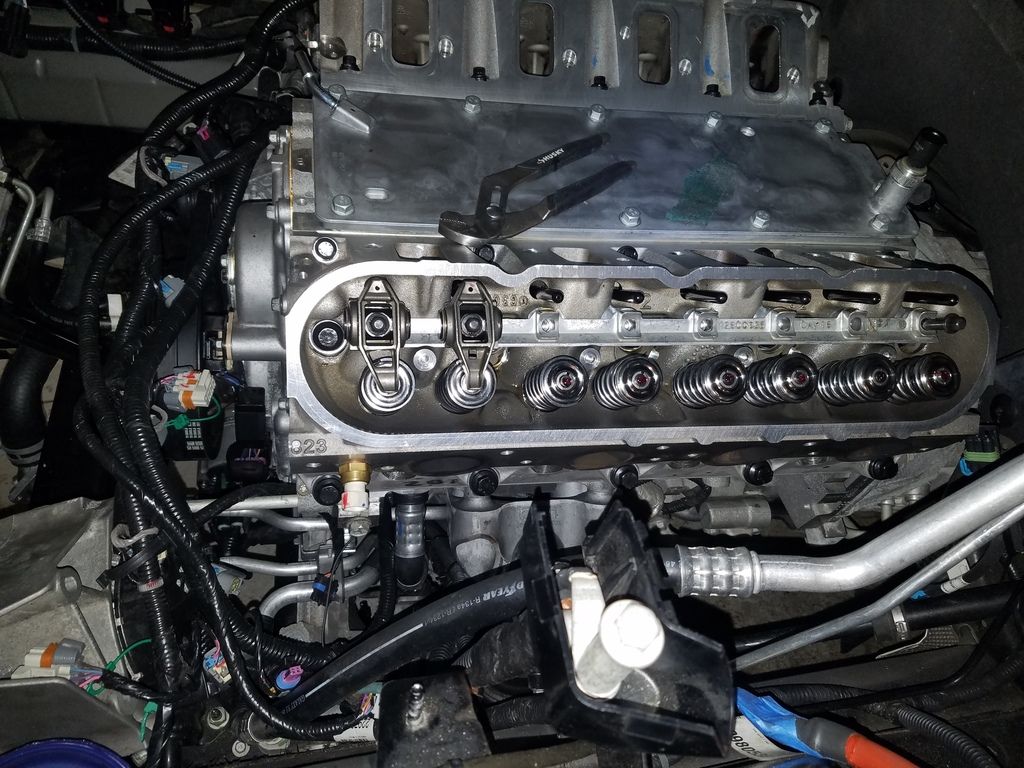

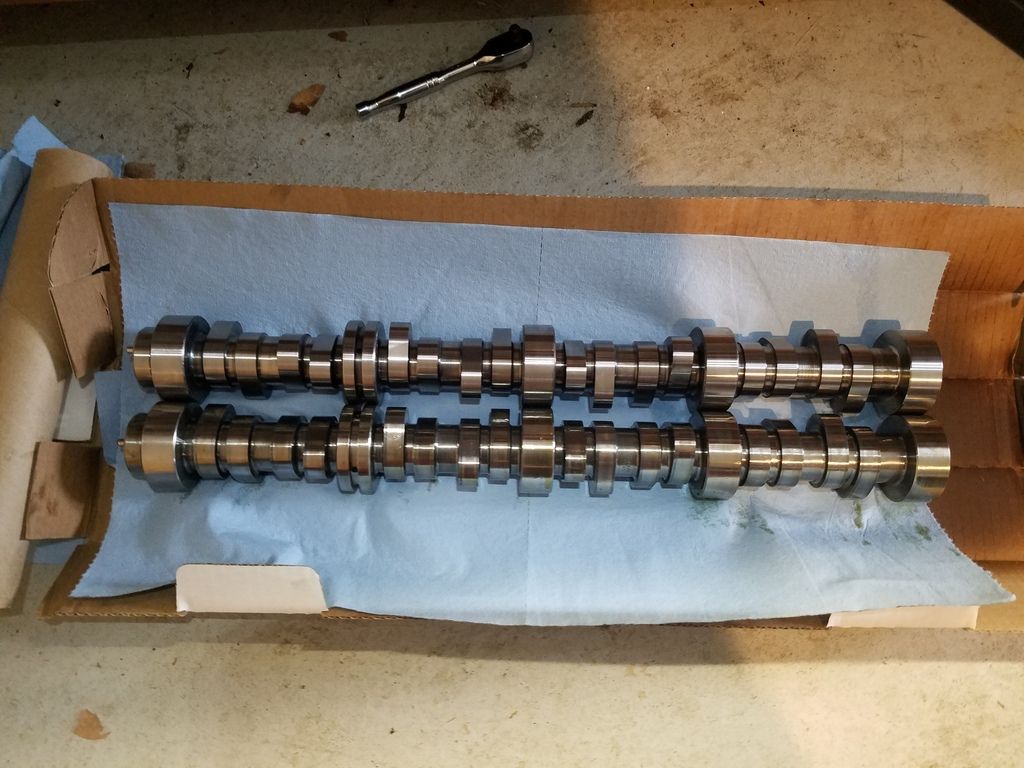

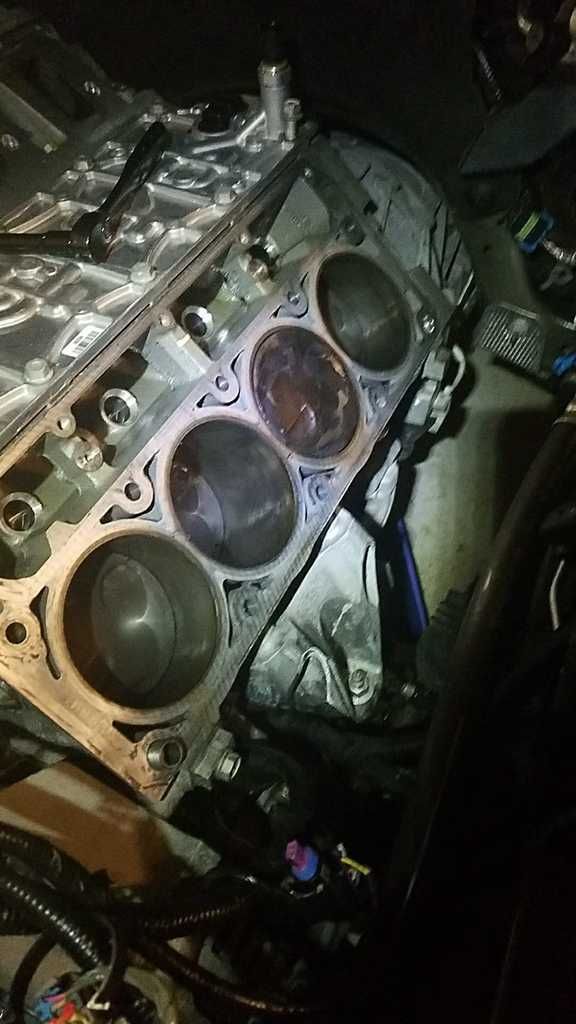

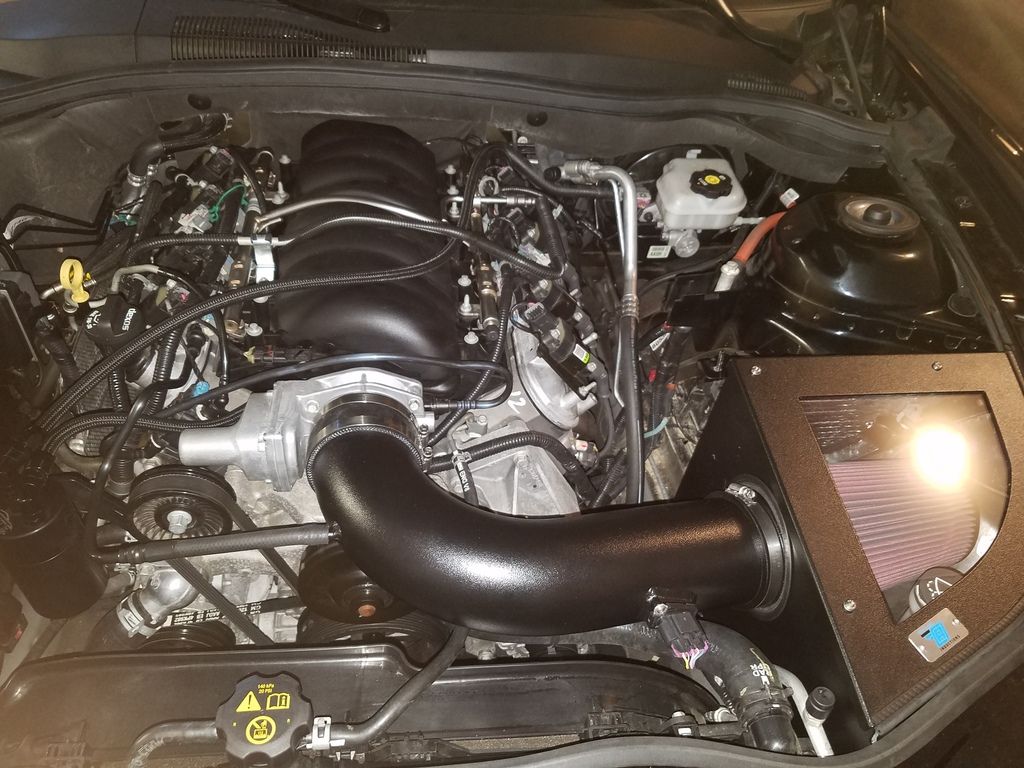

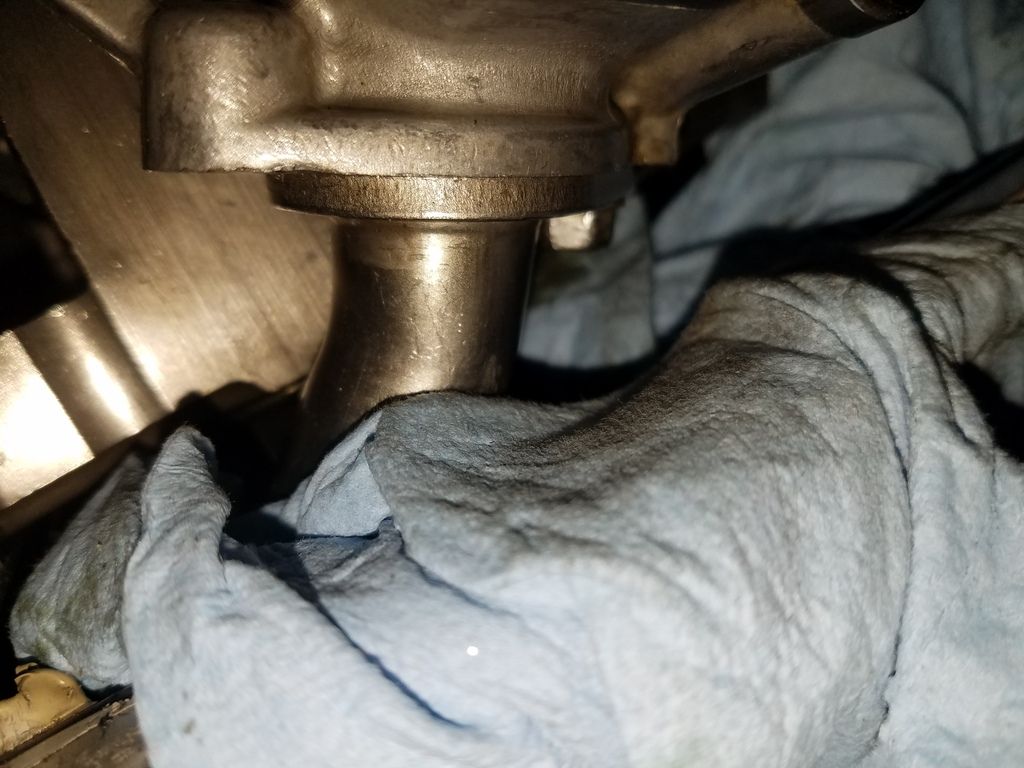

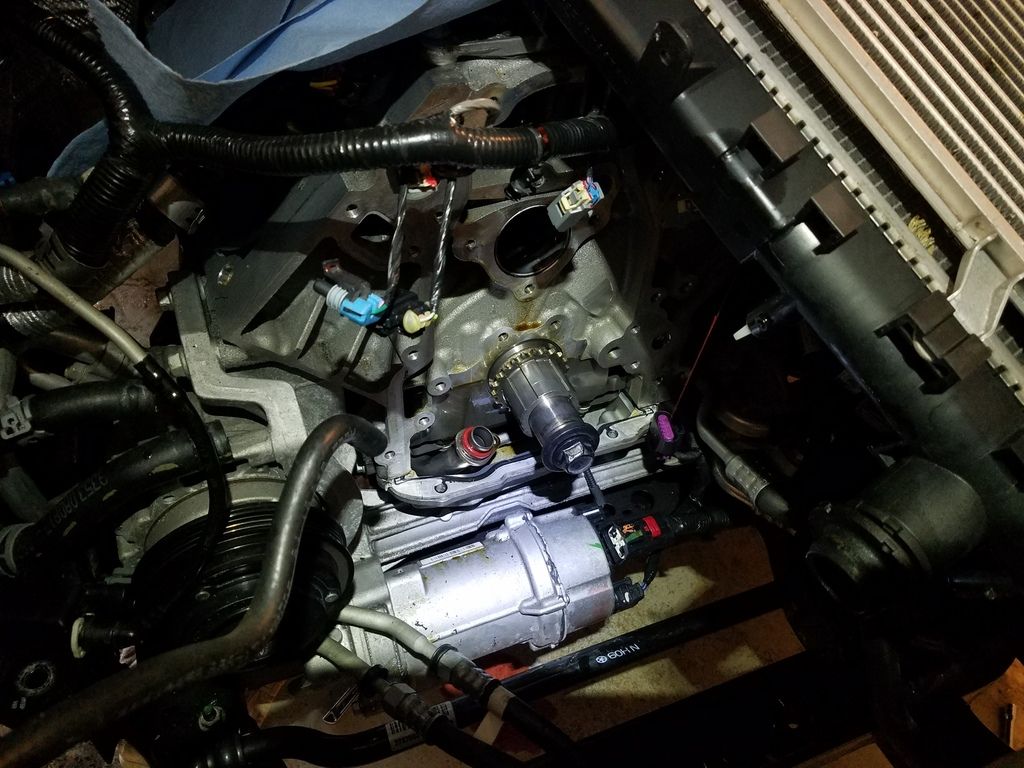

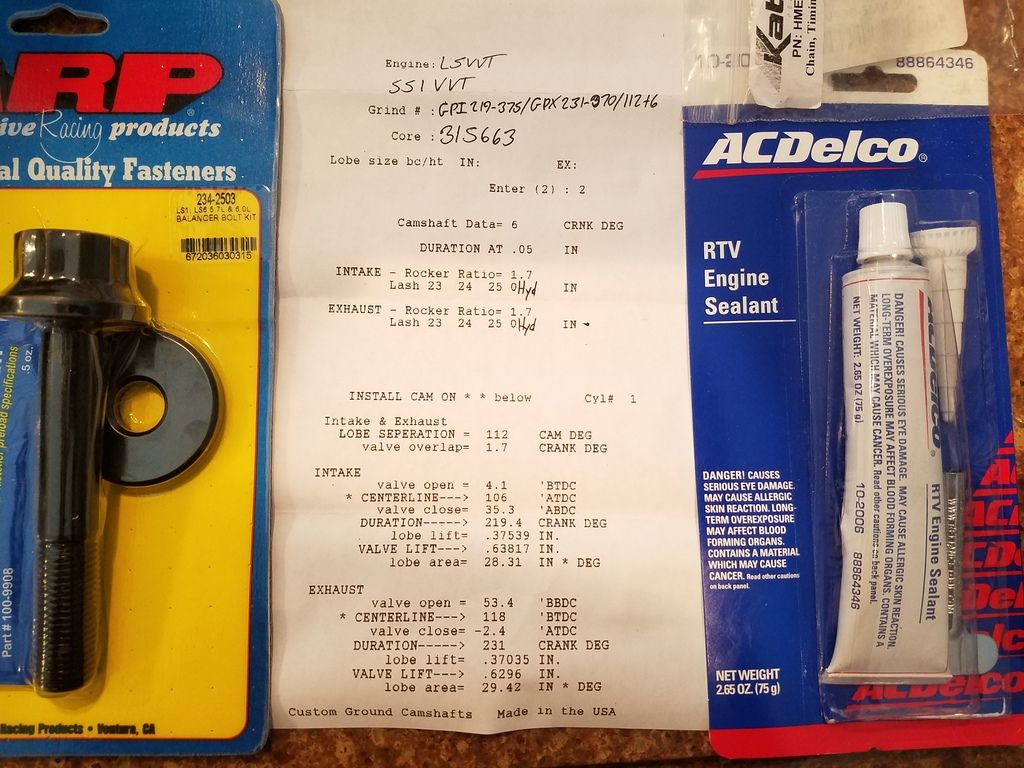

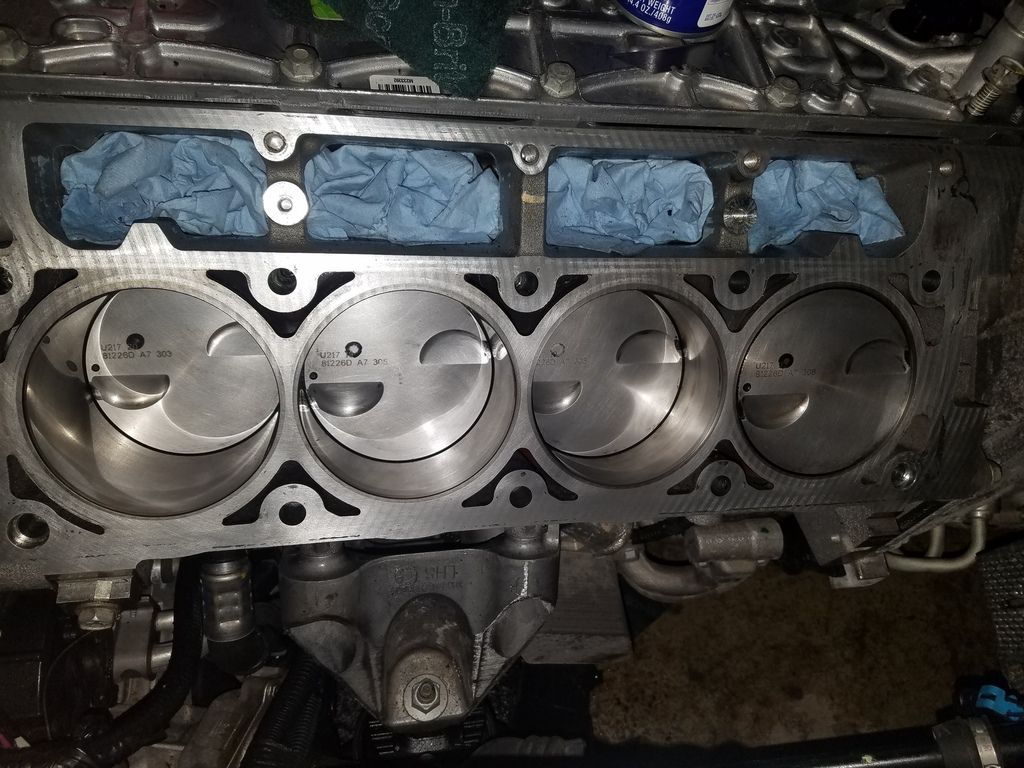

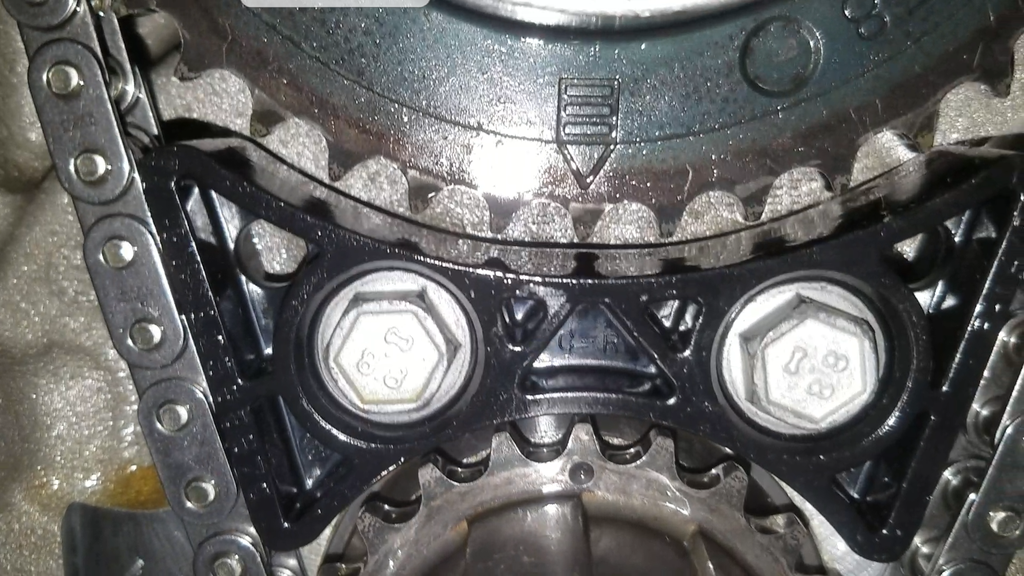

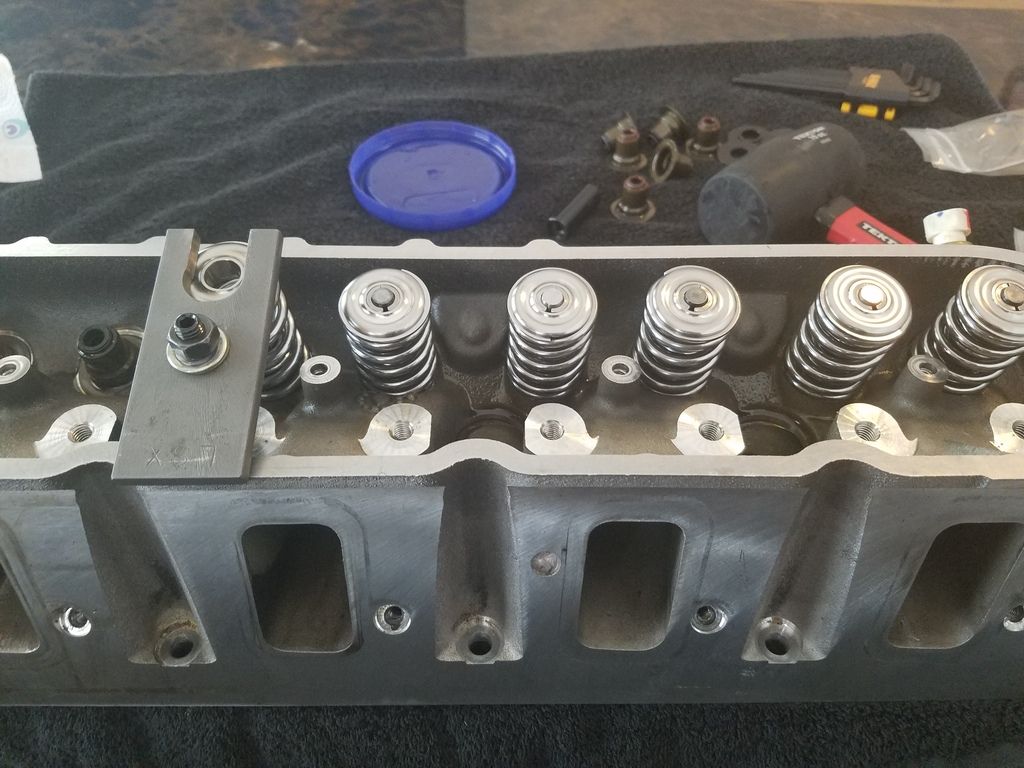

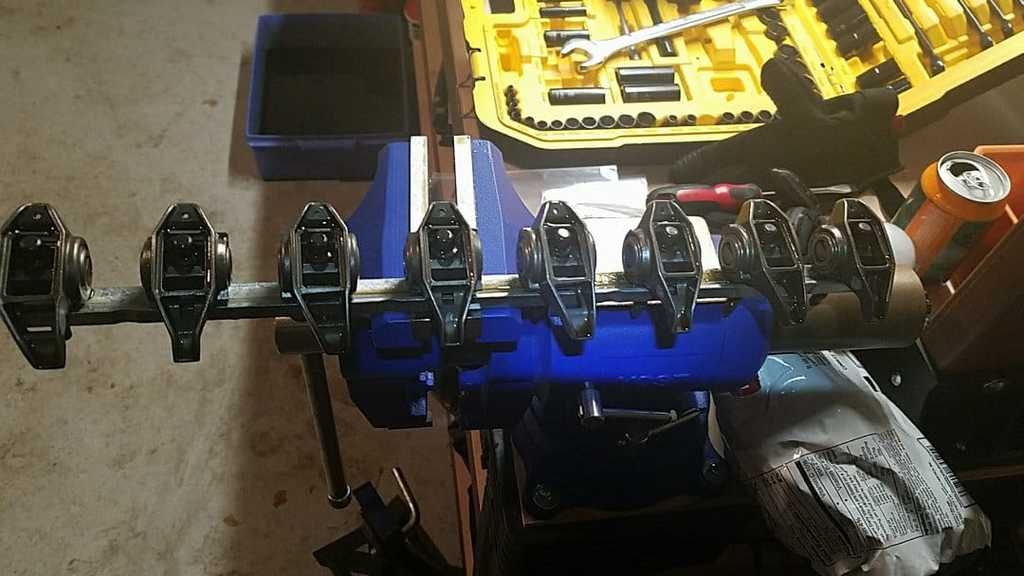

New tune and idle -thanks RDP/Dyno Steve First Pull/Moment of truth. It's pretty wet out yet and i'm still running stock pirelli's so I was expecting the slip, But nothing blew up and didnt get any flashing lights/codes!! Lol A few pics I took along the way... My wife was very "surprised" to come home and see our kitchen counter cluttered with car parts haha [IMG]  [/IMG]Had to pull the heads to swap out lifters since I have a L99. [IMG]  [/IMG]Figured I'd clean the pistons since heads were off. [IMG]  [/IMG]Pulling and reinstalling the balancer sucked... [IMG]  [/IMG]Out with the old in with the new! [IMG]  [/IMG][IMG]  [/IMG]New K5 chain and dampener. Timing realigned [IMG]  [/IMG]New cam specs [IMG]  [/IMG]Ughh...my oil tube/pump gave me so much trouble.. [IMG]  [/IMG]CHE trunnions going in! [IMG]  [/IMG]Installing new BTR 660 springs [IMG]  [/IMG]Heads and new vallycover installed and torqued to specs [IMG]  [/IMG]Everything re-installed and squared away! [IMG]  [/IMG]
__________________
MODS: GPI MAX Package ported and milled heads+(229/250,111 LSA),Johnson 2110 Lifters,BTR .660 Springs,CHE Trunnions,C5R chain,DSX Flex Fuel kit,LSA Injectors,ZL1 Fuel Pump,MAMO Ported MSD Intake manifold,BOWhite ported Throttle body,25% UDP,CAI Intake,Intake Scoop,Kooks 1 7/8 headers,Borla attak catback,Elite catch can,BMR Motor mounts,CircleD 5C 4000-4200 Torque converter,ADM trans cooler,Jannetty Trans dipstick,DSS Aluminum Driveshaft,3.91 Gears,Eaton TrueTrac,JRE Billet caps,BMR Trailing arms,BMR Toe rods,BMR rear sway bar,Pegasus Solid sub frame bushings,DSS 1,000HP Axles
|
||
|
|
|
03-07-2018, 05:51 PM
|
#2 |
|
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,709
|
Very nice! Reminds me of when I did mine... you’ll love that cam!
Did I see snow flakes in the first video? Fun! -Don
__________________
747 RWHP 794 RWTQ
"Horsepower sells cars, torque wins races." - Enzo Ferrari See My Build: http://www.camaro5.com/forums/showthread.php?t=385577 |
|
|
|
|
03-07-2018, 05:53 PM
|
#3 |

|
Awesome man. Thank you for letting us help power your hot rod!
|
|
|
|
|
03-07-2018, 06:05 PM
|
#4 | |
|
Drives: 2014 Camaro SS L99 Join Date: Nov 2017
Location: GrandRapids,Michigan
Posts: 225
|
Quote:
[IMG]  [/IMG]
__________________
MODS: GPI MAX Package ported and milled heads+(229/250,111 LSA),Johnson 2110 Lifters,BTR .660 Springs,CHE Trunnions,C5R chain,DSX Flex Fuel kit,LSA Injectors,ZL1 Fuel Pump,MAMO Ported MSD Intake manifold,BOWhite ported Throttle body,25% UDP,CAI Intake,Intake Scoop,Kooks 1 7/8 headers,Borla attak catback,Elite catch can,BMR Motor mounts,CircleD 5C 4000-4200 Torque converter,ADM trans cooler,Jannetty Trans dipstick,DSS Aluminum Driveshaft,3.91 Gears,Eaton TrueTrac,JRE Billet caps,BMR Trailing arms,BMR Toe rods,BMR rear sway bar,Pegasus Solid sub frame bushings,DSS 1,000HP Axles
|
|
|
|
|
|
03-07-2018, 06:16 PM
|
#5 |
|
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,709
|
Nice! Glad you found it useful...
Damn, don’t miss that snow! Y’all can keep it ;o) -Don
__________________
747 RWHP 794 RWTQ
"Horsepower sells cars, torque wins races." - Enzo Ferrari See My Build: http://www.camaro5.com/forums/showthread.php?t=385577 |
|
|
|
|
03-07-2018, 06:28 PM
|
#6 |
Drives: '14 BRM 1LE 2SS/RS Join Date: Nov 2017
Location: Ft. Wayne, IN
Posts: 804
|
That sounds awesome, nice work! Now do something about those exhaust tips so they don't stick out so dang far.
__________________
592 HP/590 TQ
LSA Blower w/ 2.45 Griptec, Reinforced Brick, FIC 1000 injectors, JRE FPCM, LFP Dual Pass HX, ZL1 IC pump, RotoFab CAI, Bo White TB, Coated Stainless Power 1-7/8" LTs, NPP, NGK TR7IX, Mighty Mouse Wild CC, AEM X-Series WB, Aeroforce Interceptor, MGW Shifter, Z28 Grill, Gary's Custom ZL1 Rockers, Hero Tails, Tuned by IMC |
|
|
|
|
03-07-2018, 06:36 PM
|
#7 |
Drives: 2015 Camaro 1SS L99 Join Date: Apr 2016
Location: Quad Cities, Iowa
Posts: 623
|
congrats on a successful install! I hope to join you in about a months time
|
|
|
|
|
03-08-2018, 09:31 AM
|
#8 | |
|
Drives: 2014 Camaro SS L99 Join Date: Nov 2017
Location: GrandRapids,Michigan
Posts: 225
|
Quote:
__________________
MODS: GPI MAX Package ported and milled heads+(229/250,111 LSA),Johnson 2110 Lifters,BTR .660 Springs,CHE Trunnions,C5R chain,DSX Flex Fuel kit,LSA Injectors,ZL1 Fuel Pump,MAMO Ported MSD Intake manifold,BOWhite ported Throttle body,25% UDP,CAI Intake,Intake Scoop,Kooks 1 7/8 headers,Borla attak catback,Elite catch can,BMR Motor mounts,CircleD 5C 4000-4200 Torque converter,ADM trans cooler,Jannetty Trans dipstick,DSS Aluminum Driveshaft,3.91 Gears,Eaton TrueTrac,JRE Billet caps,BMR Trailing arms,BMR Toe rods,BMR rear sway bar,Pegasus Solid sub frame bushings,DSS 1,000HP Axles
|
|
|
|
|
|
03-08-2018, 05:16 PM
|
#9 |
|
Fast Cars and Old Guitars
Drives: 2015 2SS RS (L99, baby!) Join Date: Apr 2012
Location: N. CA
Posts: 4,198
|
How does the ol butt dyno feel? Or is it still snowing?
__________________
“I don’t want to belong to any club that would have me as a member.” - Groucho Marx
|
|
|
|
|
03-08-2018, 05:56 PM
|
#10 |

|
Wow this is great. I need a cam on my L99 now!
__________________
 Follow Me @ssatann_ss |
|
|
|
|
03-09-2018, 08:46 AM
|
#11 |
|
Drives: 2014 Camaro SS L99 Join Date: Nov 2017
Location: GrandRapids,Michigan
Posts: 225
|
Was driving home after work and my CEL popped, P0011- Camshaft Position Timing Over - Advance. I found a couple threads saying it could be a tune issue related to the "VVT tables". I'm really hoping this is the case and its not something mechanical, if it is i'm gonna have to pull everything apart and chances are something will be damaged
 Anyway, I just emailed RDP/Dyno Steve and explained the situation, Fingers crossed.
__________________
MODS: GPI MAX Package ported and milled heads+(229/250,111 LSA),Johnson 2110 Lifters,BTR .660 Springs,CHE Trunnions,C5R chain,DSX Flex Fuel kit,LSA Injectors,ZL1 Fuel Pump,MAMO Ported MSD Intake manifold,BOWhite ported Throttle body,25% UDP,CAI Intake,Intake Scoop,Kooks 1 7/8 headers,Borla attak catback,Elite catch can,BMR Motor mounts,CircleD 5C 4000-4200 Torque converter,ADM trans cooler,Jannetty Trans dipstick,DSS Aluminum Driveshaft,3.91 Gears,Eaton TrueTrac,JRE Billet caps,BMR Trailing arms,BMR Toe rods,BMR rear sway bar,Pegasus Solid sub frame bushings,DSS 1,000HP Axles
|
|
|
|
|
03-09-2018, 05:13 PM
|
#12 |
|
|
Tune tables. I have the settings for that I can share if you email me.
|
|
|
|
|
03-09-2018, 05:27 PM
|
#13 | |
|
Drives: 2014 Camaro SS L99 Join Date: Nov 2017
Location: GrandRapids,Michigan
Posts: 225
|
Quote:
__________________
MODS: GPI MAX Package ported and milled heads+(229/250,111 LSA),Johnson 2110 Lifters,BTR .660 Springs,CHE Trunnions,C5R chain,DSX Flex Fuel kit,LSA Injectors,ZL1 Fuel Pump,MAMO Ported MSD Intake manifold,BOWhite ported Throttle body,25% UDP,CAI Intake,Intake Scoop,Kooks 1 7/8 headers,Borla attak catback,Elite catch can,BMR Motor mounts,CircleD 5C 4000-4200 Torque converter,ADM trans cooler,Jannetty Trans dipstick,DSS Aluminum Driveshaft,3.91 Gears,Eaton TrueTrac,JRE Billet caps,BMR Trailing arms,BMR Toe rods,BMR rear sway bar,Pegasus Solid sub frame bushings,DSS 1,000HP Axles
|
|
|
|
|
|
03-09-2018, 05:52 PM
|
#14 |
|
USA-1
|
Heck ya, great work!
