Old 10-14-2010, 03:31 PM   #1
Dangeruss
Bayoucitymusclecars.com

Dangeruss's Avatar

Drives: Camaro LSX
Join Date: Jul 2009
Location: Spring, TX
Posts: 4,514
My Savini SV21c wheels!

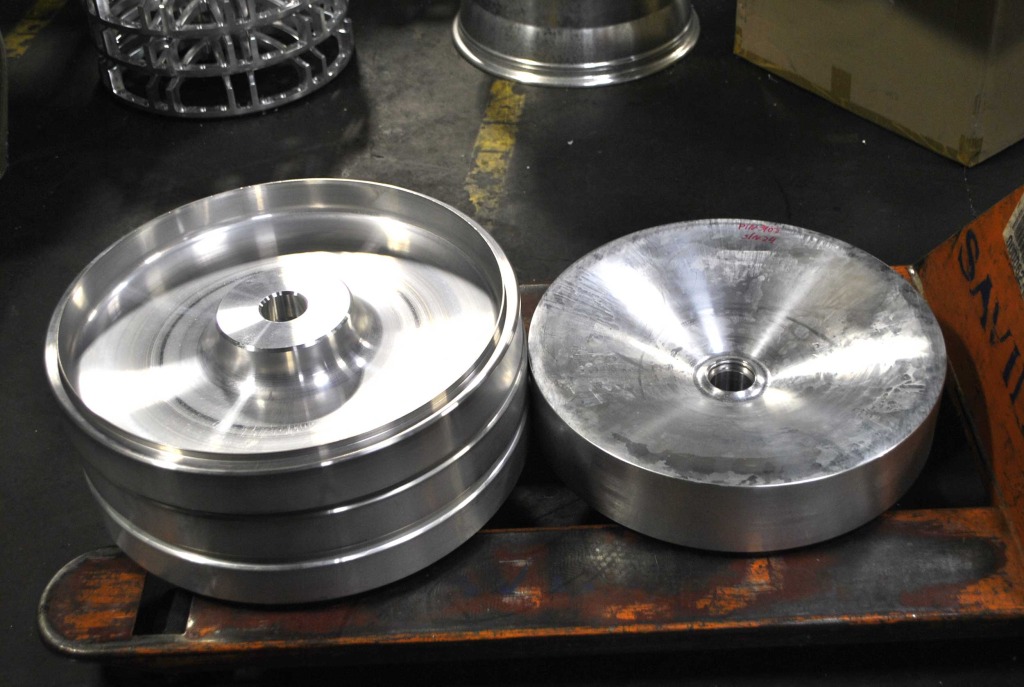

My new Savini SV21cs are being worked on as we speak! 22X11s (315/25/22) in the rear and 22X9s (265/30/22) in the front.

Thanks so much to Nick at BFXauto for keeping me informed throughout the process. Here are some initial pics.

UPDATE: Finished pics!
Attached Images

__________________

Last edited by Dangeruss; 11-27-2010 at 10:29 AM.
Dangeruss is offline   Reply With Quote
Old 10-14-2010, 05:04 PM   #2
Savini
Account Suspended

Drives: 2010 Camaro SS
Join Date: Nov 2009
Location: Anaheim, CA
Posts: 274
Send a message via AIM to Savini
ooooo doggie! Those are TOP SECRET! hahaha... jk
Savini is offline   Reply With Quote
Old 10-14-2010, 05:28 PM   #3
Nine Ball

Nine Ball's Avatar

Drives: 1969 & 2011 Camaro SS
Join Date: Oct 2008
Location: Houston, TX
Posts: 3,840
Cool pics. Sharing these might help explain the differences between cheap Chinese cast junk vs an actual forged/machined wheel. Here is an illustration of the other method of making wheels:



LOL
Nine Ball is offline   Reply With Quote
Old 10-14-2010, 06:14 PM   #4
rolnslo
Rolling along...

rolnslo's Avatar

Drives: 2011 2SS/RS SGM
Join Date: Mar 2008
Location: Houston, TX
Posts: 4,320
Quote:
Originally Posted by Nine Ball View Post
Cool pics. Sharing these might help explain the differences between cheap Chinese cast junk vs an actual forged/machined wheel. Here is an illustration of the other method of making wheels:



LOL
Forgive my lack of knowledge here but what would be the step required to make the original round blanks used in the CNC machine? Wouldn't that be the same idea of pouring hot liquid metal into a form?
__________________

#1: 2010 1LT/RS Victory Red M6 - July 2009-Oct 2011 (SOLD). #2: 2011 2SS/RS Synergy Green A6 - Oct 2011.....
rolnslo is offline   Reply With Quote
Old 10-14-2010, 07:00 PM   #5
Apex Motorsports


Apex Motorsports's Avatar

Drives: 2000 Camaro SS
Join Date: Feb 2010
Location: Louisville, Ky.
Posts: 23,394
Quote:
Originally Posted by Dangeruss View Post
My new set of Savini SV21cs are being worked on as we speak! 22X11s (315/25/22) in the rear and 22X9s (265/30/22) in the front.

Thanks so much to Nick at BFXauto for keeping me informed throughout the process. Here are some initial pics.
Sweet! Can't wait to see them finished and mounted.
__________________
Apex Motorsports is offline   Reply With Quote
Old 10-14-2010, 07:23 PM   #6
Dangeruss
Bayoucitymusclecars.com

Dangeruss's Avatar

Drives: Camaro LSX
Join Date: Jul 2009
Location: Spring, TX
Posts: 4,514
Here's a quick Photoshop I put together.
Attached Images

__________________
Dangeruss is offline   Reply With Quote
Old 10-14-2010, 08:34 PM   #7
My 5th


My 5th's Avatar

Drives: 2010 2SS/RS M6 Black on Black
Join Date: Jan 2010
Location: Utah
Posts: 808
Quote:
Originally Posted by rolnslo View Post
Forgive my lack of knowledge here but what would be the step required to make the original round blanks used in the CNC machine? Wouldn't that be the same idea of pouring hot liquid metal into a form?
My understanding of the forging process is that the round "blank" is poured into a mold, but while it's still molten to a degree they forge it by some type of impact, like dropping it onto an anvil or something. It's not too different from the old blacksmith hammering a glowing horseshoe--the hammering condenses the metal molecules, putting them closer together and molecularly aligning them in a manner that makes the resulting piece much stronger than just a cast piece.

Not that I'm a metallurgist or anything, so maybe I'm completely up in the night.
__________________
Mods: Ridetech coilovers, prothane bushings, braided brake lines, Pfadt ZL1 style sways, Hawk ceramic pads, Spohn trailing arms, Kooks 1 7/8 LT's, HF cats, Magnaflow 3" cat-back, MBRP rec tips, Cold Air Inductions black CAI, MGW short-throw shifter w/retro shift ball, Showstopper Engine Bling, Forgeline MD3P's 9.5 & 11", Conti DWS 275's & 315's. JDP harness and DRL's. Seibon carbon fiber GFX, Anvil carbon fiber rear spoiler. Oracle ghosted LED side marker lights.

Proud previous owner of: 1968 327 Camaro, 1972 Camaro SS 350, 1978 Z28, 1979 Z28. 2010 SS is My 5th Camaro
My 5th is offline   Reply With Quote
Old 10-14-2010, 09:13 PM   #8
GEEo
OKCamaros

GEEo's Avatar

Drives: 4 banger Diesel
Join Date: Mar 2010
Location: Philippines
Posts: 4,602
Quote:
Originally Posted by Dangeruss View Post
Here's a quick Photoshop I put together.
Looks great man!!

Cant wait to see the real one.
GEEo is offline   Reply With Quote
Old 10-14-2010, 10:00 PM   #9
rolnslo
Rolling along...

rolnslo's Avatar

Drives: 2011 2SS/RS SGM
Join Date: Mar 2008
Location: Houston, TX
Posts: 4,320
Quote:
Originally Posted by Dangeruss View Post
Here's a quick Photoshop I put together.
Those are going to look awesome on your car! Nice choice.
__________________

#1: 2010 1LT/RS Victory Red M6 - July 2009-Oct 2011 (SOLD). #2: 2011 2SS/RS Synergy Green A6 - Oct 2011.....
rolnslo is offline   Reply With Quote
Old 10-14-2010, 10:01 PM   #10
Nine Ball

Nine Ball's Avatar

Drives: 1969 & 2011 Camaro SS
Join Date: Oct 2008
Location: Houston, TX
Posts: 3,840
Forged blanks start out as super heated chunks of cast aluminum, and are slammed by a huge press that pushes about 6,000 tons. This aligns the grain of the material, and improves the properties of aluminum. It increases the tensile strength, and also reduces the brittle nature of cast aluminum. Cast wheels are terrible at surviving impacts, they crack and shatter. Forged wheels typically just bend, they hold together better. Forged material is also stronger than cast aluminum, so it requires less spoke material to support the same load. This is what makes forged wheels lighter than cast wheels.
Nine Ball is offline   Reply With Quote
Old 10-14-2010, 10:04 PM   #11
mikepage0007



mikepage0007's Avatar

Drives: 2010 camaro
Join Date: Aug 2009
Location: port st lucie ,florida
Posts: 4,274
gald to see i,m not the only one..looks great...can,t wait to see them on car...i,m almost jealous
__________________
mikepage0007 is offline   Reply With Quote
Old 10-14-2010, 10:05 PM   #12
rolnslo
Rolling along...

rolnslo's Avatar

Drives: 2011 2SS/RS SGM
Join Date: Mar 2008
Location: Houston, TX
Posts: 4,320
Quote:
Originally Posted by My 5th View Post
My understanding of the forging process is that the round "blank" is poured into a mold, but while it's still molten to a degree they forge it by some type of impact, like dropping it onto an anvil or something. It's not too different from the old blacksmith hammering a glowing horseshoe--the hammering condenses the metal molecules, putting them closer together and molecularly aligning them in a manner that makes the resulting piece much stronger than just a cast piece.

Not that I'm a metallurgist or anything, so maybe I'm completely up in the night.
Quote:
Originally Posted by Nine Ball View Post
Forged blanks start out as super heated chunks of cast aluminum, and are slammed by a huge press that pushes about 6,000 tons. This aligns the grain of the material, and improves the properties of aluminum. It increases the tensile strength, and also reduces the brittle nature of cast aluminum. Cast wheels are terrible at surviving impacts, they crack and shatter. Forged wheels typically just bend, they hold together better. Forged material is also stronger than cast aluminum, so it requires less spoke material to support the same load. This is what makes forged wheels lighter than cast wheels.
Thanks for the explanation. Just not something I knew anything about until today.
__________________

#1: 2010 1LT/RS Victory Red M6 - July 2009-Oct 2011 (SOLD). #2: 2011 2SS/RS Synergy Green A6 - Oct 2011.....
rolnslo is offline   Reply With Quote
Old 10-14-2010, 11:45 PM   #13
showstopper
Showstopper Accessories


Drives: 2010 RS/SS
Join Date: Jul 2009
Location: Chicago
Posts: 2,976
Those are just what your car needed Russ. No wonder you haven't made a purchase with us in a couple months.
__________________
showstopper is offline   Reply With Quote
Old 10-14-2010, 11:46 PM   #14
2010 SSRS




2010 SSRS's Avatar

Drives: 3 V8 Camaros
Join Date: May 2009
Location: The Ocean State
Posts: 123,973
nice
__________________
Jannetty Racing JRE Street Package
2010 SSRS is offline   Reply With Quote
Old 10-14-2010, 11:53 PM   #15
camaro-wheels

Drives: 2010 Camaro
Join Date: Oct 2010
Location: Glendale CA
Posts: 3
very... very... nice
camaro-wheels is offline   Reply With Quote
Old 10-15-2010, 08:18 AM   #16
BLACK10


BLACK10's Avatar

Drives: 2010 CAMARO. 10.04@133mph, 1.4 60'
Join Date: Jul 2009
Location: Lafayette, Louisiana
Posts: 5,032
very cool, nick@ BFXenon has great customer service
BLACK10 is offline   Reply With Quote
Old 10-15-2010, 10:42 AM   #17
mlee
H-Town Camaro Club

mlee's Avatar

Drives: Number Twenty-Three
Join Date: Oct 2008
Location: Conroe, TX
Posts: 24,679
LOL... hey that wheel looks nice photoshoped on my car...

Can't wait to see them on yours...
__________________
.
mlee is offline   Reply With Quote
Old 10-15-2010, 10:57 AM   #18
Dangeruss
Bayoucitymusclecars.com

Dangeruss's Avatar

Drives: Camaro LSX
Join Date: Jul 2009
Location: Spring, TX
Posts: 4,514
Quote:
Originally Posted by mlee View Post
LOL... hey that wheel looks nice photoshoped on my car...

Can't wait to see them on yours...
Yea...the angle looked good. I figured you wouldn't mind.
__________________
Dangeruss is offline   Reply With Quote
Old 10-15-2010, 11:50 AM   #19
C4
ERNEST

C4's Avatar

Drives: 2012CAMARO 1LT RS CONVERTIBLE
Join Date: Apr 2009
Location: SAN ANTONIO, TEXAS
Posts: 2,240
damn.... those are some bad azz rims......
C4 is offline   Reply With Quote
Old 10-15-2010, 12:53 PM   #20
JustMyMaro811

JustMyMaro811's Avatar

Drives: 2SS White Camaro
Join Date: Sep 2010
Location: Houston
Posts: 6
Liked the pics on the making of them. That was cool!
Looking at some myself. Can't wait for the finished product and pics!
JustMyMaro811 is offline   Reply With Quote
Old 10-15-2010, 01:13 PM   #21
Dr Jkel
and MR. HYDE

Dr Jkel's Avatar

Drives: 2010 2SS RJT/BLK 6Spd Man
Join Date: May 2009
Location: Oxford, Alabama
Posts: 4,461
Here's another version of these wheels.

These wheels are awesome, mine should be done, mounted and balanced, this week. I am stoked.

Nice wheels for your car.
Attached Images

__________________
MUSTANG...Like Bringing a Hot Dog to a Steak Dinner....There is no comparison.

Last edited by Dr Jkel; 10-15-2010 at 01:41 PM.
Dr Jkel is offline   Reply With Quote
Old 10-15-2010, 02:47 PM   #22
khislop007
ZEUSS

khislop007's Avatar

Drives: Hard!
Join Date: Sep 2008
Location: Cayman Islands
Posts: 2,575
Nice!
__________________
khislop007 is offline   Reply With Quote
Old 10-15-2010, 09:10 PM   #23
WhiteonWhite

WhiteonWhite's Avatar

Drives: 2011 Camaro LS
Join Date: Oct 2010
Location: St.Petersburg, Fl.
Posts: 32
Those things are sick! I work for a rim tire shop and the Savini wheels are always my favorite. I just cant afford to put them on my car. So I had to do Lexani instead. Still out a little over $500 a wheel though
__________________
2011 Camaro LS
24" Staggard Lexani LSS 55 (powder coated white) 24x9 24x10 w/ 255/30/24 & 275/30/24

Custom Interior Black Suede and Leather...

For Show not Go...


WhiteonWhite is offline   Reply With Quote
Old 10-15-2010, 09:14 PM   #24
WhiteonWhite

WhiteonWhite's Avatar

Drives: 2011 Camaro LS
Join Date: Oct 2010
Location: St.Petersburg, Fl.
Posts: 32
Quote:
Originally Posted by mikepage0007 View Post
gald to see i,m not the only one..looks great...can,t wait to see them on car...i,m almost jealous
Mike,
Did you used to live in the Gulfport /St.Petersburg area as a kid? Just wondering cause I new a kid Mike Page way back in the day. And you live not 2 far away so I put 2 in 2 together. Anyways Badass Camaro in your sign.
__________________
2011 Camaro LS
24" Staggard Lexani LSS 55 (powder coated white) 24x9 24x10 w/ 255/30/24 & 275/30/24

Custom Interior Black Suede and Leather...

For Show not Go...


WhiteonWhite is offline   Reply With Quote
Old 10-15-2010, 09:14 PM   #25
zirotti

zirotti's Avatar

Drives: 2013 ZL1
Join Date: Aug 2010
Location: Dallas
Posts: 402
What do these look like in 20"?
zirotti is offline   Reply With Quote
