Post DIY Wrapping your Bow Ties with Carbon Fiber Film

DIY 3D Carbon Fiber Film Application on 2010 Camaro Bowties
To start your project you need some 3D carbon wrap material – see vendor thread here for more information on it. Once you have your Carbon Fiber wrap (we have one item on the site that you can use to do both front and rear bow ties), you need the following items:

Your cleaned Camaro
3D Carbon Fiber Wrap from headlight Armor (we used a 6.75" x 8" sheet for this tutorial)
Isopropyl rubbing alcohol – final prep cleaning
Heat gun
Scissors
Very sharp razor knife with new blade
Microfiber towels – we prefer the ultrasuede like ones
Can do attitude – what diy project doesn’t

The tutorial was shot inside with brand new badges from our Chevy dealer but the application process works just as well with them mounted to the vehicle (you don’t need to remove them for install)

Start by cleaning the bowties with your favorite soap and water, paying particular attention to the edges where the gold center ends and the chrome trim starts. Rinse completely and dry. Make sure your hands are clean and oil free too. Next wipe the surface and edges with the rubbing alcohol.

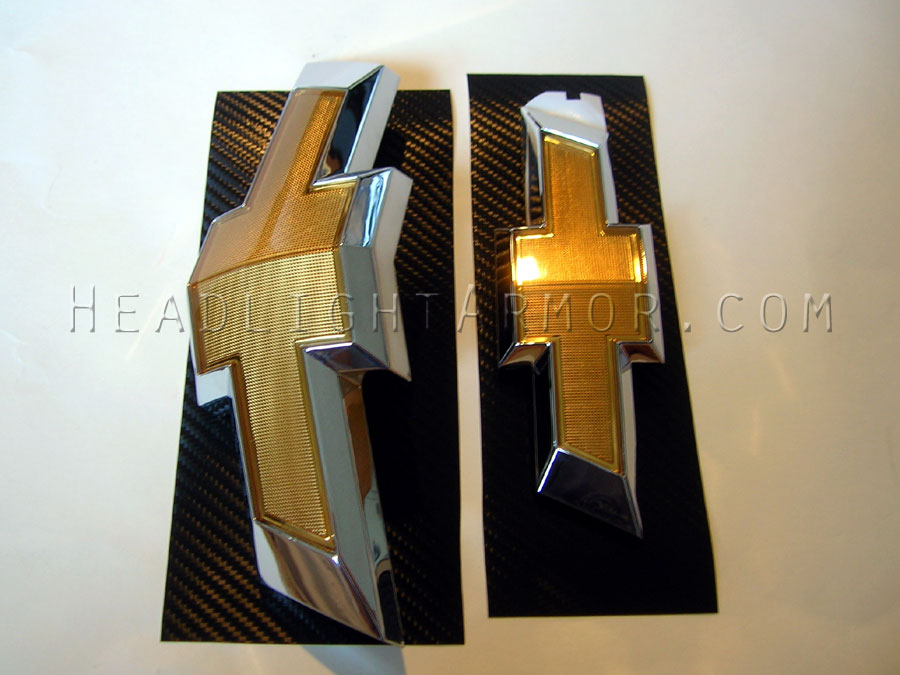

Take your piece of carbon fiber and measure the needed amount for one of the bowties and cut as shown



You will have some extra both left and right and up and down.

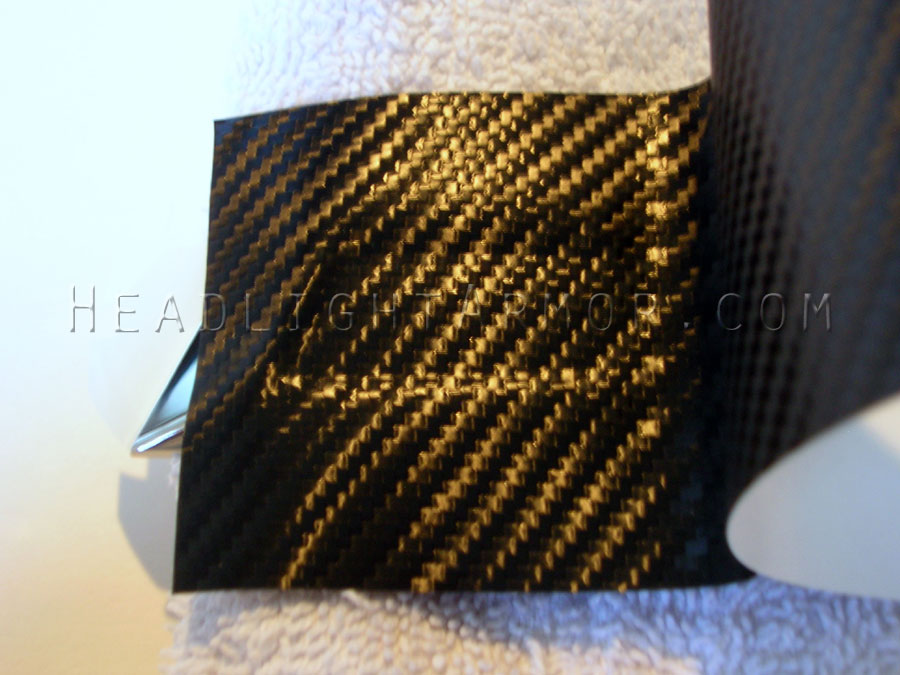

Since the back bowties are easier, we are going to start there. With your bowtie cleaned and prepped and your carbon fiber wrap sheet cut, it is time to get down to business.

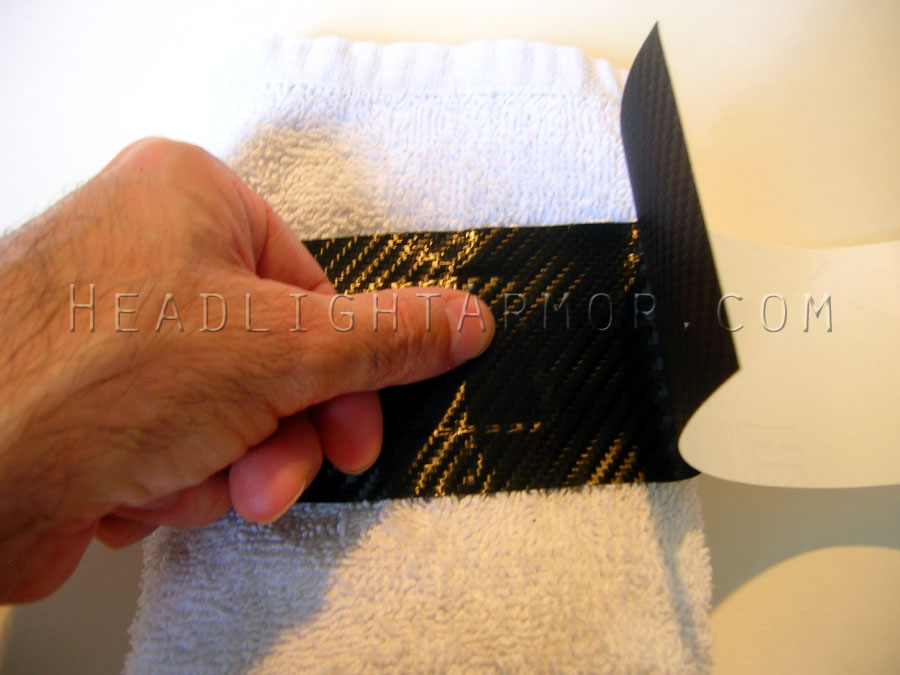

Start by gently warming the material a bit, just a little to bring it up to 80-90 degrees or so. Peel back ~ 1/3 of the backing paper – not all of it – and place on one side of the bowtie as shown. Using your thumb and pressing the material down into the center and out to the edges.



Warm the next third of the material – this time a little warmer as we are going up and over a small compound area - 104-122 degrees - and continue peeling the backing paper back and pressing the material down. Work from the area that is set across the center and out to the sides evenly left to right and top to bottom in small increments as shown.



Repeat until the end of the bowtie is reached.

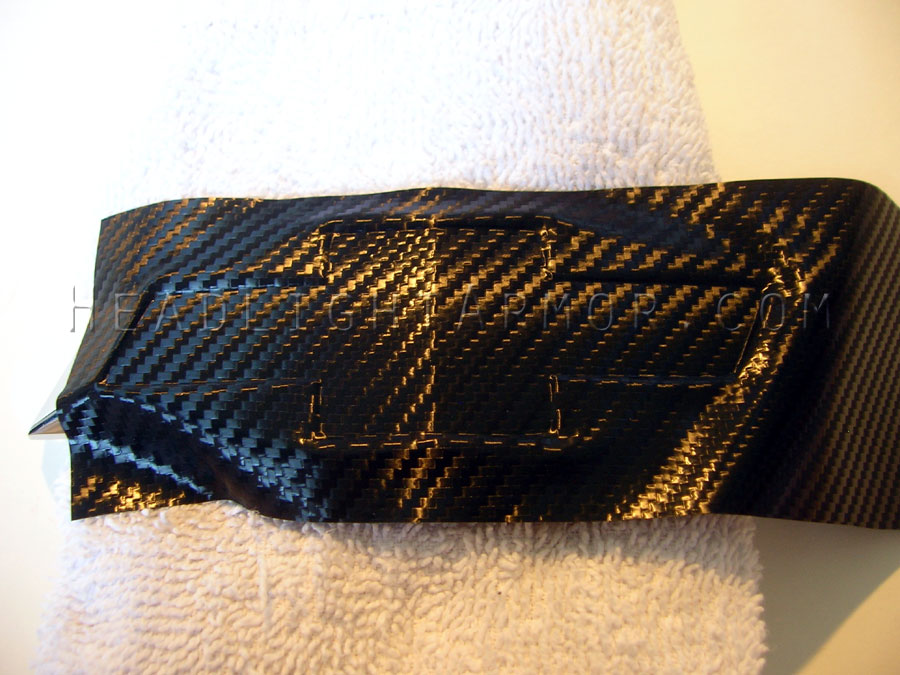

It is now on. Warm again ~ 104-122 degrees and go over with either your hand or you hands wrapped in a suede microfiber towel to make sure you didn’t leave any bubbles. The adhesive has air release channels so you should be bubble free. Go around the edge with the back of your fingernail (preferably wrapped in the suede microfiber towel) and set the material into the channel between the center bowtie and the chrome surround.

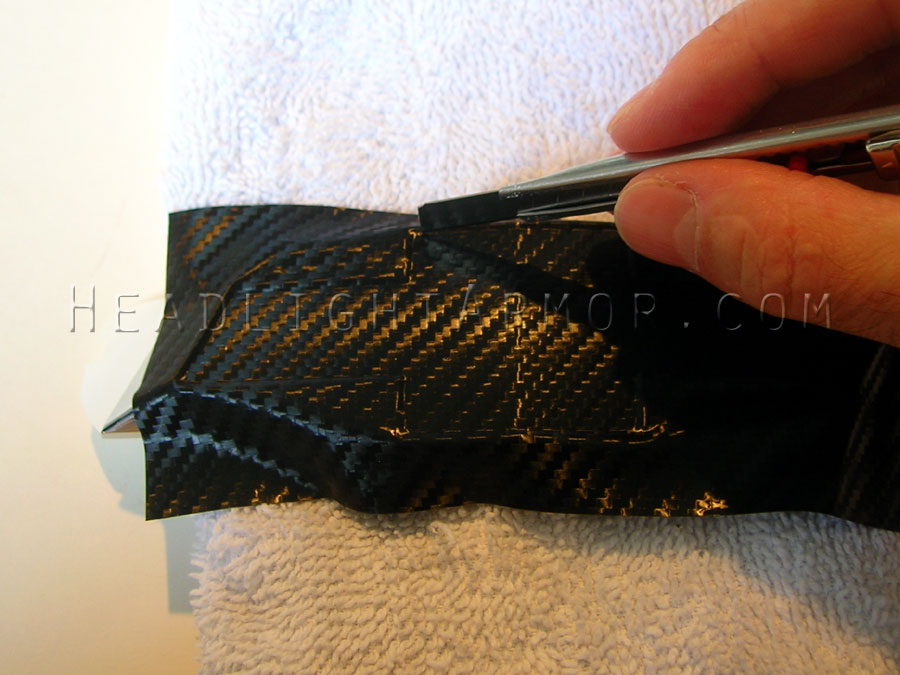

Now it is time to trim. Get your sharp razor knife with a new blade and trim the excess away – using the channel where the center meets the boarder as a guide. This is the important step as you can’t uncut it if you somehow miss… We have found the cleanest way to accomplish this is to make two cuts per profile. For each section start somewhere other than a corner and make two cuts – one going in one direction across and into a corner and the other going the other direction into the opposite corner.



Getting there

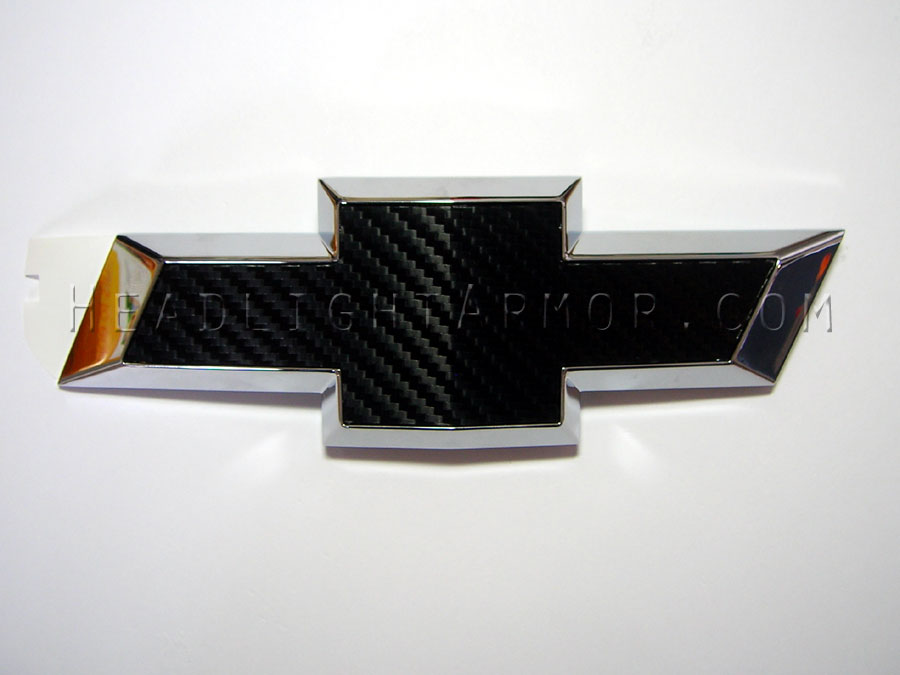

Almost done.



Now go over the edges and vertical center section at a higher heat setting, getting the surface up to 176 degrees. Go over the just cut edges with the top side of your fingernail to make sure the edge it completely sealed and rolled.

Now time for the front! We have read a lot of ‘oh the front bowtie overlays were a *****’ posts and are here to tell you, the 3D Carbon Fiber material we use makes them a lot easier than even we thought going in. The process is generally the same as the backs.

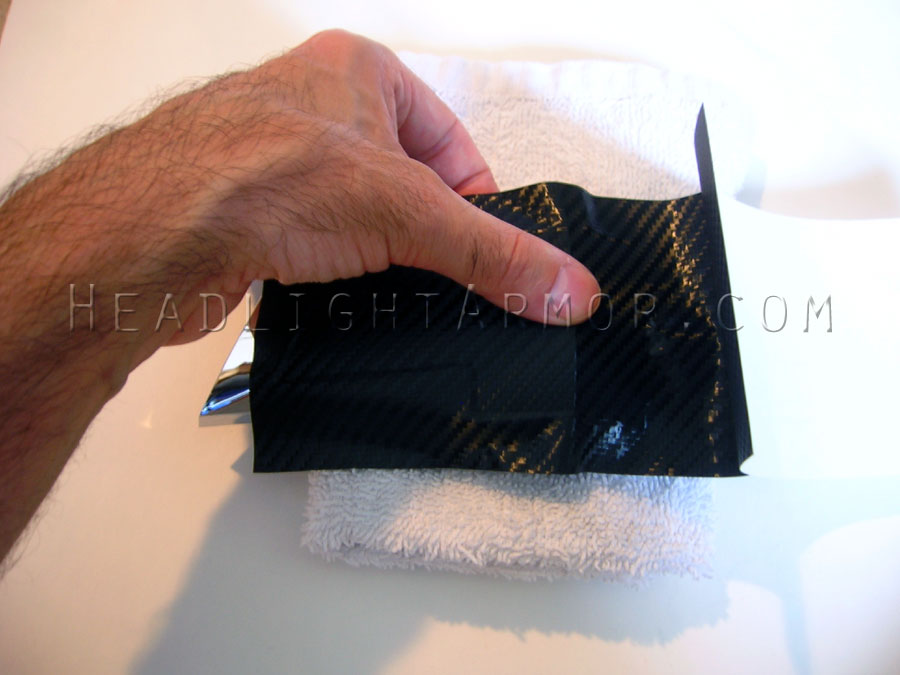

Start by gently warming the material a bit, just a little to bring it up to 80-90 degrees or so. Peel back ~ 1/3 of the backing paper – not all of it – and place on one side of the bowtie as shown. Using your thumb and pressing the material down into the center and out to the edges.

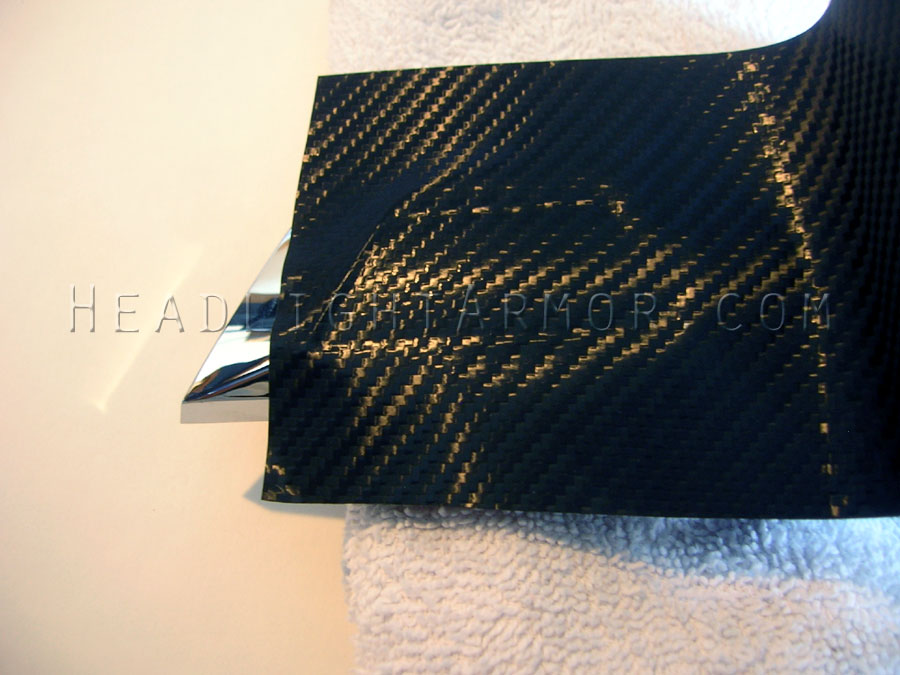

Warm the center portion of the material – this time a little warmer as we are going up and over the larger pointed compound area - 104-122 degrees - and continue peeling the backing paper back and pressing the material down. Work from the area that is set across the center and out to the sides evenly left to right and top to bottom in small increments as shown. For this part of the install we used both thumbs at the same time, in a - < motion (though the photo shows one had as the other was taking the photo)



Repeat until the end of the bowtie is reached.



It is now on. Warm again ~ 104-122 degrees and go over with either your hand or you hands wrapped in a suede microfiber towel to make sure you didn’t leave any bubbles. The adhesive has air release channels so you should be bubble free. Go around the edge with the back of your fingernail (preferably wrapped in the suede microfiber towel) and set the material into the channel between the center bowtie and the chrome surround.

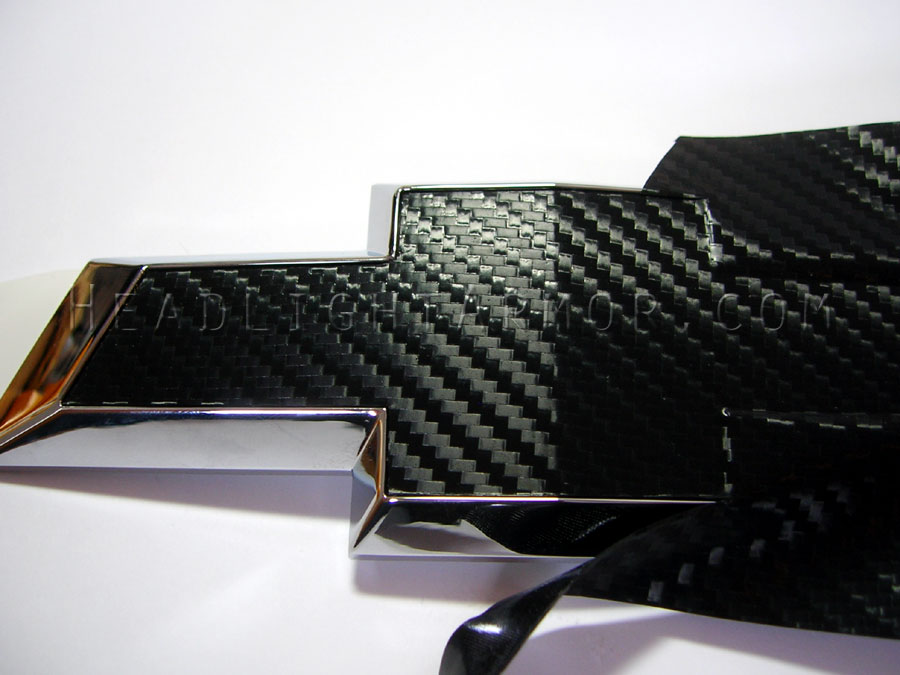

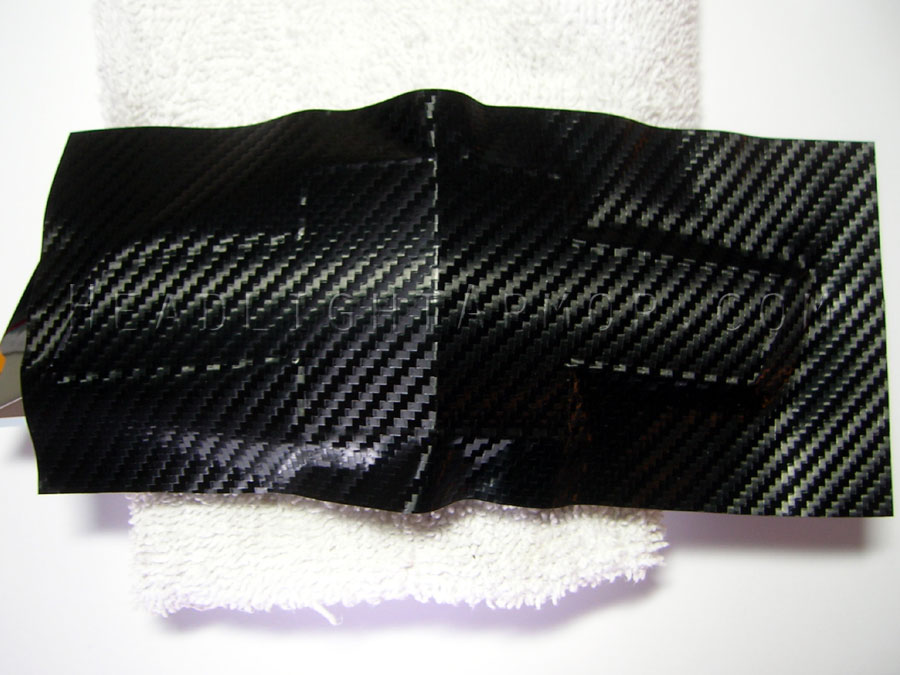

Now it is time to trim. Get your sharp razor knife with a new blade and trim the excess away – using the channel where the center meats the boarder. This is the important step as you can’t uncut it if you somehow miss… We have found the cleanest way to accomplish this is to make two cuts per profile. For each section start somewhere other than a corner and make two cuts – one going in one direction across and into a corner and the other going the other direction into the opposite corner.



Almost done.



Now go over the edges and vertical center section at a higher heat setting, getting the surface up to 176 degrees. Go over the just cut edges with the top side of your fingernail to make sure the edge it completely sealed and rolled.

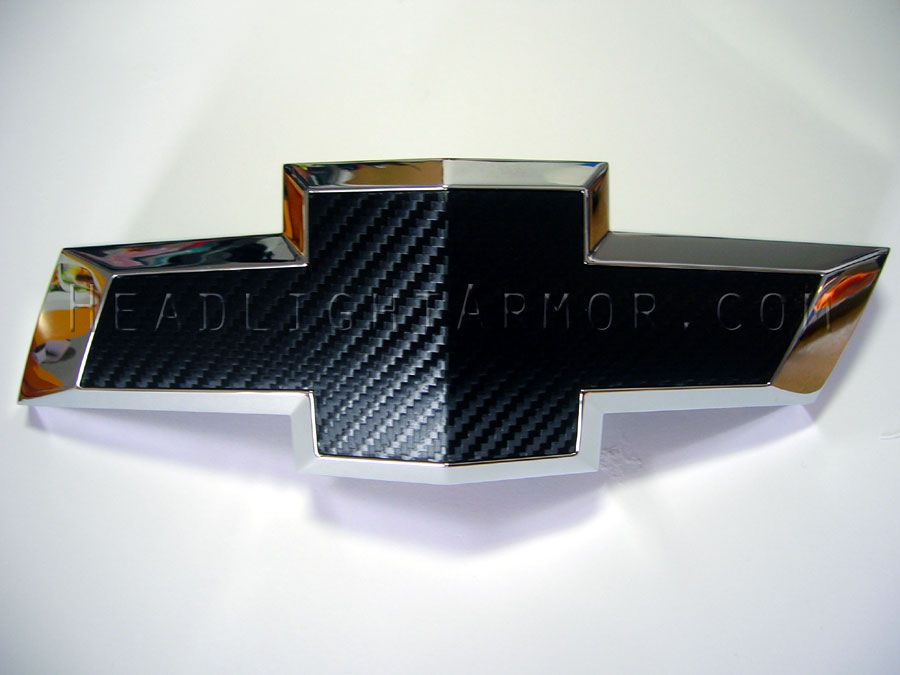

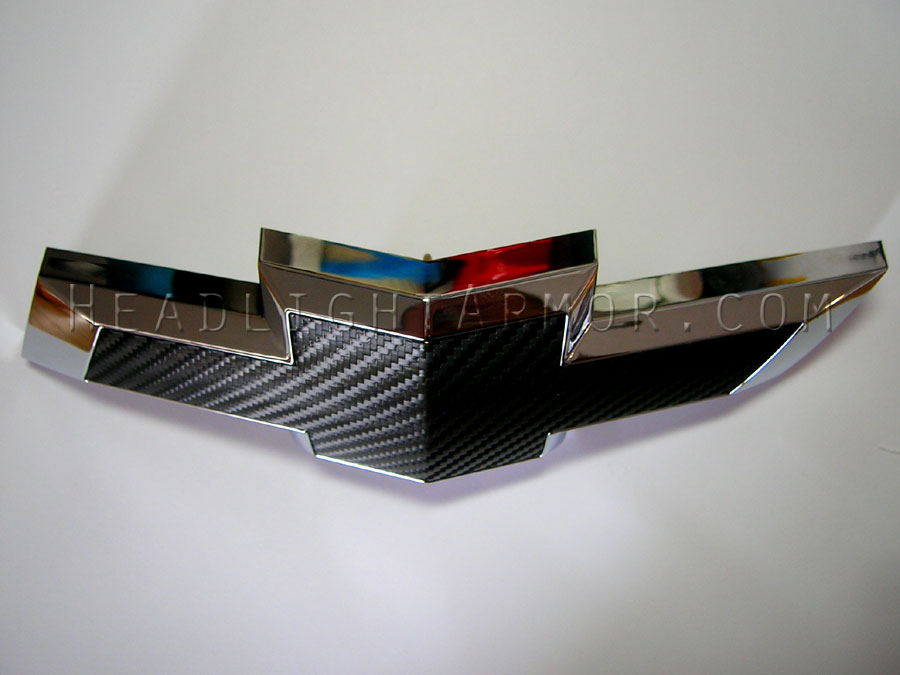

Now you are done front and back. We recommend not washing the vehicle for 48 hours though it is ok to drive in the rain if necessary.



Hope you enjoyed the tutorial! If you have questions about the application process or need any clairifications please let us know. If you have non-application questions please see our vendor thread here
__________________

Last edited by HeadlightArmor; 11-07-2012 at 11:14 PM. Reason: additional info added
HeadlightArmor is offline   Reply With Quote
Old 11-29-2010, 05:02 PM   #2
JAB
C_H_E_V_Y

JAB's Avatar

Drives: Velocity Yellow C6 Z06
Join Date: Jan 2010
Location: Sugar land/Houston TX
Posts: 704
Great Write up man,
__________________


Heritage Grill
Flat Black Full Body Stripes
Flat Black Tail Light Bezels
Flat Black Camaro Emblems
Flat Black / Red SS Emblems
Flat Black Side Markers
Chevy Bowtie Delete
Led Grill Lighting
Interior Led Lighting
Near Future ( 1'' Drop Springs, GFX and *headers,Xpipe and 3in catback with an CAI is on it way* Getting ready for the PROCHARGER
)
JAB is offline   Reply With Quote
Old 12-01-2010, 05:50 PM   #3
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
Thanks! Hope it is helpful. Somebody emailed about removing the bow ties for application. It is not necessary at all. We bought new bow ties from our local dealer for application and tutorial, but it is just as easy to carbonize them in your garage without removing them.
__________________
HeadlightArmor is offline   Reply With Quote
Old 11-15-2011, 10:23 PM   #4
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
Giving the thread a nudge, as we have had a variety of members ask how to apply the carbon fiber wrap on the bow ties
__________________
HeadlightArmor is offline   Reply With Quote
Old 11-17-2011, 01:53 PM   #5
JWMotoring

JWMotoring's Avatar

Drives: SS Camaro
Join Date: Sep 2010
Location: Oklahoma City
Posts: 2,430
Send a message via Yahoo to JWMotoring
Good write up. Bump for you
JWMotoring is offline   Reply With Quote
Old 11-19-2011, 09:51 AM   #6
nightshift

nightshift's Avatar

Drives: Victory Red 2011 2SS/RS
Join Date: Mar 2011
Location: San Diego
Posts: 290
I used the same technique with black vinyl while the emblems were still on the car. The front emblem took a little more time, but it was easy and came out great. After receiving a sample of the carbon from headlight armor, I want to re-do it with their product. It's very good quality.

nightshift is offline   Reply With Quote
Old 11-23-2011, 08:17 PM   #7
Hellfighter


Hellfighter's Avatar

Drives: 2013 Black ZL1
Join Date: Mar 2011
Location: Sugar Land/Texas
Posts: 1,776
Wow where can i buy the carbon fiber hydrocarbon for the bowties?
__________________
Hellfighter is offline   Reply With Quote
Old 11-23-2011, 08:44 PM   #8
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
Post

The Carbon Fiber Wrap is on our website, please see our vendor thread here for more information.
__________________
HeadlightArmor is offline   Reply With Quote
Old 05-17-2012, 10:31 AM   #9
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
Had a few questions about how many wrap pieces you need - one. We have an item on the site (can't directly link as this is not a f/s tread it is a tutorial) that you cut as shown in the first photo to yield material for both front and rear bowties. If you have questions about the application let us know. As the material is designed for full vehicle wraps and has an air release adhesive application is a lot easier that they typical eBay sign vinyl.
__________________
HeadlightArmor is offline   Reply With Quote
Old 05-17-2012, 10:52 AM   #10
strych9
Gone Euro!

strych9's Avatar

Drives: 6spd Manual Mercedes
Join Date: Apr 2012
Location: Omaha, NE
Posts: 3,031
Any other colors besides black? I'd like to try yellow carbon fiber to see how it looks.
__________________
Bye bye, Bumblebee!
---------------------------------------------------------------------------------------
strych9 is offline   Reply With Quote
Old 05-17-2012, 10:58 AM   #11
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
Black and White are the only options we have available.
__________________
HeadlightArmor is offline   Reply With Quote
Old 05-17-2012, 10:59 AM   #12
strych9
Gone Euro!

strych9's Avatar

Drives: 6spd Manual Mercedes
Join Date: Apr 2012
Location: Omaha, NE
Posts: 3,031
Quote:
Originally Posted by HeadlightArmor View Post
Black and White are the only options we have available.
Thank you!
__________________
Bye bye, Bumblebee!
---------------------------------------------------------------------------------------
strych9 is offline   Reply With Quote
Old 06-14-2012, 08:34 PM   #13
GaBoy25



GaBoy25's Avatar

Drives: 2010 SS/RS M6/2500HD Lmm LTZ
Join Date: Apr 2012
Location: South Georgia
Posts: 2,551
Just ordered mine now. It said I didnt agree to the terms and conditions although I said I did

Hopefully it doesnt. Provided this info. Thanks!!!!



Order Number: 15956
__________________
FASTER than my SS....for now

2500HD (with a couple parts)



Quote:
Originally Posted by Coyotekiller View Post
I wonder if this could be why my car idles like its retarded...
GaBoy25 is offline   Reply With Quote
Old 06-15-2012, 12:12 PM   #14
awfarley


awfarley's Avatar

Drives: 2011 5.7L Tundra Double-Cab X-SP
Join Date: Mar 2012
Location: Birmingham, AL
Posts: 2,034
Awesome write-up.
awfarley is offline   Reply With Quote
Old 06-20-2012, 03:46 PM   #15
dcplus14

dcplus14's Avatar

Drives: '12 Camaro 2SS/RS/Hurst
Join Date: Jan 2012
Location: San Diego
Posts: 480
Just curious as to why you didn't wrap the whole badge.
__________________
2012 Camaro 2SS/RS: Black on Black, Hurst
[AAC DRL LED's, AAC LED's for trunk, cabin, license plate, CAI Intake, RX Catch Can, Skip shift eliminator, Pedders Sub-Frame Inserts, Pedders Radius Rod Inserts, Pedders Rack & Pinion Bushing, 1LE front and rear sway bars]
dcplus14 is offline   Reply With Quote
Old 06-21-2012, 09:52 AM   #16
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
Because most just want the gold portion covered.
__________________
HeadlightArmor is offline   Reply With Quote
Old 06-21-2012, 10:26 AM   #17
Rangore


Rangore's Avatar

Drives: 2010 Camaro 2LT Cyber Gray
Join Date: Oct 2011
Location: Minnesota
Posts: 2,033
Did mine just like this. I used a hair dryer for heating. I also did this while the bowties were on the car. Very easy. Just make sure the CF is aligned properly so the lines within are at correct angles.

.
Attached Images

__________________
Current: 2010 Camaro 2LT - Current Mods: EGA on left and right windows - Solo CAT Back - Black CAI - Black Carbon Fiber Bow-tie Vinyl - Switchback LED Turn Signal bulbs - HOD Headlight bulbs - Aqua interior LED bulb - Phoenix Gold iAMP-GM1 sub box w/amp, Lorenzo WL27 wheels
No longer owned: 1993 Camaro Z-28
Rangore is offline   Reply With Quote
Old 06-21-2012, 12:35 PM   #18
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
^ Looks Great! Thanks for posting!
__________________
HeadlightArmor is offline   Reply With Quote
Old 06-24-2012, 09:50 PM   #19
HP Turbine
Boosted

HP Turbine's Avatar

Drives: 2012 1LT RS... with snails
Join Date: May 2012
Location: North Smithfield, RI
Posts: 1,250
Does this wrap come off clean if I mess up or don't want it anymore?
__________________

IPS Twin Turbos, Corsa Exhaust, Ported Throttle Body. 461 rwhp 443 rwtq!! *Cameron Hass.ani*
HP Turbine is offline   Reply With Quote
Old 06-24-2012, 10:15 PM   #20
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
Yes it is fully reversible. The material was designed for full vehicle wraps.
__________________
HeadlightArmor is offline   Reply With Quote
Old 06-28-2012, 09:01 PM   #21
GaBoy25



GaBoy25's Avatar

Drives: 2010 SS/RS M6/2500HD Lmm LTZ
Join Date: Apr 2012
Location: South Georgia
Posts: 2,551
Got mine on tonight. Easy as cake and came out looking like they were bought that way. Awesome product guys. Look forward to doing more in the future. Thanks!!!
__________________
FASTER than my SS....for now

2500HD (with a couple parts)



Quote:
Originally Posted by Coyotekiller View Post
I wonder if this could be why my car idles like its retarded...
GaBoy25 is offline   Reply With Quote
Old 06-29-2012, 04:37 PM   #22
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
Fantastic! Thanks for the kind words Enjoy
__________________
HeadlightArmor is offline   Reply With Quote
Old 07-02-2012, 09:19 AM   #23
snizzle
Recalled user

snizzle's Avatar

Drives: '12 2SS MT 45th AE
Join Date: Mar 2009
Location: Richmond, VA
Posts: 1,819
Just ordered. The gold will be gone soon.
__________________

2012 2SS 45th AE LS3 M6

Borla ATAK Catback
Kooks Stepped LT Headers
CAI Intake
Hexvents
VMAX CNC Ported Throttle Body
RX Catch Can
Hurst Short Throw Shifter
Pfadt ZL-Spec Stage 3 Suspension
Forgestar F14
Tuned by Frost
snizzle is offline   Reply With Quote
Old 07-23-2012, 04:29 PM   #24
HP Turbine
Boosted

HP Turbine's Avatar

Drives: 2012 1LT RS... with snails
Join Date: May 2012
Location: North Smithfield, RI
Posts: 1,250
I did my rear bowtie today. It came out great. I don't have a front bowtie so I had a little extra. I attempted my RS logo on the trunk and it didn't go so well. It was hard to get it down in the grooves, so now it's just red :upset:. I also decided to get rid of the gold steering wheel bowtie.
__________________

IPS Twin Turbos, Corsa Exhaust, Ported Throttle Body. 461 rwhp 443 rwtq!! *Cameron Hass.ani*
HP Turbine is offline   Reply With Quote
Old 07-23-2012, 06:27 PM   #25
HeadlightArmor



HeadlightArmor's Avatar

Drives: Company Car
Join Date: Sep 2009
Location: headlightarmor.com
Posts: 1,521
Looks great! Thanks for posting!
__________________
HeadlightArmor is offline   Reply With Quote

Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
2009 2010 Camaro SS prototype in silver (6/21) Mr. Wyndham Camaro Photos | Spyshots | Video | Media Gallery 387 09-16-2009 10:16 AM
Orange Camaro Animation With Stills & Download Steven Simply Camaro Photos | Spyshots | Video | Media Gallery 23 05-17-2008 11:32 AM
A word about pics - past/present/future... fbodfather Camaro Photos | Spyshots | Video | Media Gallery 43 04-01-2008 02:34 PM
Props to Dragoneye Just a Skidmark General Automotive + Other Cars Discussion 29 08-22-2007 12:31 AM
The camaro should come out this year bobbyhhh 5th Gen Camaro SS LS LT General Discussions 44 01-18-2007 12:18 PM


All times are GMT -5. The time now is 05:33 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
