Old 11-21-2010, 01:10 PM   #1
ADM PERFORMANCE


Drives: 2013 ZL1 #138
Join Date: Oct 2008
Location: DfW - Texas
Posts: 3,885
Exclamation Lingenfelter LS9 Supercharged Camaro goes 8.99 @ 158mph -Confirmed

Just got a text from the track that the ls9 powered camaro just ran an 8.99......

Congrats on being the first to go there with a 6speed manual

ADM PERFORMANCE is offline   Reply With Quote
Old 11-21-2010, 01:29 PM   #2
jrh@lpe


jrh@lpe's Avatar

Drives: anything
Join Date: Aug 2010
Location: Decatur
Posts: 95
Time slip from Lingenfelter Camaro SS 8.99 run

Here is a pictures of the time slip (right lane):

Quote:
Originally Posted by ADM PERFORMANCE View Post
Just got a text from the track that the ls9 powered camaro just ran an 8.99......

Congrats on being the first to go there with a 6speed manual
Attached Images

__________________
Jason Haines, Project Director
Lingenfelter Performance Engineering, 260-724-2552, www.lingenfelter.com
jrh@lpe is offline   Reply With Quote
Old 11-21-2010, 01:29 PM   #3
Supercharged SS
Account Suspended

Drives: 2010 Camaro
Join Date: Feb 2010
Location: Sandy Hook, CT
Posts: 12,021
Quote:
Originally Posted by ADM PERFORMANCE View Post
Just got a text from the track that the ls9 powered camaro just ran an 8.99......

Congrats on being the first to go there with a 6speed manual

That's not a stock m6 trans is it?
Supercharged SS is offline   Reply With Quote
Old 11-21-2010, 01:30 PM   #4
GMRULZ


GMRULZ's Avatar

Drives: 2010 SS & 2008 C6
Join Date: Mar 2008
Location: VA
Posts: 1,824
Absolutely Awesome!!!
__________________
2010 SS L99, 536rwhp 10.843@126.72. Whipple Supercharger stock pulley, ARH 1 7/8 longtubes w/ catted xpipe, magnaflow 3" mufflers, ADM Race CAI, 3:70 gears, lightweight wheels and nitto drag radials. Stock internal L99, stock converter.

Bolt on best before blower 12.22@113.29 w/ nothing but ARH headers, catted x-pipe, ADM CAI and a tune on stock Pzero`s!

Other car 2008 C6 Ls3, z51, A6, Npp Exhaust, best bonestock pass 11.80@118.82, Number 2 on the Corvette Forums Bonestock fastest list..
GMRULZ is offline   Reply With Quote
Old 11-21-2010, 01:30 PM   #5
2010 SSRS




2010 SSRS's Avatar

Drives: 3 V8 Camaros
Join Date: May 2009
Location: The Ocean State
Posts: 123,977
Hell Yeeeaaahhhhhh!!!
__________________
Jannetty Racing JRE Street Package
2010 SSRS is offline   Reply With Quote
Old 11-21-2010, 01:31 PM   #6
speedster
SST...

speedster's Avatar

Drives: SST Camaro 2010
Join Date: Oct 2008
Location: East Coast of Florida
Posts: 6,057
Congratulations !!

Glad to see someone finally bagged the 8's...
__________________
speedster is offline   Reply With Quote
Old 11-21-2010, 01:33 PM   #7
jrh@lpe


jrh@lpe's Avatar

Drives: anything
Join Date: Aug 2010
Location: Decatur
Posts: 95
Speed versus time graph

Here is a graph of speed versus time from our VBox. I will post some event pictures later.

No other 2010-2011 Camaros running at this MIR test and tune session.

Videos will be on Monday.

Quote:
Originally Posted by jrh@lpe View Post
Here is a pictures of the time slip (right lane):
Attached Images

__________________
Jason Haines, Project Director
Lingenfelter Performance Engineering, 260-724-2552, www.lingenfelter.com
jrh@lpe is offline   Reply With Quote
Old 11-21-2010, 01:33 PM   #8
mlee
H-Town Camaro Club

mlee's Avatar

Drives: Number Twenty-Three
Join Date: Oct 2008
Location: Conroe, TX
Posts: 24,448
...WoW...
__________________
.
mlee is offline   Reply With Quote
Old 11-21-2010, 01:36 PM   #9
SRT10KLLR


Drives: 2010 Camaro 2SS/RS
Join Date: Sep 2009
Location: Down South
Posts: 1,500
Nice!
__________________
2005 Dodge Ram 2500 RCSB Thunder Road Hemi Sport w/STS Turbo
2004 Dodge Ram SRT-10 - Silver - Stock
2003 Chevy 1500 RCSB Stepside 400SS - 408 in now awaiting Turbo
SRT10KLLR is offline   Reply With Quote
Old 11-21-2010, 02:09 PM   #10
SGOS252382



SGOS252382's Avatar

Drives: 2010 Camaro 2SS/RS
Join Date: Mar 2008
Location: S.W. Florida
Posts: 6,280
Quote:
Originally Posted by jrh@lpe View Post
Here is a pictures of the time slip (right lane):
Post that time slip up in the "official" 1/4 mile thread with a description of the mods so I can replace your previous time at the top of the list.

Congrates on the first 8 sec 5th Gen Camaro.
__________________
SGOS252382 is offline   Reply With Quote
Old 11-21-2010, 02:15 PM   #11
SC2150
Account Suspended

Drives: 2012 Camaro RS, RX supercharged
Join Date: Dec 2009
Location: Bradenton, FL
Posts: 6,080
Unreal driving to accomplish this with a standard. I don't have the talent to launch & shift with that skill. Porps guys, any heavy door car in the 8's is un-freking-real!

Being a racer though I always cringe at the slow lights.....but i guess that is just because every run I make is a $money$ run, or practice for one.

Good Job!!!
SC2150 is offline   Reply With Quote
Old 11-21-2010, 06:02 PM   #12
navyblueSS

Drives: 2002 Camaro SS
Join Date: Jul 2009
Location: Quitman, LA
Posts: 613
Very impressive, especially with being a M6 car.
__________________
2010 M6 SS/RS SW w/IOM Stripes - Futral Motorsports Custom Cam & Tune 483rwhp - 449rwtq
navyblueSS is offline   Reply With Quote
Old 11-21-2010, 09:53 PM   #13
jrh@lpe


jrh@lpe's Avatar

Drives: anything
Join Date: Aug 2010
Location: Decatur
Posts: 95
Lingenfelter LS9 Camaro SS modifications list

Here is a list of the modifications to the vehicle (feel free to email me or post to this discussion if you have any questions on the content):


Lingenfelter LS9 2010 Camaro SS drag car specifications (as of 21 November 2010)
  • Engine
    • 377 CID/6.2L LS9 engine
      • 8.5:1 compression ratio with forged JE pistons
      • Production GM LS9 crankshaft and titanium connecting rods
      • LPE CNC ported LS9 cylinder heads with OEM titanium intake valves and sodium filled hollow stem exhaust valves
      • Lingenfelter GT9 supercharger camshaft
      • Comp Cams 26918 valve springs
    • GM LS9 Eaton TVS2300 supercharger
    • Lingenfelter custom fabricated double stacked LS9 intercooler upper manifold
    • LS9 Corvette accessory drive
    • LS9 dry sump oiling system with custom front mounted dry sump tank
    • Lingenfelter LS9 14% overdrive damper kit
    • Lingenfelter high-flow LS9 supercharger front cover
      • ported to accept 102 mm throttle body
    • 102 mm billet throttle body
    • Lingenfelter 2.38” supercharger pulley
    • Lingenfelter 160 thermostat
    • American Racing 2” primary headers
  • Two stage dry nitrous system with progressive nitrous controller
    • Lingenfelter RPM-002 switch used as nitrous window switch
    • Accelerator pedal mounted WOT switch for nitrous enable
    • Nitrous solenoid capable of flowing 450 hp of nitrous
  • Lingenfelter Camaro SS twin pump fuel system, mechanical regulator version
    • 20 volt Dual Boost-A-Pump fuel pump voltage booster
    • Vacuum/boost referenced Weldon fuel pressure regulator
  • All fuel supplied to the engine is delivered by the in-tank Lingenfelter twin fuel pump system and the 8 high flow Bosch Motorsports injectors in the LS9 manifold
    • No auxiliary fuel system
  • LPE LNC-003 2-step
    • Programmable clutch switch used to activate 2-step (NO-00-6102)
    • Lingenfelter STOV-001 MPH switch used to deactivate 2-step
  • Lingenfelter RPM-002 switch controlled 7 LED shift light
  • RPS Billet Triple Carbon clutch
  • Prototype Lingenfelter Camaro clutch pedal return kit
  • RPM transmissions prepared TR6060 transmission, stock 2010 Camaro gear sets (stock ratios)
  • Short throw shifter and Momo shift knob
  • Prototype 9.5” billet differential case with 4.10:1 ring and pinion
  • Heavy duty Driveshaft Shop halfshafts
  • Custom driveshaft
  • BMR driveshaft loop
  • GM V6 Camaro brakes front and rear
  • SJM line lock
  • LPE TVS diodes on line lock and nitrous solenoids
  • Open exhaust (custom fabricated exhaust with underbody located turn downs)
  • Lingenfelter adjustable rear trailing arms
  • Lingenfelter adjustable rear tie rods
  • Lingenfelter adjustable rear stabilizer bar end links
  • Pedder’s double adjustable front and rear shocks with drag race springs
  • Hotchkis Chassis Max subframe brace
  • Front sway bar removed
  • Hotchkis rear anti-sway bar
  • Solid subframe bushings
  • Custom fabricated Delrin differential bushings
  • Lingenfelter Camaro SS body package components including:
    • LPE slotted high rise hood
    • LPE rear wing
  • Prototype Lingenfelter Camaro gauge pod with Auto Meter memory boost gauge
  • Kirkey racing seat with custom fabricated seat rails (still functioning power seat)
  • Rear mounted high capacity intercooler reservoir
  • High flow DC brushless intercooler fluid pump
  • Wheels and tires
    • Bogart 16 x 4.5 front wheels with M&H 4.5/27-16 front runner tires
    • CCW 16 x 10 rear wheels with M&H 12.00-16 Racemaster tires with tubes
  • NHRA legal 10 point roll cage, certified to 8.50
  • NHRA legal parachute

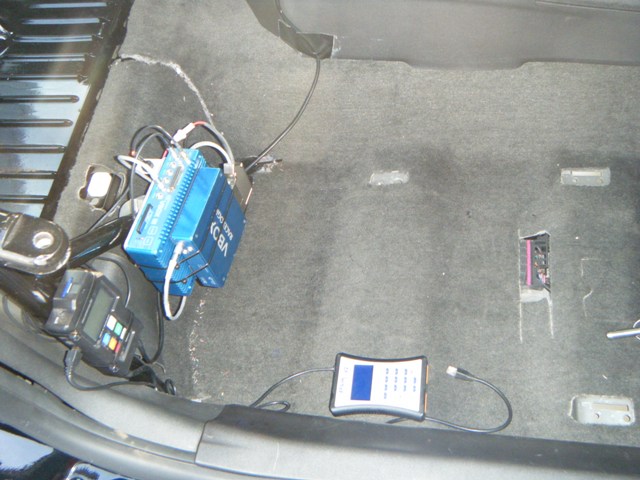

  • Racelogic VBox III GPS data logging
  • EFILive V2 Scan & Tune cable for calibration and in vehicle “black box” data logging
  • Roughly 4075 lbs race weight with driver (52.5% front weight bias)
Other notes:
  • VP Motorsports 109 unleaded race fuel
  • Functioning (and stock) radio
  • Functioning (and stock) air conditioning
  • 2400 rpm launch setting on 2-step
  • 1srt stage of nitrous triggered at roughly 4000 rpm in 1st gear
  • Best quarter mile to date:
    • 8.997 seconds at 158.80 mph (21 November 2010 at MIR)
    • 1.384 60’ time (best 60’ to date of 1.377 seconds)
    • Jon Ebert driver
Quote:
Originally Posted by ADM PERFORMANCE View Post
Just got a text from the track that the ls9 powered camaro just ran an 8.99......

Congrats on being the first to go there with a 6speed manual
__________________
Jason Haines, Project Director
Lingenfelter Performance Engineering, 260-724-2552, www.lingenfelter.com
jrh@lpe is offline   Reply With Quote
Old 11-21-2010, 10:26 PM   #14
jrh@lpe


jrh@lpe's Avatar

Drives: anything
Join Date: Aug 2010
Location: Decatur
Posts: 95
Images from MIR

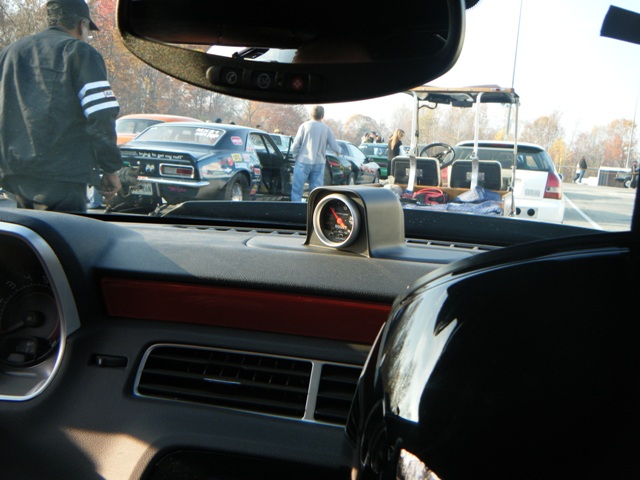

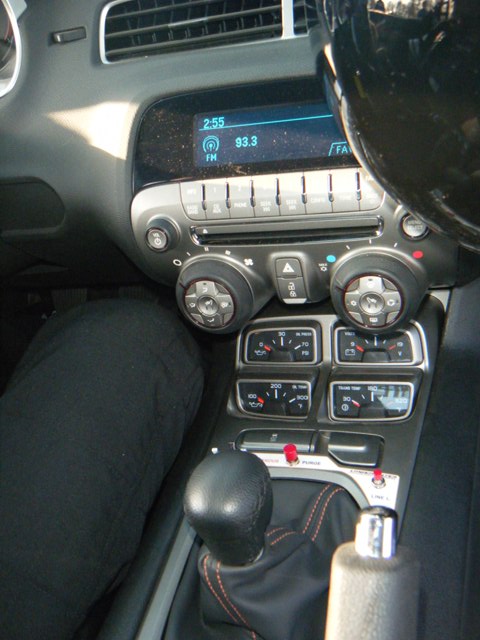

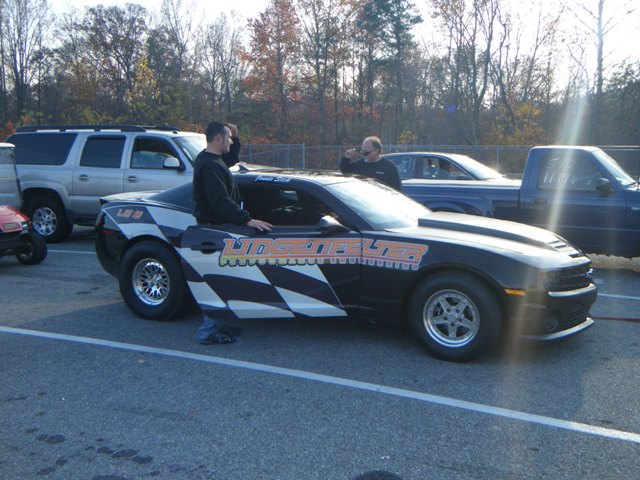

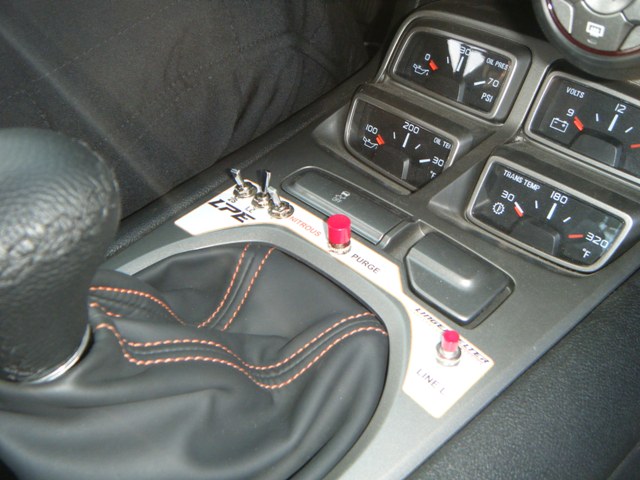

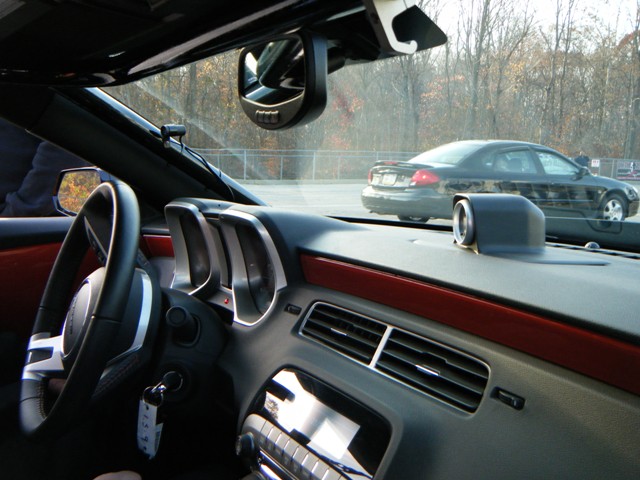

Here are a few images of the car from MIR (videos will be on YouTube on Monday):

Quote:
Originally Posted by ADM PERFORMANCE View Post
Just got a text from the track that the ls9 powered camaro just ran an 8.99......

Congrats on being the first to go there with a 6speed manual
Attached Images

__________________
Jason Haines, Project Director
Lingenfelter Performance Engineering, 260-724-2552, www.lingenfelter.com
jrh@lpe is offline   Reply With Quote
Old 11-21-2010, 10:36 PM   #15
jrh@lpe


jrh@lpe's Avatar

Drives: anything
Join Date: Aug 2010
Location: Decatur
Posts: 95
Chassis dyno graph from 8 second Lingenfelter Camaro

Here is the chassis dyno graph from the Lingenfelter LS9 Camaro.

This is with both stages of nitrous active.

The nitrous comes in a little after 3800 RPM.

1328 lb-ft and 1243 hp.

Quote:
Originally Posted by ADM PERFORMANCE View Post
Just got a text from the track that the ls9 powered camaro just ran an 8.99......

Congrats on being the first to go there with a 6speed manual
Attached Images

__________________
Jason Haines, Project Director
Lingenfelter Performance Engineering, 260-724-2552, www.lingenfelter.com
jrh@lpe is offline   Reply With Quote
Old 11-21-2010, 10:54 PM   #16
hot ss


hot ss's Avatar

Drives: aqua 2ss l99
Join Date: Jun 2009
Location: Edmonton
Posts: 1,228
*drools
__________________
May your exhaust note, sing in harmony with your blower.
hot ss is offline   Reply With Quote
Old 11-22-2010, 10:18 AM   #17
jrh@lpe


jrh@lpe's Avatar

Drives: anything
Join Date: Aug 2010
Location: Decatur
Posts: 95
Another picture

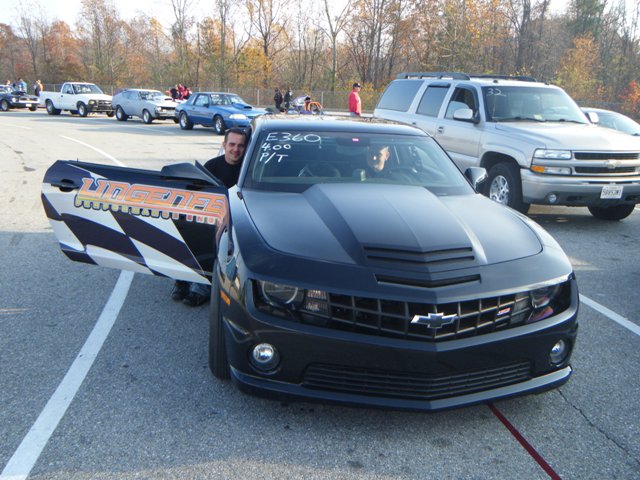

Here is another picture from the track.

Video should be up soon.
Attached Images

__________________
Jason Haines, Project Director
Lingenfelter Performance Engineering, 260-724-2552, www.lingenfelter.com
jrh@lpe is offline   Reply With Quote
Old 11-22-2010, 01:22 PM   #18
jrh@lpe


jrh@lpe's Avatar

Drives: anything
Join Date: Aug 2010
Location: Decatur
Posts: 95
8.997 run video

Here is a link to the video on YouTube:





We should have better video from another angle later today or tomorrow.
__________________
Jason Haines, Project Director
Lingenfelter Performance Engineering, 260-724-2552, www.lingenfelter.com

Last edited by GTAHVIT; 11-22-2010 at 01:33 PM. Reason: embed vid.
jrh@lpe is offline   Reply With Quote
Old 11-22-2010, 01:32 PM   #19
thesnoopster



thesnoopster's Avatar

Drives: '10 SIM SS/A6 - '12 SIM Equinox LT
Join Date: Jul 2009
Location: Northern Virginia
Posts: 3,626
Nice Run...

I had made plans that day to go to MIR and run some passes... but had other stuff come up and now I wish I could of been there to see the 8 sec pass

Grats again for making that 8sec pass, Good Job!!!
__________________
2010 SIM Camaro 1SS/A6

Mods: "93 Octane and a baby seat..." TunedByFrost/EFI Performance,LLC @ PAS "You gotta love me ... or leave me alone"
thesnoopster is offline   Reply With Quote
Old 11-22-2010, 03:32 PM   #20
ravensjeff
100% Chevy & Harley Man

Drives: 650 HP Forged Internals-549 HP rear
Join Date: Feb 2009
Location: Eldersburg,MD
Posts: 2,036
Awesome! I wanted to go, but wife planned a Ravens/NASCAR party. Close race too!! What did you go up against? Did you only get 1 run in the 8's?
__________________
Forged & Tuned by Lingenfelter!
ravensjeff is offline   Reply With Quote
Old 11-22-2010, 04:46 PM   #21
2010 BADSS


2010 BADSS's Avatar

Drives: 2010 2SS/RS IOM
Join Date: Sep 2009
Location: New Mexico
Posts: 1,210
Awesome run!!! Congratulations!
__________________
LPE 650 BHP package
Dual disc clutch set
Borla catback exhaust-S type
DSS 9" rear with 3.90 gear
Pfadt suspension/Hotchkiss chassis brace
Forgeline Wheels VR3S/Nitto tires

Beware of the LPE Sisterhood
2010 BADSS is offline   Reply With Quote
Old 11-22-2010, 05:32 PM   #22
Andro
NOICE!!! ™

Andro's Avatar

Drives: Force Fed 427
Join Date: Jan 2009
Location: GOT BOOST?
Posts: 5,216
__________________
Andro is offline   Reply With Quote
Old 11-22-2010, 05:44 PM   #23
drkllr

drkllr's Avatar

Drives: 2010 Hennessey HPE 650 H.O ABM m6
Join Date: Nov 2009
Location: Tennessee
Posts: 194
simply awsome i would love to see that in person.
drkllr is offline   Reply With Quote
Old 11-22-2010, 08:11 PM   #24
jrh@lpe


jrh@lpe's Avatar

Drives: anything
Join Date: Aug 2010
Location: Decatur
Posts: 95
Another picture showing the tire wrinkle off the line

Here is a picture from the other side of the car showing the wrinkle of the tire on the launch.
Attached Images

__________________
Jason Haines, Project Director
Lingenfelter Performance Engineering, 260-724-2552, www.lingenfelter.com
jrh@lpe is offline   Reply With Quote
Old 11-22-2010, 10:36 PM   #25
JusticePete
Rebel Leader

JusticePete's Avatar

Drives: Camaro Justice
Join Date: Jun 2007
Location: Texas
Posts: 15,414
CONGRATULATIONS to everyone on the Ligenfelter TEAM!
__________________
JusticePete is offline   Reply With Quote

Reply

Tags
what a joke

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
5th Gen Suspension -- The Book JusticePete Suspension / Brakes / Chassis 148 09-04-2013 02:28 PM
Camaro Product Manager - interview Moose 5th Gen Camaro SS LS LT General Discussions 11 04-04-2012 06:10 PM
GM memo to dealers Moose 5th Gen Camaro SS LS LT General Discussions 41 02-04-2010 07:33 PM
Official Camaro Convertible CONCEPT Press Release Tran Camaro Convertible Forum 12 11-18-2009 07:05 PM


All times are GMT -5. The time now is 11:29 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
