BA Rear Speaker Rattle...SOLVED!

Ok. Rear speakers were rattling bad,well bad enough to annoy me. Heres what I did. Ran to Lowes. Got 3/4" self tapping screws. 8 screws in bag for .98 cents. I got into trunk and screwed from bottom up into plastic speaker housing. There is about 1/4" to 3/8" lip for the screw to catch the plastic. I made a diagram. The red is the plastic housing,the black is the metal deck. Just used slight pressure so the screw didn't wander. If you do it right you will hit metal then screw into plastic. Put all 8 screws into it(4 per speaker) just like "normal" 6x9 screws would be placed. Tried stereo and no more annoying buzzzz!!! No if I really crank it up there is a faint buzz,but its not from the speakers,I think its from a panel touching somewhere. But only noticeable when its above 24. Hope this helps people who didn't want to take the back seat and panels off. I'm not to good with Paint,but you can see where I put the black stars is approx. where I put the screws in.
Attached Images


Last edited by Out4it; 12-08-2011 at 08:01 PM.
Out4it is offline   Reply With Quote
Old 11-27-2011, 03:33 PM   #2
philthy


philthy's Avatar

Drives: 1971 Monte Carlo/2010 Camaro 2LT
Join Date: Sep 2007
Location: Chesterfield, MI
Posts: 806
I stuffed some foam strips (used for sealing around window a/c units) in that gap and solved my rattling. Now just need to find a way to stop the door speaker rattle.
__________________
2LT Victory Red w/ Black leather interior, automatic trans, polished 19" wheels, R6P (Early Order)
Factory style spoiler, Magnaflow axleback exhaust with resonated x-pipe, Injen CAI, RX catchcan, ABL dash mod,
Drake billet shifter with leather boot, GM splash guards, Toyo Proxes4 tires for summer, Blizzak tires with Moda rims for winter driving

Pre-ordered November 17, 2008
Delivered May 14, 2009
philthy is online now   Reply With Quote
Old 11-27-2011, 05:07 PM   #3
Iwantone2
Voice Of The Voiceless

Iwantone2's Avatar

Drives: CGM 1SS RS
Join Date: Feb 2009
Location: OC Cali
Posts: 9,728
Any photos by chance?
__________________
Iwantone2 is offline   Reply With Quote
Old 11-27-2011, 07:16 PM   #4
Out4it
Banned

Drives: 2011 2LT/RS
Join Date: May 2011
Location: N.E. Philly
Posts: 628
Well, its dark here right now. I can try to take some tomorrow if its not raining. No garage..... All I can say is what a difference. I really don't think I need or want to upgrade my speakers. If I lived in the car that would be one thing. I have the factory sub turned up 2 notches before max fader set to +1 rear bass on radio is set to 5. Sounds really good now.
Out4it is offline   Reply With Quote
Old 12-05-2011, 03:44 PM   #5
matteo

Drives: '10 IBM 2SS, '01 Black SS
Join Date: Jun 2009
Location: AZ
Posts: 75
Quote:
Originally Posted by Out4it View Post
Well, its dark here right now. I can try to take some tomorrow if its not raining. No garage..... All I can say is what a difference. I really don't think I need or want to upgrade my speakers. If I lived in the car that would be one thing. I have the factory sub turned up 2 notches before max fader set to +1 rear bass on radio is set to 5. Sounds really good now.
Did you get a chance to take pictures yet? I'd really like to check them out.
matteo is offline   Reply With Quote
Old 12-07-2011, 09:36 PM   #6
AngelSpeedFreak
Most hated in NM....

AngelSpeedFreak's Avatar

Drives: Boosted, Cammed, Bagged, Dipped...
Join Date: Sep 2011
Location: New Mexico
Posts: 2,884
Pics please . My deck rattles like crazy. Had to turn the Bass to zero it got so annoying.
__________________
AngelSpeedFreak is offline   Reply With Quote
Old 12-08-2011, 11:24 AM   #7
Mach


Mach's Avatar

Drives: White M6 1LT RS
Join Date: Mar 2010
Location: Canton, MI
Posts: 1,677
Quote:
Originally Posted by AngelSpeedFreak View Post
Pics please . My deck rattles like crazy. Had to turn the Bass to zero it got so annoying.
__________________
Pfadt Sway Bars - FE3 Suspension - Barton Shifter - IdealG's Clutch Master Cylinder - Trifecta - Vmax TB - Vararam Intake - MACE 25mm Insulator - Plenum Insulator - Ported/Gasket Matched Intake Manifold - Rx Catchcan - AAC DRL's - 4 Pack Aux Gauges - Steering Controls - AAC Afterburners - DIY Led Sidemarkers - ZL1 Front End

Next mod: Done!
Mach is offline   Reply With Quote
Old 12-08-2011, 03:50 PM   #8
AUS10BMX


AUS10BMX's Avatar

Drives: 2010 2LT RY, 2014 Silverado
Join Date: Nov 2009
Location: Greenville, NC
Posts: 1,249
I made this video last year before I installed a aftermarket sub into my car... Since I put a another sub in the trunk, I turned down the stock 6x9 speakers, so the rattling went away quite a bit. If I turn my Kicker sub up, it does rattle the deck lid some.

Your idea looks very good, something was needed to pull these pieces together so there was no room for the rattling to take place.

Post pics if you can just to give a better idea!



Name:  162818_1800542734531_1268696901_32052655_7274951_n.jpg
Views: 3657
Size:  70.3 KB
__________________

Hypertech | Airaid | JBA Exhaust | RX Catch Can/CNC TB/Black Ice-Olator | Ported Intake/Heads | 1LE Brembos | F14's | RS Headlights | ZL1 Grille
AUS10BMX is offline   Reply With Quote
Old 12-08-2011, 07:25 PM   #9
matteo

Drives: '10 IBM 2SS, '01 Black SS
Join Date: Jun 2009
Location: AZ
Posts: 75
Quote:
Originally Posted by AUS10BMX View Post
I made this video last year before I installed a aftermarket sub into my car...
Wow that's crazy. I had no idea they moved that much.
matteo is offline   Reply With Quote
Old 12-08-2011, 07:44 PM   #10
Out4it
Banned

Drives: 2011 2LT/RS
Join Date: May 2011
Location: N.E. Philly
Posts: 628
Ok guys, I totally forgot about the pics. But here they are. You can see the shiny silver screw heads in the pics. If you do this,once the screw goes through the sheet metal,DON't push. It will lift the speaker. It will still make threads. Just reverse it all the way out and go forward to screw it back down and you will see the screw pull the speaker tight against the metal. Ypu can see in 3rd pic where I missed the lip of the speaker. You have to go close to the edge of the sheet metal.
Attached Images

Out4it is offline   Reply With Quote
Old 12-08-2011, 08:02 PM   #11
Out4it
Banned

Drives: 2011 2LT/RS
Join Date: May 2011
Location: N.E. Philly
Posts: 628

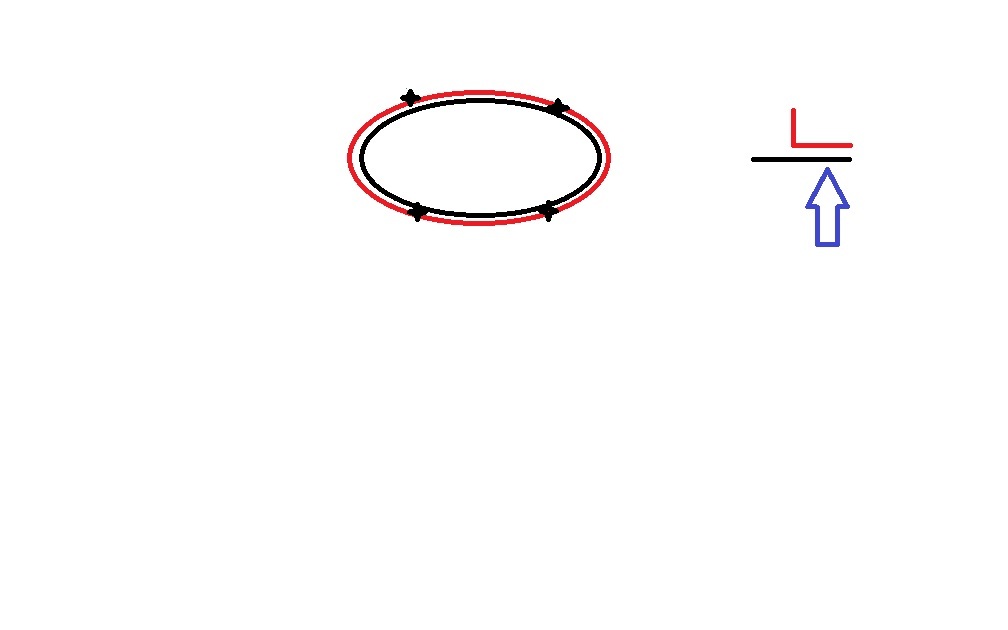

I just updated the original pic I made in the first post to show approx. Where I put the screws. Not to good with paint,but you should get the idea.
Out4it is offline   Reply With Quote
Old 12-09-2011, 02:00 AM   #12
matteo

Drives: '10 IBM 2SS, '01 Black SS
Join Date: Jun 2009
Location: AZ
Posts: 75
Thanks for the pics. I'm gonna give it a try
matteo is offline   Reply With Quote
Old 12-09-2011, 11:32 AM   #13
Iwantone2
Voice Of The Voiceless

Iwantone2's Avatar

Drives: CGM 1SS RS
Join Date: Feb 2009
Location: OC Cali
Posts: 9,728
Thanks for the pics!
__________________
Iwantone2 is offline   Reply With Quote
Old 12-09-2011, 11:54 AM   #14
Mach


Mach's Avatar

Drives: White M6 1LT RS
Join Date: Mar 2010
Location: Canton, MI
Posts: 1,677
Very cool!! You are using the speaker frame as reinforcement to the speaker deck. I'm gonna give this a try too.
__________________
Pfadt Sway Bars - FE3 Suspension - Barton Shifter - IdealG's Clutch Master Cylinder - Trifecta - Vmax TB - Vararam Intake - MACE 25mm Insulator - Plenum Insulator - Ported/Gasket Matched Intake Manifold - Rx Catchcan - AAC DRL's - 4 Pack Aux Gauges - Steering Controls - AAC Afterburners - DIY Led Sidemarkers - ZL1 Front End

Next mod: Done!
Mach is offline   Reply With Quote
Old 01-07-2012, 11:48 AM   #15
Shu71


Drives: 2011 Camaro RS M6
Join Date: Jan 2011
Location: Illinois
Posts: 788
Holy Crap that rear deck moves a ton in the video. That takes a lot away from the quality of the sound out of those speakers too. I have never heard mine make that rattle even with my 12" sub in a probox under the rear deck but I am definately going to pop the trunk and look more carefully. I don't have any interior rattles so far, only the rear wheel well vents if the sub is turned way up. I wonder why the rear deck was made so flimsy? I bet the DynaMat is helping hold the deck better as much as deflecting sound away.
__________________
Shu71 is offline   Reply With Quote
Old 01-07-2012, 11:44 PM   #16
Chad's ZL1
THERAPY

Chad's ZL1's Avatar

Drives: Red Rock Metallic ZL1
Join Date: Nov 2009
Location: Roseville
Posts: 1,025
found an easier quick fix. Take a short bungie corn, wrap it around bottom of magnet and hook the hook to side of car somewhere. Just see where it doesn't rattle. Worked for me.
Chad's ZL1 is offline   Reply With Quote
Old 01-28-2012, 03:10 AM   #17
Rangore


Rangore's Avatar

Drives: 2010 Camaro 2LT Cyber Gray
Join Date: Oct 2011
Location: Minnesota
Posts: 2,032
tagging
__________________
Current: 2010 Camaro 2LT - Current Mods: EGA on left and right windows - Solo CAT Back - Black CAI - Black Carbon Fiber Bow-tie Vinyl - Switchback LED Turn Signal bulbs - HOD Headlight bulbs - Aqua interior LED bulb - Phoenix Gold iAMP-GM1 sub box w/amp, Lorenzo WL27 wheels
No longer owned: 1993 Camaro Z-28
Rangore is offline   Reply With Quote
Old 01-28-2012, 10:53 AM   #18
kiteman


Drives: 2012 45th Camaro, 2SS/M6
Join Date: Mar 2011
Location: At my computer
Posts: 1,211
i'd be interested to hear steve's opinion on this, or maybe zach...i've noticed buzzing on these speakers, but sometimes it sounds like the speaker itself, as in you are giving it too much bass/gain. i wonder how much of that is gain and how much rattling. what do you leave your bass set at normally? you don't notice any overloading on the speaker at high volumes?
kiteman is offline   Reply With Quote
Old 02-14-2012, 10:54 PM   #19
Silver ice SS

Silver ice SS's Avatar

Drives: Silver ice Metallic 2SS/RS
Join Date: Jan 2010
Location: Philadelphia
Posts: 333
Quote:
Originally Posted by Chad's 2ss View Post
found an easier quick fix. Take a short bungie corn, wrap it around bottom of magnet and hook the hook to side of car somewhere. Just see where it doesn't rattle. Worked for me.

Might be worth a try...
Silver ice SS is offline   Reply With Quote
Old 02-15-2012, 10:02 PM   #20
Alfieboy
Madman

Alfieboy's Avatar

Drives: White 2014 ZL1
Join Date: Jun 2009
Location: RICHMOND VA
Posts: 1,306
stick a bigger magnet on the magnets...lol
Alfieboy is offline   Reply With Quote
Old 09-08-2012, 03:39 PM   #21
Yezzir600

Drives: CGM 2SS/RS
Join Date: Jul 2012
Location: Bay Area
Posts: 66
Tried the screw idea with 1/2" and looks like it really secures the speakers to the deck!!! Great.
My extra two cents: went ahead and bought a few square foot dynamat sheets on eBay for a lil over $20 and going to stick to that whole deck area under the 6x9s for extra absorption :-). Bass all down with 12" subs added should be perfect!

In my old car in the trunk I had cut 2" dynamat squares (which supposedly deaden a square foot area) and I stuck them thruoghout truck about 6" apart... No rattles at all! Inside and out.

happy slappin fellas
Yezzir600 is online now   Reply With Quote
Old 09-24-2012, 02:31 AM   #22
shazam

Drives: IOM/IOM 2LT
Join Date: Feb 2010
Location: Toronto
Posts: 42
I did exactly the same thing with a bungee cord like a year ago and then just tie wrapped the bungee cord to some of the empty holes to keep it flush and need, something about making holes I don't like!
shazam is offline   Reply With Quote
Old 05-15-2013, 06:05 PM   #23
lostnewyorker

Drives: Camaro 2010 SS
Join Date: May 2013
Location: Virginia Beach
Posts: 7
Thumbs up Cords

The bungee cords worked !!! Thanks !!
lostnewyorker is offline   Reply With Quote
Old 05-16-2013, 07:26 PM   #24
james347

Drives: 2006 Crownline
Join Date: May 2012
Location: .
Posts: 711
Great info....and pics. Thank you!
james347 is offline   Reply With Quote
Old 05-16-2013, 08:23 PM   #25
JimE



JimE's Avatar

Drives: 2013 2SS/RS/1LE
Join Date: Apr 2010
Location: St Louis, MO
Posts: 2,286
I haven't had a rattle, but the rear deck (and speakers) were pulled to tint the rear window. At which point RAAMat was installed. So that is likely working like what you guys are stuffing in there.
__________________
Perm-a-grin in place.....
JimE is offline   Reply With Quote
