How to jack up a new camaro with a floor jack, and jack stand locations

Could use some help. I have a cat back exhaust coming tomorrow and can't wait to install. Any help please.
RJ2012 is offline   Reply With Quote
Old 08-30-2012, 10:30 PM   #2
GbrilliantQ
¡ʇuɐıןןıɹq

GbrilliantQ's Avatar

Drives: 2011 Camaro IOM 2SS/RS
Join Date: Dec 2010
Location: Decatur, Illinois
Posts: 2,624



Sent from my Galaxy Note
__________________

Last edited by GbrilliantQ; 08-30-2012 at 10:50 PM.
GbrilliantQ is offline   Reply With Quote
Old 08-30-2012, 11:45 PM   #3
MyKuLLSKI

Drives: 2012 Yellow Camaro 2LT RS
Join Date: May 2012
Location: Chicago
Posts: 141
I wish I knew this about 5 hours ago when I put my Caliper covers on....I was off on my front jack positions
MyKuLLSKI is offline   Reply With Quote
Old 08-30-2012, 11:49 PM   #4
PQ
Booooosted.

PQ's Avatar

Drives: Blown beast.
Join Date: Apr 2008
Location: Mobile, AL
Posts: 36,916
Send a message via Yahoo to PQ
Those are my pics.

Also, OP, check out my video here at the 1:50 mark for jacking up the whole rear.

__________________
PQ is offline   Reply With Quote
Old 08-30-2012, 11:57 PM   #5
PQ
Booooosted.

PQ's Avatar

Drives: Blown beast.
Join Date: Apr 2008
Location: Mobile, AL
Posts: 36,916
Send a message via Yahoo to PQ

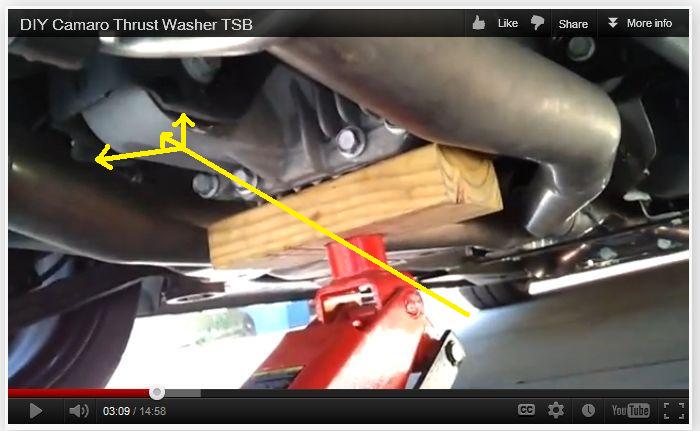

If you don't want to use the diff it's self then you can use the mount.

Name:  New Picture.jpg
Views: 7443
Size:  44.5 KB
__________________
PQ is offline   Reply With Quote
Old 12-21-2012, 09:35 PM   #6
Mouse6.2

Mouse6.2's Avatar

Drives: 2013 2SS/RS M6 NPP
Join Date: Dec 2012
Location: North Carolina
Posts: 322
I have a scissor lift and was wondering if I could use the uni-body area to place my lift pads of the lift to support the camaro?

This is my lift with my truck on it.
Mouse6.2 is offline   Reply With Quote
Old 12-26-2012, 07:44 PM   #7
stratman2SSRS


stratman2SSRS's Avatar

Drives: Lingenfelter Camaro
Join Date: Apr 2009
Location: Ontario
Posts: 1,626
Quote:
Originally Posted by Mouse6.2 View Post
I have a scissor lift and was wondering if I could use the uni-body area to place my lift pads of the lift to support the camaro?

This is my lift with my truck on it.
WOW, that just doesn't look very safe.
I'm sure it is, but I would shure be nervous working on that truck.
__________________
stratman2SSRS is offline   Reply With Quote
Old 12-26-2012, 07:50 PM   #8
Les7311

Les7311's Avatar

Drives: 45th Anniv, 2SS, LS3, '07 M109
Join Date: Feb 2012
Location: Maryland
Posts: 475
Send a message via Yahoo to Les7311
hmmmm... scribed... used my 5 ton, but in a different position......will use some black spray paint to tuch up a few undercarriage spot....
Les7311 is offline   Reply With Quote
Old 12-26-2012, 07:53 PM   #9
Les7311

Les7311's Avatar

Drives: 45th Anniv, 2SS, LS3, '07 M109
Join Date: Feb 2012
Location: Maryland
Posts: 475
Send a message via Yahoo to Les7311
http://www.camaro5.com/forums/showthread.php?t=246081

and i did this mod, for only $21.....best car ramp... and Lowes even cut the wood .....cant wait to do something underneath......
Les7311 is offline   Reply With Quote
Old 12-29-2012, 11:25 AM   #10
Mouse6.2

Mouse6.2's Avatar

Drives: 2013 2SS/RS M6 NPP
Join Date: Dec 2012
Location: North Carolina
Posts: 322
Quote:
Originally Posted by stratman2SSRS View Post
WOW, that just doesn't look very safe.
I'm sure it is, but I would shure be nervous working on that truck.

No issues at all. It is sold up there. I don't really work on it that high, just put it there to show others how high the lift can go. I like it to rotate the tires and do to any kind of brake work as well as suspension work. I was just wondering where would be other lift points on the camaro other than the ones just below the side rocker panel.
Mouse6.2 is offline   Reply With Quote
Old 11-05-2013, 08:55 PM   #11
Blue70SS


Blue70SS's Avatar

Drives: 2010 LS3Camaro2SSRS IOM in/out
Join Date: Aug 2009
Location: Denver
Posts: 2,035
Quote:
Originally Posted by PQ View Post
If you don't want to use the diff it's self then you can use the mount.

Attachment 417836
I used to do this, but avoid lifting by the diff completely now. That single rear diff bushing takes a beating on high HP builds. Totally blew out both the Pfadt and HD Pedders bushings, now on Delrin Pedders and that mount bolt has to be kept extremely tight to keep from moving up/down. Even with an oversized 12.9 bolt I thought was tight, I had movement that sounded like CVs going bad, but the washer slide pattern showed it only moved about 1/8th inch. 80 ft lbs tightening, paint marker to verify no movement, and it's all good again for now.
__________________
LPE 650+,IOM Pearl White Rallys
743 RWHP 681 TQ @91,TVS2300 10/14 OD 2.75/NW 102mm,RDS
NLP spoiler/GM splitter/Torq HE-fans/oil-tranny coolers/IC1000cc
boosted LPE Twin Pump,GT9,Coil Covers,Mats,Pedals/ADM Gauges,Race Scoop/Trunions
DDS CVs,Carbon F DS/RPM L6/LPE 9.5 3.73/Pedders HD bushes,align kit
RB 2-piece rotors,S/S Lines,Hawk HPE Pads/Forgeline SP3P/Weld RTS
Ceramic ARH 2" LT/3" X-pipe,Corsa Touring/BMR TA,Toe,LCA,DS Loop
StreetSlayer BC3/MTI Shifter-Trans mt/Hotchkis CB/Monster CC/SJM LineLock
PFADT Coil Overs,Sways,Links,Mounts,SF Bushes,Camber Kit

LPE Brotherhood
.
Blue70SS is offline   Reply With Quote
Old 11-06-2013, 09:26 PM   #12
PQ
Booooosted.

PQ's Avatar

Drives: Blown beast.
Join Date: Apr 2008
Location: Mobile, AL
Posts: 36,916
Send a message via Yahoo to PQ
Quote:
Originally Posted by Blue70SS View Post
I used to do this, but avoid lifting by the diff completely now. That single rear diff bushing takes a beating on high HP builds. Totally blew out both the Pfadt and HD Pedders bushings, now on Delrin Pedders and that mount bolt has to be kept extremely tight to keep from moving up/down. Even with an oversized 12.9 bolt I thought was tight, I had movement that sounded like CVs going bad, but the washer slide pattern showed it only moved about 1/8th inch. 80 ft lbs tightening, paint marker to verify no movement, and it's all good again for now.
Doesn't it lift on the mount without touching the diff in any way? With a block of wood? I can't remember. I'll certainly make sure to keep an eye on mine.
__________________
PQ is offline   Reply With Quote
Old 11-06-2013, 11:00 PM   #13
DARK AGE 53


Drives: 2010 SS
Join Date: Aug 2006
Location: Mi./Al.
Posts: 776
PQ, I have a manual SS with no sound at the wheels, if I develope this problem I'll know how to repair it...thanks for the video.
__________________
POW/MIA - YOU ARE LOST BUT NOT FORGOTTEN IN SOUTHEAST ASIA
DARK AGE 53 is offline   Reply With Quote
Old 12-18-2013, 09:42 PM   #14
Ryanbabz71



Ryanbabz71's Avatar

Drives: 2012 Camaro 2SS Convertible
Join Date: Jul 2011
Location: Avon, Indiana
Posts: 3,063
Do you jack up the front or rear first?
__________________
Ryan
* 2012 2SS Camaro Convertible Ashen Gray
Car Photos http://www.camaro5.com/forums/showthread.php?t=257256
Ryanbabz71 is offline   Reply With Quote
Old 12-18-2013, 09:53 PM   #15
rtcat600man
having FUN now 13.66@101

rtcat600man's Avatar

Drives: 2010 2LT IOM
Join Date: Nov 2009
Location: Clarkston, Michigan
Posts: 8,140
Doesn't really matter. What you have to watch for is as you jack one end up the other end goes down making it difficult to get a jack under the Camaro, especially if you are lowered. I drive mine onto my home ramps. Then jack up the rear using the rear diff. housing. Place jack stands in the locations indicated above. Then move around to the front and jack up on the cross member and then install jack stands as shown.
__________________
rtcat600man is online now   Reply With Quote
Old 12-18-2013, 10:28 PM   #16
DARK AGE 53


Drives: 2010 SS
Join Date: Aug 2006
Location: Mi./Al.
Posts: 776
Quote:
Originally Posted by Ryanbabz71 View Post
Do you jack up the front or rear first?
I have found doing the front works best.
__________________
POW/MIA - YOU ARE LOST BUT NOT FORGOTTEN IN SOUTHEAST ASIA
DARK AGE 53 is offline   Reply With Quote
Old 12-19-2013, 12:35 PM   #17
PQ
Booooosted.

PQ's Avatar

Drives: Blown beast.
Join Date: Apr 2008
Location: Mobile, AL
Posts: 36,916
Send a message via Yahoo to PQ
Quote:
Originally Posted by DARK AGE 53 View Post
PQ, I have a manual SS with no sound at the wheels, if I develope this problem I'll know how to repair it...thanks for the video.
__________________
PQ is offline   Reply With Quote
Old 12-19-2013, 06:53 PM   #18
Ryanbabz71



Ryanbabz71's Avatar

Drives: 2012 Camaro 2SS Convertible
Join Date: Jul 2011
Location: Avon, Indiana
Posts: 3,063
Quote:
Originally Posted by rtcat600man View Post
Doesn't really matter. What you have to watch for is as you jack one end up the other end goes down making it difficult to get a jack under the Camaro, especially if you are lowered. I drive mine onto my home ramps. Then jack up the rear using the rear diff. housing. Place jack stands in the locations indicated above. Then move around to the front and jack up on the cross member and then install jack stands as shown.
I didn't even think if this. I have race ramps so I think this method will work best


Ryan
__________________
Ryan
* 2012 2SS Camaro Convertible Ashen Gray
Car Photos http://www.camaro5.com/forums/showthread.php?t=257256
Ryanbabz71 is offline   Reply With Quote
Old 12-19-2013, 07:21 PM   #19
rtcat600man
having FUN now 13.66@101

rtcat600man's Avatar

Drives: 2010 2LT IOM
Join Date: Nov 2009
Location: Clarkston, Michigan
Posts: 8,140
Quote:
Originally Posted by Ryanbabz71 View Post
I didn't even think if this. I have race ramps so I think this method will work best


Ryan
My ramps are staggered 2 x 8's I only drive onto the first portion, any further up the ramps will cause the rear end to drop so low I can't get the jack under the rear end.
