Old 06-11-2009, 09:51 PM   #1
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
Gained HP from removing mufflers. +17hp (with dyno)

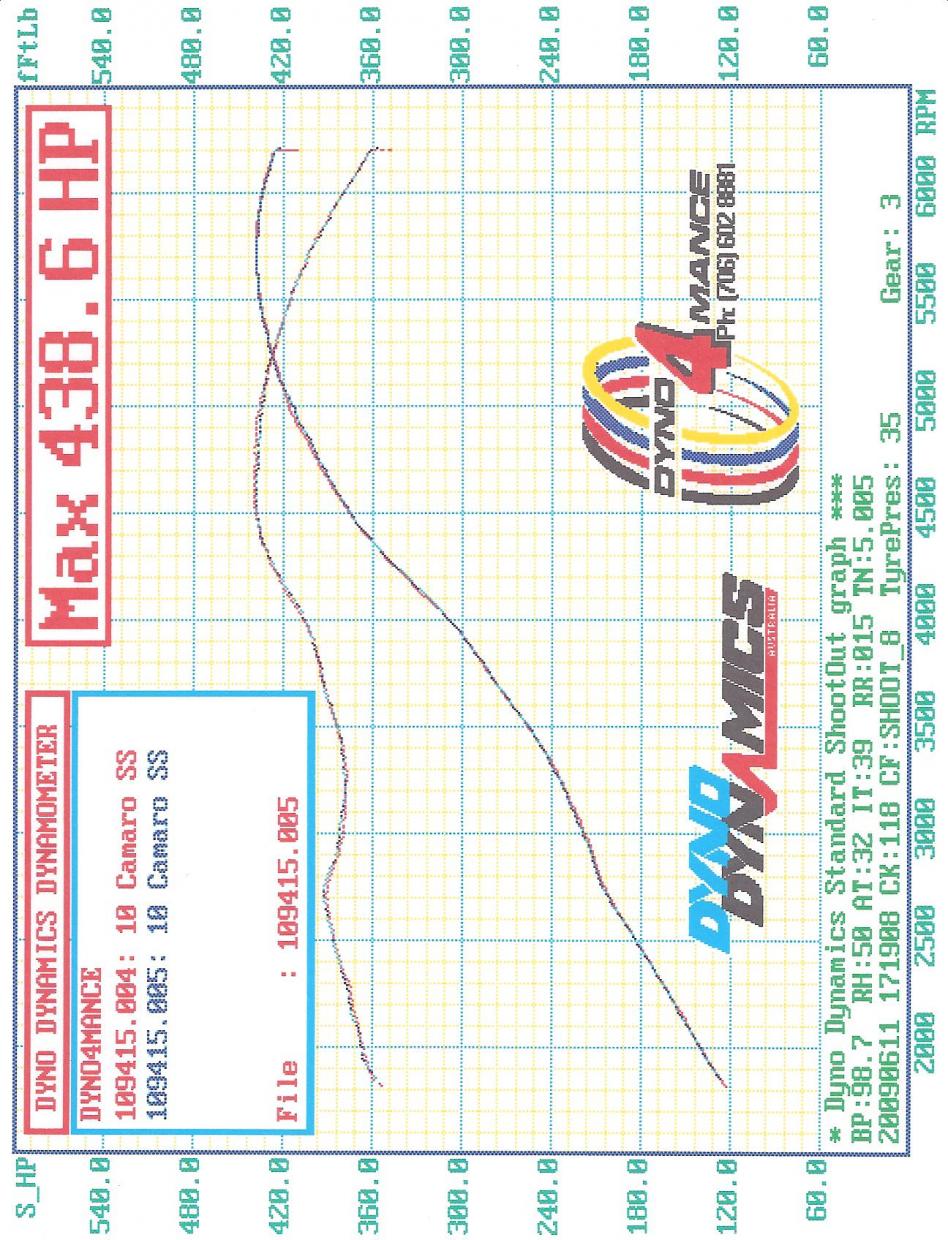

I removed my mufflers last week and ran on Dyna Dynmacs again today and am now at 438 Hp. Baseline before was 421 hp. Not bad for $100. Have dyno to be emailed if anyone wants it. Or someone tell me how to attach the dang thing.
Attached Images


Last edited by lawdogg149; 06-11-2009 at 10:15 PM. Reason: updated dyno sheet
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:00 PM   #2
ZZcamaro



Drives: 2SS w/ ZZ427 Package!!
Join Date: Oct 2008
Location: Pittsburgh, PA
Posts: 2,706
Are those at the wheels? and what other mods did you do?
ZZcamaro is offline   Reply With Quote
Old 06-11-2009, 10:03 PM   #3
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
Motor HP. No other mods at all.
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:03 PM   #4
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
How the hell do I add this pic of dyno sheet???
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:08 PM   #5
ZZcamaro



Drives: 2SS w/ ZZ427 Package!!
Join Date: Oct 2008
Location: Pittsburgh, PA
Posts: 2,706
click edit on your first post...then go advanced...towards the bottom you will see manage attachments...then upload it....then click save.
ZZcamaro is offline   Reply With Quote
Old 06-11-2009, 10:18 PM   #6
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
updated. look above.
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:24 PM   #7
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
bump
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:28 PM   #8
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
Exclamation Dyno of muffler delete +17 hp

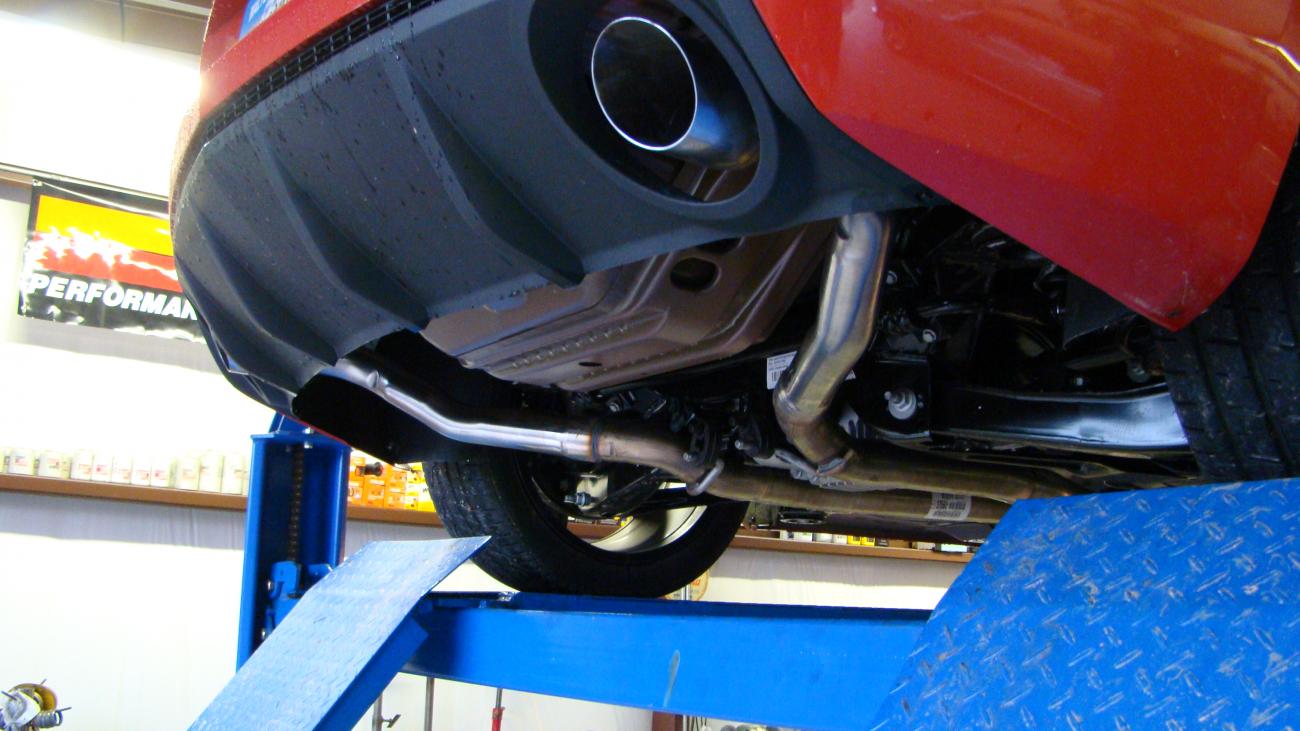

Removed Rear two mufflers and added 17 HP. This is for sure the cheapest Mode for the Gain out there and I found it.: laughabove:
Attached Images


Last edited by lawdogg149; 06-11-2009 at 10:38 PM. Reason: photos
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:32 PM   #9
billy77

Drives: none
Join Date: May 2009
Location: rochester, mn
Posts: 14
That is the best bang for the buck. Did you get a reading for the torque, to see what the gain was there too.
billy77 is offline   Reply With Quote
Old 06-11-2009, 10:33 PM   #10
ibznu2010

ibznu2010's Avatar

Drives: 2010 blk 2SS RS polished wheel
Join Date: Mar 2009
Location: Sylvester Georgia
Posts: 158
cool
ibznu2010 is offline   Reply With Quote
Old 06-11-2009, 10:33 PM   #11
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
yea, 10 ftlbs of torque
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:42 PM   #12
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
updated with pic above
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:44 PM   #13
ljustin293



ljustin293's Avatar

Drives: 2010 VR CAMARO 2SS/RS
Join Date: Aug 2008
Location: GA
Posts: 15,089
can you post any vids of how yours sounds???
ljustin293 is offline   Reply With Quote
Old 06-11-2009, 10:47 PM   #14
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
Sorry not that computer smart. There is another video on here somewhere.
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:48 PM   #15
Roger Ramjet
Motor Head

Roger Ramjet's Avatar

Drives: CTS-V
Join Date: Feb 2009
Location: So MD
Posts: 494
HP number looks a little high. Crankshaft HP is calculated not measured. Corvette experience tells me that the drivetrain loss is about 11 percent when the pull is done in 4th gear. The dyno shop may have given you a few HP in the calculation.

To get a good comparison of dyno pulls I always use my own weather station and do the SAE correction myself.
__________________
History Camaro's: 83, 93, 95, 98, & 10.
Roger Ramjet is offline   Reply With Quote
Old 06-11-2009, 10:52 PM   #16
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
I did my own corrections as well with my Iphone weather readings. Pulled in 3rd gear
lawdogg149 is offline   Reply With Quote
Old 06-11-2009, 10:55 PM   #17
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
+
lawdogg149 is offline   Reply With Quote
Old 06-12-2009, 08:08 AM   #18
2010 SS RS


2010 SS RS's Avatar

Drives: 2010 2SS/RS IBM Black Polished
Join Date: Feb 2009
Location: Colorado
Posts: 2,130
Lawdogg. Thanks for posting this dyno reading up. I can feel the difference in mine from the seat but I thought it might be just the engine getting broke in a bit. This is very good results. I really was not expecting more than 5HP out of the straight pipe mod and hoped for another 5 when CAI mod complete. I am working on getting info on another inexpensive mod for the CAI. Using the existing factory plastic box and mass flow sensor, my plans are to modify the factory intake box and install a high flow CAI filter inside to increase air intake to aftermarket specs. I will let you know and post up a video as I get that done. Once again thanks for the documentation. Your job looks great by the way. I see you also saved those stock factory tips.. SS looks really good too!

Here is the link to the videos with sound clips:
http://www.camaro5.com/forums/showthread.php?t=24815
__________________
418 Stroker, 621RWHP 648 lbs TORQUE Built by Laramie GM Auto Center Tuned by Nick at Mac Autosport. EForce SC, 2 3/4pulley,LPE dual fuel pump, JRE Twin fuel rail upgrade, posi clutch kit, RX oilcatch can and breather, Callies Compstar crankshaft and rods, Racing bearings, CP -13.8 race pistons, steel rings, Comp Cams X6 blower cam, Springs, HD timing chain and tensioner, Doug Thorley Tri Y LT headers, 89.7lb injectors, RPM rollbar, DSS1400 shafts, Simpson 5 pt harness, BMR Toe rods and trailing arms, led lights, RPM input and output shafts
2010 SS RS is offline   Reply With Quote
Old 06-12-2009, 08:45 AM   #19
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
Great let me know. I have a great connection for a dyno that is free. I will do anything cheap that will give any gains.
lawdogg149 is offline   Reply With Quote
Old 06-12-2009, 09:34 AM   #20
JJ2010


Drives: 2010 Camaro SS
Join Date: Oct 2008
Location: Smithfield,NC
Posts: 1,202
Has anybody did a muffler delete on the L99 yet?

If so how did it sound?
JJ2010 is offline   Reply With Quote
Old 06-12-2009, 10:20 AM   #21
radz28
Petro-sexual

radz28's Avatar

Drives: Ultra-Grin
Join Date: Oct 2006
Location: Crapramento, Crapifornia
Posts: 13,046
Great info'. Thanks for sharing. When you post up a sound clip or video I'll add it to the sticky
__________________
"...What IS true: We anticipated that this would happen - we are never finished - and yes, Ford DOES deserve to win now and then. To think that GM can come out with a car to make ford throw in the towel is simply foolhardy..." - fbodfather
radz28 is offline   Reply With Quote
Old 06-13-2009, 11:23 AM   #22
A.R. Headers

Drives: Pontiac G8 GT
Join Date: May 2009
Location: new york
Posts: 288
Quote:
Originally Posted by JJ2010 View Post
Has anybody did a muffler delete on the L99 yet?

If so how did it sound?
We did a muffler delete on a 6.0 G8 GT. Better yet, we tested the G8 GT mufflers by disconnecting them completely from our header system and gained a whopping 3 HP. Granted the LS3 produces more power but 17 RW seems high considering our header system gained 32 rw before the tune and with stock mufflers.

Nick
A.R. Headers is offline   Reply With Quote
Old 06-13-2009, 11:28 AM   #23
LDGn63

LDGn63's Avatar

Drives: WNABEE
Join Date: Jan 2009
Location: DFW
Posts: 538
lawdog...
i still need info on your "guy"
__________________
Why oh Why?
Windshield=10" vertical
mirror= 3 7/8" (that's almost 4") vertical
that means that the mirror is 38.75% the size of the vertical windshield...
it sure seems like the ratio could be better... just sayin....

our collective MIRROR patch:
http://www.camaro5.com/forums/showthread.php?t=24612
LDGn63 is offline   Reply With Quote
Old 06-13-2009, 06:55 PM   #24
lawdogg149

lawdogg149's Avatar

Drives: Corvette ZO6 CSR edition #47
Join Date: Apr 2009
Location: Calhoun, GA
Posts: 740
Sent PM LDgn63.
lawdogg149 is offline   Reply With Quote
Old 06-16-2009, 10:52 AM   #25
LDGn63

LDGn63's Avatar

Drives: WNABEE
Join Date: Jan 2009
Location: DFW
Posts: 538
THX!

I stopped by my local shop yesterday... they cant do it until late in the week.
if it doesnt pan out i'll call.

thanks again!
__________________
Why oh Why?
Windshield=10" vertical
mirror= 3 7/8" (that's almost 4") vertical
that means that the mirror is 38.75% the size of the vertical windshield...
it sure seems like the ratio could be better... just sayin....

our collective MIRROR patch:
http://www.camaro5.com/forums/showthread.php?t=24612
LDGn63 is offline   Reply With Quote
