Old 01-05-2014, 10:52 AM   #1
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498
Progress of my M6 to 4l80e trans swap

I started my M6 to 4l80e transmission swap.
Name:  trans5.jpg
Views: 924
Size:  113.4 KB
Name:  trans4.jpg
Views: 909
Size:  120.1 KB

It wasnt hard to get the manual transmission out and all the hardware that went with it.
Name:  trans6.jpg
Views: 913
Size:  153.5 KB
Name:  trans.jpg
Views: 953
Size:  189.7 KB

As of right now I have the new B&M Quicksilver shifter installed, but still have to hook up the cable and reinstall the console and boot, and hook up all the wires for reverse lights, line lock, and converter lock up switch
Name:  trans3.jpg
Views: 912
Size:  136.9 KB

I installed the B&M trans cooler just have to wait to install the new trans before running the new stainless lines
Name:  trans7.jpg
Views: 884
Size:  125.8 KB
Name:  trans8.jpg
Views: 882
Size:  125.5 KB

New complete upgraded built billet, full manual body valve transmission should arrive by the end of the week. Going with the vigilanty custom torq converter also.
Attached Images

__________________
timtoolman24 is offline   Reply With Quote
Old 01-05-2014, 11:20 AM   #2
acowherd


acowherd's Avatar

Drives: 2010 2ss/RS 4l80. 2009 2500 HD
Join Date: Mar 2009
Location: Mid MO
Posts: 1,777
You got a good start on things. Havr you checked your bumper clearance with that trans cooler location? I would also be a little concerned with air flow on that cooler. I know it has a fan , but its going to br pretty covered up.

I am in no way an expert...just asking questions and seeing things as an outsider.
__________________
ProCharger
4l80
DSS 9in

Cam5 Build Thread...http://www.camaro5.com/forums/showthread.php?t=341052
acowherd is online now   Reply With Quote
Old 01-05-2014, 01:23 PM   #3
DarkCry956

DarkCry956's Avatar

Drives: 2011 Camaro 2SS/RS
Join Date: Oct 2011
Location: Texas RGV
Posts: 590
I tried installing my cooler there as well but it wouldn't fit to my liking and like stated above the airflow wouldn't be the best. I did mine a little different and love how it came out
__________________
DarkCry956 is offline   Reply With Quote
Old 01-05-2014, 03:43 PM   #4
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498
It fits perfect, I had to take the bumper support off the bumper. It hangs right in front lower grill perfectly.

Quote:
Originally Posted by acowherd View Post
You got a good start on things. Havr you checked your bumper clearance with that trans cooler location? I would also be a little concerned with air flow on that cooler. I know it has a fan , but its going to br pretty covered up.

I am in no way an expert...just asking questions and seeing things as an outsider.
__________________
timtoolman24 is offline   Reply With Quote
Old 01-05-2014, 03:45 PM   #5
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498
Got any pics of yours. It hangs right in front of the lower grill looks like it would get alot of air. I couldnt find any other spot for it to fit because of my procharger air cooler.

Quote:
Originally Posted by DarkCry956 View Post
I tried installing my cooler there as well but it wouldn't fit to my liking and like stated above the airflow wouldn't be the best. I did mine a little different and love how it came out
__________________
timtoolman24 is offline   Reply With Quote
Old 01-05-2014, 04:11 PM   #6
UF4LIFE102SS
Treasure Coast Camaro 5

UF4LIFE102SS's Avatar

Drives: 2010 2 SS
Join Date: Nov 2010
Location: Vero Beach, FL.
Posts: 3,558
What 4L r u using brand name or rebuild? What shift controller?
__________________
UF4LIFE102SS is offline   Reply With Quote
Old 01-05-2014, 04:28 PM   #7
acowherd


acowherd's Avatar

Drives: 2010 2ss/RS 4l80. 2009 2500 HD
Join Date: Mar 2009
Location: Mid MO
Posts: 1,777
Quote:
Originally Posted by timtoolman24 View Post
It fits perfect, I had to take the bumper support off the bumper. It hangs right in front lower grill perfectly.
Sounds like a good spot then. I was just afraid it was going to be where the closed in nose is. The lower grill should have plenty of air flow!!

I have the same ratchet shifter with button on the side. It works great...just takes time to get it to fit and all the trim back on.

Looking forward to the rest of the build.
__________________
ProCharger
4l80
DSS 9in

Cam5 Build Thread...http://www.camaro5.com/forums/showthread.php?t=341052
acowherd is online now   Reply With Quote
Old 01-05-2014, 07:37 PM   #8
DarkCry956

DarkCry956's Avatar

Drives: 2011 Camaro 2SS/RS
Join Date: Oct 2011
Location: Texas RGV
Posts: 590
Took some work but I made it work out perfect
Attached Images

__________________
DarkCry956 is offline   Reply With Quote
Old 01-06-2014, 05:10 AM   #9
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498
I have a buddy that builds transmissons on the side for 20 years. He got a core an built it from there with all billet parts. I'm not using a shift controller because I'm using a full manual body valve, No computer shifting.

Quote:
Originally Posted by UF4LIFE102SS View Post
What 4L r u using brand name or rebuild? What shift controller?
__________________
timtoolman24 is offline   Reply With Quote
Old 01-06-2014, 05:18 AM   #10
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498
Ya me too. Soon as the trans arrives it wont take me long to get it done!

Quote:
Originally Posted by acowherd View Post
Sounds like a good spot then. I was just afraid it was going to be where the closed in nose is. The lower grill should have plenty of air flow!!

I have the same ratchet shifter with button on the side. It works great...just takes time to get it to fit and all the trim back on.

Looking forward to the rest of the build.
__________________
timtoolman24 is offline   Reply With Quote
Old 01-06-2014, 05:39 AM   #11
Criag B

Criag B's Avatar

Drives: 2013 1LE
Join Date: May 2013
Location: NJ
Posts: 519
Looks good!! Waiting to see how u like it on the street. I'm thinking of swaping out the M6.
Criag B is offline   Reply With Quote
Old 01-06-2014, 11:24 AM   #12
MANNYS2SS/RS


MANNYS2SS/RS's Avatar

Drives: 2010 Camaro 2SS/RS,LS3
Join Date: Oct 2010
Location: South Florida
Posts: 2,144
Awesome!!! I can't wait to get started on mine.
__________________

LS-3, ProCharger D1SC
665. rwhp /562. rwtq @ 9.3 psi
MANNYS2SS/RS is offline   Reply With Quote
Old 01-06-2014, 08:42 PM   #13
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498

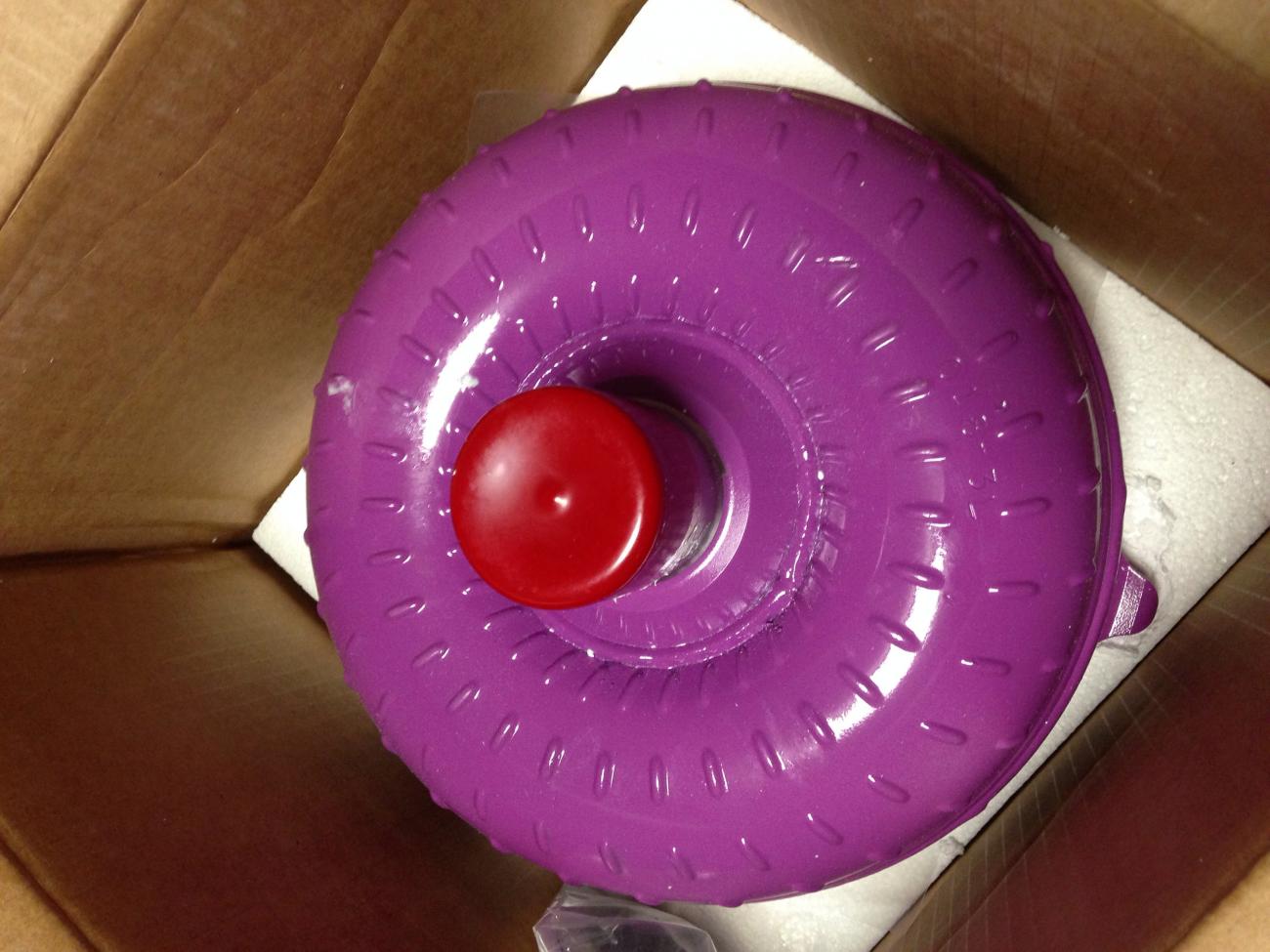

Just got my vigilanty in!! Getting closer!!!!

Name:  image.jpg
Views: 697
Size:  121.4 KB
__________________
timtoolman24 is offline   Reply With Quote
Old 01-07-2014, 05:29 AM   #14
Criag B

Criag B's Avatar

Drives: 2013 1LE
Join Date: May 2013
Location: NJ
Posts: 519
Quote:
Originally Posted by timtoolman24 View Post
Just got my vigilanty in!! Getting closer!!!!

Attachment 588753
Make sure no one see's u running that PINK converter . I would hurry up and paint it flat black. Good luck with the build.
Criag B is offline   Reply With Quote
Old 01-13-2014, 07:17 PM   #15
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498
Nah it'll make them feel bad getting beat by a pink converter ha
__________________
timtoolman24 is offline   Reply With Quote
Old 01-19-2014, 02:43 PM   #16
UF4LIFE102SS
Treasure Coast Camaro 5

UF4LIFE102SS's Avatar

Drives: 2010 2 SS
Join Date: Nov 2010
Location: Vero Beach, FL.
Posts: 3,558
Is it done?
__________________
UF4LIFE102SS is offline   Reply With Quote
Old 01-19-2014, 03:29 PM   #17
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498
Installing it right now! Got the transmission in last night. Been working all day on it.
__________________
timtoolman24 is offline   Reply With Quote
Old 01-19-2014, 04:54 PM   #18
DarkCry956

DarkCry956's Avatar

Drives: 2011 Camaro 2SS/RS
Join Date: Oct 2011
Location: Texas RGV
Posts: 590
Nice let us know how it goes! I'm tearing mine down late this week because I had some vibrations in different RPMs
__________________
DarkCry956 is offline   Reply With Quote
Old 01-19-2014, 06:52 PM   #19
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498
On hold right now. Have to order a different flexplate. The converter they sent me is for a 4l80 but has 3 tabs like a 4l60 so I got to order another plate first thing in morning!
__________________
timtoolman24 is offline   Reply With Quote
Old 01-19-2014, 07:05 PM   #20
acowherd


acowherd's Avatar

Drives: 2010 2ss/RS 4l80. 2009 2500 HD
Join Date: Mar 2009
Location: Mid MO
Posts: 1,777
Will the 3 holes on the converter not line up with the flex plate? I have a Persion Industries converter and it only had 3 tabs and it bolted up just fine with my 4l80 flex plate.

Maybe I am not understanding what your having problems with.
__________________
ProCharger
4l80
DSS 9in

Cam5 Build Thread...http://www.camaro5.com/forums/showthread.php?t=341052
acowherd is online now   Reply With Quote
Old 01-19-2014, 07:21 PM   #21
UF4LIFE102SS
Treasure Coast Camaro 5

UF4LIFE102SS's Avatar

Drives: 2010 2 SS
Join Date: Nov 2010
Location: Vero Beach, FL.
Posts: 3,558
Just cking in! Might be doing it soon if everything works out. Looking good so far will find out tomm!
__________________
UF4LIFE102SS is offline   Reply With Quote
Old 01-19-2014, 07:24 PM   #22
SlowTurtle

Drives: camaro turtle
Join Date: Nov 2013
Location: somewhere in the south
Posts: 277
^ not all converters have 6 tabs.
__________________
This nick no longer in use. Please direct all future pms to 'Dietcoke'
SlowTurtle is offline   Reply With Quote
Old 01-19-2014, 08:01 PM   #23
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498

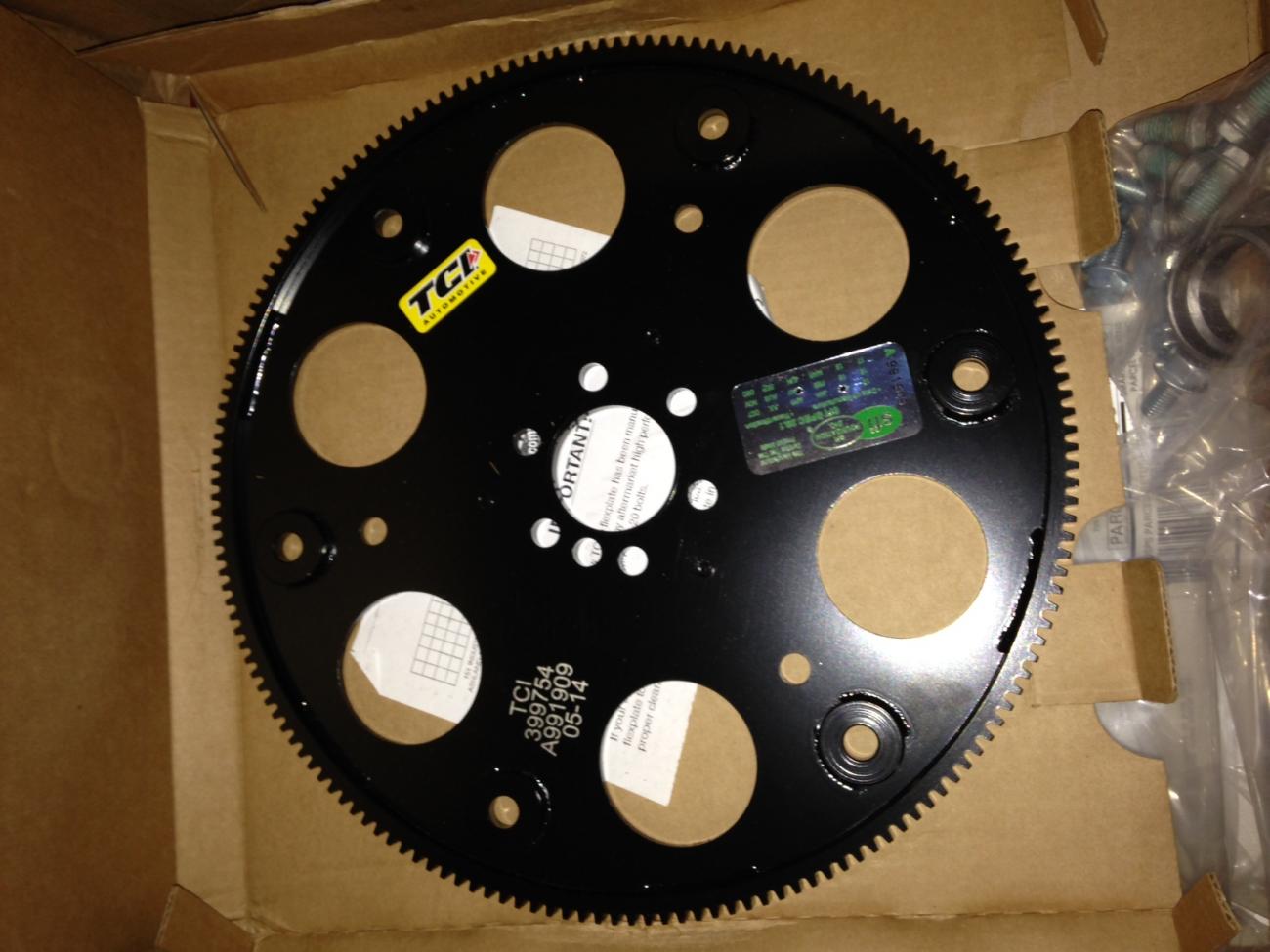

Ya look up top and I have a picture of the flex plate that I tried to use and it doesn't line up to my Precision Industries converter. Trying to figure out which flex plate I need and put a rush order on it! ANY HELP!!!????

Quote:
Originally Posted by acowherd View Post
Will the 3 holes on the converter not line up with the flex plate? I have a Persion Industries converter and it only had 3 tabs and it bolted up just fine with my 4l80 flex plate.

Maybe I am not understanding what your having problems with.
__________________
timtoolman24 is offline   Reply With Quote
Old 01-19-2014, 08:06 PM   #24
acowherd


acowherd's Avatar

Drives: 2010 2ss/RS 4l80. 2009 2500 HD
Join Date: Mar 2009
Location: Mid MO
Posts: 1,777
I have the same flexplate. Are you using the spacer thing between the flexplate and converter? It centers the snout of the converter and flex plate.
__________________
ProCharger
4l80
DSS 9in

Cam5 Build Thread...http://www.camaro5.com/forums/showthread.php?t=341052
acowherd is online now   Reply With Quote
Old 01-19-2014, 08:15 PM   #25
timtoolman24

timtoolman24's Avatar

Drives: 2012 LS3 2SS/RS
Join Date: Jul 2012
Location: Baton Rouge, LA
Posts: 498
And your precision indeustries converter has 3 tabs on it??? And bolts right up to it??????????? Not 6 tabs right

Quote:
Originally Posted by acowherd View Post
I have the same flexplate. Are you using the spacer thing between the flexplate and converter? It centers the snout of the converter and flex plate.
__________________
timtoolman24 is offline   Reply With Quote
