Old 03-12-2014, 10:29 AM   #1
Dropspeed
2013 Camaro SS1LECTSVZ28

Dropspeed's Avatar

Drives: 2013 AGM 1SS/1LE
Join Date: Nov 2012
Location: Suburbs of Detroit, MI
Posts: 2,018
Tow Hook install on my 2013 SS/1LE

I figured this is the best forum for this as I am not really doing a how-to...just giving a couple of pointers to those that may be installing a Tow Hook on their Camaro

  • Remove front Fascia
  • Remove the metal plate that surrounds the hood latch (bolted to the radiator core support) and unbolt hood latch so you can move it to the side. This allows you to reach an arm down from the top to position the tow hook with the front fascia set back in place.
  • I used larger/strong magnets to hold the hook on the bumper and then used wedges on the outside to postion it where I wanted
  • Marked it with tape and then took the bumper support off.
  • Drilled and bolted the hook...check postion on car again
  • Welded the hook and then cut the excess threads off the bolts and painted the bolts and the welds.
  • Installed front Fascia.
I decided to put my hook closer to the center so it doesn't stick out as much and is not a shin killer. I have multiple tow straps, clevis and hooks from offroading days and I can get all of them on the hook in this position with no problem.


Matt
Attached Images

__________________
Dropspeed is online now   Reply With Quote
Old 03-12-2014, 12:29 PM   #2
jksynergy


jksynergy's Avatar

Drives: 11 SW SYNERGY SERIES/14 1SS 1LE
Join Date: May 2012
Location: Missouri
Posts: 961
Nice write up Matt. What bolts/length did you use to get them all the way through the reinforcement?
__________________
2011 Summit White Synergy Series Edition, the hot innocent woman named Ava that we show off around town, dressed in white complete with angel's wings. Sold, but never forgotten.

2014 1SS 1LE. Bama, sporting Red Rock Metallic demon's horns, when we are ready to get naughty and open a can of whoopass! Roto-Fab, custom splitter and wicker bill. Wrapped in Xpel by ClearAutoBra.com, Amsoil. Full of Pedders parts. Diode Dynamics bulbs, JRE Tune,
Hooker Headers Blackheart exhaust.
2015 Midwest Muscle Car Challenge Road Course champion.
InstaGram & Twitter: @jlouie62
FB: hangtimeracing
jksynergy is offline   Reply With Quote
Old 03-12-2014, 12:38 PM   #3
Dropspeed
2013 Camaro SS1LECTSVZ28

Dropspeed's Avatar

Drives: 2013 AGM 1SS/1LE
Join Date: Nov 2012
Location: Suburbs of Detroit, MI
Posts: 2,018
Quote:
Originally Posted by jksynergy View Post
Nice write up Matt. What bolts/length did you use to get them all the way through the reinforcement?
Thanks. The hook from JDP came with the bolts, nuts and washers....I would guess they were 4" ?? I think I cut about 3/4 to and 1" of threads off after the fact.
__________________
Dropspeed is online now   Reply With Quote
Old 03-12-2014, 12:43 PM   #4
jksynergy


jksynergy's Avatar

Drives: 11 SW SYNERGY SERIES/14 1SS 1LE
Join Date: May 2012
Location: Missouri
Posts: 961
Thanks, we are actually going with a different type of hook, I'll show you later, but I'm going to have it installed the day the car arrives at the dealer. I'm in good with the bodyshop, due to my work, and they agreed to pull the front bumper off for the splitter install and then I can install our "hook".
__________________
2011 Summit White Synergy Series Edition, the hot innocent woman named Ava that we show off around town, dressed in white complete with angel's wings. Sold, but never forgotten.

2014 1SS 1LE. Bama, sporting Red Rock Metallic demon's horns, when we are ready to get naughty and open a can of whoopass! Roto-Fab, custom splitter and wicker bill. Wrapped in Xpel by ClearAutoBra.com, Amsoil. Full of Pedders parts. Diode Dynamics bulbs, JRE Tune,
Hooker Headers Blackheart exhaust.
2015 Midwest Muscle Car Challenge Road Course champion.
InstaGram & Twitter: @jlouie62
FB: hangtimeracing
jksynergy is offline   Reply With Quote
Old 03-12-2014, 01:00 PM   #5
JDP Sales


JDP Sales's Avatar

Drives: Chevys at the limit
Join Date: Nov 2010
Location: SLC, UT
Posts: 8,184
Nice write up! I'm sure this will help a lot of people. Thanks for taking the time to do this.

Best regards,

Tyler
888-308-6007
__________________

Click HERE to send me a PM | Sales@jdpmotorsports.com | www.jdpmotorsports.com | Facebook | 888.308.6007
JDP Sales is offline   Reply With Quote
Old 03-12-2014, 01:21 PM   #6
Dropspeed
2013 Camaro SS1LECTSVZ28

Dropspeed's Avatar

Drives: 2013 AGM 1SS/1LE
Join Date: Nov 2012
Location: Suburbs of Detroit, MI
Posts: 2,018
Quote:
Originally Posted by jksynergy View Post
Thanks, we are actually going with a different type of hook, I'll show you later, but I'm going to have it installed the day the car arrives at the dealer. I'm in good with the bodyshop, due to my work, and they agreed to pull the front bumper off for the splitter install and then I can install our "hook".
I would like to see it...

For the rear I plan on using a soft strap from Safe Quip. I might use the a hole behind the lic plate area to access it while on track (leave the plate off and hide it while on the street)...I will have to modify the high density foam behind it to access it.

We just got another 6-8" of snow so it is not in in the works just yet.

Matt
__________________
Dropspeed is online now   Reply With Quote
Old 03-12-2014, 01:54 PM   #7
Buffman
1LE FTW

Buffman's Avatar

Drives: 2014 Camaro 2SS/RS 1LE Recaros NPP
Join Date: Sep 2013
Location: Mile High
Posts: 444
Nice write up!
Buffman is offline   Reply With Quote
Old 02-24-2015, 02:59 PM   #8
Dropspeed
2013 Camaro SS1LECTSVZ28

Dropspeed's Avatar

Drives: 2013 AGM 1SS/1LE
Join Date: Nov 2012
Location: Suburbs of Detroit, MI
Posts: 2,018
Back from the dead.

If anyone local wants this front bumper with tow hook welded on I am willing to make a trade. Your stock good condition bumper plus $40 for mine with tow hook. Will not ship, local only. If this works for you let me know.

Thx Matt
__________________
Dropspeed is online now   Reply With Quote
Old 02-24-2015, 04:20 PM   #9
Camarodriver2

Camarodriver2's Avatar

Drives: Bumblebee 1 of 1
Join Date: May 2010
Location: Hoffman Estates IL
Posts: 513
I've seen many tow hooks on P.O.S. cars. No need, thanks!
__________________
My 1 of 1 Bumblebee: Paint=House of Kolor Sunrise. Shaved door handles and concept handles added. Shark fin removed, concept mirrors, Showstoppers concept LED side marker lights. Wiper blades removed, muffler delete, and Range AFM disable. BMR springs lowered 1" rear and 1.4" front and added Eibach wheel spacers - 20mm rear and 25mm front.
Camarodriver2 is offline   Reply With Quote
Old 02-24-2015, 04:21 PM   #10
Avalnch


Avalnch's Avatar

Drives: Rally Yellow Camaro+Avalanche
Join Date: Dec 2009
Location: Vancouver
Posts: 975
OP, the entire tow hook hole should be visible beyond the grill opening.
Avalnch is offline   Reply With Quote
Old 02-24-2015, 04:59 PM   #11
cornerspeed92



cornerspeed92's Avatar

Drives: 2013 1SS 1LE
Join Date: Jul 2012
Location: SoCal
Posts: 3,568
He did it that way cause he uses that belt like strap in post #6 to be towed.
__________________
cornerspeed92 is offline   Reply With Quote
Old 02-24-2015, 08:40 PM   #12
Dropspeed
2013 Camaro SS1LECTSVZ28

Dropspeed's Avatar

Drives: 2013 AGM 1SS/1LE
Join Date: Nov 2012
Location: Suburbs of Detroit, MI
Posts: 2,018
Quote:
Originally Posted by Camarodriver2 View Post
I've seen many tow hooks on P.O.S. cars. No need, thanks!
Thanks for the response. For those of us that actually track out cars it is there for a reason.

Quote:
Originally Posted by Avalnch View Post
OP, the entire tow hook hole should be visible beyond the grill opening.
On a race car yes, this car is only used for open track days when I instruct. I tested the hook placement before it was mounted permanently. It can be used by any type of hook at the track. I did not want it sticking out further and bashing shins of passerby.
__________________
Dropspeed is online now   Reply With Quote
Old 02-24-2015, 08:44 PM   #13
Dropspeed
2013 Camaro SS1LECTSVZ28

Dropspeed's Avatar

Drives: 2013 AGM 1SS/1LE
Join Date: Nov 2012
Location: Suburbs of Detroit, MI
Posts: 2,018
Quote:
Originally Posted by cornerspeed92 View Post
He did it that way cause he uses that belt like strap in post #6 to be towed.

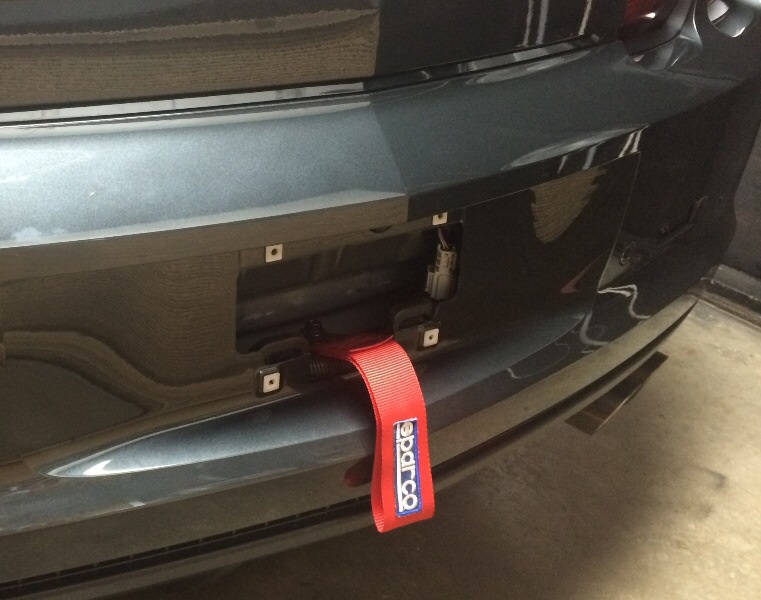

The belt strap is actually mounted to the rear bumper. Exposed on track days and hidden behind the plate when not in use.

Matt

http://www.camaro5.com/forums/showthread.php?t=364406
Attached Images

__________________
Dropspeed is online now   Reply With Quote
Old 02-24-2015, 08:56 PM   #14
Camarodriver2

Camarodriver2's Avatar

Drives: Bumblebee 1 of 1
Join Date: May 2010
Location: Hoffman Estates IL
Posts: 513
Quote:
Originally Posted by Dropspeed View Post
Thanks for the response. For those of us that actually track out cars it is there for a reason.



On a race car yes, this car is only used for open track days when I instruct. I tested the hook placement before it was mounted permanently. It can be used by any type of hook at the track. I did not want it sticking out further and bashing shins of passerby.
Sorry! I know...just poking fun with my Camaro brothers. Wish I could track mine....too much invested in paint to do it.
__________________
My 1 of 1 Bumblebee: Paint=House of Kolor Sunrise. Shaved door handles and concept handles added. Shark fin removed, concept mirrors, Showstoppers concept LED side marker lights. Wiper blades removed, muffler delete, and Range AFM disable. BMR springs lowered 1" rear and 1.4" front and added Eibach wheel spacers - 20mm rear and 25mm front.
Camarodriver2 is offline   Reply With Quote
Old 02-26-2015, 12:51 AM   #15
Avalnch


Avalnch's Avatar

Drives: Rally Yellow Camaro+Avalanche
Join Date: Dec 2009
Location: Vancouver
Posts: 975
Quote:
Originally Posted by Dropspeed View Post
The belt strap is actually mounted to the rear bumper. Exposed on track days and hidden behind the plate when not in use.

Matt

http://www.camaro5.com/forums/showthread.php?t=364406
Nice set up. Will have to look into this myself. Thanks.
__________________
Vengeance Kaotik Cam, C.A.I., ARH LT, Pypes Cat Back, ZL1 Shifter, Quantum Brake Ducts, JDP Tow Hook
Scorch Yellow Trim Kit, Shark Fin, AAC DRLs+ABLs+SMDs, ZTA Rear Spoiler, R.Y. 1LE Splitter
Pfadt coilovers, camber plates, trailing arms & Hendrix offset differential bushings.
BMR adjustable toe-rods. Pedders ZL1 barz, rear cradle inserts, radius arm & steering rack bushings.
Hotchkis Max Chassis Brace
1LE 3.91 gearzzz. Drive Shaft Shop Road Race Axle Upgrade. TurnOne power steering pump.
447 HP @ 6180 RPM / 418 TQ @ 5100 RPM
Avalnch is offline   Reply With Quote
Old 03-06-2015, 10:46 AM   #16
Burt
Cone Killer

Burt's Avatar

Drives: 2012 SS
Join Date: Dec 2013
Location: St. Albans, West Virginia
Posts: 509
Question for you, I've got a '12 and I'm looking at rear tow-points that are out of sight, and I like your solution, but I was wondering if you have any concerns about the strap hitting the bumper cover when you put tension to it. It's kind of hard to tell from the picture, but it looks like the strap has to come up a little to clear the bumper cover.
__________________
2012 Camaro SS - Pedders XA coilovers, Moreno camber plates, Hyperco front springs, 1LE rear sway bar and toe links.
20x10.5" Forgestar F14s with 295/30 Pilot Super Sports all around

My Instagram

Burt is offline   Reply With Quote
Old 03-06-2015, 01:56 PM   #17
Dropspeed
2013 Camaro SS1LECTSVZ28

Dropspeed's Avatar

Drives: 2013 AGM 1SS/1LE
Join Date: Nov 2012
Location: Suburbs of Detroit, MI
Posts: 2,018
Quote:
Originally Posted by Burt View Post
Question for you, I've got a '12 and I'm looking at rear tow-points that are out of sight, and I like your solution, but I was wondering if you have any concerns about the strap hitting the bumper cover when you put tension to it. It's kind of hard to tell from the picture, but it looks like the strap has to come up a little to clear the bumper cover.
It is a concern if you bolt the strap directly to the bumper. I have a spacer between the metal bumper and the strap that lifts it a bit. I also had to trim the bumper cover down a bit. The opening is hidden by the plate, but just barely.

I can try to get another picture and post it.
__________________
Dropspeed is online now   Reply With Quote
Old 03-06-2015, 02:42 PM   #18
Burt
Cone Killer

Burt's Avatar

Drives: 2012 SS
Join Date: Dec 2013
Location: St. Albans, West Virginia
Posts: 509
Alright, thanks. I figured you had accounted for that, it's just hard to tell by looking at it.

I may look at replicating this, but this method and some of the other mounts has given me an idea. I may harass one of the vendors on here about checking into the design in detail. Structurally, I have some concerns about, but if it works it could be a nice option.
