Old 09-02-2009, 11:57 PM   #1
rharon

rharon's Avatar

Drives: 2010 Yellow 2SS/RS
Join Date: Jun 2009
Location: Fresno / Clovis , CA
Posts: 328
Lightbulb DIY: Dashboard Ambient Lighting (ABL)

ok, here we go.

The first pic is the hidden abl connection that we have all been searching for its behind the guage pack, hidden in the cloth tape. I tore the car apart looking for this connector. Thanks hylton
Attached Images

__________________
Magnacharger TVS2300, ARH HEADERS, ROTO-FAB CAI, NOWEEDS.NET DIVERTERS

Last edited by rharon; 09-03-2009 at 12:14 AM.
rharon is offline   Reply With Quote
Old 09-03-2009, 12:32 AM   #2
rharon

rharon's Avatar

Drives: 2010 Yellow 2SS/RS
Join Date: Jun 2009
Location: Fresno / Clovis , CA
Posts: 328
update 2

Let me start by saying that is not a mod for everyone. It's not easy....I know I was hoping for a plug in play also but.......

2SSRS and I have been chatting picking each others brain for the last 2 weeks about this mod and many others. That's what makes this fun though!!!

First you need to get the light tube from digi-key. part #A99861-ND

You also need 2 door connector abl connector/lights gm part #92228416 (red)

I am still waiting for my other red light bulbs to come in so I used the blue for a demo.

Then you cut both pieces to match the length of the plastic inserts plus +1/2 inch. That will allow you to hook up the light connector to the light tube via the guage cluster. Nice job 2SSRS!

Then you will have to cut /drill a hole in the corner of the dash behind the plastic. This will allow you to slip the tube behind the plastic pieces on the dash.[ I also notched out the dash piece. AS seen in the picture. I used a razor blade witch lets you make a slit. I think it'sa better way to go so you can adjust the light beam. ATTACH]51312[/ATTACH]
Attached Images

__________________
Magnacharger TVS2300, ARH HEADERS, ROTO-FAB CAI, NOWEEDS.NET DIVERTERS
rharon is offline   Reply With Quote
Old 09-03-2009, 12:38 AM   #3
rharon

rharon's Avatar

Drives: 2010 Yellow 2SS/RS
Join Date: Jun 2009
Location: Fresno / Clovis , CA
Posts: 328
update 3

After you have cut the hole. You will need to notch the plastic clips that hold the plastic dash pieces in the dash. This will allow you to have the 5mm tube slide behind the plastic piece. As seen in the picture. Then you will need to sand the top of the plastic dash piece. I used 300 grit, after the main paint was sanded off I used 800 which gives you a little haze. It really helps the light show up. I tried to buff it to a sheen finish and the light doesn't show very good. The slight haze made a big difference. This will allow the light to show up evenly.
Attached Images

__________________
Magnacharger TVS2300, ARH HEADERS, ROTO-FAB CAI, NOWEEDS.NET DIVERTERS
rharon is offline   Reply With Quote
Old 09-03-2009, 01:12 AM   #4
rharon

rharon's Avatar

Drives: 2010 Yellow 2SS/RS
Join Date: Jun 2009
Location: Fresno / Clovis , CA
Posts: 328
Update 4

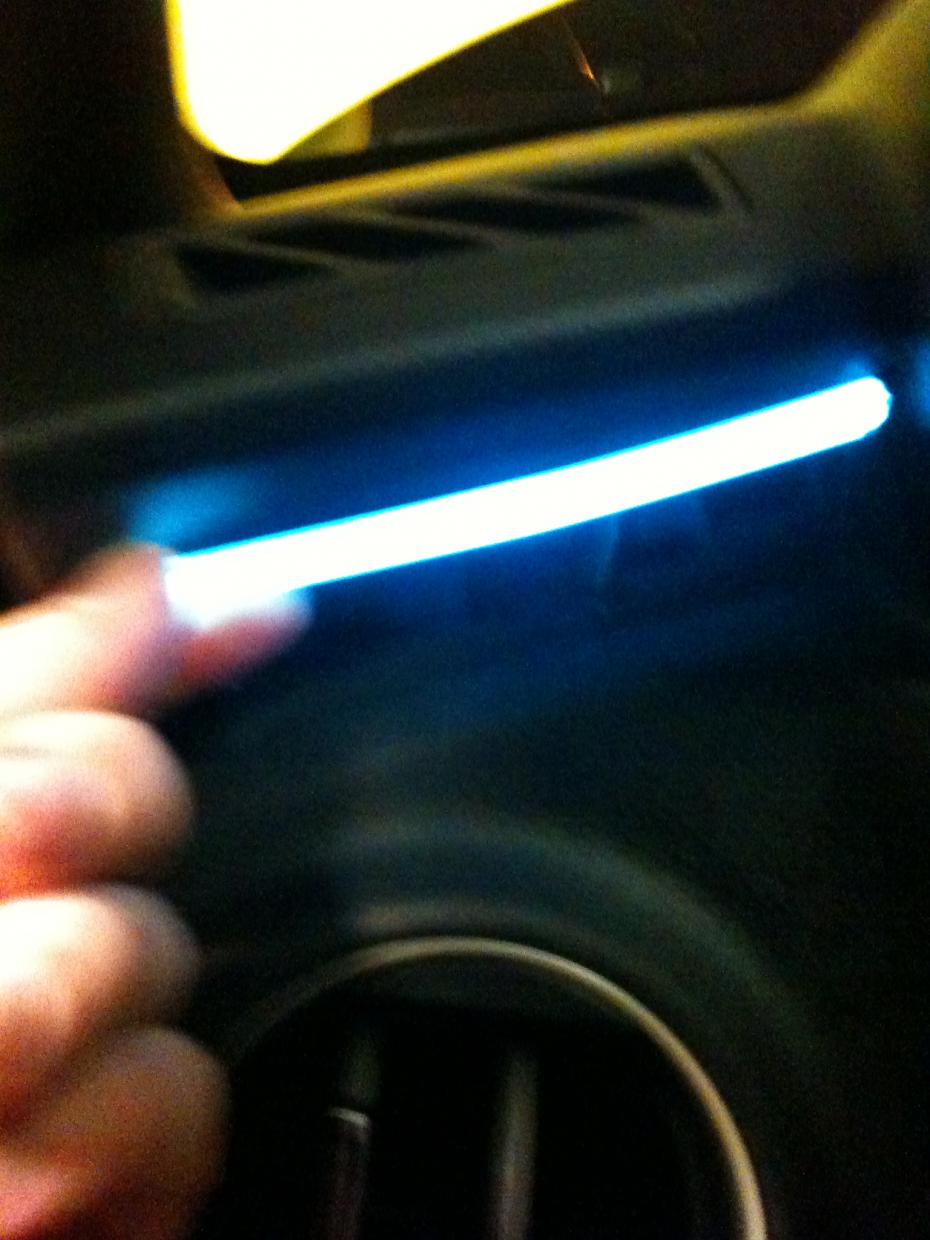

Here we go! The pictures doesn't do it justice. If you have any questions let me know.

RHARON
Attached Images

__________________
Magnacharger TVS2300, ARH HEADERS, ROTO-FAB CAI, NOWEEDS.NET DIVERTERS
rharon is offline   Reply With Quote
Old 09-03-2009, 02:30 AM   #5
TAG UR IT
www.Camaro5store.com

TAG UR IT's Avatar

Drives: 2014 ZL1 #705
Join Date: Jul 2006
Location: SA, Texas
Posts: 26,314
ok...i need to order...
TAG UR IT is offline   Reply With Quote
Old 09-03-2009, 04:59 AM   #6
coquinn8846

coquinn8846's Avatar

Drives: 2004 Mazda 6
Join Date: Feb 2009
Location: virginia
Posts: 143
This looks sooo great, you guys are awesome, but there is no way I can do this on my own. I'm sure a lot of other females can do things like this but I am not one of them. Don't trust my husband to do it, I still haven't even let him drive it. Maybe I can get my big brother to do it, he is really good at things like this.
coquinn8846 is offline   Reply With Quote
Old 09-03-2009, 07:17 AM   #7
bluman

bluman's Avatar

Drives: '10 Corvette GS/'13 Mustang
Join Date: May 2009
Location: Long Island NY
Posts: 636
wow
you guy's are good,
you mind sharing what the cost of this mod will set you back and also please a step by step process....thanks
__________________
2010 Camaro SIM/CGM RS/2LT VIN #310 SOLD


2010 Corvette Grand Sport
bluman is offline   Reply With Quote
Old 09-03-2009, 08:17 AM   #8
2SSRS@Gen5diy
Salt & Pepper 2014 Z/28


2SSRS@Gen5diy's Avatar

Drives: 2010 2SS IOM ,2014 Z/28, 66 Nova
Join Date: Oct 2008
Location: By the lake in AZ
Posts: 11,657
Quote:
Originally Posted by rharon View Post
Here we go! The pictures doesn't do it justice. If you have any questions let me know.

RHARON
Cangrats. to all of us on this site, you want farther than me i did not think of thinning the clips like that, As you know i was thinning the light pips to make it work for me.

Can you tell me if you put it on the thin plastic of the clip board ?.

Thank you Camaro5 for all the help.

rharon why don't you start the new Thread for the DIY on this with all the part # i do think you have all of them now.
__________________
2SSRS@Gen5diy is offline   Reply With Quote
Old 09-03-2009, 08:40 AM   #9
tazznchop

Drives: 2011 Black SS/RS
Join Date: Jul 2009
Location: Utah
Posts: 6
Too cool congrats Rharon, 2SSRS and Teccboxx.

Now does anyone have the part number for the blue lights????
tazznchop is offline   Reply With Quote
Old 09-03-2009, 08:53 AM   #10
franknbeans
Whipped

franknbeans's Avatar

Drives: 2010 CAMARO
Join Date: Sep 2008
Location: Pittsburgh-ish - PA
Posts: 4,103
very nice. .. Let us know when a parts list gets made.
__________________
The "ManCard"

franknbeans is offline   Reply With Quote
Old 09-03-2009, 09:15 AM   #11
gpr

Drives: never fast enough
Join Date: Apr 2009
Location: CO
Posts: 59
Is it me, but the light is not showing up evenly. it is really noticeable on the left side of the gauge cluster. Does it look like this in person as well?

I know this is getting very picky, but would it be possible for before and after pictures in your new DIY thread. You show pics of the modified parts, but i have no idea what they looked like beforehand, and what it is you changed.
gpr is offline   Reply With Quote
Old 09-03-2009, 09:53 AM   #12
Tecca
.

Drives: ...
Join Date: Apr 2009
Location: ...
Posts: 1,359
Kick Booty Guys, you guys have done a excellent job, far beyond what I ever did. Looks like I will be ripping mine out and going with what you guys did, blus it is a hell of a lot cheaper LOL.

Super sweet job, I agree close this thread and start fresh.
Tecca is offline   Reply With Quote
Old 09-03-2009, 09:53 AM   #13
Moonsault
5th Gen STIG

Moonsault's Avatar

Drives: 2010 2LT RS
Join Date: Nov 2008
Location: Orlando, FL
Posts: 140
A couple of quick questions:

Can I ask about the wiring. Am I correct in believing the small dash piece connects to the ABL connector by the fusebox, and the longer (passenger side) dash piece connects to the newly discovered ABL connector behind the speedometer cluster?

Also, is it safe to disconnect and remove the dash cluster? I do not want to fry the computer or get error messages once it's reconnected and I start it up...

Finally, aside the small hole being drilled to allow the tube to pass through, are there any other physical modifications that need to be done to the dash itself?
Moonsault is offline   Reply With Quote
Old 09-03-2009, 10:11 AM   #14
CamaroSkooter
Retarded One-Legged Owl

CamaroSkooter's Avatar

Drives: 2010 Black Camaro 2SS
Join Date: Oct 2008
Location: San Antonio, TX
Posts: 9,689
I have a question, the tube gets cut to length, correct?

So why do you need to drill a hole in the dash? Couldn't we just cut the tube to fit snug behind the acrylic piece?
CamaroSkooter is offline   Reply With Quote
Old 09-03-2009, 10:21 AM   #15
walls

Drives: Infiniti G37S, Suzuki B-King
Join Date: Jul 2009
Location: Dallas, TX
Posts: 81
Yes please! We need a step by step with part numbers and pictures pretty please! This looks rather involved so red circles pointing out each step in each picture would be VERY helpful as well. Thank y'all so much for your efforts! It looks great! Can't wait to do this to my Camaro.
__________________
2011 Ford Shelby GT500 - Black - SVTPP
2010 VW GTI - Black - Loaded
2008 Suzuki B-King - Black

Last edited by walls; 09-03-2009 at 10:42 AM.
walls is offline   Reply With Quote
Old 09-03-2009, 10:35 AM   #16
Tecca
.

Drives: ...
Join Date: Apr 2009
Location: ...
Posts: 1,359
Quote:
Originally Posted by tazznchop View Post
Too cool congrats Rharon, 2SSRS and Teccboxx.

Now does anyone have the part number for the blue lights????
Part # for the blue lighting is 92238395 However it is on backorder from what I am told.
Tecca is offline   Reply With Quote
Old 09-03-2009, 10:47 AM   #17
Tran
Administrator

Tran's Avatar

Drives: 2010 Camaro of course....
Join Date: Apr 2006
Location: NE baby
Posts: 4,996
Excellent!!
__________________
>>> Visit our CAMARO BLOG <<<<
>>> Visit our CORVETTE BLOG <<<<
Tran is offline   Reply With Quote
Old 09-03-2009, 11:04 AM   #18
dragom
2G1FB1EV3A9121989

dragom's Avatar

Drives: Rally Yellow RS Coupe
Join Date: Jul 2009
Location: indianapolis
Posts: 827
what other color does the light come in?? any yellows so it matches my car or do they just come in blue and red??

Last edited by dragom; 09-03-2009 at 11:18 AM.
dragom is offline   Reply With Quote
Old 09-03-2009, 11:10 AM   #19
rharon

rharon's Avatar

Drives: 2010 Yellow 2SS/RS
Join Date: Jun 2009
Location: Fresno / Clovis , CA
Posts: 328
Quote:
Originally Posted by Moonsault View Post
A couple of quick questions:

Can I ask about the wiring. Am I correct in believing the small dash piece connects to the ABL connector by the fusebox, and the longer (passenger side) dash piece connects to the newly discovered ABL connector behind the speedometer cluster?

Also, is it safe to disconnect and remove the dash cluster? I do not want to fry the computer or get error messages once it's reconnected and I start it up...

Finally, aside the small hole being drilled to allow the tube to pass through, are there any other physical modifications that need to be done to the dash itself?
I have disconnected the speedo several times with no issues.

There is a spot on both sides of the dash where the bolts go in the needs to be modified. Look at the picture on the lfet side you will see it.
__________________
Magnacharger TVS2300, ARH HEADERS, ROTO-FAB CAI, NOWEEDS.NET DIVERTERS
rharon is offline   Reply With Quote
Old 09-03-2009, 11:12 AM   #20
rharon

rharon's Avatar

Drives: 2010 Yellow 2SS/RS
Join Date: Jun 2009
Location: Fresno / Clovis , CA
Posts: 328
Quote:
Originally Posted by CamaroSkooter View Post
I have a question, the tube gets cut to length, correct?

So why do you need to drill a hole in the dash? Couldn't we just cut the tube to fit snug behind the acrylic piece?
2 reasons. To hold the tube in place and also to allow the plug/light to fit.
__________________
Magnacharger TVS2300, ARH HEADERS, ROTO-FAB CAI, NOWEEDS.NET DIVERTERS
rharon is offline   Reply With Quote
Old 09-03-2009, 11:26 AM   #21
Tecca
.

Drives: ...
Join Date: Apr 2009
Location: ...
Posts: 1,359
Quote:
Originally Posted by dragom View Post
what other color does the light come in?? any yellows so it matches my car or do they just come in blue and red??
You have to modify one of the red or blue led lamps. But you can do Red, Blue, Green, Yellow, White, and Pink. I think those are the only led colors out there.

You will have to de-solder the onlde led bulb off then solder the new one on.

Although not sure how you can change the gauge color lighting
Tecca is offline   Reply With Quote
Old 09-03-2009, 11:37 AM   #22
Camaro-Teskey
BlackonBlack

Camaro-Teskey's Avatar

Drives: 2010 Blk Camaro 1LT
Join Date: Jul 2009
Location: North of Toronto
Posts: 112
Has anybody attemped this with a 1LT/1SS...is it possible? We would have to put lighting into the door as well.
__________________
-Teskey
Camaro-Teskey is offline   Reply With Quote
Old 09-03-2009, 12:09 PM   #23
Moonsault
5th Gen STIG

Moonsault's Avatar

Drives: 2010 2LT RS
Join Date: Nov 2008
Location: Orlando, FL
Posts: 140
I have ordered a set of the orange lamps from GM (as blue is not available). If anyone would like to trade their blue lamps with me for orange please let me know!
Moonsault is offline   Reply With Quote
Old 09-03-2009, 12:12 PM   #24
Moonsault
5th Gen STIG

Moonsault's Avatar

Drives: 2010 2LT RS
Join Date: Nov 2008
Location: Orlando, FL
Posts: 140
Sorry and one last question (I promise). Could you circle or indicate which part of the removable trim needs to be sanded down to allow the light to pass through?
Moonsault is offline   Reply With Quote
Old 09-03-2009, 12:12 PM   #25
vuduman67

Drives: Victory Red 2SS/RS
Join Date: Jun 2009
Location: Highland, IN
Posts: 326
Is 1 of the digi-key. part #A99861-ND enough? OR should I order 2. Thanks
And yes the blue leds are backorderd
vuduman67 is offline   Reply With Quote
