DIY part # for ABL (Pictures of Installation included!!!) - Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums

2SSRS · 09-04-2009, 08:28 AM

To do the ABL on your dash this is what you need to Buy.

1 From gm you need to buy 3 lights in the color you need.

The part # for the blue lighting is 92238395

The part # for the orange lighting is #92228416 (it is red)

And the light tube is from Me.

And one last part GM removed the connectors on all cars, 2010up past the VIN 9160000 so if you have that number you will need to t-tap or get a harness that is plug and play

2SSRS · 09-04-2009, 08:28 AM

Ok "Tag", You know i need sleep at 12:14 PM i was dreaming of LSX 454 and a cam making 650 RWHP in my Camaro. LOL

So This is the hard part The work Go to your car and pull the side cover over on the drivers side see pics

And pull it out gently you will fell it pop out it is held in by some snap clips (all the parts are held in that way ) More pics

Next you will see the connector on the drivers side, In this pic i have the connector in red and the outer end on, See pic.

Next you remove the speedometer off so lats do that, More snap clips to remove from the top pop off Gently and first move the wheel out and down Pics.

And more

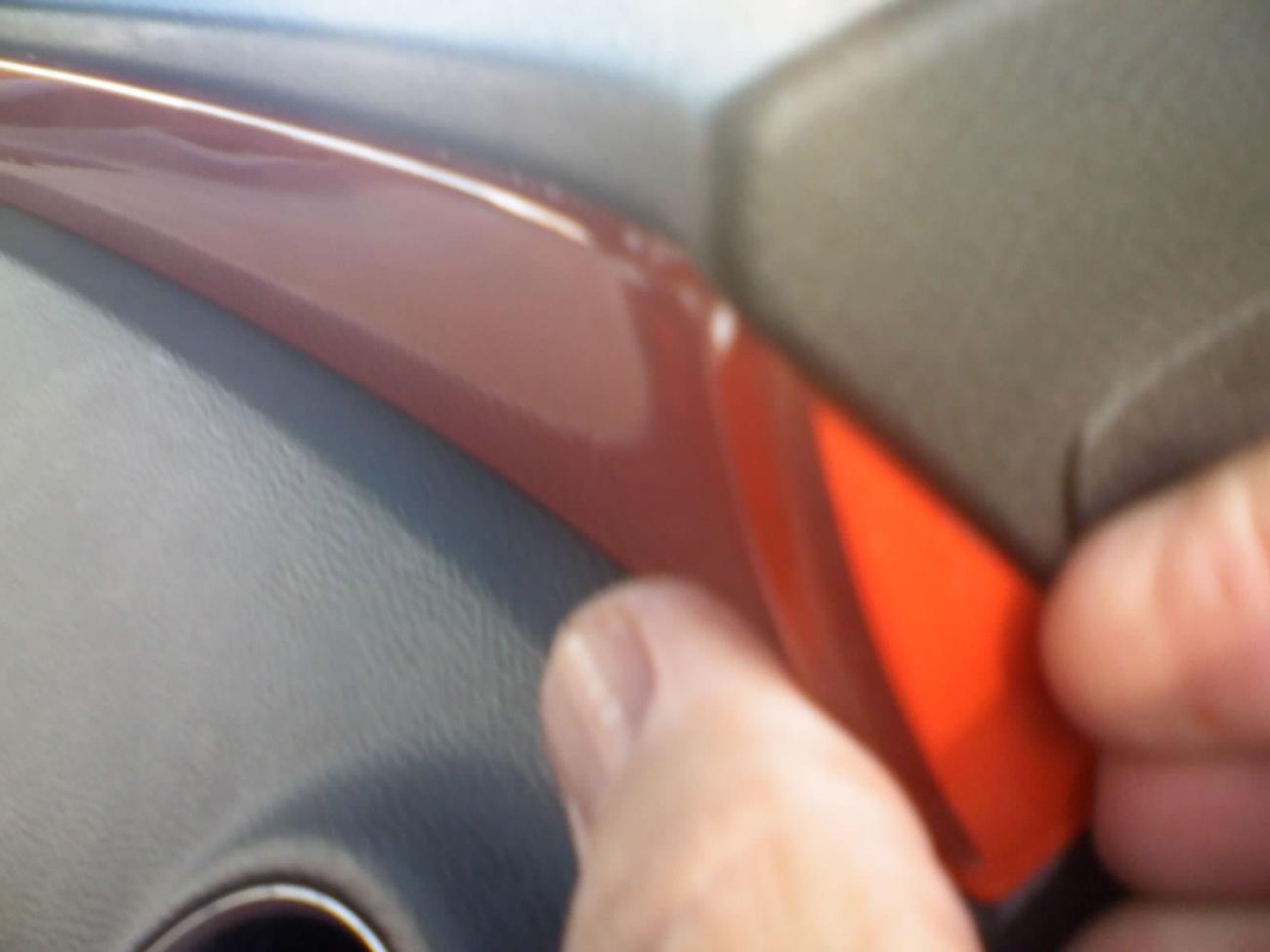

And now pull up on the trim, If i can do it with my fat hands you can do it.

This is the back side for you to see.

Now there is 4 screws that you will remove to get the speedometer out the way, And as you can see there is 2 alignment pins over the 2 bottom screws so you can not do it wrong.

And this side.

Now to remove the speedometer, First you do NOT need to remove the wires on the speedometer, In this pic you will see that i put a red line on the pic that is where you need to pull up on the dash so you can tilt the speedometer forwarder to get it out see pics.

And this pic.

And this so you can see i did not remove the wires on the Speedometer.

2SSRS · 09-04-2009, 08:29 AM

And to keep going i needed some time.

Now that we removed the speedometer from the dash it all there for us to do.

Next we need to find the 2nd connector and it is in front of you in the center of the wires behind the speedometer look at this 2 pics.

And this.

One more for fun.

Now that we know that wear the two connector are we need to pull the dash trim off, As before be gentle More snap clips see pics, Start at the ends of the dash.

And pull, Ups my fat hand in the pics.

This is the long side so lots of clips on the drivers side there is only 2 clips.

Next is the hard part to drill in your dash, Do not worry if you do it right you will not see it, So do it right.

If you are not happy and do not get it P.M. me, And we can see if i can help, Now i do have a job so give me some time to help you, And if I do help you out, See if you can help some one who needs it.

You can see that there is a small triangle spot at the end of the dash on the 2 sides of the dash that is wear you drill, at the top and out as far as you can go, see pics.

And now we start to put it together This is the way i did my car.

More info soon.

Camaro-Teskey · 09-04-2009, 01:00 PM

Think you could list the parts that would be needed for 1lt/1ss, because we also need the door setup right? Sorry I dont have the car yet; just wondering. Thanks

2SSRS · 09-04-2009, 01:07 PM

Quote:

Originally Posted by Camaro-Teskey

Think you could list the parts that would be needed for 1lt/1ss, because we also need the door setup right? Sorry I dont have the car yet; just wondering. Thanks

Can you help me out on that as i have not had a look at a 1 lt/1ss in the door do you have the same plastic panel in the door and dash ?, Post some pics for me.

Primus · 09-04-2009, 02:41 PM

we do not have plastic panels. Ours are a kind of cloth. We would need to buy replacement panels for the doors and dash.

Tecca · 09-04-2009, 04:30 PM

As Primus said the 1LT and 1LS guys will have to buy the whole new door panel. They run $250 each side plus s/h. Then you will also have to run the wiring as it isn't included either.

*TAG UR IT* · 09-05-2009, 01:27 AM

I just ordered the parts and will do a complete write up with pictures and detailed instructions when the parts come in. Looking forward to getting this done the way I think it should have been done for ALL the Camaros!

R6P · 09-05-2009, 06:05 PM

Quote:

Originally Posted by Primus

we do not have plastic panels. Ours are a kind of cloth. We would need to buy replacement panels for the doors and dash.

There are trim kits that are in the works for you 1LT & 1SS guys (and anyone looking to change color with a 2LT or 2 SS) that include both acrylic door panel inserts and both dash inserts, however you will need to add light tubes to the doors also to your 1 LT or 1SS. They are shown on gmparts direct for $327 for the kit, but not yet available

92221433 for Yellow
92221438 for Orange
92233738 for White
92233739 for Silver
Keep the faith

2SSRS · 09-05-2009, 08:05 PM

Quote:

Originally Posted by TAG UR IT

I just ordered the parts and will do a complete write up with pictures and detailed instructions when the parts come in. Looking forward to getting this done the way I think it should have been done for ALL the Camaros!

Hay you got a full time job ( Keeping us in line On Camaro5 and the Law )

Have fun.

Camaro-Teskey · 09-05-2009, 10:51 PM

Quote:

Originally Posted by ChevyTech

There are trim kits that are in the works for you 1LT & 1SS guys (and anyone looking to change color with a 2LT or 2 SS) that include both acrylic door panel inserts and both dash inserts, however you will need to add light tubes to the doors also to your 1 LT or 1SS. They are shown on gmparts direct for $327 for the kit, but not yet available

92221433 for Yellow
92221438 for Orange
92233738 for White
92233739 for Silver
Keep the faith

Awesome, great news man thanks. That just made my day.

*TAG UR IT* · 09-06-2009, 12:07 AM

Quote:

Originally Posted by 2SSRS

Hay you got a full time job ( Keeping us in line On Camaro5 and the Law )

Have fun.

Dude...I got 3 full time jobs!!!

Kids and family
Work
This SITE!!!

*TAG UR IT* · 09-06-2009, 12:14 AM

Quote:

Originally Posted by 2SSRS

Reserved for some pics on sunday

It's Sunday....

WHERE's MAH PIX!

2SSRS · 09-06-2009, 08:22 AM

Good news and bad Good is the good dyno # with the Vararm, wow what power, Now the bad i did go to Frys elec to buy a camera buy the one that was what i want was not in i am goint to take some now for all to see.

camero · 09-06-2009, 09:00 AM

This is going to be so cool! I can't wait to get mine installed! It won't make any much difference now because it's always daytime but when winter comes and I'm driving to work in the dark and home in the dark it's going to be worth it! (Of course if the Camaro will probably be safely in the garage for the winter but...)

*TAG UR IT* · 09-06-2009, 12:47 PM

Hell YEAH! Thanks for the write up!!!

viper1cobra · 09-06-2009, 01:25 PM

Awsome.

Lots of detail, I just hope it goes as smooth. I am just waiting for GM to restock the Blue LEDS.

I already have the light pipe.

Great work, Thanks for the Info.

2SSRS · 09-06-2009, 01:46 PM

Quote:

Originally Posted by TAG UR IT

Hell YEAH! Thanks for the write up!!!

If it good i will add more info as need be.

By the way after the doors ( I want to add 1 more set of lights in the door to go all the way around the door like the pic on Camaro site ) I at working on push start.

khislop007 · 09-06-2009, 10:29 PM

Let's see how it looks in the night!

*TAG UR IT* · 09-07-2009, 12:40 AM

All the way around the doors would look SICK! A single line of blue wouldn't be bad at night. But, I think driving at night with a full glowing door could get distracting.

As for the doors, I'm going to pull off the panel and see if there is actually tape at the ends of the light pipe (which keep the light from illuminating all the way to the doors). If so, I'm taking that crap off. I want my light pipes to run smooth all the way...door to door with no stops. Great job, once again.

slacker · 09-07-2009, 08:06 AM

Just got an email from GM Parts direct, the red lamp is on backorder now. Jeez, I'll never get lighting on the dash.

Flynnaz · 09-07-2009, 10:00 AM

Quote:

Originally Posted by 2SSRS

To do the ABL on your dash this is what you need to Buy.

1 From gm you need to buy 2 lights in the color you need.

The part # for the blue lighting is 92238395 However it is on back order right now 9-4-09.

The part # for the orange lighting is #92228416 (it is red)

And the light tube from digi-key. part #A99861-ND You only need 1 for the dash.
This is ther web site, http://www.digikey.com/

And the light tube from digi-key. part #A99861-ND You only need 1 for the dash.
This is ther web site, http://www.digikey.com/
Is there a different part number for a blue light tube?

King Mouse · 09-07-2009, 10:18 AM

What holds the light source and the light tube in place? Does it just rest behind the trim?

Great thread by the way!

Thanks!

2SSRS · 09-07-2009, 10:19 AM

No it the only part you buy from Digi-Key, The blue is from GM and that is part # 92238395

King Mouse · 09-07-2009, 10:19 AM

One more....

Does the light source come with the plug?

09-04-2009, 08:28 AM	#1
2SSRS On a list for a 2014 Z28 Drives: 2010 Camaro 2SS M6 Join Date: Oct 2008 Location: By the lake in AZ Posts: 10,123 View My Garage	DIY part # for ABL (Pictures of Installation included!!!) To do the ABL on your dash this is what you need to Buy. 1 From gm you need to buy 3 lights in the color you need. The part # for the blue lighting is 92238395 The part # for the orange lighting is #92228416 (it is red) And the light tube is from Me. And one last part GM removed the connectors on all cars, 2010up past the VIN 9160000 so if you have that number you will need to t-tap or get a harness that is plug and play __________________ My Build Thread E-mail Amigoop3@yahoo.com Last edited by 2SSRS; 02-15-2011 at 08:42 AM.

09-04-2009, 08:28 AM	#2
2SSRS On a list for a 2014 Z28 Drives: 2010 Camaro 2SS M6 Join Date: Oct 2008 Location: By the lake in AZ Posts: 10,123 View My Garage	This is It Ok "Tag", You know i need sleep at 12:14 PM i was dreaming of LSX 454 and a cam making 650 RWHP in my Camaro. LOL So This is the hard part The work Go to your car and pull the side cover over on the drivers side see pics And pull it out gently you will fell it pop out it is held in by some snap clips (all the parts are held in that way ) More pics Next you will see the connector on the drivers side, In this pic i have the connector in red and the outer end on, See pic. Next you remove the speedometer off so lats do that, More snap clips to remove from the top pop off Gently and first move the wheel out and down Pics. And more And now pull up on the trim, If i can do it with my fat hands you can do it. This is the back side for you to see. Now there is 4 screws that you will remove to get the speedometer out the way, And as you can see there is 2 alignment pins over the 2 bottom screws so you can not do it wrong. And this side. Now to remove the speedometer, First you do NOT need to remove the wires on the speedometer, In this pic you will see that i put a red line on the pic that is where you need to pull up on the dash so you can tilt the speedometer forwarder to get it out see pics. And this pic. And this so you can see i did not remove the wires on the Speedometer. __________________ My Build Thread E-mail Amigoop3@yahoo.com Last edited by 2SSRS; 09-09-2009 at 12:35 PM. Reason: To post the pics

09-04-2009, 08:29 AM	#3
2SSRS On a list for a 2014 Z28 Drives: 2010 Camaro 2SS M6 Join Date: Oct 2008 Location: By the lake in AZ Posts: 10,123 View My Garage	More pics for you And to keep going i needed some time. Now that we removed the speedometer from the dash it all there for us to do. Next we need to find the 2nd connector and it is in front of you in the center of the wires behind the speedometer look at this 2 pics. And this. One more for fun. Now that we know that wear the two connector are we need to pull the dash trim off, As before be gentle More snap clips see pics, Start at the ends of the dash. And pull, Ups my fat hand in the pics. This is the long side so lots of clips on the drivers side there is only 2 clips. Next is the hard part to drill in your dash, Do not worry if you do it right you will not see it, So do it right. If you are not happy and do not get it P.M. me, And we can see if i can help, Now i do have a job so give me some time to help you, And if I do help you out, See if you can help some one who needs it. You can see that there is a small triangle spot at the end of the dash on the 2 sides of the dash that is wear you drill, at the top and out as far as you can go, see pics. And now we start to put it together This is the way i did my car. More info soon. __________________ My Build Thread E-mail Amigoop3@yahoo.com Last edited by 2SSRS; 09-09-2009 at 12:46 PM. Reason: Need some time this is hard work.

09-04-2009, 01:00 PM	#4
Camaro-Teskey BlackonBlack Drives: 2010 Blk Camaro 1LT Join Date: Jul 2009 Location: North of Toronto Posts: 112 View My Garage	Think you could list the parts that would be needed for 1lt/1ss, because we also need the door setup right? Sorry I dont have the car yet; just wondering. Thanks __________________ -Teskey

09-04-2009, 02:41 PM	#6
Primus 2G1FF1EV0A9113319 Drives: 2010 1LT/RS 6MT Join Date: Oct 2008 Location: St. Louis, MO Posts: 1,139 View My Garage	we do not have plastic panels. Ours are a kind of cloth. We would need to buy replacement panels for the doors and dash. __________________ 2010 Camaro 1LT/RS M6 Black 1100: 10/13/2008 2000: 4/02/2009 3000: 4/08/2009 3300: 5/14/2009 3400: 5/21/2009 3800: 5/28/2009 VIN: 2G1FF1EV0A9113319 4000: 5/28/2009 4150: 5/28/2009 4B00: 5/28/2009 Delivered: 6/10/2009

09-04-2009, 04:30 PM	#7
Tecca Drives: 2010 Camaro 2LT SIM/RJT Join Date: Apr 2009 Location: Colorado Posts: 1,258	As Primus said the 1LT and 1LS guys will have to buy the whole new door panel. They run $250 each side plus s/h. Then you will also have to run the wiring as it isn't included either.

09-05-2009, 01:27 AM	#8
TAG UR IT www.Camaro5store.com Drives: THRSS #2 / CGM#1 Join Date: Jul 2006 Location: SA, Texas Posts: 24,418 View My Garage	I just ordered the parts and will do a complete write up with pictures and detailed instructions when the parts come in. Looking forward to getting this done the way I think it should have been done for ALL the Camaros! __________________

09-06-2009, 08:22 AM	#14
2SSRS On a list for a 2014 Z28 Drives: 2010 Camaro 2SS M6 Join Date: Oct 2008 Location: By the lake in AZ Posts: 10,123 View My Garage	Good news and bad Good is the good dyno # with the Vararm, wow what power, Now the bad i did go to Frys elec to buy a camera buy the one that was what i want was not in i am goint to take some now for all to see. __________________ My Build Thread E-mail Amigoop3@yahoo.com

09-06-2009, 09:00 AM	#15
camero Drives: IOM V6 RS 38808 Join Date: Jan 2007 Location: S.Detroit, Ontario Posts: 772	This is going to be so cool! I can't wait to get mine installed! It won't make any much difference now because it's always daytime but when winter comes and I'm driving to work in the dark and home in the dark it's going to be worth it! (Of course if the Camaro will probably be safely in the garage for the winter but...) __________________ I've known how to spell Camaro since before you were born.

09-06-2009, 12:47 PM	#16
TAG UR IT www.Camaro5store.com Drives: THRSS #2 / CGM#1 Join Date: Jul 2006 Location: SA, Texas Posts: 24,418 View My Garage	Hell YEAH! Thanks for the write up!!! __________________

09-06-2009, 01:25 PM	#17
viper1cobra Member Club Elite #131 Drives: 1968 & 2010 SIM 2LT/RS A6 Join Date: May 2009 Location: Far West TEXAS Posts: 1,438 View My Garage	Awsome. Lots of detail, I just hope it goes as smooth. I am just waiting for GM to restock the Blue LEDS. I already have the light pipe. Great work, Thanks for the Info. __________________ Custom Bumblebee Style Black Stripes 3M Clear Bra Self Installed Injen True Cold Air Intake Eibach Pro Kit Plus Lowering Springs/Sway Bars Camaro SS Brembo Brake Upgrade Package w Stainless Braided Lines Custom Painted Engine Cover in SIM and CGM CNT Racing CatBack Exhaust System Black-Out Tail Lights/Side Markers and Back-Up Lights Tinted Windows at 35% Front, 15% Rear 1/6 Scale Replica - Painted to Match 2010 SIM Camaro RS

09-06-2009, 10:29 PM	#19
khislop007 ZEUSS Drives: Hard! Join Date: Sep 2008 Location: Cayman Islands Posts: 2,572 View My Garage	Let's see how it looks in the night! __________________

09-07-2009, 12:40 AM	#20
TAG UR IT www.Camaro5store.com Drives: THRSS #2 / CGM#1 Join Date: Jul 2006 Location: SA, Texas Posts: 24,418 View My Garage	All the way around the doors would look SICK! A single line of blue wouldn't be bad at night. But, I think driving at night with a full glowing door could get distracting. As for the doors, I'm going to pull off the panel and see if there is actually tape at the ends of the light pipe (which keep the light from illuminating all the way to the doors). If so, I'm taking that crap off. I want my light pipes to run smooth all the way...door to door with no stops. Great job, once again. __________________

09-07-2009, 08:06 AM	#21
slacker Troubled 40 something Drives: 2010 IOM RS/SS M6 Join Date: Apr 2009 Location: Texas Posts: 318	Just got an email from GM Parts direct, the red lamp is on backorder now. Jeez, I'll never get lighting on the dash. __________________

09-07-2009, 10:18 AM	#23
King Mouse Drives: EXT Join Date: Nov 2008 Location: Western PA Posts: 416	What holds the light source and the light tube in place? Does it just rest behind the trim? Great thread by the way! Thanks!

09-07-2009, 10:19 AM	#24
2SSRS On a list for a 2014 Z28 Drives: 2010 Camaro 2SS M6 Join Date: Oct 2008 Location: By the lake in AZ Posts: 10,123 View My Garage	No it the only part you buy from Digi-Key, The blue is from GM and that is part # 92238395 __________________ My Build Thread E-mail Amigoop3@yahoo.com
