MBRP Inc & GM project "Colorado Speed"

I figured being a forum with tons of LS fans as well as gear heads, this would be a good spot to show you one of the projects we are currently working on…Colorado Speed. We started this project well over a year ago and has slowly progressed to being close to completion soon.

With a long history of building GM project vehicles, MBRP Inc have been presented with an opportunity to work with General Motors to design and build a full on drift truck project.

While we are building this truck with GM as a DRIFT project, GM will also have our truck on display at many of their larger shows and events across Canada. MBRPinc will also have many other shows, events and various venues where we will also be showing the project all across North America. Watch for us at various drag strips and drift events, and we also hope to run the Texas mile and the Silver State Classic events as well.

We have had the fortune of being able to work with some of the industrys biggest manufactures for sponsorships. I will compile a complete list as well for you guys to see who has been involved with this project to date.



This is the way things started...


A stock 2007 Z71 regular cab short box Colorado was delivered to get the ball rolling as well as a LS7 crate motor and a T-56 six speed transmission. With this combo being stout to begin with, we knew we were going in the right direction…but once again ATI Pro Charger jump on board with one of their F1A’s to give this LS7 some more horsepower…aprox 1100hp with 14lbs of boost.

As the truck was being torn apart we sent the motor to the guys at EPP to tear it apart and put some killer internals in to handle the extra boost.

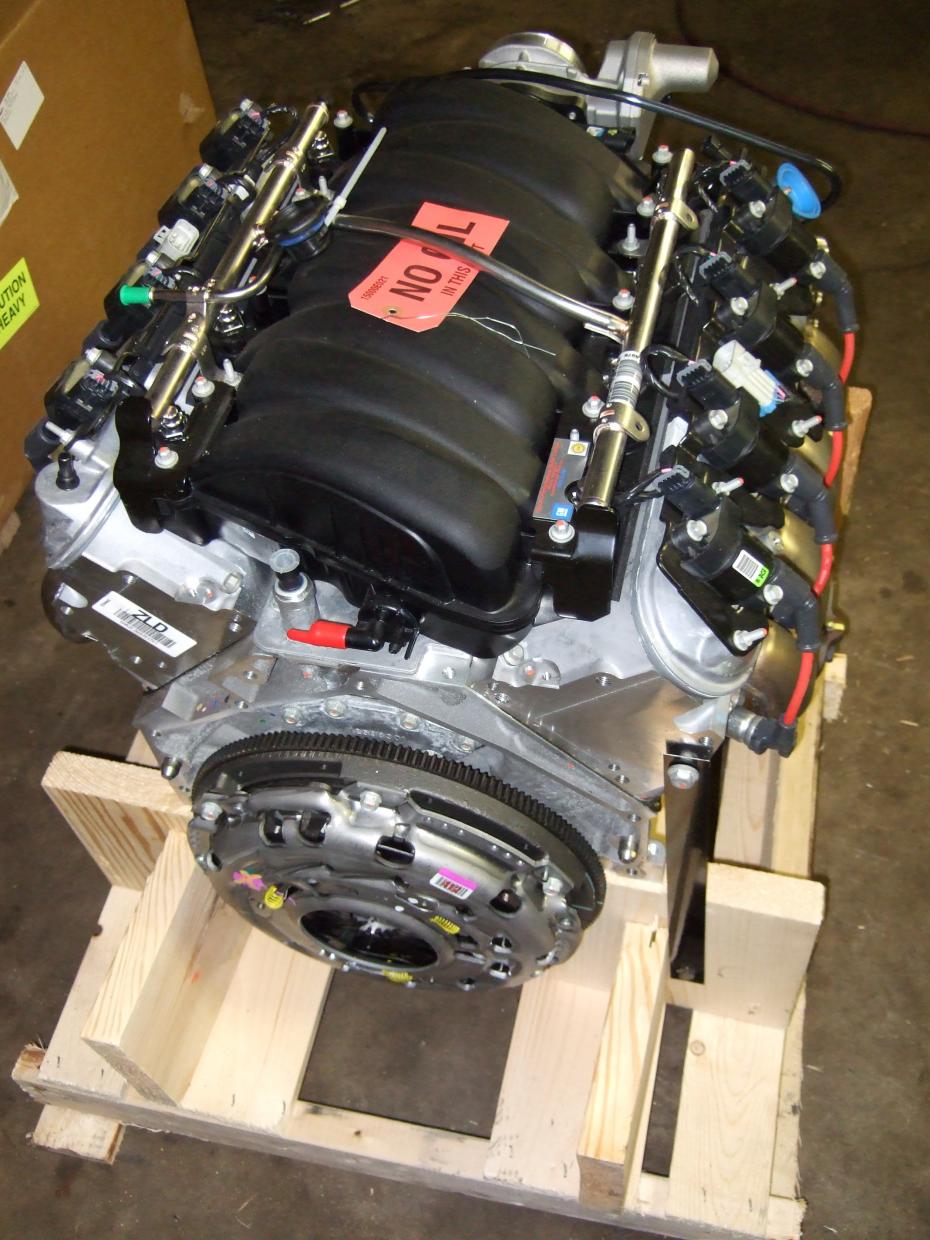

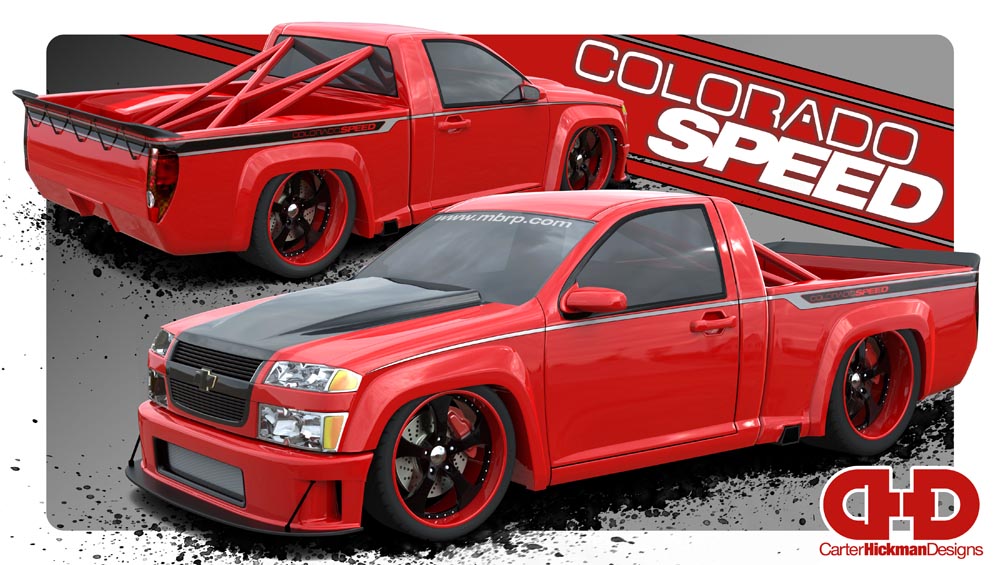

Here is the before picture, and then what it's going to look like when completed...
Attached Images

__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 12-16-2009, 12:45 PM   #2
2010 SSRS




2010 SSRS's Avatar

Drives: 3 V8 Camaros
Join Date: May 2009
Location: The Ocean State
Posts: 123,973
I wish I had that engine in my Camaro.
2010 SSRS is offline   Reply With Quote
Old 12-16-2009, 12:45 PM   #3
a_Username



a_Username's Avatar

Drives: 2010 2SS Camaro
Join Date: Jul 2009
Location: Murfreesboro, TN
Posts: 3,893
Looks fantastic. 1100 HP?
a_Username is offline   Reply With Quote
Old 12-16-2009, 01:53 PM   #4
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124
Here is the internals list...it was built to handle 22 lbs of boost...we are sticking with 14 lbs for now.

This is the list from EPP.


LS7 427 ci
Internal upgrades and custom cam from Exotic Performance Plus –
Diamond Pistons 11596
Compstar Connecting Rods
Clevite H series rod (CB663HN) and main bearing (CB2199HX) ARP main and head studs Total seal rings with an AP steel top ring
Comp Cam duration @ .050 is 236/246 on a 114 lobe separation
installed @ 113 intake centerline with .637/.650 lift Manley 5/16 one piece pushrods The heads were O-ringed at West Coast Cylinder Heads Valve springs are comp cams 26921kt

The engine is 428.69 CID. The bore is 4.130, and it has the stock LS-7 4" stroke crankshaft. The compression ratio is 9.37:1 The block was honed with a torque plate, and the crankshaft was computer balanced to
1/4 ounce/inch.
__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 12-17-2009, 03:06 PM   #5
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124

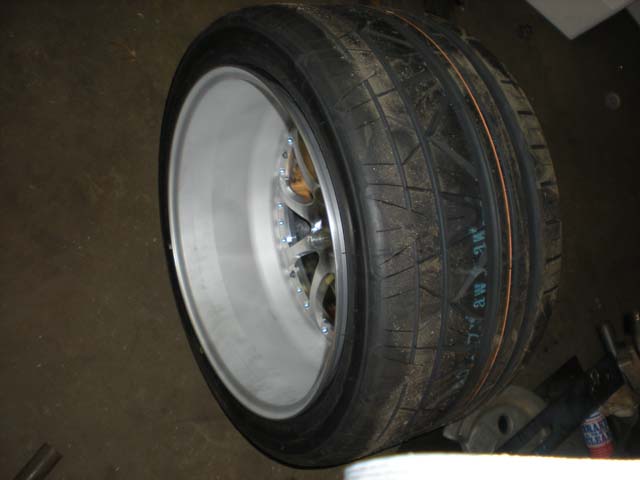

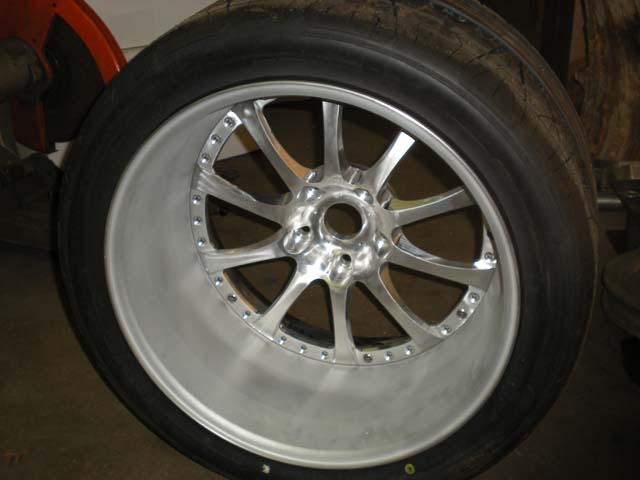

Forgeline hooked us up with a set of custom wheels...

Front -Forgeline ZX3r 19 x 9 - Rear - Forgeline ZX3R 19 x 12

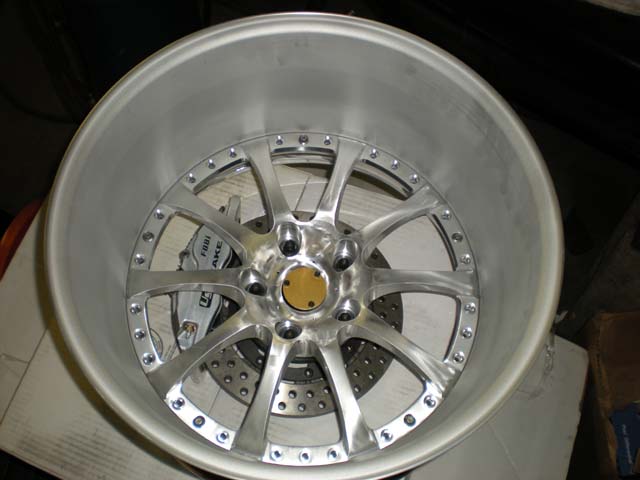

Couple of shots with the raw finish while they were being test fitted.

In the pic you can see the US Brakes set up that we are running. The fronts are 4 piston with drilled rotors and the rear are 2 piston with drilled rotors. We are running a second set of 2 piston rear calipers with a hand E brake for drifting purposes...
Attached Images

__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 12-17-2009, 04:23 PM   #6
nova


nova's Avatar

Drives: 2010 Camaro 2SS/RS, VR, PW, WR
Join Date: Jul 2009
Location: Huntsville, AL
Posts: 842
Well, I was hoping to see some mods to the original Colorado 5 cyl (turbo or super hint hint) but this is still darn cool.
__________________
2010 2SS/RS, M6,VR,White Rally's,Polished Wheels

Mods:
skip shift eliminator (hey everybody's gotta start somewhere )
crappily painted engine cover...
nova is offline   Reply With Quote
Old 12-17-2009, 04:48 PM   #7
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124
Quote:
Originally Posted by nova View Post
Well, I was hoping to see some mods to the original Colorado 5 cyl (turbo or super hint hint) but this is still darn cool.

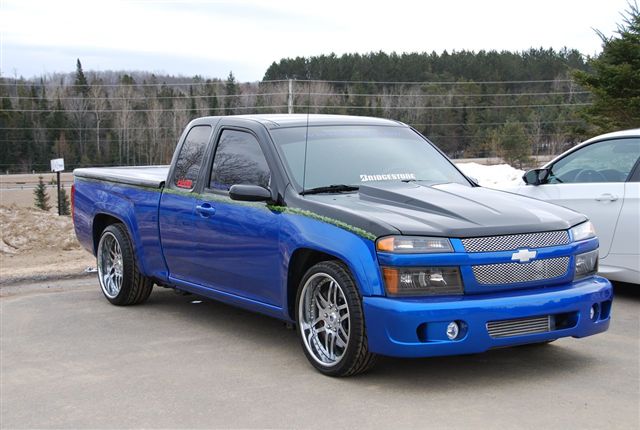

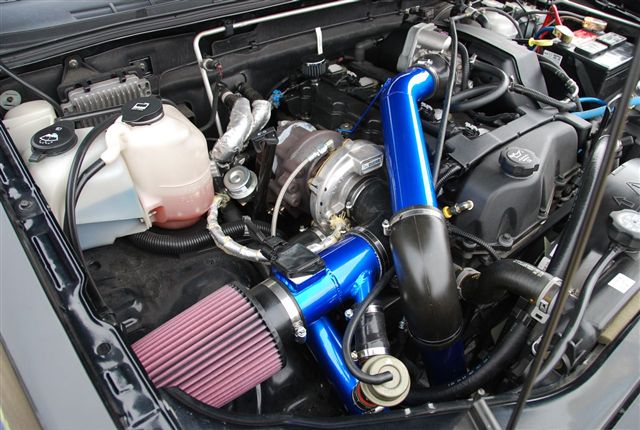

Sort of like this one we did awhile ago...

It was cool for sure, but completely different creatures...as you can imagine.
Attached Images

__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 12-17-2009, 05:17 PM   #8
Zabo
Bowtie to the brim

Zabo's Avatar

Drives: '10 R6P 2SS/RS M6, '96 S10 ZR2 M5
Join Date: Sep 2008
Location: Woodhaven, Michigan
Posts: 9,584
Psycho Colorado: Potential symbolic return to the El Camino SS?
__________________
2010 2SS/RS M6
Black on Black, Silver Rally Stripes, NPP Exhaust, 1LE Rear Diffuser,
SLP Z/28 style Blackwing CAI
Zabo is offline   Reply With Quote
Old 12-18-2009, 11:18 AM   #9
nova


nova's Avatar

Drives: 2010 Camaro 2SS/RS, VR, PW, WR
Join Date: Jul 2009
Location: Huntsville, AL
Posts: 842
Quote:
Originally Posted by MBRP Tech View Post
Sort of like this one we did awhile ago...

It was cool for sure, but completely different creatures...as you can imagine.
Yeah thats kinda what I was looking for.

Wish I could find a production kit to give my little blue truck some more towing power but I just don't see it happening given the size of the market.
__________________
2010 2SS/RS, M6,VR,White Rally's,Polished Wheels

Mods:
skip shift eliminator (hey everybody's gotta start somewhere )
crappily painted engine cover...
nova is offline   Reply With Quote
Old 12-18-2009, 03:12 PM   #10
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124
Quote:
Originally Posted by nova View Post
Yeah thats kinda what I was looking for.

Wish I could find a production kit to give my little blue truck some more towing power but I just don't see it happening given the size of the market.
Hahn Racecraft builds one for the Colorado's...ours was used for the prototype.
__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 12-22-2009, 04:30 PM   #11
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124

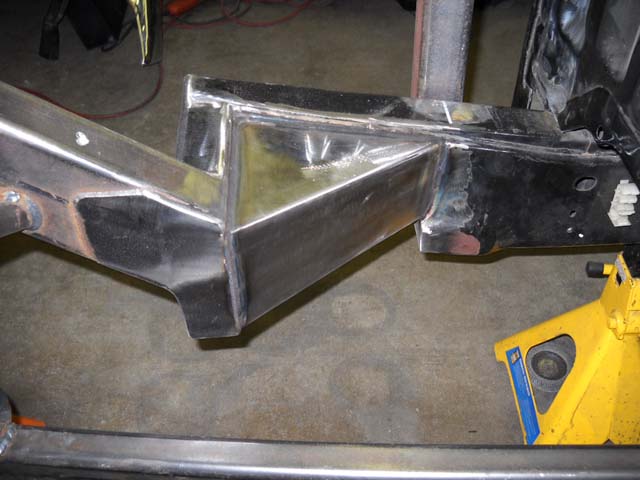

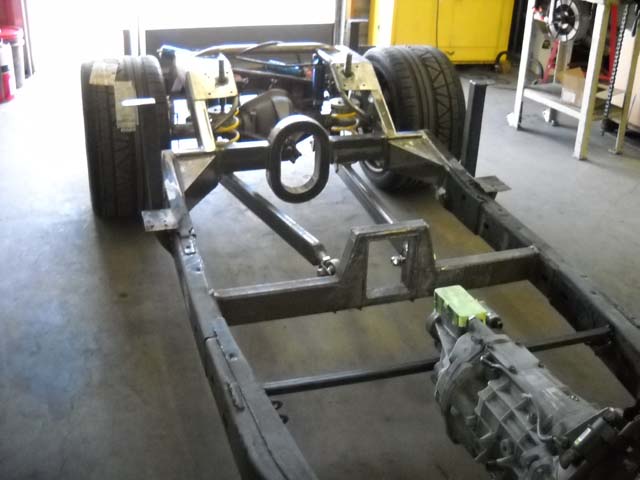

Here's the frame that Hitman Hotrods is modifying...
Attached Images

__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 12-24-2009, 11:03 PM   #12
mr_desmo
Banned

Drives: beated up old mini austin
Join Date: Jun 2009
Location: north pole
Posts: 440
I taught all you did was exhausts....this is boyd cuddington cool
mr_desmo is offline   Reply With Quote
Old 12-24-2009, 11:21 PM   #13
DropTheGloves
Account Suspended

Drives: 2009 TT 335/2009 GSX-R 1000/ECT..
Join Date: Jul 2009
Location: Tampa, Florida
Posts: 772
Suscribing. I love what you guys are doing with this project. I have often myself thought about trucks like this. I can not wait to see the end result.
DropTheGloves is offline   Reply With Quote
Old 12-24-2009, 11:25 PM   #14
TFord
Camaro Fanatic

TFord's Avatar

Drives: 2000 Z28
Join Date: May 2007
Location: Auburn, WA
Posts: 1,812
Send a message via Yahoo to TFord
Very Nice...almost makes me wanna buy a truck! I can't wait to see more
__________________
TFord is offline   Reply With Quote
Old 12-26-2009, 12:04 PM   #15
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124
Quote:
Originally Posted by mr_desmo View Post
I taught all you did was exhausts....this is boyd cuddington cool
Thanks for the props...we typically build 2-3 vehicles a year for marketing that we take to shows and events...this year so far has been the 2 matching JK Jeeps and this truck.
__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 12-26-2009, 12:05 PM   #16
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124
Quote:
Originally Posted by DropTheGloves View Post
Suscribing. I love what you guys are doing with this project. I have often myself thought about trucks like this. I can not wait to see the end result.

Thanks...I can't wait to drive it
__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 12-26-2009, 12:06 PM   #17
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124
Quote:
Originally Posted by TFord View Post
Very Nice...almost makes me wanna buy a truck! I can't wait to see more
Thanks...I'm going to get some more pics up shortly...it's starting to look like a truck now...been a long road with this project but will be well worth it in the end
__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 01-05-2010, 09:51 AM   #18
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124

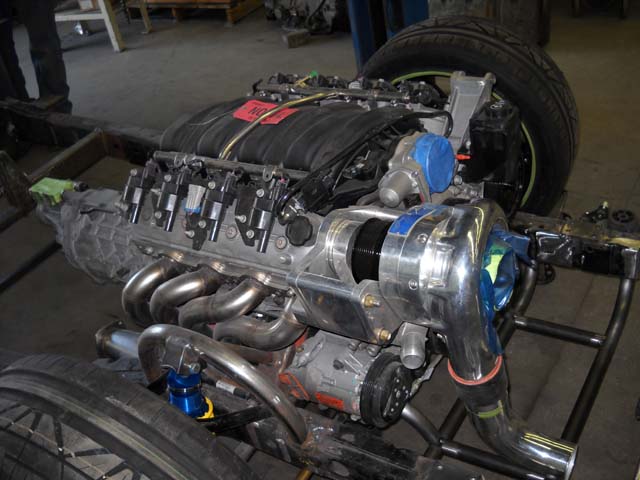

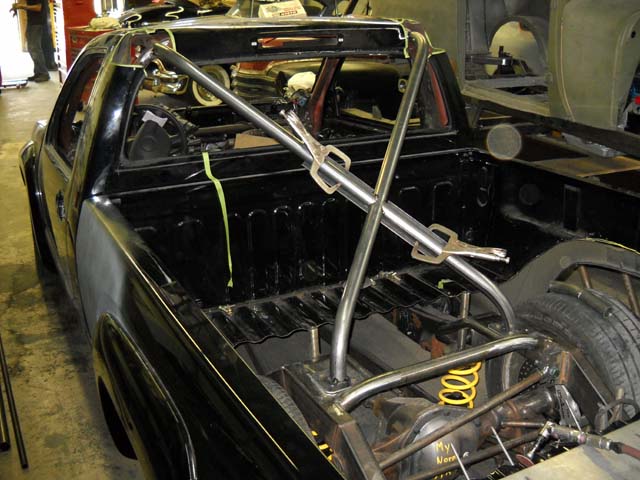

Just some updated pics to check out...the guys at Xtreme Customs doing a killer job on the body work...
Attached Images

__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 01-05-2010, 02:38 PM   #19
MCPOAJ

Drives: NOTHING
Join Date: Feb 2008
Location: NE.
Posts: 674
my god... this is amazing!!!
MCPOAJ is offline   Reply With Quote
Old 01-05-2010, 02:46 PM   #20
Xanthos
Almost-Original Postwhore

Xanthos's Avatar

Drives: Stick
Join Date: Mar 2008
Location: Oklahoma
Posts: 12,658
Does want.
- X
__________________
Xanthos is offline   Reply With Quote
Old 01-11-2010, 05:42 PM   #21
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124
Just some more updated pics for you guys to check out...custom rad, dry sump piping is extremely cool, frame is back from powder coating and Auto Meter hooked us up with the carbon fiber gauges...Zoom also came on board with some killer clutches...
Attached Images

__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 01-18-2010, 01:03 PM   #22
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124

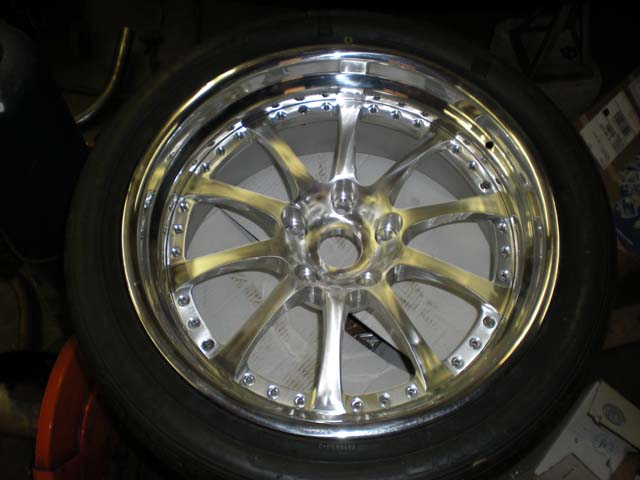

Some pics of the wheels back from Forge Line all painted and ready to go...killer looking pieces...any guys here running Forgelines? These are the first that we've dealth with them and they are for sure top notch.

Aeromotive set us up with the complete fuel system...3/4" fuel lines

As well some shots of the body all primed and ready for paint. you can see by the pics that the rad definately wouldn't fit in the front so the guys did this trick rear set up...we are matching all the piping with the color of the truck as well.
Attached Images

__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 01-18-2010, 02:02 PM   #23
CamaroSpike23
Mr. Nitpicky

CamaroSpike23's Avatar

Drives: anything I can get my hands on
Join Date: Sep 2006
Location: anywhere and everywhere
Posts: 22,919
Send a message via Yahoo to CamaroSpike23
how did I miss this? very cool project!
__________________
Never race anything you can't afford to light on fire and push off a cliff
Quote:
Originally Posted by BowtieGuy View Post
Nobody makes CamaroSpike happy. You just disgust him a little less than other people.

Quote:
Originally Posted by Bulldogwinters View Post
Read that link that Spike posted, it'll tell you everything you need to know.
Quote:
Originally Posted by WheelmanSS View Post
Post count is truly an accurate measure of how cool someone is on the Internet.
Quote:
Originally Posted by Greg Norris View Post
I piss excellence
and fart awesomeness
Quote:
Originally Posted by BowtieGuy View Post
Nobody makes CamaroSpike happy. You just disgust him a little less than other people.
"You can think I'm wrong, but that's no reason to quit thinking.”
Quote:
Originally Posted by Overflow View Post
But not all people were born awesome like you, Spike.
CamaroSpike23 is offline   Reply With Quote
Old 01-25-2010, 04:05 PM   #24
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124
Thanks, we are really looking forward to this one for sure...it's getting very close to completion...alot of tweaking to do yet.
__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Old 04-23-2010, 09:06 AM   #25
MBRP Tech
Manufacture

MBRP Tech's Avatar

Drives: Camaro
Join Date: May 2009
Location: Huntsville
Posts: 124
Hey, sorry for the delay on these pics...the truck is almost done now...a few changes to the front suspension are being done as we speak. I will post pics every day to get things caught up for pics on this build...
Attached Images

__________________

Jeff Carr
Sales & Special Events Coordinator
MBRP Inc. Performance Exhaust
1-888-636-7223
www.mbrp.com]
MBRP Tech is offline   Reply With Quote
Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
MBRP Exhaust System Christmas Special GmPartsDirect.com V8 Bolt-Ons & Tunes 8 04-09-2010 09:58 AM
MBRP exhaust in stock GmPartsDirect.com V8 Bolt-Ons & Tunes 4 11-21-2009 10:51 PM
MBRP Camaro exhaust in stock GmPartsDirect.com V8 Bolt-Ons & Tunes 3 11-08-2009 12:01 PM
MBRP for sale JoshJ81 V8 Bolt-Ons & Tunes 10 11-07-2009 02:24 PM
MBRP Performance Exhaust for Camaro SS $1099.88 @ BMC Performance Kris@BMCPerformance V8 Bolt-Ons & Tunes 1 08-08-2009 09:27 PM


All times are GMT -5. The time now is 12:11 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
