Old 07-14-2010, 11:45 PM   #1
ROBBDOGG1986
Tampa Gulf Coast Family

ROBBDOGG1986's Avatar

Drives: 2010 CAMARO SS
Join Date: May 2009
Location: fl
Posts: 861

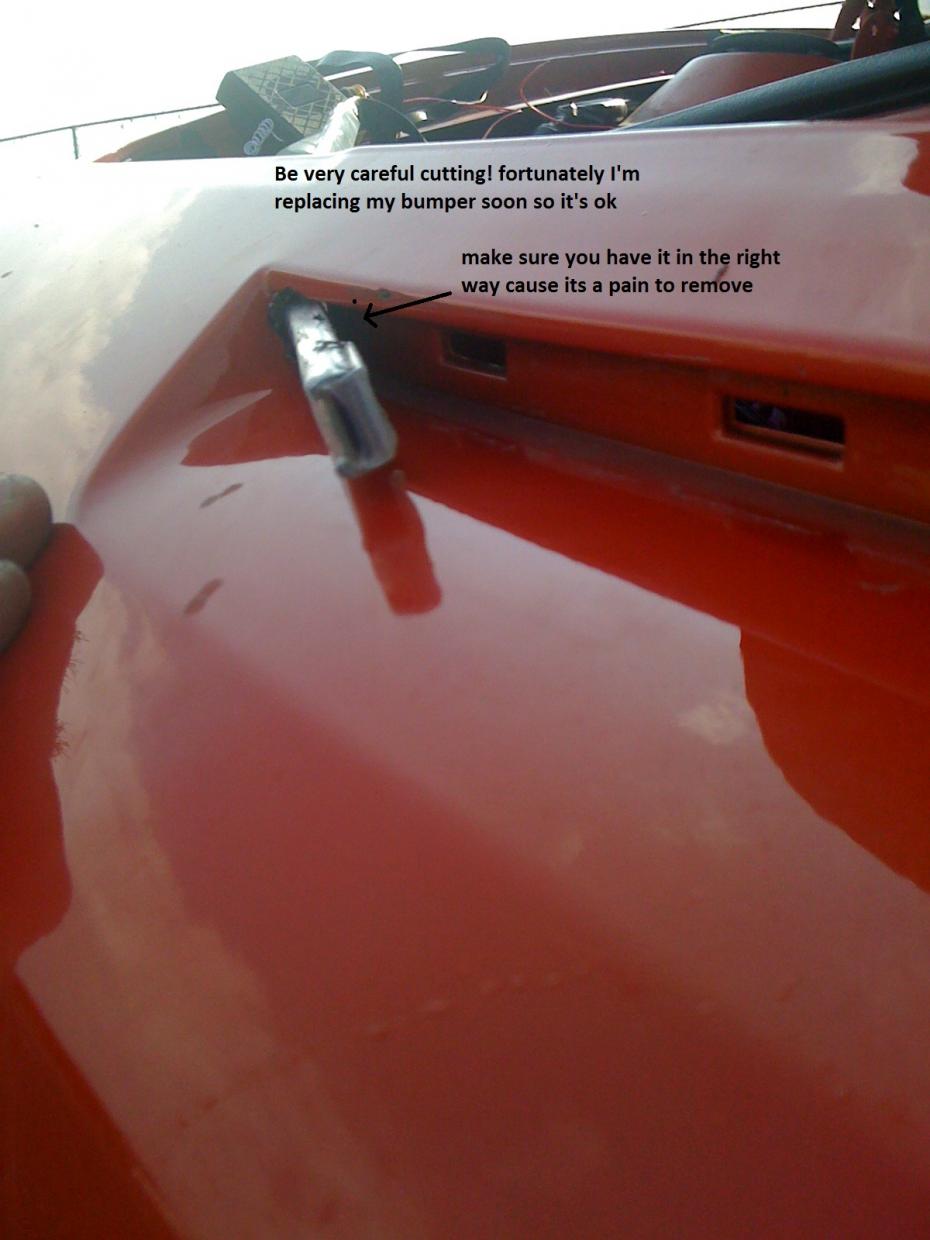

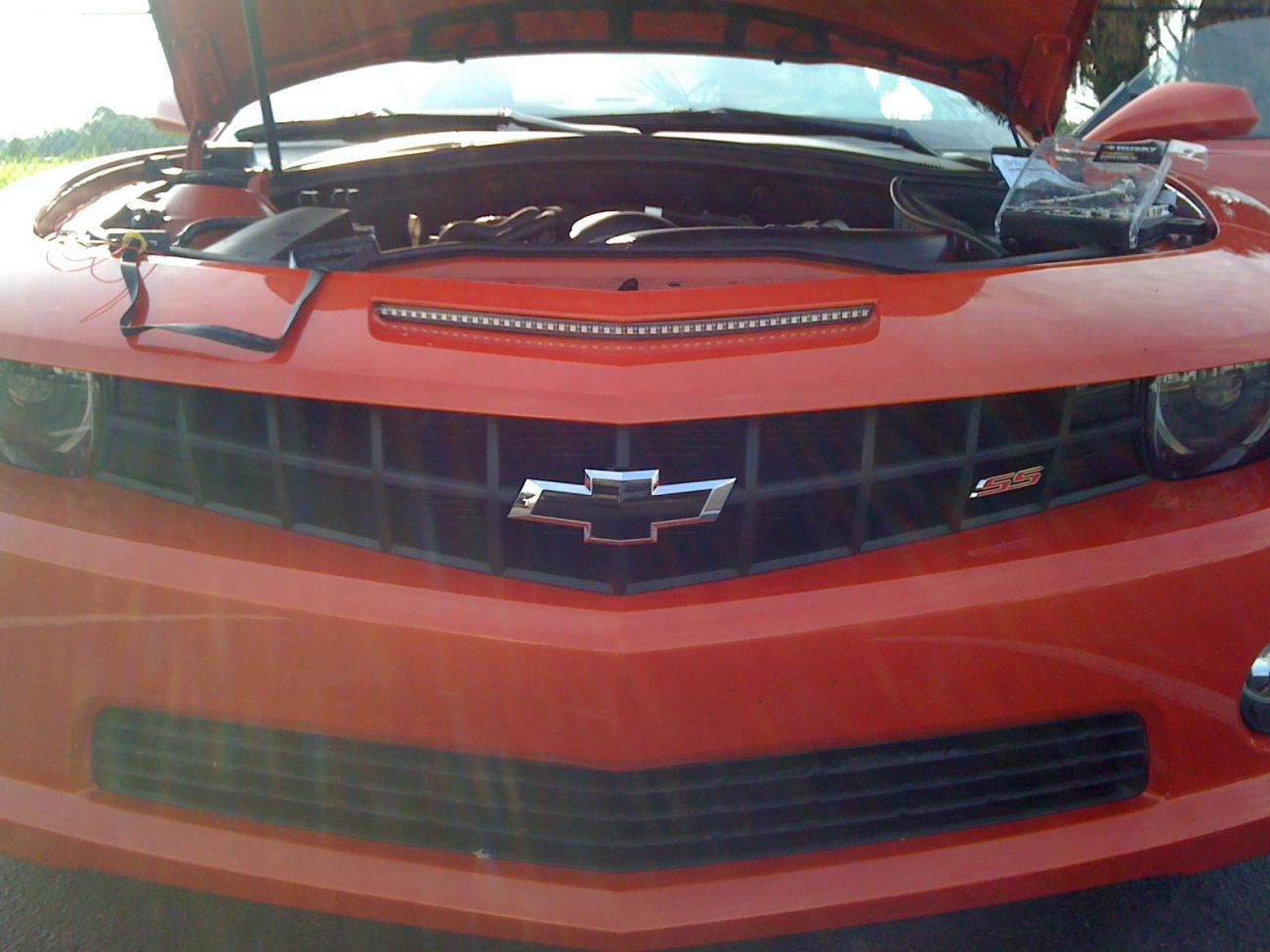

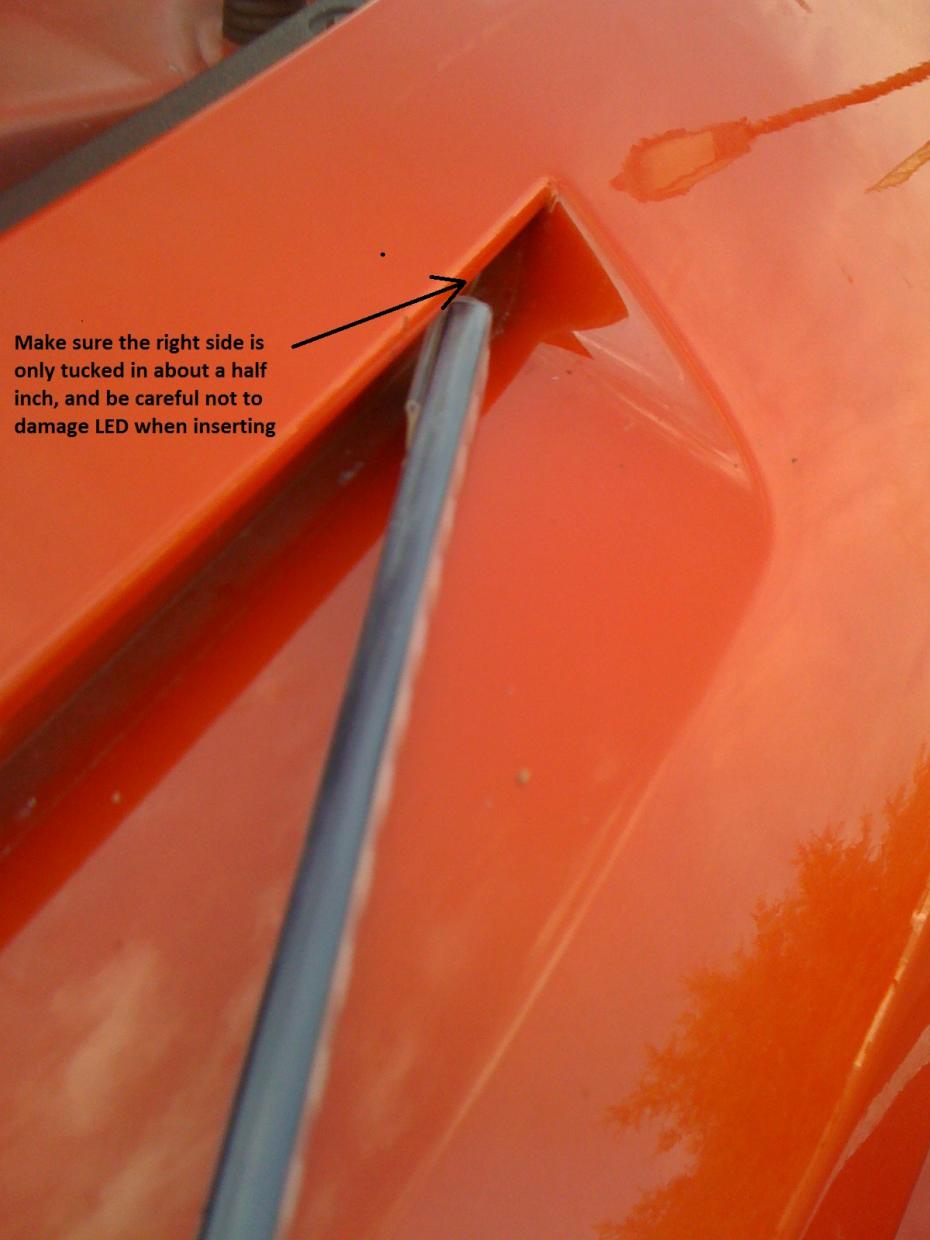

DIY LED Night Rider Scanner V2.0 install pics

pics
Attached Images

__________________
BALLSS2 the Wall! :5thgenvert:
ROBBDOGG1986 is offline   Reply With Quote
Old 07-14-2010, 11:46 PM   #2
ROBBDOGG1986
Tampa Gulf Coast Family

ROBBDOGG1986's Avatar

Drives: 2010 CAMARO SS
Join Date: May 2009
Location: fl
Posts: 861
http://qik.ly/CCjPYVxd64B9CN2JdXFskgE

http://qik.ly/C17TwbNdeWHVyWCH1XqbahR

LED functioning videos
__________________
BALLSS2 the Wall! :5thgenvert:
ROBBDOGG1986 is offline   Reply With Quote
Old 07-14-2010, 11:50 PM   #3
ROBBDOGG1986
Tampa Gulf Coast Family

ROBBDOGG1986's Avatar

Drives: 2010 CAMARO SS
Join Date: May 2009
Location: fl
Posts: 861
Hope this helps!
__________________
BALLSS2 the Wall! :5thgenvert:
ROBBDOGG1986 is offline   Reply With Quote
Old 07-15-2010, 12:21 AM   #4
Ivan @ Southwest Speed
Southwestspeed.net


Ivan @ Southwest Speed's Avatar

Drives: '10 2SS/RS, '96 Z28
Join Date: May 2009
Location: Rio Rancho, NM
Posts: 11,365
Nice Pics!! What everyone was looking for I think.

Good job!
Ivan
Ivan @ Southwest Speed is offline   Reply With Quote
Old 07-15-2010, 03:10 AM   #5
LS3*LLY

Drives: 2010 Camaro 2SS
Join Date: Jun 2010
Location: Santa Fe, Tx
Posts: 83
What did u use to make the cuts
LS3*LLY is offline   Reply With Quote
Old 07-15-2010, 06:08 AM   #6
ROBBDOGG1986
Tampa Gulf Coast Family

ROBBDOGG1986's Avatar

Drives: 2010 CAMARO SS
Join Date: May 2009
Location: fl
Posts: 861
Quote:
Originally Posted by Ivan @ Southwest Speed View Post
Nice Pics!! What everyone was looking for I think.

Good job!
Ivan
Thanks! I'm no pro at it wasn't hard to figure out either. The strip fits perfect into the slot...the only down fall us that it's not V shaped so it doesn't fit like the first scanner that came out.... Hear that AAC?

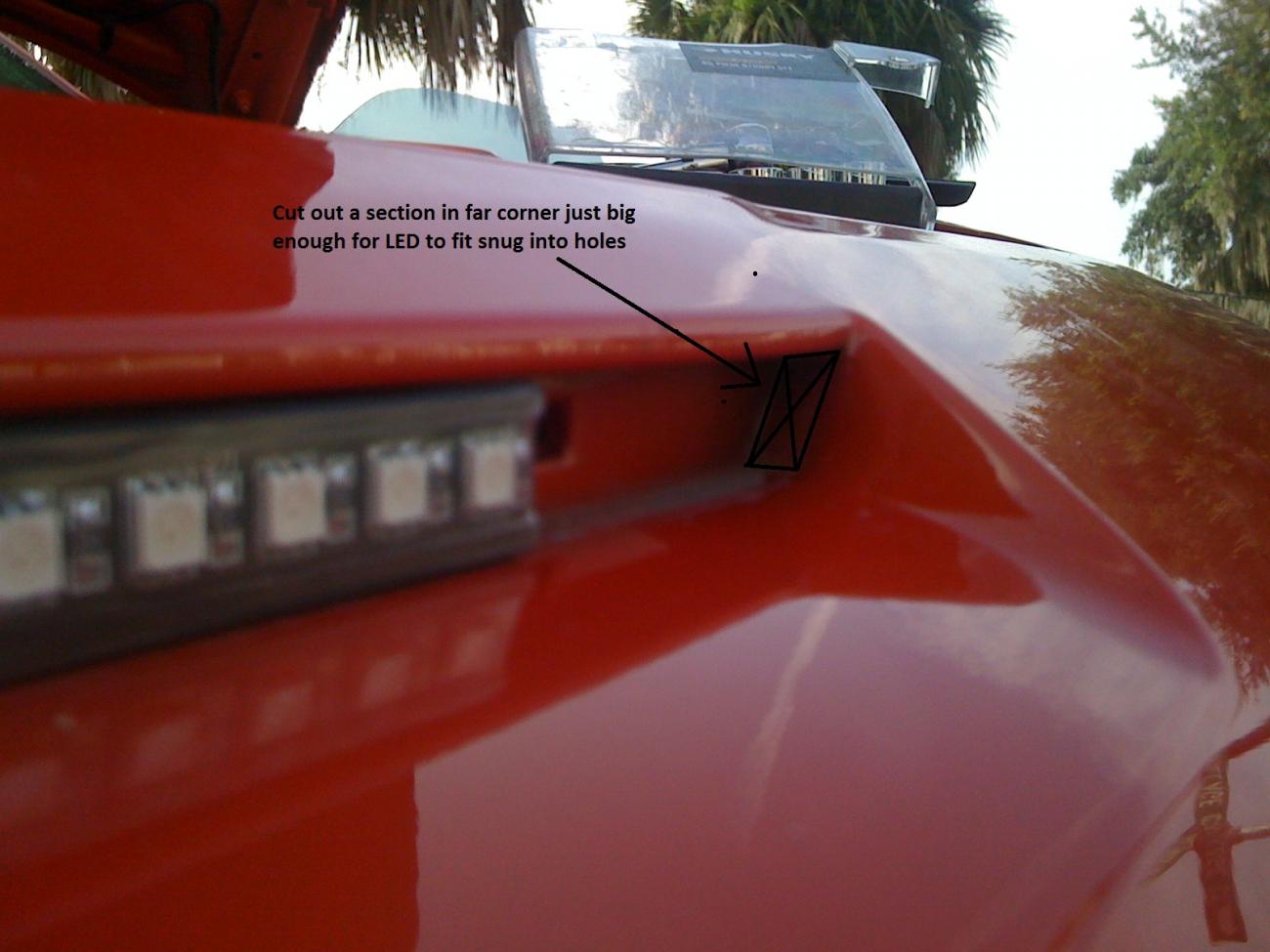

Btw I used my drill and bit the same width as the LED
__________________
BALLSS2 the Wall! :5thgenvert:
ROBBDOGG1986 is offline   Reply With Quote
Old 07-15-2010, 08:14 AM   #7
thespymaster



thespymaster's Avatar

Drives: C7 / ZL1 / SS / trucsk
Join Date: Nov 2009
Location: G4 CLASSIFIED
Posts: 4,603
Quote:
Originally Posted by ROBBDOGG1986 View Post
Thanks! I'm no pro at it wasn't hard to figure out either. The strip fits perfect into the slot...the only down fall us that it's not V shaped so it doesn't fit like the first scanner that came out.... Hear that AAC?



Btw I used my drill and bit the same width as the LED
In AAC's defense, they never said it was custom made to the SLOT, that they WILL HAVE on soon, but heck for the MOO LAA this light costs, it's worth the effort for the cutting....

Secondly, great HOW TO guide on the install!!!

Nice ride as well!
__________________
2014 C7 Stingray 3LT/Z51
2013 Camaro SS
2012 Camaro ZL1 - 850 HP
2011 Chevy Silverado 3500HD
2012 GMC Sierra 3500HD
thespymaster is offline   Reply With Quote
Old 07-15-2010, 08:31 AM   #8
ROBBDOGG1986
Tampa Gulf Coast Family

ROBBDOGG1986's Avatar

Drives: 2010 CAMARO SS
Join Date: May 2009
Location: fl
Posts: 861
Quote:
Originally Posted by thespymaster View Post
In AAC's defense, they never said it was custom made to the SLOT, that they WILL HAVE on soon, but heck for the MOO LAA this light costs, it's worth the effort for the cutting....

Secondly, great HOW TO guide on the install!!!

Nice ride as well!
Oh ya no your right they never said it was a perfect fit... But it does fit pretty well and it is worth the money! Everyone likes it so I'm happy with that as well. Thanks for the props! I'm actually inspired mostly by your ride! YOU my friend have an awesome car! Thanks
__________________
BALLSS2 the Wall! :5thgenvert:
ROBBDOGG1986 is offline   Reply With Quote
Old 07-15-2010, 09:23 AM   #9
Camaro21



Camaro21's Avatar

Drives: 2010 2SS/RS M6
Join Date: Jul 2009
Location: DFW, TX
Posts: 5,021
Thanks for the Great Write-up ROBBDOGG. I am off to the store to buy some 2-sided 3M Tape and then Wire them in and I will be done..
__________________
Camaro21 is offline   Reply With Quote
Old 07-15-2010, 09:26 AM   #10
AACstyle


AACstyle's Avatar

Drives: www.CamaroLighting.com
Join Date: Jul 2009
Location: New Orleans, LA
Posts: 6,533
Quote:
Originally Posted by ROBBDOGG1986 View Post
Oh ya no your right they never said it was a perfect fit... But it does fit pretty well and it is worth the money! Everyone likes it so I'm happy with that as well. Thanks for the props! I'm actually inspired mostly by your ride! YOU my friend have an awesome car! Thanks
Use some of the thin 3M on the back of the scanner, prep the painted surface of the bumper with a alch swab and adhesion promoter.

This works best if you work outside on a hot day because the bumper and scanner will be slightly more flexible.

Cut the plastic backing of the 3M tape in the center of the "V" and peel it back slightly to leave 1"-2" "tails" sticking up. Line the scanner up and working from the center-out peel the tail back as you push the scanner to the bumper. It helps to have a helper peel while you stick.

If you complete these steps it will be a factory finish.
AACstyle is offline   Reply With Quote
Old 07-15-2010, 09:27 AM   #11
AACstyle


AACstyle's Avatar

Drives: www.CamaroLighting.com
Join Date: Jul 2009
Location: New Orleans, LA
Posts: 6,533
Quote:
Originally Posted by Camaro21 View Post
Thanks for the Great Write-up ROBBDOGG. I am off to the store to buy some 2-sided 3M Tape and then Wire them in and I will be done..
Yes, thank you ROBBDOGG for the write-up. I know it will help many member here with their installation!
AACstyle is offline   Reply With Quote
Old 07-15-2010, 09:41 AM   #12
ROBBDOGG1986
Tampa Gulf Coast Family

ROBBDOGG1986's Avatar

Drives: 2010 CAMARO SS
Join Date: May 2009
Location: fl
Posts: 861
Quote:
Originally Posted by AACstyle View Post
Yes, thank you ROBBDOGG for the write-up. I know it will help many member here with their installation!
No problem! Thanks for the great product! Can u post your pics here as well please... Maybe there's something I missed that you could make easier...
__________________
BALLSS2 the Wall! :5thgenvert:
ROBBDOGG1986 is offline   Reply With Quote
Old 07-15-2010, 09:51 AM   #13
AACstyle


AACstyle's Avatar

Drives: www.CamaroLighting.com
Join Date: Jul 2009
Location: New Orleans, LA
Posts: 6,533
Quote:
Originally Posted by ROBBDOGG1986 View Post
No problem! Thanks for the great product! Can u post your pics here as well please... Maybe there's something I missed that you could make easier...
We did not take pictures during Spy's installation but next time we do one of these installs here there will be pictures and videos
AACstyle is offline   Reply With Quote
Old 07-15-2010, 10:53 PM   #14
code3 ss

code3 ss's Avatar

Drives: SW,SS1 RS,GRND EFFCS,ORNG STRPS
Join Date: Mar 2010
Location: Los Angeles
Posts: 78
just what i was looking for!!! robbdogg! thank you thank you thank you!..where exactly did you connect the red wire? its kind of hard to tell on the pic.as well as the black wire. I just wanna make sure i do this right the first time, Im not mechanicaly gifted but what is a fuse connection and module?? go ahead and laugh guys!!
code3 ss is offline   Reply With Quote
Old 07-15-2010, 10:55 PM   #15
code3 ss

code3 ss's Avatar

Drives: SW,SS1 RS,GRND EFFCS,ORNG STRPS
Join Date: Mar 2010
Location: Los Angeles
Posts: 78
is the 3m tape placed just on the backside of the scanner or is it put on the top and bottom too???? "my scanner is useless sitting on my living room floor"
code3 ss is offline   Reply With Quote
Old 07-15-2010, 11:00 PM   #16
2010 SSRS




2010 SSRS's Avatar

Drives: 3 V8 Camaros
Join Date: May 2009
Location: The Ocean State
Posts: 123,989
I wish somebody would make one that required no cutting, I am not cutting my Camaro.
__________________
Jannetty Racing JRE Street Package
2010 SSRS is offline   Reply With Quote
Old 07-15-2010, 11:14 PM   #17
code3 ss

code3 ss's Avatar

Drives: SW,SS1 RS,GRND EFFCS,ORNG STRPS
Join Date: Mar 2010
Location: Los Angeles
Posts: 78
its just little slits. how bad can it hurt??
code3 ss is offline   Reply With Quote
Old 07-31-2010, 12:51 PM   #18
calbert1999
Camaro SS Lover

calbert1999's Avatar

Drives: 2010 Camaro 2SS/RS Black IOM
Join Date: Jun 2010
Location: Toronto, Ontario (Canada)
Posts: 2,854
For those who don't want to make holes in their vehicle, here's a Knight Rider product that plug n' play for the 2010 Camaro.

http://www.knightlight.co.uk/
calbert1999 is offline   Reply With Quote
Old 08-31-2010, 11:15 AM   #19
CTBranson

CTBranson's Avatar

Drives: 2010 Camaro 2SS/RS Auto
Join Date: Jun 2009
Location: Branson,MO
Posts: 69
I just got mine in from AAC. I'm having it installed by a professional. They were concerned about the cutting and how it would look. They also asked about any problems with the strip bowing out from long term stress after time and heat. Have you had any problems with this?
CTBranson is offline   Reply With Quote
Old 08-31-2010, 05:38 PM   #20
SSTony


Drives: SS Camaro
Join Date: Jul 2009
Location: Piscataway NJ
Posts: 1,107
Send a message via AIM to SSTony
the video makes this product look bad. the lights dont flow right and it looks real choppy
__________________
SSTony is offline   Reply With Quote
Old 08-31-2010, 05:50 PM   #21
AACstyle


AACstyle's Avatar

Drives: www.CamaroLighting.com
Join Date: Jul 2009
Location: New Orleans, LA
Posts: 6,533
Quote:
Originally Posted by 2010 SSRS View Post
I wish somebody would make one that required no cutting, I am not cutting my Camaro.
When you put the black trim piece back in the slot it covers the slits, you can't tell it was ever there
AACstyle is offline   Reply With Quote
Old 10-22-2010, 10:26 AM   #22
AACstyle


AACstyle's Avatar

Drives: www.CamaroLighting.com
Join Date: Jul 2009
Location: New Orleans, LA
Posts: 6,533
Here is a great customer video of this scanner in action:

AACstyle is offline   Reply With Quote
Old 11-01-2010, 07:10 PM   #23
Viper595
Redline drop, or go home

Viper595's Avatar

Drives: 2010 Camaro SS
Join Date: Oct 2010
Location: Overland Park
Posts: 267
Quote:
Originally Posted by AACstyle View Post
When you put the black trim piece back in the slot it covers the slits, you can't tell it was ever there
oh, so the factory plastic-grille insert just sits over the LED's? VERY NICE. that was one of the last questions i was waiting to have answered.
Viper595 is offline   Reply With Quote
Old 11-01-2010, 11:30 PM   #24
Synerbee
SoCal Headturners

Synerbee's Avatar

Drives: 2010 SGM
Join Date: Mar 2010
Location: Anaheim Hills, California
Posts: 5,802
I know I ask this about all of your products but is there a way to diffuse the LEDs on the scanner and also on your fog lights?
Synerbee is offline   Reply With Quote
Old 11-02-2010, 12:00 AM   #25
Cheesehead1

Cheesehead1's Avatar

Drives: 2011 2SS/RS RJT
Join Date: Jan 2010
Location: Racine, WI
Posts: 156
Quote:
Originally Posted by Viper595 View Post
oh, so the factory plastic-grille insert just sits over the LED's? VERY NICE. that was one of the last questions i was waiting to have answered.
Cheesehead1 is offline   Reply With Quote
