ADM Performance Highflow Intake Advantages

[ZombieEatsYou]

It sounds more aggressive at low speed. You know how it sounds when you punch it? It sounds like that even accelerating gradually just driving around my neighborhood. Seems to accelerate smoother as well - this is just my butt's opinion.

[Inferno Orange 2SS-RS]

Cool, thanks.

[freemaSSon]

Originally Posted by ZombieEatsYou

It sounds more aggressive at low speed. You know how it sounds when you punch it? It sounds like that even accelerating gradually just driving around my neighborhood. Seems to accelerate smoother as well - this is just my butt's opinion.

Thanks for the continued GREAT FEEDBACK Zombie !

[Number_9]

Originally Posted by ZombieEatsYou

It sounds more aggressive at low speed. You know how it sounds when you punch it? It sounds like that even accelerating gradually just driving around my neighborhood. Seems to accelerate smoother as well - this is just my butt's opinion.

Funny, I just posted this reply in a different thread but it's totally applicable here too... my butt-dyno told me the power gain was significant.. the timeslips at the track told me the difference was going from an 8.4/5 to a 8.2/3.

[Inferno Orange 2SS-RS]

Thanks, another endorsement that is convincing me to go with the ADM. Added performance plus an awesome look.

[markssylver]

[QUOTE=ADM PERFORMANCE;1004059]Excellent pictures guys.

I want to make a couple changes to both your Installs.

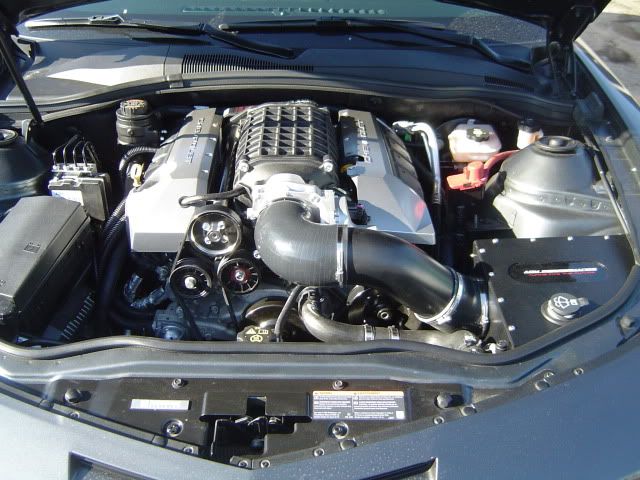

The N/A car(car with no supercharger) needs to loosen all the hose clamps ans rotate the 45 degree hose more straight up and down not more toward the radiator hose like the pic shows.You will notice the 4" powder coated pipe will want to find its way into the 90 and 45 degree slightly more.

Also on this car I will have to agree with the s/c owners reply on running the maf wires on the backside of the power steering pump as it is a better idea.
(you will need to remove the tye wrap)

Also I like to see the 3/8 valve cover vent hose tyed to the Throttlebody Wiring just aft of the connector by .1-.2 inches.This will hold that hose better away from the pulleys and what not.

The valve cover is not a ground(it is completely rubber isolated).Here is were we like to put the ground stud.

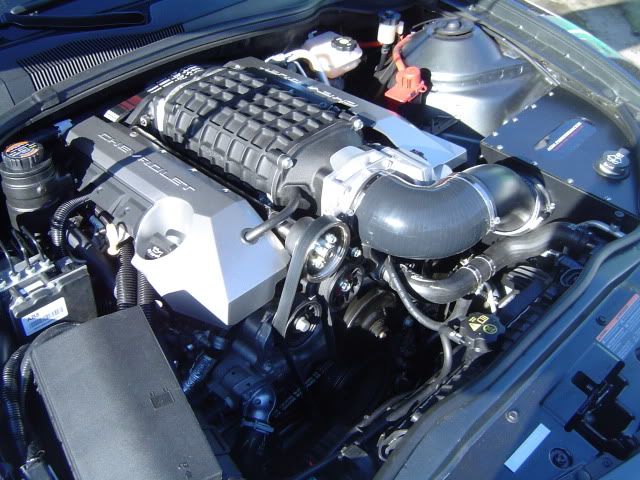

ON THE S/C CAR

I would also rotate the 4" powder coated pipe and 45 elbow a bit more aft away from the upper radiator hose.




All these items will be added to our instructions as they are very helpful.

Andit looks like the ac line down by the bottom of the box neds to be bent inward a little more for mor clearence on the box

[markssylver]

here my install it looks like i got the 4 inch intake pipe on backwards does it make a difference ?

[jbsrace1]

I like the design & look of the ADM kit allot better than most others I have seen.
Is it possible to get one with Dzus fasteners on the lid instead of the Allen head bolts?

[ZombieEatsYou]

Originally Posted by jbsrace1

I like the design & look of the ADM kit allot better than most others I have seen.
Is it possible to get one with Dzus fasteners on the lid instead of the Allen head bolts?

I was thinking the same thing. Back when I was working on A-10s, we used a lot of camlocks to fasten panels. It'd be great to be able to pop off the panel to show/replace the filter quickly.

[markssylver]

i was also thinking the same thing about the d zus fasteners i think i have some leftover from my roadrace bike i will see if the ones i have will work

[ADM PERFORMANCE]

Originally Posted by markssylver

i was also thinking the same thing about the d zus fasteners i think i have some leftover from my roadrace bike i will see if the ones i have will work

Yes we entertained that idea as well.

Andy

[ADM PERFORMANCE]

Originally Posted by ZombieEatsYou

I was thinking the same thing. Back when I was working on A-10s, we used a lot of camlocks to fasten panels. It'd be great to be able to pop off the panel to show/replace the filter quickly.

So you built A-10's!

Andy

[jbsrace1]

Originally Posted by ADM PERFORMANCE

Yes we entertained that idea as well.

Andy

If you can decide to build one let me know.

[ADM PERFORMANCE]

Originally Posted by jbsrace1

If you can decide to build one let me know.

We scraped the idea.I have over 600 pieces(3 pieces to a kit) sitting on the shelf now waiting for powder coating,Sorry but it is a little to late to make such a change.


Andy
