07-27-2020, 01:44 PM | #1 |
Drives: 2020 3LT Camaro 3.6L 1LE Join Date: Feb 2020
Location: San Diego
Posts: 268
|
LED Bowtie on a 2020 3LT still need an answer
I posted this on the "DIY How To" area a few months back, but I never received an answer to my question. (Other than take it to the dealer....) So I'm posting it here hoping this area might shed some light... (pun intended)

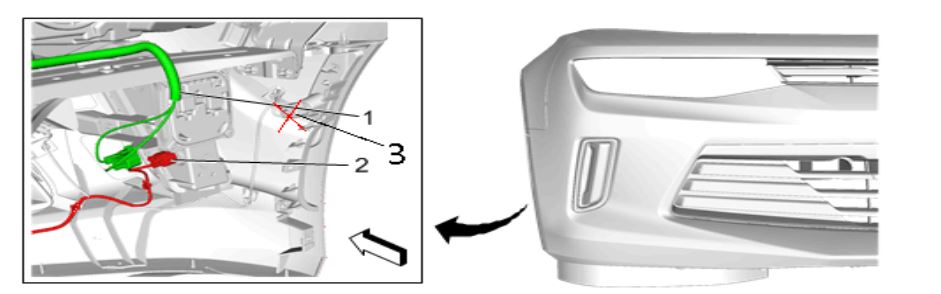

I bought an LED Bow-tie from a Chevy Dealer (Part No. 84329529). The part fits the 2020, but the instructions are for an older car (printed 2018). The light comes with a "splice harness" that gets plugged into a junction box behind the passenger's side of the bumper. When I look for the junction box (reference in picture,) I cannot locate anything electrical in that area. The only thing I have there is a plastic honeycomb box as part of the bumper. Any ideas where the jumper plug wire gets plugged into for a 2020 3LT? |
07-27-2020, 04:39 PM | #2 |
Long hauler
|
I remember your thread from a while back, sadly don’t have any idea where to splice it.
But from what I’ve seen, the bow tie is just powered by one positive and one negative wire, you could splice into any power nearby I believe
__________________
2022 2SS 1LE - Window Sticker - Cold Air Inductions Elite Carbon CAI
2016 1LT v6 - Totaled Happiness: Infinite |
07-27-2020, 05:02 PM | #3 | |
Drives: 2020 3LT Camaro 3.6L 1LE Join Date: Feb 2020
Location: San Diego
Posts: 268
|
Quote:
It's suppose to be plug and play... Without pulling off the bumper, grill, and wheel well liner I don't know where that plug is. The pic in the instructions don't seem to match mine. |
|
07-27-2020, 05:05 PM | #4 |
Long hauler
|
What about the side markers? Can it fit on that connector?
__________________
2022 2SS 1LE - Window Sticker - Cold Air Inductions Elite Carbon CAI
2016 1LT v6 - Totaled Happiness: Infinite |
07-27-2020, 05:13 PM | #5 |
Drives: 2020 3LT Camaro 3.6L 1LE Join Date: Feb 2020
Location: San Diego
Posts: 268
|
|
07-27-2020, 09:41 PM | #6 |
Drives: 2010 Camaro 2SSRS M6 Join Date: Jan 2019
Location: Alabama
Posts: 1,264
|
It appears to be on the driver side on your car not the passenger side. Maybe the following link will point you in the right direction.
https://www.docdroid.net/9luD7mq/201...ns-pdf#page=10
__________________
ECS supercharger, Texas speed stage 3 boosted cam, Johnson 2110 race style lifters, ported throttle body, long tube headers, aeromotive fuel pump, fic injectors, ATI super damper, Corsa Extreme exhaust, elite engineering catch can and many other things.
|
07-27-2020, 11:02 PM | #7 |
Drives: 2020 3LT Camaro 3.6L 1LE Join Date: Feb 2020
Location: San Diego
Posts: 268
|
Cool, I'll have to check it out. Makes sense because I cannot find anything on the passenger side.
|
08-11-2020, 03:39 PM | #8 | |
Drives: 2020 3LT Camaro 3.6L 1LE Join Date: Feb 2020
Location: San Diego
Posts: 268
|
Quote:
That worked! Interested how they changed it for 2018 to 2019 and 2020. Thanks |
|
08-11-2020, 04:30 PM | #9 |
Drives: 2010 Camaro 2SSRS M6 Join Date: Jan 2019
Location: Alabama
Posts: 1,264
|
Nice, glad it worked for ya.
__________________
ECS supercharger, Texas speed stage 3 boosted cam, Johnson 2110 race style lifters, ported throttle body, long tube headers, aeromotive fuel pump, fic injectors, ATI super damper, Corsa Extreme exhaust, elite engineering catch can and many other things.
|
04-21-2021, 08:12 PM | #10 |
Drives: 2020 1SS 1LE M6 Riverside Bl Metall Join Date: Oct 2020
Location: Sacramento Area, CA
Posts: 38
|
We need pictures for proof that it works!
|
|
|
|
|
