Old 05-20-2025, 09:24 AM   #15
FASTFATBOY

Drives: 2013 ZL1
Join Date: Nov 2018
Location: Mobile Al
Posts: 524
Quote:
Originally Posted by fz4k98 View Post
This spring i installed adjustable coilovers in front and did a track day. I could adjust the coilovers to increase corner speed but the understeer would be the same, just at higher speed.

The understeer on my car was the same on original shocks as the coilovers, just different corner speed.
Same thing I experienced on the ZL1 after adding the 35mm rear bar and-1.75 camber.

Entry speed went up some, but once you crossed that threshold it was doing the exact same thing just at a higher entry speed.
__________________
2015 1SS 1LE, Magnuson 2300 Heartbeat and headers. 550rwhp STD, 535 SAE.
FASTFATBOY is online now   Reply With Quote
Old 05-21-2025, 08:27 AM   #16
CamaroCracka



CamaroCracka's Avatar

Drives: 2010 Turbo LS3
Join Date: Dec 2009
Location: Palm Bay, FL
Posts: 3,036
Quote:
Originally Posted by KillboyPowerhead View Post
Not sure if the 1LE and/or ZL1 bars are hollow or solid; believe SS is solid?
The 1LE, ZL1 and Z28 bars are all supposed to be solid. I have seen many people say the SS bars are solid, but I cut apart a front and rear bar from my vert and they were both hollow.
__________________
2010 SS - Kind of an On3 kit, CTR 78/80, CompCam 239/251 620/632 122+4, E85, Z28 suspension and ZL1 diff with Outlaw axles. Gen6 ZL1 brakes.

2011 Vert - 416/w 230/236 .612/.602 115lsa, 1LE suspension w/32mm rear bar. Z28 diff. Gen6 ZL1 brakes.
CamaroCracka is offline   Reply With Quote
Old 05-21-2025, 11:42 AM   #17
KillboyPowerhead


Drives: 2015 Z/22
Join Date: Aug 2015
Location: Ontario, Canada
Posts: 983
Quote:
Originally Posted by CamaroCracka View Post
The 1LE, ZL1 and Z28 bars are all supposed to be solid. I have seen many people say the SS bars are solid, but I cut apart a front and rear bar from my vert and they were both hollow.
Thought I read that they started off hollow but changed to solid at some year, but this was awhile ago and don't really remember anymore.
__________________
Overkill/Self Tuned; Mace Camshafts; K&N Typhoon Cold Air Intake; Ported 80mm Throttle Body/Intake Manifolds/Manifold Spacer; Solo Performance High-Flow Cats, Cat-back Exhaust; Vitesse Motorsports Throttle Controller; Elite Engineering E2 Catch Can; BC Racing BR Coilovers; JPSS Delrin Radius Rod Bushing Inserts, Sway Bars; Pegasus Aluminum Rear Cradle Bushings, Camber/Caster Plates; Z/28 Toe Links, Trailing Arms, Upper Control Arm Bushings, Rear Shock Mounts
KillboyPowerhead is offline   Reply With Quote
Old 05-21-2025, 08:03 PM   #18
CamaroCracka



CamaroCracka's Avatar

Drives: 2010 Turbo LS3
Join Date: Dec 2009
Location: Palm Bay, FL
Posts: 3,036
Quote:
Originally Posted by KillboyPowerhead View Post
Thought I read that they started off hollow but changed to solid at some year, but this was awhile ago and don't really remember anymore.
Perhaps, the vert is a 2011 and the turbo car is a 2010.
__________________
2010 SS - Kind of an On3 kit, CTR 78/80, CompCam 239/251 620/632 122+4, E85, Z28 suspension and ZL1 diff with Outlaw axles. Gen6 ZL1 brakes.

2011 Vert - 416/w 230/236 .612/.602 115lsa, 1LE suspension w/32mm rear bar. Z28 diff. Gen6 ZL1 brakes.
CamaroCracka is offline   Reply With Quote
Old 05-28-2025, 11:19 AM   #19
FASTFATBOY

Drives: 2013 ZL1
Join Date: Nov 2018
Location: Mobile Al
Posts: 524

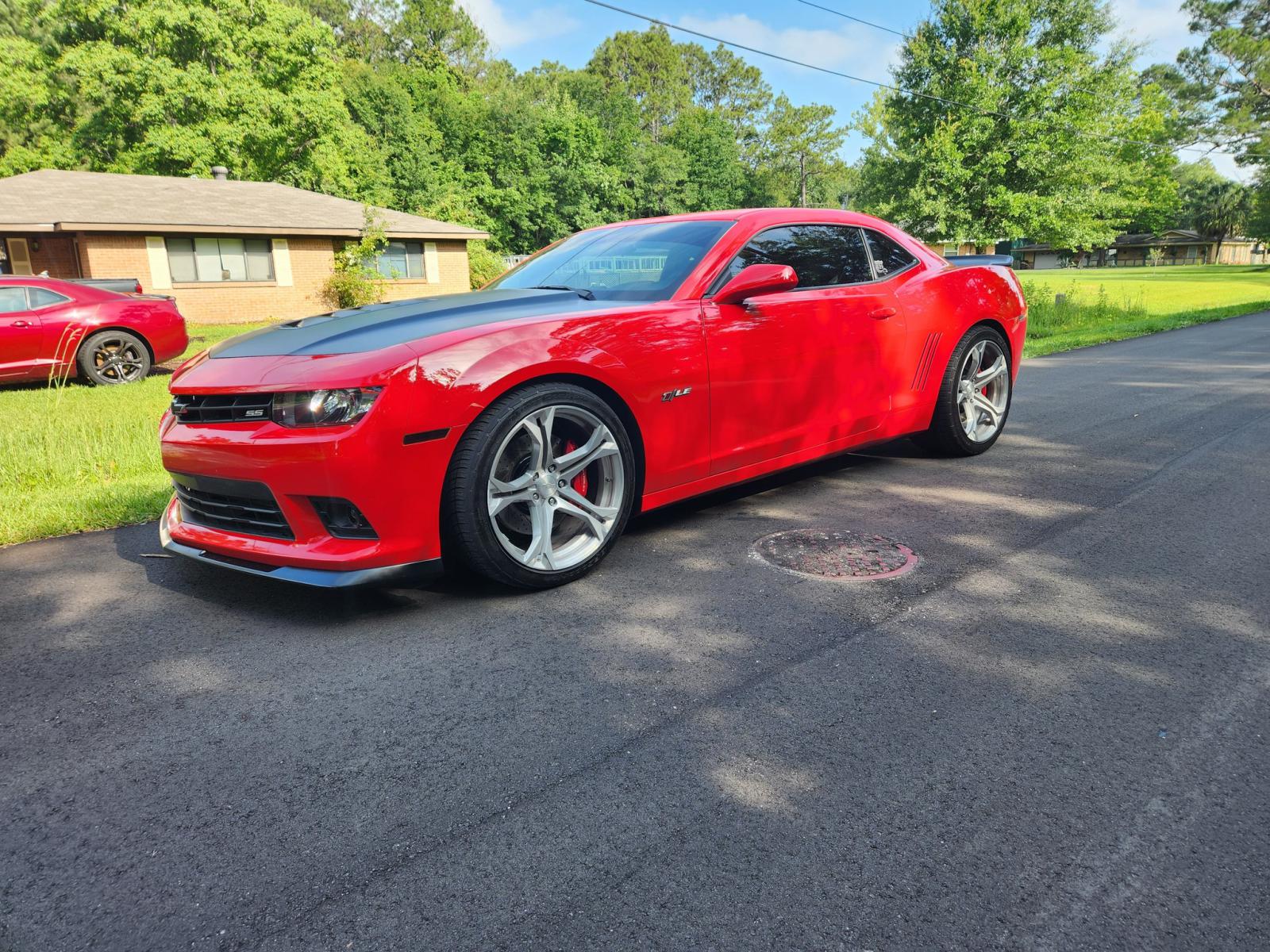

The BMR 1 inch 220/460 springs are installed, VERY noticeable difference in the under steer dept.

Will get it aligned and see what happens.
Attached Images

__________________
2015 1SS 1LE, Magnuson 2300 Heartbeat and headers. 550rwhp STD, 535 SAE.

Last edited by FASTFATBOY; 05-28-2025 at 11:49 AM.
FASTFATBOY is online now   Reply With Quote
Old 05-28-2025, 11:21 AM   #20
FASTFATBOY

Drives: 2013 ZL1
Join Date: Nov 2018
Location: Mobile Al
Posts: 524
Quote:
Originally Posted by CamaroCracka View Post
The 1LE, ZL1 and Z28 bars are all supposed to be solid. I have seen many people say the SS bars are solid, but I cut apart a front and rear bar from my vert and they were both hollow.
Something people don't take into account on these cars is the swaybar bushings are bonded to the bar itself so a 28mm stock bar may act like a 30 mm aftermarket bar.

The DSE 35mm rear bar I have pivots in the bushings like all bars used to and aftermarket bars still do.
__________________
2015 1SS 1LE, Magnuson 2300 Heartbeat and headers. 550rwhp STD, 535 SAE.
FASTFATBOY is online now   Reply With Quote
Old 05-28-2025, 02:40 PM   #21
morepowerjoe


morepowerjoe's Avatar

Drives: 2012 Chevrolet Camaro l99
Join Date: Aug 2020
Location: Austin, TX
Posts: 2,232
Quote:
Originally Posted by FASTFATBOY View Post
The BMR 1 inch 220/460 springs are installed, VERY noticeable difference in the under steer dept.

Will get it aligned and see what happens.
Thanks for letting us know. I'm considering getting a rear sway bar at first. I have bilstein b6 shocks and struts with zl1 drop springs from eibach. It's pretty stiff and rides really rough on the street with a ton of understeer.
__________________
DSS Pistons, Eagle ESP L19 Rods, ARP Head and Main Studs, TSP PRC CNC Ported Heads milled .030, Cometic .040 Head Gaskets, GPI SS3 VVT Camshaft, GM Racing Lifters, CHE Trunnions, Melling 10355HV Oil Pump, Cold Air Inductions CAI, Fast LSXR Intake Manifold, Nick Williams 103 TB, TSP Longtubes, ZL1 Fuel Pump, Mishimoto Radiator and Oil Cooler, 3600 Circle D Converter, Tru Cool 40k Tranny Cooler, Fluid Dynamics Balancer, EBC 3GD Rotors with EBC Bluestuff NDX Pads, Bilstein B6 Shocks / Struts with Eibach ZL1 Drop Springs


Build Thread https://www.camaro5.com/forums/showthread.php?t=609817
morepowerjoe is offline   Reply With Quote
Old 05-28-2025, 04:23 PM   #22
FASTFATBOY

Drives: 2013 ZL1
Join Date: Nov 2018
Location: Mobile Al
Posts: 524
Quote:
Originally Posted by morepowerjoe View Post
Thanks for letting us know. I'm considering getting a rear sway bar at first. I have bilstein b6 shocks and struts with zl1 drop springs from eibach. It's pretty stiff and rides really rough on the street with a ton of understeer.
Mine is just a tad rougher than it was from GM, the 1LE rides much rougher than the wifes 2010 SS, hell hers rides like a damn Camry.

The Eibach kit is for SS and ZL1.
__________________
2015 1SS 1LE, Magnuson 2300 Heartbeat and headers. 550rwhp STD, 535 SAE.
FASTFATBOY is online now   Reply With Quote
Old Yesterday, 03:44 PM   #23
FASTFATBOY

Drives: 2013 ZL1
Join Date: Nov 2018
Location: Mobile Al
Posts: 524
UPDATED
__________________
2015 1SS 1LE, Magnuson 2300 Heartbeat and headers. 550rwhp STD, 535 SAE.
FASTFATBOY is online now   Reply With Quote
