1968SS/RS · 04-01-2013, 05:53 PM

Thank you both for the reply, I will look for some diffrent clips and try the 3M tape and see how it goes..................

CDN SS · 04-04-2013, 10:58 PM

Quote:

Originally Posted by Bad@ssCamaro

No, they are shaped to go inside the rear fender well and that has a different radius(shape) than the fronts, I'll post up some pics later of what they look like. They are not flat.

Do you have a part number?

Thanks in advance.

1MtnGoat · 04-05-2013, 06:38 AM

Here are my front splash guards on my ZL1. They were made from 12 x 18 flaps purchased at AZ. 3M tape and the two lower screws were used for attachment.

bumblebeecamaro · 04-05-2013, 09:13 AM

gonna have to try this soon.

djnice · 04-05-2013, 10:33 AM

Quote:

Originally Posted by 1MtnGoat

Here are my front splash guards on my ZL1. They were made from 12 x 18 flaps purchased at AZ. 3M tape and the two lower screws were used for attachment.

Good photos. Looks like a simple install with them straight and just using 3M tape.

Bad@ssCamaro · 04-05-2013, 11:41 AM

Quote:

Originally Posted by CDN SS

Do you have a part number?

Thanks in advance.

I ordered them through partstaxi.com - 22895336 & 22898337. Enjoy!

djnice · 04-06-2013, 01:05 AM

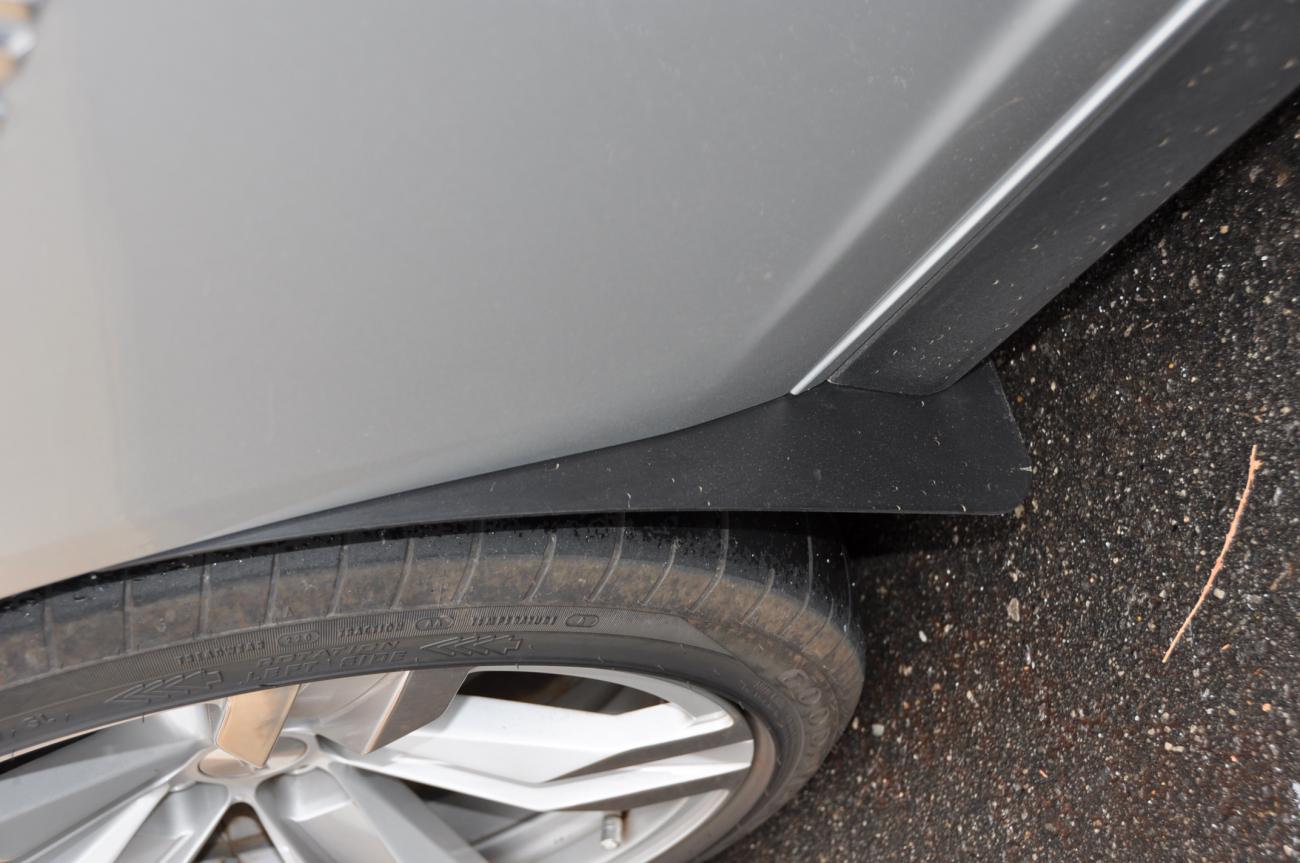

Here are photos of my set of splash / mud / rock guards. I want to do another set that has them sticking out a littlie further to block more of the wet dirty stuff.

Name: DSC01909 - 13 ZL1 rock guards 1.JPG
Views: 5208
Size: 330.7 KB

Name: DSC01909 - 13 ZL1 rock guards 1.JPG
Views: 5208
Size: 330.7 KB

Name: DSC01909 - 13 ZL1 rock guards 2.JPG
Views: 1876
Size: 197.8 KB

Name: DSC01909 - 13 ZL1 rock guards 3.JPG
Views: 1951
Size: 201.3 KB

Name: DSC01909 - 13 ZL1 rock guards 4.JPG
Views: 2962
Size: 186.6 KB

1MtnGoat · 04-07-2013, 10:43 PM

The front needs to extend out a bit further. I first had short/narrow guards and then changed them out. The "narrow" guards in the rear work 'cause the body narrows behind the rear wheels. Behind the front wheels the body actually gets wider at the gill area.

1968SS/RS · 04-08-2013, 12:26 PM

The 3M tape and 1-#10 slip clip on each side ended up doing the trick! I will try to get some pictures up tomorrow........

djnice · 04-09-2013, 01:59 AM

Quote:

Originally Posted by 1MtnGoat

The front needs to extend out a bit further. I first had short/narrow guards and then changed them out. The "narrow" guards in the rear work 'cause the body narrows behind the rear wheels. Behind the front wheels the body actually gets wider at the gill area.

Yeah, I got a new version that is rounded, but sticks out further. Just need to finish fitting them up.

redleader · 04-13-2013, 02:49 PM

Is there a template available?
Adobe Illustrator file?
JPG to scale?
Thx

djnice · 04-20-2013, 01:05 AM

A couple more pictures of the normal size ones that I made. They can be mounted at two different heights.

Name: DSC02152 - ZL1 rock guards.JPG
Views: 2146
Size: 147.0 KB

Name: DSC02152 - ZL1 rock guards.JPG
Views: 2146
Size: 147.0 KB

Name: DSC02153 - ZL1 rock guards.JPG
Views: 2219
Size: 140.6 KB

djnice · 04-20-2013, 01:11 AM

Here are photos of the larger ones that I made. Yeah, the car is really dirty. Its been raining.

Name: DSC02155 - ZL1 rock guards.JPG
Views: 2269
Size: 184.5 KB

Name: DSC02155 - ZL1 rock guards.JPG
Views: 2269
Size: 184.5 KB

Name: DSC02162 - ZL1 rock guards.JPG
Views: 2217
Size: 166.5 KB

Bad@ssCamaro · 04-21-2013, 01:34 AM

Quote:

Originally Posted by djnice

A couple more pictures of the normal size ones that I made. They can be mounted at two different heights.

Attachment 500350

Attachment 500351

Where did you buy those splash guards at and what is the brand name? Did you round over the edge or did it come like that?
