Finally!! CamaroI Build Thread Begins!! IOM Camaro [COTW 2/10/14]

[Goran]

Very nicely done man!!!
Congrats on COTW!

[CamaroI]

Check out new steering wheel from DCT!! Arrived today!! Very Excited!! Beyond expectations!!!! Photos do not do justice!! Carbon Matte with directional IOM mark! Leather is PLUSH and check out stitching!!
Check out how the re design the wheel as we'll. Lower section is carbon matte as we'll

Worth every penny
























Sent from my iPhone using Tapatalk

[rjdapilmoto]

^^^^^^^^^^^^^^^^^^^^^
Looks nice!!!

[Goran]

Looks awesome!!!!
Do you know if they have the 2012 - 2013 model steering wheel?

Sent from my SAMSUNG-SM-N900A using Tapatalk

[CamaroI]

Originally Posted by Goran

Looks awesome!!!!
Do you know if they have the 2012 - 2013 model steering wheel?

Sent from my SAMSUNG-SM-N900A using Tapatalk

I am sure they do. They can pretty much do anything you can think of. Can get in all types of finishes and leather


Sent from my iPhone using Tapatalk

[CamaroI]

Originally Posted by rjdapilmoto

^^^^^^^^^^^^^^^^^^^^^

Looks nice!!!

Thanks rjdapikmoto drove to work today and takes a bit to get used to :-)


Sent from my iPhone using Tapatalk

[rjdapilmoto]

^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
Shouldn't take too long to get used to.
I should be receiving my new CFD Shifter w/leather boot this afternoon!

[CamaroI]

Was able to get new Wheel installed last night. Wish everyone could see in person. Photos don't due justice. Here is a write up of the extremely easy install process.

First disconnected battery positive and negative terminals. Waited 30 min as suggested by another member prior to getting stated with airbag.

First step is to locate holes on each side of the steering wheel. I shined a flashlight to view exactly what I was going after in small hole behind silver bezel. When viewing you will see a silver pin. Using a flat head screwdriver you want to press the pin towards the steering column. This will release one side of the center cover. Do the same for other side.


At this point the center cover along with airbag will come loose. I placed a towel underneath to prevent scratching other areas.




At this point take a flat head screwdriver and pry up on the yellow TOP tabs on the two airbag connectors. Once these are up you will be able to pull connectors loose. Give a good tug and will come right off. Set center portion aside.






Next your going to un clip this black connection shown below. I was able to press on release tab with my finger and then disconnected. You will not mess with the Airbag connector that is to the left.



Once you have above black tab disconnected you are ready to remove center Torx bolt. This requires a 1/4 Torx. Be sure you have this size on hand prior to starting. I highly recommend a Tox tool like the one shown above. Once this Torx bolt is removed you are ready to remove the wheel. The black connector you previously disconnected comes off with the wheel. However the only thing passing through the wheel is the airbag wires. You can see below that is only thing left on the column









At this stage you are ready to put new wheel on. Literally do everything in reverse you did above. Reconnect battery and all done. Now sit back and ENJOY!!!! Loving the new look. Much better than OEM for sure.

[CamaroI]

Couple of people have asked about my foot well lighting. I used two pod lights from AAC which can be found here http://www.automotivelightstore.com/oracleledpod-1.aspx with your choice in color options. As you can see with one pod light on passenger side gives off tons of light in that area.

[Cool AirZ28]

Congrats on the COTW. Your build is looking really good

[CamaroI]

We'll couple new add ons coming.

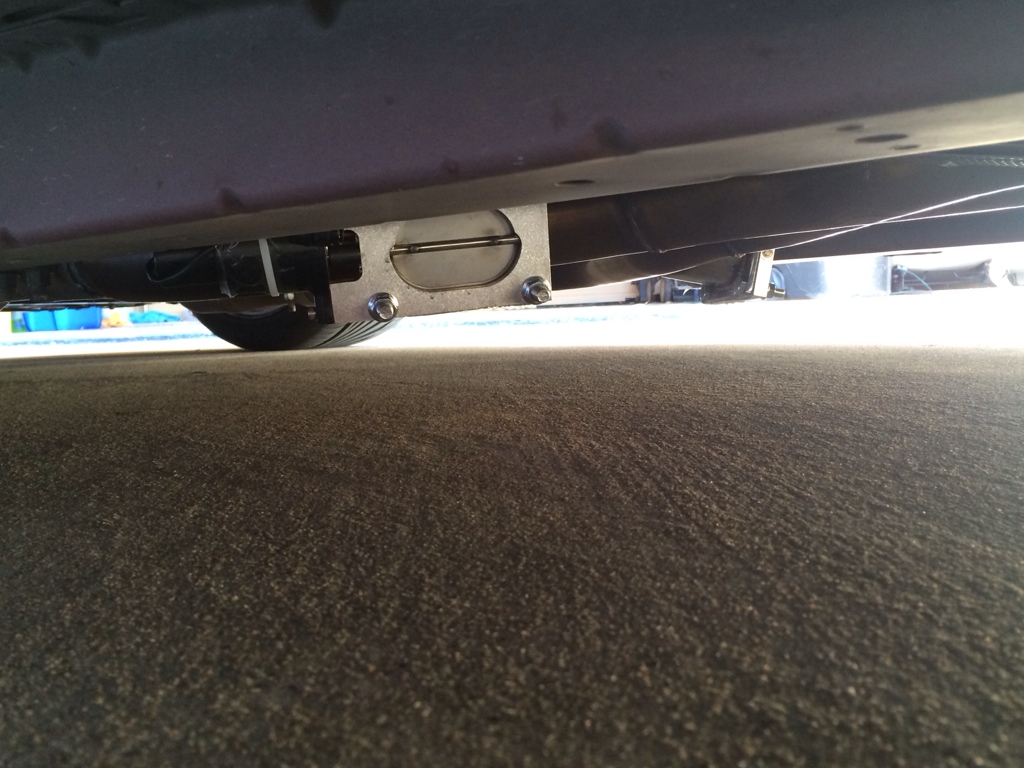

Today had QTP cutouts installed. Muffler shop didn't do any wiring. Will be wiring up this week inside my James Bond console. Was upset to get final photos, but next week they are putting the down shields on so will get more then





Sent from my iPhone using Tapatalk

[CamaroI]

Next up is APR splitter. This will also be going on next week. It arrived with some scratches but notify octane Motorsports and will be exchanging.






Sent from my iPhone using Tapatalk

[CamaroI]

And last new hood coming along. Should have painted and installed prior to Cfest. Benefit of this custom design no glued in Vents!!!! Much cleaner underside with plenty of room to clear supercharger!! Just take a look at very last pic to see what current hood looks like underneath. Massive improvement don't ya think!! Will be posting more on this very soon once completed!!!! Stay tuned!!

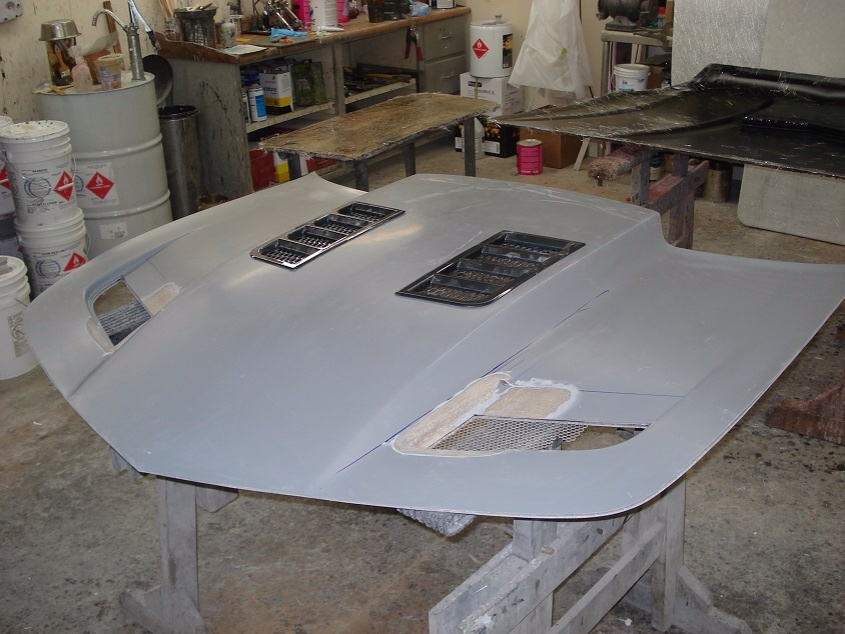

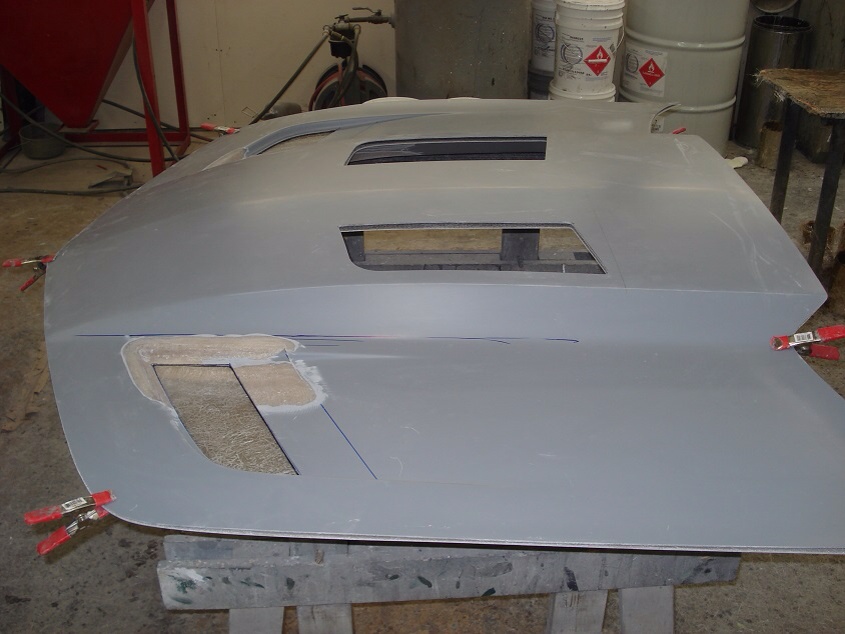

New hood in production











Current hood rails and all. Had to remove hood liner to prevent rubbing on supercharger.





Sent from my iPhone using Tapatalk

[SSeric]

Nice build...love the DCT wheel! Def a classy touch. Props.

Sent from my SAMSUNG-SGH-I337 using Tapatalk
