dominion03 · 01-10-2016, 02:25 PM

So I can't seem to figure out where to splice in the load resistors for my LED tails on my 14' SS. I've tried a few different combinations with no luck stopping the hyper flash. I've got the inner LED bulb working ok when there's a stock bulb placed in the outer, but the outer one still causes hyper flashing when an LED is placed in the socket. Anyone know the wires to splice the resistors into for both sockets?? What am I missing!?

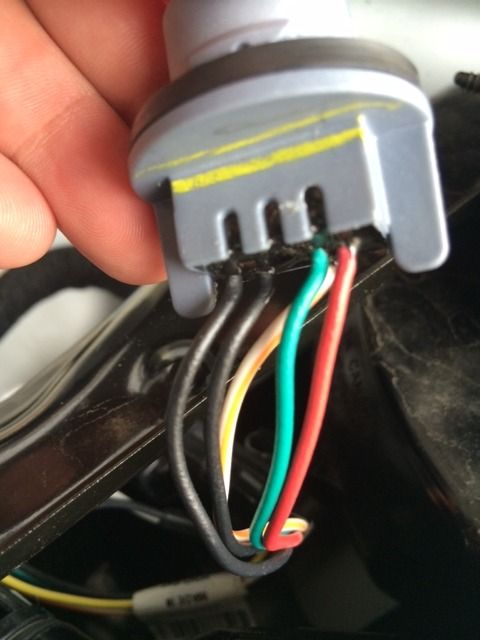

Inner Light: This one is working fine with a stock bulb in the outer socket. Resistor is spliced into the red and far left black wire.

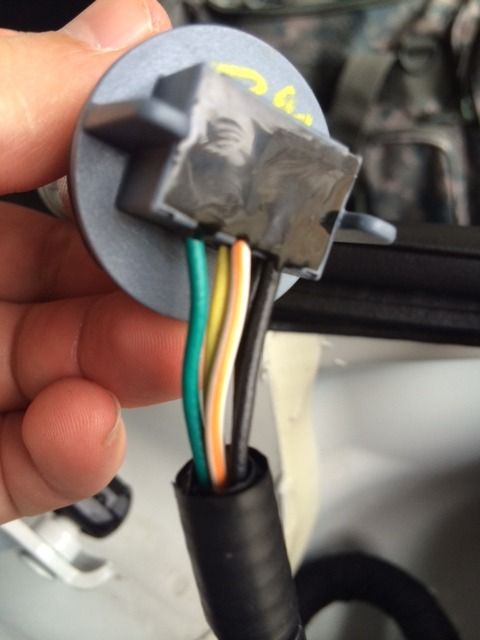

Outer Light: This one is still causing hyper flashing when LED is in the socket. I've tried the yellow/black and green/black (both black wires), but no luck. Anyone know?? Thanks!!
