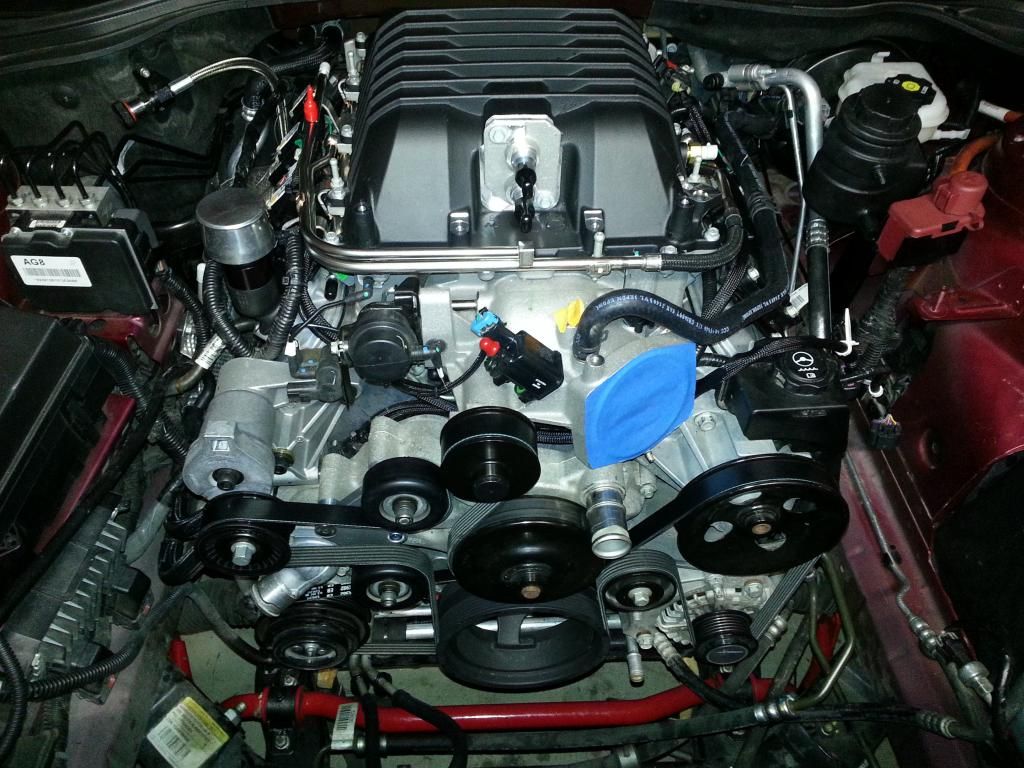

OK, a visit to ADM cleared up the tensioner and belt.

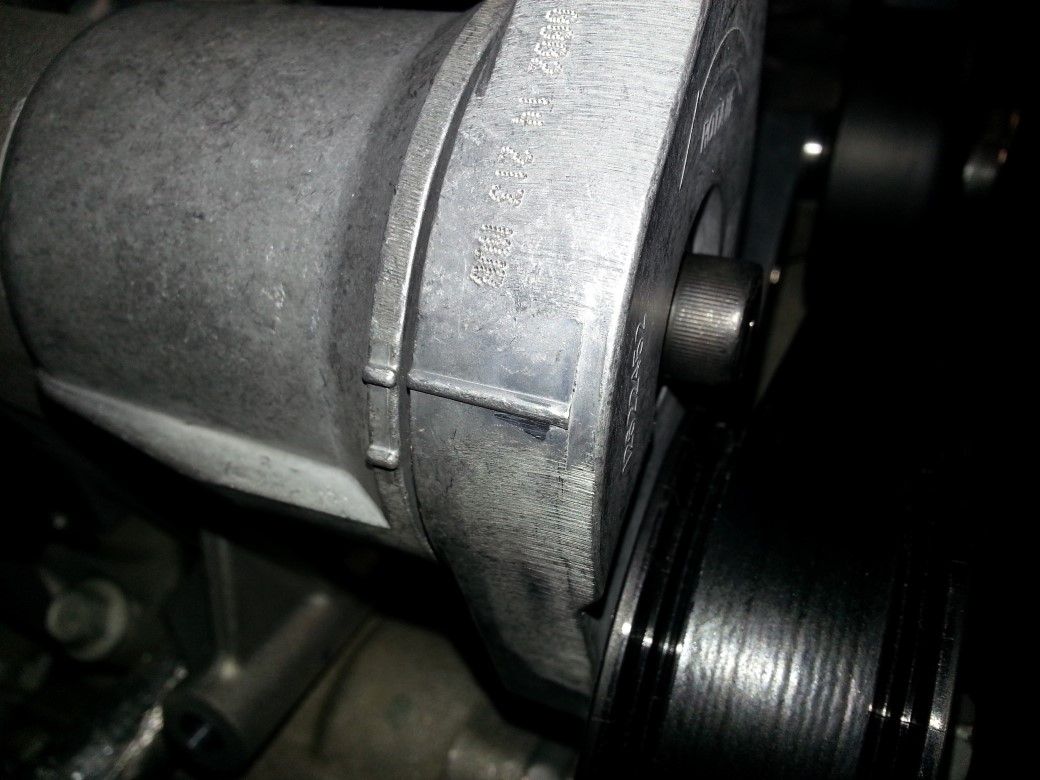

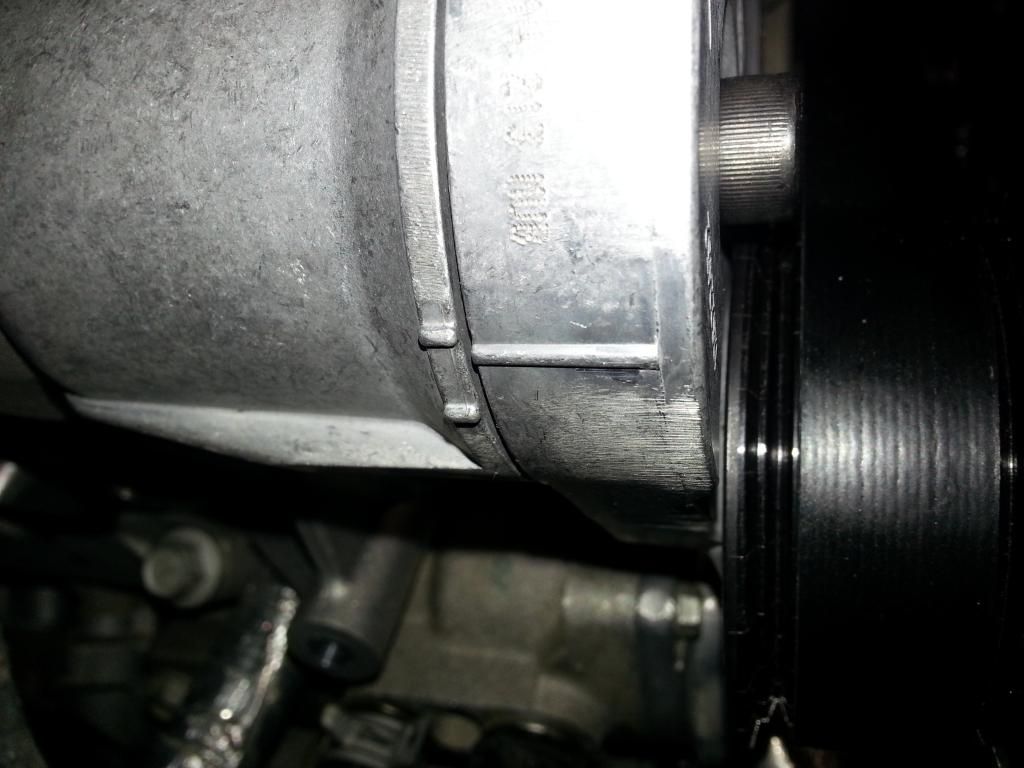

First, the belt I installed was not 100% in the 'range' of the tensioner. That location is on the side: Just on the edge but not where it needs to be. Next, the correct belt: And its setting: Now the final look!: j Yes, much better, thanks Andy! -Don Last edited by hammdo; 02-10-2015 at 05:28 PM. |
01-16-2015, 04:27 PM | #200 |
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,695
|

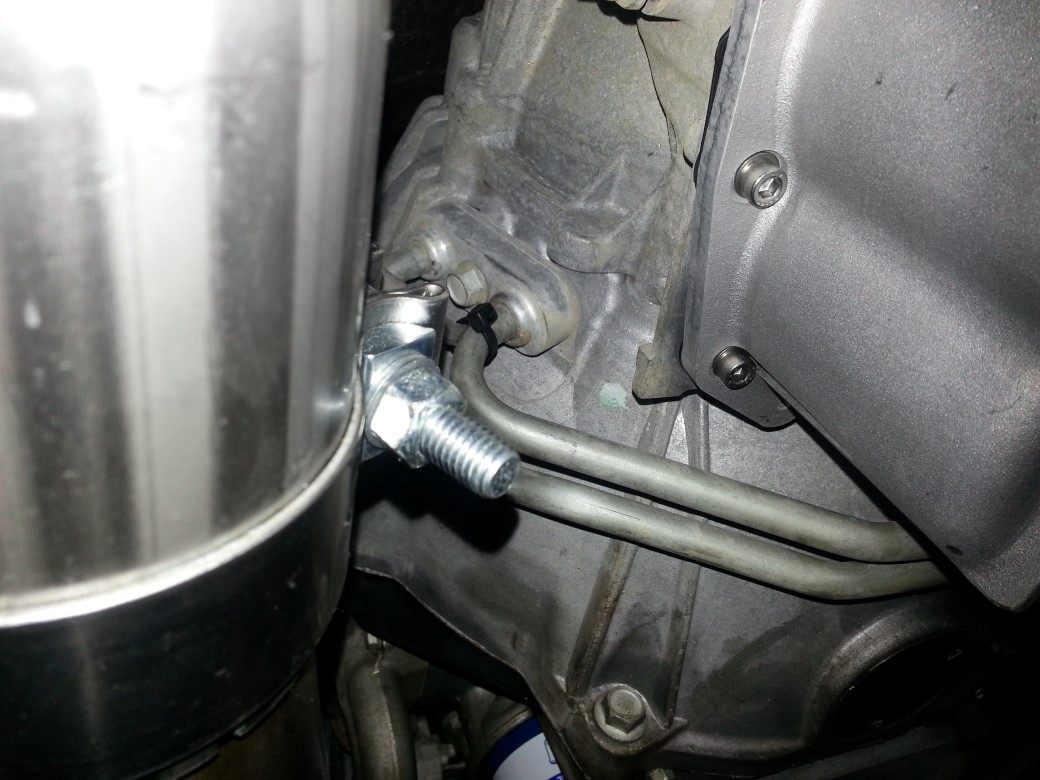

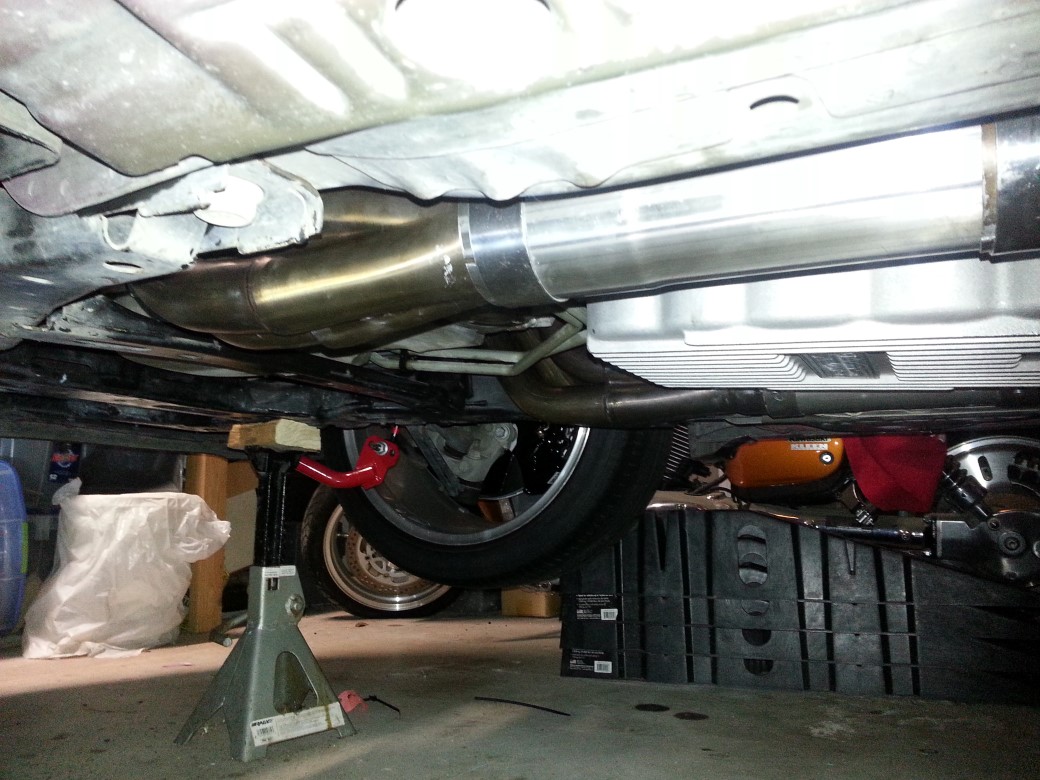

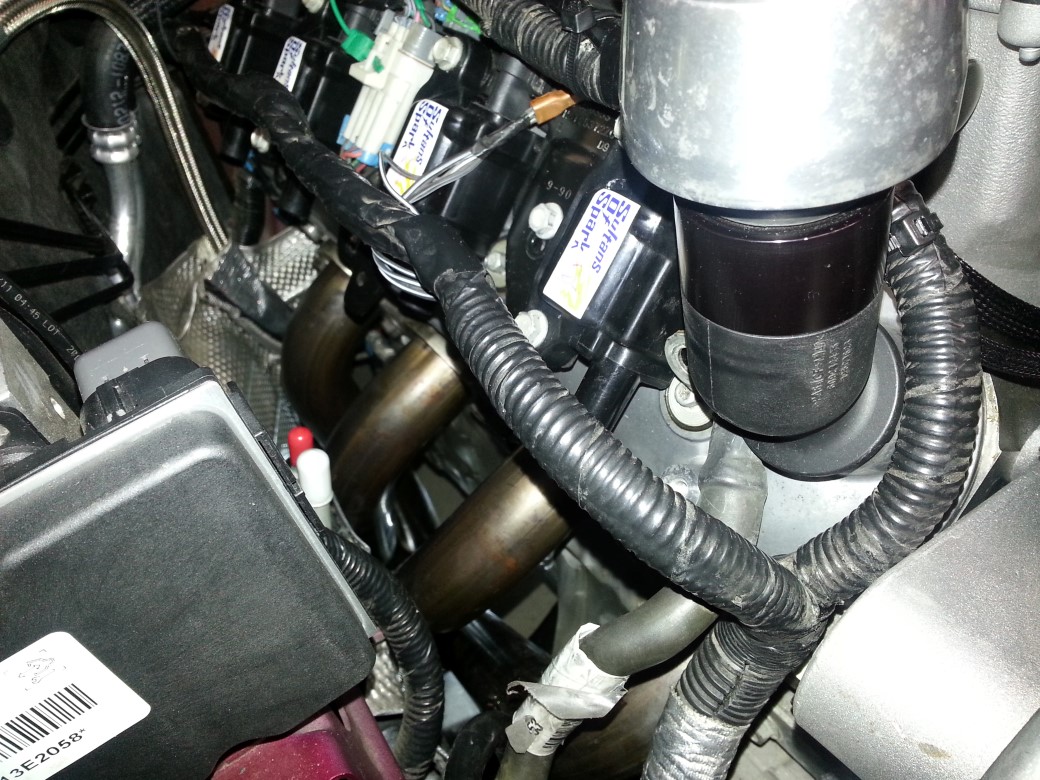

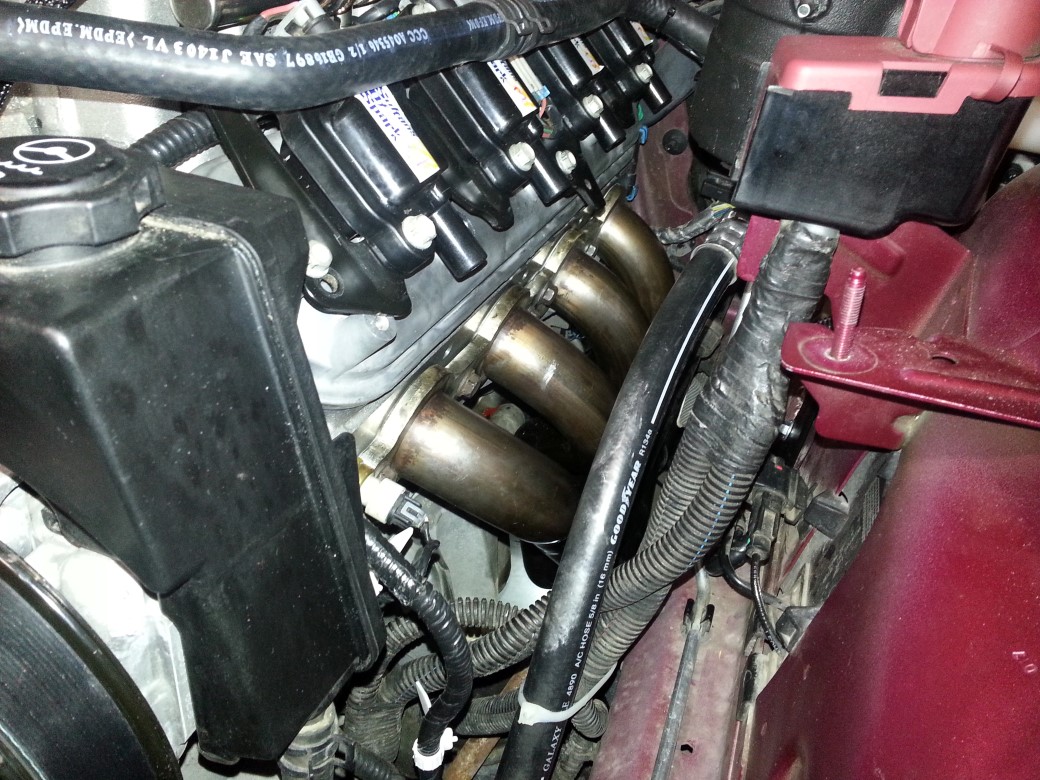

Now, the headers and exhaust tubes are ON!:

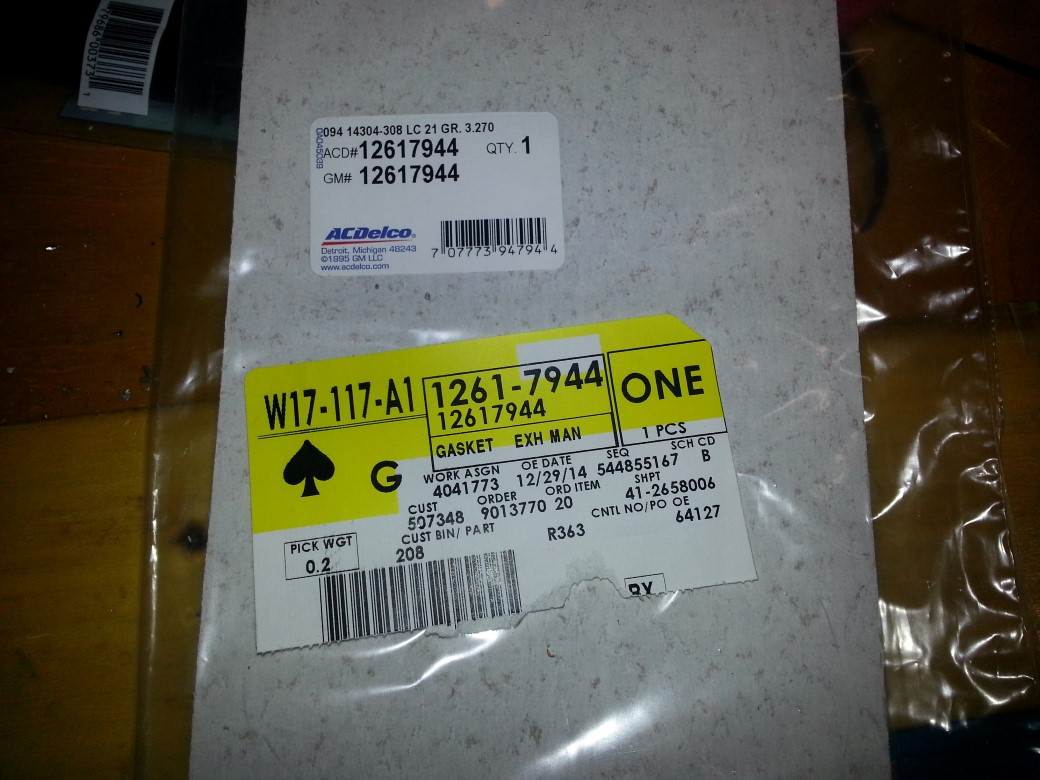

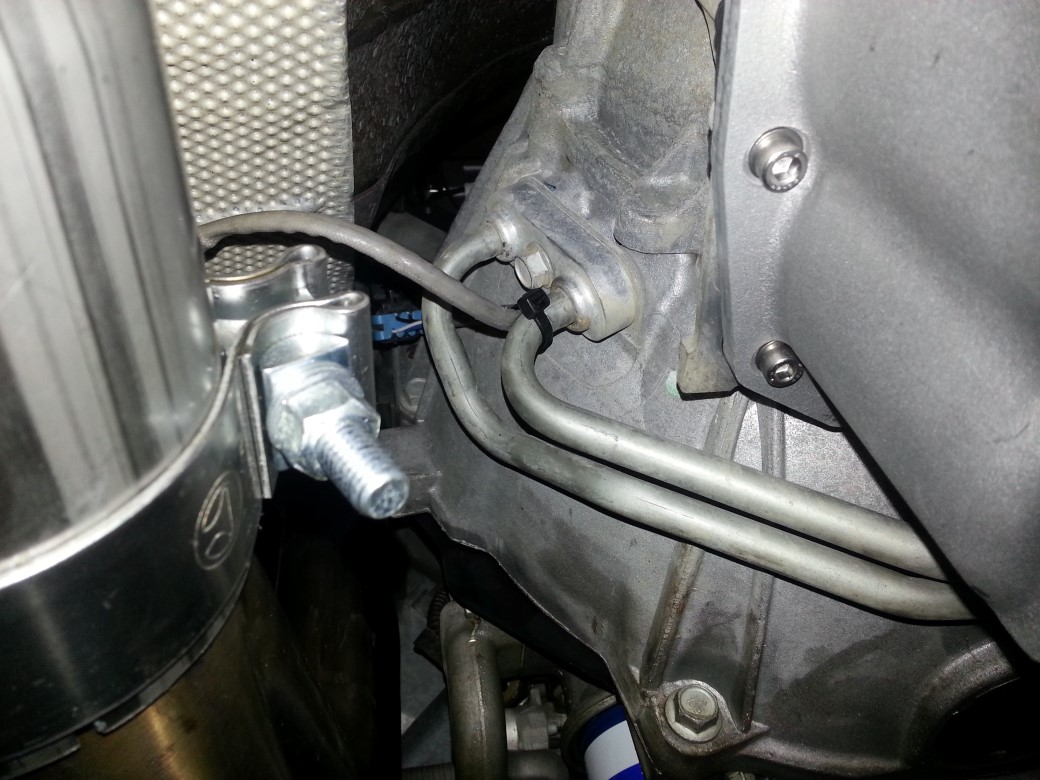

Gaskets (2): Drivers (torqued to 18 ft. lbs): Passengers: Now the exhaust: Ty-rap the drivers side O/2: More to come! -Don Last edited by hammdo; 02-10-2015 at 05:26 PM. |
01-16-2015, 04:40 PM | #201 |
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,695
|

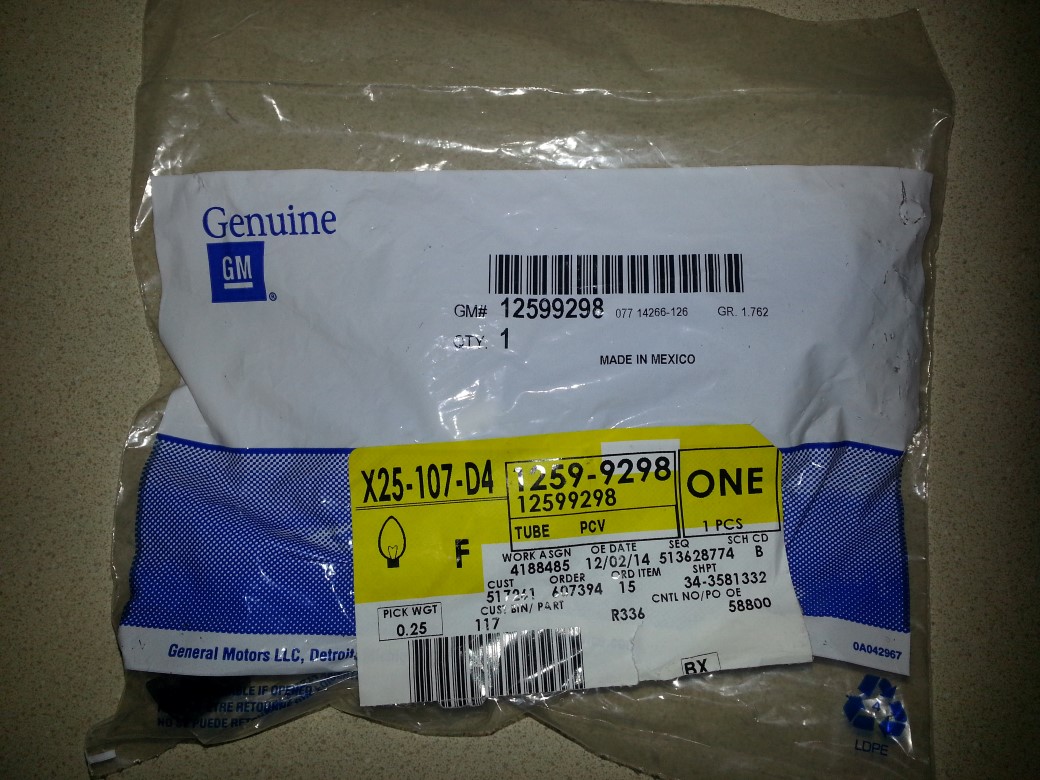

Now, part of the PCV system that I had to add was from the Valley Cover to the SC intake.

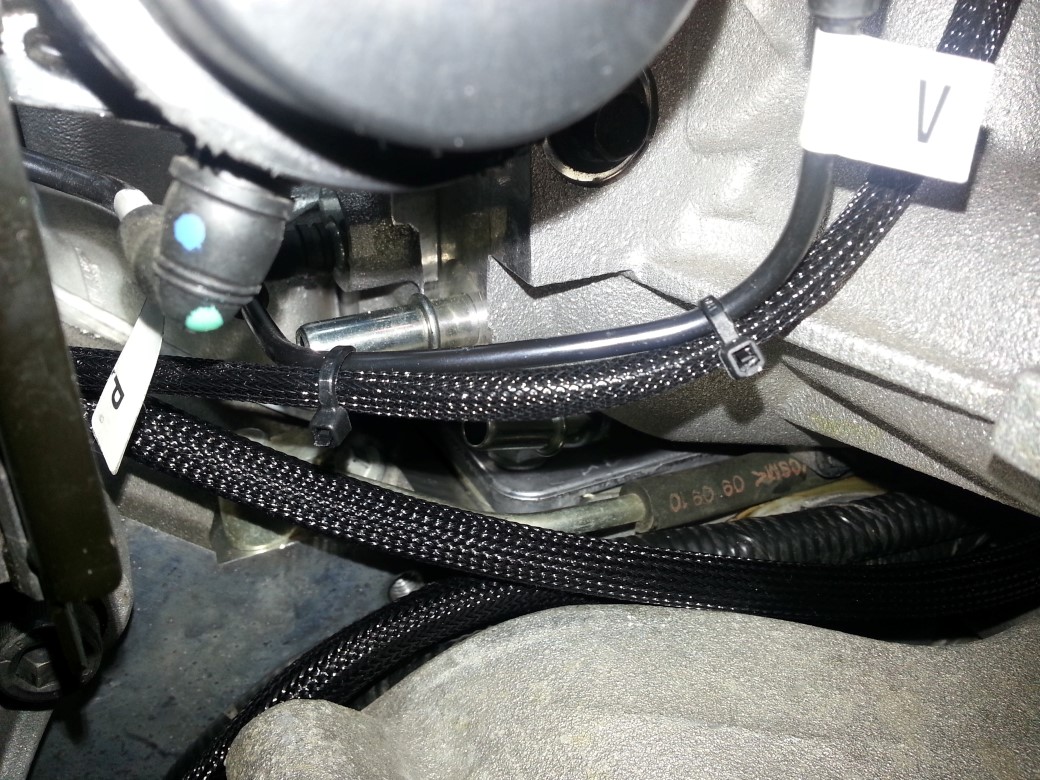

I removed the plug and then added this tube: Before: After: Push the connectors in until you hear it 'click' into place... -Don Last edited by hammdo; 12-11-2015 at 11:50 AM. |
01-16-2015, 04:54 PM | #202 |
Drives: Chevys at the limit Join Date: Nov 2010
Location: SLC, UT
Posts: 9,621
|
No catch can?
Best regards, Tyler 801-545-4215 |
01-16-2015, 05:17 PM | #203 | |
Drives: too many to say! Join Date: Nov 2010
Location: S.E. Michigan
Posts: 1,013
|
Quote:
|
|
01-16-2015, 06:12 PM | #204 |
Drives: 2013 SS Join Date: May 2013
Location: DFW
Posts: 4,102
|
When is it going to Andy's? Lol you know what I want lol
Look good though!
__________________
|
01-16-2015, 08:03 PM | #205 |
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,695
|

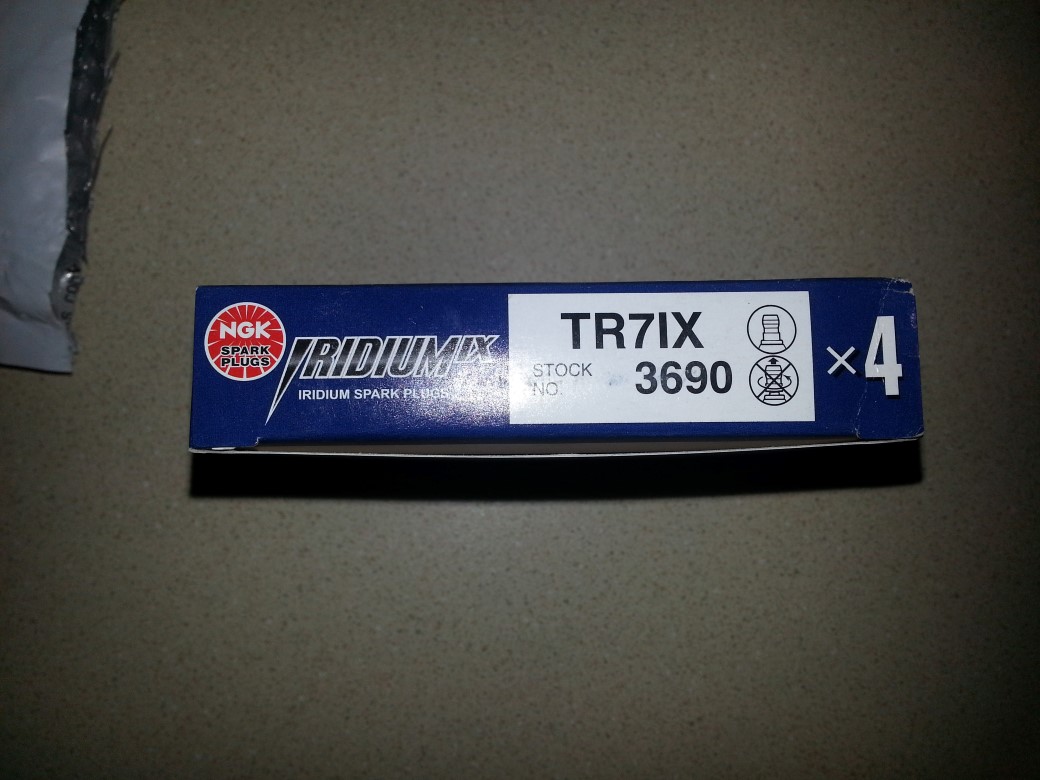

OK, installed the plugs (Torque to 15 N·m (11 lb ft)):

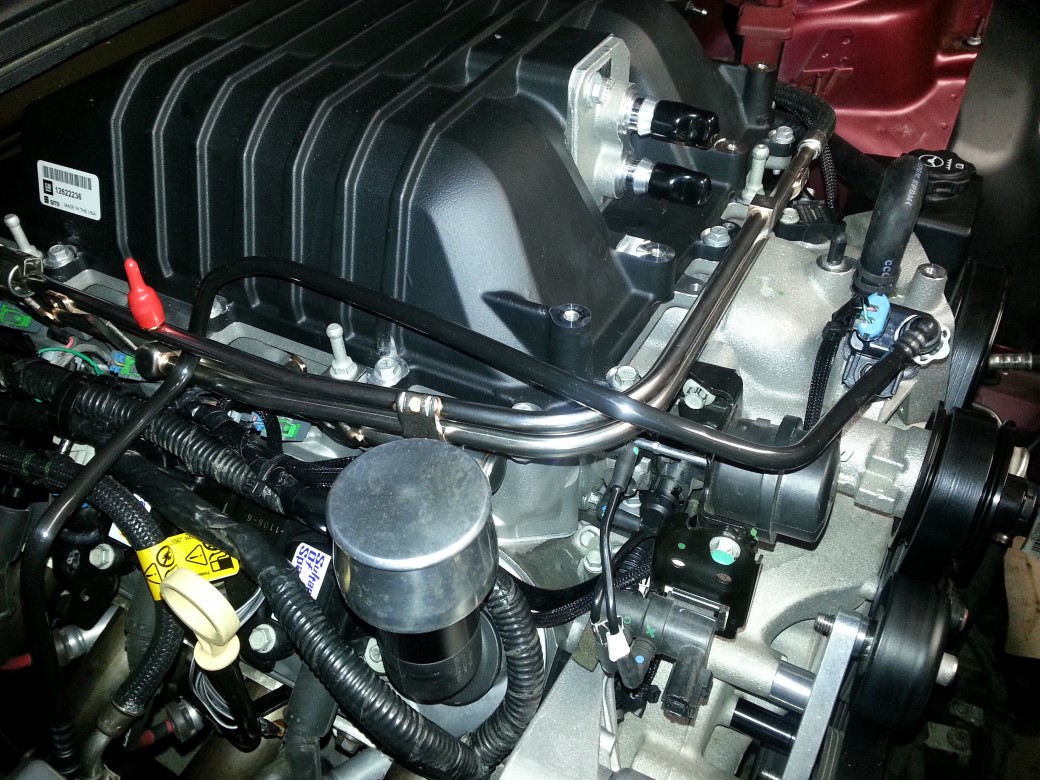

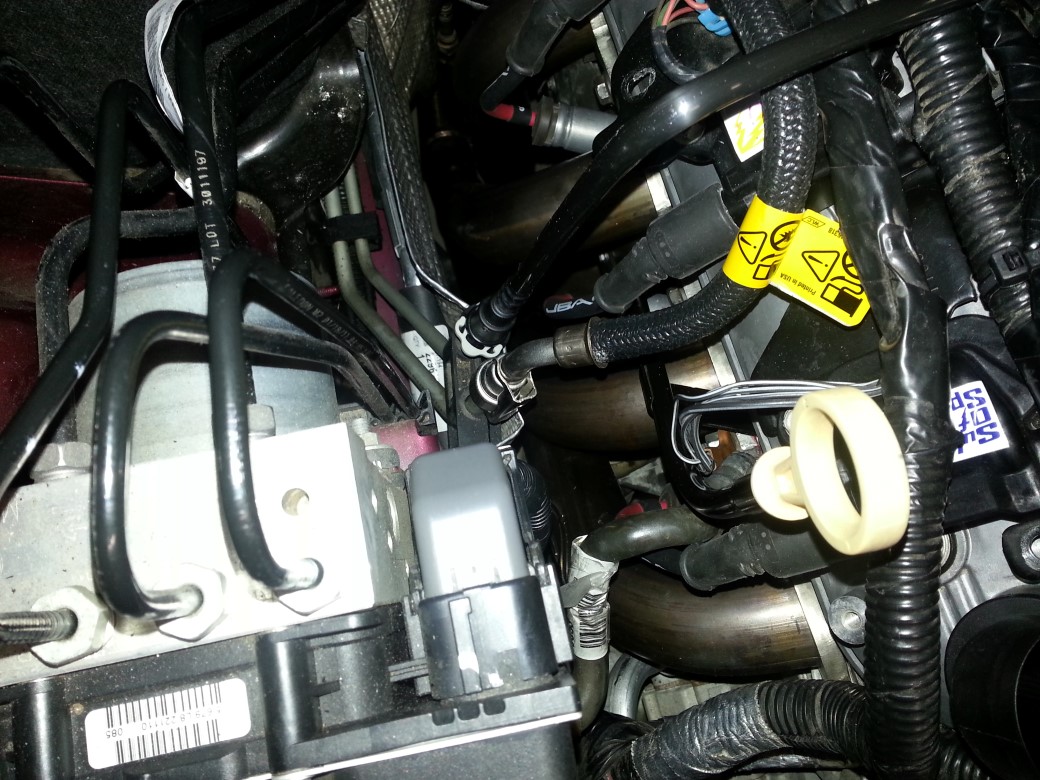

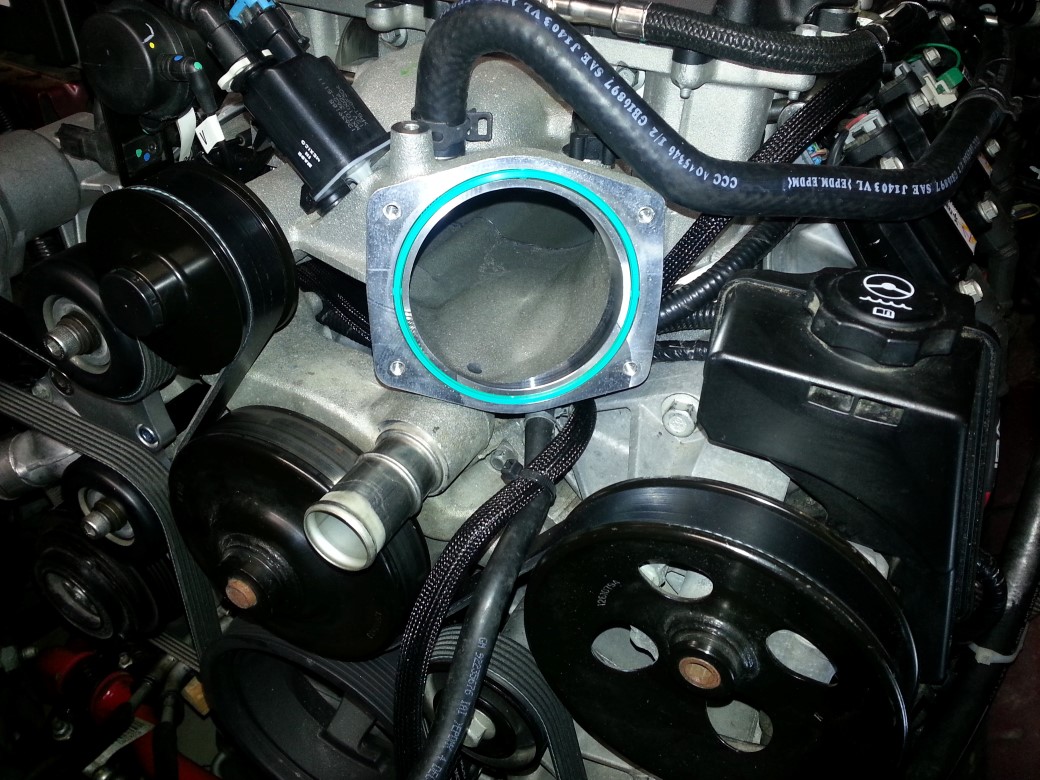

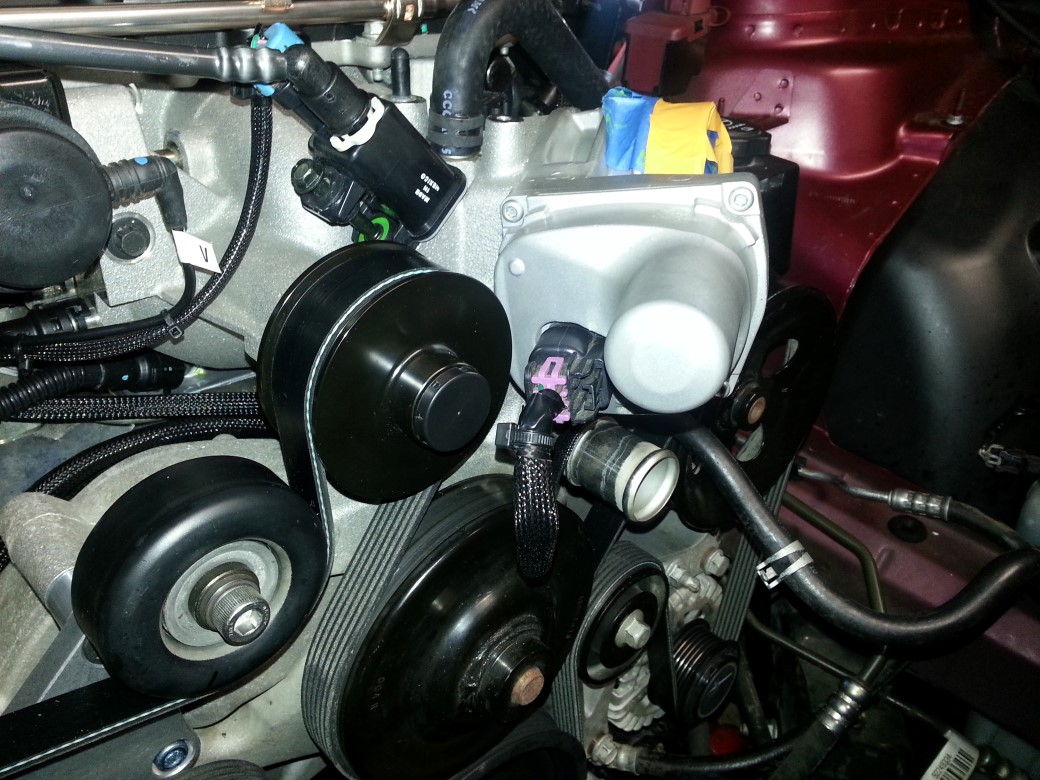

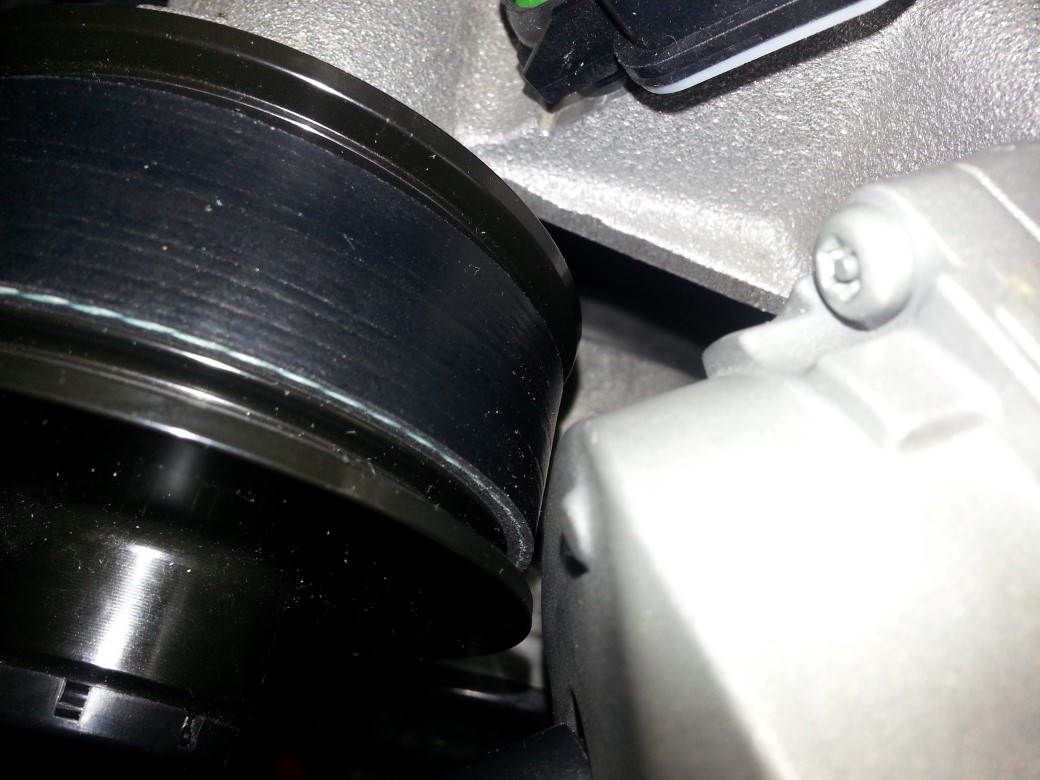

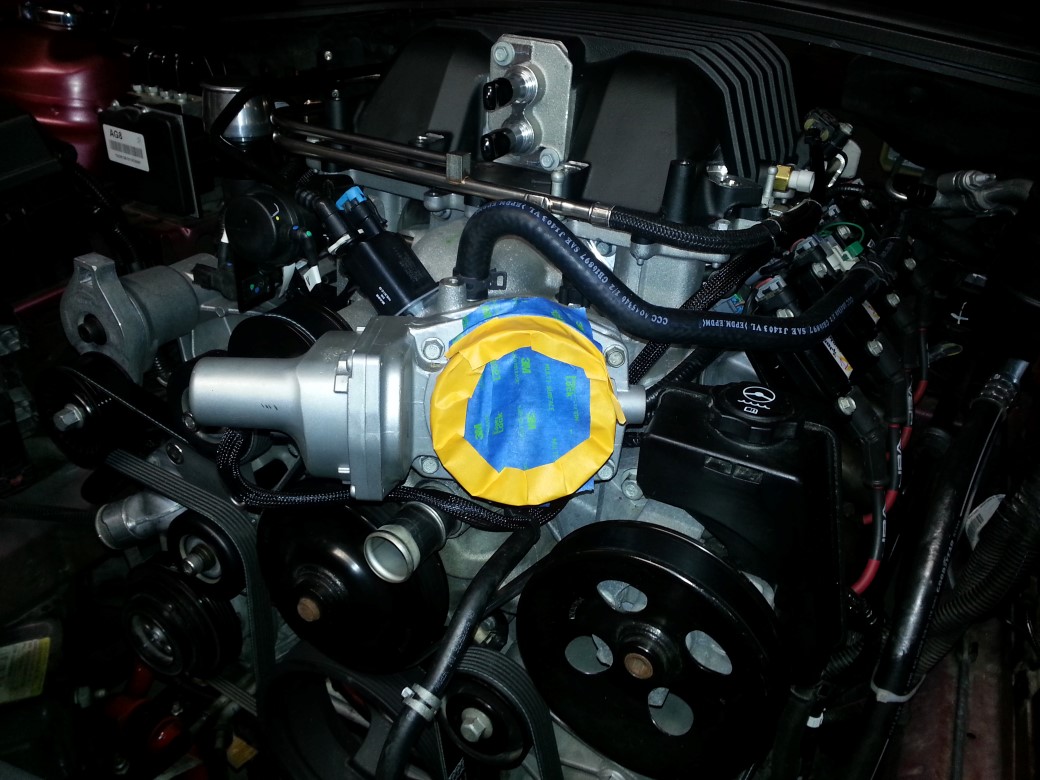

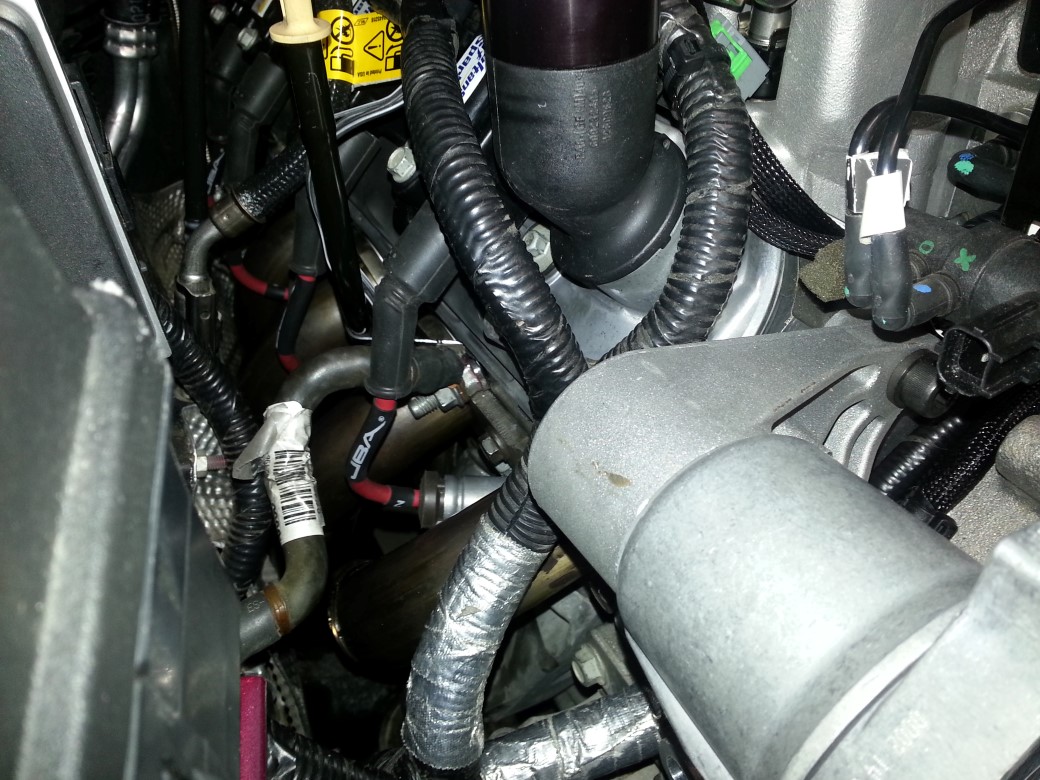

Little anti-seize and ready to go. NOTE: NGK says anti-seize is not necessary. You're mileage may vary... Installed the EVAP line and Fuel line (also hard lines) and put on the clips: Installed ground wire -- had to use the 'old' ground bolt -- cut it back and ground the edge, and dip-stick: Throttle body: Installed the vent line and ty-rapped the TB Connector (used a little vacuum grease on the gasket): Torqued to 89 inch lbs: Now after I put this on I thought 'wow, the throttle body is close to the SC pulley' but here is plenty of clearance: Now, using the PCV line that came with the kit, I was able to utilize the L99 valve cover clip and get this working!: Drivers side: Routing: Passengers (with a small amount of RTV) : Closer!: -Don Last edited by hammdo; 09-16-2016 at 05:38 PM. |
01-16-2015, 09:13 PM | #206 |
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,695
|
|
01-16-2015, 09:18 PM | #207 |
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,695
|

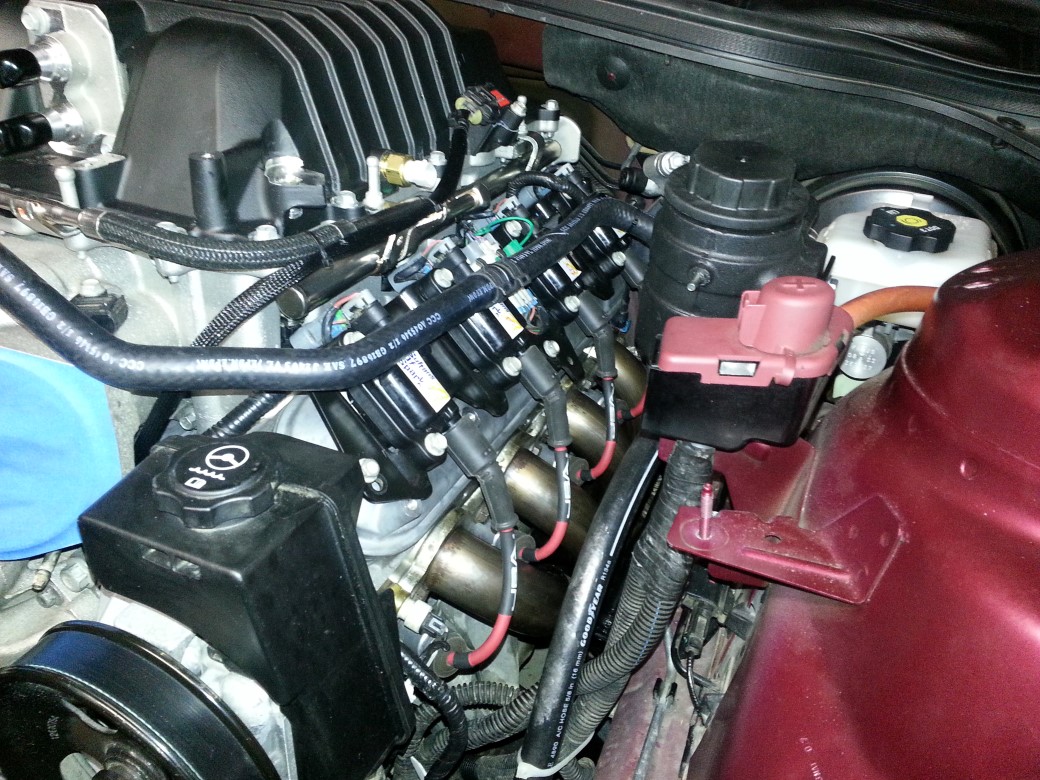

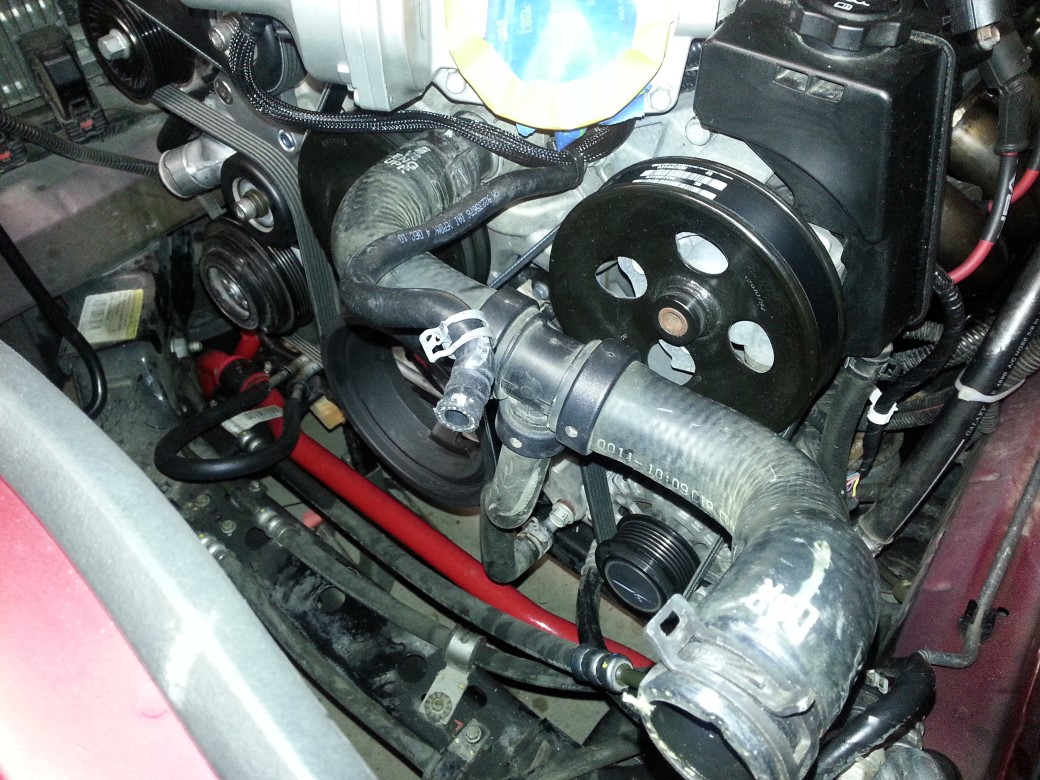

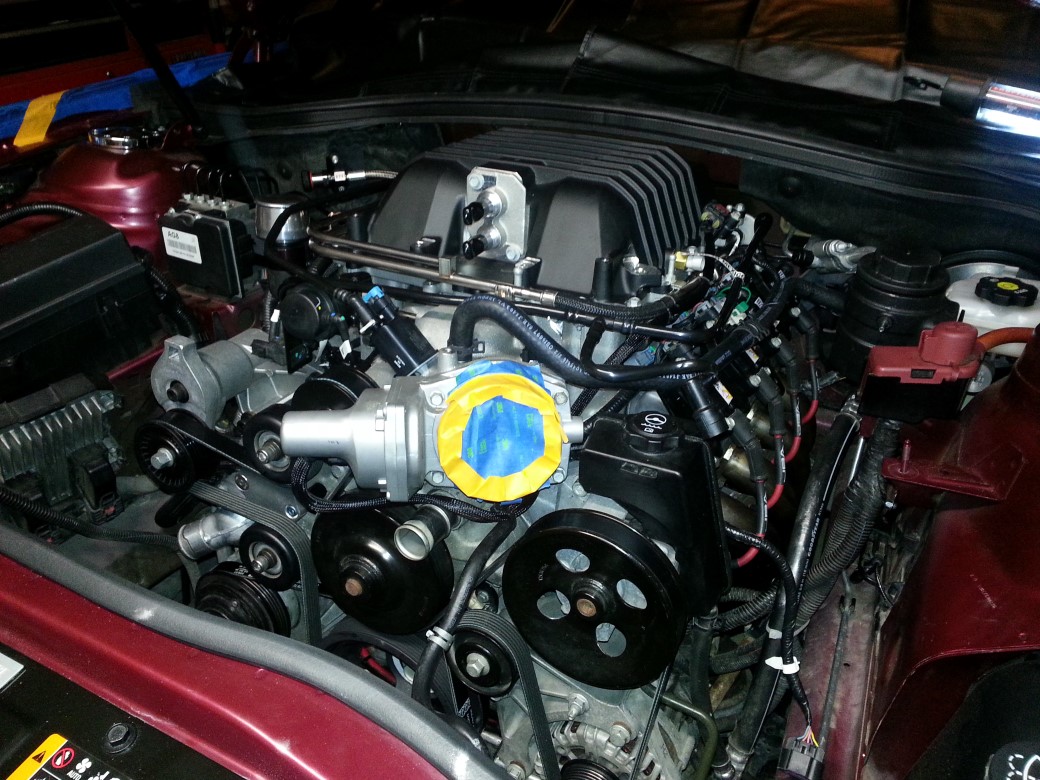

Oil in and Radiator hoses on the engine (used AGS grease on those!):
Lots of debate but went with this for the startup: Hoses: Next, the heat exchanger, pump, and hoses! Saturday is part 'work' day... More to come! -Don Last edited by hammdo; 12-11-2015 at 11:51 AM. |
01-16-2015, 09:44 PM | #208 |
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,695
|
|
01-16-2015, 09:46 PM | #209 |
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,695
|
|
01-17-2015, 10:48 AM | #210 |
'It's an experiment'
Drives: [COTW 2/09/15] '11 GPI LSA SC Z/LE Join Date: May 2014
Location: Dallas TX
Posts: 8,695
|

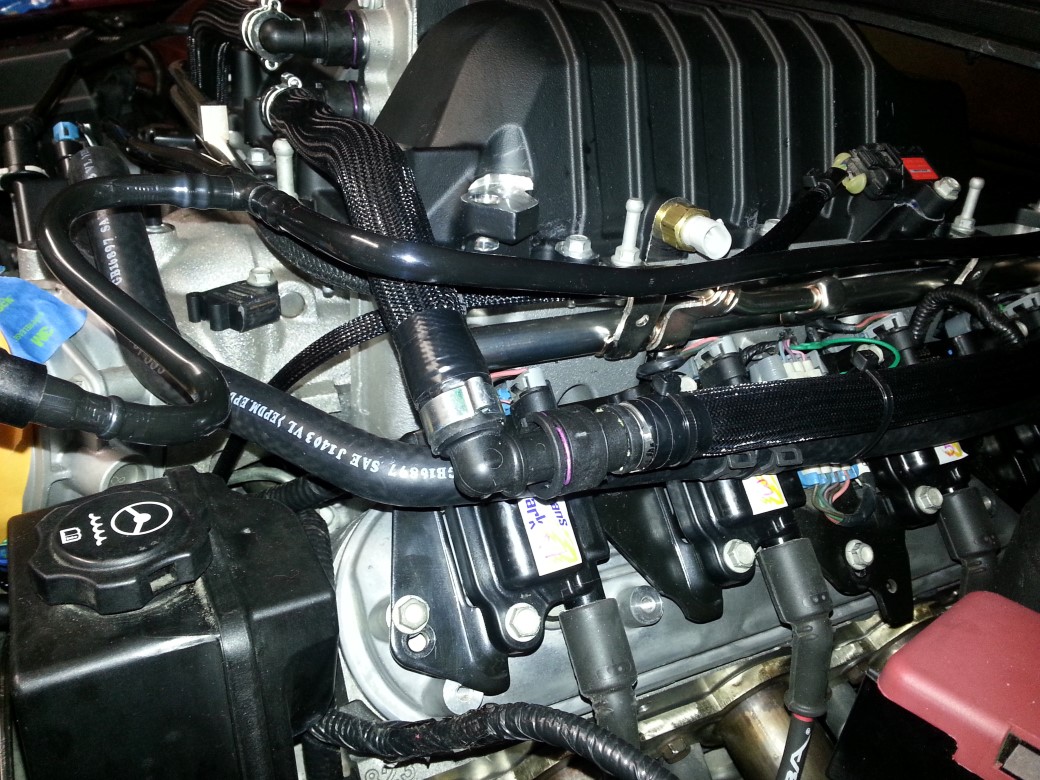

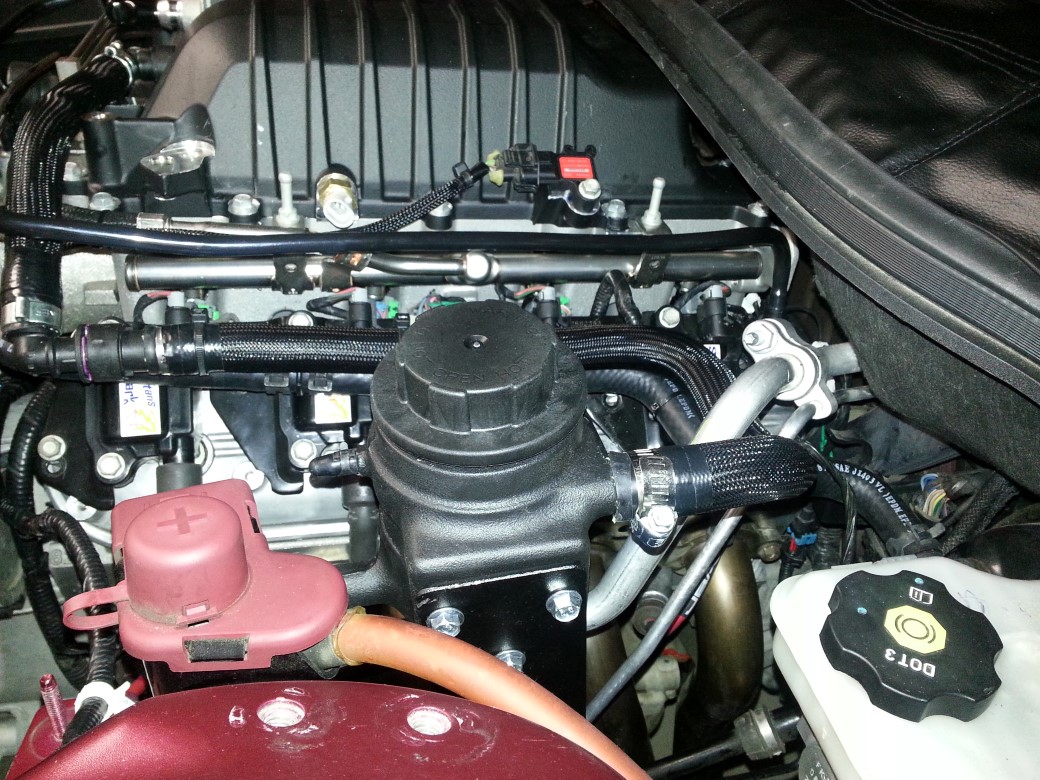

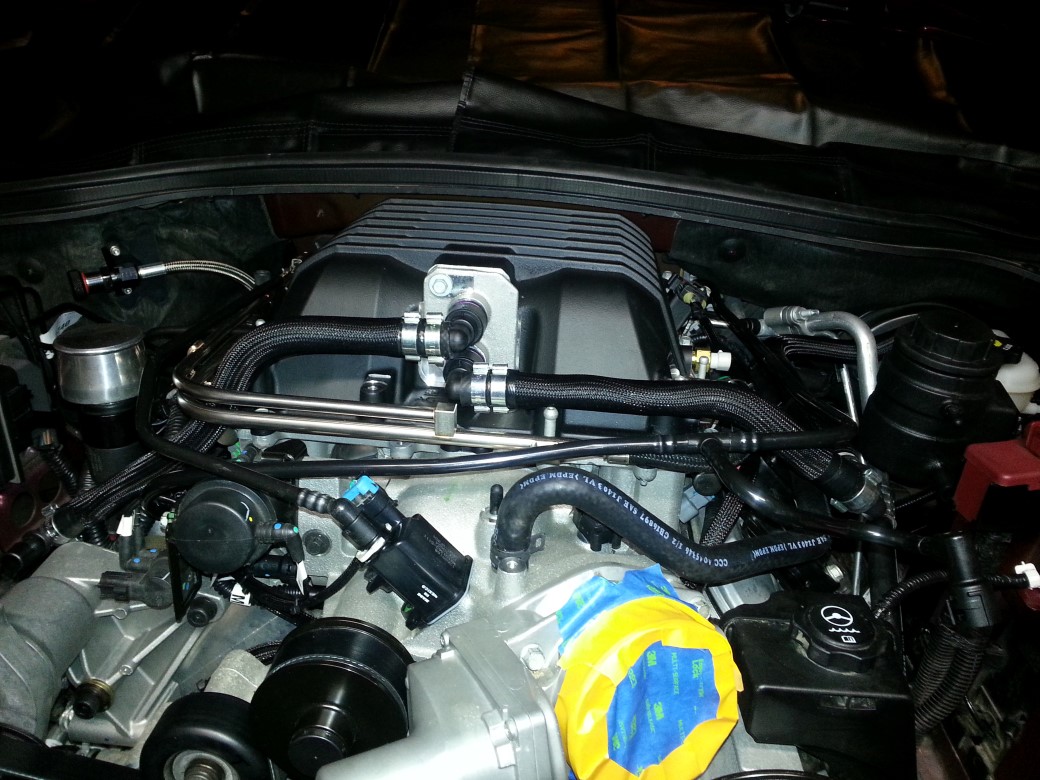

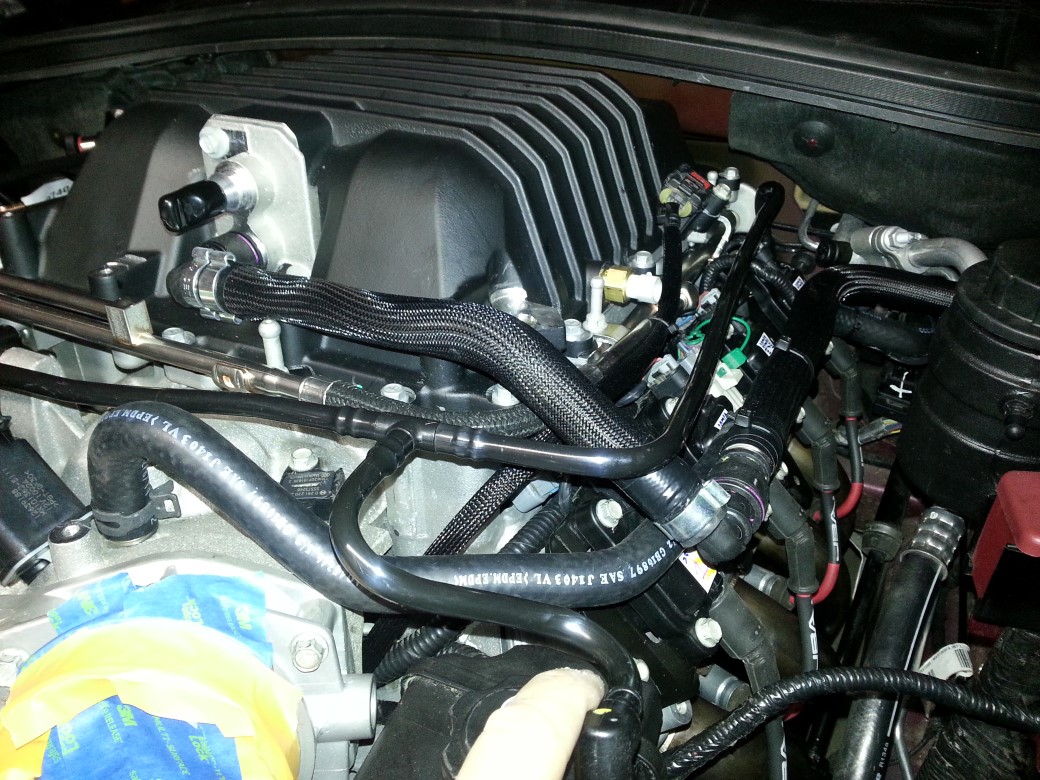

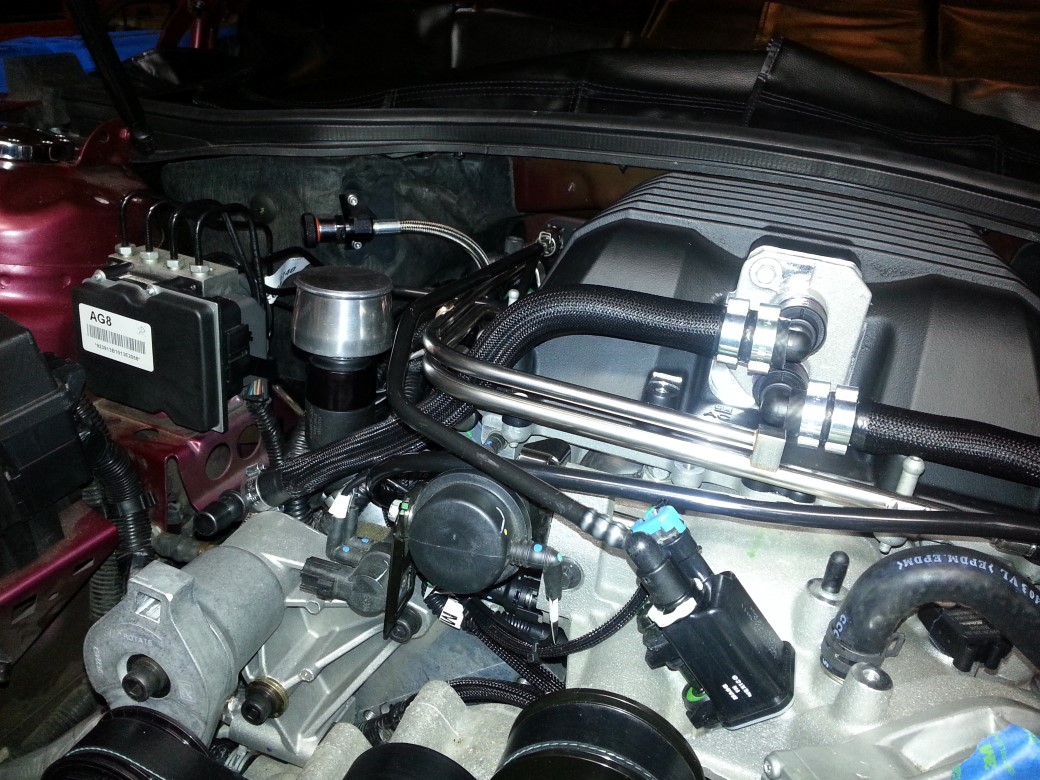

OK, working on the hoses for the Supercharger lid this morning. I used the clamps I bought and special fittings from ADM, along with the 'hose' covering I purchased from Master-Carr (3/4) and made these (used 2 5/8 90* bends):
