Blade · 02-16-2012, 08:45 AM

Just ordered mine

Mach · 02-16-2012, 09:36 AM

Quote:

Originally Posted by MACE_ENG

Once I get over this pesky cold (burning up like crazy) I'll organize the paperwork

People get sick in OZ? No way! You guys live in Paradise!

bmorecam · 02-16-2012, 11:55 AM

Quote:

Originally Posted by MACE_ENG

Thanks for the added info hapisok

It's certainly reinforces the primary nature of how this family of products work from more of a practical level rather then just a theoretical one.

To recap what I've written earlier in this thread
http://camaro5.com/forums/showpost.p...&postcount=362

It's the above reason that everyone who's purchased the 25mm item for their street duties have been quite happy and surprised with the real world performance of the product. If people religiously hang around the 5-7k power band mark then better value could be had with going a shorter item.

In saying that though I'm sure our plenum spacer which we'll be posting out to some people soon will improve top end performance (even with the 25mm item) by primarily improving air distribution and not just cooling

Hmmm hmm....

more for the LLT!!??

This is probably the best time for us LLT folks

and only getting started!

Blade · 02-16-2012, 12:00 PM

Is the plenum spacer different from the insulator? I am confused where does the plenum spacer sit?

KMPrenger · 02-16-2012, 12:17 PM

Quote:

Originally Posted by Blade

Is the plenum spacer different from the insulator? I am confused where does the plenum spacer sit?

X2

ChadG · 02-16-2012, 12:29 PM

Quote:

Originally Posted by KMPrenger

X2

Plenum spacer = throttle body spacer?

hapisok · 02-16-2012, 05:34 PM

the plenum is an air chamber that distributes air to the various cylinders which helps equalize air flow. general plenum volume is approximately 80% of engine capacity for naturally aspirated engines. too large of a plenum and you lose throttle response...too small and your Peak power is at a lower RPM.

bmorecam · 02-16-2012, 06:54 PM

What is a plenum spacers and what does it do?

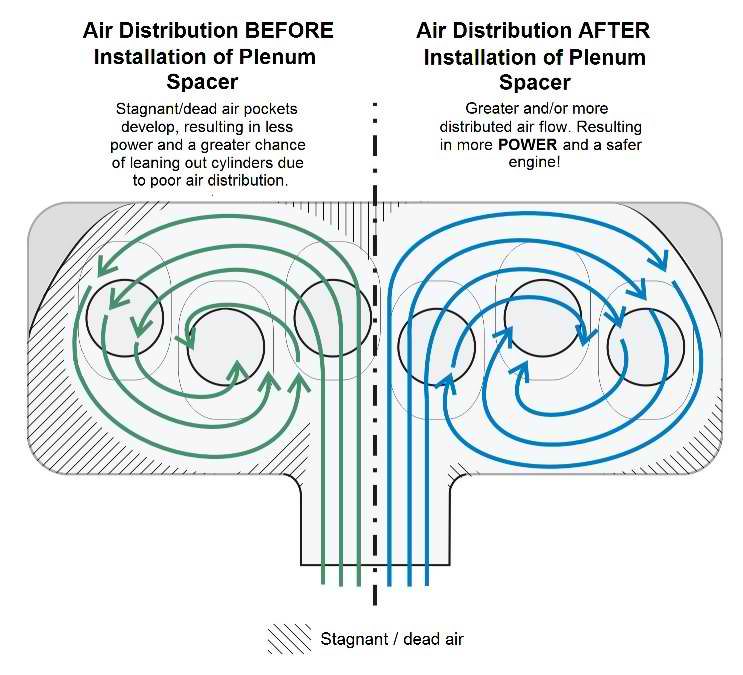

A Plenum spacer is a special spacer that sits between your plenum cover and intake manifold. Its main purpose is to improve air distribution (like our twin throttle manifold) between cylinders by slowing down the air speed inside the plenum chamber. As a result there is less of a pressure drop inside the plenum chamber between cylinders, and less air momentum, resulting in better air distribution and power. The change in airflow characteristics is shown in the diagram below.

Name: Airflowplenumspacerjpgsmall.jpg
Views: 798
Size: 74.9 KB

Name: Airflowplenumspacerjpgsmall.jpg
Views: 798
Size: 74.9 KB

Not only will our spacer help you make more power, it will also help prevent any costly rebuilds through dangerous lean outs that occur with these standard manifolds in high horsepower/boost applications (due to poor air distributions).
In addition to improving air distribution between cylinders, the increase in plenum volume also increases low down torque.
Made from the same thermal resistant composite material as our manifold insulators, means that further horsepower gains are to be had due to the reduction in air temperature. For further information about the material properties please check out our manifold insulators on auction

What's Included
Plenum spacer, longer plenum screws, and gasket maker. Basically everything you need for the insulation

What about installation?
Installation is very straight forward, requiring only the removal of your plenum cover to install the plenum spacer.

ChadG · 02-16-2012, 06:57 PM

Quote:

Originally Posted by bmorecam

What is a plenum spacers and what does it do?
A Plenum spacer is a special spacer that sits between your plenum cover and intake manifold. Its main purpose is to improve air distribution (like our twin throttle manifold) between cylinders by slowing down the air speed inside the plenum chamber. As a result there is less of a pressure drop inside the plenum chamber between cylinders, and less air momentum, resulting in better air distribution and power. The change in airflow characteristics is shown in the diagram below.

Attachment 336634

Not only will our spacer help you make more power, it will also help prevent any costly rebuilds through dangerous lean outs that occur with these standard manifolds in high horsepower/boost applications (due to poor air distributions).
In addition to improving air distribution between cylinders, the increase in plenum volume also increases low down torque.
Made from the same thermal resistant composite material as our manifold insulators, means that further horsepower gains are to be had due to the reduction in air temperature. For further information about the material properties please check out our manifold insulators on auction

What's Included
Plenum spacer, longer plenum screws, and gasket maker. Basically everything you need for the insulation

What about installation?
Installation is very straight forward, requiring only the removal of your plenum cover to install the plenum spacer.

Thanks guys, looks like an insanely easy installation . . . looking forward to seeing some hands on reviews!

Agarc · 02-16-2012, 07:03 PM

wait wait wait can we get this now to

MACE_ENG · 02-16-2012, 09:24 PM

Here's how the plenum spacer looks. Will elaborate more when I get more of a chance later on.

hapisok · 02-16-2012, 09:33 PM

looks similar to solid works...looks great!

Mach · 02-16-2012, 09:37 PM

Another mod?

How much hp/tq does this claim?

rtcat600man · 02-16-2012, 09:39 PM

Quote:

Originally Posted by Agarc

wait wait wait can we get this now to

02-16-2012, 08:45 AM	#407
Blade Drives: 2016 Camaro 2SS BVM Join Date: Dec 2009 Location: Charlotte Posts: 4,689 View My Garage	Just ordered mine __________________ Formerly owner of: 2012 2SS/RS Build Thread - Totaled by red light runner 2010 LT/RS Build Thread - Traded in for 2012 2SS 2007 Acura TSX 1992 Oldsmobile Achieva V6 1992 Mercury Sable

02-16-2012, 12:00 PM	#410
Blade Drives: 2016 Camaro 2SS BVM Join Date: Dec 2009 Location: Charlotte Posts: 4,689 View My Garage	Is the plenum spacer different from the insulator? I am confused where does the plenum spacer sit? __________________ Formerly owner of: 2012 2SS/RS Build Thread - Totaled by red light runner 2010 LT/RS Build Thread - Traded in for 2012 2SS 2007 Acura TSX 1992 Oldsmobile Achieva V6 1992 Mercury Sable

02-16-2012, 05:34 PM	#413
hapisok crazier than a coconut Drives: 2010 2SS/RS LS3 Join Date: Jul 2010 Location: virginia Posts: 1,547	the plenum is an air chamber that distributes air to the various cylinders which helps equalize air flow. general plenum volume is approximately 80% of engine capacity for naturally aspirated engines. too large of a plenum and you lose throttle response...too small and your Peak power is at a lower RPM. Attached Images __________________

02-16-2012, 06:54 PM	#414
bmorecam Account Suspended Drives: jealous vendors mad!! HAHA!! Join Date: Jan 2011 Location: CYBERGMONSTER@GMAIL.COM Posts: 3,658 View My Garage	What is a plenum spacers and what does it do? A Plenum spacer is a special spacer that sits between your plenum cover and intake manifold. Its main purpose is to improve air distribution (like our twin throttle manifold) between cylinders by slowing down the air speed inside the plenum chamber. As a result there is less of a pressure drop inside the plenum chamber between cylinders, and less air momentum, resulting in better air distribution and power. The change in airflow characteristics is shown in the diagram below. Not only will our spacer help you make more power, it will also help prevent any costly rebuilds through dangerous lean outs that occur with these standard manifolds in high horsepower/boost applications (due to poor air distributions). In addition to improving air distribution between cylinders, the increase in plenum volume also increases low down torque. Made from the same thermal resistant composite material as our manifold insulators, means that further horsepower gains are to be had due to the reduction in air temperature. For further information about the material properties please check out our manifold insulators on auction What's Included Plenum spacer, longer plenum screws, and gasket maker. Basically everything you need for the insulation What about installation? Installation is very straight forward, requiring only the removal of your plenum cover to install the plenum spacer.

02-16-2012, 09:24 PM	#417
MACE_ENG Drives: LLT Machine Join Date: Nov 2011 Location: VIC/AUS Posts: 563	Here's how the plenum spacer looks. Will elaborate more when I get more of a chance later on. Attached Images

02-16-2012, 07:03 PM	#416
Agarc Dr.Frankenstein Drives: 15gt Join Date: Jul 2011 Location: MIA Posts: 1,568 View My Garage	wait wait wait can we get this now to

02-16-2012, 09:33 PM	#418
hapisok crazier than a coconut Drives: 2010 2SS/RS LS3 Join Date: Jul 2010 Location: virginia Posts: 1,547	looks similar to solid works...looks great! __________________

02-16-2012, 09:37 PM	#419
Mach Drives: White M6 1LT RS Join Date: Mar 2010 Location: Canton, MI Posts: 1,676	Another mod? How much hp/tq does this claim? __________________ Pfadt Sway Bars - FE3 Suspension - Barton Shifter - IdealG's Clutch Master Cylinder - Trifecta - Vmax TB - Vararam Intake - MACE 25mm Insulator - Plenum Insulator - Ported/Gasket Matched Intake Manifold - Rx Catchcan - AAC DRL's - 4 Pack Aux Gauges - Steering Controls - AAC Afterburners - DIY Led Sidemarkers - ZL1 Front End Next mod: Done!
