Car Show Stand - Camaro5 Chevy Camaro Forum / Camaro ZL1, SS and V6 Forums

SOPMOD · 04-14-2011, 07:20 PM

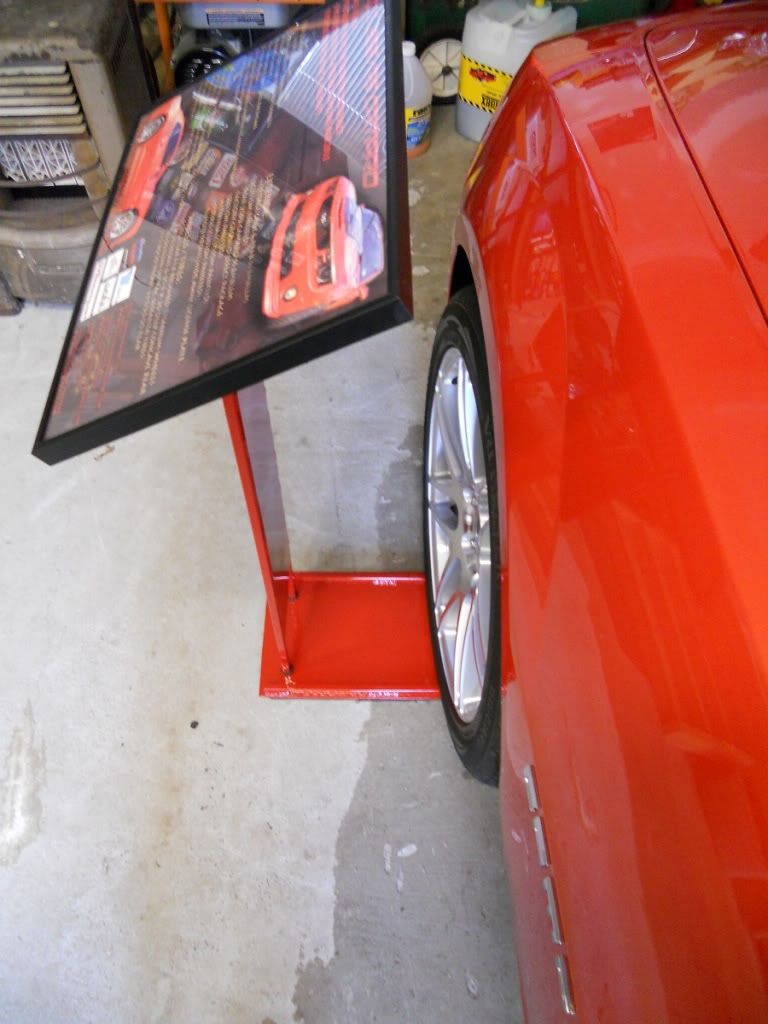

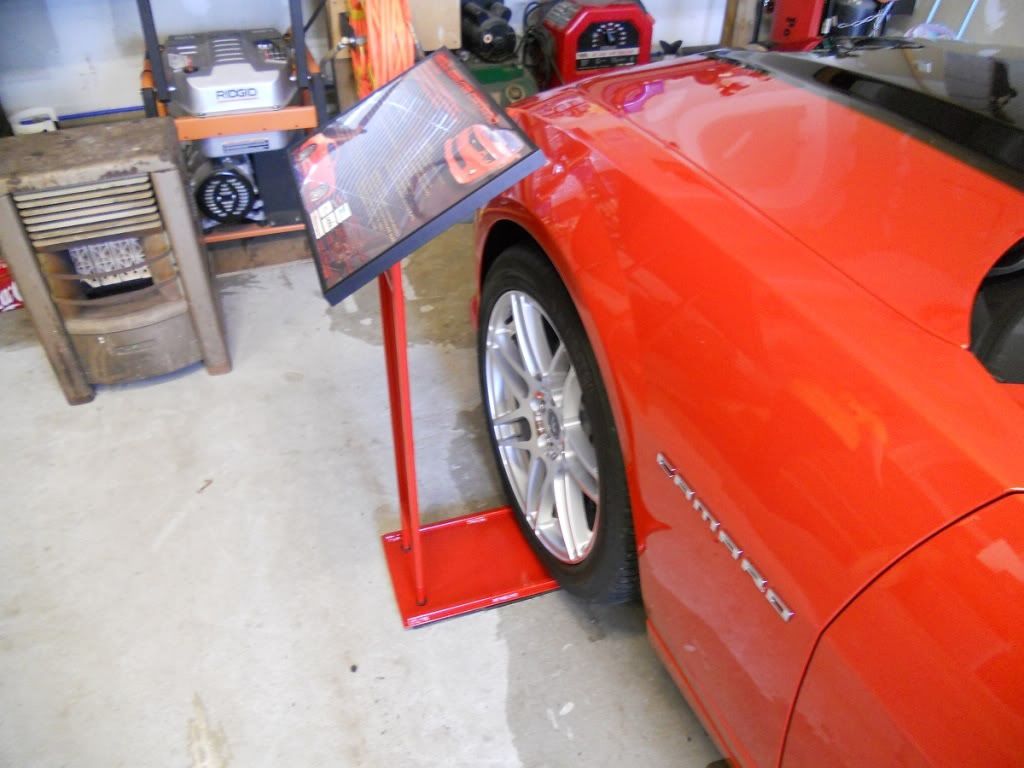

Here is a car show stand I put together for myself and had billyspeed paint. I also did one for him and he painted his to match his car.

I looked around the web and really did not find anything I would buy myself so I decided to make my own.

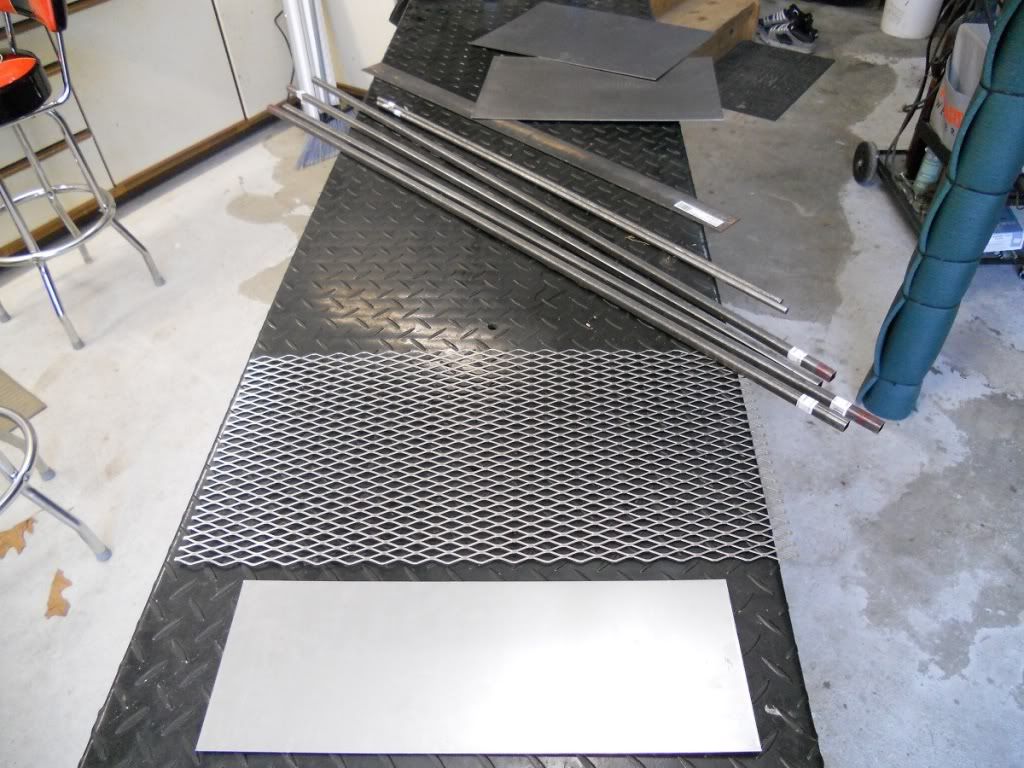

Picked up most the materials at the local Lowe's store. I had the base material from another project I did.

Top: 16 Gage 12" X 18" and 2- 3/8" X 6" rod

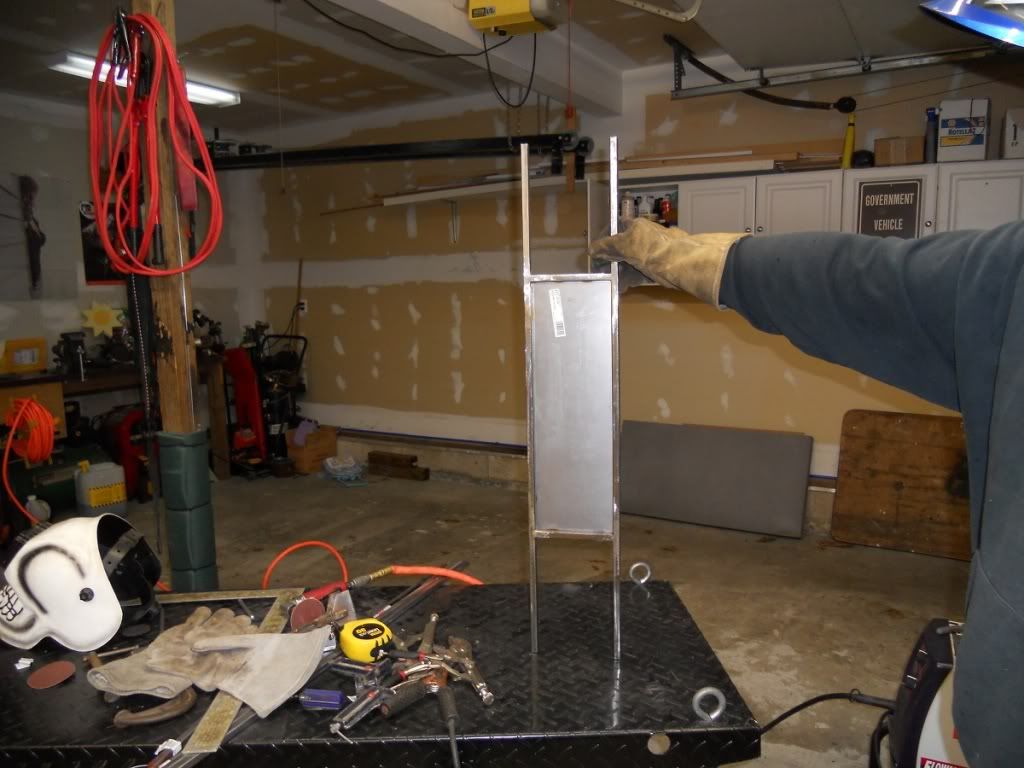

Upright: 1/2" X 1/2" square tube ( 2 x 4'), 1- 6" X 24" 16 Gage
(36" tall 6" Wide)
Base: 1/8" X10" X 24" and 2- 3/8" X 6" rod

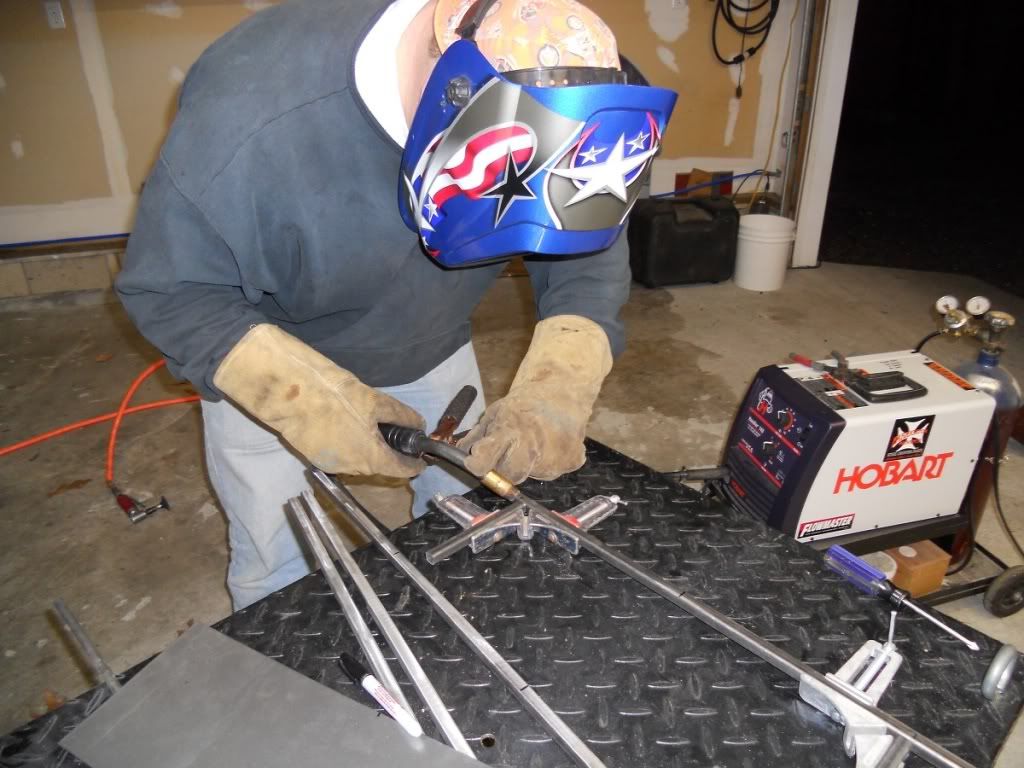

Once the welds were cleaned up everything was bead blasted with black magic.

Used 1/4" rubber floor mat on the bottom of base.

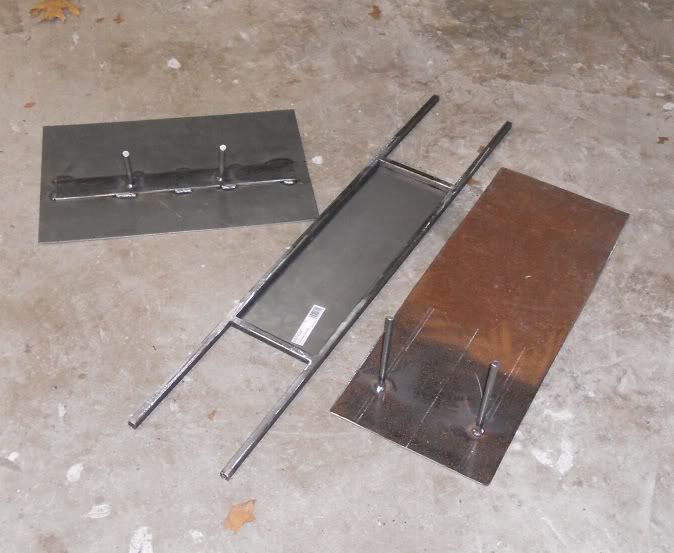

Stand is designed into three major sections. The base, upright, and poster frame. Easy to assemble disassemble and put in trunk.

Purchased the poster frame at AC Moore, Poster was printed at a local Copies Plus.

Poster is 12" X 18" and was designed and put together by Jay at http://www.jerseyautoparts.com/Custo...20Posters.html They are very reasonable and have some great ideas.
You send him your info, logo's, and photo's and he sends you a proof when he is done. If you like it you pay through Pay-Pal and he sends you the file. Price depends on what you have him do. You can see our posters at the link above.

Then take the file to Walmart Walgreen's or wherever?

I have not sat down and figured out exactly what we have in them but I would estimate around $120 less paint. Also keep in mind no labor, it was just a fun project and we now have a one of a kind stand for the local shows.

SOPMOD...OUT!

khalsa013 · 04-14-2011, 07:56 PM

NICEEE....wish we had car shows in WI!!

RSokie · 04-15-2011, 08:10 AM

Great job!

Kwik · 04-15-2011, 09:37 AM

Very well done!

NEGXXIS · 04-15-2011, 07:27 PM

Very Nice!!

billyspeed · 04-16-2011, 04:47 PM

orange stand looks ok, but my stand in cyber gray is waaaaaay better!!!!!!

just kidding

SOPMOD · 04-16-2011, 06:00 PM

Quote:

Originally Posted by billyspeed

orange stand looks ok, but my stand in cyber gray is waaaaaay better!!!!!!

just kidding

Post some pic's sissy....OH' and that's cause your wrist is limp!

SOPMOD...OUT!

SOPMOD · 04-16-2011, 06:02 PM

Thanks for the comments!
They did turn out nice, we will see what kind of response we get at the show we are going to tomorrow?

SOPMOD...OUT!

04-14-2011, 07:20 PM	#1
SOPMOD El Presidente (SJCC) Drives: 2011 SS2 / 2011 LT Join Date: Nov 2010 Location: PA. USA Posts: 613 View My Garage	Car Show Stand Here is a car show stand I put together for myself and had billyspeed paint. I also did one for him and he painted his to match his car. I looked around the web and really did not find anything I would buy myself so I decided to make my own. Picked up most the materials at the local Lowe's store. I had the base material from another project I did. Top: 16 Gage 12" X 18" and 2- 3/8" X 6" rod Upright: 1/2" X 1/2" square tube ( 2 x 4'), 1- 6" X 24" 16 Gage (36" tall 6" Wide) Base: 1/8" X10" X 24" and 2- 3/8" X 6" rod Once the welds were cleaned up everything was bead blasted with black magic. Used 1/4" rubber floor mat on the bottom of base. Stand is designed into three major sections. The base, upright, and poster frame. Easy to assemble disassemble and put in trunk. Purchased the poster frame at AC Moore, Poster was printed at a local Copies Plus. Poster is 12" X 18" and was designed and put together by Jay at http://www.jerseyautoparts.com/Custo...20Posters.html They are very reasonable and have some great ideas. You send him your info, logo's, and photo's and he sends you a proof when he is done. If you like it you pay through Pay-Pal and he sends you the file. Price depends on what you have him do. You can see our posters at the link above. Then take the file to Walmart Walgreen's or wherever? I have not sat down and figured out exactly what we have in them but I would estimate around $120 less paint. Also keep in mind no labor, it was just a fun project and we now have a one of a kind stand for the local shows. SOPMOD...OUT! Last edited by SOPMOD; 04-14-2011 at 07:32 PM.

04-15-2011, 08:10 AM	#3
RSokie Proud owner of Litho #195 Drives: 2011 CGM 2LT/RS Join Date: Sep 2010 Location: Oklahoma Posts: 2,551	Great job! __________________ *Mods:http://www.camaro5.com/forums/showthread.php?p=3139029#post3139029* *Team LLT Social Group Link:http://www.camaro5.com/forums/group.php?groupid=256*

04-15-2011, 09:37 AM	#4
Kwik Drives: car Join Date: Feb 2010 Location: USA Posts: 801	Very well done! __________________ Upgrades to suspension, brakes, motor and appearance. 482.7 RWHP- 434.2 RWT - All motor.

04-15-2011, 07:27 PM	#5
NEGXXIS Drives: 2019 Camaro SS A10 Join Date: May 2009 Location: Tempe, Arizona Posts: 1,062 View My Garage	Very Nice!! __________________ 2020 Range Rover Sport HSE P525 Supercharged 5.0 - Firenze Red - 9012 wheels SOLD 2019 Camaro SS -Wrapped in Matte Magnectic Black - Anderson Carbon Hood and Rear Spoiler – Ikon front spoiler – OEM ZL1 Side Rockers - ZL1 Addons Diffuser - BMR 1.0” Lowering Springs - MRR 228 Wheels 20x10 and 20x11 RIP 2016 Camaro SS https://www.camaro6.com/forums/showthread.php?t=565453 SOLD 2010 Camaro SS Featured in GM High Tech Performance and Camaro Now Magazines - http://www.superchevy.com/features/g...of-perfection/

04-16-2011, 04:47 PM	#6
billyspeed BILLYSPEED Drives: 2016 black camaro SS Join Date: May 2009 Location: Williamstown N.J. Posts: 640	orange stand looks ok, but my stand in cyber gray is waaaaaay better!!!!!! just kidding __________________ 2010 camaro ss sold 2011 camaro 2ss/rs convertable sold 2015 ZL1 sold 2016 camaro SS sold

04-14-2011, 07:56 PM	#2
khalsa013 Drives: 2ss & ZL1 Join Date: Oct 2010 Location: wisconsin-Miwaukee Posts: 675	NICEEE....wish we had car shows in WI!!

04-16-2011, 06:02 PM	#8
SOPMOD El Presidente (SJCC) Drives: 2011 SS2 / 2011 LT Join Date: Nov 2010 Location: PA. USA Posts: 613 View My Garage	Thanks for the comments! They did turn out nice, we will see what kind of response we get at the show we are going to tomorrow? SOPMOD...OUT!
