11-17-2014, 02:40 PM
|
#1 |
Drives: LSx Performance Specialist Join Date: Jul 2011
Location: Lafayette, LA
Posts: 517
|

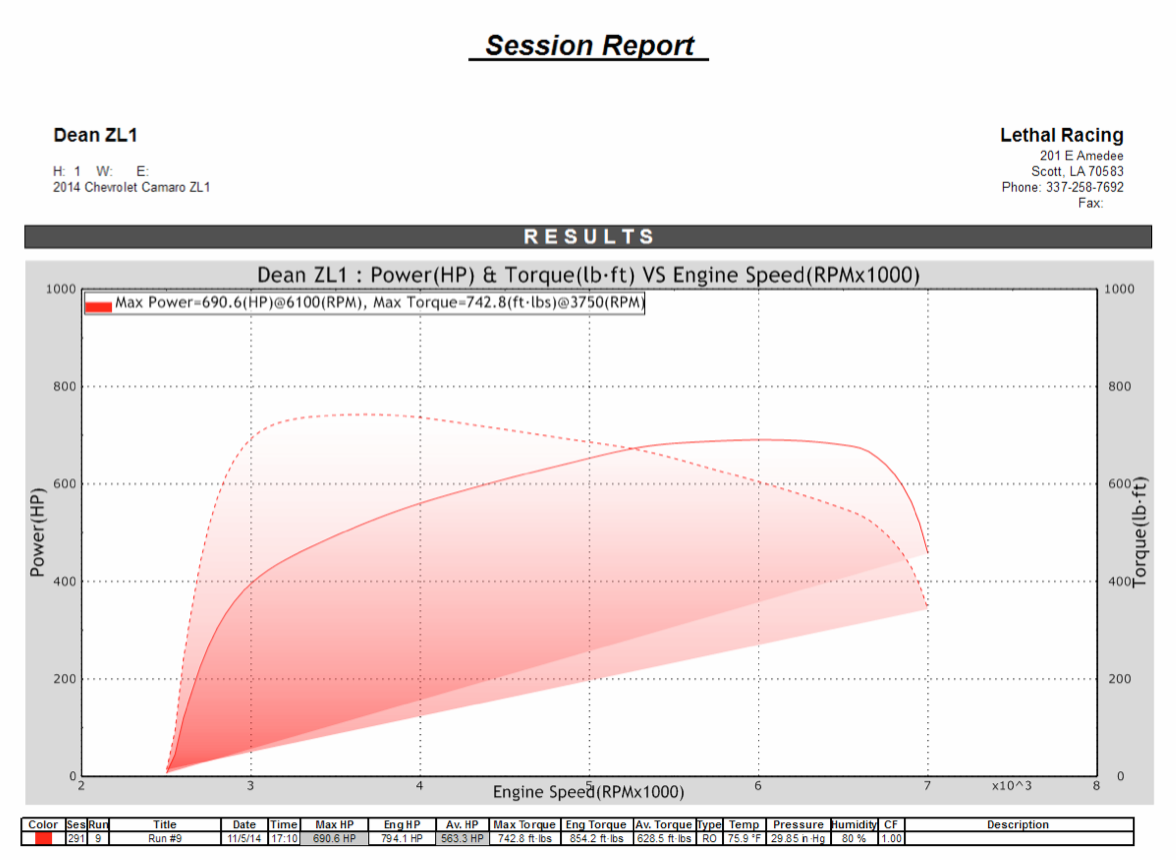

Lethal Racing ZL1 690rwhp - Idle & Dyno Clip

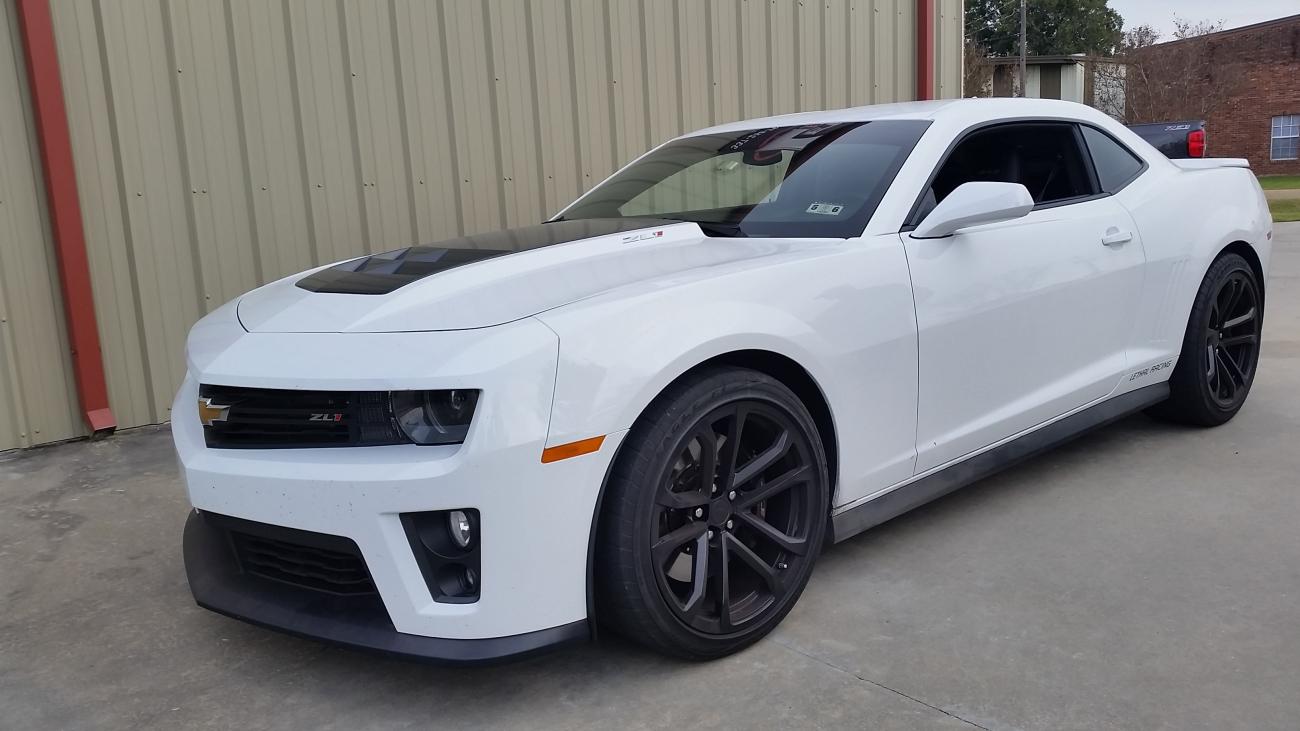

We just wanted to share this 2014 ZL1 M6 that we finished up in the shop last week. It came to us with just 1600miles.

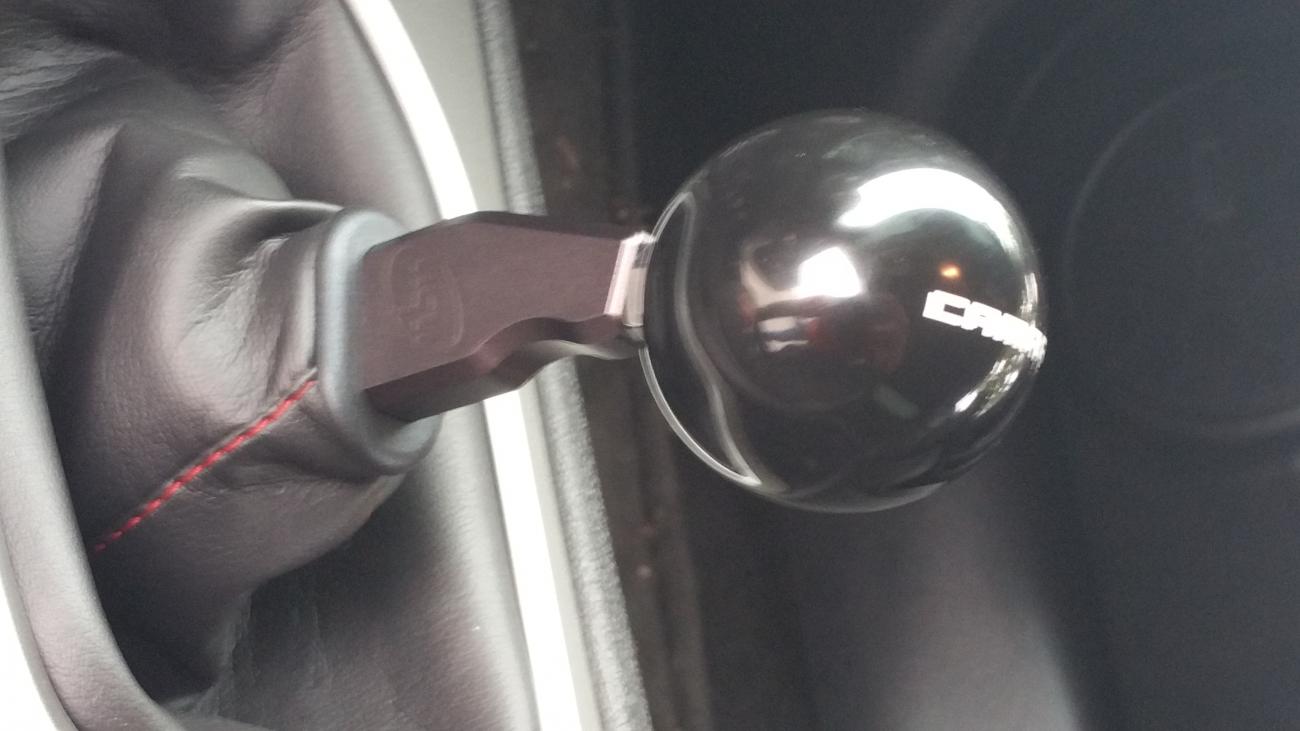

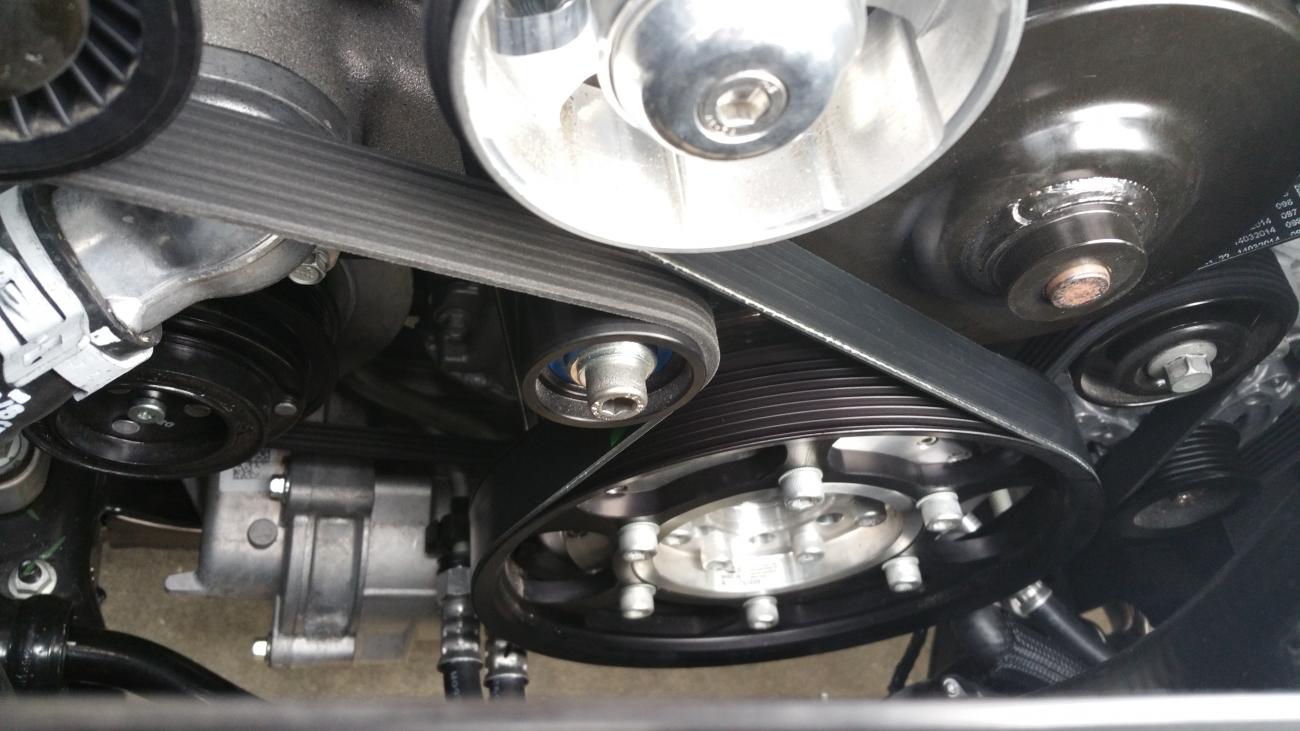

We added: LR-Custom Camshaft LR-Dual 660 Spring kit w/Ti Retainers Stainless Works Headers Stainless Works Exhaust Innovators West Balancer Metco 2.5 Upper Pulley KDI-Heat Exchanger MGW Shifter CAI Cold Air Rotofab Big Gulp Lingenfelter Reservoir LR-Custom Dyno and Street Tuning |
|
|
|
11-17-2014, 03:17 PM
|
#2 |
|
#00193
Drives: 14 ZL1 - 12 CT Join Date: Oct 2014
Location: Doha, Qatar
Posts: 128
|
Great gains!
|
|
|
|
|
11-17-2014, 03:31 PM
|
#3 |

Drives: Silver 2010 SS Camaro Join Date: Jul 2009
Location: TN
Posts: 2,562
|
Can anyone tell me how some cars make more TQ than HP on these cars because most of the time it's the other way around?
__________________
MODS:
ADM built 417, 2.9L Whipple with 3.250 pulley, ADM ported and polished LSA heads,ADM stage3 cam,ADM LSA belt drive system,ADM CAI race scoop, ADM dual fuel pumps, ID 850's, BMR full suspension, Gforce 9 inch kit with 3.5 inch driveshaft, Street Slayer twin carbon clutch, Lingenfelter oil seperator. Tuned by built by ADM Performance, 763rwhp,705rwtq |
|
|
|
|
11-17-2014, 03:39 PM
|
#4 |
Drives: 2012 Camaro SS 45th Anniversary Join Date: Sep 2013
Location: Albuquerque
Posts: 963
|
jeezus!
__________________
 ~ 2012 SS ~ |
|
|
|
|
11-17-2014, 03:57 PM
|
#5 | |

Drives: '21 ZLE A10 Join Date: May 2012
Location: Mechanicsville, VA
Posts: 6,824
|
Quote:
__________________
'21 ZLE A10 Wild Cherry PDR 2:00.78 VIR Full 10.68@131.69 1.68 60'
'17 ZL1 A10 Mosaic Black PDR/Nav 2:03.08 VIR Full 11.003@129.2 1.75 (sold) '15 Z/28 #325 Black a/c & stereo. 2:10.1 VIR Full (sold) '12 ZL1 A6 Black 10.52@131 1.55 60' 2:13 VIR Full (sold) |
|
|
|
|
|
11-17-2014, 04:09 PM
|
#6 | |
|
Drives: Silver 2010 SS Camaro Join Date: Jul 2009
Location: TN
Posts: 2,562
|
Quote:
__________________
MODS:
ADM built 417, 2.9L Whipple with 3.250 pulley, ADM ported and polished LSA heads,ADM stage3 cam,ADM LSA belt drive system,ADM CAI race scoop, ADM dual fuel pumps, ID 850's, BMR full suspension, Gforce 9 inch kit with 3.5 inch driveshaft, Street Slayer twin carbon clutch, Lingenfelter oil seperator. Tuned by built by ADM Performance, 763rwhp,705rwtq |
|
|
|
|
|
11-18-2014, 02:30 AM
|
#7 |
 Drives: camaro Join Date: Nov 2014
Location: CA
Posts: 2
|
My car usually is slightly more torque vs hp with the stock cam. Some of the camshafts that peak at higher rpm usually show less peak torque.
|
|
|
|
|
11-18-2014, 01:35 PM
|
#8 |

Drives: 2013 ZL1 Join Date: May 2014
Location: Kansas City
Posts: 14
|
Are you using the stock injectors?
|
|
|
|
|
11-18-2014, 05:43 PM
|
#9 | |
|
Drives: LSx Performance Specialist Join Date: Jul 2011
Location: Lafayette, LA
Posts: 517
|
Quote:
|
|
|
|
|
|
11-18-2014, 11:00 PM
|
#10 | |
Drives: 02 Z06, 95 Trans Am, 2012 ZL1 Join Date: Mar 2012
Location: Southeast
Posts: 1,838
|
Quote:

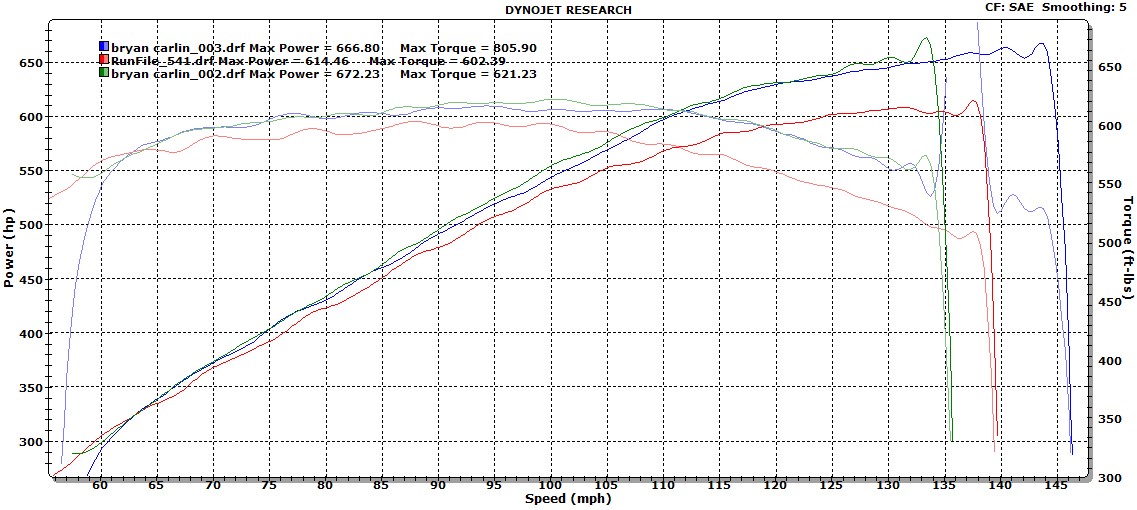

Yes. Exactly this. Larger cams with more duration can carry the torque out to a higher RPM. And you must understand the relationship between HP an TQ. TQ is the twisting force of the tires on the pavement. That's what propels your car. I.E. torque is angular force. Now HP is calculated from TQ. HP=(TQ x RPM)/5250 From this you can see that because TQ is multiplied times RPM that the same amount of TQ at a higher RPM results in a lot more HP. Also the nature of this equation is why the HP and TQ curves always cross at 5250 RPM. This is why a diesel engine that makes massive TQ at low rpm doesn't equate to much HP. Say a turbo diesel truck makes 700 ft-lb of torque at a low 2000 RPM. (700 x 2000)/5250=260HP Only 260 HP! Now see in my car how a bigger cam with all other things constant (same boost etc.) makes way more TQ the faster you spin the engine. This results in some increase in peak TQ but a big increase in HP.
__________________
 Bryan 2018 ZL1 M6 |
|
|
|
|
|
11-18-2014, 11:17 PM
|
#11 |
|
Drives: 02 Z06, 95 Trans Am, 2012 ZL1 Join Date: Mar 2012
Location: Southeast
Posts: 1,838
|
Or check this out. A 1.6 liter turbo Formula1 engine can easily spin to 15000rpm. Look how much TQ but very high HP output.
__________________
Bryan 2018 ZL1 M6 |
|
|
|
|
11-19-2014, 09:24 AM
|
#12 |

Drives: 2013 Camaro ZL1 A6 Join Date: May 2013
Location: Slidell, La
Posts: 248
|
Nicely done.
|
|
|
|
|
11-19-2014, 07:56 PM
|
#13 |
|
Drives: 14 1LE Join Date: Jul 2013
Location: 'merica
Posts: 261
|
was this the retro chambered exhaust?
|
|
|
|
|
11-20-2014, 09:47 AM
|
#14 | |
|
Drives: LSx Performance Specialist Join Date: Jul 2011
Location: Lafayette, LA
Posts: 517
|
Quote:
Yes sir, Retro chambered exhaust |
|
|
|
|
|
|
|
|
 |
|
|
